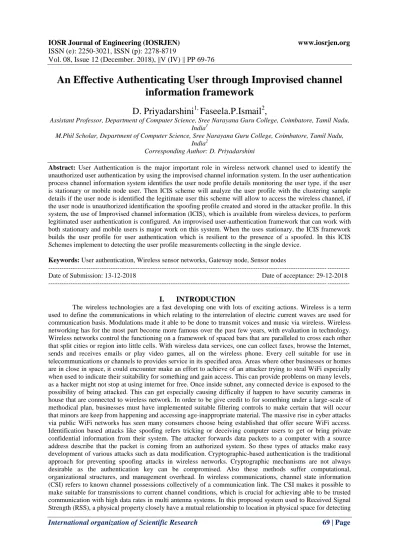

Vol. 08, Issue 12 (December. 2018), ||V (IV) || PP 69-76
An Effective Authenticating User through Improvised channel
information framework
D. Priyadarshini
1,Faseela.P.Ismail
2,
Assistant Professor, Department of Computer Science, Sree Narayana Guru College, Coimbatore, Tamil Nadu, India1
M.Phil Scholar, Department of Computer Science, Sree Narayana Guru College, Coimbatore, Tamil Nadu, India2
Corresponding Author:D. Priyadarshini
Abstract: User Authentication is the major important role in wireless network channel used to identify the unauthorized user authentication by using the improvised channel information system. In the user authentication process channel information system identifies the user node profile details monitoring the user type, if the user is stationary or mobile node user. Then ICIS scheme will analyze the user profile with the clustering sample details if the user node is identified the legitimate user this scheme will allow to access the wireless channel, if the user node is unauthorized identification the spoofing profile created and stored in the attacker profile.In this system, the use of Improvised channel information (ICIS), which is available from wireless devices, to perform legitimated user authentication is configured. An improvised user-authentication framework that can work with both stationary and mobile users is major work on this system. When the uses stationary, the ICIS framework builds the user profile for user authentication which is resilient to the presence of a spoofed. In this ICIS Schemes implement to detecting the user profile measurements collecting in the single device.
Keywords: User authentication, Wireless sensor networks, Gateway node, Sensor nodes
--- --- Date of Submission: 13-12-2018 Date of acceptance: 29-12-2018 --- ---
I.
INTRODUCTION
spoofing attacks, finding the number of attackers and have a mutual relationship multiple adversaries. Many methods of conventional approaches are used to authenticate application to address the problem based attack but fails eventually. The goal of this proposed system is to use this CSI data to recognize user activities.
II.
PROBLEM DEFINITION
In the term authentication is initially use every security based systems, because it provide high security. Trendy, technology is provides various types of authentication schemes for security. There more security based techniques are available in the growing technology. Early, the data are routed from one node to other node using the available and different protocols. The routing protocol is classified into three types of category such as, (i) data-centric protocols, (ii) hierarchical protocols, (iii) location based protocols. The first types of protocol are the query based and using the concept of naming of desired data is to eliminate many redundancy of transmission within the network. The second types of protocol included cluster nodes and then the cluster heads (CH) can be aggregated and reduced the data save energy. Third protocol is using the position information and it to send the data to only the desired regions rather than to the whole network. Other Wireless Sensor Network protocols are, (i) Low Energy Adaptive Clustering Hierarchy (LEACH), (ii) Threshold Sensitive Energy Efficient Sensor Network (TEEN), (iii) Adaptive Threshold TEEN (APTEEN), (iv) Power Efficient Gathering Sensor Information System (PEGASIS), (v) Sensor Protocol for Information via Negotiation (SPIN), (vi) Diffusion Direct (DD), (vii) Rumors Routing (RR), (viii) Geography and Energy-Aware Routing (GEAR), (ix) Geographic Adaptive Fidelity (GAF).
In [1] Boniface K. Alese et al. has presents the concept namely, “A Fine-grained Data access control system in wireless sensor network”. The Wireless Sensor Network (WSN) is one of the evolving realities that deployed to various area or plane or surface area requires serving the multiple applications. The wireless based sensor network is holds more and large amount of sensed data, that data distributed and stored in to the individual sensors nodes, but some illegal activities access these sensed and sensitive data that is destroys the data. So in this scenario the data is considers insecurity of data. Therefore, the fine-grained access control system is only requires the right set of users so to access the particular data. It is based on their access privileges in the sensor networks. In this has designed by using priccess protocol with access the policy formulation then adopting principle of the bell lapadula model same as Attribute-Based Encryption (ABE). The ABE is to control access and access the sensor data. The system functionality is simulated by Netbeans. The system is to analysis the performance by using the execution time and size of key show that has higher the key size so easily attacker hack the system. If a well secured and interactive web-based applications in the cloud that facilitates the field officers access that is authenticating person can access the stored data so the data is safe and its development based on secure manner.
In [2] Dan boneh et al. has presents the concept, “Fine-grained control of security capabilities”. It introduces the security privileges of an online SEmi-trusted Mediator (SEM). The use of SEM is refers the RSA cryptosystem, it offers a number of revocation techniques. It gives more security means in this techniques simplifies the digital signatures, efficient certificate revocation for legacy systems, fast signature revocation and some decryption capabilities. Generally the authentication based all system follows the Public Key Infrastructure (PKI). In this scheme is applied in the secure applications like, email, file transfer, remote log-in and web browsing.
In [3] Hongbo, et al. has presents the concept namely, “Practical user authentication leveraging channel state information (CSI)”. It includes channel state information (CSI) to achieve sensible user validation in wireless networks. The fine-grained channel information is included in CSI. It has provides the possibility and to achieves the correct user validation and this CSI-based user validation framework that comprises the Attack-resilient User Profile Builder and Profile Matching Authenticator are introduced. The Attack-resilient Profile Builder utilizes clustering analysis to cleverly resolve whether the network situation is without the occurrence of the identity-based attack when erecting up the profile for the genuine user. Using the Profile Matching Authenticator and to achieves packet level user validation grounded on Support Vector Machine (SVM). The capability is similar to signal fingerprints.
In [4] Zeng, Kai et al. has presents the concept namely, "Non-cryptographic authentication and identification in wireless networks [security and privacy in emerging wireless networks]”. In the concept of
non-cryptographic means of user authentication and device recognition in both fixed and mobile wireless networks using lower/physical layer possessions or information. This method and their execution issues are considered, though most of the present methods illustrates the utilities in static wireless networks, restricted efforts have measured mobile cases. Then two RSS-based authentication methodologies are applied in the mobile networks. The holistic cross layer security method is to accessing the layer information that can be shared with the conventional cryptographic mechanisms so it is fascinated in rising up the wireless networks.
data and applications such as photos, text messages, emails and mobile banking oriented applications. Each and every task within each of the applications includes different levels of sensitivity. It investigates the authenticated mobile user then by focusing on these different level (of sensitivity) and in this level each process with application and understanding a certain user action in a process can requires the protection. Use an approach to give the security and includes lack of adequate security solutions to unauthorized access it only accepts the mobile devices.
In [6] Yang, Jie, et al. has presented the paper namely, "Detection and localization of multiple spoofing attackers in wireless networks”. In this concept is to access Received Signal Strength (RSS) which is depend on spatial association, a physical assets connected with each wireless device that is tough to fake and it depends on cryptography as the foundation for discovering spoofing attacks in the wireless networks. In the concept offered theoretical analysis of accessing the spatial correlation of RSS obtained from wireless nodes for harass discovery. Then the experimental result is based on the cluster analysis of RSS readings. This methodology can detect the occurrence of attacks as well as establish the quantity of opponents, faking the same node identity, so that localization of any number of attackers is possible and also can be eradicated. Number of opponents is terminated that is mostly a tough issue. The purpose of,”SILENCE” has been widen, a mechanism that utilizes the smallest distance testing in adding up. Then the cluster analysis to attain enhanced accurateness of resolving the quantity of attackers than other methods. Then the training data is using Support Vector
Machines (SVM) depending on the methodology to additional enhancement of the correctness by determining
the quantity of attackers exists in the system. To validate this method, the accomplishment of experiments on two test beds through both an 802.11network (Wi-Fi) and an 802.15.4 (ZigBee) networks. The establishment of this discovery mechanism is extremely effectual and technical in both identifying the occurrences of attacks with invention rates over 98% and determining the number of opponents, attaining over 90% hit rates. It determines the accuracy at the same time by using SILENCE and SVM-based mechanism. Further, based on the number of opponents determined by this methodology, the incorporated detection and localization system can concentrate any number of opponents even when attackers using diverse transmission power levels. Then the attainment of localizing opponents accomplishes alike results as those under usual conditions, thereby, offering strong confirmation of the effectiveness of the approach in identifying wireless spoofing attacks, formatting the number of attackers and localizing adversaries.
In [7] Wang, Yan, et al. Has presented the concept is, “E-eyes: device-free location-oriented activity identification using fine-grained Wi-Fi signatures”. Observing in-home behavior includes applications such as security monitor and healthiness organization. Secondly, offering exact action identification without committed the wearable or in-building devices is quite tough. Then utilized the popularity of Wi-Fi framework and propose a scheme called E-eyes to execute device-free location-oriented activity detection by using the fine-grained
channel state information (CSI) accessible in the existing Wi-Fi protocol (i.e., 802.11n). It finds out the CSI provide distinctive patterns of small-scale vanishing originated by the dissimilar human behavior at a subcarrier level, which is inaccessible in the conventional Received Signal Strength (RSS) that is per packet level. The concept giving some benefits from many vital in-home activities happen in one or a little committed locations. It is therefore regularly adequate to gather a tiny quantity of the profiles for these activities in each of these locations. It is to (E-eyes) relates with matching algorithms to evaluate the CSI measurements beside familiar profiles to discover the activity. Then the experimental resultant in two different-sized buildings reveal that E-eyes is effectual in distinction a number of daily activities, and that it can attain a detection rate as high as 92%.
III.
PROPOSED SYSTEM
The proposed system presents an Improvised Channel Information System scheme to provide secure user authentication and detect false user profiles node in a secure user authentication. In this proposed system presents the enhanced secure decode technique to determinate whether the set of profile details from the user authentication side. This module studies the real-time enhanced decoder measurements per packet from a device ID and performs user authentication by performing user profile matching. It is grounded in machine-learning based techniques and raises an alert if the profile matching fails. Our authenticator aims to achieve fine-grained user authentication as it can work at a per packet level - authenticating each packet of the device ID. It is capable of authenticating different users even when they possess similar signal fingerprints due to the complex environments arising in real systems. In this authentication types single antenna and multiple antenna process the authenticator works.
In the previous work differ from, we propose to use enhance decode scheme for a readily available fine-grained channel information from the current commercial hardware, which represents both amplitude and phase for each subcarrier on the orthogonal frequency division multiplexing (ofdm) system. Exploiting receiving signal strength has the potential to achieve much higher granularity in both spatial and sequential dimensions for user authentication than applying existing channel based authentication methods. In this work is connected which utilizes channel information magnitude measurements averaged over time to generate profiles for legitimate users. assumes the user information’s collected over time is benign and there is no id entity-based spoofing attack present when building the profile. However, in practice the spoofing attack could be present at any time. In that case the profiles built under such attacks cannot represent legitimate users and may lead to false authentication of malicious users. In our work, we develop an Attack-resilient Profile Builder, which has the ability to detect the presence of spoofing attacks when building profiles for legitimate users. In this scheme we analyze the effect of different modulation and coding scheme rates on enhanced decode to achieve a higher accuracy of user authentication under both single antenna and multiple antenna cases.
In the proposed approach the correctness of representative points is verified by the clock techniques with samples from the WSN. In order to provide careful security properties the customized user profile has been proposed. The method only requires a part of node to be involved in a customized epoch. To prevent the customized user profile procedure, initiated time based authentication has been used. So the proposed scheme can effectively verify the sequential difference designs for secure authentication, while being able to achieve low additional energy cost and work with the many authentication protocols.
This focuses on the attacks against in-network secure user authentication, which aim to prevent and make the base station to verify a series of false authentication results of which the sequential difference design deviates from the real one in a noticeable scale.
IV.
RESEARCH METHODOLOGIES
The goal of the proposed work is to protect the data and authenticity of the sequential difference design observed by the users. Specifically, for a series of authentication results Ag =(Ag)(t), Ag(t+1); . . .;Ag(t +1) in a secure authentication, this needs to guarantee that if the base station accepts Ag, the sequential difference design of Ag is close to the true design with a high probability.
Secure Authentication: Ag=Ag(t)..,Ag(t+1). Where,
Ag- Authenticated result t- Sequential details
During the period of a secure authentication query, each sensor node performs the data collection process lmax number of sensor readings that contribute to the authentications in the latest lmax time interval. Lmax determines the maximum length of the user profile and Tmax determines the customized user profile in which the sequential difference design of the authentication results can be verified and protected. Once the user observes an interesting sequential difference design of the authentication data they can verify its authenticity when needed.
Still in the event that the adversary is interested in suppressing the real appearance of an interesting sequential difference design, the users cannot decide when to conduct verification because they do not know when the interesting design really appears. Thus, periodic verification is required. To this end, the period of verification has been initiated.
Finding and filtering the false data packets within the network instead of at the sink has several benefits. Initially it results in energy savings since false data packets are immediately dropped instead of being relayed multiple hops to the sink. More importantly when a false data packet is detected, it reveals the presence of a concession node.
Even though it may be not be possible to identify the concession node, by detecting the false data close to its origin, it is possible to narrow down the nodes that might be compromised to a small set at a specific location in the network. This information can then be used while taking steps to recover from or mitigate the potential interruption due to the compromise.
The basic idea behind the proposed scheme is that every node owns their customized user profile which sends the data to the data sink after accepts and verified the report received from an upstream node only if it has been verifiably endorsed by at least t + 1 nodes in every time interval.
The system guarantees for data freshness. The Data freshness means that the data is recent and any old data has not been replayed or given. Data freshness criteria are a must in case of secure authentication where the data needs to be refreshed over a period of time. An attacker may not know the customized time period replay an old message to modify the data. The authentication data is divided into successive user profiles. Each user profile consists of several successive epochs. At the end of each user profile, the sequential difference design in this user profile is verified. Either in the on-demand verification or in the periodic verification, the BS selects some points from the series of authentication results in the user profile to be verified, and checks their correctness to detect any fabrication of sequential difference designs.
With the use and knowledge of ICSIS algorithm and the ability of predicting the real sequential difference design of the authentication, the adversary may try to forge a series of authentication results of which the selected representative points have authentication values equal or close to the real ones. If such attempt is successful, the check of representative points will not detect the fabrication of the sequential difference.
Methodologies:
Customized User profile synchronization
The customized user profile synchronization process performs customized server side setting for every node in the sensor network. The scheme consumes beginning user authentication profile and attack resilient profile matching. The following steps represent the process of customized profile synchronization.
1 begin
2 recognize node Ni…Nn 3 profilestamp of Ni
4 authentication value from upper node of Ni 5 set node profile Nc for N1,N2…Nn 6 if already set
7 Update (Nc); 8 Else do 5
9 for every node N. collect time andauthentication details and Updatedata UTo (Nc, To) Authentication data Ag=Ag(t) .., Ag(t+1)
10 verify the synchronization 11 if ( UTo == Nc) then 12 update
13else
14 Trace (node det) and declare Ni= 1 15 if (ni=1) then
17 attacker node Cn=Ni 18else
19 end
20 filter Ni(data det, port) 21 end
Secure Localization Effective ICSIS algorithm
Profile verification and packet id verification protocol for authentication and verification. Representative user packet selection
V.
RESULTS AND ANALYSIS
The first set of experiments is to compare the performance of different combinations of existing channel information schemes, verification strategies. All strategies are tested under two request patterns: user channel information and user profile verification.
Figure 5.1 shows that all strategies perform significantly better than traditional channel information schemes. Since the enclosure of the later makes others hard to compare, this exclude the strategy for all subsequent figures.
From Figure 10 and Figure 11 we can see that shifting and sharing indeed improve the performance of headlight prefetching, especially when used together.
All strategies achieve better performance under ICIS distribution since hot Medias can be quickly shared with other SAPs.
In this section, this presents the results of the simulation study and the experiments this carried out to evaluate the performance of ICIS. The goal of the simulation study is to show that updating the network configuration by running ICIS allows increasing the network throughput with respect to both leaving the channel designation unchanged and updating the network configuration by running a channel designation algorithm that ignores the current configuration. The simulations start from the new network configuration determined by the channel prediction techniques. Thus, simulations aim at evaluating the throughput in the long term.
Achieving these performance benefit in the domain of server Data streaming concept is not a small task, even the load has increased the performance will be effectively analyzed.
The performance impact of Data streaming can be measured in four key areas: Latency
Throughput Coverage
the proposed system by using three parameters such as latency, throughput and security. The following chapter indicates the detailed results of the proposed system performance.
Latency:
In practice, hosts are added to a Network Data streaming cluster in proportion to the request rate as the client load increases. When this is the case, the server may act in response later. This will affect the client. This system propose to minimize the attacker node when the client authenticating in the wireless channel. This can be done by Data streaming scheme which regulates user request and makes the prompt response.
Shows the average request latency, throughput, and coverage and security measurements with the EXISITNG, proposed ICIS, and other user profile streaming modals. EXISITNG shows the worst performance since subsequent requests from a client are not likely to be forwarded to the same server that caches the previous session information of the client. EXISITNG cannot yield good performance.
Throughput:
Throughput is the standard rate of successful message delivery over a communication channel. Network throughput is the calculation of the node data details that are delivered to all terminals in a network. Throughput to clients, which increases with additional client traffic that the cluster can handle prior to wet through the cluster hosts (higher is better).
Network Data streaming simultaneously delivers incoming packets to all cluster hosts and applies a relaying algorithm that discards packets on all but the desired host. Relaying imposes less overhead on packet delivery than re-routing, which results in lower response time and higher overall throughput.
Network Data streaming scales performance by increasing throughput and minimizing response time to clients. When the capability of a cluster host is reached, it cannot deliver additional throughput, and response time grows non-linearly as clients awaiting service encounter queuing delays. Adding another cluster host enables throughput to continue to scale and reduces lining up delays, which minimizes response time. As customer demand for throughput continues to increase, more hosts are added until the network's subnet becomes flooded. At that point, throughput can be further scaled by using multiple Network Data streaming clusters and distributing traffic to them using Round Robin DNS.
Coverage:
Dealing the client requests efficiently even the serer load capacity exceeds is more important for every Data streaming scheme. But in the existing proposals EXISITNG methods are considering only a limited set of client request. This scheme creates the performance better than the other two schemes.
Like the latency result, the throughput of existing relay selection is much lower compared to the proposed ICIS models. The ICIS model also yields a better throughput compared to the existing system as the load increases.
Implementation:
The system simulates the proposed model using NS2. To calculate the performance of the techniques, the system has developed a NS2-based simulation environment. Locate of simulation parameters and their value ranges are listed in below Table.
Parameters Number of Nodes 50
Topography 1500 * 1500
The modules and implementation steps have been discussed in this chapter.
Module Description Node creation
Protocol Implementation Simulation results
Node creation:
VI.
CONCLUSION
In this proposed system, we implemented the improvise channel information system to consume the performance of the authorized user authentication in the wireless network. The ICIS Scheme has the capability to perform and identify the spoofer user profile identification from the user authentication process. ICIS system is an framework for analyze the user profile authentication in the two methods for one is stationary and mobile user node, if the user identify the stationary user it identified as an attacker by using the user profile builder and profile matching classification scheme. The profile matching scheme works like a user packet level authentication based on support vector machine learning method. In this wireless channel user authentication has include the temporal correlations contains the measurements of the sampling examples user profile details and compare with authenticating user profile details. In this proposed experimental ICIS Scheme allows the legitimated uses only to access the wireless channel network.
REFERENCES
[1]. Boniface K. Alese, Sylvester O. Olatunji, Oluwatoyin C. Agbonifo, Aderonke F. Thompson. A Fine-Grained Data Access Control System in Wireless Sensor Network. Acta Informatica,4(3):276-287,December 2015.
[2]. Dan Boneh, Xuhua Ding, Gene Tsudik. Fine-Grained Control of Security Capabilities. ACM Transactions on Internet Technology (TOIT) 4.1: 60-82, (2004).
[3]. Hongbo Liu, Jie Yang, Yang Wang, Jian Liu, Yingying Chen. Practical User Authentication Leveraging Channel State Information (CSI). Proceedings of the 9th ACM symposium on Information, computer and communications security. ACM, 2014
[4]. Kannan Govindan, Kai Zeng, Prasant Mohapatra. Non-Cryptographic Authentication and identification in wireless networks [Security and privacy in emerging wireless network. IEEE Wireless Communications 17.5 (2010).
[5]. Saud Alotaibi, Steven Furnell, Nathan Clarke. The Sensitivity Level Perception: A Fine-Grained Analysis of User Activity on Mobile Applications. International Journal for Information Security Research 5.3 (2015).
[6]. Wadw Trappe, Jie Yang, Yingying Chen, Jerry Cheng. Multiple spoofing attackers in wireless networks for Detection and localization. IEEE Transactions on Parallel and Distributed systems 24.1: 44-58, (2013).
[7]. Yan Wang, Yingying Chen, Jian Liu, Marco Gruteser, Hongbo Liu, Jie Yang. Using Fine-Grained Wi-Fi Signatures in Device-free Location-oriented Activity Identification: E-eyes. Proceedings of the 14th International Conference on Information Processing in Sensor Networks. ACM, 2015.
