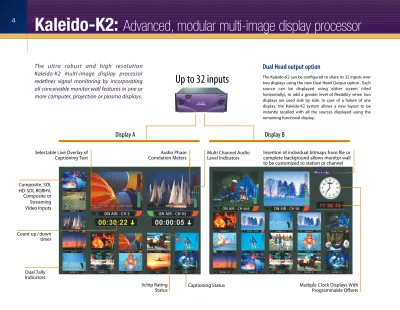

The ultra robust and high resolution
Kaleido-K2 multi-image display processor
redefines signal monitoring by incorporating
all conceivable monitor wall features in one or
more computer, projection or plasma displays.
Dual Head output option
The Kaleido-K2 can be configured to share its 32 inputs over two displays using the new Dual Head Output option . Each source can be displayed using either screen (tiled horizontally), to add a greater level of flexibility when two displays are used side by side. In case of a failure of one display, the Kaleido-K2 system allows a new layout to be instantly recalled with all the sources displayed using the remaining functional display.
Kaleido-K2:
Advanced, modular multi-image display processor
Up to 32 inputs
Vchip Rating
Status
Dual Tally
Indicators
Captioning Status
Multiple Clock Displays With
Programmable Offsets
Multi Channel Audio
Level Indicators
Selectable Live Overlay of
Captioning Text
Insertion of individual bitmaps from file or
complete background allows monitor wall
to be customized to station or channel
Composite, SDI,
HD-SDI, RGBHV,
Composite or
Streaming
Video Inputs
Count up / down
timer
Audio Phase
Correlation Meters
Display A
Display B
5
Kaleido-K2:
Feature-rich display
Multi-format video monitoring
Dynamically updated text labels
Kaleido-K2’s versatile input modules can accept:
f
Computer signals from 640 x 480 to 1600 x 1200 (VGA to UXGA)f
SDI video in 625/525f
NTSC, PAL and SECAMf
CAV and YCf
HD-SDI and Analog HDf
16:9 and 4:3 aspect ratiosignals
Kaleido-K2 can also display streaming video and audio delivered by an IP network using Miranda’s Allegro streaming encoder/server and Densité Control Probes. Streaming video can be displayed at various bit rates and quality levels, either as a separate window or displayed over another video input using a picture-in-picture display.
Multiple text labels (UMDs) can be displayed inside or outside the video window, with the text dynamically updated by the UMD controller.
Configurable audio meters
Audio level meters extracted from analog, AES or embedded signals can be positioned inside the video image in transparency or outside the window. Ballistics and scales are configurable, and a phase correlation meter can be displayed between each pair.
Clocks and timers
Internal signal validity monitoring
Close Captioning (CC), CC validity, and Vchip Rating can be decoded inside the Kaleido-K2’s video input modules
Each video or audio input can report signal status or validity, with detection of:
Streaming video displayed as a separate video window Remote off-air streaming video as a picture-in-picture display
Multiple analog and digital clocks can be displayed with programmable offsets and configurable colors.
Multiple addressable count up/down timers can be controlled by a mouse or external TCP-IP commands.
Time code extracted from the video signal can be overlaid inside or outside the video window.
floss of video fvideo black fvideo frozen f video level too high f Closed Captioning text f Vchip Rating
f teletext and subtitling presence
f audio level meters f audio phase meters f loss of audio f audio in silence f audio level too high f audio out of phase f audio in mono
VGA
4:3
16:9
The Kaleido-K2 can also take advantage of error status acquired through Miranda interfaces or probes. Any status can be reported via on screen status indicators. Status can be latched or held for a time period. Schedules can also apply for error inhibition.
Kaleido-K2:
Multi-format, mission critical design
AES/EBU Monitoring Out
Analog Stereo Monitoring Out
Keyboard Mouse CD-ROM
8 Video/RGBHV Input Modules Capacity LTC Input
Quad Composite, Y/C, Component, SD-SDI, 3 HD-SDI and/or Dual VGA modules. Embedded audio can be extracted from SDI inputs 3 Audio Input Modules Capacity 16 Analog Stereo and/or 16 AES/EBU Digital Modules 66 Contact Closure Tally Inputs 36 Contact Closure Alarm Outputs RS-485/422 Port for External Control or Kaleido-RCP RS-232 Router Status for Tracking UMDs Video Streaming
or Thumbnail Inputs
Signal Status Reporting via External Probes
External Layout Editor and Controller
Ethernet External Commands
PS/2 USB (2)
LAN/WAN
SVGA to UXGA variable outputs, can be adapted to any plasma, computer monitor or projection display
Optional Dual Head output for dual displays and redundancy
1 2
DVI RGBHV
RGBHV with cable booster
DVI RGBHV RGBHV with cable booster
Kaleido-K2
Kaleido-K2
Multi-Image Display ProcessorOUTPUT B
OUTPUT A
Kaleido-RCP K-Edit layout editing software4 RU Frame
Redundant Output Modules Passive Dual Bus Mid-plane
All Active Modules Front Loading Passive Rear Modules
Hot Swappable Redundant Power Supplies
CPU Assembly Includes: CPU, Graphic Card and Hard Disk
Kaleido-K2 is the first multi-image display processor to fully address both redundancy and serviceability. The processor provides fast power-up, and features hot swappable PSUs, front loading active modules, and even video display with the CPU card removed
7
Kaleido-K2:
Ordering information
ORDERING INFORMATION
Model Description
Kaleido-K2 Virtual Monitor Wall Processor Includes 4 RU Frame, Output Module (WMO-HR), GPI Inputs/Outputs Module (MWA-GPI), CPU Assembly (MWA-CPU), Kaleido-RCP Remote Control Panel and Kaleido-Editor Software
MWA-Dual Head Dual Head Option Package (factory Installed) Includes an Additional Output Module (MWO-HR), Dual Head CPU (MWA-CPU Dual) And Version 5.00 Software Or Higher MWA-Dual Head Up-Grade Dual Head Option Up-grade
For Existing Kaleido-K2
Includes An Output Module (MWO-HR), Replacement CPU Module (MWA-CPU-Dual) and Version 5.00 Software Or Higher
Input Modules Mix And Match Any Input Modules, Eight Slots Available.
MWI-CVBS Four Channel Composite Input Module
MWI-YC Four Channel Y/C Input Module MWI-CAV Four Channel Component Input
Module
MWI-VGA Dual Channel VGA-UXGA Input Module
MWI-SDI Four Channel SD-SDI Input Module MWI-HD Three channel HD/SD-SDI Input Module
Audio Input
Modules Insert Up To Three Audio Input Modules. Each Module Provides 16 input Channels.
MWI-SA 16 Channel Analog Stereo Audio Input Module
MWI-AES 16 Channel AES/EBU Audio Input Module MWS-Embedded SDI Input Embedded Audio Extraction
Enable extraction of 8 AES from one SDI Input Supported on both MWI-SDI and MWI-HD
Miscellaneous Options
MWO-HR Analog/Digital VGA-UXGA Output Module MWS-V5.00 Version 5.00 of Kaleido-K2 Software MWS-Streaming Kaleido Video Streaming Option
Enable software decoding of streaming or thumbnails
MWS-VBI Enable decoding of VBI information One Per Kaleido-K2
MWS-Pixelmetrix Software service for Pixelmetrix MPEG Probe One Per Kaleido-K2
MWS-UMD Software driver for Dynamic UMDs One Per Kaleido-K2
MWA-TBA-A Audio Module Terminal Bloc Adapter MWA-TBA-G GPI Module Terminal Bloc Adapter
KRCP-RK1 Kaleido-RCP Rack Mount Kit MWA-BOC MWR-CAV Break Out Cable
Spare parts
MWA-CPU CPU Assembly
MWA-CPU-Dual Dual Head Compatible CPU Assembly MWA-GPI GPI Inputs/Outputs Module Kaleido-RCP Remote Control Panel
MWA-PSU Replacement Power Supply Module
Note 1: Consult your Miranda sales rep. for comissioning, training and special system integration.
Note 2: Rear modules are included with the front modules
MWA-PSU 115-230V 50/60 Hz 300W MWA-PSU 115-230V 50/60 Hz 300W 1 2 3 RGBHV OUT
MWR-HR MWR-HD MWR-HD15 MWR-CAV MWR-4B MWR-4B MWR-4B MWR-YC MWR-YC MWR-HR MWR-AES MWR-SA MWR-SA MWR-GPI MWR-CPU
DVI/RGBHV OUT AUDIO OUT MON OUT 1 2 3 4 1 2 3 4 1 2 3 4 4 3 2 1 4 3 2 1 RGBHV OUT INPUTS 1-8 INPUTS 9-16 INPUTS 1-8 INPUTS 9-16 INPUTS 1-8 DVI/RGBHV OUT AUDIO OUT MON OUT 1 2 1 2 3 4 GPI OUT 17-32 GPI OUT 1-16 GPI IN 1-32 GPI IN 1-32 LTC KEYBOARD ETHERNET RS-232 RS-422/485 USB MOUSE Analog/Digital SVGA-UXGA Output Module 16 Channel AES/EBU Audio Input Module GPI Inputs/Outputs Module Hot Swappable Power Supplies Four Channel Composite
Input Module CPU Assembly Secondary Analog/Digital SVGA-UXGA Output Module Three Channel HD/HD-SDI Input Module Dual Channel VGA-UXGA Input Module
Four Channel SD-SDI Input Module
16 Channel Analog Stereo Audio Input Module
Four Channel Y/C Input Module Four Channel
Component Input Module
NUMBER OF VIDEO INPUTS Modular design for up to 32 video inputs 10 video inputs 4 video inputs INPUT FORMAT SDI, Composite, Component, Y/C, HD-SDI, RGB
progressive (VGA)
SDI or Composite or SDI / Composite (auto-sensing), DVI background input available
SDI
OUTPUT TYPE AND RESOLUTION Variable RGB and DVI output from 800 x 600 to 1600 x 1200 (VGA to UXGA)
Variable RGB and DVI output from 800 x 600 to 1280 x 1024
CRT Mode: High resolution (variable) Digital Mode: 800 x 600 (fixed) DUAL HEAD (MULTIPLE OUTPUTS) OPTION 2 independant outputs available with the Dual Head option Not available Not available
AUDIO METERING AND MONITORING Up to 48 channels of AES or analog stereo plus de-embedding of any of the 32 SDI inputs
Up to 10 channels of AES or analog stereo plus de-embedding of any of the 10 SDI inputs
Not available
OTHER DISPLAY ELEMENTS Clocks, count up/down timers, UMDs, tallies, bitmaps from files, closed captioning text, VITC, MPEG PIDs (pie/bar/stacked chart)
Clocks, count up/down timers, UMDs, tallies, aspect ratio markers
UMDs, tallies
SIGNAL MONITORING Video: Loss of signal, freeze, luma too high Audio: Presence, silence, overload, out of phase, mono VBI: CC/Teletext presence, CC display, VChip rating iControl: Externally detected via iControl
Video: Loss of signal Audio: Presence, silence, overload
Video: Loss of signal
STATUS INDICATORS Various bitmaps, borders and UMD colors to represent four states. Status can be latched and alarms can be inhibited
Various bitmaps, borders and UMD colors to repre-sent four states.
Border color
TEXT LABELS Static and dynamic: Supports TSL, Kaleido XML proto-col and other routers natively
(see list on www.miranda.com, Kaleido-K2 page)
Static Static or dynamic: Supports TSL and the Miranda serial protocol
STREAMING AND THUMBNAILS Generated by Allegro or Densité Control Probes (see details on www.miranda.com, iControl page)
Not available Not available
THIRD PARTY CONTROL INTERFACE Kaleido XML protocol Coming soon Tango RS-232 protocol ROUTER CONTROL Router control (list of supported systems on
www.miranda.com, Kaleido-K2 page)
Not available Not available
EVENT MANAGER All user configurable Not available Not available MOUSE INTERFACE Mouse action for mostly used functions Mouse action for mostly used functions Not available
REMOTE CONTROL PANEL Full support for Kaleido-RCP panel Full support for Kaleido-RCP panel Full support for Kaleido-RCP panel LAYOUT EDITING Online and offline editing of layout. Any window,
any size and positions. 32 overlap levels.
Offline editing only. Any window, any size and position.
Configuration can be set to full screen or quad-split
PROCESSING QUALITY High quality de-interlacer and scalers. High quality de-interlacer and scalers. No scaling involved, each image is at full resolution on a CRT monitor.
HOUSING FRAME 4RU, easy access, modular design with hot-swappable and front-loading cards. Redundant output modules and power supplies.
Compact 1RU housing Ultra compact 1/2 RU housing with front panel controls
TYPICAL APPLICATIONS Multi-channel master control room Network control center Live production room Satellite transmission site Mobile truck
Mobile truck Production room Audio booth, VTR room Sports announcers Master control room Satellite transmission site Security & traffic management Video conferencing
Production room Mobile truck Audio booth, VTR room Sports announcers
