DEPARTMENT OF COMPUTER SCIENCE & ENGINEERING

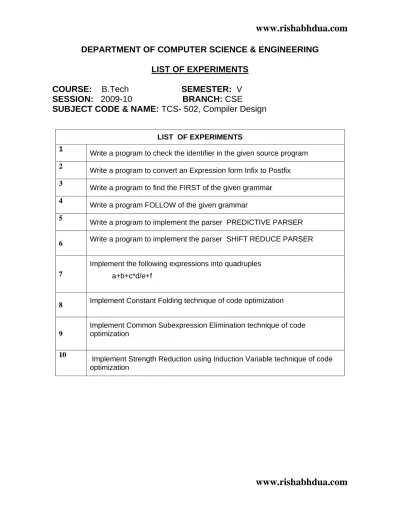

LIST OF EXPERIMENTS
COURSE: B.Tech SEMESTER: V
SESSION: 2009-10 BRANCH: CSE
SUBJECT CODE & NAME: TCS- 502, Compiler Design
LIST OF EXPERIMENTS 1
Write a program to check the identifier in the given source program
2
Write a program to convert an Expression form Infix to Postfix
3
Write a program to find the FIRST of the given grammar
4
Write a program FOLLOW of the given grammar
5
Write a program to implement the parser PREDICTIVE PARSER
6 Write a program to implement the parser SHIFT REDUCE PARSER 7
Implement the following expressions into quadruples a+b+c*d/e+f
8 Implement Constant Folding technique of code optimization 9
Implement Common Subexpression Elimination technique of code optimization
10
Implement Strength Reduction using Induction Variable technique of code optimization
www.rishabhdua.com
Experiment - 1
Program Name : Write a program to check the identifier in the given source program Theory Concepts :To identify identifier lexeme in the source program
Flow Chart (If Required) :
Implementation : Program to check the identifier in the given source program
#include<stdio.h> #include<conio.h> #include<string.h> void main() { char a[10],b[10]; int i,j,p,flag=0; a[]={"if","else","main","void","char","float","goto","for","includ e","int"}; clrscr(); gets(b); for(i=0;i<10;i++) { p=strcmp(b,a[i]); if(p==0) { flag=1; break; } } if(flag==1) { printf("keyword matched"); } else {
printf("keyword not matched"); }
getch();}
www.rishabhdua.com
Experiment - 2
Program Name : Write a program to convert an Expression form Infix to Postfix Theory Concepts :the infix expression is converted to postfix expression
Flow Chart (If Required) :
Implementation : Write a program to convert an Expression form Infix to Postfix
#include<conio.h> #include<stdio.h> void main() { char pre[20]; char stack1[40]; char stack2[40]; int top1=-1,top2=-1,i; clrscr();
printf("Enter the prefix expression :\n"); pre[0]='('; for(i=1;;i++) { scanf("%c",&pre[i]); if(pre[i]=='\r'||pre[i]=='\n') { pre[i]=')'; pre[++i]='\0'; break; } } for(i=0;pre[i]!='\0';i++) { up: if(pre[i]=='+'||pre[i]=='-'||pre[i]=='*'||pre[i]=='/'||pre[i]=='('||pre[i]==')') { if(pre[i]=='(') stack1[++top1]='('; if(pre[i]=='+') { if(stack1[top1]!='+'&&stack1[top1]!='*'&&stack1[top1]!='/') stack1[++top1]=pre[i];
else {stack2[++top2]=stack1[top1--];goto up;}
} if(pre[i]=='-') { if(stack1[top1]!='+'&&stack1[top1]!='-'&&stack1[top1]!='*'&&stack1[top1]!='/') stack1[++top1]=pre[i];
www.rishabhdua.com
} if(pre[i]=='*') { if(stack1[top1]!='*'&&stack1[top1]!='/') stack1[++top1]=pre[i];else {stack2[++top2]=stack1[top1--];goto up;}
}
if(pre[i]=='/') {
if(stack1[top1]!='/') stack1[++top1]=pre[i];
else {stack2[++top2]=stack1[top1--];goto up;}
} if(pre[i]==')') { for(;;) { stack2[++top2]=stack1[top1--]; if(stack1[top1]=='(') {top1--;break;} } } } else stack2[++top2]=pre[i]; } stack2[++top2]='\0';
printf("the postfix is :%s",stack2); getch();
}
www.rishabhdua.com
Experiment - 3
Program Name : Write a program to find FIRST of NON TERNINALS of the given grammar Theory Concepts :FIRST is a function computed to develop LL and LR parser
Flow Chart (If Required) :
Implementation : Program to find first four NonTerminals
#include"stdio.h" #include<conio.h>
char array[10][20],temp[10]; int c,n;void fun(int,int[]);
int fun2(int i,int j,int p[],int key) { int k; if(!key) { for(k=0;k<n;k++) if(array[i][j]==array[k][0]) break; p[0]=i;p[1]=j+1; fun(k,p); return 0; } else { for(k=0;k<=c;k++) { if(array[i][j]==temp[k]) break; } if(k>c)return 1; else return 0; } }
void fun(int i,int p[]) { int j,k,key; for(j=2;array[i][j]!='\0';j++) { if(array[i][j-1]=='/') { if(array[i][j]>='A'&&array[i][j]<='Z') { key=0; fun2(i,j,p,key); } else {
www.rishabhdua.com
key=1;if(fun2(i,j,p,key)) temp[++c]=array[i][j];
if(array[i][j]=='@'&&p[0]!=-1) { //taking ,@, as null symbol.
if(array[p[0]][p[1]]>='A'&&array[p[0]][p[1]]<='Z') { key=0; fun2(p[0],p[1],p,key); } else if(array[p[0]][p[1]]!='/'&&array[p[0]][p[1]]!='\0') { if(fun2(p[0],p[1],p,key)) temp[++c]=array[p[0]][p[1]]; } } } } } } void main() { int p[2],i,j; clrscr();
printf("Enter the no. of productions :"); scanf("%d",&n);
printf("Enter the productions :\n"); for(i=0;i<n;i++) scanf("%s",array[i]); for(i=0;i<n;i++) { c=-1,p[0]=-1,p[1]=-1; fun(i,p); printf("First(%c) : [ ",array[i][0]); for(j=0;j<=c;j++) printf("%c,",temp[j]); printf("\b ].\n"); getch(); } }
Output / Conclusion : Enter the no. of productions :6 Enter the productions :
S/aBDh B/cC C/bC/@ D/E/F E/g/@ F/f/@ First(S) : [ a ]. First(B) : [ c ]. First(C) : [ b,@ ]. First(D) : [ g,@,f ]. First(E) : [ g,@ ]. First(F) : [ f,@ ].
www.rishabhdua.com
Experiment - 4
Program Name : Write a program to find out FOLLOW of NONTERMINALS of given
productions
Theory Concepts : FOLLOW of nonterminals are calculated to design parsing tables Flow Chart (If Required) :
Implementation : Program to follow for NonTerminals
#include"stdio.h" #include<conio.h> #define max 10 #define MAX 15
char array[max][MAX],temp[max][MAX]; int c,n,t;void fun(int,int[]);
int fun2(int i,int j,int p[],int key) { int k; if(!key) { for(k=0;k<n;k++) if(array[i][j]==array[k][0]) break; p[0]=i;p[1]=j+1; fun(k,p); return 0; } else { for(k=0;k<=c;k++) { if(array[i][j]==temp[t][k]) break; } if(k>c)return 1; else return 0; } }
void fun(int i,int p[]) { int j,k,key; for(j=2;array[i][j]!='\0';j++) { if(array[i][j-1]=='/') { if(array[i][j]>='A'&&array[i][j]<='Z') { key=0; fun2(i,j,p,key); } else {
www.rishabhdua.com
key=1;if(fun2(i,j,p,key))
temp[t][++c]=array[i][j];
if(array[i][j]=='@'&&p[0]!=-1) { //taking ,@, as null symbol.
if(array[p[0]][p[1]]>='A'&&array[p[0]][p[1]]<='Z') { key=0; fun2(p[0],p[1],p,key); } else if(array[p[0]][p[1]]!='/'&&array[p[0]][p[1]]!='\0') { if(fun2(p[0],p[1],p,key)) temp[t][++c]=array[p[0]][p[1]]; } } } } } } char fol[max][MAX],ff[max];int f,l,ff0; void ffun(int,int); void follow(int i) { int j,k; for(j=0;j<=ff0;j++) if(array[i][0]==ff[j]) return 0; if(j>ff0)ff[++ff0]=array[i][0]; if(i==0)fol[l][++f]='$'; for(j=0;j<n;j++) for(k=2;array[j][k]!='\0';k++) if(array[j][k]==array[i][0]) ffun(j,k); }
void ffun(int j,int k) { int ii,null=0,tt,cc; if(array[j][k+1]=='/'||array[j][k+1]=='\0') null=1; for(ii=k+1;array[j][ii]!='/'&&array[j][ii]!='\0';ii++) { if(array[j][ii]<='Z'&&array[j][ii]>='A') { for(tt=0;tt<n;tt++) if(temp[tt][0]==array[j][ii])break; for(cc=1;temp[tt][cc]!='\0';cc++) { if(temp[tt][cc]=='@')null=1; else fol[l][++f]=temp[tt][cc]; } } else fol[l][++f]=array[j][ii]; } if(null)follow(j); }
www.rishabhdua.com
void main(){
int p[2],i,j;
clrscr();
printf("Enter the no. of productions :"); scanf("%d",&n);
printf("Enter the productions :\n"); for(i=0;i<n;i++) scanf("%s",array[i]); for(i=0,t=0;i<n;i++,t++) { c=0,p[0]=-1,p[1]=-1; temp[t][0]=array[i][0]; fun(i,p); temp[t][++c]='\0'; printf("First(%c) : [ ",temp[t][0]); for(j=1;j<c;j++) printf("%c,",temp[t][j]); printf("\b ].\n"); getch(); } /* Follow Finding */ for(i=0,l=0;i<n;i++,l++) { f=-1;ff0=-1; fol[l][++f]=array[i][0]; follow(i); fol[l][++f]='\0'; } for(i=0;i<n;i++) { printf("\nFollow[%c] : [ ",fol[i][0]); for(j=1;fol[i][j]!='\0';j++) printf("%c,",fol[i][j]); printf("\b ]"); getch(); } }
www.rishabhdua.com
Output / Conclusion : Enter the no. of productions :6 Enter the productions :
S/aBDh B/cC C/bC/@ D/E/F E/g/@ F/f/@ First(S) : [ a ]. First(B) : [ c ]. First(C) : [ b,@ ]. First(D) : [ g,@,f ]. First(E) : [ g,@ ]. First(F) : [ f,@ ]. Follow[S] : [ $ ] Follow[B] : [ g,f,h,$ ] Follow[C] : [ g,f,h,$ ] Follow[D] : [ h ] Follow[E] : [ h ] Follow[F] : [ h ]
www.rishabhdua.com
Experiment - 5
Program Name : Write a program to implement predictive parser Theory Concepts :predictive decent parser implements LL(1) grammar Flow Chart (If Required) :
Implementation : PROGRAM TO IMPLEMENT PREDICTIVE PARSER
#include<stdio.h> #include<conio.h> #include<ctype.h> #include<string.h> #include<stdlib.h> #define SIZE 128 #define NONE -1 #define EOS '\0' #define NUM 257 #define KEYWORD 258 #define ID 259 #define DONE 260 #define MAX 999 char lexemes[MAX];
char buffer [SIZE];
int lastchar=-1;
int lastentry=0;
int tokenval=DONE;/*value of token attribute */
int lineno=1; int lookahead; struct entry{ char *lexptr; int token; }symtable[100];
/* stores the list of keywords */ struct entry keywords[]=
{
"if",KEYWORD,"else",KEYWORD,"for",KEYWORD,"int",KEYWORD,"floa t",KEYWORD,"double",
KEYWORD,"char",KEYWORD,"struct",KEYWORD,"return",KEYWORD,0,0 }
/* issues a compiler error */ void Error_Message(char *m) {
fprintf(stderr,"line %d: %s \n",lineno,m); /* line number where error is occured */
exit(1); }
int look_up(char s[]) {
www.rishabhdua.com
for(k=lastentry;k>0;k=k-1) if(strcmp(symtable[k].lexptr,s)==0) return k; return 0; }int insert(char s[],int tok) {
int len;
len=strlen(s);
if(lastentry+1 >=MAX)
Error_Message("lexemes array is full"); lastentry=lastentry+1; symtable[lastentry].token=tok; symtable[lastentry].lexptr=&lexemes[lastchar+1]; lastchar=lastchar+len+1; strcpy(symtable[lastentry].lexptr,s); return lastentry; } void Initialise() { struct entry *ptr; for(ptr=keywords;ptr->token;ptr++) insert(ptr->lexptr,ptr->token); } int lexer() { int t; int val,i=0; while(1) { t=getchar(); if(t== ' ' || t=='\t') else if(t=='\n') lineno=lineno+1; else if(isdigit(t)) { ungetc(t,stdin); scanf("%d",&tokenval); return NUM; } else if(isalpha(t)) { while(isalnum(t)) { buffer[i]=t; t=getchar(); i=i+1; if(i>=SIZE) Error_Message("compiler error"); } buffer[i]=EOS; if(t!=EOF) ungetc(t,stdin); val=look_up(buffer); if(val==0)
www.rishabhdua.com
val=insert(buffer,ID); tokenval=val; return symtable[val].token; } else if(t==EOF) return DONE; else { tokenval=NONE; return symtable[val].token; } else if(t==EOF) return DONE; else { tokenval=NONE; return t; } }} void Match(int t) { if(lookahead==t) lookahead=lexer(); else Error_Message("Syntax error"); }void display(int t,int tval) {
if(t=='+'||t=='-'||t=='*'||t=='\') printf("\n Arithematic operator:%c",t);
else if(t==NUM)
printf("\n NUMBER:%d",tval);
else if(t==ID)
printf("\n identifier:%s",symtable[tval].lexptr); else
printf("\n token %d tokenval %d",t,tokenval); } void F() { void E(); switch(lookahead) { case '(':Match ('('); E(); Match (')'); break; case NUM:display(NUM,tokenval); Match(NUM); break; case ID:display(ID,tokenval); Match(ID); break; default:Error_Message("Syntax Error"); }} void T() { int T; F();
www.rishabhdua.com
while(1) switch(lookahead) { case '*':t=loookahead; Match(lookahead); F(); display(t,NONE); continue; case '/':t=lookahead; Match(lookahead); F(); display(t,NONE); continue; default:return; }} void E(){ int t; T(); while(1) { switch(lookahead) { case '+':t=lookahead; Match(lookahead); T(); display(T,NONE); continue; case '-':t=lookahead; Match(lookahead); T(); display(T,NONE); continue; default: return; }}} void parser(){ lookahead =lexer(); while(lookahead!=DONE) { E(); Match(';'); }} void main(){ char ans; clrscr();printf("program for recursive descent parsing \n"); Initialize();
printf("enter the expression"); printf("and place; at the end"); printf("press ctrl to terminate"); parser();
}
www.rishabhdua.com
Experiment - 6
Program Name : Write a program to simulate SHIFT REDUCE PARSER Theory Concepts :SHIFT REDUCE parser is simplest form of LR grammar Implementation : PROGRAM TO SIMULATE REDUCE PARSER
#include<stdio.h> #include<conio.h> void push(char,char[],int); void pop(int); void main() { char a[4][10]={ {'E','=','E','+','E'}, {'E','=','E','*','E'}, {'E','=','(','E',')'}, {'E','=','id'}}; char st[20],item; int top=0; st[top]='$'; char str[10]={'id','+','(','id','*','id',')'}; clrscr(); for(int j=0;j<=7;j++) { push(str[j],st,top); if(st[top]==a[3][2]) { pop(top); push('E',st,top); } else { for(int i=0;i<4;i++) { if(st[top]==a[i][2]) { if(st[top--]==a[i][3]) if(st[top--]==a[i][4]) { pop(top); push(a[i][1],st,top); } } }} } if(st[top]=='$') printf("accept"); getch(); }
void push(char item,char st[],int top) {
top=top+1; st[top]=item;
www.rishabhdua.com
}void pop(int top) { top=top-1; }
www.rishabhdua.com
Experiment - 7
Program Name : Implement the following expressions into quadruples
Theory Concepts : Every compiler has intermediate code representation phase from which code is optimized in code optimization phase
Flow Chart (If Required) :
Implementation : Implement the following expressions into quadruples
a+b+c*d/e+f
op arg1 arg2 result
(0) + f T1 (1) / d e T2 (2) * c T2 T3 (3) + T3 T1 T4 (4) + b T4 T5 (5) + a T5 T6 Output / Conclusion :
www.rishabhdua.com
Experiment - 8
Program Name : Implement Constant Folding technique of code optimization
Theory Concepts : Constant folding is the simplest code optimization to understand. Let us
suppose that you write the statement x = 45 * 88; in your C program. A non-optimizing compiler will generate code to multiply 45 by 88 and store the value in x. An optimizing compiler will detect that both 45 and 88 are constants, so their product will also be a constant. Hence it will find 45 * 88 = 3960 and generate code that simply copies 3960 into x. This is constant folding, and means the calculation is done just once, at compile time, rather than every time the program is run. To illustrate this, create the file test2.c as shown below.
Flow Chart (If Required) : Implementation :
/* Demonstration of constant folding */ #include <stdio.h> int main() { int x, y, z; x = 10; y = x + 45; z = y + 4; printf("The value of z = %d", z); return 0; }
Output / Conclusion : constant folding, the compiler evaluates the various expressions in the
program only once and plugs the final value into the generated code. One more interesting thing to observe is that after constant folding, there is no need of the variables x, y and z. Therefore no space for them is allocated on the stack, thus reducing the memory requirement of the program. This brings out the fact that one optimization may lead to another one. In the above case constant folding lead to a decrease in run time (since all the computations are done at compile time) and also to a decrease in the space requirements. Optimization is done.
www.rishabhdua.com
Experiment - 9
Program Name : Implement Common Subexpression Elimination technique of code
optimization
Theory Concepts : Many a times, it happens that the same expression is evaluated at different
places in the same program and the values of the operands in the expression do not change in between the two evaluations of that expression. For example, the program may evaluate say a * b at the beginning and at the end. If the values of a and b do not change in between these two evaluations of a * b, then instead of evaluating a * b again at the end, we can save the result of the evaluation of a * b at the beginning in some temporary variable and use it at the end. This will help eliminate redundant computations in the program. This optimization is called as common subexpression elimination. Consider the following program that demonstrates it.
Flow Chart (If Required) : Implementation :
/* common subexpression elimination */ #include <stdio.h>
int main() {
int a, b; int x, y, z;
scanf("%d %d", &a, &b); x = a * b; if(b >= 4) { y = a * b; z = 0; } else { z = a * b * 4; y = 0; } printf("x = %d, y = %d, z = %d\n", x, y, z); return 0; }
Output / Conclusion : This program has an example of a common subexpression. The
expression a * b is evaluated the first time, and then again later. The last two evaluations of a * b are redundant since the value of neither a nor b changes after the first evaluation. Thus these two evaluations are common subexpressions that can be eliminated. The first thing to notice is that now only variables a and b are stored on the stack, hence a stack of just 8 bytes is required as opposed to a 20 byte stack for the unoptimized version. You may wonder what's so special about variables a and b. The specialty is that the address of variables a and b is used in the program (for scanf()) and variables that reside in the registers cannot have a memory address.
www.rishabhdua.com
Experiment - 10
Program Name : Implement Strength Reduction using Induction Variable technique of
code optimization
Theory Concepts : One type of code optimization is strength reduction in which a "costly"
operation is replaced by a less expensive one. For example, the evaluation of x2 is much more efficient if we multiply x by x rather than call the exponentiation routine. One place where this optimization can be applied is in loops. Many times in a loop, one variable changes in synchronization with the loop variable. Such a variable is called as induction variable. Induction variables give the compiler a chance to apply strength reduction, as can be seen from the following program.
Flow Chart (If Required) : Implementation :
/* demonstration of induction variable elimination */ int main() { int i, j; for(i = 0; i < 10; i++) { j = i * 7; printf("i = %d, j = %d", i, j); } return 0; }
Output / Conclusion : Here i is the loop variable whereas j is the induction variable as j always
changes in lock step with I . Here, the compiler has adjusted the order of the statements in the loop so as to enable it to use strength reduction. After analyzing the program, the compiler sees that inside the loop, the value of i is always going to increase by 1 and since j is an induction variable, its value is always going to increase by 7. Therefore, instead of multiplying i by 7 (which is costly), it adds 7 to the old value of j before going on to the next
iteration. Thus a costly operation of multiplication has been replaced by addition which is cheaper (in terms of time).
