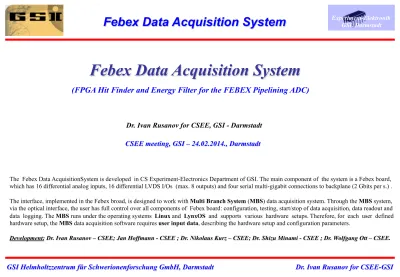

Febex Data Acquisition System

Febex Data

Acquisition System

Dr. Ivan Rusanov for CSEE, GSI - Darmstadt

The Febex Data AcquisitionSystem is developed in CS Experiment-Electronics Department of GSI. The main component of the system is a Febex board, which has 16 differential analog inputs, 16 differential LVDS I/Os (max. 8 outputs) and four serial multi-gigabit connections to backplane (2 Gbits per s.) . The interface, implemented in the Febex broad, is designed to work with Multi Branch System (MBS) data acquisition system. Through the MBS system, via the optical interface, the user has full control over all components of Febex board: configuration, testing, start/stop of data acquisition, data readout and data logging. The MBS runs under the operating systems Linux and LynxOS and supports various hardware setups. Therefore, for each user defined hardware setup, the MBS data acquisition software requires user input data, describing the hardware setup and configuration parameters.

Development: Dr. Ivan Rusanov – CSEE; Jan Hoffmann - CSEE ; Dr. Nikolaus Kurz – CSEE; Dr. Shizu Minami - CSEE ; Dr. Wolfgang Ott – CSEE.

CSEE meeting, GSI – 24.02.2014., Darmstadt

Febex Data Acquisition System: Features

1. Triggering: Yes. Acquisition (physics / Trigger Type 1) and Synchronization (Trigger Type 3) Triggers. 2. „Self Triggering“: Yes. For each channel are implemented two methods:

# „ Programmable Fast Trapezoidal Filter“ for a leading edge selection with 12-bit threshold. # 3-Steps comparator for a leading edge selection.

3. Double Hit Detection: Yes.

4. Energy measurement: Yes.For each channel is implemented a „Programmable Energy Trapezoidal Filter“ for a measurement of hits‘ energy. 5. Trigger window (Traces Length): Programmable (up to 8000 ADC’s samples/traces).

•  Pre-Trigger Window: Programmable (up to 2000 ADC’s samples/traces).

•  Post-Trigger Window: [Trigger_Window] – [Pre-Trigger_Window]. 6. Slow Control and Data Acquisition : via Optical Link.

•  Access to Configuration Registers: Read/Write address mode (single access via Optical Link). # Configuration of Febex’s DAC: via Optical Link and I2C bus.

#Configuration of ADCs: via Optical Link and SPI bus I. # Configuration of FPGA‘s flash: via Optical Link and SPI bus II.

•  Data Readout / Data Buffering: Block Transfer mode (via Optical Link) / Double Readout Buffer (one per channel + one for energy measurements).

•  Data Readout is programmable: from each Febex board can be sent out:

# summary data packet (Chanel Id, Number of hits, Hit’s time and Energy data /2 words per channel //one per Febex) and ADCs traces with or without data from Energy Trapezoidal Filter, in case more than one hit is found in a single channel. # summary data packet and traces (up to 8000 ADC‘s samples/traces // one traces’ packet per channel).

# summary data packet, traces and data from Energy Trapezoidal Filter (up to 2000 ADC‘s samples/traces). # only traces (up to 8000 ADC‘s samples/traces).

# only traces and data from Energy Trapezoidal Filter (up to 2000 ADC‘s samples/traces).

•  Readout Data Reduction: Yes and Programmable. The channels’ data is sent out only if hit is found (for summary and traces data packets).

7. Up to 1216 channels in 4 crates: 16 channels per Febex board // up to 19 Febex boards + one Interface card in one carte.

8. In the system can be used Febex boards with 12-bit/60 MHz (12-bit/50 MHz) or 14-bit/50 MHz ADCs (can be used „mixed” in one or different crates). 9. Each Febex Board can be programmed to operate with negative or positive input signals (can be used „mixed” in one crate or different crates).

PC TRIXOR ECL_IN ECL_OUT ANY_IN ECL_OUT LEMO_IN 1 LEMO_IN 3 LVDS_OUT Trigger Module LEMO_IN 6 LEMO_OUT 6 TRIGGER 1 TRIGGER 2 Master Slave 1 Trigg&Clock Bus 3 Self Trigger 1/2 TRIXOR_Busy Coded Trigger T ri gg&C loc k Bu s 1 T ri gg&C loc k Bu s 2 T ri gg&C loc k Bu s 1 T ri gg&C loc k Bu s 2 ANY_IN ECL_OUT LEMO_IN 1 LEMO_IN 3 LVDS_OUT Trigger Module LEMO_IN 6 LEMO_OUT 6 TRIGGER 1 TRIGGER 2 Trigger 3

Trigger 1 Self Trigger

(external)

(external) (internal)

4 SFPs / Slow Control and DATA Readout

Febex Data Acquisition System (one example for 1216 channels)

PEXOR 4 SFPs FEBEX Cr at e 1 FEBEX Cr at e 2 FEBEX Cr at e 3 FEBEX Cr at e 4 D et ec tor : D iffe re n ti al A n al og S ign al s (u p to 304 C h an n el s p er C rate )

In one Febex Crate:

Max 19 Febex Boards. 16 Diff. Inputs per Febex Board.

i = N+M+1 2N+M

B

A

-

=

TF

1

N

N+M+1

2N+M

B_Window

A_Window

Gap (not used)

Algorithms for Energy or Fast TF, implemented in FPGA

TF

A

A

B

B

Implementation in FPGA (Delays = Block RAMs)

Input Output

Σ Σ

-

+

Σ

-

+

Σ

-

+

Σ

+

+

Σ

+

+

Σ

The testing in the Lab of the Febex Data Acquisition System (Energy TF) with Go4

Cou

n

ts

ADC Samples (Traces)

Signal / Traces Energy Filter (Go4)

Calc. Energy (FPGA)

Energy Filter (FPGA)

Signal / Traces Energy Filter Start point (Go4) Energy Filter End point (Go4) Energy

FPGA: ADC Samples / Traces and Data from Energy Trapezoidal Filter.

Go4: Calculated (inspected) reaction of the Energy Trapezoidal Filter (from received traces).

Note: The calculated reaction of the ETF (in Go4) and the data of the ETF, implemented in FPGA, are the same!

FPGA Energy Filter

Cou n ts Cou n ts Cou n ts Cou n ts

ADC Samples (Traces)

The testing in the Lab of the Febex Data Acquisition System (Energy TF) with Go4

Data from Energy Trapezoidal Filter and Calculated (inspected) reaction of the Energy Trapezoidal Filter (from received traces).

Note: The calculated reaction of the ETF (in Go4) and the data of the ETF, implemented in FPGA, are the same!

ADC Samples (Traces)

Cou n ts Cou n ts

ADC Samples (Traces)

Testing of the Febex Data Acquisition System (Fast TF – Hit finder) with Go4

0xff050134 0x00000090 GOSIP Header // 2 words

0xaf1983b1 Summary Packet Header // 1 words

0x00000008 0x73a0f5d7 Epoch/Global Time Stamp // 2 words

0x00000000 0x00000000 Data for Channel Id 0 // 2 words (no input signal) 0x10000000 0x10000000 Data for Channel Id 1 // 2 words (no input signal) 0x20000000 0x20000000 Data for Channel Id 2 // 2 words (no input signal) 0x30000000 0x30000000 Data for Channel Id 3 // 2 words (no input signal) 0x40000000 0x40000000 Data for Channel Id 4 // 2 words (no input signal) 0x50000000 0x50000000 Data for Channel Id 5 // 2 words (no input signal) 0x60000000 0x60000000 Data for Channel Id 6 // 2 words (no input signal) 0x70000000 0x70000000 Data for Channel Id 7 // 2 words (no input signal)

………...

0x8a4081cf 0x8eeeeee2 Data for Channel Id 8 // 2 words The first word:

0x8 (bits [31:28]) Channel Id

0xa (bits [27:24]) Hit counter for the Channel 0x4 (bits [23:20]):

Bit (23) = 0 always 0

Bit (22) = 1 Flag “More than one Hit in the Trigger Window”

Bit (21) = 0 Flag “Only one Hit in the Trigger Window, but not Full Filter Window” Bit (20) = 0 Flag “Only one Hit in the Trigger Window”

0x0 (bits [19:16]) always 0x0

0x81cf (bits [15:0]) Relative Hit’s Time (to Global Time Stamp)// MSB is a “sign” bit The second word Channel Id and Measured Energy

………...

0x9a4081cf 0x9eeeeee2 Data for Channel Id 9 // 2 words 0xaa4081cf 0xaeeeeee2 Data for Channel Id 10 // 2 words 0xba4081cf 0xbeeeeee2 Data for Channel Id 11 // 2 words 0xca4081cf 0xceeeeee2 Data for Channel Id 12 // 2 words 0xda4081cf 0xdeeeeee2 Data for Channel Id 13 // 2 words 0xea4081cf 0xeeeeeee2 Data for Channel Id 14 // 2 words 0xfa4081cf 0xeeeeeee2 Data for Channel Id 15 // 2 words

………...

0xbf1983b1 Summary Packet Trailer // 1 words

The Summary Data Packet (Hit’s time and energy) Double Hits’ Detection

Signal / Traces

Fast Trapezoidal Filter (FPGA)

ADC Samples (Traces)

AD C Cou n ts Cou n ts

ADC Samples (Traces)

Febex Data Acquisition System (test setup)

The testing in the Lab of the Febex Data Acquisition System (

“

Low Signal with Noise

”

) with Go4

Febex 3a / 14-bit / 50 MHz (FPGA‘s Energy Filter (ETF))

Febex 3a / 14-bit / 50 MHz (FPGA‘s Hit’s Energy) Febex 3a / 14-bit / 50 MHz (ADC’s trace of Ch_Id0: U ~ 2 mV)

Febex 3a / 14-bit / 50 MHz (ADC’s traces of Ch0 ... Ch15)

AD C Cou n ts AD C Cou n ts Cou n ts Cou n ts

The testing of the Febex Data Acquisition System with radioactive source Co

Energy Resolution of 2.5 ... 2.7 keV

ETF Length 40-20-40 ETF Length 64-32-64 ETF Length 128-32-128

ETF Length 256-32-256 ETF Length 450-32-450

Febex 3a / 14-bit / 50 MHz (FPGA‘s Hit’s Energy) Febex 3a / 14-bit / 50 MHz (FPGA‘s Hit’s Energy)

Febex 3a / 14-bit / 50 MHz (FPGA‘s Hit’s Energy)

Febex 3a / 14-bit / 50 MHz (FPGA‘s Hit’s Energy)

Febex 3a / 14-bit / 50 MHz (FPGA‘s Hit’s Energy)

Cou n ts Cou n ts Cou n ts Cou n ts Cou n ts

DC-DC convertor with a “Murata Filter”: Energy’s RMS for different ETF’s filter Lengths

Note: The "RMS" is growing up with the length of the Energy Trapezoidal Filter (ETF). Note: The problem - the low frequency "noise". This "noise" cannot be removed with a ETF.

RM S of M eas u re d En er gy

ETF Length 64-32-64 ETF Length 256-32-256 ET F Cou n ts ET F Cou n ts

Febex 3a / 14-bit / 50 MHz (FPGA‘s Energy Filter (ETF)) Febex 3a / 14-bit / 50 MHz (FPGA‘s Energy Filter (ETF))

The base line of the ETF for different ETF’s filter Lengths

S igna l “E ne rgy T ra pe zoi da l F il te r”

Frequency response of the moving average filter (Steven W. Smith. Digital Signal Processing)

Low Frequency signal: Baseline instability

ETF Length 1

ETF Length 2

Note: For each length the responses of the ETF filter will be different. The longer ETF filter is more sensitive to the baseline instability! Note: When A_Window, B_Window = N, then the fluctuations of 1 LSB will produce differences from -N to +N!

Note: Main problem – Low Frequency noise! The low frequency components are dominating!

New Method:

“

High Pas Filter with a Moving Accumulating Window” (HPF & MAccW)

ADC samples (Traces)

Amplitude in ADC counts Amplitude in ADC counts

Amplitude in ADC counts

ADC samples (Traces) ADC samples (Traces)

Reconstruction of the Input Signal (MAccW = 32 ADC samples)

Reconstruction of the Input Signal

(MAccW = 256 ADC samples) Reconstruction of the Input Signal _{(MAccW = 1022 ADC samples)}

AD C Cou n ts Am pl it u de , m V

Amplitude of Input Signal, mV (Febex 3a / 14-bit / 50 MHz)

Measured Amplitudes (50 mV ... 400 mV) Measured Amplitudes (ADC’s Counts) DC-DC convertor with a “Murata Filter”: Measurement of the Amplitudes of the Input Signals

(using the new method: HPF & MAccW)
