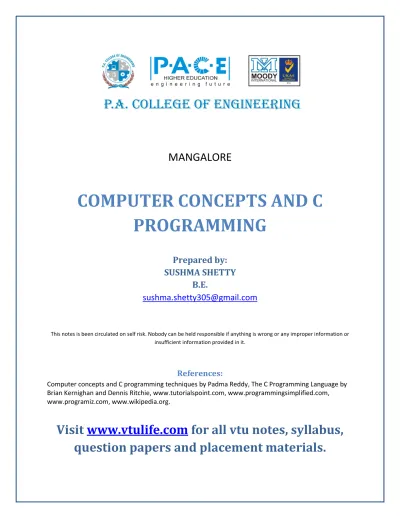

Computer Concepts and C Programming Unit 12310CCP13 by Sushma Shetty (Www.vtulife.com).PDF
130
0
0
Full text
(2) 1. www.vtulife.com. UNIT 1 INTRODUCTION TO COMPUTER SYSTEMS COMPUTER: A computer is an electronic device that is used to accept the data, process the data and give the desired output in human understandable language. Computer Tasks: Accept the data, Process or manipulate the data, Output the result in the form suitable for human understanding, Stores the input data, instructions and results. Example: PC, Laptop, Desktop, PDA.. FEATURES/ CHARACTERISTICS OF COMPUTERS: 1. Speed: Measured in MIPS (Millions of Instructions Per Second). Present digital computer speed is measured in terms of BIPS (Billions of Instructions Per Second). 2. Accuracy: Computer results are very accurate. 3. Reliability: Computer provides correct and consistent results everytime. 4. Storage Capability: hard disk, USB storage. 5. Versatility: Computers can perform many tasks based on the instructions feeded in it. 6. Diligence: Computers can continuously perform tasks without any break.. EVOLUTION OF COMPUTERS. Prepared By: Sushma Shetty.
(3) 2. www.vtulife.com. ABACUS/ COUNTING FRAME: Calculating tool used for performing various arithmetic operations such as addition, subtraction, multiplication, division. PASCALINE: Pascal’s device Pascaline is also called as the ‘numerical wheel calculator’ and is one among the world’s first mechanical adding machines that could add/ subtract directly. DIFFERENCE ENGINE: Invented by Charles Babbage. It consists of a number of columns numbered from 1 to N. this is used to perform mathematical operations. ENIAC (Electronic Numerical Integrator And Computer): First electronic digital computer used to solve full range of computing problems. The disadvantage is that instructions were given to this computer by physically connecting the wires and using the switches. EDVAC (Electronic Discrete Variable Automatic Computer): It is used for various calculations in the preparation of hydrogen bomb. Unlike ENIAC, instead of using wires and switches, stored program concept is used i.e storing data and instructions in memory. It does automatic addition, subtraction, multiplication, division with fast memory. Disadvantage is that it uses much power and has a huge size. IBM PERSONAL COMPUTER: IBM (International Business Machine) PC more popularly used by common people. Size of the machine drastically reduced, less power consumption, memory was used for storing data.. BASIC PARTS OF A COMPUTER 1. 2. 3. 4.. Input devices Output devices System unit Storage devices. INPUT DEVICES: These devices allow the user to enter the data, commands, programs into the memory of the computer ie input to the computer. Eg: Keyboard, Mouse, scanner, digital camera etc. OUTPUT DEVICES: These devices are used to display the information generated by the computer to the user in human understandable language. Eg: Monitor, Printer, Speakers etc. STORAGE DEVICES: These are the devices which store the data, instructions and information fed to the computer. These data can be retained even when the computer is turned off. Eg: CD, DVD, floppy disk drive, CD-ROM, RAM, ROM, DVD-ROM etc.. Prepared By: Sushma Shetty.
(4) 3. www.vtulife.com. SYSTEM UNIT: It is a box like case which consists of a motherboard and other electronic devices. The motherboard consists of two components namely Central Processing Unit (CPU) and memory. All these components which reside inside the system are internal devices. The various units are classified based on the visibility: 1. Units that are visible from the front end. 2. Units that visible from the back end. 3. Units that are inside the system unit. Visible from front end: 1. Power switch: Used to switch on and off the computer. 2. Reset button: Using this we can restart the computer. 3. Lights: Indicates read/write operation being performed on the hard disk. 4. Floppy disk drive: a slit into which floppy disk can be inserted. We can read or write the data into the floppy disk. 5. DVD/CD combo drive: Allows to read the data and write the data into CD. Visible from back end: Components of a computer are connected to the CPU using set of wires. These devices are connected using ports. The interfaces through which data can be sent to or received from the CPU are called as ports. The commponly used ports are: 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12.. Power point: It is not a port but the place where the power plug has to be connected. Mouse port: where the mouse has to be connected. Keyboard port: where the keyboard is connected. USB ports: The devices such as camera, pen drive, printers, memory sticks can be connected. Parallel port: Older printers can be connected. New printers are normally connected to the USB port. Serial port: External modems are connected. Audio output: Used to connect head phones. MIC (Microphone) port TV Port Monitor/Video port: used to connect the monitor. Modem port: used to connect phone line using modem to access internet. Speaker port: To connect home stereo system.. Inside the system unit: 1. Mother board: it contains computer’s basic circuitry and other components of the computer. It contains connectors for attaching additional boards or cards. 2. CPU (Central Processing Unit): Looks like a chip or a mother board. It is called as the brain of the computer and is responsible for processing the data accurately for correct input. It has ALU (Arithmetic and Logic Unit) and Control Unit.. Prepared By: Sushma Shetty.
(5) 4. www.vtulife.com. 3. BIOS (Basic Input Output System): Built in software which is placed in the ROM (Read Only Memory) and is run at the start up for the system boot up. 4. Memory: To store the data and instructions. 5. Secondary memory: The data and instructions which has to be stored permanently. 6. Cards: It is printed circuit board that can be inserted into an expansion slot of a motherboard to give additional capabilities to our computer. Eg: video card, graphic card, network interface card (NIC). 7. SMPS (Switch Mode Power Supply): Converts AC current to DC current. This is essential for running various parts of the computer.. BASIC STRUCTURE OF A COMPUTER A computer can perform the following activities: 1. 2. 3. 4.. Accept data Process or manipulate the data Output the result in the form suitable for human understanding Stores the input data, instructions and results.. The above activities are performed by various units in the computer system. The communication between various units of the computer system is as in figure below: INPUT UNIT: The input devices are the input unit which are connected to the computer system. Eg: keyboard, mouse, scanner etc. Using this the user can perform the following operations: 1. User can enter data/instructions to the computer system. 2. It is the responsibility of the input device to convert the data into a form understandable by the computer. 3. The converted data is stored in the memory in the form of binary and then sent to CPU for further processing. OUTPUT UNIT: Using output unit, the processing unit can output the results in human understandable language. Eg: monitor, printer, speaker etc. MEMORY UNIT: It is divided into primary memory and secondary memory. It is used to:. Prepared By: Sushma Shetty.
(6) 5. www.vtulife.com. 1. Store instructions and data 2. Store intermediate results. CENTRAL PROCESSING UNIT (CPU): It is the brain of the computer. It executes the instructions one after the other with the help of CU and ALU. CONTROL UNIT (CU): It controls and co-ordinates the activities of all the units by issuing proper commands. The functions of the CU are: 1. 2. 3. 4.. Fetching instructions from memory. Decoding the instruction. Executing the instruction. Issue appropriate commands to ALU, memory, input, output devices.. ARITHMETIC LOGIC UNIT (ALU): Performs basic arithmetic operations: addition, subtraction, multiplication, division. It also performs logic operations.. STORED PROGRAM CONCEPT Storing data and instructions in memory as shown in figure below: The CPU then fetches the instructions from the memory and executes them one after the other.. The Von Newman Architecture based on stored program concept is as in figure below: The computer has four functional units: input, output, memory, CPU. If a series of instruction has to be executed without human intervention, the CU must perform the following sequence of operations: 1. FETCH: Obtain data or the next instruction to be executed from the memory. 2. DECODE: Identify the action to be taken, translate it into series of commands. Prepared By: Sushma Shetty.
(7) 6. www.vtulife.com. 3. EXECUTE: Issue the proper command to the ALU to perform the desired operation. 4. STORE: Results obtained after executing the program are stored in memory.. CATEGORIZING COMPUTERS Types of computers: 1. Data handling technique/based on technology a) Digital computers. Eg: PC b) Analog computers. Eg: slide rule, c) Hybrid computers. 2. Computers for individuals a) Desktop computers b) Workstations c) Notebook computers d) Tablet computers e) Handheld PCs f) Smart phones 3. Computers for organizations a) Network servers b) Minicomputers c) Mainframe computers d) Super computers DATA HANDLING DEVICES: Data handling is important in ensuring the integrity of research data since it addresses concerns related to confidentially, security, and preservation/retention of research data. DIGITAL COMPUTERS: Devices capable of solving problems by processing information in discrete form. It operates on data, including magnitudes, letters, and symbols, that are expressed in binary form—i.e., using only the two digits 0 and 1. ANALOG COMPUTERS: An analog computer is a form of computer that uses the continuously changeable aspects of physical phenomena such as electrical, mechanical, or hydraulic quantities to model the problem being solved. Eg: Speedometers, milk and food processing industries,petrol pump, thermostat of fridge HYBRID COMPUTERS: A hybrid computer is a type of computer that is designed to provide the features and functions that are found by both the digital and the analog computers. Eg: ECG monitor of a patient in a hospital. It takes in an analog signal that is the heartbeat of the patient and converts it into the digital format after processing it.. Prepared By: Sushma Shetty.
(8) 7. www.vtulife.com. COMPUTERS FOR INDIVIDUALS: DESKTOP COMPUTERS: A personal computer in a form intended for regular use at a single location, as opposed to a mobile laptop or portable computer. WORKSTATIONS: A workstation is a high-end microcomputer designed for technical or scientific applications. Intended primarily to be used by one person at a time, they are commonly connected to a local area network and run multi-user operating systems. The term workstation has also been used to refer to a mainframe computer terminal or a PC connected to a network. NOTEBOOK COMPUTERS: It is also called as a laptop. It is a portable personal computer with a clamshell form factor, suitable for mobile use. A laptop has most of the same components as a desktop computer, including a display, a keyboard, a pointing device such as a touchpad (also known as a trackpad) and/or a pointing stick, and speakers into a single unit. TABLET COMPUTERS: Tablet computers or simply tablet, is a one-piece mobile computer. Devices typically have a touchscreen, with finger or stylus gestures replacing the conventional computer mouse. It is often supplemented by physical buttons or input from sensors such as accelerometers. An on-screen, hideablevirtual keyboard is usually used for typing. Tablets differentiate themselves by being larger than smart phones or personal digital assistants. HANDHELD PC: A Handheld PC, or H/PC for short, is a computer built around a form factor which is smaller than any standard laptop computer. It is sometimes referred to as a Palmtop. SMART PHONES: A smartphone is a mobile phone built on a mobile operating system, with more advanced computing capability and connectivity than a feature phone. The first smartphones combined the functions of a personal digital assistant (PDA) with a mobile phone. Later models added the functionality of portable media players, low-end compact digital cameras, pocket video cameras, and GPS navigation units to form one multi-use device. Many modern smartphones also include high resolution touchscreens and web browsers that display standard web pages as well as mobile-optimized sites. COMPUTERS FOR ORGANIZATIONS: NETWORK SERVERS: A network server is a computer designed to process requests and deliver data to other (client) computers over a local network or the Internet. Network servers typically are configured with additional. Prepared By: Sushma Shetty.
(9) 8. www.vtulife.com. processing, memory and storage capacity to handle the load of servicing clients. Common types of network servers include: . Web servers proxy servers FTP servers online game servers. MINICOMPUTERS: A minicomputer is a class of smaller computers that evolved in the mid-1960s and sold for much less than mainframe and mid-size computers from IBM and its direct competitors. MAINFRAME COMPUTERS: They are computers used primarily by corporate and governmental organizations for critical applications, bulk data processing such as census, industry and consumer statistics, enterprise resource planning, and transaction processing. SUPER COMPUTERS: A supercomputer is a computer at the frontline of contemporary processing capacity--particularly speed of calculation. Supercomputers play an important role in the field of computational science, and are used for a wide range of computationally intensive tasks in various fields, including quantum mechanics, weather forecasting, climate research, oil and gas exploration, molecular and physical simulations. Throughout their history, they have been essential in the field of counter-cryptography.. DIFFERENCES BETWEEN ANALOG, DIGITAL, HYBRID COMPUTERS: ANALOG. DIGITAL. HYBRID. Process the analog data which is continuous in nature. Process digital data which is binary in nature. Process digital data using analog solution. Data is processed by measuring. Data is processed by counting. Data is processed by combining the methods used in digital and analog computers.. They require very less memory and no memory. They require memory. They require less memory. Process mathematical and scientific data which is continuous in nature. Process mathematical and scientific data which is binary using complex logics. Accept analog data, process mathematical and scientific data and convert into digital data. Prepared By: Sushma Shetty.
(10) 9. www.vtulife.com. PARTS OF A COMPUTER SYSTEM 1. 2. 3. 4.. hardware software data user. HARDWARE: The physical components which make up the computer system are called hardware. They are categorized as: 1. 2. 3. 4.. Input devices. Eg; keyboard, mouse Output devices. Eg: monitor, printer System unit. Eg: CPU, Video card, Sound card Storage devices. Eg: CD, DVD, RAM, ROM. SOFTWARE: A program is a set of instructions given to the computer to perform a specific task or activity. The set of programs that perform a specific jobs are called as software. DATA: The data is a piece of information that we input to the computer from the input device. The computer manipulates the data into information that we can understand and output the information. USER: The people who use computers are users. They are also part of computer system because they write programs, use it and make it perform the tasks as per their requirement.. THE INFORMATION PROCESSING CYCLE The sequence of events in processing information, which includes (1) input, (2) processing, (3) storage and (4) output. These processes work together and repeat over and over. 1. Input: entering data into the computer. 2. Processing: performing operations on the data. 3. Storage: saving data, programs, or output for future use. 4. Output: presenting the results.. ESSENTIAL COMPUTER HARDWARE Hardware is the term given to the components that make up a computer. This term was derived from the internal components of a computer which consists circuits, electronics, and in short anything that you could touch inside your computer. Hardware can be broken up into four parts:. Prepared By: Sushma Shetty.
(11) 10. www.vtulife.com. 1.. Processor. 2.. Memory. 3.. Input. 4.. Output. PROCESSOR: The processor is the most important piece of hardware within your computer. It is the brain, the very intellect of these electronic machines. The processor, decodes and executes instructions that are sent to in via the many lanes within the motherboard. On a personal computer, the processor is usually a single chip or a set of chips on top on a circuit board. In some powerful computers, such as the super computers, they consists of many chips on a circuit board. Now in general, these chips are referenced to as central processing unit (CPU). MEMORY AND STORAGE DEVICES: MEMORY: There are two types of memory that are very common. Actually, only one is very common the - RAM or also known as the random access memory because of it is a static memory. Static memories are memories that do not store data always (as soon as you switch off the computer) - the memory becomes empty or resets itself. Dynamic memory or volatile memory stores data that is fixed and does not go off even if the computer is switch off. This is read only memory (ROM) which stores critical boot up information of the computer. An example is the BIOS chip which stores a ROM to ensure that it has the proper instructions needed for the computer to operate. STORAGE DEVICES: Storage devices are also known as magnetic storage devices because of the nature of these storage devices. This is the disk drive or the hard disk as it is commonly known. Within these disks are read/write heads like a tiny pin (like the gramaphone) this pin or head is used to read or write data into the disk. There are also other types of storage devices such as optical storage devices. These devices comprises of your DVD-Roms, CD-Roms, VCD, and so on. INPUT AND OUTPUT: These devices are known as input and output or shortly (I/O) because their purpose is to provide either input into the computer system or to provide an output from the computer system. Typical I/O hardware devices are Monitor, Keyboard, Mouse, Speakers, Microphone, Modem, Webcam, Headphones, Printers, Fax Machines, Joystick, Scanner, Touchpad.. DIFFERENCES BETWEEN STORAGE DEVICES AND MEMORY: STORAGE DEVICES. MEMORY. Capacity is more. Storage capacity is less. Contents are retained when computer is turned off. Contents are not stored as permanent memory to be retained after shut down. Accessing of data or programs are slow. It is faster. Prepared By: Sushma Shetty.
(12) 11. www.vtulife.com. Less expensive. More expensive. Portable. Not portable since it is plugged into motherboard. ESSENTIAL COMPUTER SOFTWARE A program is a set of instructions given to the computer to perform a specific task or activity. The set of programs that perform a specific jobs are called as software. Two types: 1. System software 2. Aoolication software SYSTEM SOFTWARE: System software (or systems software) is computer software designed to operate and control the computer hardware and to provide a platform for running application software. The operating system (prominent examples being Microsoft Windows, Mac OS X and Linux), allows the parts of a computer to work together by performing tasks like transferring data between memory and disks or rendering output onto a display device. It also provides a platform to run high-level system software and application software. APPLICATION SOFTWARE: Application software is all the computer software that causes a computer to perform useful tasks (compare with computer viruses) beyond the running of the computer itself. A specific instance of such software is called a software application, application or app. SYSTEM SOFTWARE Collection of programs that help the user to interact with the hardware components efficiently.. To write such programs, understanding the hardware architecture of the system is needed.. APPLICATION SOFTWARE Collection of programs written for specific application. Application software uses the services of the system software to interact with the hardware components. The programmer need not worry about the hardware architecture.. Directly interact with hardware.. Interact with hardware using system calls.. Development of system software is complex task.. Development of application software is relatively easier.. Eg: compiler, assembler, operating system. Eg: MS-WORD, Paint, ticket reservation etc.. System software control and manage the hardware.. Prepared By: Sushma Shetty.
(13) 12. www.vtulife.com. INTERACTING WITH COMPUTER INPUT DEVICES 1. Keyboard 2. Pointing devices a) Mouse b) Track ball c) Track pad d) Pointers in the keyboard (Track point) 3. Hand held devices a) Pen b) Touch screen c) Game controllers 4. Optical devices a) Bar code readers b) Scanners and OCR 5. Audiovisual Input devices a) Microphone b) Video input c) Digital cameras KEYBOARD: In computing, a keyboard is a typewriter-style device, which uses an arrangement of buttons or keys, to act as mechanical levers or electronic switches. A keyboard typically has characters engraved or printed on the keys and each press of a key typically corresponds to a single written symbol. However, to produce some symbols requires pressing and holding several keys simultaneously or in sequence. While most keyboard keys produce letters, numbers or signs (characters), other keys or simultaneous key presses can produce actions or execute computer commands. Standard keyboard layout is the QWERTY layout. The other form is DWORAK. The types of keys are: 1. Alphanumeric and character keys : A-Z, 0-9, {,} , tabs, capslock etc. 2. Numeric keypad : when numlock on or off. 3. Modifier keys : shift keys. 4. Cursor movement keys : the arrows for movement of cursor. 5. Function keys : The F1, F2, … F9 keys. 6. Special purpose keys : start key, shortcut key, ESC, Print scrn.. Prepared By: Sushma Shetty.
(14) 13. www.vtulife.com. POINTING DEVICES: Input devices which can control the movement of cursor on the screen. MOUSE: In computing, a mouse is a pointing device that functions by detecting two-dimensional motion relative to its supporting surface. Physically, a mouse consists of an object held under one of the user's hands, with one or more buttons. The mouse sometimes features other elements, such as "wheels", which allow the user to perform various system-dependent operations, or extra buttons or features that can add more control or dimensional input. The mouse's motion typically translates into the motion of a pointer on a display, which allows for fine control of a graphical user interface. The various actions performed are: 1. 2. 3. 4. 5.. Pointing Clicking Double clicking Dragging Scrolling. VARIANTS OF MOUSE: 1. TRACK BALL: A trackball is a pointing device consisting of a ball held by a socket containing sensors to detect a rotation of the ball about two axes—like an upside-down mouse with an exposed protruding ball. The user rolls the ball with the thumb, fingers, or the palm of the hand to move a pointer. Compared with a mouse, a trackball has no limits on effective travel; at times, a mouse can reach an edge of its working area while the operator still wishes to move the screen pointer farther. With a trackball, the operator just continues rolling, whereas a mouse would have to be lifted and re-positioned. Large trackballs are common on CAD workstations for easy precision. The disadvantage is that dust accumulates in its chamber. 2. TOUCH PAD: It is a pointing device featuring a tactile sensor, a specialized surface that can translate the motion and position of a user's fingers to a relative position on screen. Touchpads are a common feature of laptop computers, and are also used as a substitute for a mouse where desk space is scarce. Because they vary in size, they can also be found on personal digital assistants (PDAs) and some portable media players. Wireless touchpads are also available as detached accessories. 3. TRACK POINT: It is typically mounted in a computer keyboard on a laptop or desktop computer. Movements of the pointing stick are echoed on the screen by movements of the pointer (or cursor) and other visual changes. The pointing stick operates by sensing applied force, by using a pair of resistive strain gauges. The velocity of the pointer depends on the applied force. On a QWERTY keyboard, the stick is typically embedded between the "G", "H" and "B" keys, and the mouse buttons are placed just below the space bar.. Prepared By: Sushma Shetty.
(15) 14. www.vtulife.com. HAND HELD DEVICES: 1. PEN: Pen computing refers to a computer user-interface using a pen (or stylus) and tablet, rather than devices such as a keyboard, joysticks or a mouse. Pen computing is also used to refer to the usage of mobile devices such as wireless tablet personal computers, PDAs and GPS receivers. The term has been used to refer to the usage of any product allowing for mobile communication. An indication of such a device is a stylus, generally used to press upon a graphics tablet or touchscreen, as opposed to using a more traditional interface such as a keyboard, keypad, mouse or touchpad. 2. TOUCH SCREEN: A touchscreen is an electronic visual display that the user can control through simple or multi-touch gestures by touching the screen with one or more fingers. Some touchscreens can also detect objects such as a stylus or ordinary or specially coated gloves. The user can use the touchscreen to react to what is displayed and to control how it is displayed (for example by zooming the text size). The touchscreen enables the user to interact directly with what is displayed, rather than using a mouse, touchpad, or any other intermediate device (other than a stylus, which is optional for most modern touchscreens). 3. GAME CONTROLLERS: A game controller is a device used with games or entertainment systems to provide input to a video game, typically to control an object or character in the game. A controller is usually connected to a game console or computer by means of a wire or cord, although wireless controllers are also widespread. Input devices that have been classified as game controllers include keyboards, mice, game pads, joysticks, etc. Special purpose devices, such as steering wheels for driving games and light guns for shooting games, are also game controllers. OPTICAL DEVICES (DATA SCANNING DEVICES) The device which uses light as a source of input for detecting or recognizing various things is calles as an optical input device. 1. BAR CODE READERS: A barcode reader (or barcode scanner) is an electronic device for reading printed barcodes. Like a flatbed scanner, it consists of a light source, a lens and a light sensor translating optical impulses into electrical ones. Additionally, nearly all barcode readers contain decoder circuitry analyzing the barcode's image data provided by the sensor and sending the barcode's content to the scanner's output port. 2. SCANNERS: It is a device that optically scans images, printed text, handwriting, or an object, and converts it to a digital image. Common examples found in offices are variations of the desktop (or flatbed) scanner where the document is placed on a glass window for scanning. Hand-held scanners, where the device is moved by hand, have evolved from text scanning "wands" to 3D scanners used for industrial design, reverse engineering, test and measurement, orthotics, gaming and other applications.. Prepared By: Sushma Shetty.
(16) 15. www.vtulife.com. 3. OPTICAL CHARACTER RECOGNITION (OCR): Optical character recognition, usually abbreviated to OCR, is the mechanical or electronic conversion of scanned images of handwritten, typewritten or printed text into machine-encoded text. It is widely used as a form of data entry from some sort of original paper data source, whether documents, sales receipts, mail, or any number of printed records. It is a common method of digitizing printed texts so that they can be electronically searched, stored more compactly, displayed on-line, and used in machine processes such as machine translation, text-to-speech and text mining. OCR is a field of research in pattern recognition, artificial intelligence and computer vision.. 4. OPTICAL MARK READER (OMR): The Optical Mark Reader is a device that reads pencil marks on NCS compatible scan forms such as surveys or test answer forms. In this document The Optical Mark Reader will be referred to as the scanner or OMR. The computer test forms designed for the OMR are known as NCS compatible scan forms. Tests and surveys completed on these forms are read in by the scanner, checked, and the results are saved to a file. This data file can be converted into an output file of several different formats, depending on which type of output you desire. AUDIOVISUAL DEVICES 1. AUDIO DEVICES: Audio devices allow you to play or record audio, which can be sounds, music, speech, etc. These devices can be interesting for a forensic investigator, as they can often contain not only audio files, but also text documents, images and so on. 2. MICROPHONE: It is an acoustic-to-electric transducer or sensor that converts sound into an electrical signal. Microphones are used in many applications such as telephones, tape recorders, karaoke systems, hearing aids, motion pictureproduction, live and recorded audio engineering, FRS radios, megaphones, in radio and television broadcasting and in computers for recording voice,speech recognition, VoIP, and for non-acoustic purposes such as ultrasonic checking or knock sensors. 3. VOICE RECOGNITION DEVICES: Ability of a computer, computer software program, or hardware device to decode the human voice into digitized speech that can be interpreted by the computer or hardware device. Voice recognition is commonly used to operate a device, perform commands, or write without having to operate a keyboard, mouse, or press any buttons. Speech recognition (SR) is the translation of spoken words into. Prepared By: Sushma Shetty.
(17) 16. www.vtulife.com. text. It is also known as automatic speech recognition (ASR) or computer speech recognition, speech to text (STT). 4. VIDEO INPUT DEVICES: Video input is the process of capturing and storing the full-motion recording into the computer. The various video input devices are: 1. VCR 2. Cam corder 3. Web cam 5. DIGITAL CAMERA: A digital camera (or digicam) is a camera that takes video or still photographs by recording images on an electronic image sensor. Most cameras sold today are digital and digital cameras are incorporated into many devices ranging from PDAs and mobile phones (called camera phones) to vehicles.. OUTPUT DEVICES They are electromechanical devices that accept the data from the computer and convert the data into a form that can be readable or understood by people or the user. Classification: 1. Soft copy devices a) Monitors b) Data projectors c) Sound systems 2. Hard copy devices a) Dot matrix printers b) Ink jet printers c) Laser printers d) Plotters SOFTCOPY OUTPUT DEVICES: The electronic version of an output such as a document or a file which is stored on a computer disc such as floppy disc, hard disc, CD or similar medium is called as softcopy. The output devices which can display this information stored in the computer are called softcopy output devices. HARDCOPY OUTPUT DEVICES: The physical form of output is the hardcopy. The devices which are used for creating the hard copy output are called hardcopy output devices.. Prepared By: Sushma Shetty.
(18) 17. www.vtulife.com. SOFTCOPY. HARDCOPY. To see the output computer must be operating.. Computer is not required to see the output.. Modifications and updates are easier and changes are not visible. Cannot be distributed to people without computer.. Modifications and updates are difficult and changes are visible. Can be distributed to people who don’t have computer.. Requires less storage space.. Requires more storage space.. Searching for a information is easier.. Searching for a piece of information is difficult.. Very easy to duplicate. Difficult to duplicate. Not tangible (cannot be touched). Tangible.. VIDEO SYSTEMS The devices or systems that produce the output so that we can see it are video systems. Eg: monitors, data projectors.. MONITORS They are the display devices that are housed in a plastic or metal case. A montor along with a keyboard is called video display terminal. Classification: 1. Monochrome monitors 2. Grayscale monitors 3. Color monitors Monochrome Monitors: Such monitors can display the text in only one color (such as white, green etc) with black background. It is cheap and is rarely found these days. Grayscale Monitors: They are capable of displaying multiple shades ranging from very light gray to black against white or partially white background. Color Monitors: It displays the text or images in varying colors. Present day color monitors can display between 16 colors and 16 million colors. They can be set to work in monochrome or grayscale mode. Based on technology monitors are classified as: 1. CRT monitors Prepared By: Sushma Shetty.
(19) 18. www.vtulife.com. 2. Flat panel monitors CRT Monitors: CRT (Cathode Ray Tube) monitor is a TV like display attached to the computer on which the output is displayed. COMPONENTS: 1. Electron gun: It generates a beam of electrons and is situated at the backend of the monitor as in figure. 2. Deflection plates (Magnetic coil): The electron beam is directed towards the screen in front of the tube using the deflection plates. 3. Phosphor: The back of the screen is coated with phosphor, a chemical that glows when it is hit by the electron beam. 4. Screen: The light emitted by the phosphor fades very rapidly and hence it is necessary to redraw the picture rapidly on the screen and thus displaying a continuous image. WORKING: The image is displayed on the screen when the electron gun traverses the screen in a fixed pattern writing on the pixel or not writing on the pixel as in figure. 1. The electrons from electron gun will hit every pixel on the screen starting from topleft corner horizontally. The beam can be turned on or off. This horizontal line of pixels is called as the scan line. 2. When the beam reaches right end of a scan line, the beam is turned off. The electron gun drops down a small distance and moves to the beginning of the new scan line. This is called horizontal trace and start scanning from left to right. 3. The above procedure is repeated for each scan line, till the beam gets to the right end of the last scan line. Now, the beam is turned off and moved to the starting point of the first scan line. This is vertical trace. 4. The above procedure shows one pass of scanning the screen. In case of a color monitor, each pixel in the color monitor has three phosphors- red, blue and green. By varying the intensities of these beams, various colors can be obtained. ADVANTAGES:. Prepared By: Sushma Shetty.
(20) 19. www.vtulife.com. 1. They provide bright and clear pictures. 2. The cost is really less when compared with other types of monitors. DISADVANTAGES: 1. 2. 3. 4.. The size of CRT monitor is big and hence take more desktop space. Heavy and hence not portable. More power to run. The screen is curved and hence diplay is across the curve.. Flat Panel Monitors: It has a flat screen, less weight and about one inch thick. These monitors are commonly used these days. They consume very less power and can be operated with battery built into the computer. These features are used in laptops also. They use a special kind of liquid crystals to display the images on the screen. They are transparent but when charged with electricity they become opaque. ADVANTAGES: 1. They occupy less desktop space. 2. Portable. 3. Require less power and run on battery. DISADVANTAGES: 1. Costlier compared to CRT. 2. Images are difficult to see in bright light. Two categories of LCD’S: 1. Passive matrix LCD monitor 2. Active matrix LCD monitor Passive matrix LCD monitor Each row and column of pixels are controlled by a set of transistors identified by row and column transistors. The color of the pixel is determined by the current coming out of transistor at the end of a row and top of the column.. Active matrix LCD monitor Each pixel has a transistor and can be turned on and off individually. The color of the pixel is determined by the current coming out of that transistor.. Inexpensive. Comparatively expensive. Narrow viewing angle. Wider viewer angle. Refreshing of pixels is slow. Refreshing of pixels is very fast. Prepared By: Sushma Shetty.
(21) 20. www.vtulife.com. Uses dual scan LCD technology. Uses thin film transistor (TFT) technology. OTHER TYPES OF MONITOR: 1. Paper-white displays 2. Electroluminescent displays 3. Plasma displays MONITOR QUALITY: 1. Size: Monitors available in various sizes such as 14, 15, 17, 19, 21 inches. Larger monitors are relatively costlier. 2. Resolution: This term is associated with sharpness or clarity of the image displayed on the screen. It is determined by the number of pixels on the screen. 3. Refresh Rate: When an electron beam strikes the phosphor, the phosphor emits light resulting in the display of the image only for a fraction of a second. If we want to see the image properly, the screen has to refreshed with same data for atleast 60-70 times per second. This rate is called as the refresh rate. 4. Dot pitch: The distance between the two light colored pixels on the display screen is defined as dot pitch. The smaller the distance, sharper the image.. VIDEO CARD It is also called as video boards or video display boards or graphics card or graphics adapter. It is a physical hardware circuit board which is connected to the motherboard. It acts as a intermediate device between the CPU and monitor. The CPU sends the data or image to be displayed to video card. This device converts the text or image sent by the CPU into equivalent electrical signals. These signals are used by the electron gun to produce stream of electrons which displays the appropriate pixels. Thus, the text or images appear on the screen. The display capabilities of the computer depends on both the logical circuitry provided in the video adapter and the display monitor. By placing video card on the motherboard, the cost of the computer can be reduced. Eg: VGA (Video Graphics Array), Super VGA.. DATA PROJECTORS It is a special device used to display the output obtained from the computers on to a large screen on the wall. The data projectors are first connected to computer. The device projects the video output onto an external surface. They look and weigh like a camera. Usually used in classes, conferences. Two types:. Prepared By: Sushma Shetty.
(22) 21. www.vtulife.com. 1. LCD projectors 2. DLP projectors. LCD Projectors. DLP Projectors. Uses liquid crystal display technology. Uses digital light processing technology. Uses its own light source to display the information on the screen or wall. Uses many mirrors to reflect light. Room should be darkened. Room need not be darkened. SOUND SYSTEMS The devices or systems that produce sound are called sound systems. Eg: microphone and speaker, sound card, CD-ROM or DVD. Uses: 1. 2. 3. 4.. To create multi-media products. To watch video. Listen to music Videoconferencing and distance learning. Working:. 1. 2. 3. 4. 5. 6.. Speaker speaks into microphone Microphone sends sound waves as input to sound card inside computer. Sound card converts audio signals into equivalent electric current. Current may be in form of voltage which is applied to electromagnet. The changing magnetic field pushes the magnet back and forth. The speaker attached to magnet moves and creates changes in the air pressure. The air pressure generated by speaker cone is interpreted as sound by brain.. SOUND CARDS It is a physical hardware circuit board which is connected to the motherboard or inserted into one of the computer’s internal expansion slots. This allows computer to produce sounds through speakers.. Prepared By: Sushma Shetty.
(23) 22. www.vtulife.com. HEADPHONES AND HEADSET: A headphone consists of a pair of speakers which is attached to a strap that can be fitted to the wearer’s head, speakers placed in close proximity to the ears. A headset is a device which includes two speakers and a microphone mounted to a adjustable head strap. It can be used to make phone calls using PC, participate in video conferencing.. PRINTERS It is an output device that is used to print the text and graphical information on a physical medium such as paper. TYPES: 1. Impact printers a) Dot matrix printers b) Line printers c) Band printers 2. Non-impact printers a) Ink jet printers b) Laser printers IMPACT PRINTERS An impact printer works by physically striking an ink ribbon that is placed on the paper.the print head has pins that take the shape of a letter or character and when the hammer strikes the ribbon, the shape of the character is transferred through the inked ribbon onto the paper creating a printed character. ADVANTAGES: 1. 2. 3. 4.. Can create carbon copies Used for bulk printing Less expensive Maintenance is cheap. DISADVANTAGES: 1. Relatively slow 2. Print quality is poor 3. They are noisy NON-IMPACT PRINTERS It is a printer which forms the characters and images without making the physical contact between the printing mechanism and the medium on which the printing takes place. Ink is sprayed on the paper in the form of character.. Prepared By: Sushma Shetty.
(24) 23. www.vtulife.com. ADVANTAGES: 1. 2. 3. 4. 5.. Produces high quality output. They are noiseless They can handle graphics unlike impact printers They handle wide variety of fonts They are relatively faster. DISADVANTAGES: 1. They are more expensive 2. Maintenance is costly IMPACT/ DOT MATRIX PRINTER. NON IMPACT/ INKJET/ LASER PRINTER. Works by striking an ink ribbon. Striking mechanism is not used. Spraying the ink or by using toner.. Very cheap. Costlier. Slow printing because of moving parts. Fast printing because of fewer moving parts. Carbon copies can be taken. Carbon copies cannot be taken. Noisy because of striking. Noiseless. Quality of print is not good. Good quality print. Prints only text. Prints text and graphics. Only standard text is supported. Varying fonts. Ex: line printer, dot matrix printer. Ex: ink jet, laser printer. DOT MATRIX PRINTER It is a character printer that prints all types of characters and images as a pattern of dots by striking against the ink ribbon. The hammer is a print head consisting of bi-directional pins and works as impact printers. This is the cheapest printer. WORKING: Let the letter ‘T’ has to be printed which is represented as in figure:. Prepared By: Sushma Shetty.
(25) 24. www.vtulife.com. As the print head moves across the paper only the pins in the first column will strike the ribbon in turn will strike the paper. The sequence is as in figure below:. INKJET PRINTER It is a printer that forms all types of characters and images by spraying small drops of ink on the paper. They are non impact printers. WORKING: The working is similar to that of dot matrix printers. The character is produced by spraying small droplets of ink through tiny nozzles. Instead of print head, the inkjet printer uses ink nozzles. The commonly used ink jet printers are HP, Epson and Canon printers. LASER PRINTER It is a high quality, high speed non impact printer which operates in a manner similar to Xerox (photocopying) machine using laser technology. It uses laser beam to form images and it is transferred to paper electrostatically. WORKING: It has its own CPU and built in memory. The CPU interprets the data received from the computer and to control the laser. 1. The laser beam moves across the drum using the mirror and creates an image on the drum in the form of electrical charge. 2. The electrical charge on the drum attracts the toner particles, thus forming complete image to be printed on the paper. 3. The paper is taken from the tray and passed across the drum and the image is transferred on the paper.. Prepared By: Sushma Shetty.
(26) 25. www.vtulife.com. 4. The toner particles transferred on the paper are imprinted or fused permanently on the paper using heat or pressure. 5. The paper comes out of the printer. 6. After the document is printed, the electrical charge is removed from the drum. It is made ready for the next paper. Dot matrix printer. Laser printer. Impact printer. Non impact printer. Slow printing. Fast printing. Very cheap. Costlier. Carbon copies can be taken. Carbon copies cannot be taken. Produces noise. Don’t produce much noise. Print quality is not good. Print quality is very good. Prints only text. Prints both text and graphics. PLOTTERS A pen plotter similar to a printer is used to draw only continuous lines using a pen. Multicolored plotters use many colored pens to draw different colors. They are used in CAD applications. They are more expensive than printers.. PROCESSING DATA DATA/ INFORMATION Data is a representation of facts or concepts in an organized manner. Information is defined as a collection of data from which conclusions may be drawn. DATA. INFORMATION. Data is collection of facts and figures. Information is the result of processing of data. Data do not convey any meaning. It conveys meaning. Computers work with data. Computers do not work with information. Data is unstructured. Data is correctly organized. Prepared By: Sushma Shetty.
(27) 26. www.vtulife.com. It is representation of information. So the representation may change. Even if data representation changes, information do not change.. NUMBER SYSTEM AND DATA REPRESENTATION NUMBER SYSTEM When we type some letters or words, the computer translates them in numbers as computers can understand only numbers. DECIMAL NUMBER SYSTEM: Decimal number system has base 10 as it uses 10 digits from 0 to 9. In decimal number system, the successive positions to the left of the decimal point represent units, tens, hundreds, thousands and so on. Each position represents a specific power of the base (10). For example, the decimal number 1234 consists of the digit 4 in the units position, 3 in the tens position, 2 in the hundreds position, and 1 in the thousands position, and its value can be written as (1x1000)+ (2x100)+ (3x10)+ (4xl) =(1x103)+ (2x102)+ (3x101)+ (4xl00) =1000 + 200 + 30 + 4 =1234 BINARY NUMBER SYSTEM: CHARACTERISTICS: . Uses two digits, 0 and 1.. . Also called base 2 number system.. . Each position in a binary number represents a 0 power of the base (2).. . Example 20. Last position in a binary number represents a x power of the base (2). Example 2x where x represents the last position - 1.. Eg: Binary Number: 101012 . Calculating Decimal Equivalent:. Prepared By: Sushma Shetty.
(28) 27. www.vtulife.com. DECIMAL TO BINARY: STEPS: . Step 1 - Divide the decimal number to be converted by the value of the new base. Step 2 - Get the remainder from Step 1 as the rightmost digit (least significant digit) of new base number. Step 3 - Divide the quotient of the previous divide by the new base. Step 4 - Record the remainder from Step 3 as the next digit (to the left) of the new base number.. Repeat Steps 3 and 4, getting remainders from right to left, until the quotient becomes zero in Step 3. The last remainder thus obtained will be the most significant digit (MSD) of the new base number. Eg: Decimal Number: 29. Calculating Binary Equivalent:. Binary equivalent: 11101 OCTAL NUMBER SYSTEM: CHARACTERISTICS: . Uses eight digits, 0,1,2,3,4,5,6,7.. . Also called base 8 number system. . Each position in a octal number represents a 0 power of the base (8). Example 80 Last position in a octal number represents a x power of the base (8). Example 8x where x represents the last position - 1. Eg: Octal Number: 125708 . Calculating Decimal Equivalent:. Prepared By: Sushma Shetty.
(29) 28. www.vtulife.com. HEXADECIMAL NUMBER SYSTEM: CHARACTERISTICS: . Uses 10 digits and 6 letters, 0,1,2,3,4,5,6,7,8,9,A,B,C,D,E,F.. . Letters represents numbers starting from 10. A = 10. B = 11, C = 12, D = 13, E = 14, F = 15.. . Also called base 16 number system. . Each position in a hexadecimal number represents a 0 power of the base (16). Example 160 Last position in a hexadecimal number represents a x power of the base (16). Example 16 xwhere x represents the last position - 1. Eg: Hexadecimal Number: 19FDE16 .Calculating Decimal Equivalent:. REPRESENTATION OF DATA The data are represented in the state of electronic switches. A switch with ON state represents 1 and a switch with OFF state represents 0. Letters, digits, sound, pictures are all represented using 0’s and 1’s. Characters have ASCII values wich are digits and they are represented in binary. Values which represent state of a switch is called bit.. Prepared By: Sushma Shetty.
(30) 29. www.vtulife.com. UNITS OF DATA:. HOW CPU PROCESS DATA The processing of data is performed using following hardware units: 1. Central Processing Unit (CPU) 2. Memory CPU: The CPU is the brain of the computer, which executes instructions one after the other. The execution of each instruction is performed with the help of two basic parts: 1. Control unit 2. Arithmetic Logic Unit CONTRUL UNIT (CU): It controls and co-ordinates the activities of all the units by issuing proper commands. The various responsibilities of the control unit are: 1. 2. 3. 4.. Issue propersignals to the memory to fetch the next instruction to be executed. Decode the instruction. Execute the instruction. Issue proper command to ALU, memory, I/O units to get the job done.. INTERCONNECTION OF UNITS A group of wires connected between various sub-units of a computer to transfer the data/instructions is called PC bus or bus. Two types of PC bus: 1. System bus Prepared By: Sushma Shetty.
(31) 30. www.vtulife.com. a) Data bus b) Address bus c) Control bus 2. I/O bus a) ISA bus b) PCI bus c) USB bus SYSTEM BUS: It is used to connect the CPU with RAM and cache memory. 1. Data bus: A group of wires used to transfer the data is called data bus. 2. Address bu: A group of wires exclusively used to transfer the address is called address bus. 3. Control bus: A group of wires used to transfer the control signals is called control bus.. THE I/O BUS:. It is used to connect all I/O devices with CPU and RAM. 1. ISA bus: ISA (Industry Standard Architecture) I/O bus was also 8 bit and ran at 4.77MHz. It typically runs much slower. One reason is the fact that the ISA bus clock and CPU clock run asynchronously, resulting in many wasted clock cycles. 2. PCI bus: (Peripheral Component Interface), the performance of PCI is much the same as VLB; it too is 32 bits wide and runs and 33MHz, resulting in a bandwidth of 127MB/sec. Two major advantages of PCI over VLB are the support for bus mastering and for Plug and Play. 3. USB: (Universal Serial Bus), helps to convert various devices such as keyboard, mouse, printer very quickly and easily.. MEMORY Two types: 1. Primary memory 2. Secondary memory. Prepared By: Sushma Shetty.
(32) 31. www.vtulife.com. PRIMARY MEMORY/MAIN MEMORY: Primary memory holds only those data and instructions on which computer is currently working. It has limited capacity and data get lost when power is switched off. It is generally made up of semiconductor device. These memories are not as fast as registers. The data and instruction required to be processed earlier reside in main memory. It is divided into two subcategories RAM and ROM. Characteristic of Main Memory: 1. These are semiconductor memories. 2. It known as main memory. 3. Usually volatile memory. 4. Data is lost in case power is switch off. 5. It is working memory of the computer. 6. Faster than secondary memories. 7. A computer cannot run without primary memory. SECONDARY MEMORY: This type of memory is also known as external memory or non-volatile. It is slower than main memory. These are used for storing Data/Information permanently. CPU directly does not access these memories instead they are accessed via input-output routines. Contents of secondary memories are first transferred to main memory, and then CPU can access it.For example: disk, CD-ROM,DVD etc. Characteristic of Secondary Memory: 1. These are magnetic and optical memories. 2. It is known as backup memory. 3. It is non-volatile memory. 4. Data is permanently stored even if power is switched off. 5. It is used for storage of the data in the computer. 6. Computer may run without secondary memory. 7. Slower than primary memories.. Prepared By: Sushma Shetty.
(33) 32. www.vtulife.com. CACHE MEMORY: Cache memory is a very high speed semiconductor memory which can speed up CPU. It acts as a buffer between the CPU and main memory. It is used to hold those parts of data and program which are most frequently used by CPU. The parts of data and programs are transferred from disk to cache memory by operating system, from where CPU can access them. ADVANTAGE 1. Cache memory is faster than main memory. 2. It consumes less access time as compared to main memory. 3. It stores the program that can be executed within a short period of time. 4. It stores data for temporary use. DISADVANTAGE: 1. Cache memory has limited capacity. 2. It is very expensive. RAM (Random Access Memory): A RAM constitutes the internal memory of the CPU for storing data, program and program result. It is read/write memory. It is called random access memory (RAM). Since access time in RAM is independent of the address to the word that is, each storage location inside the memory is as easy to reach as other location & takes the same amount of time. We can reach into the memory at random & extremely fast but can also be quite expensive. RAM is volatile, i.e. data stored in it is lost when we switch off the computer or if there is a power failure. Hence a backup uninterruptible power system(UPS) is often used with computers. RAM is small , both in terms of its physical size and in the amount of data it can hold. RAM is of two types: Static RAM (SRAM), Dynamic RAM (DRAM). ROM (Read Only Memory): ROM stands for Read Only Memory. The memory from which we can only read but cannot write on it. This type of memory is non-volatile. The information is stored permanently in such memories during manufacture. A ROM, stores such instruction as are required to start computer when electricity is first turned on, this operation is referred to as bootstrap. ROM chip are not only used in the computer but also in other electronic items like washing machine and microwave oven.. Prepared By: Sushma Shetty.
(34) 33. www.vtulife.com. PRIMARY MEMORY VS SECONDARY MEMORY 1. Processor access the primary memory in a random fashion. Unlike primary memory, secondary memory is not directly accessed through CPU. The accessing of the primary memory through CPU is done by making use of address and data buses, whereas input/ output channels are used to access the secondary memory. 2. The primary memory is embedded with two types of memory technologies; they are the RAM (Random Access Memory) and ROM (Read Only Memory). The secondary memory is accessible in the form of Mass storage devices such as hard disk, memory chips, Pen drive, floppy disk storage media, CD and DVD. 3. Primary memory is volatile in nature, while secondary memory is non volatile. The information that is stored in the primary memory cannot be retained when the power is turned off. In case of secondary memory, the information can be retrieved even if the power is turned off because the data will not be destructed until and unless the user erases it. 4. When the data processing speed is compared between the primary and secondary memory, the primary memory is much faster than the secondary memory. 5. In the cost perspective, the primary memory is costlier than the secondary memory devices. Because of this reasons most of the computer users install smaller primary memory and larger secondary memory. 6. As the secondary memory is permanent, all the files and programs are stored in the secondary memory most and as the primary memory interacts very fast with the micro processor, when the computer needs to access the files that are stored in the secondary memory, then such files are first loaded into the primary memory and then accessed by the computer.. MOTHERBOARD The motherboard serves as a single platform to connect all of the parts of a computer together. A motherboard connects CPU, memory, hard drives, optical drives, video card, sound card and other ports and expansion cards directly or via cables. It can be considered as the backbone of a computer. Features: 1. 2. 3. 4.. Motherboard varies greatly in supporting various types of components. Normally a motherboard supports a single type of CPU and few types of memories. Video Cards, Hard disks, Sound Cards have to compatible with motherboard to function properly. Motherboards, cases and power supplies must be compatible to work properly together.. MICROPROCESSOR It is a chip that contains the CPU. The microprocessors control the logic of almost all digital devices. CHARACTERISTICS: 1. Instruction set: set of instructions to be executed.. Prepared By: Sushma Shetty.
(35) 34. www.vtulife.com. 2. Bandwidth: the number of bits processed in one instruction. 3. Clock speed: determines the number of instructions to be executed per second.. MICROPROCESSOR ASSOCIATES The microprocessor is associated with the various components such as clock rate, motherboard, system bus etc. They determine the capacity of the micropreocessor and work with it in achieving a given task. The components are: 1. CLOCK RATE: The rate at which a processor completes its processing is called clock rate. It is measured in cycles per second (Hz). 2. MOTHERBOARD: It is the main circuit of the microcomputer that contains various connectors for attaching additional boards. The motherboard contains CPU, BIOS, memory, mass storage interfaces, serial and parallel ports, expansion slots. 3. SYSTEM BUS: It refers to the bus which connects CPU and memory. 4. CACHE MEMORY: The portion of main memory that a computer processor can access more quickly than a RAM. 5. INSTRUCTION PIPELINING: CPU can process millions or billions of instructions per second. In pipelining technique, when one instruction is being executed, another instruction can be fetched from the memory and decoded, thereby increasing execution speed. 6. HEAT SINK: It is a device that is attached to the microprocessor chip which is used to bring down the temperature of electronic device. The heat sink keeps away the processor from overheating by absorbing its heat and dissipating it in air.. TYPES OF MICROPROCESSOR 1. Complex instruction set computing (CISC) 2. Reduced instruction set computing (RISC) 1. CISC ARCHITECTURE: It is a special instruction set architectur in which each instruction can execute several low-level operations such as load from memory, an arithmetic operations and a memory store, all in a single instruction. Since each instruction is performing two or more primitive operations inside the processor, it is called complex instruction set.. Prepared By: Sushma Shetty.
(36) 35. www.vtulife.com. CHARACTERISTICS: 1. 2. 3. 4. 5.. Emphasis is on hardware. All instructions are executed in two or more clock cycles. Variable instruction format demanding more decoding locgic and time. Easy to program. Complex data types were handled in hardware.. 2. RISC ARCHITECTURE: It utilizes a small, highly optimized set of instructions. The idea here is simplified instructions can provide higher performance by faster execution of each instruction. CHARACTERISTICS: 1. 2. 3. 4. 5.. Emphasis is on software. All instructions are executed in one clock cycle. Uniform instruction format demanding less decoding logic and time. Difficult to program. Few data types in hardware. CISC PROCESSOR. RISC PROCESSOR. Instructions are complex. Instructions are simple. Program code size is smaller. Program code size is lengthier. Increased hardware circuitry and leads to increased processor size. Reduced hardware circuitry and leads to reduced processor size. It is less memory intensive. More memory intensive. Power consumption is more. Power consumption is less. More heat is generated. Less heat is generated. Prepared By: Sushma Shetty.
(37) 36. www.vtulife.com. UNIT 3 FUNDAMENTALS OF PROBLEM SOLVING INTRODUCTION TO COMPUTER LANGUAGES . PROGRAM: The set of instructions given to the computer to achieve a specific task. PROGRAMMING: process of providing instructions to solve a specific problem. PROGRAMMER: person who writes the program. PROGRAMMING LANGUAGE: the language that is used to write a program.. TYPES OF LANGUAGES: . machine level language assembly level language high level language. 1. MACHINE LEVEL LANGUAGE . . It is a set of instructions given to a computer in the form of 0’s and 1’s. It is the language of computers. ADVANTAGES: o Faster execution o Translator is not required. Since machine language is the language of computers, it can execute. DISADVANTAGES: o Difficult to remember machine instructions. o Difficult to read and write machine language programs. o Very difficult to debug, correct and modify the program. o Machine dependent and not portable ie its machine dependent program, program written for one machine may not be run in other with a different processor. o It is unstructured language.. 2. ASSEMBLY LEVEL LANGUAGE . Also called as symbolic language. A set of instructions given to a computer in the form of symbolic names or mneumonics. Eg: o ADD R1, R2 // adds values in register R1 and R2 and saved in R1 o MUL R1, R2. Prepared By: Sushma Shetty.
(38) 37. www.vtulife.com. . . . ADVANTAGES: o Easy to remember symbolic names than machine codes. o Program understanding, modification is easier compared to machine codes. o Simple and easy compared to machine language. o Execution of the same speed as to a equivalent machine language. DISADVANTAGES: o A translator is required. It is called as an assembler for assembly level language. o It is machine dependent. o It is unstructured language. o Difficult to understand and debug compared to high level languages. ASSEMBLER: It’s a translator which translates the program written in assembly language into machine language so that the computer can understand. For each assembly language instruction, corresponding machine instruction is generated.. 3. HIGH LEVEL LANGUAGES . . It is written written using symbols and words just like English language. It enables the programmer to write machine independent code. Easy to read, write and maintain. They are portable. ADVANTAGES: o Easy to understand. o Easy to read, write and modify. o Code is compact and self explanatory. o They are machine independent programs. DISADVANTAGES: o Takes more time to execute compared to machine language or assembly language. o Translator is required.. COMPILER: . It is a translator which accepts the program written in high level language and produces the corresponding machine language program (machine code). The compilation process is shown below. Prepared By: Sushma Shetty.
(39) 38. www.vtulife.com. . The compiler after accepting the program written in high level language, checks for the errors introduced by the programmer. Appropriate error messages are displayed. The errors can be corrected and compiled again until there are no errors in the program. Then the program is converted to machine code. Eg: Turbo C, Visual C/C++, gcc. CREATING AND RUNNING PROGRAMS: The steps involved in creating and running programs are: 1. 2. 3. 4.. Writing and editing programs Compiling programs Linking programs Program execution. 1. WRITING AND EDITING PROGRAMS The software used to write programs is called as an editor. Using a text editor the following operations can be performed: o We can type the program, modify and store the program. o To correct the program we must be able to move the cursor in desired position. Its done using the cursor keys. o We should have familiarity of the complete editor by knowing various commands to modify such a search and replace etc. The file which is inputto the compiler is the source file. In Turbo C, the shortcut key is F2. 2. COMPILING A PROGRAM Once we type a program, after completion we have to convert it into machine codes using a compiler (for a C program). In Tubo C, the shortcut key is ALT+F9. 3. LINKING A PROGRAM After compilation, the object program consisting of machine language is created, but cannot be directly executed. The object code created must be combined to get an executable code. In our C programs, we use library files, they must be linked before execution. In Turbo C, the shortcut key is Ctrl+F9.. Prepared By: Sushma Shetty.
(40) 39. www.vtulife.com. 4. PROGRAM EXECUTION The program can be executed and the result can be displayed on the output screen or a output device.. SYSTEM DEVELOPMENT LIFE CYCLE: . The model which is commonly used is the waterfall model.. . System requirements: In this phase, all the requirements, which are necessary to accomplish the proposed system are identified. The requirements are usually stated in terms that are understood by a user. Analysis: In this phase, the problem stated in the form of requirements is analyzed precisely and completely and we look at different alternatives from system point of view. Design: This phase will determine how the system will be built. The individual functions that make up the system are determined and the solution will be expressed in the form of algorithm or flowchart, etc. Code: In this phase, the algorithm will be converted into programs using any of the programming language. These programs have to be tested by the programmer for his/her satisfaction. System Test: In this phase, all the programs and functions are tested together to make sure the system works as a whole. The results obtained will be compared with the test data that is prepared manually to make sure that system is working as expected by meeting the requirements identified in requirement phase. Maintenance: After the program is implemented, it should be properly maintained, ie taking care of the changing requirements of its users and systems. The program should be regularly updated or enhanced by adding additional capabilities. In any of the above phases, if any errors are identified, it has to be corrected by going back to the previous phase. Otherwise continue to the next phase.. . . . . . Prepared By: Sushma Shetty.
(41) 40. www.vtulife.com. INTRODUCTION TO C LANGUAGE INTRODUCTION . C language is a high level language. Reasons for C language to be popular: o C is a structured programming language. o It is a high level language and hence easy to understand. o It has wide variety of operators using which a program can be written easily to solve a given problem. o Helps us to develop efficient programs. o C is machine independent. The program written on one machine will run on other machine also. o C program can be executed on many different hardware platforms.. BACKGROUND/ HISTORY: The C language is derived from various languages as shown below: ALGOL: It is the first block structured language but never gained wide acceptance in USA. BCPL (Basic Combined Programming Language) : the introduction of ALGOL gave way to the development of structured programming language designed by Martin Richards. B: Ken Thomson developed a new language on similar lines of BCPL called B language. The first version of UNIX operating system is developed using B language. C : Dennis Ritchie developed C language in 1972. It inherited many concepts from ALGOL, BCPL, B. but the concept of data types was newly introduced. ANSI (American National Standards Institute): introduced standards for C language in 1989. This standard was adopted by ISO in 1990. C++ : has all the features of C language along with concept of objects, polymorphism, inheritance etc. C is procedure oriented whereas C++ is object oriented.. STEPS TO LEARN C LANGUAGE: . Learn alphabets of C language. Learn how one or more alphabets can be grouped together to form meaningful words. These meaningful words are tokens.. Prepared By: Sushma Shetty.
(42) 41. www.vtulife.com. . . Learn how one or more words are grouped together to form meaningful sentences. These sentences are called instructions or statements. Learn how one or more sentences can be grouped together to form paragraphs. These constitute a complete program.. 1. CHARACTER SET (ALPHABETS OF C) Any symbol that is used while writing a C program is called a character or an alphabet. It can be a letter, digit or a special symbol. All the characters that are used while writing C programs are called alphabets or character set. o Eg for alphabets: Lower case letters: a b c …. z Upper case letters: A B C…. Z Digits: 0 to 9 Symbols such as ~ tilde, ^ caret, - minus, + plus sign etc….. White spaces: character such as space, tab(\t), new line (\n), carriage return (\r) etc 2. C TOKENS A token is a smallest or a basic unit of a C program. One or more characters are grouped in sequence to form meaningful words. These meaningful words are tokens. Classification: o Keywords: if, for, while, etc o Identifiers: sum, length, i etc o Constants: 10, 10.5, ‘a’, “strng” etc o Operators: +, -, *, / etc o Special symbols: [], {}, () etc Tokens involving single characters: +, -, *, / Tokens involving two characters: ++, <=, >= Tokens involving more than two characters: 100, length, 10.5 etc Using these tokens, meaningful instructions are framed for a program.. KEYWORDS . The tokens with predefined meaning in C language are called keywords. They are reserved for specific purpose and hence they are called as reserved words. The keywords available are:. Prepared By: Sushma Shetty.
(43) 42. www.vtulife.com. . Rules to be followed while using keywords are: o They should not be used as variable names, function names, array names etc. o The meaning of keywords cannot be changed by the user. o All keywords are written in lower case letters.. IDENTIFIERS . . Need for identifiers: o In computer memory, the data and instructions can be stored. Each piece of data or the instructions is stored at unique address in the memory of the computer. So it’s difficult for us to: Access data or instructions using these addresses. Manipulate data using these addresses. Keep track of addresses of data stored in the memory. o These disadvantages are overcome by using identifiers. Identifiers are the names given to various program elements such as variables, constants, function names, array names etc. It is a word consisting of sequence of one or more letters or digits along with “_” (underscore). Some rules to frame identifiers: o First character should be a letter or underscore. o No extra symbols are allowed other than letters, digits, _ o Length can be maximum of 31 charaters. o Reserved words cannot be used as identifiers. o They are case sensitive. SUM is not equal to sum.. Difference between keywords and identifiers: KEYWORDS It has predefined meaning in a language. They are used for specific purpose in a language and hence they are also called as reserved words. They are the instructions given to the compiler.. Prepared By: Sushma Shetty. IDENTIFIERS They do not have pre defined meaning.. They are not instructions given to the compiler..
(44) 43. www.vtulife.com. Eg: if, for, while. They are names introduced into a program. Eg: sum, length, I, j, sum_calc. CONSTANTS . It is a data item that does not change during the execution of a program. They cannot be modified in the program. Classification:. 1. INTEGER CONSTANT An integer is a whole number without any fraction part. No extra characters allowed other than + and – sign. If + and – are there, they shoud precede the number, indicating a positive or a negative number. Types: o Decimal : combination of digits from 0 to 9. It is a base 10 number. valid: 1000, 1354, 234, -9877, +65 invalid: 10,000 (no comma), 0.5 (decimal), 10 20 (space), 085 (prefix zero not allowed). o Octal : is a combination of digits from 0 to 7. It is a base 8 number. valid: 010, 0777, -065 invalid: 10,000, 0.5, 10 20, 085 (digit 8), 777 (should have prefix 0). o Hexadecimal : combination of digits from 0 to 9, also alphabets from ‘A’ to ‘F’ or ‘a’ to ‘f’. it is a base 16 number. It must be preceded by ‘0X’ or ‘0x’. valid: 0X12A, 0x13A, 0X a98 invalid: 10,000, 0Xabgh, 0x12c.ab, 0123 2. FLOATING POINT CONSTANT They are base 10 numbers with fraction part such as 10.5 Prepared By: Sushma Shetty.
(45) 44. www.vtulife.com. . No characters other than + and – allowed (only as prefix to indicate positive or negative integer). Types: o Fractional form : integer part followed by a dot and a fractional part. Eg: 0.5, 9.5, 34.09, -122.7623, -9. , +.9 o Scientific notation : represented using scientific notation (exponential notation) has 3 parts: Mantissa: eg: 9.86 e/E: eg: e, E exponent: 3 which is equal to 9.86 X 103 the mantissa can be integer or a floating point number. Exponent has to be an integer.. 3. CHARATER CONSTANT a symbol enclosed within a pair of single quotes is called character constant. Each character is associated with a unique value called an ASCII (American Standard Code for Information Interchange) value. CHARACTER CONSTANT ‘9’ ‘a’ ‘$’ ‘\n’ “9” ‘99’. VALID/INVALID valid Valid Valid valid invalid invalid. REASONS FOR INVALIDITY Escape character Double quotes not allowed Two characters not allowed. 4. BACKSLASH CONSTANTS (ESCAPE SEQUENCE CHARACTERS) An escape sequence character begins with a backslash and is followed by one character. A backslash(\) along with some characters give rise to special print effects by changing the meaning of some characters. Since an escape sequence character starts with backslash, they are called backslash constants. CHARACTER Bell Backspace Horizontal tab Vertical tab Newline Form feed Carriage return Quotation mark Apostrophe Question mark. Prepared By: Sushma Shetty. ESCAPE CHARACTER \a \b \t \v \n \f \r \’’ \’ \?. MEANING Beep sound Cursor moves towards left one position Cursor moves right by 8 positions This is usually not supported Cursor moves to the beginning of new line Not supported by some compilers Cursor moves towards beginning of current line Double quote Single quote Question mark.
(46) 45. www.vtulife.com. Backslash NULL. \\ \0. Back slash Null character. 5. STRING CONSTANT A sequence of characters enclosed within a pair of double quotes is called string constant. The string always ends with NULL character denoted as ‘\0’. It is enclosed in double quotes. STRING CONSTANT ‘9’ “9” “pace” “\n” ‘pace’ “pace cs” “”. VALID/INVALID Invalid Valid Valid Valid Invalid Valid Valid. REASONS FOR INVALIDITY Must be enclosed within “” Must be enclosed within “” Empty string. CODING CONSTANTS . The data values that cannot be changed during execution of the program are called constants. The constants can be directly used in the program. Three different ways to code constants: o Literal constants o Defined constants o Memory constants. 1. LITERAL CONSTANTS The constants which do not have any name are called literal constants ie literal is an unnamed constant used to specify the data. ‘A’ 9 3.56 Sum+10 “RAMA”. Character literal Numeric literal Numeric literal 10 is numeric literal String literal. 2. DEFINED CONSTANTS The names that can be used as a substitute for constants such as integer constant or character constant or floating point constant or a string constant are called symbolic constants. They are also called symbolic names. Since these constants are defined using preprocessor command define, they are also called as defined constants.. Prepared By: Sushma Shetty.
