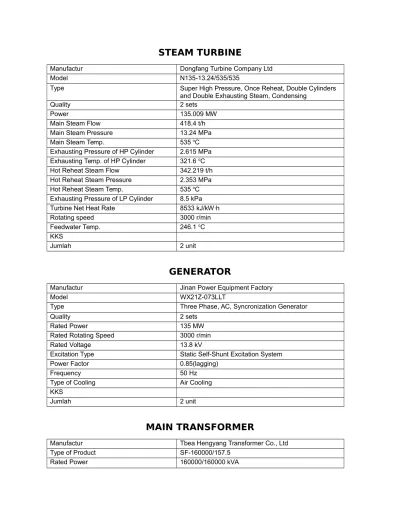

STEAM TURBINE

Manufactur Dongfang Turbine Company Ltd

Model N135-13.24/535/535

Type Super High Pressure, Once Reheat, Double Cylinders and Double Exhausting Steam, Condensing

Quality 2 sets

Power 135.009 MW

Main Steam Flow 418.4 t/h Main Steam Pressure 13.24 MPa Main Steam Temp. 535 o_C Exhausting Pressure of HP Cylinder 2.615 MPa Exhausting Temp. of HP Cylinder 321.6 o_C Hot Reheat Steam Flow 342.219 t/h Hot Reheat Steam Pressure 2.353 MPa Hot Reheat Steam Temp. 535 o_C Exhausting Pressure of LP Cylinder 8.5 kPa Turbine Net Heat Rate 8533 kJ/kW∙h

Rotating speed 3000 r/min

Feedwater Temp. 246.1 o_C KKS

Jumlah 2 unit

GENERATOR

Manufactur Jinan Power Equipment Factory

Model WX21Z-073LLT

Type Three Phase, AC, Syncronization Generator

Quality 2 sets

Rated Power 135 MW

Rated Rotating Speed 3000 r/min

Rated Voltage 13.8 kV

Excitation Type Static Self-Shunt Excitation System

Power Factor 0.85(lagging)

Frequency 50 Hz

Type of Cooling Air Cooling KKS

Jumlah 2 unit

MAIN TRANSFORMER

Manufactur Tbea Hengyang Transformer Co., Ltd Type of Product SF-160000/157.5

(2)

Rated Voltage (157.5 ± 4X1.25%)/13.8 kV

Type of Cooling ONAN/ONAF

Connection Symbol YNd1

Number of Phase 3

Rated Frequency 50 Hz

Product Code 1TBEA. 710. 30511

NO-Load Loss 70.75 kW

No-Load Current 0.07 %

Weight of Active Part 99000 Kg

Weight of Oil 41000 Kg

Weight of Upper Tank 14500 Kg

Total Weight 185000 Kg

KKS

Jumlah 2 unit

AUXILIARY TRANSFORMER

Manufactur Shandong Power equipment Co., Ltd China Type of Product SFZ-25000/13.8 TH

Rated Power 25/25 MVA

Rated Voltage (13.8X1.25%)/6.3 kV

Type of Cooling ONAN/ONAF

Connection Symbol D,yn11

Number of Phase 3

Rated Frequency 50 Hz

Working Condition Out Doors

Noise Level 63.58 dB

Transformer Oil DB-25# KeLaMaYi

Insulation Level h.v. line terminal LI/AC 150/50 kV_{l.v. neural LI/AC 75/42 kV} l.v. line terminal LI/AC 75/42 kV

NO-Load Loss 17.56 kW

Load Loss 100.26 kW

No-Load Current 0.16 %

Impedance Voltage 13.03 % Weight of Active Part 23.7 t

Weight of Oil 15.9 t

Weight of Upper Tank 6.6 t Weight of Accessories 7.3 t Transport Weight (oil-filled) 49.2 t

Total Weight 61.3 t

KKS

(3)

NEUTRAL POINT EARTHING RESISTANCE OF GENERRATOR

Manufactur China Shanghai Xinguang Resistor Manufactory Co., Ltd

Type ZZD-13.8/0.5F Flow Time 4S Tapping 100 V Rated Current 500 A Serial S013005 Rated Voltage 13.8/√3 kV Secondary Resistance 0.5 Ω Tapping 173.2 V Weight 1000 Kg

Leave Factory Date 2013.01

KKS 10BAA03GT001

Jumlah 2 unit

Main Auxiliary Equipment of Steam Turbine

 Condenser

Rubber Ball Devicve

Manufactur Qingdao Huatai Electric Equipment Co., Ltd

Type ZQ-24

Mass 197 Kg

Ex. Works No. 13-05/1 Working Pressure 0.25 MPa Ex. Works Date 2013.05

KKS 10PAM21BB001

Jumlah 4 unit

MOTOR

Manufactur Shandong Huali Electric Motor Group Co., Ltd Type 3~motor HM2-160M-4 Voltage 380/660 V Motor 11/11 kW Current 22.5/13.0 A PF 0.84/0.84 Frequency 50/50 Hz INS CL F Weight 122 Kg Speed 1460/1460 r/min Date 2012.08 Duty S1 Ip 55

(4)

Conn ∆/Y Eff. 88.6/88.6 % DE BRG. 6309 NDE BRG. 6309 Serial No. 54004 STD GB/T25290-2010 KKS Jumlah 4 unit  Condensate Pump MOTOR

Manufactur Shanghai Electric Machinery Co.,Ltd (SEC) Type YLKK400-4 Voltage 6000 V Motor 315 kW Current 36.6 A PF 0.894 Frequency 50 INS CL F Weight 3720 Kg Speed 1484 r/min Date 2013.01 Duty S1 Ip 54 Conn Y Serial No. 400L1220815-1 STD IEC69234-1 KKS Jumlah PUMP

Manufactur Shanghai Apollo Machinery Co.,Ltd Type 12NLT-210

Capacity 350 m3_/h Power 315 kW

Serial No. A3286-01-01-01

Head 205 m Speed 1484 r/min Weight 5100 Kg Date 2013.01 KKS 10LCB13 Jumlah

(5)

 Expansion Tank

Manufactur Wuxi Power Station Auxiliary Equipment Works, Jiangsu, China Design Temp. 80 o_C

Product Standard JB2932-1999 Material of Body Q235-B Actuating Medium Air, Steam Working Temp. 50 o_C Weight 1500 Kg Volume 5 m3 Manufacturing Date 2013.01 KKS 10PGB10 Jumlah

 Steam Seal Steam Cooler

Manufactur Dongfang Turbine Co., Ltd Type JQ-60-2

Surface 60 m2 Tube Dia ɸ 19 x1 mm Serial No. D135DN49 Water Side 2.5 MPa Steam Side 0.0951 MPa Manuf. In 2013 KKS

Jumlah 2 unit MOTOR

Manufactur Anhui Wannan Electric Machine Co., Ltd Type YX3-160M1-2 Voltage 380 V Motor 11 kW Current 21.0 A PF 0.89 Frequency 50 Hz INS CL F Weight 114 Kg Speed 2950 r/min Date 2012.08 Ip 55 DE BRG/ODE BRG 6309-S/6309-S Eff. 99.4 % Serial No. 28018812 KKS

(6)

Jumlah 4 unit FAN

Manufacture Hangzhou Kexing Blower Co., Ltd Type AZY10.30-0300-01 Capacity 1800 m3_/n Speed 2900 r/min Total Head 10300 Pa Motor Output 11 kW No. 13065 Date 2013.02 KKS Jumlah 4 unit  LPH No. 7

Manufactur Harbin Turbinecompany Limited of China Product No. QHR-12-34

Product Model JD-220-28 Manufacture Date 201 Vessel WT 103458 Kg Heat Exchange Surface 220 m2 Baffle Plate Space 1638 mm

Design Pressure Water: 2.5 MPa Steam: 0.3 MPa Test Pressure Water: 3.125 MPa Steam: 0.38 MPa Max. Allowablewp Water: 1.6 MPa Steam: 0.019 MPa Design Temp. 90 o_C

Operating Medium Water & Steam

Subject Material Water: Q345R-TP304 Steam:Q245R Product Standard GB150-2011/GB151-1999

Manufacture Consent Class A1,A2

Manufacturin Certificate No. TS2210D45-2015 KKS

Jumlah 2 unit

 LPH No. 6

Product Model JD-260-10 Manufacture Date 201

Vessel WT 8445 Kg

Heat Exchange Surface 260 m2 Baffle Plate Space 816 mm

Design Pressure Water: 2.5 MPa Steam: 0.3 MPa Test Pressure Water: 3.125 MPa Steam: 0.4 MPa

(7)

Max. Allowablewp Water: 1.6 MPa Steam: 0.070 MPa Design Temp. Water: 100 o_{C Steam: 150}o_C Operating Medium Water & Steam

Jumlah 2 unit

 LPH No. 5

Vessel WT 9173 Kg

Design Pressure Water: 2.5 MPa Steam: 0.6 MPa Test Pressure Water: 3.16 MPa Steam: 1.03 MPa Max. Allowablewp Water: 1.6 MPa Steam: 0.267 MPa Design Temp. Water: 150 o_{C Steam: 280}o_C Operating Medium Water & Steam

Jumlah 2 unit

 LPH No. 4

Vessel WT 7985 Kg

Design Pressure Water: 2.5 MPa Steam: 0.6 MPa Test Pressure Water: 3.1 MPa Steam: 1.13 MPa Max. Allowablewp Water: 1.6 MPa Steam: 0.463 MPa Design Temp. Water: 185 o_{C Steam: 320}o_C

(8)

Operating Medium Water & Steam

Jumlah 2 unit

 Deaerator

Manufactur Wuxi Power Station Auxiliary Equipment Works M A W P 0.85 MPa AT 385 o_C

M D M T 5 o_{C AT 0.85 MPa} M F R S N SL2031

Year Built 2012

Design Pressure 0.85 MPa AT 385 o_C Hydrostatic Pressure 1.34 MPa

Hydrostatic Date 2013.2.23

KKS 20LAA10BB002

Jumlah 2 unit

Continual Blow Down Flash Tank

Manufactur Wuxi Power Auxiliary Equipments Works, Jiangsu, China

Product No. A120042 Design Pressure 1.0 MPa Design Temperature 280 o_C Pressure of Proct Test 1.5 MPa Product Standard GB 150 Manufacture License Class A2 Net Weight of The Equipment 2450 Kg Category of Pressure Vessel I

M.A.W.P

Actuating Medium Air, Steam Volume 6 M3

Manufacture External No. TS2210909 – 2013 Material of Body Q345R

Manufacturing Date

KKS 10LCQ10

Jumlah

 Feed Water Storage Tank

Manufactur Wuxi Power Station Auxiliary Equipments Works M A W P 0.85 MPa AT 385 o_C

M D M T 5 o_{C AT 0.85 MPa} Year Built 2012

(9)

Design Pressure 0.85 MPa AT 385 o_C Hydrostatic Pressure 1.34 MPa

Hydrostatic Date 2013.2.23

KKS 20LAA10BB002

Jumlah 1 unit

 HPH No. 2

Manufactur Nanjing Turbine&Electric Machinery Group Taixing Ningxing Machineryu Co., Ltd Product No. 12 G88

Pressure Vessel Category III Manufacture Date 2013.2

Vessel WT 21475 Kg

Heat Transfer Area 520 m2 Distance Between Two Baffles 471 mm Product Standard GB150-1998

Design Pressure Water: 22 MPa Steam: 3.2 MPa Test Pressure Water: 27.5 MPa Steam: 4.4 MPa Design Temp. Water: 240 o_{C Steam: 350/240}o_C Operating Medium Water & Steam

Subject Material Water: SA556C2 Q345R 20MnMo Steam:Q345R Manufacture Consent Class A1,A2

Manufacturin Certificate No. TS2210623-2015

KKS 20LAD20AC001

Jumlah 2 unit

 HPH No. 1

Manufactur Nanjing Turbine&Electric Machinery Group Taixing Ningxing Machineryu Co., Ltd Product No. 12 G87

Pressure Vessel Category III Manufacture Date 2013.4.2

Vessel WT 20102 Kg

Heat Transfer Area 480 m2 Distance Between Two Baffles 440 mm Product Standard GB150-1998

Design Pressure Water: 22 MPa Steam: 4.5 MPa Test Pressure Water: 27.5 MPa Steam: 6.78 MPa Design Temp. Water: 270 o_{C Steam: 390/270}o_C Operating Medium Water & Steam

Subject Material Water: SA556C2 Q345R 20MnMo Steam:Q345R Manufacture Consent Class A1,A2

(10)

KKS 20LAD10AC001

Jumlah 2 unit

 Electric Feed Water Pump Unit

MOTOR

Manufactur Shanghai Electric Machinery Co.,Ltd Type STMKS500-2 Voltage 6000 V Motor 3400 kW Current 37.1 A PF 0.916 Frequency 50 Hz INS CL F Weight 9140 Kg Speed 2980 r/min Date 2012.12 Duty S1 Ip 55 Conn Y Serial No. 500H1230431-2 STD IEC60034-1 KKS Jumlah 4 unit PUMP

Manufactur Zhengzhou Power Equipment Works Type 135TSB II-J Capacity 557 Motor 2896 kW Efficiency 83 % Head 1790 m Weight 6650 Kg Speed 4700 r/min Date 2013.01 KKS 10LAC12 AP001 Jumlah 4 unit AIR-WATER COOLER Manufacture Model 5C430.4013 Heat Capacity 140 kW Air Flow 8.4 m3_/s Water Flow 40 m3_/h Standard JB/T2728 Inlet Water Temp. ≤ 38 o_C Outlet Air Temp. ≤ 45 o_C

(11)

Working Press. 0.2 ~ 0.4 MPa

Weight 1500 Kg

Date Manufacture 2012.12 KKS

Jumlah 4 unit

 Turbine HP-LP Bypass Device

Manufactur Dongfang Steam Turbine Works Type HPU-V100/A

Rate Pressure 14.0 MPa Rate Flow 100 L/min Fluid Fire-Resistant oil MOTOR

Manufactur Luan Jianghuai Motor Co.,Ltd Type Y2-200L-4 Voltage 380 V Motor 30 kW Current 57.8 A PF 0.86 Frequency 50 Hz INS CL F Weight 234 Kg Speed 1050 r/min Date 2011 – 8 Duty S2 Ip 55 Conn ∆ Eff. 91.4 % Serial No. 6771 STD JB/T8680-2008 KKS Jumlah 2 unit

Water System

 Open Cycle Cooling Water Pump

MOTOR

Manufactur Shandong Huapu Specia Electric Motor Science-Technology Co.,Ltd Type 2-315V4

(12)

Voltage 380 V Motor 132 kW Current 240 A PF 0.83 Frequency 50 Hz INS CL F Weight 1100 Kg Speed 1480 r/min Date 2012 – 11 Duty S2 Ip 55 Conn ∆ Serial No. 124031 STD JB/T8180-2008 KKS Jumlah 2 unit PUMP

Manufactur China Shenyang H&T Pump Co.,Ltd Type GS400-27A/4 Capacity 1590 m3_/h Motor 132 kW Serial No. 122492 Head 22 Speed 1485 r/min Date 2013 – 01 KKS 10PCC21AP001 Jumlah 2 unit Water Strainer

Manufactur Qingdao Huatai Electric Equipment Co.,Ltd Type ZL – 600

Flow 1800 m3_/h Mass 0120 Kg Ex-Works No. 13 – 001/B Filter Precision 2.0 mm Working Pressure 0.2 MPa Ex-Work Date 2013.05

KKS 20PCB10AT001

Jumlah 1 unit

Plate Het Exhanger (Water)

(13)

Type J092 MGS-10C/5 Active Area 249.67 m2 Arrangement 1x150/1x150 Design Press. Hot Side 10.0 bar Design Press. Cold Side 10.0 bar Test Press. Hot Side 15.0 bar Test Ptress. Cold Side 15.0

Weight 2929 Kg

Design Temp. Max/Min 95 o_{C / 0}o_C

Date 2013 – 01

Serial No. HES 85160000632

KKS 10PGB31AC001

Jumlah 2 unit

 Close Cycle Cooling Water Pump

MOTOR

Manufactur Shandong Huapu Specia Electric Motor Science-Technology Co.,Ltd Type Y2-315S-4 Voltage 380 V Motor 110 kW Current 201 A PF 0.88 Frequency 50 Hz INS CL F Weight 980 Kg Speed 1480 r/min Date 2012 – 11 Duty S2 Ip 55 Conn ∆ Serial No. 124055 STD JB/T8680-2008 KKS Jumlah 2 unit PUMP

Manufactur China Shenyang H&T Pump Co.,Ltd Type GS300-9MB/4 Capacity 470 m3_/h Motor 110 kW Serial No. 122487 Head 47 Speed 1480 r/min Date 2013 – 01

(14)

KKS 10PGC12AP001

Jumlah 2 unit

 Boiler Make-Up Pump

MOTOR

Manufactur Shanghai Shanedian Elec-Machinery Co.,Ltd Type Y2-225M-2 Voltage 380 Motor 45 kW Current 82.3 A PF 0.90 Frequency 50 INS CL F Weight 280 Kg Speed 2960 r/min Date 2012.08 Duty S1 Conn ∆ Serial No. TCW130045-2 STD JB/T8680-2008 KKS Jumlah PUMP

Manufactur Shanghai Apollo Machinery Co.,Ltd Type AZA50-315

Capacity 54 m3_/h Power 45 kW

Serial No. A3377020101

Head 122 m Speed 2970 r/min Weight 165 Kg Date 2013.07 KKS Jumlah 2 unit  CWP MOTOR

Manufactur Shanghai Electric Machinery Co.,Ltd (SEC) Type YKK630-10

Voltage 6000 V Motor 800 kW

Current 92.9 A

(15)

Frequency 50 INS CL F Weight 8720 Kg Speed 594 r/min Date 2013.03 Duty S1 Ip 55 Conn Y

Serial No. 630Y1320152

STD IEC60034-1

KKS Jumlah PUMP

Manufactur China Hunan Xemc Changsha Pump Works Co.,Ltd Type 10SAP-18 Capacity 10080 m3_/h Power 655 kW (NPSH)r 660 m Speed 590 r/min Date 2013.03 KKS Jumlah  Cooling Tower MOTOR

Manufactur Shanghai Shangdian Elec. Machinery Co.,Ltd Type YKK355-4W

Serial No. TC130062-Y Power 6000 V Voltage 220 kW Current 26.0 A PF 0.871 Frequency 50 Hz Conn Y Ins F Duty S1 Speed 1483 r/min Ip 55 Weight 2420 Kg Date 2013.01 STD Q/JDAE2-2009 KKS Jumlah FAN

(16)

Manufacture Shanghai Better Petrochemical Machinery Equipment Co.,Ltd Series L98-10 Serial No. 13-98-4 Fan DIA 9750 Date 2013.01 KKS Jumlah  Drain Pump MOTOR

Manufactur Shanghai Shangdan Elec Machinery Co., Ltd Type Y2-225M-2 Voltage 380 V Motor 45 kW Current 82.3 A PF 0.90 Frequency 50 Hz INS CL F Weight 280 Kg Speed 2960 r/min Date 2012.08 Duty S1 Ip 55 Conn ∆ Serial No. TCW130045-3 STD JB/T18680-2008 KKS Jumlah PUMP

Manufactur Shanghai Appolo Machinery Co., Ltd Type AHD46-30*6 Capacity 46.63 m3_/h Power 45 kW (NPSH)r 1.3 m Speed 2950 r/min Head 198 m Weight 750 Kg No. 10LCM60AP001

Serial No. A3377010101

Date 2013.09

KKS

Jumlah 4 unit

(17)

Air System

 Screw Air Compressor

Manufactur Inersoll Rand (China) Industrial Equipment Manufacturing Co.,Ltd

Model SM75

Serial No. 200327 PNGG BD F Capacity 11.6 m3_/min

Rated Pressure 0.85 MPa Rated Power 75 kW Weight 2705 Kg Dimensions 2246x1572x1917 mm Date 2013.06 KKS Jumlah

COMPRESSED AIR FILTER

Manufactur Hangzhou Shanli Purify Equipment Corporation Model SLAF-13HT

Capacity 13 Nm3_/min Working Pressure 0.6 ~ 1.0 MPa Inlet Temp. ≤ 50 o_C Filtration Level 1 µm Remaining Oil Content 1 PPm

Date 2013.06

KKS JOQFA43AT002

Jumlah

AIR RECEIVER

Manufacture Tong Tai Chemical Machinery Co.,Ltd of Danyang

Model C-10/1.0C89

Product No. 13416-3 Design Pressure 1.22 MPa Design Temp. 100 o_C

Volume 10 m3

Group DF Vessel I

Compression Test Press. 1.83 MPa Emfty Weight 2325 Kg Actuating Medium Air Date of MFG 2013.06 Working Press. 1.0 MPa Material og Main Part Q345R Product Standard GB150-2011 Manufacture Licencend TS2210403-2014 Device Code 21701040320 130177 KKS

(18)

Jumlah

 Vacuum Pump

Manufactur Gardner Denver Nash Machinery Ltd. Model AT1006

Max. RPM 890

Test No. 13K047631001001

Year 2013

MOTOR

Manufactur Shanghai Shangdian Elec Machinery Co.,Ltd Type Y2-615S-8 Voltage 380 V Motor 55 kW Current 111 A PF 0.81 Frequency 50 Hz INS CL F Weight 835 Kg Speed 740 r/min Date 2013.01 Duty S1 Ip 55 Conn ∆ Eff. 93.3 % Serial No. TC122041-2 STD IEC60034 KKS Jumlah SEPARATOR

Manufactur Zibo North Pressure Vessel Manufacture Co.,Ltd

Tag No. CY13-001

Product Standard NET47003.1-2009

Weight 175 Kg

Volume 0.27 m3

Licence No. TS2210951-2013 Design Pressure 0.1 MPa

Test Pressure 0.2 MPa Working Pressure 0.09 MPa Design Temp. 60 o_C

Date 2013.02

KKS Jumlah

(19)

Oil System

 Main Oil Tank

Manufactur DONGFANG TURBINE Co.,Ltd

Type D1D135DN48

Net. Weight 18000 Kg Working Volume 26 m3 Design Press 0.2 MPa Design Temp. 100 o_C Max. Working Vol. 28.8 m3

Date 2012.12

Serial No. D135D 501000J KKS

Jumlah 2 unit

 Oil Vapor Exhauter Set

MOTOR

Manufactur Anhuwewanan Electric Machine Co.,Ltd Type 133-100L-2 SKF Serial No. Power 350 kW Voltage 380 V Current 0.2 A PF 0.87 Frequency 50 Hz Ex-Proof Symbol Conn ∆ Ins F Duty S1

Ex. Certifat No. CHES 11.2861 Sound 76 dB(A) Speed 2875 r/min Ip 55 Weight 51 Date 2012.03 STD JB/TZ5651 KKS Jumlah 2 unit FAN

Manufacture Hangzhou Kexing Blower Co.,Ltd

Type M519X02Z

Capacity 1200 m3_/n Total Head 3500 Pa

(20)

Speed 2900 r/min Serial No. 13111 Motor Output 3 kW Date 2013.02 KKS Jumlah 4 unit  AOP MOTOR

Manufactur Weite Motor Co.,Ltd. Of Nanyang Explosion Protection Group Type YB2-180M-2TH Voltage 380 V Motor 22 kW Current 41.0 A PF 0.90 Frequency 50 Hz INS CL F Weight 207 Kg Speed 2940 r/min Sound 89 dB(A) Date 2012 – 08 Duty S1 Ip 55 Conn ∆ Serial No. 3FC00301-1 Sertificat No. CNEX10.1397

STD JB/T7565.2-2002

KKS

Jumlah 1 unit

PUMP

Manufactur Chengdu Institute of Pump’s Application Technology the P.R of China Type 13S.Y-34-5A

Capacity 1800 l/min Motor 22 kW Serial No. 12001 Head Pressure 0.34 Mpa Speed 2940 r/min Weight 600 Kg Efficiency 64 % Date 2012 – 08 KKS Jumlah 2 unit  EOP

(21)

MOTOR

Manufactur Xi’an Tech Bull Simo Motor Co.Ltd Type Z2-61 TH L3 Voltage 220 V Motor 17 kW Current 88.9 A PF 0.90 Frequency 50 Hz INS CL F Weight 180 Kg Speed 3000 r/min Date 2012 – 07 Duty S1 Product No. 207005 STD 0/XD.514.017-2009 KKS Jumlah 1 unit PUMP

Manufactur Chengdu Institute of Pump’s Application Technology the P.R of China Type 125Y-28-6A

Capacity 1260 l/min Motor 17 kW Serial No. 12001 Head Pressure 0.28 Mpa Speed 3000 r/min Weight 600 Kg Efficiency 61 % Date 2012 – 08 KKS Jumlah 2 unit  Jacking Device

Manufacture Dongfang Steam Turbine Co.,Ltd Model D135D – 601000C Manufacturing Code 2013D135D – 003 Manufacturing Date 2013.6 Pressure 16 Mpa Flow 140 L/min MOTOR Manufactur Type YB2-250M-4TH Voltage 380 V Motor 55 kW

(22)

Current 103.3 A PF 0.87 Frequency 50 Hz INS CL F Weight 500 Kg Speed 1475 r/min Sound 893dB(A) Date 2012 – 08 Duty S1 Ip 55 Conn ∆ Serial No. 3FC00301-1 Sertificat No. CNEX10.3182

STD JB/T7565.1-2004

KKS

(23)

BOILER

Manufactur Dongfang Boiler Group Co., Ltd

Model DG440/13.8-II6

Type Super High Pressure, Natural Circulating, single Drum,_{Once Reheat, Circulating Fluidising Bed Boiler With} Outdoor Arrangement

Quality 2 sets

Max. Continuous Steam Flow 440 t/h Pressure of S. H. Steam 13.80 MPa Temp. of S. H. Steam 540 o_C Flow of R. H. Steam 359 t/h Pressure at Reheater Inlet 2.59 MPa Temp. at Reheater Inlet 326 o_C Pressure at Reheater Outlet 2.44 MPa Temp. at Reheater Outlet 540 o_C Feeder Water Temp. at Economizer Inlet 249 o_C Efficiency of Boiler (Based On LHV) ≥ 92 % KKS

Jumlah 2 unit

Main Auxiliary Equipment of Boiler

 Gravimetric Raw Coal Feeder

Manufactur SAIMO ELECTRIC

Model F57

Item No. 030006759

S/N GL 130140

Data 0.3

Ref. No. DYA14

Date 2013.03

KKS

Jumlah 12 unit

 Primary Air Fan

MOTOR

Manufactur SHANGHAI ELECTRIC MACHINERY CO., LTD. (SEC) Type YKK 560-4

Serial No. 560Y1320131 Power 1250 Kw Current 138.6 A

PF 0.917

(24)

PH 3 Conn Y Ins F Duty S1 Stator 6000 V Speed 1482 r/min Ip 55 Weight 8460 kg Date 2013 – 2 STD C60031 KKS Jumlah 4 unit FAN

Manufacture Jiangsu Jintongling Fluit Machinery Tecnology STOCK Co.,Ltd

Model G6-25 24F

Flow Rate 137275 m3_/h Total Pressure 24185 Pa Rotational Speed 1480 r/min Rotation Direction R Motor Power 1250 kW Medium Density 1164 Kg/m3 Medium Temperature 35 o_C Factory Date 2013.01 KKS 10HLB40AN001 Jumlah 4 unit

 Secondary Air Fan

MOTOR

Manufactur SHANGHAI ELECTRIC MACHINERY CO., LTD. (SEC) Type YKK 560-4

Serial No. 560Y1320135 Power 1120 kW Current 123.8 A PF 0.922 Frequency 50 Hz PH 3 Conn Y Ins F Duty S1 Stator 6000 V Speed 1484 r/min Ip 55 Weight 8400 kg Date 2013 – 2

(25)

KKS

Jumlah 4 unit

FAN

Manufacture Jiangsu Jintongling Fluit Machinery Tecnology STOCK Co.,Ltd

Model G6-30 22.7F

Flow Rate 159490 m3_/h Total Pressure 17800 Pa Rotational Speed 1480 r/min Rotation Direction R Motor Power 1120 kW Medium Density 1191 Kg/m3 Medium Temperature 35 o_C Factory Date 2013.01 KKS 10HLB20AN001 Jumlah 4 unit

 Induced Draft Fan

MOTOR

Manufactur SHANGHAI ELECTRIC MACHINERY CO., LTD. (SEC) Type YKK 710-6 Power 1800 kW Current 210 A PF 0.856 Frequency 50 Hz PH 3 Conn Y Ins F Duty S1 Stator 6000 V Speed 996 r/min Ip 55 Weight 13300 kg Date 2013 – 2 STD IEC60034-1 KKS Jumlah 4 unit FAN

Manufacture Jiangsu Jintongling Fluit Machinery Tecnology STOCK Co.,Ltd Model Y5-2X36 29.3F

Flow Rate 524425 m3_/h Total Pressure 8960 Pa Rotational Speed 980 r/min Rotation Direction R

(26)

Medium Density 0.76 Kg/m3 Medium Temperature 153.8 o_C Factory Date 2013.05

KKS 20HNC20AN001

Jumlah 4 unit

 HP Fluidising Air Blower

Manufactur HUADA. Co., Ltd

Type HJN3 Power 1 kW Current 287.8 A PF 0.83 Frequency 50 Hz Voltage 380 V Eff 94.9 % Conn ∆ Ins F Speed 1485 r/min Ip 55 Weight 1080 Kg Date 2012.10 KKS Jumlah 6 unit

 Coal Distribution Air Fan

Manufactur SHANGHAI ELECTRIC MACHINERY CO., LTD. (SEC) Type YKK 450-2 Power 400 kW Current 44.5 A PF 0.922 Frequency 50 Hz PH 3 Conn Y Ins F Duty S1 Stator 6000 V Speed 2954 r/min Ip 55 Weight 4740 kg Date 2013 – 2

Serial Number 450Y132021661

STD IEC60034-1

(27)

Jumlah 2 unit

 Fabric Filter

Manufactur Clyde Bergemann Huatong Model 20/8/5 M

Max. Operating Temp. 150 o_C Max. Operating Pressure 1.0 MPa Ref. No. CBH 16530

Date 2013.05

KKS 20ETG11BB001

Jumlah 12 unit

 LFO Supply Pump

MOTOR

Manufactur Jiamusi Electric Machine Co., Ltd,P.R. China Type YB2-160M-4WTH Voltage 380 V Motor 11 kW Current 22.3 A PF 0.85 Frequency 50 Hz Conn ∆ INS F Speed 1460 r/min Date 2012.08 Noise 75 dB(A) IP 55 Weight 135 Kg Eff. 88.4 % Bearing : DE 6309/C3 Bearing : NDE 6309/C3 No. 1205-1626G-01 Grease Quantity 25 g

Brand of Grease 2 Lithium-based grease KKS

Jumlah 3 unit

PUMP

Manufactur Sichuan Shengda Pump Industry Equipment Manufacture Co.,Ltd

Type SNH000-40E6.7W23T

Pressure 4.4 MPa

Eff. 42 %

Speed 1480 r/min

(28)

Weight 1664 Kg No. H12004 Date 2013.03 KKS YOEGD33AP001 Jumlah 3 unit FILTER

Manufacture Sichuan Shengda Pump Industry Equipment Manufacture Co.,Ltd

Type SDSGLQ-16T-60 Precise 60 mesh/inch Pressure < 0.1 MPa Flow 16 m3_/h Caliber 80 mm No. E12010 Date 2013.3 KKS YOEGD32AT001 Jumlah 6 unit

 LFO Unloading Fuel Oil Pump

MOTOR

Manufactur Jiamusi Electric Machine Co., Ltd,P.R. China Type YB2-250M-4WTH Voltage 380 V Motor 55 kW Current 102 A PF 0.87 Frequency 50 Hz Conn ∆ INS F Speed 1480 r/min Date 2012.08 Noise 83 dB(A) IP 55 Weight 511 Kg Eff. 93.0 % Bearing : DE 6314/C3 Bearing : NDE 6314/C3 No. 1205-1627-01 Grease Quantity 60 g

Brand of Grease 2 Lithium-based grease KKS

Jumlah 2 unit

PUMP

Manufactur Sichuan Shengda Pump Industry Equipment Manufacture Co.,Ltd

(29)

Pump Lift 50 m Eff. 60 % Speed 1460 r/min Flow 25 m3_/h No. D12010 Date 2013.03 KKS YOEGA20AP001 Jumlah 2 unit FILTER

Manufacture Sichuan Shengda Pump Industry Equipment Manufacture Co.,Ltd

Type SDSGLQ-25T-60 Precise 60 mesh/inch Pressure < 0.1 MPa Flow 25 m3_/h Caliber 100 mm No. E12014 Date 2013.3 KKS YOEGA20AT001 Jumlah 4 unit  Oil-Water Treatment

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model LYSF-10

Product No. 2012-10-01

Weight 2728 Kg

Leave Factory Date 2012-11

KKS YOGNR40AT001 Jumlah 1 unit MOTOR Manufactur Type YB2-132M-6 Voltage 380/660 V Motor 970 k W PF 0.76 Frequency 50 Hz IP 55 No. 0912736 KKS Jumlah 2 unit PUMP

Manufactur Luo Gan Beng

Model G40-1

Pressure 0.6 MPa

(30)

KKS

Jumlah 2 unit

Oil Tank

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model 1500x1500x900 mm

Product No. 2012-10-03

Weight 800 Kg

KKS YOGNR40BB001 Jumlah 1 unit MOTOR Manufactur LAJ Type YB2-100L1-4 Voltage 380 V Motor 2.2 kW PF 0.8 Frequency 50 Hz Speed 1410 r/min Weight 40 Kg IP 55 No. 0912891 Date 2011.8 Product No. JB/T7565.1-2004 KKS Jumlah 2 unit PUMP Manufactur Model G40-1 Pressure 1.45 MPa Flow 2 m3_/h Date 2012.10 KKS Jumlah 2 unit  Boiler Auxiliary

GAS-FIRED/OR OIL-FIRED STEAM-GAS BOILER

Manufactur Jiangsu Shuangliang Boiler Co.,Ltd Boiler Model SZS10-1.27/250-YC

Rated Steam Pressure 1.27 MPa Product No. SZQ200007 Rated Steaming Capacity 10 t/h Rated Steam Temp. 250 o_C

(31)

Date 2013.01 Licence TS2110019-2014 KKS Jumlah BURNER Type MTK 16B Burner Rating 10900 kW Motor Rating 22 kW Voltage 380 V Frequency 50 Serial No. L160130101 Date 2013.03 KKS Jumlah

PERIODIC BLOWDOWN EXPANDER

Manufacture Wuxi Junhong Machinery Manufacturing Co.,Ltd Product Code 13-0116

Design Pressure 1.0 MPa Design Temp. 250 o_C

Volume 1 m3

Pressure Vessel Type 1

Product Pressure 1.65 MPa

Weight 950 Kg

Licence TS2232378-2016 Max. Working Pressure 0.2 MPa

Body Material 2358 Product Standar GB150

Date 2013.02

KKS Jumlah

 Half Retractable Soot Blower

Manufactur Hubei Huaxing Boiler Instrument Manufacture Co., Ltd Model HX-C25EL

Travel T= 1000 mm Factory Serial No. 1300082 Medium Pressure 1.1 MPa Power Source 380 V , 3 A Contract No. CH2012090S

Speed 1.75 m/min

Installation No.

Medium Consumption 54 Kg/min

Date 2013.01.18

(32)

Jumlah 28 unit

 Long Retractable Soot Blower

Manufactur Hubei Huaxing Boiler Instrument Manufacture Co., Ltd

Model HX-C25

Travel T= 5800 mm Factory Serial No. 1300046 Medium Pressure 1.1 MPa Power Source 380 V , 3 A Contract No. CH20120903

Speed 2.5 m/min

Installation No.

Medium Consumption 65 Kg/min

Date 2013.01.12

KKS

Jumlah 4 unit

 Rotating Slag Cooler

Manufactur Oingdao Deshipu Electric Power Equipment. Co., Ltd

Type GTLF120

Capacity 10 t/h Intek Pressure 2.3 MPa Motor Power 11 kW Factori Number 120-28 Slag Intake Temp. 950 o_C Deslaging temp. 150 o_C

Weight 18800 Kg

Serial Number 20 HDA54BZ002

Date 2013.01

KKS

Jumlah 4 unit

 Weight Belt Coal Feeder

Manufactur SAIMO ELECTRIC

Model F57

Item No. 030006759

S/N GL 130140

Data 0.3

Ref. No. DYA14

Date 2013.03

KKS

(33)

(34)

BALANCE OF PLAN

WTP



Electrical Heating Water Tank

Manufactur Jiangyin City Shangshi Environment Enginering Co.,Ltd Specifition V=Sm3

Designed Pressure 0.6 Mpa Running Pressure ≤ 0.6 Mpa Designed Temp. 98 o_C Running Temp. 96 o_C Pressure Test 0.75 Mpa Running Medium Deselted Water

Weight 1200 Kg

Date 2012.09

Series No. F120105 KKS

Jumlah



Acid Metering Tank Of Mixed Bed

Manufactur Jiangyin City Shangshi Environment Engineering Co.,Ltd. Specifition DN700mm

Designed Pressure AMB Running Pressure AMB Designed Temp. 60 o_C Running Temp. 15 – 35 o_C Pressure Test Full Water Running Medium 30 % HCl Weight 340 Kg Series No. F120102 Date 2012.09 KKS YOGCP22BB001 Jumlah



Acid Metering Tank Of Cation Bed

Designed Pressure AMB Running Pressure AMB Designed Temp. 60 o_C Running Temp. 15 – 35 o_C Pressure Test Full Water

(35)

Running Medium 30 % HCl Weight 340 Kg Series No. F120101 Date 2012.09 KKS YOGCP21BB001 Jumlah



Alkali Metering Tank Of Anion Bed

Designed Pressure AMB Running Pressure AMB Designed Temp. 60 o_C Running Temp. 15 – 35 o_C Pressure Test Full Water Running Medium 40 % NaOH Weight 340 Kg Series No. F120103

Date 2012.09

KKS YOGCP11BB001

Jumlah



Alkali Metering Tank Mixed Bed

Date 2012.09

KKS YOGCP12BB001

Jumlah



Activated Carbon Filter

Designed Pressure 0.6 Mpa Running Pressure 0.5 Mpa

(36)

Designed Temp. 60 o_C Running Temp. 5 – 35 o_C Pressure Test 0.75 Mpa

Running Medium Water, Quartz Sand, Activated Carbon Weight 6100 Kg Series No. F120082 Date 2012.09 KKS YOGCB22AT010 Jumlah



Cation Exchanger

Designed Pressure 0.6 Mpa Running Pressure 0.5 Mpa Designed Temp. 60 o_C Running Temp. 5 – 35 o_C Pressure Test 0.75 Mpa Running Medium Resin, Water Weight 3800 Kg Series No. F120084

Date 2012.09

KKS YOGCF12AT001

Jumlah



Middle Water Tank

Manufactur Jiangyin City Shangshi Environment Engineering Co.,Ltd. Specifition V=4.9 m3

Designed Pressure AMB Running Pressure AMB Designed Temp. 60 o_C Running Temp. 5 – 40 o_C Pressure Test Full Water Running Medium Water Weight 2680 Kg Series No. F120090 Date 2012.09 KKS YOGCK22BB001 Jumlah



Anion Exchanger

(37)

Specifition DN1600mm Designed Pressure 0.6 Mpa Running Pressure 0.5 Mpa Designed Temp. 60 o_C Running Temp. 5 – 35 o_C Pressure Test 0.75 Mpa Running Medium Resin, Water Weight 4200 Kg Series No. F120085

Date 2012.09

KKS YOGCF20AT001

Jumlah



Manganese Sand Filter

Designed Pressure 0.6 Mpa Running Pressure 0.5 Mpa Designed Temp. 60 o_C Running Temp. 5 – 35 o_C Pressure Test 0.75 Mpa

Running Medium Water, Quartz Sand, Manganese Sand Weight 5400 Kg

Series No. F120080

Date 2012.09

KKS YOGCF20AT010

Jumlah



Anion Resin Regeneration Tank

Date 2012.09

KKS YOGCF42AT001

(38)



Cation Resin Regeneration Tank

Designed Pressure 0.6 Mpa Running Pressure 0.5 Mpa Designed Temp. 60 o_C Running Temp. 5 – 35 o_C Pressure Test 0.75 Mpa Running Medium Resin, Water Weight 3900 Kg Series No. F120095 Date 2012.09 KKS YOGCF41AT001 Jumlah



Mixed Exchanger

Date 2012.09

KKS YOGCF212AT001

Jumlah



Boiler Make-Up Water Treatment Sodium Hypochlorite Dosing Device

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model XTXNWA-1

Physical Size 2600x1700x2900 mm Product No. 2013-01-15

Weight 2300 Kg Leave Factory Date 2013-05

KKS YOGCN40 AT001

Jumlah 1 unit

MOTOR Manufactur

(39)

Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F

Serial No. YSJ7114-1HS KKS Jumlah MIXER Manufactur Serial No. 20121053 Type 2-80M2-2 Voltage 380 V Motor 1.1 kW Current 2.7 A Frequency 50 Hz Weight 22 Kg Sound 67 dB(A) Date 2012 KKS Jumlah



Coagulant Dosing Device

KKS YOGNN40 AT001 Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min

(40)

Date

Duty S1

Ip 55

Conn F



Coagulant Aid Dosing Device

KKS YOGNN50 AT001 Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz INS CL Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F

(41)

KKS Jumlah MIXER Manufactur Serial No. 20121053 Type 2-80M2-2 Voltage 380 V Motor 1.1 kW Current 2.7 A Frequency 50 Hz Weight 22 Kg Sound 67 dB(A) Date 2012 KKS Jumlah



Add Custic Device

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model XTJY-6

KKS YOGNN20 AT001 Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F

Serial No. YSJ7114-1HS KKS Jumlah MIXER Manufactur Serial No. 20121053 Type 2-80M2-2

(42)

Voltage 380 V Motor 1.1 kW Current 2.7 A Frequency 50 Hz Weight 22 Kg Sound 67 dB(A) Date 2012 KKS Jumlah



Add Acid Device

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model XTJY-6

KKS YOGNN30 AT001 Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F

Serial No. YSJ7114-1HS KKS Jumlah MIXER Manufactur Serial No. 20121053 Type 2-80M2-2 Voltage 380 V Motor 1.1 kW Current 2.7 A Frequency 50 Hz

(43)

Weight 22 Kg

Sound 67 dB(A)

Date 2012

KKS Jumlah



Alkali Storage Tank

Manufactur Jiangyin City Shangshi Environment Engineering Co.,Ltd. Specifition V=10 m3

Date 2012.09

KKS YOGCN12BB001

Jumlah



Acid Storage Tank

Manufactur Jiangyin City Shangshi Environment Engineering Co.,Ltd. Specifition V=10 m3

Designed Pressure AMB Running Pressure AMB Designed Temp. 60 o_C Running Temp. 15 – 35 o_C Pressure Test Full Water Running Medium 30 % HCl Weight 3100 Kg Series No. F120098 Date 2012.09 KKS YOGCN22BB001 Jumlah



Acid Fog Absorber

Designed Pressure AMB Running Pressure AMB Designed Temp. 40 o_C

(44)

Running Temp. 15 – 35 o_C Pressure Test Full Water Running Medium Acid Weight 75 Kg Series No. F120109 Date 2012.09 KKS YOGCN30AT001 Jumlah



Ph Regulation Tank

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model XTPH-14

Physical Size ɸ2016x6670 mm Product No. 2013-01-01 Weight 6500 Kg Leave Factory Date 2013-05

KKS YOGND10 BB001 Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F

Serial No. YSJ7114-1HS KKS Jumlah MIXER Manufactur Serial No. 20121053 Type 2-80M2-2 Voltage 380 V Motor 1.1 kW Current 2.7 A Frequency 50 Hz Weight 22 Kg Sound 67 dB(A) Date 2012

(45)

KKS Jumlah



Coagulating Tank

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model XTXN-14

KKS YOGND20 BB001 Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F



Reaction Tank

(46)

Model XTFY-14

KKS OGND30 BB001 Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F



Inclined Plate Clarifier

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model XTCD-80

(47)

Jumlah 1 unit MOTOR Manufactur Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F



Compressed Air Storage Tank

Manufactur Shangshi Boilers Co.,Ltd., Jiangyin City Vessel I

Designed Pressure 1.0 Mpa Total Capacity 6 m3 Designed Temp. 120 o_C Licence Level A2 Pressure Test 1.25 Mpa Medium Compressed Air Weight 1600 Kg

Main Material Q345R Product Standard GB150-2011 Licence No. TSS2210384-2014 Series No. R120036

(48)

Date 2012.08 KKS

Jumlah



Qxidation Aeration Tower

Designed Pressure AMB Running Pressure AMB Designed Temp. 60 o_C Running Temp. 5 – 40 o_C Pressure Test Full Water Running Medium Water Weight 1950 Kg Series No. F120078

Date 2012.08

KKS YOGCK12AT001

Jumlah



Dehydrator Dosing Equipment

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model SFJY-2000

Physical Size 3500x1130x1400 Product No. 2012-12-04 Weight 1200 Kg Leave Factory Date 2013-1

KKS YOGBN40BB101 Jumlah 1 unit MOTOR Manufactur SMC Voltage 220/380 V Motor 250 W Current 1.44/0.83 A PF 0.67 Frequency 50 Hz Weight 5.9 Kg Speed 1400 r/min Duty S1 Ip 55 Conn F

Serial No. YSJ7114-1HS KKS

(49)

MIXER Manufactur Voltage 380 V Motor 0.75 kW Current 1.87 A Frequency 50 Hz Weight 12 Kg Sound 67 dB(A) Date 2012.11 KKS Jumlah 2 unit



Naclo Dosing Equipment

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model JY-3

Serial No. YSJ7114-1HS KKS Jumlah 2 unit MIXER Manufactur Serial No. 20121057 Type 2-80M2-2 Voltage 380 V Motor 1.1 kW Current 2.7 A Frequency 50 Hz

(50)

Weight 22 Kg

Sound 67 dB(A)

Date 2012.01

KKS Jumlah



Coagulant Aid Dosing Equipment

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model SFJY-2000

Serial No. YSJ7114-1HS KKS Jumlah 2 unit MIXER Manufactur Type Y3-80M1-2 Voltage 380 V Motor 1.1 kW Current 1.8 A Frequency 50 Hz Weight 12 Kg Date 2012.11 KKS Jumlah

(51)

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model JY-2

KKS YOGBN10BB101 Jumlah 1 unit MOTOR Manufactur SMC Voltage 220/380 V Motor 550 W Current 2.77/1.60 A PF 0.70 Frequency 50 Hz Weight 7.8 Kg Speed 1400 r/min Date Duty S1 Ip 55 Conn F

Serial No. YSJ7134-1HS KKS Jumlah 3 unit MIXER Manufactur Type Y2-80M2-2 Voltage 380 V Motor 1.1 kW Current 2.7 A Frequency 50 Hz Weight 22 Kg Speed 1400 r/min Sound 67 dB(A) Conn Y Date 2012.11 KKS Jumlah



Air Storage Tank

Manufactur Yixing Pressure Container Factory Co.,Ltd

Model YQ-3

Pressure Vessel Category II Design Temp. 70 o_C

(52)

Design Pressure 1.6 MPa Product No. A2012-142-1

Weight 1200 Kg

KKS YOGBC10BB101

Jumlah 1 unit

MOTOR

Manufactur Changzhou Power Station Auxiliary Equipment Works LTD, China

Type YDF56M2-4 Voltage 380 V Motor 0.05 k W Current 0.45 A Frequency 50 Hz INS F Speed 1400 r/min Date 2012.12 Duty 10 Ip 65 Conn F No. 143 KKS Jumlah 6 unit PUMP

Manufactur Skylink Machine Company Model LSS0,AA-AA-NE-PP-NE-00 Serial No. 607409 Date 2011-01-25 KKS Jumlah 3 unit



Dehydrator

Manufactur Hangzhou Langxun Filter-press Manufacturing Co.,Ltd Model XMZGFSN340/1600-U

Filtering Pressure ≤ 1.0 MPa Max. Temp. For Use 80 o_C Working Pressure ≤ 2.0 MPa Product No. 013-002 Weight 28000 Kg Leave Factory Date 2013-1

KKS YOGBS30AK001

Jumlah 1 unit

MOTOR

Manufactur Changzhou Power Station Auxiliary Equipment Works LTD, China

(53)

Motor 0.09 kW Current 0.68 A Frequency 50 Hz INS F Speed 1400 r/min Date 2012.12 Duty 10 Ip 65 Conn F No. 107 KKS Jumlah 2 unit



Sludge Lifting Pump

MOTOR

Manufactur Hong Dong Ji Dian She BeiChang

Type Y132S1-2 Voltage 380 V Motor 5.5 k W Current 11.1 A Frequency 50 Hz Noise 83 dB(A) INS B Speed 2900 r/min Date 2013.1 Rating S1 Ip 44 Weight 64 Kg KKS Jumlah 2 unit PUMP

Manufactur Shanghai First Pump. Co.,Ltd Capacity 25 m3_/h Power 5.5 kW Speed 290 r/min Date 2012.1 KKS Jumlah 2 unit



Sludge Thickener

Manufactur Yixing Xintao Environmental Protection Equipment Co.,Ltd Model SZNG-8

(54)

Product No. 2012-12-06 Weight 4300 Kg Leave Factory Date 2013-1

KKS YOGBS20AT001 Jumlah 1 unit MOTOR Manufactur Type Y2-90S-4 Voltage 380 V Motor 1.1 kW Current 2.8 A PF 0.77 Frequency 50 Hz Weight 14 Kg Speed 1390 r/min IM B5 IP 54 Conn F Eff. 76.2 % No. 9207 KKS Jumlah 2 unit GEAR

Manufactur Shanghai Saini Transmission Equipment Co.,Ltd

No. 12101808-1

Type NMRV90Y0.75-F

I 100

KKS Jumlah



Treated Water Basin Pump

MOTOR

Manufactur Xi’an Tech Full Simo Motor Co., Ltd Type YCM2-180L-4 Voltage 380 V Motor 22 kW Current 42.9 A PF 0.86 Frequency 50 Hz Conn ∆ INS I Speed 1470 r/min Date 2013.1 Rating S1

(55)

IP 55 Weight 185 Kg Height 1200 m Eff. 90.5 % IM B3 Bearing : DE SKF 6311/CM Bearing : NDE SKF 6211/CM No. 302003 B Date 2013.02 KKS Jumlah 3 unit PUMP

Manufactur Shangdong Shuangiun. Co.,Ltd

Model 250S-14 Capacity 500 m3_/h Power 22 kW Speed 1470 r/min Head 10 m Weight 405 Kg (NPSH)r 7.0 m Code 26130366 Date 2013.04 KKS YOGHA03AP002 Jumlah 3 unit



River Water Storage Basin Pump

MOTOR

Manufactur Xi’an Tech Full Simo Motor Co., Ltd Type YGM2-200L-4 Voltage 380 V Motor 30 kW Current 58 A PF 0.86 Frequency 50 Hz Conn ∆ INS F Speed 1470 r/min Date 2013.1 Rating S1 IP 55 Weight 242 Kg Height 1200 m Eff. 91.4 % IM B3

(56)

Bearing : DE SKF 6312/CM Bearing : NDE SKF 6212/CM No. 1302002 B Date 2013.03 KKS Jumlah 4 unit PUMP

Model 250S-14 Capacity 500 m3_/h Power 30 kW Speed 1470 r/min Head 15 m Weight 405 Kg (NPSH)r 6.0 m Code 26130364 Date 2013.04 KKS YOGAC12AP001 Jumlah 4 unit



Service Water Pump

MOTOR

Manufactur Xi’an Tech Full Simo Motor Co., Ltd Type YGM2-200L-4 Voltage 380 V Motor 30 kW Current 58 A PF 0.86 Frequency 50 Hz Conn ∆ INS F Speed 1470 r/min Date 2013.1 Rating S1 IP 55 Weight 242 Kg Height 1200 m Eff. 91.4 % IM B3 Bearing : DE SKF 6312/CM Bearing : NDE SKF 6212/CM No. 1302002 B Date 2013.02 KKS

(57)

Jumlah 2 unit PUMP

Model 100DL100-25(I)X2 Capacity 100 m3_/h Power 30 kW Speed 1470 r/min Head 50 m Weight 714 Kg (NPSH)r 3.6 m Code 19130240 Date 2013.04 KKS YOGHA12AP001 Jumlah 2 unit



Backwash Water Pump

MOTOR

Manufactur Xi’an Tech Full Simo Motor Co., Ltd

Type YCM2-315M-4 Voltage 380 V Motor 132 kW Current 240 A PF 0.88 Frequency 50 Hz Conn ∆ INS F Speed 1480 r/min Date 2013.1 Rating S1 IP 55 Weight 1100 Kg Height 1200 m Eff. 94.8 % IM B3 Bearing : DE SKF N0319 Bearing : NDE SKF 6319/CM No. 302001 B Date 2013.02 KKS Jumlah 2 unit

(58)

PUMP

Model 350S-26 Capacity 1500 m3_/h Power 132 kW Speed 1490 r/min Head 22 m Weight 898 Kg (NPSH)r 8.5 m Code 99130330 Date 2013.04 KKS YOGTA02AP001 Jumlah 2 unit



Reused Water Pump A

MOTOR

Type YGM2-250M-4 Voltage 380 V Motor 55 kW Current 103 A PF 0.87 Frequency 50 Hz Conn ∆ INS F Speed 1480 r/min Date 2013.1 Rating S1 IP 55 Weight 400 Kg Height 1200 m Eff. 93.0 % IM V1 Bearing : DE SKF 6314/CM Bearing : NDE SKF 6213/CM No. 302001 B Date 2013.02 KKS Jumlah 2 unit PUMP

Model 150DL150-20(I)X5

Capacity 141 m3_/h

(59)

Speed 1480 r/min Head 100 m Weight 1664 Kg (NPSH)r 3.5 m Code 1913024 Date 2013.04 KKS YOGTB02AP001 Jumlah 2 unit



Reused Water Pump B

MOTOR

Type YGM2-160M-4 Voltage 380 V Motor 11 kW Current 22.5 A PF 0.85 Frequency 50 Hz Conn ∆ INS F Speed 1470 r/min Date 2013.3 Rating S1 IP 55 Weight 118 Kg Height 1200 m Eff. 88.1 % IM B3 Bearing : DE SKF 6309/CM Bearing : NDE SKF 6209/CM No. 303001 B Date 2013.03 KKS Jumlah 1 unit PUMP

Model 50DL15-15-12X10 Capacity 20 m3_/h Power 11 kW Speed 1470 r/min Head 100 m Weight 479 Kg (NPSH)r 3.0 m Code 19130245

(60)

Date 2013.04

KKS YOGTB01AP001

Jumlah 1 unit



Potable Water Pump A

MOTOR

Type YGM2-132M-4 Voltage 380 V Motor 7.5 kW Current 15.6 A PF 0.84 Frequency 50 Hz Conn ∆ INS F Speed 1440 r/min Date 2013.1 Rating S1 IP 55 Weight 71 Kg Height 1200 m Eff. 87.0 % IM B5 Bearing SKF 6205-27/CM No. 302002 B Date 2013.02 KKS Jumlah 2 unit PUMP

Model 65DL25-15(I)X3 Capacity 20 m3_/h Power 7.5 kW Speed 1450 r/min Head 50 m Weight 364 Kg (NPSH)r 2.5 m Code 19130243 Date 2013.04 KKS YOGKB02AP001 Jumlah 2 unit

(61)

MOTOR

Manufactur Xi’an Tech Full Simo Motor Co., Ltd Type YGM2-200L-4 Voltage 380 V Motor 3 kW Current 6.78 A PF 0.74 Frequency 50 Hz Conn Y INS F Speed 1410 r/min Date 2013.1 Rating S1 IP 55 Weight 34 Kg Height 1200 m Eff. 91.4 % IM B5 No. BZ0502001 Date 2013.01 KKS Jumlah 1 unit PUMP

Model 32DL5-10X5 Capacity 5 m3_/h Power 3.0 kW Speed 1430 r/min Head 50 m Weight 200 Kg (NPSH)r 2.0 m Code 19130246 Date 2013.04 KKS YOGKB01AP001 Jumlah 1 unit



EMERGENCY GENERATOR DIESEL

Manufactur

Serial No. X13B085718 Frame/Core HC.l634G1 Frequency 50 Hz / 60 Hz Speed 1500 / 1800

(62)

Voltage 400 V / 440 V Base Rating KVA (BR) 810.0 / 925.0 Base Rating KW (BR) 648.0 / 740.0 Amps Base Rating (BR) 1169.2 / 1213.7

Phase 3 PF 0.80 AVR MX 321 Weight 1965.00 t Duty CONT Excitation Voltage 58.0 V Excitation Current 3.4 A Insulation Class Class H Ambient Temp. 40 o_C Temp. Rise Class H Thermal Class 180 (H)

Enclosure IP23

Stator Winding 311 Stator Connection S Star Mounting type IMB15 Cooling Method ICO1 KKS

Jumlah GENERATOR

Manufactur Superwatt Power Group Model P900E

S/N SG13010135

Prime Rating 800 kVA 640 kW Standby Rating 900 kVA 720 kW

Voltage 400 V Motor 4 W Current 1154.7 A PF 0.6 Frequency 50 Hz Weight 5770 Kg Speed 1500 rpm Dimension 4100x1700x2200 mm Date 2013.05 KKS Jumlah ENGINE

Manufactur Perkins Engines Company Ltd, England Engine No. DGDF6002 U17051W

Designation 4006-23TAG3A 1500RPM Engine Rating 679BKW 17.5DEG

(63)

KKS Jumlah

FIRE-FIGHTING

 Jokey Pump

MOTOR

Manufactur China Shanghai Liancheng (Group) Co.,Ltd Pressure 1.15 MPa Voltage 380 V Motor 250 kW Speed 1480 r/min Date 2013.03 Serial No. 2086294 KKS Jumlah PUMP

Manufactur China Shanghai Liancheng (Group) Co.,Ltd Type SLG 16-10 Capacity 18 m3_/h Power 11 kW Head 115 m Speed 2900 r/min Serial No. 2086296 Date 2013.01 KKS Jumlah  Electric Pump MOTOR

Manufactur Shanghai Electric Machinery Co.,Ltd Type YKK3552-4 Current 29 A Voltage 6000 V Motor 250 kW Weight 2600 Kg Speed 1484 r/min Ip 55 PF 0.896 Date 2013.04 Serial No. 355F1300498 STD IECS0034-1 KKS

(64)

Jumlah PUMP Manufactur Type 41186348 Speed 1500 r/min Serial No. XK06-002-00208 Date 2013.02 KKS Jumlah  Diesel Pump MOTOR

Manufactur Shanghai Liancheng (Group) Co.,Ltd Type BCii.5Z.100-SLOW150-570(I) Capacity 400 L/s Voltage 380 V Motor 268 kW Speed 1500 r/min Date 2013.04 Serial No. 2086295 KKS Jumlah 1 unit PUMP Manufactur Type 41186348 Power 298 kW Speed 1500 r/min Serial No. XK06-002-00208 Date 2013.02 KKS Jumlah

COAL HANDLING



Gear box stacker

Manufactur Bonfiglioli Riduttori S. p. A. Italy Type A 90 3 US HS PV Code 1E949036030002 Mount. POS B8 i 31.5 KKS Jumlah MOTOR

(65)

Manufactur Nanyang Explosion Protecied Group Co., Ltd Type YB3-225M-4 Voltage 380 V Motor 45 kW PF 0.86 Frequency 50 Hz Speed 1480 r/min Weight 375 Kg IP 55 Rating S1 Noise 81 dB(A) Conn. ∆ INS. F Eff. 93.1 %

Protection Type ExdIIBT4 Gb

BRG. DE 6313

Grease HTHS AMB -25 o_{C ~ 40}o_C Certificate No. CNEx11.1400

Standard No. Q/NF010.2-2012 Serial No. 13E0644AN000-1

Date 2013.05

KKS Jumlah



Electro hydrolic pusher

Manufactur Jiangsu Jiangping Air Condition & Purificatory Equipment Co., Ltd

Type JJWM-110A

Filtered Area 110 m2 Weight of Unit 3250 Kg Capacity of Motor 15 kW Leave Factory No. 2130808 Rated Wind Volume 11000 m3_/h Resistance From Equipment < 1200 Pa Efficiency Dust Catcher 99.7 % Manufacture Date 2013.8

KKS J0SAK12AH602

Jumlah

 Fly ash

AIR RECEIVER

Manufactur Tong Tai Chemical Machinery Co., Ltd. Of Danyang Model C-2/1.0

(66)

Design Pressure 1.22 MPa Design Temp. 100 o_C

Volume 2 m3

Group of Vessel I

Compression Test Pressure 1.83 MPa Empty Weight 495 Kg Actuating Medium Air Date of MFG 2013.06 Working Pressure 1.0 MPa Material of Main Part S30408 Product Standard GB150-2011 Manufacturing Licence Level A2

Manufacturing Licence No. TS2210403-2014

KKS YOHDU10BB001

Jumlah 1 unit

 Automobile bulk machine

Manufactur Qingdao Siyu Electric Power Equipment Co., Ltd Type SZJ-100 Conveying Capacity 100 t/h Stroke 1800 mm CTN DIM 230x105x180 cm MFD No. 1305045 Motor Power 0.75 kW Fan Power 7.5 kW Lifting Speed 0.11 m/s TWT 600 Kg Date 2013.5 KKS YOETH10AF001 Jumlah 2 unit MOTOR Manufactur Type Y132S2-2 Voltage 380 V Motor 7.5 kW Current 15 A PF 0.88 Frequency 50 Hz Speed 2900 r/min Weight 57 Kg IP 54 Rating S1 No. 0461 Conn. ∆

(67)

INS. F Eff. 87.0 % STD JB/T8680-2008 Date 2013.02 KKS Jumlah 2 unit FAN Manufacture Speed 2900 r/min Temp. 20 o_C Motor 7.5 kW Pressure 5679/5323 Pa Capacity 1610/3166 m3_/h Date 2013.03 KKS Jumlah 2 unit

 Electric feeding air locker

Manufactur Qingdao Siyu Electric Power Equipment Co., Ltd Type OSG-050

Conveying Capacity 100 t/h Shaft Vel. 41 r/min

CTN DIM 110x100x63 cm MFD No. 1305042 Motor Power 4 kW Date 2013.9 KKS YOETH10AB001 Jumlah 2 unit MOTOR Manufactur Type YEJ90S-6 Voltage 380 V Motor 0.75 kW Current 2.4 A PF 0.7 Frequency 50 Hz Speed 910 r/min Weight 23 Kg IP 54 Rating S1 No. 57631 Conn. Y INS. F Eff. 69 %

(68)

STD JB/T10391-2008

Date 2012.10

KKS

Jumlah 2 unit

 Humidification mixer

Manufactur Qingdao Siyu Electric Power Equipment Co., Ltd Type SJ-100

Conveying Capacity 100 t/h Water Pressure 2-6 MPa

CTN DIM 580x105x135 cm

MFD No. 1305032

Motor Power 22 kW Shaft Vel. 42 r/min

Water 20-30 t/h TWT 5000 Kg Date 2013.5 KKS YOETH10AM001 Jumlah 2 unit MOTOR

Manufactur Guomao Reducers Group Co., Ltd

Type Y2-112M-4 Voltage 380 V Motor 4 kW Current 8.8 A PF 0.82 Frequency 50 Hz Speed 1440 r/min Weight 46 Kg IP 54 Rating S1 No. 00620 Conn. ∆ INS. F Eff. 84.2 % Noise 74 dB(A) STD JB/T8680-2008 Date 2013.02 KKS Jumlah 2 unit



Pulse cloth bag dust catcher

Manufactur Jiangsu Jiangping Air Condition & Purificatory Equipment Co., Ltd

(69)

Type JJWM-110A Filtered Area 110 m2 Weight of Unit 3250 Kg Capacity of Motor 15 kW Leave Factory No. 2130808 Rated Wind Volume 11000 m3_/h Resistance From Equipment < 1200 Pa Efficiency Dust Catcher 99.7 % Manufacture Date 2013.8

KKS J0SAK12AH602

Jumlah



Self-Cleaning Electronic Iron separator

Manufactur Shandong Huate Magnetism Technology Co., Ltd Appearance Size 2880X1680X860 mm Exciting Voltage DC 192 V Exciting Current DC 16 A Belt Width 800 mm Suspension Height 250 mm Belt Speed ≤ 1.6 m/s Executive Standard JB/T7689-2004 Weight 2560 Kg Serial No. 13027 Manufacture Date 2013.05 KKS J0EBY01AT002 Jumlah



Belt Conveyor IA

Manufactur Siemens Type S/N-JKD 450274173301.001 n1 500 /min

Oil Type MIN

VG 320 P2 42.46 kW N2 47.72 /min Oil 29 l Weight 560 Kg KKS Jumlah 1 unit MOTOR

Manufactur Shangdong Huali Electric Motor Group C0., Ltd Type YB2-280S-4-IH

(70)

Motor 75 kW Current 140 A PF 0.87 Frequency 50 Hz Speed 180 r/min Weight 594 Kg IP 55 Rating S1 No. 9522 Conn. ∆ INS. F Eff. 84.2 % STD JB/T7565.1-2004 Date 2013.02 KKS Jumlah 2 unit



Belt Conveyor IB

Oil Type MIN

Manufactur Shangdong Huali Electric Motor Group C0., Ltd Type YB2-180L-4-TH Voltage 380 V Motor 22 kW Current 43.1 A PF 0.85 Frequency 50 Hz Speed 1470 r/min Weight 253 Kg IP 55 Rating S1 No. 9758 Conn. ∆ INS. F

(71)

Eff. 91.2 % STD JB/T7565.1-2004 Date 2013.02 KKS Jumlah 2 unit



Crusher

Oil Type MIN

Manufactur Shangdong Huali Electric Motor Group C0., Ltd Type YB2-225M-4-TH Voltage 380 V Motor 15 kW Current 84.7 A PF 0.87 Frequency 50 Hz Speed 1480 r/min Weight 370 Kg IP 55 Rating S1 No. 9711 Conn. ∆ INS. F Eff. 92.8 % STD JB/T7551-2004 Date 2012.08 KKS Jumlah 2 unit

Self-Cleaning Electronic Iron separator

Manufactur Shandong Huate Magnetism Technology Co., Ltd Appearance Size 2880X1680X860 mm

Exciting Voltage DC 192 V Exciting Current DC 16 A

(72)

Belt Width 800 mm Suspension Height 250 mm Belt Speed ≤ 1.6 m/s Executive Standard JB/T7689-2004 Weight 2560 Kg Serial No. 13028 Manufacture Date 2013.05 KKS J0EBY01AT001 Jumlah 2 unit MOTOR

Manufactur Wuxi Xi’an Explosion-Proof Motor Co., Ltd Type YBK2-10OL2-4 Voltage 380/660 V Motor 3 kW Current 6.78/3.91 A PF 0.82 Frequency 50 Hz Speed 1420 r/min Weight 47 Kg IP 55 Rating S1 No. 1303063 Conn. ∆/Y INS. F STD JB/T9593.1-2002 Date 03/13 KKS Jumlah 4 unit

High Amplitude Screen

Manufactur Henan Winner Vibrating Equipment Co., Ltd Type YB160L-8 Speed 720 r/min Frequency 50 Hz Weight 7918 Kg Power Supply 380 V Capacity 300 t/h Amplitude 15 – 25 mm Electric Control Box. XKJ2-7.5 Product Code 13143 Ex. Work Date 2013.4

KKS JOEBD01AT002

Jumlah 2 unit

MOTOR Manufactur

(73)

Type YB2-1601-8 Voltage 380/660 V Motor 7.5 kW Current 17.5/10 A PF 0.76 Frequency 50 Hz Speed 720 r/min Weight 172 Kg IP 55 Rating S1 No. XK06-014-00008 Conn. ∆/Y INS. F Eff. 85 % STD JB/T758E.2004 Date 2012.10 KKS Jumlah 4 unit

Crusher

Manufactur Pennsylvania Crusher Corporation Type BC 15-44-FB

Serial No. 7463 KKS

Jumlah 2 unit

MOTOR

Manufactur Shanghai Electric Machinery C0., Ltd

Type YBJC4502-6 Voltage 6000 V Motor 450 kW Current 53.9 A PF 0.845 Frequency 50 Hz Speed 992 r/min Weight 4360 Kg IP 55 Rating S1 No. 450Y1320472-1 Conn. Y INS. F Ambient Temp. 15/40 o_C STD IEC 60034-1 Date 2013.04 KKS Jumlah 2 unit

(74)



Centrifugal Ventilator

Manufactur Shanghai Jinyongli Fan and Air Conditioning Co., Ltd Model B4-72-8C Rotating R90 Air Volume 17463-22435 m3_/h Power 22 kW Total Pressure 2478-2390 Pa Speed 1615 r/min No. 130332 Date 2013.08 KKS Jumlah 2 unit MOTOR

Manufactur Jiangsu Dazhong Electrical Motor Co., Ltd

Type YB2-180M-2 Voltage 380/660 V Motor 22 kW Current 41/23.7 A PF 0.90 Frequency 50 Hz Speed 2950 r/min Weight 202 Kg IP 55 Rating S1 No. 14880 Conn. ∆/Y INS. F STD JB/T7565.1-2004 Date 2012.08 KKS Jumlah 2 unit

Inertial Vibrator

Manufactur Mantong Excelent Vibration Machinery Co., Ltd Type 70Y10.09-2 Voltage 380 V Motor 0.09 kW Current 0.32 A Frequency 50 Hz Speed 2900 r/min

(75)

IP 55 Rating S1 No. 7031 STD JB/T5330-91 Date 2013.07 KKS Jumlah 4 unit

Pulse Cloth Bag Dust Cartcher

Manufactur Jiangsu Jiangping Air Condition & Purificatory Equipment co., Ltd Type JJWM-180A

Filtered Area 180 m2 Capacity of Motor 22 kW

Weight 4800 Kg

Leave Factory No. 2130812 Rated Wind Volume 18000 m3_/h Resistance from Equipment < 1200 Pa

Eff. 99.7 %

Date 2013.08

KKS JOSAK28AH602

Jumlah 2 unit

VIBRATOR

Manufactur Shanghai Minfeng Electric Power Equipment Co., Ltd

Model MFJ2F-6 Voltage 380 V Exciting Force 5 kW Power 0.37 kW Factory Date 2013.04 Weight 40 Kg KKS Jumlah 4 unit



Coal Bunker

Manufactur Siemens Type S/N-JKD 4502741733.06.001 n1 1500 /min

Oil Type MIN

VG 320 P2 11.92 kW N2 49.68 /min Oil 9 l Weight 320 Kg KKS Jumlah 2 unit

(76)

MOTOR

Manufactur Shangdong Huali Electric Motor Group C0., Ltd Type YB2-180L-4-TH Voltage 380 V Motor 22 kW Current 43.1 A PF 0.85 Frequency 50 Hz Speed 1470 r/min Weight 253 Kg IP 55 Rating S1 No. 9711 Conn. ∆ INS. F Eff. 91.2 % STD JB/T7565-2004 Date 2012.08 KKS Jumlah 2 unit

Vibrator

Model MFJ2F-6 Voltage 380 V Exciting Force 5 kW Power 0.37 kW Factory Date 2013.04 Weight 40 Kg KKS Jumlah 4 unit

Buffer lock of the Air

Model MFST-3B

The Band Width B= 800 mm Factory Date 2013.04

Weight 900 Kg

KKS

Jumlah 4 unit

Sensor Laju Batubara

Manufactur

Voltage 380 V

(77)

Factory Date 2013.06

Weight 8 Kg

KKS

Jumlah 4 unit

Coal Plough

Manufactur Shanghai Mineeng Electric Power Equipment Co., Ltd Model MFDS-800

Voltage 380 V The Band Width B= 800

Power 0.75 kW Weight 460 Kg Date 2013.04 KKS 20EAE02AQ004 Jumlah 2 unit MOTOR Manufactur THE Type YS 8024 Voltage 220/380 V Motor 750 W Current 3.48/2.0 A Frequency 50 Hz Speed 1400 r/min IP 44 Date 2012.09 KKS Jumlah 6 unit

Motorized Faders

Manufactur Shanghai Min Feng Power Equipment Co., Ltd Model 700 Itinerary 6.0 mm Thrust 7000 N Power 0.75 kW Weight 70 Kg Factory Date 2013 KKS Jumlah

Motor-Drive Three-Way

(78)

Model MFSTII-700-60 Voltage 380 V Power 0.75 kW Width Band B= 800 mm Weight 800 Kg Factory Date 2013.04 KKS I0ECB0LAA001 Jumlah 2 unit

Self-Aligning Roller

Manufactur Shanghai Min Feng Power Equipment Co., Ltd Model MFT-800 Rod Diameter 108 mm Width Band 800 mm Weight 60 Kg Factory Date 2013.04 KKS Jumlah 22 unit
