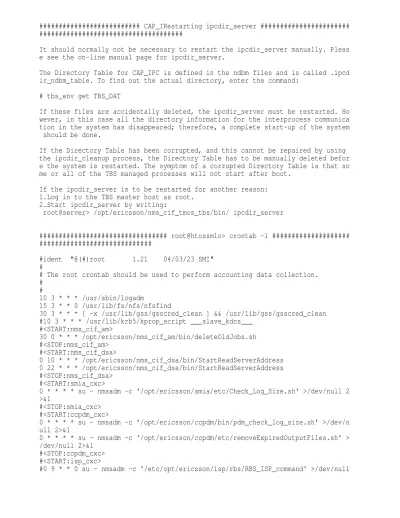

########################## CAP_IRestarting ipcdir_server ####################### #####################################
It should normally not be necessary to restart the ipcdir_server manually. Pleas e see the on-line manual page for ipcdir_server.
The Directory Table for CAP_IPC is defined in the ndbm files and is called .ipcd ir_ndbm_table. To find out the actual directory, enter the command:
# tbs_env get TBS_DAT
If these files are accidentally deleted, the ipcdir_server must be restarted. Ho wever, in this case all the directory information for the interprocess communica tion in the system has disappeared; therefore, a complete start-up of the system should be done.
If the Directory Table has been corrupted, and this cannot be repaired by using the ipcdir_cleanup process, the Directory Table has to be manually deleted befor e the system is restarted. The symptom of a corrupted Directory Table is that so me or all of the TBS managed processes will not start after boot.
If the ipcdir_server is to be restarted for another reason: 1.Log in to the TBS master host as root.
2.Start ipcdir_server by writing:
root@server> /opt/ericsson/nms_cif_tmos_tbs/bin/ ipcdir_server
################################# root@htossm1o> crontab -l #################### #############################
#ident "@(#)root 1.21 04/03/23 SMI" #
# The root crontab should be used to perform accounting data collection. #
#
10 3 * * * /usr/sbin/logadm
15 3 * * 0 /usr/lib/fs/nfs/nfsfind
30 3 * * * [ -x /usr/lib/gss/gsscred_clean ] && /usr/lib/gss/gsscred_clean #10 3 * * * /usr/lib/krb5/kprop_script ___slave_kdcs___ #<START:nms_cif_am> 30 0 * * * /opt/ericsson/nms_cif_am/bin/deleteOldJobs.sh #<STOP:nms_cif_am> #<START:nms_cif_dsa> 0 10 * * * /opt/ericsson/nms_cif_dsa/bin/StartReadServerAddress 0 22 * * * /opt/ericsson/nms_cif_dsa/bin/StartReadServerAddress #<STOP:nms_cif_dsa> #<START:smia_cxc>
0 * * * * su - nmsadm -c '/opt/ericsson/smia/etc/Check_Log_Size.sh' >/dev/null 2 >&1
#<STOP:smia_cxc> #<START:ccpdm_cxc>
0 * * * * su - nmsadm -c '/opt/ericsson/ccpdm/bin/pdm_check_log_size.sh' >/dev/n ull 2>&1
0 * * * * su - nmsadm -c '/opt/ericsson/ccpdm/etc/removeExpiredOutputFiles.sh' > /dev/null 2>&1
#<STOP:ccpdm_cxc> #<START:isp_cxc>
2>&1
#0 1 * * 0 su - nmsadm -c '/opt/ericsson/bin/BSS_ISP -e -c syrip' >/dev/null 2>& 1
#0 5 2 * * su - nmsadm -c '/opt/ericsson/bin/BSS_ISP -e -c lasip' >/dev/null 2>& 1
#0 22 * * 5 su - nmsadm -c '/opt/ericsson/bin/BSS_ISP -e -c sts' >/dev/null 2>&1 #<STOP:isp_cxc>
13 1 * * * isql -Ucna -Poss123 -Smasterdataservice < /opt/ericsson/cna/etc/cna_u pdate_db_statistics.sql
#for RNO brf Update...
15 1 * * * /opt/ericsson/bin/brfUpdateDbStatistics.sh
#run the mgsvp command for all the ericsson MSCs every 2 min after 1h 2 * * * * /ericsson/syb/backup/mgsvp.sh
#bcpfiles collection for TPM Project as requested by Stephen Katsokore #10 * * * * /home/ossadm/cron_path.bck/tpm_bcpfiles.sh > /dev/null #10 2 * * 1,5 /home/ossadm/cron_path.bck/tpm_bcpfiles_rm.sh > /dev/null #Cronjob to Monitor DIGI_To_DIGI Accounting Info on Ericsson Switches
0 0 * * * /opt/ericsson/bin/ops_nui -file /home/nmsadm/cha/cmdfile/DIGI_To_DIGI_ TEST.ops > /dev/null
#Entry created for ADC (Automatic Data Collection) Implemented by Ericsson
47 22 * * 4 /opt/ericsson/arne/bin/export.sh -f /ossrc/home/adcuser/adc-arne.xml \ -o; chown adcuser:nms /home/adcuser/adc-arne.xml
##############BSM Auditing Maintenance################################# 0 6,18 * * * /usr/sbin/audit -n > /dev/null
0 7 * * 1 /usr/bin/find /var/audit/htossm1o/ -type f -mtime +6 -exec /usr/bin/rm {} \; > /dev/null 2>&1
#<START:nms_rnr_pmr>
0 12 * * 1 su - nmsadm -cf 'source .login; /opt/ericsson/bin/PMR_UpdateDb' >/dev /null 2>&1
#<STOP:nms_rnr_pmr> # to make the cleanup
0 * * * * /bin/find /var/opt/ericsson/sgw/outputfiles/apgfiles/sts -type f -mtim e +2 -exec /usr/bin/rm {} \; > /dev/null 2>&1
5 2 * * * /bin/find /var/opt/ericsson/sgw/outputfiles/asn1 -type f -mtime +2 -ex ec /usr/bin/rm {} \; > /dev/null 2>&1
5 3 * * * /bin/find /var/opt/ericsson/sgw/outputfiles/xml/mgw -type f -mtime +2 -exec /usr/bin/rm {} \; > /dev/null 2>&1
5 4 * * * /bin/find /var/opt/ericsson/sgw/outputfiles/apgfiles/oms -type f -mtim e +3 -exec /usr/bin/rm {} \; > /dev/null 2>&1
#
######################### Running Cell Availability ########################y 10,25,40,55 * * * * /opt/ericsson/nms_umts_car/bin/startROPParser.sh > /dev/null 2>&1
0 5 * * * /opt/ericsson/nms_umts_car/bin/startBulkParser.sh > /dev/null 2>&1 # 15 1 * * * /opt/ericsson/bin/wncsUpdateDbStatistics.sh # # 0 8 * * * /ericsson/dmr/bin/dmtool -s sys_dump_monitor #<START:cna_cxc> 13 2 * * * /opt/ericsson/cna/bin/cna_update_db_statistics.sh masterdataservice / opt/ericsson/cna> /dev/null 2>&1
0 12 1 * * /opt/ericsson/cna/etc/cna_usage_log_backup.sh /var/opt/ericsson/cna/l og> /dev/null 2>&1
#<STOP:cna_cxc> #<START:bsmcm_cxc>
13 2 * * * /opt/ericsson/bsmcm/bin/bcm_update_db_statistics.sh masterdataservice /opt/ericsson/bsmcm> /dev/null 2>&1
#<START:eba_ebsg_cxc>
15 4 * * * /opt/ericsson/eba_ebsg/etc/ebsg_output_retention.sh > /dev/null 2>&1 #<STOP:eba_ebsg_cxc>
#<START:eba_rpdbi_cxc>
* * * * * /opt/ericsson/eba_rpdbi/etc/rpmo_RpmoFileTransfer.sh > /dev/null 2>&1 15 4 * * * /opt/ericsson/eba_rpdbi/etc/rpmo_RpmoFileRecover.sh > /dev/null 2>&1 15 3 * * * /opt/ericsson/eba_rpdbi/etc/rpmo_cleandb.sh > /dev/null 2>&1
#<STOP:eba_rpdbi_cxc> #<START:eba_ebss_cxc>
15 5 * * * /opt/ericsson/eba_ebss/etc/ebss_output_retention.sh > /dev/null 2>&1 25 * * * * /opt/ericsson/eba_ebss/etc/ebss_input_retention.pl > /dev/null 2>&1 #<STOP:eba_ebss_cxc>
# Statistics Collection Issue Alert for AXE, GSN and MGw platforms
#2,17,32,47 * * * * /home/nmsadm/scripts/ossadm_scripts/ggsn_verif_stat.sh /dev/ null 2>&1
10 * * * * /home/nmsadm/scripts/ossadm_scripts/axe_verif_stat.sh /dev/null 2>&1 #<START:nms_axe_cha_cha> 1 0 * * * /opt/ericsson/nms_axe_cha_cha/nms_axe_cha_cha/etc/cha_log_cleanup.sh #<STOP:nms_axe_cha_cha> #<START:nms_umts_amos> 00 01 * * * /opt/ericsson/amos/bin/amos_compresslogfiles.sh #<STOP:nms_umts_amos> #<START:nms_tss_server> 0,20,40 * * * * /usr/sbin/logadm tss_audit_rotation_by_size 0,5,10,15,20,25,30,35,40,45,50,55 * * * * /opt/ericsson/nms_tss_server/bin/rota te_tss_trace.sh 30 * * * * /usr/sbin/logadm tss_audit_rotation_by_period #<STOP:nms_tss_server> ##For MobileSubState #0 7-9,11-13,18-20 * * * /ericsson/syb/backup/mobileSubState.sh 0 7-9,11-13,18-20 * * * /ericsson/syb/backup/mobileSubStateHX02.sh 0 7-9,11-13,18-20 * * * /ericsson/syb/backup/mobileSubStateAC03.sh 30 7-9,11-13,18-20 * * * /ericsson/syb/backup/mobileSubStateTG01.sh ##For Voila Subscriber
1 8,13,20 * * * /ericsson/syb/backup/mobileSub_VoilaHX02.sh 1 8,13,20 * * * /ericsson/syb/backup/mobileSub_VoilaTG01.sh 1 8,13,20 * * * /ericsson/syb/backup/mobileSub_VoilaAC03.sh ## For Media Gateway
* 11 * * * /ericsson/syb/backup/mgw.sh #<START:eba_ebsw_cxc>
15 5 * * * /opt/ericsson/eba_ebsw/etc/ebsw_output_retention.sh > /dev/null 2>&1 #<STOP:eba_ebsw_cxc>
0,10,20,30,40,50 * * * * /opt/ericsson/secpf/sftp/bin/cleanup.sh
30 05 * * * su - sybase -c "/ericsson/syb/conf/diag_proc_cache_test.ksh >> /eric sson/syb/log/diag_proc_cache_test.txt"
0 6 * * * su - nmsadm -cf '/opt/ericsson/fm/fmx/bin/add_fmxgw' > /dev/null 2>&1 #<START:nms_hc_client>
0 0 * * 0-6 /opt/ericsson/nms_hc_server/dat/runHCHouseKeeping.sh #<STOP:nms_hc_client>
* * * * * su - nmsadm -cf '/opt/ericsson/ltx/bin/CronUpdateFMX.pl' > /dev/null 2 >&1
0 8 * * * su - nmsadm -cf '/opt/ericsson/wrx/bin/wrx_get_topology.sh' > /dev/nul l 2>&1
#<START:nms_activiti>
5 0 * * * /opt/activiti/bin/cleanup_history.sh > /dev/null 2>&1 #<STOP:nms_activiti> 0 02 * * 0 /opt/ericsson/sck/bin/backup_versant_db.sh 7 2 * * 2 /ericsson/solaris/bin/vxfsdefrag -a -q -d 0 2 * * 3 /ericsson/solaris/bin/vxfsdefrag -q -d -e /ossrc/data/pms/segment1 30 2 * * 3 /ericsson/solaris/bin/vxfsdefrag -q -d -e /ossrc/data/sgw/sgwcg 0 03 * * 0 /ericsson/syb/backup/backup_sybase_db.sh 15 06,18 * * * /ericsson/syb/backup/backup_sybase_translog.sh 01 00 * * * /opt/ERICddc/bin/ddc START 05,20,35,50 * * * * /opt/ERICddc/bin/ddc TRIGGER 58 23 * * * /opt/ERICddc/bin/ddc STOP #<START:borland_apr_bes>
# Clean up the ORB sockets from the /tmp directory at 3:30 am. # This script will delete unused sockets, keeping the /tmp # directory relatively clean.
# The time can be changed to suit, and this script can be run # more or less frequently depending on preference.
# If you do update this entry, bear in mind it will be replaced with # the original value the next time you upgrade.
30 3 * * * /ericsson/bes/bin/clean_orb_sockets.sh #<END:borland_apr_bes>
0 0 * * * /etc/opt/ericsson/fm_core/startscript/IM_update_statistics >> /var/opt /ericsson/fm_core/log/statistic 2>&1
0 0 * * * /opt/ericsson/fm/FMBA_update_statistics fmdataservice fma_handler _1 >> /var/opt/ericsson/fm/statistic
0 0 * * 0 /opt/ericsson/fm/FMBA_reorg_compact fmdataservice fma_handler_1 > > /var/opt/ericsson/fm/reorg_compact
5 * * * * /opt/ericsson/bin/FM_generate_statistics >> /var/opt/ericsson/al_stati stic 2>&1
5 2,6,10,14,18,22 * * * /ericsson/eniq/bin/process_sym_link_location.pl -R -l /v ar/opt/ericsson/eniq >> /dev/null 2>&1
##############################.- The other way that NodeB EM can be opened is th rough Master Server applying next Remedy:#############
a) open UAS terminal b) ssh -X masterservice c) Type password
d) cex_client
##############################
Job Manager contains a script, jm_rm_db_log.sh, that deletes old logs and stores this information, so that data traceability is preserved.
This script is stored at the following location: /opt/ericsson/jm/bin.
This script needs to be executed regularly in order to keep the ActivitySupportD atabase "healthy".
The following is an example of how to remove logs older than three days: Table 4 Example Command To Delete All Log Files Older Than Three Days
>./jm_rm_db_log.sh -d 30
./create_sybdev /ossrc/sybdev/oss/sybdata 700 ddev_lvlogdb
################ how to find user log for RNC ############################### lgolqn <hours>h'
############################ Creating a User Account with the SMC GUI Tool ##### #########################################
Start the SMC by issuing the following command: /usr/sadm/bin/smc &
################################ how to set date in Solaris #################### #########################################
The date command takes the syntax mmddhhmmyy, or month day hour minute year . You h ave to be superuser to set the time.
Example:
# date 1201010106
Fri Dec 1 01:01:00 PST 2006
########################## unable to run RRINC command ######################### #########################################
This problem is related to TSS access priority command go to TSS via Citrix
select a user
select a role then click on role overview on the bottom
in the "Activities Set" windows, click and type the command you want to filter i n the "available activities"
then add the cooamnd in the "included activities "
############################## How to recover the lost AXE statistics ########## ###################################
1. Recovery the copy of raw files saved in OSS.
1.1 For that it is needed to make sure that the missing files exist here /var/opt/ericsson/sgw/outputfiles/apgfiles/sts.
find the raw files /var/opt/ericsson/sgw/outputfiles/apgfiles/sts example:
C20120428.0500-20120428.0600_BSCNAME:1000 and rename it with the format as below:
C20120428.0500-20120428.0600:::BSCNAME:::1000
mkdir /var/opt/ericsson/sgw/outputfiles/apgfiles/recover
cp -p C20120428.0500-20120428.0600_BSCNAME:1000 /var/opt/ericsson/sgw/outputfile s/apgfiles/recover/C20120428.0500-20120428.0600_BSCNAME:1000
Note.-before to execute the stept below is necesary stop sgw MC
Then for each file that you want recover,you will need write a command as below: cd /var/opt/ericsson/sgw/outputfiles/apgfiles/recover cp C20120428.0500-20120428.0600_BSCNAME:1000 /var/opt/ericsson/sgw/inputfiles/ap g_sgw_sts/C20120428.0500-20120428.0600:::BSCNAME:::1000 cp C20120428.0500-20120428.0600_BSCNAME1:1000 /var/opt/ericsson/sgw/inputfiles/a pg_sgw_sts/C20120428.0500-20120428.0600:::BSCNAME1:::1000 cp C20120428.0500-20120428.0600_BSCNAME2:1000 /var/opt/ericsson/sgw/inputfiles/a pg_sgw_sts/C20120428.0500-20120428.0600:::BSCNAME2:::1000 cp C20120428.0500-20120428.0600_BSCNAME3:1000 /var/opt/ericsson/sgw/inputfiles/a pg_sgw_sts/C20120428.0500-20120428.0600:::BSCNAME3:::1000 cp C20120428.0500-20120428.0600_BSCNAME4:1000 /var/opt/ericsson/sgw/inputfiles/a pg_sgw_sts/C20120428.0500-20120428.0600:::BSCNAME4:::1000
- After copy all the missing files start "sgw" MC and then Symlinks will be crea ted and stast will be parsed and loaded
####################### how to increase database segment capacity ############# ################
A- check where the log or data device is located. Exemple:
root@htossm1o> isql -Usa Password:
1> sp_helpdevice ddev_lvlogdb 2> go
device_name physical_name description
status cntrltype vdevno vpn_low vpn_high ---
---
--- - --- --- ddev_lvlogdb /ossrc/sybdev/oss/sybdata/ddev_lvlogdb
raw device, special, dsync off, directio on, physical disk, 3100.00 MB, Free: 100.00 MB
2 0 39 0 1587199 now we know is in /ossrc/sybdev/oss/sybdata/ B- check the space available
root@htossm1o> df -h /ossrc/sybdev/oss/sybdata
Filesystem size used avail capacity Mounted on /dev/vx/dsk/ossdg/sybdata
62G 43G 18G 70% /ossrc/sybdev/oss/sybdata
C- go on /opt/ericsson/sck/lib/create_sybdev
and run the command to increase log and data device
SYB lock successful.
root@htossm1o> ./create_sybdev /ossrc/sybdev/oss/syblog 50 ldev_lvlogdb SYB lock successful.
D- alter data segment according to the change sybase@htossm1o> isql -Usa
Password:
1> alter database lvlogdb on ddev_lvlogdb="700M" 2> go
Extending database by 358400 pages (700.0 megabytes) on disk ddev_lvlogdb 1>
E- check hte modification
sybase@htossm1o> /ericsson/syb/util/db_check.sh | grep lvlogdb Device: ddev_lvlogdb, Total Device Size: 3800.00 MB
Allocated Database :lvlogdb
Device: ldev_lvlogdb, Total Device Size: 980.00 MB Allocated Database :lvlogdb
lvlogdb system 3700MB 1087MB 2612MB 70%
lvlogdb logsegment 900MB 896MB 3MB 0%
####################### To set DB to single user mode, do the following:######## #################################
1>sp_dboption db_name,"single user",true 2>go
Once completed, set the affected DB "single user" to false and re-run syb_diagno stic and monitor the Sybase Error Log as above.
###################### OSS monitoring tool is now accessible ################### #################################
To logon to it:
- Open Firefox e.g. on UAS1 - URL: 172.20.216.231:57004 - user/pass: hqadmin/hqadmin
The most useful view is probably resources view (please see picture)
######################## to connect to the STORAGETEK server ################### ################################
open a terminal
mozilla 172.20.217.72 (ip address for the bis) google netbackup cheat sheet for more information
if we have issue with netbackup do the following action on connect to the backup server
cd /usr/openv/netbackup/bin
1-./bp.kill_all to sopt all netbackup process 2- ./bp.start_all to refresh
######################## About the analysis of the CSR STS not coming for SGSN # ###########################################
I can see that data collection into the SGSN is creating the .tar file with the counter information, the problem is related to the get process from the SGSN to the OSS. File is correctly created in SGSN side but OSS is not able to get it to the OSS Filesystem. Files are in queue in SGSN filesystem.
ossuser@eqm01s13p2:/Core/log/OSS_files$ ls -lart total 413184
drwxr-xr-x 2 ossuser gsnuser 28672 Jan 31 2012 TarFiles
-rw-r--r-- 1 om_admin gsnuser 112640 Jul 2 22:03 Meas_0702122216.tar -rw-r--r-- 1 om_admin gsnuser 112640 Jul 2 22:18 Meas_0702122231.tar -rw-r--r-- 1 om_admin gsnuser 112640 Jul 2 22:33 Meas_0702122246.tar -rw-r--r-- 1 om_admin gsnuser 112640 Jul 2 22:48 Meas_0702122301.tar -rw-r--r-- 1 om_admin gsnuser 112640 Jul 2 23:03 Meas_0702122316.tar
. .
-rw-r--r-- 1 om_admin gsnuser 122880 Aug 8 14:31 Meas_0808121446.tar -rw-r--r-- 1 om_admin gsnuser 122880 Aug 8 14:46 Meas_0808121501.tar -rw-r--r-- 1 om_admin gsnuser 122880 Aug 8 15:01 Meas_0808121516.tar -rw-r--r-- 1 om_admin gsnuser 122880 Aug 8 15:16 Meas_0808121531.tar -rw-r--r-- 1 om_admin gsnuser 122880 Aug 8 15:31 Meas_0808121546.tar -rw-r--r-- 1 om_admin gsnuser 122880 Aug 8 15:46 Meas_0808121601.tar drwxrwxrwt 29 root root 4096 Aug 8 15:46 ..
drwxrwxrwx 3 om_admin gsnuser 102400 Aug 8 15:46 . ossuser@eqm01s13p2:/Core/log/OSS_files$
According with the logs about the ftp error:
TRACE : 2012-08-08 16:06:11 (UTC-04:00) Error : SGwGSNFileCollnDistnEngine.col lectAndDistribute() => Collector Type <GSN> Encountered Exception while trying t o do cd to /tmp/DPE_COMMONLOG/OSS_files/ for NE < SGSNHT02> Exception: SGwFileCo llnDistnEngine.listAllFiles(),Encountered Exception while trying to list the fil e(s) in < /tmp/DPE_COMMONLOG/OSS_files > Ftp Error Code: 550==>The response valu e from the command "MDTM /tmp/DPE_COMMONLOG/OSS_files/TarFiles" did not match th e list of allowed responses.
The response from the server was: 550 Could not get file modification time. The verification included the ftp to the node to discard any issue with the acce ss.
The only issue is that into the directory where the OSS goes to get the files th ere are a lot of files for over a month. To fix the issue is needed that from SG SN side move or remove the files as maybe are affecting the ftp commands of list or get due the amount of files included into the output.
Please let me know when the suggestion were performed to verify if the data coll ection from OSS starts again.
######################### Need to become real administrator#####################
need to configure interface on a server check backup status and using Netbackup troubleshooting on CIF platform
troubleshooting and maintenance on ENIQ platform
ing above solaris 8 (probaly earlier) is running 64bit. isainfo -v
#You can issue the following command to find the users who do not have passwords :
logins -p
#3.Verify the state of each Backup client: vxprint -htrg
# Check that File systems are mirrored: metastat | more
#You can verify that the crontab fi le exists from the output of the following c ommand:
ls -l /var/spool/cron/crontabs
************** run the commande below via alom ip to boot the server if it's han ging for a particular reason ********************
#console -d 0 #type y
#then type ok boot
#for backup on OSS, copy is saved on /ericsson/dmr/log/recovery
to check the process ID of particular user #ps -ef | grep -i "username"
#Backups can fail if the Solaris Server has locale issues: hostname
#this will help you to find log people on RNC lgoqln <hours>h'
# more /var/opt/ericsson/sck/data/cp.history Check the last row of the output.
#REDE Output file Issue
give access to all users: chmod 777 directory_output_name create a new profile folder
Check Server s IP Address
# getent hosts masterservice | awk '{print $1}' e.g.
********************** how to send a pop up message via citrix **************** *******************************
connect to UAS server #cd /opt/CTXSmf/bin
# ./ctxmsg -a "the message to be sent"
or you can check the server id of user and send a particular message to identify the server id run the script below
# ./ctxqsession
EX :#./ctxmsg -w htossa1o:280 "bay Oss yon souf man, Edy"
cess after two
minutes. Applications that have registered window hints are given a further thre e minutes to attempt
to interactively log users off.
go to this directory : opt/CTXSmf/sbin then run the script below
# ctxshutdown -m 120 -l 180 Please log off now
***************************************** OSS health check ********************* *******************************
#cd /opt/ericsson/bin
run the script oss_healthcheck.pl
then go to tmp for download the fileand open it in a web browser
************************************* Check Nameserver ************************ ********************************
Check that nameserver are properly defined on the server by running the following command:
# more /etc/resolv.conf | grep nameserver
*********************************** Check Veritas Licence ******************** *********************************
Check that the Veritas License has not expired via the command: # /sbin/vxlicrep
********************************** To update the Veritas License *************** *********************************
run the command: # /sbin/vxlicinst
********************************* Server Runtime ******************************* **********************************
Check how long the server is up and running: # uptime
Number of Java Processes
Check the number of java processes running on the server: # ps ef | grep c java
*********************************** Check the CPU Consumption ****************** *******************
Check that no process is consuming the CPU using top command: # top
Check for the TIME and CPU columns, if CPU column is more than 10% and TIME value is more than 10:00 (10mins), it means that
the process is in question. Get the PID of the process and use /usr/ucb/ps to check details of process in question
******************* check interface VLAN for the backup server #cat /etc/hosts then type
#netbackup
or connect to another server and run the command below #ifconfig -a
**************** SMF Commands to enable services ******************************* *************
check faulty services #svcs -x
svcadm manipulates services:
# svcadm enable enables services, services start when dependencies are rea dy
# svcadm disable disables services
# svcadm restart stops and starts services
# svcadm refresh commits the current properties to the running snapshot and runs the refresh method
# svcadm clear signals that a service in maintenance has been fixed With -s, enable & disable wait until completion
With -t, enable & disable are temporary until next boot
If the state is in maintenance, it s either the service instance encountered an error or the server is not configured to run the service.
Online the service with the following command: # svcadm clear <FMRI>
********************************* Check Run Level service ********************** *********************************
Run level 3 is the default run level of the OSS. To check the OSS Run level, run the command: # who r
If server run level is not on Run level 3, change the milestone by running the following commands:
# svcadm milestone svc:/milestone/multi-user-server:default
**************************** How to set online a Use who is OFFLINE for a RNC ** *******************************************
the problem :
When I tried to login with RNCTG01 IP address than that works fine but when I us e RNC name still having same issue.
sgurjeet@htossa2o> amos RNCTG01 __ __ ____ _____ /\ | \/ |/ __ \ / ____| / \ | \ / | | | | (___ / /\ \ | |\/| | | | |\___ \ / ____ \| | | | |__| |____) | /_/ \_\_| |_|\____/|_____/ OSS Framework for MoShell-9.0g
Last MO: 0. Loaded 0 MOs. Total: 1 MOs. Preparing offline MIB:
0% ~50% ~100%
0;OFFLINE_RNCTG01 - AMOS - Stopfile=/tmp/7226 HELP MENU : h
QUIT : q
For offline browsing of PM ropfiles, run "pmr/pmx -l <pmropfiles>".
For offline browsing of CPP logfiles, run "lg[options] -l <cpplogfiles>". The PM ropfiles and CPP logs can be fetched when online, using command "dcgf" 0;OFFLINE_RNCTG01 - AMOS - Stopfile=/tmp/7226
OFFLINE_RNCTG01>
Solution:
AMOS should now be working. The problem was that the user was logging their sess ion using the name/IP of the node in their home directory. This causes a conflic t with AMOS which attempts to read the file as an IOR file. if there is file whi ch has the same name as the nodes located in the users home directory, then mosh ell will consider this file is the IOR file, and it will try to resolve the cont ents of the file, but actually this is not a real IOR file, it will return the e rror that this is offline node.
1. Moving file sgurjeet@htossa1o> pwd /home/sgurjeet
sgurjeet@htossa1o>
sgurjeet@htossa1o> mv RNCTG01 RNCTG01.orig sgurjeet@htossa1o> ls -alrt | grep -i rnc
-rw-r--r-- 1 sgurjeet nms 3018 Feb 4 11:46 RNCTG01.orig 2. Starting AMOS
sgurjeet@htossa1o> amos RNCTG01
*********************************** How to connect to Symantec Net BACKUP ***** ***************************************
first way
htossa1o{nmsadm} # echo $DISPLAY :70.0
htossa1o{nmsadm} # xhost +
access control disabled, clients can connect from any host htossa1o{nmsadm} # ssh -l root 172.20.216.200
Password:
Last login: Wed Jul 4 17:30:54 2012 from 172.20.216.231 Sun Microsystems Inc. SunOS 5.10 Generic January 2005 You have new mail.
# tcsh # c
c: Command not found. # # cd /usr/openv # cd java # setenv DISPLAY 172.20.216.228:70.0 # ./jnbSA & 2nd way open a terminal #ssh -X [email protected] #jnbSA &
************************ how to set gauge period to 15min for GGSN node ******** *********************************************
root@htossm1o> pwd /etc/opt/ericsson/ccpdm
root@htossm1o> grep GAUGE_INTERVAL_VAL cxc.env | head -1 GAUGE_INTERVAL_VAL=15
root@htossm1o>
You need to restart PDM processes in order to put it into effect. Please run the following command in Master Server:
# smtool coldrestart PDM PDM_SNMP reason=other reasontext= change PDM gauge period Please note it will disturb statistics collection and might result gaps in SNMP based nodes. So please choose time suitable for you to perform this activity.
******************************************************Change Node password****** **********************************
########################## Sybase Diagnostic ################################### #############
A menu driven diagnostic tool for Sybase is available to perform the following o ptions:
1. Check database consistency 2. Display Size of Logfiles 3. Display Logfiles
4. Display Space used by databases 5. Display Transaction Log space 6. Display Mirror status
7. Display Database Configuration 8. Display Server Configuration
9. Display Application Log table size
To run Sybase diagnostic tool run the syb_diagnostic script: # /ericsson/syb/util/syb_diagnostic
############################################# Sybase Useful sql commands ####### ############################
Run the following commands as user sybase:
sp_who lists the current SQL users. You can kill a running sql process with kill <spid>
sp_helpdb lists information on the database
sp_helpdevice lists information about the sybase devices select db_name() shows which database you are in
sp_configure number of locks checks the value of a parameter sp_configure "number of open indexes",2000 sets a parameter
sp_helpindex FMA_alarm_log Displays information about a table's indexes, includi ng the segments where the indexes reside
select count(*) from FMA_alarm_list count the number of alarms in FM database select * from <table> where 1=2 just shows the columns headings
select * from master..sysprocesses where spid=<spid> to check the status of a pr ocess
select name from sysobjects where type = U just shows user tables dump database model to /var/tmp/model.dump to dump a database select @@version this will show the version of sybase
########## Sybase Connectivity Problems ##################################### Check the Server is running ps ef |grep sybase
Check Running Servers Check MC s especially TSS Try to login as sa
Examine Sybase Errorlog
Examine ServerName.cfg File, has this been changed recently? Start Sybase Manually
Verify the UFS for existence of /export/sybdev
Verify Backups / take error message to EEI Sybase Support
################### Sybase Database Full ##################################### Use checkdb.sh or sybase info
Login as sa
Check sp_who and SPID s or running processes Dump transaction with no_log or truncate_only Check Application Error Log & Sybase Errorlog Check for DB Threshold Messages
Is your DB appropriately sized / is there space available to increase size
Force the Last Chance Threshold (LCT)to Activate and Abort Transactions causing the Log Full or failure of Log to dump
1>select lct_admin("abort",0,db_id( DB Name")) 2>go
Can you truncate tables? Can you Restart sybase
############################ tempdb Full ##################################### ###################
Check syspocesses select * from sysprocesses where spid = #
Is the Process physical_io increasing in size Check that the Process is runnin g
select physical_io from sysprocesses where spid=# < rerun this command and obser ve physical io size>
Check the underlying UNIX PID - select hostprocess from sysprocesses where s pid=#
ptree - a hostprocess
Check syslogshold table for any entries
What process is filling tempdb sp_who <user> Check tempdb_usage script
Can you increase tempdb? Can you kill the Process?
Force the LCT to activate an abort select lct_admin( abort ,spid) Can you restart Sybase
Check Sybase errorlog
Isolate the application causing this problem to ensure mandatory applications ( FM) is not effected
###################### AMOS command ############################################ ######################
h,m,n,p Help screens
l <command> Execute UNIX command l+/l- Stat and stop logging
mom RncFunction <parameter> Give description of RNC parameter mom UtranCell <parameter> Give description of CELL parameter lt Load MO tree
pr UtranCell List all cells
lpr UtranCell List all cells and related Mos pr GsmRelation List all GSM Neighbors
st UtranCell=<cell> Print state of cell
lst UtranCell=<cell> Print state of cell and channels st UtranCell
lk UtranCell=<cell> Print all Mos linked to cell str Show site availability at Iub level
lkr Show Iub configuration and resource usage uer Show calls in network
uer -c <cell> Show calls on cell
uer -i <IMSI> Show call information for IMSI uer -r Iub_CUR005
al Display alarms
alt Display alarms chronologicaly ala Display alarms with detail
get UtranCell <parameter> Display table with parameter for all cells get UtranCell=<cell> <parameter> Display parameter for cell
set cell <parameter> <value> Change parameter to specified value for all cell s
bl Block
bl Soft Block deb Deblock
get RncFeature ! Display features enabl
ed on RNC
get RncFeature featureState ! Display features enabled on RN C
get RncCapacity currentCapacityLimit Display RNC User and Throughput Capacity get ChannelSwitching Display RNC Channel Switching Parametrs
get Handover Display RNC Handover Parameters get Paging Display RNC Paging Parameters
get RabHandling Display RNC RAB Handling Parameters get Hsdsch
get Eul RBS
get RbsLocalCell Display RBS Parameters get Iub Disblplay Iub Parameters (maxHsRate)
pmr Run PMR with stats for last hour
pmr -m X Run PMR with stats for X hours
pmxh <counter1>|<counter2> -m X Run PMR with counter value for X hours !Acceess Class Baring!
get . accessClassNBarred
get CUR005 accessClassNBarred
lset BON0 accessClassNBarred 1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0
!Site Availability! strt
!Mobatch!
moshell -v password=rnc -m RNCARU2,RNCCUR1 'lt all; st utrancell; exit;' moshell -v password=rnc RNCARU2 'lt ^utrancell; st utrancell; exit;' mobatch -o /home/swright/ABCSITES.txt 'lt all; alt' /home/swright/mobatch mobatch -v password=rbs -o /home/swright/ABCSITES.txt 'lt all; lga' /home/swrigh t/mobatch
!Log of Alarms! lga
lset BON007X accessClassNBarred 1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0
lset BON007X accessClassNBarred 0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
!RBS Resources ced
ced | sort -k 9 ! Sort on interference cedh !CE Resource usage
cedh | sort -k 8 !CE ResourceL CEs
!VSWR < 15 dB is limit >20 is good lh ru fui get vswr ! without ASC lh asc dbg vswr 0 get -k ! with ASC !Inventory, including feature
invh
! Events & Alarms in last 24 hr lgaevs 24h
! Show CVs cvls
! Save CV
! Delete CV cvrm [CV NAME]
!Get faults in RBS 3518 Main Remote lh ru fui get faults
! Nobe B - Get DUW and connections and LED state ! RNC - Get Boards and connections and LED state cabx
!Get faults in ASC lh asc dbg faults
lh asc dbg status get 0 !Clock
readclock get syncr
traceroute 192.168.10.6 ping 192.168.10.6
!Cell Definition Check
hget ExternalGsmCell ncc|bcc|lac|cellIdentity|bandIndicator
hget Utrancell primaryScramblingCode|localCellIdlocationarea|localCellId
!Check Locked Status
get HDO113 cellReserved get HDO113 accessClassNBarred st HD0113
!Directed Retry Target
lset Utrancell=HDO010Z directedRetryTarget ExternalGsmNetwork=Digicel_Haiti_2G,E xternalGsmCell=HDO010C
!Haiti
cd /home/eric/moshell ./moshell 172.20.249.196 RLSUP:CELL=HDO570B;
######################## Linux setup shared directory ######################### ####################################################################
by Vivek Gite on January 11, 2006 · 6 comments· last updated at January 11, 2006
Sharing a directory among users in same group is one of the essential tasks. You need to use chmod command and add user to appropriate group. To make idea clear here is an scenario:
/home/myproj : is shared directory
usr1, usr2, ... usrN : would like to work and share files in /home/myproj direct ory
padmin : Main project administrator user
If this directory does not exist then create it: # mkdir /home/myproj
Step # 2: Create the group shared group
You need to create a new group. Let us assume group name is myproj # groupadd myproj
Step # 3: Add user project administrator (padmin) and setup password: # useradd -d /home/myproj/ -g myproj -m padmin
# passwd padmin
Step #4: Add rest of users to group myproj # useradd -d /home/myproj/ -g myproj usr1 # passwd usr1
Add second user:
# useradd -d /home/myproj/ -g myproj usr2 # passwd usr2
... and so on...
Step #5: Setup permission on /home/myproj directory as follows: (a) Setup group ownership to myproj group:
# chown -R padmin.myproj /home/myproj/
(b) Setup full permission for group and owner on a directory: # chmod -R 775 /home/myproj/
(c) Setup sgid bit. So what is sgid bit? Normally whenever you creates file in a directory it belong to default group of user. When a file is created in a direc tory with the sgid bit set it belogns to the same group as the directory. The re sult is all users of myproj group can create/alter files in /home/myproj directo ry:
# chmod -R 2775 /home/myproj/ OR
# chmod -R g+s /home/myproj/
################ HOW TO CHECK PASSWORD ON A node ############################### #########
how to list nodes and users root@htossm1o> pwAdmin -list how to see the password
root@htossm1o> pwAdmin -get SGSNHT02 ossuser
pwAdmin: Error: Invalid option: -get <argument missing>. Use 'pwAdmin -help' for details.
root@htossm1o> pwAdmin -get SGSNHT02 normal ossuser
FAILED (in server): The given combination of system: 'SGSNHT02 (normal)' and acc ount: 'ossuser' is not defined in the password service.
root@htossm1o> pwAdmin -get SGSNHT02 NORMAL ossuser Ericsson@123
root@htossm1o>
how to change password
root@htossm1o> pwAdmin -changePw SOFTWARE NORMAL ossuser -pw<new password> 1) list all nodes info
pwAdmin -list
2) check help to know how to use pwAdmin password pwAdmin -help
---printout:---Usage: pwAdmin
[-list [ system [type] ] |
-create {system type account [-pw pw] [-info info] | -f file} | -delete {system type account | -f file} |
-changePw {system type account [-pw pw] | -f file} | -setInfo {system type account info | -f file} | -get system type account |
-changeKey [key] | -init |
-help]
---3) get current password for the node(example BSCTG10)
pwAdmin -get SYSTEM TYPE ACCOUNT EX:pwAdmin -get BSCTG10 NORMAL ossuer ptintout: Pass123
4) set a new password after
pwAdmin -changePw system type account
ex: pwAdmin -changePw BSCTG10 NORMAL ossuser
printout:
Enter new password for ossuser at BSCTG10:
Note1: the password must be 1st defined in node APG by concerned team
note2: after having modified the node password from OSS side, the ONRM database must be updated by using modify function in ONE.
############################# NTP Readiness for Daylight Saving Time ########### #############################
1. Check the timezone on the server MSCHT1_sam_1_6_1 SAM014:> echo $TZ America/Port-au-Prince
Check the setting for DST on the server for 2012
MSCHT1_sam_1_6_1 SAM014:> zdump -v America/Port-au-Prince | grep 2012 Edit the file /usr/sbin/zic /usr/share/lib/zoneinfo/src/northamerica where the Zone is equal with your TZ
Backup the file before
>>>cp /usr/sbin/zic /usr/share/lib/zoneinfo/src/northamerica /usr/sbin/zic /usr/ share/lib/zoneinfo/src/northamerica_original
Make sure that the Rule is present inside your Zone # From Stephen Colebourne (2007-02-22):
# Some IATA info: Haiti won't be having DST in 2007.
# Rule NAME FROM TO TYPE IN ON AT SAVE LETTER/S Rule Haiti 1983 only - May 8 0:00 1:00 D
Rule Haiti 1984 1987 - Apr lastSun 0:00 1:00 D Rule Haiti 1983 1987 - Oct lastSun 0:00 0 S # Shanks & Pottenger say AT is 2:00, but IATA SSIM (1991/1997) says 1:00s. # Go with IATA.
Rule Haiti 1988 1997 - Apr Sun>=1 1:00s 1:00 D Rule Haiti 1988 1997 - Oct lastSun 1:00s 0 S Rule Haiti 2005 2006 - Apr Sun>=1 0:00 1:00 D Rule Haiti 2005 2006 - Oct lastSun 0:00 0 S Rule Haiti 2011 max - Mar Sun>=8 2:00 1:00 D
Rule Haiti 2011 max - Nov Sun>=1 2:00 0 S # Zone NAME GMTOFF RULES FORMAT [UNTIL]
Zone America/Port-au-Prince -4:49:20 - LMT 1890
-4:49 - PPMT 1917 Jan 24 12:00 # P-a-P MT -5:00 Haiti E%sT
After editing completed compile the file
>>>>/usr/sbin/zic /usr/share/lib/zoneinfo/src/northamerica Then check the DST setting again
>>>>> zdump -v America/Port-au-Prince | grep 2013 You should see the DST settings
America/Port-au-Prince Thu Feb 7 14:43:46 2013 UTC = Thu Feb 7 09:43:46 2013 EST isdst=0
America/Port-au-Prince Sun Mar 10 06:59:59 2013 UTC = Sun Mar 10 01:59:59 2013 EST isdst=0
America/Port-au-Prince Sun Mar 10 07:00:00 2013 UTC = Sun Mar 10 03:00:00 2013 EDT isdst=1
America/Port-au-Prince Sun Nov 3 05:59:59 2013 UTC = Sun Nov 3 01:59:59 2013 EDT isdst=1
America/Port-au-Prince Sun Nov 3 06:00:00 2013 UTC = Sun Nov 3 01:00:00 2013 EST isdst=0
Reboot the server #init 6
################################## how to load license on OSS ################# ######################################################
See below the process of loading the licenses on the OSS.
After the process is completed, sun smtool l on the master server to see a list of the running licenses/processes. If the recently loaded license is either failed
or offline, you can use smtool online licenseName to put it online.
Basically that is the procedure. Open a tcsh session
# tcsh
You have to copy license file lservrc_STW000000324288_IPB7800002 (OSS)_172.20.1. 164_expire_20120507.txt in suitable directory, could be /tmp or /var/tmp.
Preferable change name file to lservrc_STW000000324288_IPB7800002_expire_2012050 7.txt to avoid issues with some characters in name.
Change to Sentinel directory /opt/Sentinel/bin Set variable "sentenv LSFORCEHOST 172.20.1.164"
Load license file ./lslic -F /var/tmp/lservrc_STW000000324288_IPB7800002_expire_ 20120507.txt
That it is all
