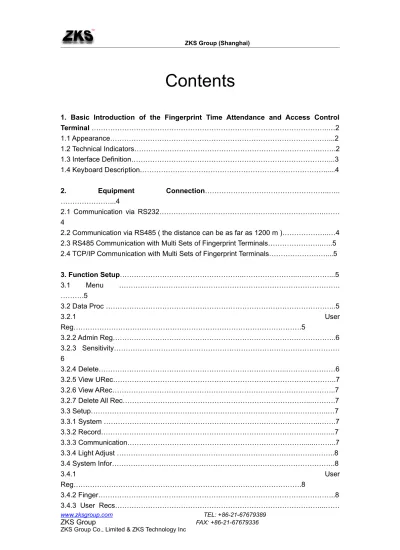

Contents
1. Basic Introduction of the Fingerprint Time Attendance and Access Control
Terminal ………..…2 1.1 Appearance………...2 1.2 Technical Indicators……….…….2 1.3 Interface Definition………...3 1.4 Keyboard Description………...4 2. Equipment Connection………..….. ………...4 2.1 Communication via RS232………..…… 4 2.2 Communication via RS485 ( the distance can be as far as 1200 m )………..…4
2.3 RS485 Communication with Multi Sets of Fingerprint Terminals………..…..5
2.4 TCP/IP Communication with Multi Sets of Fingerprint Terminals………....5
3. Function Setup………..………..…..………...5 3.1 Menu ………. ……….5 3.2 Data Proc ………..5 3.2.1 User Reg……….5 3.2.2 Admin Reg………..6 3.2.3 Sensitivity……… 6 3.2.4 Delete………..………6 3.2.5 View URec………..7 3.2.6 View ARec………..7
3.2.7 Delete All Rec………...……….7
3.3 Setup………..…7 3.3.1 System ………..…….7 3.3.2 Record………..…..7 3.3.3 Communication………...……...7 3.3.4 Light Adjust ……….……..8 3.4 System Infor………..8 3.4.1 User Reg……….8 3.4.2 Finger………..8
8
4. Function Keys for Clocking In/Out ……….………8 4.1 “▲” – Clock In ……….………….8 4.2 “▼” – Clock Out ……….…………..8
1. Basic Introduction of the Fingerprint Time attendance and Access Control Terminal
1.1 Appearance
1.2 Technical Indicators
Item Parameter
Time Required for A Successful Confirmation < 1S
Comparison Method 1：1 or 1：N
Time Required for A Failing Confirmation < 1.2S
Confirmation Method fingerprint, password, card User Number any number between 1 to 65535
Number of Fingerprint Inputs 3 inputs
Area of Fingerprint Input 16mm × 16mm
FAR ≤0.0001%
FRR ≤0.01%
Fingerprint Capacity 3000 fingerprints
Management Records 1000 entries
Attendance Records 80000 entries
Rs232 Baud Rate 38400
Rs485 Baud Rate 38400
Working Language Chinese, English, option with Spanish, French and so on
Power Consumption <5W
Power Supply DC9V~12V 1.0A
Cubage 189*50*137mm
Weight 2 kg
Working Environment Temperature 0-45℃
Humidity 20%-80%
1.3 Interface Definition 1.3.1 8-core plug .
The interface is for RS232 and RS485
1.3.2 Power Socket 1.4 Keyboard Description 1.4.1 Keyboard configuration 1 2 3 ESC 4 5 6 MENU 7 8 9 ▲ ⊙ 0 OK ▼ 1.4.2 Keyboard Function .
ESC Exit or cancel a menu MENU Enter into Terminal menu OK Confirm
RS232 RS485 TCP/IP
⊙ Switch on or off Terminal ▲ Move up the menu ▼ Move down the menu 0-9 Input numerical values 2. Equipment Connection
2.1 Communication via RS232
Note : To connect to equipment a bit far (1.5 meters away ) or multiple sets of equipment , please use the way of RS485 for communication .
2.2 Communication via RS485 ( the distance can be as far as 1200 m )
2.4 TCP/IP Communication with Multi Sets of Fingerprint Terminals.
3. Function Setup
3.1 Menu
Pressing the key MENU is followed by a display of “ Admin? ”. At this time, person cannot enter into the interface of menu until the manager has been identified with success , then it shows on the LCD: “ Data Proc ”, “ Setup ”, “ System Infor ” optional with ▲ and ▼.
User of Fingerprint Time & Attendance Recorder: The users include a manager and a general user. The general user can only identify his/her own identity;
The manager is authorized to register new fingerprints and passwords, browse the deleted or recorded data, browse the system information and set up functions.
Menu including : Data Proc + Setup + System Infor
Data Proc including : User Reg + Admin Reg + Sensitivity + Delete + View URec + View ARec + Delete All
Setup including : System + Record + Communication + Light Adjust
System Infor including : User Reg + Finger + User Regs
3.2 Data Proc 3.2.1 User Reg
User Reg including : Finger + Card + Password + FP+Card + FP+PWD
User’s registering have five kinds of verifying methods , as above , we make an example with registering in Finger way , choose Finger item , coming into registering new finger , Yes-Ok , No-ESC , and ID number will be increase by degrees automatically from 00001 , and every new fingerprint has to press three time when registered , and every user can register three different fingerprints .
3.2.2 Admin Reg
Admin Reg including : Finger + Card + Password + FP+Card + FP+PWD
It has same register way as Users’ , every Admin can register three different fingerprints too , and the Terminal has the Max 10 admin .
3.2.3 Sensitivity
Sensitivity including : Comparison + Init. 1:1 + Global 1
Admin can adjust the level of sensitivity to change the rate of verify’s precision , for example , one user’s finger was broken in one day , so it’s difficult for him to pass the verify when the sensitivity numerical value is high , so admin can change his sensitivity down by Comparison , the scope for sensitivity numerical value is between 0—50 , if the Verify Type is 1:1 , admin can adjust sensitivity numerical value in Init. 1:1 , the scope for sensitivity numerical value is also between 0—50 , and when Verify Type is 1:1:N or 1:N , admin can adjust sensitivity numerical value in Global 1 , the scope for sensitivity numerical value is also between 1—4 .
3.2.4 Delete
Delete including : Delete ID 0000 + Delete ID 0000-0
Admin can delete user’s information and admin’s information by this function , including fingerprints , cards and passwords .
3.2.5 View URec
View URec including : URec ID 00000
Admin can check users’ records by this way , and check all records one by on through ▲ , ▼ or “ ok ” .
3.2.6 View ARec
View ARec including : ARec ID 00000
3.2.7 Delete All Rec
Delete All Rec including : Delete All Rec Delete ? + Delete All Rec Progressing
Admin can delete all records by this function , including user’s records and admin’s records .
3.3 Setup 3.3.1 System
System including : Admin Max 5 + Language ENG + Data Format YMD + Time + Voice Out Yes + LCD Contra 30 + Unlock 3 + Auto Off No + VerifyMode F/P/C + VerifyFunc 1:1:N + Default Setup
Admin can setup system here , Admin Max means the max of admin can be , and the max is 10 , and Languaga , Data Format , Time , Voice and LCD Contrast can be changed here , Unlock means how long time does it keep the Access Control door opened , from 1 – 255 minutes , Auto Off means it will be auto off the Terminal according to sets , from 1 to 255 minutes , usually it’s set as “NO” , for Verify Mode , it has five modes : Fingerprint , Card , Password , F+C or F+P , Verify Function has three kinds : 1:1 , 1:N or 1:1:N , usually , it’s 1:N or 1:1:N , if it’s under 1:1 , it must be enter into user’s ID before fingerprint or card or password ; here it can default Terminal by Default Setup . 3.3.2 Record
Record including : ARec Alert + URec Alert + Reverify
ARec Alert has scope from 0 to 255 , if we set it as “ 255 ” , when the Terminal can only store admin’s record less than 255 , it will be alert ; for URec Alert , it has scope from 0 to 1500 , if it’s set as “ 1500 ” , that means , when the Terminal can only store user’s record less than 1500 , it will be alert . Reverify can be set at scope of 0 to 255 , for example , if it’s set as “1’ , that means “ 1 minute ” , when user verify one time in 1 minute , it will be OK , but if this user verify two times or more in 1 minute , the Terminal will be tell you “ Reverify ” .
3.3.3 Communication
Communication including : Device No + Baudrate + Parity + Port No + Com PWD + IP Address + Subnet Mask + Default Gateway + RS485 COM
It’s set for communicating Terminal with PC and software . if Terminal was connected with PC by TCP/IP , it must be keep Device No , Port No , Com PWD and IP Address on software same as Terminal’s when connected . if Terminal was connected with PC by RS485/RS232 , it must keep RS485 COM as “ YES ” , and Baudrate on Terminal must be same as PC’s .
3.3.4 Light Adjust
3.4.1 User Reg
User Reg shows how many users has been registered on Terminal , how many users does it have ?
3.4.2 Finger
How many fingers does the Terminal have ? 3.4.3 User Recs
How many users’ records does the Terminal have ? 4. Function Keys for Clocking In/Out
4.1 “▲” – Clock In
When Terminal works under function keys for clocking In/Out , but not “ Shift ” within ZKS’s software , “▲” means clock in , press key of “▲” before clocking in , meanwhile it will be shows as status of “ in ” instead of “ auto ” in report .
4.2 “▼” – Clock Out
When Terminal works under function keys for clocking In/Out , but not “ Shift ” within ZKS’s software , “▼” means clock out , press key of “▼” before clocking out , meanwhile it will be shows as status of “ out ” instead of “ auto ” in report .
Frequently Asked Questions
Question 1: Are there any notes in the installation and using fingerprint terminal? Answer: It should note the matters of the following three sides in the using of fingerprint terminal:
1) Initialize the fingerprint terminal before using, to prevent the existence of lawless fingerprint and lawless password.
2) The installation of fingerprint terminal affects its future using directly, so please the professional personnel to install when installing and take the operation according to the requirements of ZKS strictly, and cannot change the installation requirements and parameters optionally.
3) Pay attention to the maintenance of Fingerprint terminal during the daily process, to ensure that it is running in the good environment.
Question 2: Could it still verify when the Fingerprint Window is dirty?
Answer: It can work when the Fingerprint Window is dirty, but you must pay attention to the maintenance of finger terminal and especially the fingerprint window at any time. General speaking, please wipe the fingerprint window with the soft cloth, but note not to use the organic solvent of viscous liquid, alcohol or oil etc.
Answer: Fingerprint terminal adopts the most advanced fingerprint module, this fingerprint module is processed with toughened & thick glass material, of which wearable degree is strong and normal operation life can reach up to five years.
Question 4: Fingerprint could be copied? The copied fingerprint could be used to verify? Answer: Fingerprint picture can be copied, but the copied fingerprint picture cannot be identified on the living fingerprint sensor, this is because the Fingerprint terminal adopts the most advanced living fingerprint identification technology and finger sensor can verify well only for living object fingerprint.
Question 5: Whether someone's fingerprint is the same as yours and can verify my terminal?
Answer: No fingerprint is the same as yours, because the fingerprint is varied as different people, even that the fingerprints of ten fingers of a person are not the same.
Question 6: What can I do if my registered finger is scratched? Can I verify freely? Answer: If your finger is just scratched a little, it won't affect the opening function of fingerprint, because it adopts the automatic restoring function in ZKS Fingerprint terminal, fingerprint sensor can restore the rupture of fingerprint according to the trend of fingerprint, so as not to affect the normal verifying of fingerprint. But the restoring function of fingerprint cannot realize the complete restoring when the finger is scratched seriously, so we suggest that you register one or two backup fingerprints, if your registered fingerprint is injured, you can use the backup fingerprint to verify; if your fingers are all injured, you can input the password or card.
Question 7: Most of others' fingerprint terminal adopt capacitance fingerprint sensor, but ZKS fingerprint terminal adopts optics fingerprint sensor, which is better?
Answer: In current, the technology used for collecting fingerprint image is optics technology and capacitance technology. Capacitance technology obtains the complete fingerprint by the measurement of chip, the price of the chip is expensive, the collection range is small, but fingerprint collection is not reliable, which causes the difficulty to the using of users, in addition, it is easy to be interfered, whether static interference, salinity of sweat or other swag and the abrasion of finger can make collection head be difficult to read fingerprint. But for optics, it collects fingerprint by the reflection of light, optics fingerprint collection head provides more reliable solution and improves the primary optics image-capturing technology, the new optics fingerprint sensor adopts the imaging technology with 500 DPI, which is suitable to peoples aged 6 to 80; adopt the newest light road imaging system and increase the exoteric anti-interference ability; the surface of fingerprint sensor uses nanometer plating film to deal with and make the fingerprint sensor more wearable, it make the capacitance sensor be outshone as the unquestionable character and favorable price.
