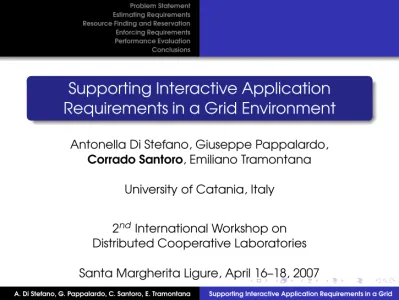

Supporting Interactive Application Requirements in a Grid Environment

Supporting Interactive Application

Requirements in a Grid Environment

Antonella Di Stefano, Giuseppe Pappalardo,

Corrado Santoro

, Emiliano Tramontana

University of Catania, Italy

2

nd

International Workshop on

Distributed Cooperative Laboratories

Santa Margherita Ligure, April 16–18, 2007

Problem Statement

Traditional Grid middlewares are “batch-oriented”

For interactive applications, new issues arise:

interactivity;

QoS concerns;

soft-real-time requirements.

These aspects are related to Grid resource finding,

usage and monitoring.

Problem Statement

1

Identify/Extract application requirements;

2

Determine the resource(s) needed for those requirements;

Find the node able to offer such resources;

4

Reserve the resources;

5

Enforce requirements, checking that QoS is being met, at runtime.

Grid Research Lab@UniCT is working on

a Grid infrastructure taking into

account such aspects.

Estimating Requirements

To meet application requirements, it is necessary to know

the amount of

CPU

Network

Disk space

Worst-case execution Time (WCET)

This is needed for each thread, if the application is parallel

(multi-thread).

The JJPRO: Java Job PROfiler

Our approach: to statically analyze an application in

order to extract the requirements.

We developed a

Java Job PROfiler

that performs static

bytecode analysis and determines three totals:

op

disk

, number of opcodes related to disk operations

op

net

, number of opcodes related to network

operations

op

total

, number of opcodes, in total

JJPRO and Resource Usage

Then, the resource usage (rates) is determined as:

Disk usage,

du

=

op

op

Network usage,

nu

=

op

op

total

Processor usage,

pu

=

1

−

du

−

pu

This is repeated for each thread.

Resource Finding and Reservation

Once the job profile has been determined

(

du

,

nu

,

pu

,

wcet

), the

node offering the amount of resources needed has to be found.

Current approaches (e.g. EDG matchmaker/broker, Globus MDS) are

based on a hierarchy of repositories.

Two main disadvantages

Efficiency:

a latency between the time instant in which the

resource is monitored and the instant in which its value is read

from the repository to perform matchmaking.

Scalability:

increasing grid dimension implies a growth of

repository information and complexity of its management.

Our Proposal

Exploiting

peer-to-peer

approaches.

nodes are interconnected by an

overlay network

.

Each node is connected to, and interacts with, one

or more

neighbors

.

Search is performed by forwarding a resource request

to neighbours until a node is found.

Forwarding strategy is based on

navigating a surface

of “potential field”.

Abstraction

Grid nodes + the amount of resource

available on each node form a 3D

surface.

Each node features a

mass

M

(

·

)

proportional to the amount of

available resource.

Valleys

correspond to nodes with a

large amount of available resource.

Hills

correspond to nodes with a small

amount of available resource.

Algorithm:

navigating the surface, using

kinematic laws

, in searching

for the

global minimum

(or a minimum close to global).

The Algorithm

The resource request is modeled as a

capsule

, with a certain

amount of initial

kinetic energy

and a direction

(

up

,

down

).

The capsule has also a

mass

, which is proportional to the amount

of requested resource.

The capsule is attracted by nodes with

lower

masses

→

the lower

the mass, the higher the resource availability

.

When the capsule reaches a node, a

difference of potential

,

using function

PD

(

·

,

·

), is computed by using the masses of the

current node

and each

neighbor

.

The Algorithm (2)

Two heuristics

for node selection.

If

PD

(

Source

,

Dest

)

<

0 (

descending path

) the capsule

gains

energy ...

... and heuristic

H

is used during descending.

If

PD

(

Source

,

Dest

)

>

0 (

ascending path

) the capsule

loses

energy ...

... and heuristic

H

selects the next neighbor during climbing.

A

friction

δ

(

Source

,

Dest

)

>

0 is always considered.

The Algorithm (3)

energy

←

energy

+

PD

(

Source

,

Dest

)

−

δ

(

Source

,

Dest

).

When the capsule reaches a minimum in the surface and it has

no more energy to overcome any hill, the current node is

selected for allocation.

When the capsule reaches the node selected for allocation,

capsule’s mass is added to node’s mass.

Enforcing Requirements

Resource usage has to be monitored at runtime:

to ensure that the requested QoS is met;

to avoid overutilization;

3

to check soft-real-time deadlines (if present).

This implies a continuous monitoring of application

activities.

Monitoring with Aspects

Our solution uses aspect-oriented techniques and

computational reflection.

Two components (aspects) for each thread of the

application:

1

Remon

monitors resource usage

Performance Evaluation

We implemented the framework described; for the resource finding

algorithm, we wrote a simulator.

We tested the algorithm by using three different strategies for heuristics:

Deepest Slope (DS)

.

H

→

highest mass,

H

→

lowest mass.

Aim

: to find minimums as

soon as possible and exit from local minimums as soon as possible.

Minimum Energy (ME)

.

H

→

lowest mass,

H

→

lowest mass.

Aim

: to mimic a physical

process by guiding the capsule always towards lower energy

zones.

Random (R)

.

H

→

random mass,

H

→

lowest mass.

Aim

: to evaluate the

advantages of a choice based on mass values rather than a

random approach.

Simluation Results

TESTBED

:

20

×

20 square grid, 10000 resource allocation requests with a mass

randomly chosen in

[0

,

1].

FUNCTIONS

:

PD

(

N

,

N

) =

M

(

N

)

− M

(

N

)

,

H

PD

(

·

,

·

) =

0

δ

(

N

,

N

) =

|M

(

N

− M

(

N

)

|

+

0

.

01

PARAMETERS

(w.r.t. capsule’s initial energy):

Optimality.

How far each solution is from the best one. The

difference of the masses of the found node and the global

minimum.

Fairness.

The “flatness” of the surface, it is an evaluation of how

much the resource usage is equally balanced.

Optimality

FF = First Fit

Fairness

FF = First Fit

Cost

FF = First Fit

Remarks

The algorithm terminates (cost is finite).

The algorithm tends to find the global minimum (optimality

increases).

The algorithm tends to equally balance resource leasing among

all grid nodes (fairness increases).

First Fit

is the worst strategy.

DS

causes the highest cost,

ME

features the lowest cost.

If the initial energy

>

a threshold,

optimality

and

fairness

do not

increase;

only cost increases.

If the initial energy

>

another threshold,

R

seems to behave like

the other strategies for

optimality

and

fairness, but not for

cost.

The strategy has to be chosen for each specific application, by

considering the weight of each parameter.

Conclusions and Future Work

Extraction of application requirements by means of

instrumentation.

Resource finding and reservation by means of an

effective and scalable algorithm.

Resource usage monitoring and enforcing by means

of a transparent solution.

Integration into an existing middleware (Globus/gLite)

is ongoing.

Supporting Interactive Application

Requirements in a Grid Environment

Antonella Di Stefano, Giuseppe Pappalardo,

Corrado Santoro

, Emiliano Tramontana

University of Catania, Italy

2

nd

International Workshop on

Distributed Cooperative Laboratories

Santa Margherita Ligure, April 16–18, 2007
