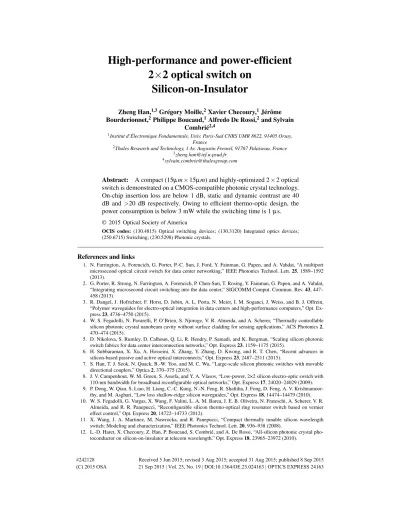

High-performance and power-efficient
2
×
2 optical switch on
Silicon-on-Insulator
Zheng Han,1,3Grégory Moille,2Xavier Checoury,1Jérôme Bourderionnet,2Philippe Boucaud,1Alfredo De Rossi,2and Sylvain
Combrié2,4
1Institut d’Électronique Fondamentale, Univ. Paris-Sud CNRS UMR 8622, 91405 Orsay,
France
2Thales Research and Technology, 1 Av. Augustin Fresnel, 91767 Palaiseau, France 3[email protected]
Abstract: A compact (15µm×15µm) and highly-optimized 2×2 optical
switch is demonstrated on a CMOS-compatible photonic crystal technology. On-chip insertion loss are below 1 dB, static and dynamic contrast are 40 dB and>20 dB respectively. Owing to efficient thermo-optic design, the power consumption is below 3 mW while the switching time is 1µs. © 2015 Optical Society of America
OCIS codes:(130.4815) Optical switching devices; (130.3120) Integrated optics devices; (250.6715) Switching; (230.5298) Photonic crystals.
References and links
1. N. Farrington, A. Forencich, G. Porter, P.-C. Sun, J. Ford, Y. Fainman, G. Papen, and A. Vahdat, “A multiport microsecond optical circuit switch for data center networking,” IEEE Photonics Technol. Lett.25, 1589–1592 (2013).
2. G. Porter, R. Strong, N. Farrington, A. Forencich, P. Chen-Sun, T. Rosing, Y. Fainman, G. Papen, and A. Vahdat, “Integrating microsecond circuit switching into the data center,” SIGCOMM Comput. Commun. Rev.43, 447– 458 (2013).
3. R. Dangel, J. Hofrichter, F. Horst, D. Jubin, A. L. Porta, N. Meier, I. M. Soganci, J. Weiss, and B. J. Offrein, “Polymer waveguides for electro-optical integration in data centers and high-performance computers,” Opt. Ex-press23, 4736–4750 (2015).
4. W. S. Fegadolli, N. Pavarelli, P. O’Brien, S. Njoroge, V. R. Almeida, and A. Scherer, “Thermally controllable silicon photonic crystal nanobeam cavity without surface cladding for sensing applications,” ACS Photonics2, 470–474 (2015).
5. D. Nikolova, S. Rumley, D. Calhoun, Q. Li, R. Hendry, P. Samadi, and K. Bergman, “Scaling silicon photonic switch fabrics for data center interconnection networks,” Opt. Express23, 1159–1175 (2015).
6. H. Subbaraman, X. Xu, A. Hosseini, X. Zhang, Y. Zhang, D. Kwong, and R. T. Chen, “Recent advances in silicon-based passive and active optical interconnects,” Opt. Express23, 2487–2511 (2015).
7. S. Han, T. J. Seok, N. Quack, B.-W. Yoo, and M. C. Wu, “Large-scale silicon photonic switches with movable directional couplers,” Optica2, 370–375 (2015).
8. J. V. Campenhout, W. M. Green, S. Assefa, and Y. A. Vlasov, “Low-power, 2×2 silicon electro-optic switch with 110-nm bandwidth for broadband reconfigurable optical networks,” Opt. Express17, 24020–24029 (2009). 9. P. Dong, W. Qian, S. Liao, H. Liang, C.-C. Kung, N.-N. Feng, R. Shafiiha, J. Fong, D. Feng, A. V.
Krishnamoor-thy, and M. Asghari, “Low loss shallow-ridge silicon waveguides,” Opt. Express18, 14474–14479 (2010). 10. W. S. Fegadolli, G. Vargas, X. Wang, F. Valini, L. A. M. Barea, J. E. B. Oliveira, N. Frateschi, A. Scherer, V. R.
Almeida, and R. R. Panepucci, “Reconfigurable silicon thermo-optical ring resonator switch based on vernier effect control,” Opt. Express20, 14722–14733 (2012).
11. X. Wang, J. A. Martinez, M. Nawrocka, and R. Panepucci, “Compact thermally tunable silicon wavelength switch: Modeling and characterization,” IEEE Photonics Technol. Lett.20, 936–938 (2008).
12. L.-D. Haret, X. Checoury, Z. Han, P. Boucaud, S. Combrié, and A. De Rossi, “All-silicon photonic crystal pho-toconductor on silicon-on-insulator at telecom wavelength,” Opt. Express18, 23965–23972 (2010).
13. R. Hayakawa, N. Ishikura, H. C. Nguyen, and T. Baba, “Two-photon-absorption photodiodes in si photonic-crystal slow-light waveguides,” Appl. Phys. Lett.102, 031114 (2013).
14. H. C. Nguyen, S. Hashimoto, M. Shinkawa, and T. Baba, “Compact and fast photonic crystal silicon optical modulators,” Opt. Express20, 22465–22474 (2012).
15. N. Ishikura, R. Hosoi, R. Hayakawa, T. Tamanuki, M. Shinkawa, and T. Baba, “Photonic crystal tunable slow light device integrated with multi-heaters,” Appl. Phys. Lett.100, 221110 (2012).
16. N. Ishikura, T. Baba, E. Kuramochi, and M. Notomi, “Large tunable fractional delay of slow light pulse and its application to fast optical correlator,” Opt. Express19, 24102–24108 (2011).
17. M. J. Zablocki, A. Sharkawy, O. Ebil, S. Shi, and D. Prather, “Electro-optically switched compact coupled pho-tonic crystal waveguide directional coupler,” Appl. Phys. Lett.96, 081110 (2010).
18. Y. A. Vlasov, M. O’Boyle, H. F. Hamann, and S. J. McNab, “Active control of slow light on a chip with photonic crystal waveguides,” Nature438, 65–69 (2005).
19. L. Gu, W. Jiang, X. Chen, and R. T. Chen, “Thermooptically tuned photonic crystal waveguide silicon-on-insulator mach–zehnder interferometers,” IEEE Photonics J.19, 342–344 (2007).
20. Q. Zhao, K. Cui, Z. Huang, X. Feng, D. Zhang, F. Liu, W. Zhang, and Y. Huang, “Compact thermo-optic switch based on tapered w1 photonic crystal waveguide,” IEEE Photonics J.5, 2200606 (2013).
21. G. Cocorullo, F. G. Della Corte, and I. Rendina, “Temperature dependence of the thermo-optic coefficient in crystalline silicon between room temperature and 550 k at the wavelength of 1523 nm,” Appl. Phys. Lett.74, 3338–3340 (1999).
22. N. Yamamoto, T. Ogawa, and K. Komori, “Photonic crystal directional coupler switch with small switching length and wide bandwidth,” Opt. Express14, 1223 (2006).
23. L. O’Faolain, D. M. Beggs, T. P. White, T. Kampfrath, K. Kuipers, and T. F. Krauss, “Compact optical switches and modulators based on dispersion engineered photonic crystals,” IEEE Photonics J.2, 404–414 (2010). 24. K. Suzuki, G. Cong, K. Tanizawa, S.-H. Kim, K. Ikeda, S. Namiki, and H. Kawashima,
“Ultra-high-extinction-ratio 2 × 2 silicon optical switch with variable splitter,” Opt. Express23, 9086–9092 (2015).
25. M. Tinker and J. Lee, “Thermal and optical simulation of a photonic crystal light modulator based on the thermo-optic shift of the cut-off frequency,” Opt. Express13, 7174–7188 (2005).
26. H. Li, “Refractive index of silicon and germanium and its wavelength and temperature derivatives,” J Phys. Chem. Ref. Data9, 561–658 (1980).
1. Introduction
Optical switches play a crucial role in integrated photonic circuits, particularly for optical inter-connects [1, 2], high-performance computers [3], and sensors [4]. In modern data center, they add flexibility through the dynamic reconfiguration of the optical networks. More specifically, optical switches are used to route data, to control the power level or the time delay. The po-tential for scalability of the switching fabric [5] depend on the intrinsic performances of the core building block, the 2×2 switch, e.g. the including crosstalk, the insertion loses, the power consumption, the speed and the footprint.
A variety of design concepts and technologies have been introduced for this device, [6] in-cluding optical MEMS [7], thermo-optic or carrier injection in directional coupler, Mach-Zenhder [8, 9] or micro-cavities [10, 11]. The crucial point is to achieve both power-efficiency, dynamic contrast and compactness, still without introducing too much complexity in the fab-rication process. In this respect, the enhanced light-matter interaction in Photonic Crystals (PhC) has been exploited to reduce footprint and power consumption. Demonstrated CMOS-based PhC devices entail detectors [12, 13], modulators [14], delay-lines [15], correlators [16] and switches, either configured as a directional couplers [17] or a Mach-Zehnder interferome-ters [18, 19], or even exploiting the peculiar properties of PhCs, namely a tuneable transmission spectral gap [20]. Tuning is either based on free carriers (by injection [17] or depletion) or ex-ploits the thermo-optic effect.
In this paper, we report on the design, the fabrication and the operation of a 2×2 optical switch based on a PhC directional coupler. The device is controlled through the thermo-optic effect, which is preferred here owing to the simplicity of the implementation, the large thermo-optic coefficient of silicon [21] and because it avoids free carrier absorption. The small size of the device implies a small enough thermal capacitance to allow a time response in theµsscale.
2. Device fabrication
The sample is fabricated on a 220nm thick Silicon-On-Insulator wafer (SOI) from SOITEC. A shallow (h=70nm) ICP-plasma etch step is first performed to form the access waveguides. An-other plasma etch step down to the insulator layer forms the rib waveguides and the PhC devices (Fig. 1a). Then, serpentine-shaped thermal heaters made of a 50nm-thick layer of platinum are deposited and patterned nearby the PhC by e-beam evaporation. The electrical connections and the contact pads (not shown on the SEM picture) are then formed by deposition of a thicker layer of metal (50nm of Pt followed by 200nm of gold). After dicing with a diamond saw, the PhC silicon layer is transformed into an air-suspended membrane (Fig. 1b) by selective chemi-cal etching of the underlying insulator by Hydrofluoric acid. The definition of the patterns has been performed by e-beam lithography (Nanobeam NB4).
a) b)
Fig. 1. SEM picture of the PhC switch. a): overview of the device with the access waveg-uides and the electrical paths for the control. b): closer view of the PhC directional coupler.
3. Device design
The design of the 2×2 switch is based on the well established concept of Directional Coupler, where light is periodically transferred from one waveguide to another owing to the interference of two supermodes. The spatial period is know asbeat lengthand it is related to the wavevectors of the even and odd supermodes:L−b1=|βe−βo|. Short devices require
a large difference in the wavevector which ultimately translates into a large index contrast. This motivates the interest in high index contrast structures such as PhCs, which have been indeed used to demonstrate an optical modulator based on a Mach-Zenhder design [18, 20]. Yamamoto and coworkers have pointed out the potential of PhC dispersion engineering for a compact directional coupler [22], which was then implemented as an all-optical switch [23] or a 2×2 electrically controlled switch [17].
Our design is based on two identical waveguides created by removing one row of holes in a hexagonal lattice of holes with nominal radius equal to 0.23a (a is the period of the PhC equal to 414nm). The width of the waveguides is reduced toa0.9√3 bringing closer the blocs of PhC. Then the two first rows of holes are shifted outwards by 0.1a. The two waveguides are separated by three rows of holes. This design allows a spectral window (Fig. 2), located approximately between 1525 and 1550 nm (i.e. 25 nm) where the wavevector difference
βe−βois large and almost constant such that the corresponding beat length varies from about
40 periods to about 10, e.g 8µm(Fig.2). Consequently, the length of the directional coupler is
set to 20 periods in order to allow for a complete switching cycle as the wavelength is tuned by about 10 nm. 5 periods long sections of tapered PhC waveguides are added on both sides to
lambda=1526.60nm lambda=1532.72nm lambda=1478.57nm lambda=1538.46nm lambda=1552.31nm lambda=1558.15nm
1490
1500
1510
1520
1530
1540
1550
1560
1570
0.01
0.1
1
S
12S
13S
14Wavelength (nm)
Trans
m
iss
io
n
P3 P2 P4 P1Total
0.3 0.4 0.5 1520 1560 k-vector Wav e le ngth (nm ) odd evenFig. 2. Top: calculated transfer function (FDTD). The total (S11+S12+S13+S14) is in grey dashed line. The band diagram is represented in the inset. Bottom: magnetic field distribution (H-field) at some representative wavelengths.
ensure mode matching to the suspended photonic wires and thereby minimizing the insertion losses, particularly in the slow light regime of the PhC. TheS parameters are calculated by in-house 3D FDTD (Finite Difference in Time Domain) code and are shown in Fig. 2.
The transfer functions reveal the dispersive nature of the beating length of the directional coupler enabling the power to go alternatively from one arm to the other one. Below 1510nm the light propagates straight from port P1 to P2, as shown on the calculated field distribution. The first maximum of the cross state (S13) is at 1526.6 nm. At 1532.7 nm a round-trip is done. At 1552.31 nm, slow-light modes of the PhC waveguides are exited leading to input reflection and quasi-equal-power distribution in the other arms. From this, the cut-off of the PhC waveguides is reached and at 1558nm, only the slow modes of the access waveguides are excited leading to efficient power transfer form port P1 to port P4. The calculated insertion losses are due to the residual mode mismatch and are less than 1 dB around 1530 nm and they increase to a maximum of 2 dB close to the transmission edge at 1550nm (Fig. 2), the propagation losses are totally negligible due to their short length. The calculated extinction is larger than 30 dB.
We point out that the choice of a suspended membrane design, instead of a solid substrate, is motivated by a much less constrained design and by the much better thermal insulation, which considerably reduces the power budget for tuning. In this respect, trenches (Fig. 1) have been added to further improve the thermal resistance. The 2×2 switch is meant to be connected to
the other devices or switches through low-loss shallow waveguides; their mode is adiabatically converted [9] into a photonic wire mode under which the silica substrate is removed before it connects to the PhC (Fig. 1). The device layout ensures a symmetric path for the 4 ports.
4. Optical characterization
The scattering parametersShave been measured using a tunable laser, coupled to the TE mode of the shallow-etched access waveguide using a lensed fiber. Insertion losses are reduced to about 3 dB owing to an inverse taper mode adapter. The experimental spectra characterizing the 2×2 device are shown in Fig. 3, namely S12 andS43 ( bar mode) andS13andS42 (cross mode). The S parameters are evaluated by subtracting the off-chip losses (due to lensed fibers, access waveguides, etc.) which amount to about 6 dB, as estimated from the measurement of a reference shallow waveguide, and which are still dominated by fiber to waveguide coupling. The experimentalSparameters are in striking close correspondence to calculations, except for a 20 nm spectral offset related to the fabrication process which can be easily corrected by calibration. The degree of symmetry achieved in the fabricated device is particularly good, when comparingS12toS43andS13toS42, which nearly superimpose. The extinction between minima and maxima of the spectra is way larger than 20 dB and reaches 45dB at 1514nm. This is very close to the record value achieved with a cascaded Mach-Zehnder architecture [24], which is more complex.
1495 1500 1505 1510 1515 1520 1525 −40 −30 −20 −10 0 Wavelength (nm) |S| d B (o n − ch ip ) S12 S13 S42 S43 P3 P1 P4 P2 S
Fig. 3. On-chip transmission spectra (Sparameters) through the four ports. Estimated in-sertion losses (transmission maximum) is at−0.5 dB.
5. Thermal dynamics
The switching dynamics of the device is understood by modeling the thermal dynamics [19, 25]. This was performed using the Finite Element Method (FEM) implementation of the Fourier equation, available with the COMSOL software platform. This enables the calculation of the dynamical evolution of the temperature distribution, and therefore, to estimate the power dis-sipation and transient response. The thermal conductivity of air was neglected, because orders of magnitude smaller than the thermal conductivity of Silicon, while Dirichlet boundary con-ditions (perfect thermal conductor) have been implemented to terminate the SOI layer with a thermal sink.
Heat is injected by simulating the Joule dissipation of an electric current of 4 mA through the metal serpentine with 50nm x 260nm cross section (overall resistance is 225Ω).
The temperature distribution at steady state is shown in Fig. 4. As expected, the heat is confined in the PhC area with a rather uniform distribution owing to the air-trenches. We point out that the metal serpentine itself does not contribute itself much to the heat transport, thereby reducing leaks. This is because the metal layer is very thin.
The transient evolution of the temperature averaged along the waveguide is shown in Fig. 4. The warming up is simulated with a current step applied to the serpentine. The thermal re-laxation is modeled taking the temperature distribution achieved at the steady state as initial condition. The corresponding two time constants extracted,τheat=0.99µsandτcool=1.01µs,
are very close, as expected from the idealizedRCmodel. The frequency cut-off of the switch is fc=2π τ1 '160kHz. The device can be described by an equivalentRCcircuit based on the equation:Cth(dT/dt) =W−T/Rth, withCththe thermal capacitance,Wthe power of the
heat-ing source andRththe thermal resistivity. Thus, the initial derivative of the temperature gives a
thermal capacitance ofCth=2.84×10−11JK−1and from the steady state we can estimate the
thermal resistance to beRth=3.47×104KsJ−1.
W Cth Rth
Fig. 4. Top: Calculated temperature distribution at steady state. Bottom: time evolution of the temperature averaged over the PhC waveguide.
6. Operation of the2×2switch
The static characterisation of the switch is performed by measuring representative spectral transmission (bar(S12)and cross(S13)) at different level of the injected current. This is shown in Fig. 5. The increase of the current from 0 to 4 mA over 310Ω(the dissipated power raises up to 5 mW) produces an uniform displacement of the whole transmission spectra by about 7 nm. Operating around λ =1517nm, a complete transition from bar to cross is achieved
by a spectral shift of 3.5 nm, reached at a current level of 3.2 mA (hence about 3 mW of dissipated power). The corresponding temperature rise is estimated to about 42˚C based on the relationshipdλ
dT =
∂ λ ∂n
∂n
∂T, with the silicon temperature coefficient ( [21, 26])
∂n
∂T =2×10 −4K−1 and the wavelength sensitivity∂ λ
∂n =4.2×10 −7m, as calculated by FDTD. 1510 1515 1520 1525 0 0.5 1 Wavelength (nm) S12 1510 1515 1520 1525 0 0.5 1 Wavelength (nm) S13 P (mW) 0 0.55 1.10 1.65 2.19 2.75 3.31 3.86 4.41 4.96
Fig. 5. Experimental transmission spectra (bar(S12)and cross(S13)) as a function of the electric control. The current is varied with a square root law to produce constant step in dissipated heat.
At last, we measure the dynamic response of the switch. The wavelength is set to a maxima ofS12 at zero current. A square wave electric signal (0.8V and 1kHz repetition frequency), is applied to the thermal heaters. The oscilloscope trace of the detected transmission (S12) is shown in Fig. 6. It is apparent that the switch operates between two perfectly stable states, with no noticeable drift in transmission over times which are 3 orders of magnitude longer than the characteristic switching time. We estimate the dynamic contrast to exceed 20dB (here limited by the amplitude resolution of the oscilloscope).
The switching bandwidth of the device is inferred from the falling and rising edges through an exponential fit (Fig. 6), from which we defined rise and fall time. The rise time,τ=1.1µs, is
very close to calculations, while the fall time,τ=1.35µs, is slightly longer. This corresponds to
a 10-90% rise and fall time of respectivelytrise=2.91µsandtf all=2.02µs. Thus, the frequency
cut-off of the device is about 130kHz, which is remarkably fast when considering the thermal origin of the switching mechanism. This is directly related to the small size of the device. While not as fast as carrier injection, thermal effect is however fast enough for numerous applications in particular for data centers interconnects [1] and has the advantage of being much easier to deploy and being exempt from free carriers induced absorption and dispersion.
0 0.5 1 1.5 2 −40 −30 −20 −10 0 Time [msec] Transmission [dB] 0 0.5 1 1.5 2 0 3.2 P owe r [m W] −2 0 2 4 6 8 0 1 Time [µsec] Transmission [a.u.] −2 0 2 4 6 8 τ= 1.35 µs −2 0 2 4 6 8 Time [µsec] −2 0 2 4 6 8 0 3.2P owe r [m W] τ= 1.1 µs tfall=2.91µs trise=2.02µs
Fig. 6. Transient analysis, oscilloscope traces. Top: Square-wave electric control and trans-mission (S12) in logarithmic scale. Bottom: enlarged view of the fall (left) and rise (right) edge with the exponential fit.
7. Conclusion
In conclusion we have demonstrated a high-performance and compact SOI 2 x 2 optical switch with a footprint of about 15×15 microns (including rib-access waveguides and integrated heaters), less than 1 dB on chip losses, while total insertion losses (fiber-to-fiber total are also competitive (6dB). The very good symmetry of the response over the 4 ports reveals an ex-cellent mastery of the fabrication and the large dynamic contrast (>20dB) is achieved with a maximum large-signal modulation bandwidth of 130kHz. The power budget is extremely com-petitive, as a complete transition from cross to bar is achieved with about 3 mW of electric power. A quick extrapolation of these figures to a large switching matrix promises for very competitive devices.
Acknowledgments
This work was supported by the French National Research Agency (ANR) under the grant “Symphonie” (ANR-12-NANO-0011). The authors acknowledge the support from the French “RENATECH” network.
