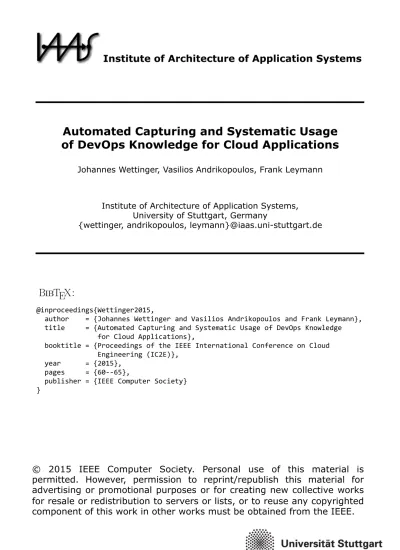

Institute of Architecture of Application Systems,
University of Stuttgart, Germany
{wettinger, andrikopoulos, leymann}@iaas.uni-stuttgart.de
Automated Capturing and Systematic Usage
of DevOps Knowledge for Cloud Applications
Johannes Wettinger, Vasilios Andrikopoulos, Frank Leymann
© 2015 IEEE Computer Society. Personal use of this material is
permitted. However, permission to reprint/republish this material for
advertising or promotional purposes or for creating new collective works
for resale or redistribution to servers or lists, or to reuse any copyrighted
component of this work in other works must be obtained from the IEEE.
@inproceedings{Wettinger2015,
author = {Johannes Wettinger and Vasilios Andrikopoulos and Frank Leymann}, title = {Automated Capturing and Systematic Usage of DevOps Knowledge
for Cloud Applications},
booktitle = {Proceedings of the IEEE International Conference on Cloud Engineering (IC2E)},
year = {2015}, pages = {60-‐-‐65},
publisher = {IEEE Computer Society} }
:
Automated Capturing and Systematic Usage of
DevOps Knowledge for Cloud Applications
Johannes Wettinger, Vasilios Andrikopoulos, Frank Leymann
Institute of Architecture of Application Systems (IAAS) University of Stuttgart, Stuttgart, Germany {wettinger, andrikopoulos, leymann}@iaas.uni-stuttgart.de
Abstract—DevOps is an emerging paradigm to actively foster
the collaboration between system developers and operations in or-der to enable efficient end-to-end automation of software deploy-ment and managedeploy-ment processes. DevOps is typically combined with Cloud computing, which enables rapid, on-demand provi-sioning of underlying resources such as virtual servers, storage, or database instances using APIs in a self-service manner. Today, an ever-growing amount of DevOps tools, reusable artifacts such as scripts, and Cloud services are available to implement DevOps automation. Thus, informed decision making on the appropriate approach(es) for the needs of an application is hard. In this work we present a collaborative and holistic approach to capture DevOps knowledge in a knowledgebase. Beside the ability to capture expert knowledge and utilize crowdsourcing approaches, we implemented a crawling framework to automatically discover and capture DevOps knowledge. Moreover, we show how this knowledge is utilized to deploy and operate Cloud applications.
Keywords—DevOps, Crawling, Knowledge Management,
Knowl-edge Model, Cloud Computing
I. INTRODUCTION ANDPROBLEMSTATEMENT
Today, it is vital for many software vendors and providers, especially in the field of Web applications and software-as-a-service (SaaS) applications to frequently and continuously roll out updates of an application. This is because users and customers expect new features and bug fixes to be available as quickly as possible. Consequently, a critical competitive advantage can be achieved by meeting these expectations and implementing mechanisms to drastically shorten application release cycles. Thorough and holistic automation is required to enable frequent and continuous software delivery [1]. DevOps is an emerging paradigm [2]–[4] to eliminate the split and barrier between developers and operations personnel:
“DevOps is a mix of patterns intended to improve collabo-ration between development and opecollabo-rations. DevOps addresses shared goals and incentives as well as shared processes and tools. Because of the natural conflicts among different groups, shared goals and incentives may not always be achievable. However, they should at least be aligned with one another.” [5] Tight collaboration between developers and operations (DevOps) as well as holistic end-to-end automation (e.g., in the form of a fully automated deployment pipeline [1]) is required to enable continuous delivery. A huge and confusing variety of tools, reusable artifacts, and services are available today. Prominent examples are the Chef configuration management
framework [6], the Jenkins1 continuous integration server,
and Docker2 as an efficient container virtualization approach.
The open-source communities affiliated with these tools are publicly sharing reusable artifacts to package, deploy, and operate middleware and application components. For instance, Chef’s Ruby-based domain-specific language [7] can be used to create and maintain cookbooks, which are basically scripts to automate the deployment and wiring of different components of an application stack. Alternatively or additionally, Docker container images can be built to package certain components in an isolated and reusable manner. There are further DevOps tools
and corresponding artifacts such as Juju3 with Juju charms4
and Puppet [8], [9] with Puppet modules5 that can be used
alternatively or complementary.
DevOps approaches are typically combined with Cloud computing [10] to enable on-demand provisioning of resources such as virtual servers and storage in a self-service manner. Different interfaces are offered by Cloud providers (e.g.,
Ama-zon6) such as graphical user interfaces, command line interfaces,
and APIs to provision and manage these resources. Especially APIs and command line interfaces are an efficient means to integrate DevOps automation approaches with Cloud resource management programmatically. This can be done for public, private, and hybrid Cloud scenarios. As an example, Amazon’s APIs can be utilized to provision virtual servers on which Chef cookbooks or Juju charms are executed to deploy a certain application stack. Moreover, some Cloud providers offer higher-level services such as middleware services (e.g., runtime-as-a-service, database-as-a-runtime-as-a-service, etc.) and operations automation services, abstracting from the underlying infrastructure. These services can be used alternatively or complementary to the lower-level infrastructure services.
Because DevOps automation approaches and Cloud services appear, change, and disappear rapidly, it is hard to choose the most appropriate solutions and combinations thereof to implement holistic DevOps automation for a specific application. Informed decision making is hard because of the huge variety of options. DevOps knowledge is practically available at large scale, but it is not systematically captured and managed.
1Jenkins: http://jenkins-ci.org 2Docker: http://www.docker.com 3Juju: https://juju.ubuntu.com 4Juju charms: https://jujucharms.com 5Puppet modules: https://forge.puppetlabs.com
However, providing solutions for this DevOps knowledge
management problem is of the utmost importance to end up
with an efficient DevOps automation and collaboration process to enable continuous delivery. The major contributions of this paper can therefore be summarized by:
• A holistic approach toward systematic DevOps
knowl-edge management.
• The design and implementation of a DevOps
knowl-edgebase and the tooling required to populate it.
• An automated crawling approach to discover and
capture DevOps knowledge.
The remainder of this paper is structured as follows: Section II outlines a motivating scenario that is used as running example for this paper. We present a holistic methodology to enable DevOps knowledge management in Section III. Because the DevOps knowledgebase is the core of our methodology, Section IV discusses DevOps knowledge classification and a prototype implementation in detail. Section V discusses the utilization of DevOps knowledge based on specific DevOps requirements. Finally, Section VI concludes the paper.
II. MOTIVATION
As a motivating scenario and running example for our work we consider the deployment and operations requirements of
WordPress7, which is a popular open-source blog application.
WordPress requires: (i) aMySQL database serverversion 5.0 or
greater, (ii) aPHP runtime version 5.2.4 or greater, and (iii) a
Web server such as Apache HTTP Server8 or Nginx9. In order
to enable continuous delivery of new versions of WordPress (bug fixes, new features, etc.), these requirements have to be considered when implementing an end-to-end DevOps automation and collaboration process.
Figure 1 presents an overview of the middleware com-ponents required to run WordPress. Moreover, different de-ployment options are outlined to make these middleware components available to the application, satisfying WordPress’ requirements. As an example, an existing Amazon Machine
Image (AMI)10 could be used to run a complete LAMP11
stack on a single virtual machine (VM) to operate WordPress. However, in this case resources are limited to a single VM, and as such scalability options are limited. Thus, open-source
deployment scripts such as the MySQL cookbook12 and the
PHP application cookbook13 (Chef) could be used to split the
middleware across two VMs, running in a Linux or Windows VM. In case the scalability of the MySQL database server needs
to be further improved, the MySQL charm14 may be used as a
set of operations scripts to run a MySQL database cluster in a master/slave setup: data that are written to the master instance are consistently replicated to the slave instances, so reading requests can be load-balanced between slave instances. However,
7WordPress requirements: http://wordpress.org/about/requirements 8Apache HTTP Server: https://httpd.apache.org
9Nginx: http://nginx.org
10LAMP stack AMI: http://goo.gl/eVTzAY 11LAMP = Linux + Apache + MySQL + PHP
12MySQL cookbook: http://supermarket.chef.io/cookbooks/mysql 13PHP app. cookbook: http://supermarket.chef.io/cookbooks/application php 14MySQL charm: https://jujucharms.com/precise/mysql-46
Web Server
MySQL Database
Server PHP Runtime
WordPress Application Could be deployed and hosted using Google
Cloud SQL, Amazon RDS, MySQL Chef Cookbook, MySQL Dockerfile, …
Could be deployed and hosted using Google App Engine, Amazon EC2, Apache/PHP
Dockerfile, …
Figure 1. Middleware components of WordPress and deployment alternatives
there is a constraint: Juju charms can only be deployed on Ubuntu-based VMs.
To go one step further and provide elastic middleware for WordPress to scale in and out dynamically and automatically depending on the current workload, solutions such as database-as-a-service and runtime-database-as-a-service [11] offerings can be used instead of maintaining VMs. For instance, Amazon Elastic
Beanstalk15 and Google App Engine16 provide PHP runtime
environments transparently as a service without seeing or maintaining the underlying infrastructure such as VMs. Amazon
Relational Database Service (RDS)17 may be used as MySQL
database-as-a-service to satisfy the MySQL requirement of WordPress. One downside of this elastic middleware-as-a-service approach is its limited configurability. For instance, a MySQL database hosted on a VM can be arbitrarily tuned and configured, whereas a database instance offered as a service
only provides predefined configuration options18.
Therefore, even for an application with a few deployment and operations requirements such as WordPress, there exists a great variety of alternatives. Because of the individual benefits and drawbacks of each alternative, it becomes difficult for application designers to decide on how to easily and efficiently deploy their application. Thus, the major challenge we tackle
with our work is how to systematically capture, link, and
utilize DevOps knowledge as a foundation for informed decision
making during application design and deployment. For this
purpose, a methodology and system tocollaborativelymaintain
and use the captured knowledge is required because different parties such as developers and operations personnel may be involved. The following section presents a holistic approach toward this goal.
III. DEVOPSKNOWLEDGEMANAGEMENTMETHODOLOGY
When developing and operating applications such as WordPress, a large variety of alternatives exist in choosing appropriate infrastructure and middleware solutions to fulfill DevOps requirements. Figure 2 outlines our proposal for a holistic DevOps knowledge management approach with the goal to provide the means to systematically resolve DevOps requirements. More specifically, DevOps knowledge is currently
spread across different sources in the form ofunstructured and
semi-structured data. Public repositories, for instance, provide semi-structured data in the form of reusable artifacts such as scripts, templates, and images (e.g., preconfigured VM images) to operate middleware and application components. Prominent
15Amazon Elastic Beanstalk: http://aws.amazon.com/elasticbeanstalk 16Google App Engine: https://cloud.google.com/products/app-engine 17Amazon Relational Database Service (RDS): http://aws.amazon.com/rds 18Creating a MySQL DB instance on Amazon RDS: http://goo.gl/JwA5Gr
Chef Cookbook Repository Docker Image
Repository
…
DevOps Knowledgebase
Linked services, tools, and artifacts on different levels: Infrastructure, middleware, application Experts Crowd Crawlers Semi-structured data: Scripts, templates, … Unstructured data:
Services, tools, … capture and link knowledge query Developers & Operations define Web Shop Application develop & operate
May be distributed and composed of different knowledge stores (public, private, community, …)
ad-hoc browsing and/or refine knowledge (rate, link, …) discover and/or rate discover DevOps Requirements Heroku, Google App
Engine, Chef Server, fog, jclouds, …
Figure 2. Holistic DevOps knowledge management (overview)
examples are the Chef cookbook repository19, Puppet Forge20,
Docker Hub21, and Amazon Web Services’ Marketplace22.
Crawlers can be used to discover such artifacts in an automated manner because the artifacts are annotated with meta data such as dependencies, categories, and input/output data specifications. Ratings associated with these artifacts may be discovered by the crawlers, too.
Discovering unstructured data in a fully automated manner is much more challenging because natural language processing techniques such as document classification [12] need to be utilized. These approaches do not always lead to correct results, so the resulting knowledgebase may become inconsistent quickly. Thus, additional sources of input can be used to discover and rate DevOps knowledge. For instance, experts are able to analyze the documentation and sources of DevOps tools (Chef [6], Puppet [8], etc.) to operate middleware and
application components, libraries (fog23, jclouds24, etc.) to
manage Cloud resources, and services (Heroku25, Google
App Engine, etc.) to utilize middleware-as-a-service offerings. However, discovery performed by humans is not limited to experts. Crowdsourcing approaches [13] may be used alternatively or in a complementary fashion. As an example, the growing open-source community centered around DevOps tools and artifacts such as Chef, Puppet, Juju, and Docker may follow such an approach to systematically consolidate DevOps knowledge. The knowledge discovered by crawlers, experts, and crowdsourcing efforts can then be captured, linked,
and optionally refined in aDevOps Knowledgebase (KB)in a
collaborative manner. This DevOps KB covers different levels of resources such as provisioning libraries on the level of infrastructure, deployment scripts on the level of middleware, and templates on the level of application stacks. As shown in Figure 3, the knowledge discovery and capturing is meant to be continuously repeated to refine and update the DevOps KB.
As shown in Figure 2 and Figure 3, developers and oper-ations personnel define DevOps requirements for a particular
19Chef cookbooks: http://supermarket.chef.io/cookbooks 20Puppet Forge: https://forge.puppetlabs.com
21Docker Hub: https://registry.hub.docker.com
22Amazon Web Services’ Marketplace: https://aws.amazon.com/marketplace 23fog: http://fog.io 24jclouds: http://jclouds.apache.org 25Heroku: https://www.heroku.com Discover unstructured DevOps knowledge Discover semi-structured DevOps
knowledge Capture, refine, and link knowledge in knowledgebase Optional: Rate discovered knowledge
Define and refine DevOps requirements for application Deploy, operate, and monitor application
Browse, query, and refine knowledgebase to
resolve DevOps requirements
DevOps Knowledgebase
Figure 3. Methodology to manage and use DevOps knowledge
application (e.g., WordPress requires MySQL and PHP, as discussed in Section II). These requirements can be used to query against the DevOps KB to find viable options to resolve the requirements. Alternatively, the KB may be browsed, for instance, to get an impression what options are available to host a MySQL database. Then, the DevOps requirements of a particular application may be refined accordingly. Moreover, the knowledgebase can be updated, e.g., by adding deployment scripts for new middleware components required by an appli-cation. All these tasks are performed to eventually resolve the DevOps requirements of an application in order to deploy and operate it. By end-to-end monitoring the application, occurring issues on different levels can be identified. For example, if there are problems with a certain middleware component, its DevOps requirements may have to be refined and adapted. As such, the proposed approach promotes the continuous and iterative accumulation, organization, and utilization of knowledge over the lifetime of applications.
IV. DEVOPSKNOWLEDGEBASE
In the previous section we proposed a methodology to enable holistic DevOps knowledge management. The DevOps KB is the central component to implement a collaborative knowledge management system. Collaboration based on the KB is not limited to the efficient collaboration between developers and operations personnel. It further includes the collaborative discovery and capturing of DevOps knowledge by experts, crawlers, and crowdsourcing. In this section we focus on the conceptual structure of the DevOps KB to enable collaborative DevOps knowledge management as discussed in the previous section. Technically, the DevOps KB may be composed of multiple, possibly distributed knowledge stores. For instance, there could be public knowledge stores that are maintained by open-source communities. These stores may be focused on artifacts of certain kinds such as Chef cookbooks and Docker images. Private knowledge stores may be maintained by companies or departments for knowledge that is either very specific and/or is not meant to be available outside the scope of one organization. Consequently, the actual KB is a composition of multiple public and/or private knowledge stores.
A. Knowledge Classification
In order to classify existing DevOps tools, artifacts, and
services in a systematic way, we propose a set of base
Middleware Runtime Database Graph-based Relational Messaging Java PHP … … … MySQL MySQL on RDS LAMP AMI … Web Server PHP App. Cookbook LAMP Charm LAMP Dockerfile MySQL Cookbook MySQL Dockerfile PHP on Google App Engine PHP on Elastic Beanstalk MySQL Charm … … … LAMP Cloud-Form. Tpl. Apache/PHP Dockerfile
Abstract Entity Implementation
Apache HTTP Server
Figure 4. Middleware taxonomy
More specifically, knowledge is organized around middleware, infrastructure, providers, and DevOps automation tooling.
Figure 4 presents an extract of our middleware taxonomy
classifying different kinds of middleware such asruntimes, Web
servers, anddatabases.These are captured as abstract entities,
whereas implementations such asPHP application cookbook,
LAMP Dockerfile, and MySQL charm can be instantiated
to resolve specific DevOps requirements. This middleware taxonomy is based on the middleware categorizations of Cloud
providers and DevOps tooling providers such as Heroku26,
Google27, IBM Bluemix28, and Chef29.
In addition, an infrastructure taxonomy providing
cate-gorized infrastructure implementations is required to define dependencies for middleware implementations that are not
offered as a service. For instance, the MySQL cookbook
middleware implementation requires an operating systemsuch
as Ubuntuor Amazon Linuxto be hosted on, whereasMySQL
on RDS can be used as a service provided by Amazon RDS
without having to resolve further infrastructure requirements. Middleware implementations may not only require infrastruc-ture implementations. Additional tooling may be required by
middleware implementations such as operations tools (e.g.
Chef, Docker, Juju, etc.). Moreover, tooling to build, test,
and integrate middleware and application components may
be part of the DevOps requirements for a particular application. All these supporting tools covering both development and operations, as well as integration aspects are categorized using
an additional DevOpswaretaxonomy.
Some middleware implementations are offered as a service
by certain providers such as MySQL on RDS.An additional
provider taxonomy to classify provider implementations such
asRDS offered byAmazon.These provider implementations
are linked to the service implementations in the middleware
taxonomy to define, for instance, thatMySQL on RDSis hosted
on RDS. To capture such relations between implementations
(hosted on, requires, etc.) and further characteristics in the
26Heroku add-ons: https://addons.heroku.com
27App Engine features: https://developers.google.com/appengine/features 28IBM Bluemix services: http://bluemix.net
29Chef cookbooks: http://supermarket.chef.io/cookbooks
Implementation Properties PHP Application
Cookbook REQUIRES HOSTED_ON
= DevOpsware / Operations / Chef AND
Middleware / Web Server / Apache Cookbook AND … = Infrastructure / OS / Linux / Ubuntu XOR
Infrastructure / OS / Linux / RHEL XOR … PHP on Google
App Engine HOSTED_ON ELASTIC = Provider / Google / App Engine = TRUE Apache/PHP
Dockerfile REQUIRES HOSTED_ON = DevOpsware / Operations / Docker = Infrastructure / OS / Linux / Ubuntu XOR … MySQL on RDS HOSTED_ON
SCALING = Provider / Amazon / RDS = MASTER-SLAVE MySQL
Cookbook REQUIRES HOSTED_ON = DevOpsware / Operations / Chef = Infrastructure / OS / Linux / Ubuntu ANDXOR … … MySQL Charm REQUIRES
HOSTED_ON SCALING
= DevOpsware / Operations / Juju = Infrastructure / OS / Linux / Ubuntu = MASTER-SLAVE
LAMP AMI HOSTED_ON = Provider / Amazon / EC2 LAMP
Cloud-Formation Tpl. REQUIRES HOSTED_ON = Provider / Amazon / CloudFormation = Provider / Amazon / EC2 AND Provider / Amazon / RDS Ubuntu Server
14.04 64-bit AMI HOSTED_ON = Provider / Amazon / EC2 OpsWorks REPLACES
INT_WITH = DevOpsware / Operations / Chef = Provider / Amazon / EC2 AND Provider / Amazon / RDS …
Figure 5. Properties of implementations
knowledgebase, properties are added as annotations to im-plementations. In the following we present an initial set of properties to annotate implementations:
• HOSTED ON refers to one or more entities, either
infrastructure or provider entities, on which this imple-mentation can be hosted on. For instance, the MySQL cookbook may be hosted on Ubuntu, Amazon Linux, or Red Hat Enterprise Linux (RHEL).
• REQUIRES refers to one or more entities, most likely
DevOpsware entities, that are needed to operate this implementation. For instance, the MySQL cookook requires Chef.
• REPLACES refers to one or more entities that can be
replaced by this entity. For instance, Amazon OpsWorks can be used to replace a Chef server.
• INT WITH refers to one or more entities that are
inte-grated with this entity. For instance, Amazon OpsWorks is integrated with Amazon RDS.
• VERSIONS defines one or more tuples to express
which versions of this implementation are supported. For instance, a MySQL implementation supporting two
versions:(‘MySQL’, ‘5.5’), (‘MySQL’, ‘5.1’).
• SCALINGdefines the scaling mode (e.g., cluster,
master-slave, etc.) of this implementation if scaling is supported at all.
• ELASTIC defines whether this implementation is elastic,
meaning if it scales automatically and dynamically depending on the current load.
Figure 5 provides examples of properties for several implementations of different types. For instance, two of the four listed MySQL implementations support scaling in a master-slave manner, meaning additional master-slave instances can be added
… DevOps Knowledge-base Chef Cookbook Repository Juju Charm Repository Experts Crawler Semi-structured data Unstructured data
capture and link knowledge
discover
discover Google App Engine
Amazon Web Services
Amazon Knowledge Store Google Knowledge Store Chef Knowledge Store Juju Knowledge Store
build and render consolidated knowledgebase Knowledgebase
Builder Knowledgebase
Renderer
Figure 6. Overview of prototype implementation
as replicas to load-balance read requests between them; the other two do not support scaling. Considering implementations of a PHP runtime, some of them are elastic, whereas others do not have any scaling capabilities. Furthermore, some
implementations are bound to certain providers such asPHP
on Google App Engine or LAMP AMI;others only have to be
hosted on certain operating systems that may run on arbitrary VMs at any provider or even on-premise. Additional properties may be defined to further characterize implementations. As an example, runtime-as-a-service offerings such as PHP on Google App Engine do not always provide unlimited filesystem access. Moreover, files stored in the filesystem may not be persistent. Such information can be captured using properties because application components may rely on corresponding features depending on their architecture and design.
B. DevOps KB Prototype Implementation
An overview of our prototype implementation of a DevOps KB is presented in Figure 6, following the methodology proposed in Section III and the classification discussed in the previous. More specifically, we have discovered and systematically captured unstructured data from documentations and feature descriptions of Google App Engine and Amazon
Web Services in correspondingknowledge stores. Currently,
each knowledge store is represented as a single YAML30 file
stored in a Git repository. Based on the provider taxonomy discussed in the previous Section IV-A, we captured infras-tructure and middleware implementations offered by these two providers. We then categorized these implementations based on the infrastructure and middleware taxonomies outlined
before. Furthermore, we implemented a crawling framework
to automatically discover semi-structured data such as reusable scripts and configuration definitions such as Chef cookbooks from public repositories. Corresponding knowledge stores are automatically generated by the crawler as shown in Figure 6. In order to eventually build and render a consolidated,
interlinked DevOps knowledgebase we implemented a
knowl-edgebase builder as a Node.js31 module to merge individual
knowledge stores. This is done by reading the contents of all knowledge stores and merging it into a hierarchically structured database. The technical foundation could be a single file rendered in JSON, XML, or YAML as it is implemented
30YAML Ain’t Markup Language: http://www.yaml.org 31Node.js: http://nodejs.org
in our first prototype. But it could also be based on a database
server such as a graph-based database server32 or a relational
database server to use and implement more efficient query mechanisms. The resulting DevOps KB currently holds roughly 4000 implementations, including 1430 Chef cookbooks, 2190 Puppet modules, and 278 Juju charms captured as middleware implementations by the crawling framework; the rest are additional implementations of types infrastructure, provider, and middleware derived from provider offerings as well as DevOpsware implementations. Finally, we implemented a
knowledgebase renderer as a Node.js module to render the
knowledgebase in different formats such as JSON, YAML, and XML. This eases the usage of the knowledgebase in very different contexts. Both the knowledgebase builder and the renderer can be used programmatically and through a command line interface.
V. DEVOPSKNOWLEDGEUTILIZATION
In order to logically specify DevOps requirements for an application such as WordPress as outlined in Section II, predicates can be defined and combined in the form of Boolean expressions. These expressions can then be utilized as queries
against the DevOps KB. Let’s assume E is the domain of
all entities captured in the taxonomies that are part of our
DevOps KB. The predicate Prequires : E → {true, f alse}
then assigns each entity (abstract entity or implementation) a
Boolean value. The Prequires predicate returns true if the
given entity is an implementation or there is at least one implementation that inherits from the given entity; otherwise it
returnsf alse. In addition toE, let’s assumeP is the domain
of all properties and V is the domain of all property values;
the predicate PpropertyEq : E × P × V → {true, f alse}
then assigns each combination of an entity, a property, and
a property value a Boolean value. The PpropertyEq predicate
returns trueif the given entity owns the given property with
the given value (in the DevOps KB), or there is at least one entity with the given property and value that inherits from
the given entity; otherwise it returns f alse. The predicate
PpropertyEqGr:E × P × V → {true, f alse}is very similar to PpropertyEq but it also returnstrueif the actual property value is greater than the given value. For instance, this predicate can be used to express version dependencies in the sense of
a particular version or greater is required. The predicates
PpropertyEq andPpropertyEqGr implicitly cover thePrequires
predicate because if a certain property of an entity needs to be equal to or greater than a given value, the entity itself is obviously required. As an example, we could use the expression
Prequires(‘Middleware/DB/.../MySQL’)to specify the need for
a MySQL database in our application stack. In case we require specific versions, we can go with a refined expression such as
PpropertyEqGr(‘Middleware/DB/.../MySQL’, ‘versions’, ‘5.0’). Beside expressing application-specific DevOps requirements an organization may enforce further constraints that are valid independent of a specific application. Such constraints, as shown by the following examples, can be expressed as additional requirements: (i) MySQL has to be hosted on an Ubuntu VM; (ii) operating any component on Amazon is forbidden; (iii) using Chef for deployment is forbidden.
Additional predicates may have to be defined to cover such requirements. For instance, we have to define the predicate
Pexcludes:E → {true, f alse}to express that we do not allow Amazon to be involved in any application stack that we operate:
Pexcludes(‘Provider/Amazon’). Such expressions can be merged with application-specific requirements as outlined before, to get a consolidated Boolean expression to be used as a query against the DevOps KB. We use the standardized Web Services Policy Framework (WS-Policy) [14] to render expressions as policies and merge such expressions. Finally, merged expressions can be transformed to WS-Policy normal form (basically a disjunctive normal form) to ease the processing of corresponding expressions and their usage for query purposes. As an example for the WordPress application discussed in Section II we can express its minimum requirements as:
W ordP ressminimum=
PpropertyEqGr(‘Middleware/DB/.../MySQL’, ‘versions’, ‘5.0’)∧
PpropertyEqGr(‘Middleware/Runtime/PHP’, ‘versions’, ‘5.2.4’)∧
Prequires(‘Middleware/Web Server’)
TheW ordP ressminimumexpression can then be evaluated
against the DevOps KB to see whether there are appropriate im-plementations to operate WordPress. Moreover, the expression is used to derive possibly multiple alternatives and combinations to operate the application based on the implementations captured in the knowledgebase. A few examples drawn from the prototype implementation discussed in Section IV-B are:
1) LAMP AMI(middleware) hosted onAmazon EC2(provider). 2) LAMP charm(middleware) hosted onUbuntu(infrastructure) hosted
onAmazon EC2(provider).
3) PHP application cookbook(middleware) hosted onUbuntu (in-frastructure) hosted onAmazon EC2(provider) &MySQL charm (middleware) hosted onUbuntu(infrastructure) hosted onAmazon EC2(provider).
4) PHP on Elastic Beanstalk(middleware) hosted onAmazon Elastic Beanstalk(provider) &MySQL on RDS(middleware) hosted on Amazon RDS(provider).
5) PHP on Google App Engine(middleware) hosted onGoogle App Engine(provider) &MySQL charm(middleware) hosted onUbuntu (infrastructure) hosted onAmazon EC2(provider).
These are just several selected examples how the WordPress application can be deployed and operated. The requirements can be refined to limit the alternatives by additional constraints, e.g., by requiring a scalable MySQL implementation:
W ordP ressscalableDB=
PpropertyEqGr(‘Middleware/DB/.../MySQL’, ‘versions’, ‘5.0’)∧
(PpropertyEq(‘Middleware/.../MySQL’, ‘scaling’, ‘master-slave’)⊕
PpropertyEq(‘Middleware/.../MySQL’, ‘scaling’, ‘cluster’) ) ∧ ...
Similarly, expressions can be further refined by adding
constraints such as PpropertyEq(‘Middleware/Runtime/PHP’,
‘elastic’, true) and Pexcludes(‘Provider/Amazon’). These
ex-pressions are then rendered, merged, and normalized using WS-Policy to be used as queries against the DevOps KB.
VI. CONCLUSION
The DevOps paradigm is rising in prominence in contem-porary information systems as the means for efficient, seamless end-to-end automated software management. The combination of DevOps approaches with Cloud computing solutions enables
the rapid provisioning of infrastructure resources on demand. An ever expanding wealth of existing reusable DevOps artifacts and related Cloud services means that application designers and developers have ample opportunities for putting tried and tested DevOps knowledge into practice. However, deciding how to use this knowledge is hindered by the multitude of existing approaches, the scattering of knowledge between different communities and experts, and the width of the available design space in application design. In order to address the need for informed decision making, in the previous sections we presented our proposal for a holistic DevOps knowledge management methodology. More specifically, we identified a set of knowledge sources that can be (publicly) accessed, and the means to harvest the knowledge that is contained in these sources. This can be done in an automated manner based on our crawling approach. Finally, we discussed how to reflect, organize, store, and utilize the knowledge using a DevOps knowledgebase, predicate logic, and WS-Policy. Future work includes the improvement of the knowledge management approach by populating the DevOps KB with more offerings from Cloud providers, the evaluation of crawling techniques for the automatic capturing of such offerings, e.g., based on the providers’ API documentations, and finally, we aim to enable the automated generation of alternative application topologies based on our previous research [15].
ACKNOWLEDGMENT
This work is partially funded by the FP7 EU-FET project 600792 ALLOW Ensembles.
REFERENCES
[1] J. Humble and D. Farley, Continuous Delivery: Reliable Software Releases through Build, Test, and Deployment Automation. Addison-Wesley Professional, 2010.
[2] J. Humble and J. Molesky, “Why Enterprises Must Adopt Devops to Enable Continuous Delivery,”Cutter IT Journal, vol. 24, 2011. [3] M. Walls,Building a DevOps Culture. O’Reilly Media, Inc., 2013. [4] J. Wettinger, U. Breitenb¨ucher, and F. Leymann, “DevOpSlang - Bridging
the Gap Between Development and Operations,” inProceedings of the 3rd European Conference on Service-Oriented and Cloud Computing (ESOCC), 2014.
[5] M. H¨uttermann,DevOps for Developers. Apress, 2012.
[6] S. Nelson-Smith,Test-Driven Infrastructure with Chef. O’Reilly Media, Inc., 2013.
[7] S. G¨unther, M. Haupt, and M. Splieth, “Utilizing Internal Domain-Specific Languages for Deployment and Maintenance of IT Infrastruc-tures,” Very Large Business Applications Lab Magdeburg, Fakult¨at f¨ur Informatik, Otto-von-Guericke-Universit¨at Magdeburg, Tech. Rep., 2010. [8] J. Turnbull and J. McCune,Pro Puppet. Apress, 2011.
[9] T. Uphill,Mastering Puppet. Packt Publishing Ltd, 2014.
[10] P. Mell and T. Grance, “The NIST Definition of Cloud Computing,” National Institute of Standards and Technology, 2011.
[11] S. K¨achele, F. J. Hauck, C. Spann, and J. Domaschka, “Beyond IaaS and PaaS: An Extended Cloud Taxonomy for Computation, Storage and Networking,” 2013.
[12] P. Trinkle, “An Introduction to Unsupervised Document Classification,” 2009.
[13] S. Dustdar and K. Bhattacharya, “The Social Compute Unit,”Internet Computing, IEEE, vol. 15, no. 3, pp. 64–69, 2011.
[14] W3C, “Web Services Policy Framework (WS-Policy), Version 1.5,” 2007. [15] V. Andrikopoulos, S. G. S´aez, F. Leymann, and J. Wettinger, “Optimal Distribution of Applications in the Cloud,” inProceedings of the 26th Conference on Advanced Information Systems Engineering (CAiSE), ser. LNCS. Springer, 2014, pp. 75–90.
