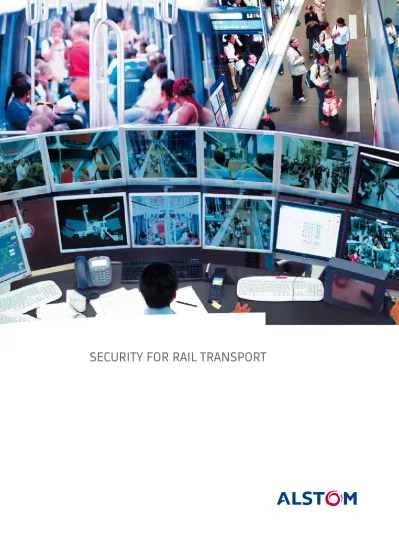

SECURITY FOR RAIL TRANSPORT

(1)

(2)

2| Alstom Transport Alstom Transport | 3

Protecting your

customers, staff and assets

Whether transporting people or goods, you want to be sure you are protecting them to the best of your ability. As managers of urban transit, main-line passenger and freight networks, you also want to assure the security of your valuable rail assets.

In the face of today’s increased security concerns, preparedness is the answer. Experts can assess the risks of crime, fraud, assault and terrorism in your specific context and devise the best measures against them, using the most advanced proven technology. Well chosen, high performing IT equipment can play a crucial role in your transport security—in arming you with the real-time information, warnings and pre-configured instructions you need to act fast and effectively.

a focused resPonse

As manufacturers of rolling stock, signalling systems and rail infrastructure, as well as systems integrators, we truly get the big picture. Alstom experts draw from years of experience across the board and around the world to develop the technology required in real-life situations. We have the technology and expertise to capture risk-related data in all rail contexts (trains, stations, track and tunnels, depots and control centers) and transform it into useful information for security management and operations without affecting the flow of passengers. Our extensive engineering and security consulting services with local-content suppliers can assist in your security project.

Integrated control and security center of the Lausanne metro

risk identification and Prevention,

the key to enhanced security

(3)

six reasons to always consult

alstom for security solutions

1. experience and expertise: our core activities cover every rail environment: trains, stations, track & tunnels, control centers and depots.

2. a single shared architecture and it platform to integrate 4 functional sub-systems:

- Control & Monitoring - Passenger Information - Security

- Networks & Telecoms

3. full modularity: our IT systems are designed for easy integration and upgrading.

4. solution-oriented: by only manufacturing key IT equipment we optimize performance & cost. 5. security focus: 100% rail — our

sole interest is public transport applications.

6. advanced technology for all needs: our security solutions can be tailored to any make of train or OEM equipment in stations, control centers or depots. DO NOT LEAVE YOUR LUGGAGE

INTEGRATED CONTROL AND SECURITY CENTER

ROMA

CENTRAL

DO NOT LEAVE YOUR LUGGAGE

10 : 45

!

DO NOT LEAVE YOUR LUGGAGE DO NOT LEAVE YOUR LUGGAGE

LEGEND

Intrusion Detection Surveillance Camera Emergency Call Point

Access Control (badge reader)

Smoke Detector Public Address Sprinklers

Ventilation & Smoke Extraction

Platform Screen Doors Platform Track Intrusion Detection System

TFT LCD Display

Wireless Communications (secure radio)

(4)

6| Alstom Transport

security enhancement solutions

xxxxxxxxxxxxxxxxxxxxx

deter, detect, record

Alstom offers operators of urban transit, mainline passenger and freight networks solutions to enhance the security of their passengers, staff and assets. Available as modules or individual equipment and system (hardware, software and network) for new-build or retrofit projects, our products are designed for use in trains, stations, tunnels, track, depots and control centers. They monitor and capture events at each site and relay risk management information to the appropriate staff (mobile agents), offering complete visibility throughout the transport network. Equipment can be integrated – initially or later – into a full system covering all rail sites with functions beyond Security.

trains

All of our rolling stock is designed with a standard-based, train-borne Ethernet network, which provides a single, unified and secure broadband communication network for security and other subsystems. For existing fleets, our experts can interface onboard

security equipment and train-ground communications with the systems of rolling stock made by other companies. Our train-borne security system includes interior and exterior CCTVs with in-cab viewing, emergency intercom, real-time video and audio recorder. It is fully interoperable with Public Address and Passenger Information equipment for emergency event notification.

tracks and tunnels

Our intrusion control software can be configured to detect foreign objects on tracks and alert staff. Tunnel cameras and sensors are also available to react rapidly to unexpected events including unauthorized persons on tracks. We are also developing a gantry to inspect an entire train prior to tunnel entry.

Real-time crowd surveillance of the Lausanne metro

6a| Alstom Transport Alstom Transport | 6B

Our Security System’s architecture covers three distinct environments: trains, fixed installations (stations, depots, track & tunnels) and the control center.

This system architecture is shared and integrated with three other functions for control and operations:

• Passenger Infotainment

• Control & Monitoring (train traffic, energy supply) • Network & Telecom infrastructure

The system is modular and upgradeable, offering customers multiple options: an operator may choose to equip a single environment and later equip others, or deploy one of the four functions and interface it with other functional areas already at work, knowing that a migration path exists for a later, fully integrated system solution.

The system is scalable and configurable to an expanding rail network. The equipment in an Alstom Security system is either designed and manufactured in-house or sourced from reliable suppliers. All equipment conforms fully to rail transport environment standards.

system architecture

Rail Infrastructure Information System

Train Information System

Integrated Control and Security Center Information System

Operations Decision Support & Incident Management System

Messaging Exchange System

PASSENGER INFORMATION InformationPassenger MultimediaPortal

NETWORKS & TELECOMS Fixed Networks Telephony &_Intercom _NetworksWireless _DistributionTime Content Management

CONTROL & MONITORING ATS InfrastructureSCADA Management Operations Maintenance

Public Address

SECURITY CCTV / Intelligent_{Video System} _ControlAccess _DetectionIntrusion Fire & Smoke_Detection

OPERATIONS

WORKSTATION MAINTENANCEWORKSTATION CONFIGURATIONWORKSTATION

REDUNDANT FRONT END PROCESSORS (FEPs) REDUNDANT SERVERS

WAN

Station / Depot / Track

Control Center

Train

TELEPHONY INTERCOM EMERGENCY CALL

ATC

INTERLOCKING ATC CONTROLLERTRACTION CONTROLLERAUXILIARY

AT-SEAT

AUDIO RESERVATIONSEAT

REMOTE I/O

MODULE DISPLAYDRIVER

ROOF WIRELESS

& GPS ANTENNAS CEILING WIRELESSANTENNA MULTIPLE UNITGATEWAY ETHERNETSWITCH

POWER

SUPPLY VENTILATION ANCILLARIES WIRELESSSERVICES LOCAL OPERATIONSWORKSTATION WIRELESSSERVICES

PUBLIC ADDRESS INTERCOM

EMERGENCY CALL PUBLIC ADDRESS

PASSENGER

INFORMATION INFOTAINMENT INFORMATIONPASSENGER INFOTAINMENT

CCTV

CLOCK

ACCESS

CONTROL CCTV INTRUSIONDETECTION FIRE & SMOKEDETECTION CONTROLACCESS FIRE & SMOKEDETECTION

KIOSK WIRELESS INTERNET KIOSK

EMAIL WIRELESS INTERNETEMAIL

SEAT RESERVATION Central station WIRELESS ANTENNA Infr astructur e C ontr oller s Trainborne Controllers

CONTROL & MONITORING

PASSENGER INFORMATION

SECURITY

NETWORKS & TELECOMS

Network Switch & Gateway

Telephony & Intercom Access Point Remote Terminal Unit (RTU)

Remote I/O Public Address Passenger Information Clock Multimedia Portal Modems Network Switch & Gateway

Access Points Intelligent Mobile Router

Public Address Passenger Information Automatic Vehicle Location (AVL)

Multimedia Portal CCTV / Intelligent Video System

Fire & Smoke Detection Access Control Intrusion Detection / Perimeter Monitoring

CCTV / Intelligent Video System Fire & Smoke Detection

Access Control

Train Control & Monitoring System (TCMS)

(5)

security solutions at work

mlo, lausanne, switzerland

train-Borne & trackside equiPment

MLO (Metro Lausanne Ouchy) set its project for a new driverless metro in motion in 1999, when it chose Alstom to provide its rolling stock, automatic CBTC train control, track construction and line electrification. In 2005, when it came to systems engineering and project management for the 6 km, 14-station line, MLO again selected Alstom. The aim: assuring passenger safety and security via control center monitoring. Our solution: real-time CCTV monitoring and alarms in trains and on platforms, integrated with a Passenger Information system within URBALIS CBTC, our driverless train control solution with high-speed data transmission.

ergose, athens, greece

station-Based equiPment

The 2002 challenge was two-fold: the deadline and the technology. Ergose needed to build a new 40-km suburban main line of double track between the airport and the Olympic stadium in Athens in time for the July 2004 competition—an objective attained. Alstom designed, made and integrated the signalling, communications system and station utilities, including ticketing, Passenger Information and security equipment on platforms. Equipment included CCTVs, alarms, fire detection, emergency call, public address and intercom.

fgc, sPain

wide-Band radio network for video image transmission

To improve security aboard its fleet of 55 regional trains, FGC decided to install a wide-band radio network that would transmit real-time video images from 8 existing CCTV cameras on trains to its operation control center. In recognition of our expertise in this field, and the open-ness of our standard-based architecture, Alstom was chosen in 2007 to perform this contract.

stm, montreal, canada

oPeration control center with incident management

Improving security across the board was a key aim of the “Société de Transport de Montreal” (STM) when it contracted Alstom in June 2003 to modernize its metro control cen-ter. Our first step was to familiarize ourselves with the customer's analysis of their existing rail operations, which included the management of security incidents and emergency response procedures. This led to the definition of a new, innovative software program for Operations & Management to be integrated with ATS and SCADA functions in an Alstom ICONIS control center system. It is designed specifically to optimize security management at every step, from incident detection to successful resolution, by integrating CCTVs, access control, fire and intrusion detection. Its functions support coordination of staff and activity management. This Public Transport security system - with the capability to manage over 200,000 input/outputs - will be the result of a unique collaboration between a visionary transit operator and Alstom.

Rush hour under control on the Lausanne metro

An emergency call post in the Athens metro

Upgraded video surveillance aboard FGC regional trains in Spain

Metropolis de Budapest (Hongrie)

Cutting-edge technology in STM's control center in Montreal (Canada)

maintenance dePots

and train staBling yards

We offer security equipment to detect intrusions into these off-limits areas and alert the security staff of these risks.

stations

Our security solutions for stations consist of CCTVs and PAs, readily accessible and easy-to-use emergency telephones, access control, intrusion detection and fire & smoke alarms. All are connected to a station controller, which includes a station console and alarms to the station’s security staff. The system is equally connected to the Passenger Information system for emergency event notification.

oPeration control centers

Our range of ICONIS Control Center Software programs run on standard PCs and Windows operating system. Our solution incorporates intelligence capabilities: policy-based, event-driven actions, scalable for small-to-large operation systems, and advanced video content analytics for detection of abnormal behaviour. Interactive applications include remote camera control, playback, onboard surveillance camera viewing. The system can be integrated with an operational display system (ATS, SCADA, Passenger Information Systems) via a single user interface.

communication / data transmission

An onboard Ethernet network integrates security data, seamlessly communicating to the ground-based backbone network by radio transmission or directly to the control center. This can be integrated with Private Radio Frequency communication systems.

Our train-based security solution provides operators with real time, end-to-end situational awareness and contextual information to respond to emergencies quickly and effectively. It allows remote and secured access to the system for authorized persons.

(6)

10| Alstom Transport

Through its know-how and the excellence of its products, Alstom is

shaping the future of energy and transport infrastructure and contributing

to improving the living and working conditions of people throughout the

world. Today, more than 65,000 people in 70 countries are making an active

contribution to the growth and development of its business.

a common network & standard interfaces

Our Security solutions use the same network and data transmission platforms as our Passenger Information & Entertainment range, facilitating immediate integration or later upgrades. All can be easily integrated into one of our complete rail control systems or one supplied by a third party.

advanced train control & amenities

Our trains are built with the electronic infrastructure required by advanced systems for operational control and passenger amenities. We carry out homologation of all types of train technology and equipment. Your security solutions are implemented efficiently and effectively, because we are experts in rail transport.

Station equipment. Our staff has years of experience in integrating and optimizing station equipment, a broad range of utilities that includes platform screen doors, elevators/escalators, ventilation and ticketing systems.

Track laying and signalling. Alstom has key references worldwide in track laying and signalling. We also install catenary and power substations for open rail lines and in tunnels.

Fleet and infrastructure maintenance. We know depots because we design, build and manage them as part of our comprehensive lifecycle maintenance service offer, which equally covers fleet maintenance of Alstom-built or 3rd party rolling stock.

Control centers.Along with Security & Passenger Information systems, we also link train-control and remote-maintenance systems to control centers via networks and telecoms.

Software and hardware. For train traffic control and network safety, power management (SCADA) and operations supervision, we provide modular software and standard hardware for rail control centers.

lifetime suPPort

We offer our customers maintenance services for all the systems and equipment we supply in trains, stations and control centers.
