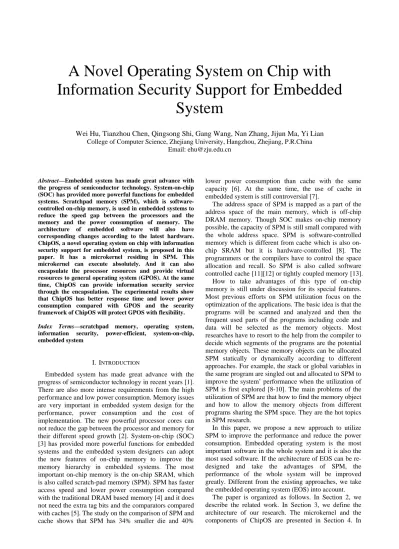

A Novel Operating System on Chip with
Information Security Support for Embedded
System
Wei Hu, Tianzhou Chen, Qingsong Shi, Gang Wang, Nan Zhang, Jijun Ma, Yi Lian College of Computer Science, Zhejiang University, Hangzhou, Zhejiang, P.R.China
Email: [email protected]
Abstract—Embedded system has made great advance with
the progress of semiconductor technology. System-on-chip (SOC) has provided more powerful functions for embedded systems. Scratchpad memory (SPM), which is software-controlled on-chip memory, is used in embedded systems to reduce the speed gap between the processors and the memory and the power consumption of memory. The architecture of embedded software will also have corresponding changes according to the latest hardware. ChipOS, a novel operating system on chip with information security support for embedded system, is proposed in this paper. It has a microkernel residing in SPM. This microkernel can execute absolutely. And it can also encapsulate the processor resources and provide virtual resources to general operating system (GPOS). At the same time, ChipOS can provide information security service through the encapsulation. The experimental results show that ChipOS has better response time and lower power consumption compared with GPOS and the security framework of ChipOS will protect GPOS with flexibility.
Index Terms—scratchpad memory, operating system,
information security, power-efficient, system-on-chip, embedded system
I. INTRODUCTION
Embedded system has made great advance with the progress of semiconductor technology in recent years [1]. There are also more intense requirements from the high performance and low power consumption. Memory issues are very important in embedded system design for the performance, power consumption and the cost of implementation. The new powerful processor cores can not reduce the gap between the processor and memory for their different speed growth [2]. System-on-chip (SOC) [3] has provided more powerful functions for embedded systems and the embedded system designers can adopt the new features of on-chip memory to improve the memory hierarchy in embedded systems. The most important on-chip memory is the on-chip SRAM, which is also called scratch-pad memory (SPM). SPM has faster access speed and lower power consumption compared with the traditional DRAM based memory [4] and it does not need the extra tag bits and the comparators compared with caches [5]. The study on the comparison of SPM and cache shows that SPM has 34% smaller die and 40%
lower power consumption than cache with the same capacity [6]. At the same time, the use of cache in embedded system is still controversial [7].
The address space of SPM is mapped as a part of the address space of the main memory, which is off-chip DRAM memory. Though SOC makes on-chip memory possible, the capacity of SPM is still small compared with the whole address space. SPM is software-controlled memory which is different from cache which is also on-chip SRAM but it is hardware-controlled [8]. The programmers or the compilers have to control the space allocation and recall. So SPM is also called software controlled cache [11][12] or tightly coupled memory [13].
How to take advantages of this type of on-chip memory is still under discussion for its special features. Most previous efforts on SPM utilization focus on the optimization of the applications. The basic idea is that the programs will be scanned and analyzed and then the frequent used parts of the programs including code and data will be selected as the memory objects. Most researches have to resort to the help from the compiler to decide which segments of the programs are the potential memory objects. These memory objects can be allocated SPM statically or dynamically according to different approaches. For example, the stack or global variables in the same program are singled out and allocated to SPM to improve the system’ performance when the utilization of SPM is first explored [8-10]. The main problems of the utilization of SPM are that how to find the memory object and how to allow the memory objects from different programs sharing the SPM space. They are the hot topics in SPM research.
In this paper, we propose a new approach to utilize SPM to improve the performance and reduce the power consumption. Embedded operating system is the most important software in the whole system and it is also the most used software. If the architecture of EOS can be re-designed and take the advantages of SPM, the performance of the whole system will be improved greatly. Different from the existing approaches, we take the embedded operating system (EOS) into account.
The paper is organized as follows. In Section 2, we describe the related work. In Section 3, we define the architecture of our research. The microkernel and the components of ChipOS are presented in Section 4. In
Section 5, the encapsulation based on ChipOS is described. The ChipOS based grid computing is depicted in Section 6. And in Section 7, we discuss our experimental results. At last, wee draw our conclusions in Section 8.
II. RELATED WORK
SPM is used in embedded processors for its fast access time and low power consumption. SPM can be controlled by the programmers or the compilers, which is different from caches. Different approaches have different ideas to solve the map from the memory object to the memory space [14]. The code segments of a program will be rarely modified during the execution and so the code segments have better temporal and spatial locality. The data of the programs will have more types and access patterns. So there are more prefetches in data process. Or the effect of the optimizations will be reduced [15].
Static optimization is first proposed to allocate SPM space. The compilers will scan the programs and selected the potential memory objects. Typically, the selected memory objects are constants, global variables, stack variables, heap variables and some segments of the code. These memory objects in these approaches will be allocated to SPM space during the execution of the programs. And these memory objects will occupy the space during the execution and can not be swapped out [16-19]. However, the effects of such optimizations are also restricted for the limited SPM space. Only a few memory objects will be the “children of fortune”.
Dynamic optimization proposed to solve the problems in the static optimizations. In dynamic allocation approaches, the memory objects will be pre-analyzed by the compilers. The potential memory objects will be found out as many as possible during the compile process. The memory objects with non-overlapped life time can share the same SPM space [20-22]. Or some memory objects can be kicked out of the SPM space and their space can be allocated to new memory objects [23-36]. SPM space can be shared if some memory objects can be swapped out. The dynamic allocation will increase the utilization rate through the share of SPM space.
There are also many arrays and loops in the programs. Some researches focus on the optimization of arrays and loops. SPM is also used to improve the performance of these arrays and loops. Arrays will be divided into small segments and the loops will be transformed to improve the performance [27-30].
Most current optimizations based on SPM focus on the analysis of the applications. Each application will be analyzed by the compliers to select the memory objects. The most suitable memory objects should be selected. One of the keys in the optimization is how to find these memory objects. The current approaches can solve the memory objects from a single program. Or more complex approaches can solve the memory objects from different programs. However, these solutions have to be re-complied the programs for many times for the different types of embedded processors. The cost is too high to use in real systems.
Furthermore, the current approaches do not take EOS into account. EOS is also software and it is also the most important software in embedded systems, which have EOS for the management of the system resources. EOS will often occupy the embedded processor. The applications can be terminated perhaps, but EOS is always in execution to maintain the stability of the systems. If EOS can be allocated to SPM, the on-chip memory will make EOS have better performance. This is also our basic idea.
In this paper, a novel operating system on chip with information security support for embedded system is proposed. This new architecture of EOS consists of three parts: the microkernel and the related components, the information security support and the extension based on the on-chip operating system. This EOS is titled as ChipOS. ChipOS has improved performance and lower power consumption based on the optimization from SPM.
III. CHIPOSARCHITECTURE A. Processor Model
The processor model used for ChipOS design is shown in Fig. 1. There are a processor core, cache and SPM on chip. And there is also an external memory interface to communication with the off-chip main memory. Generally the off-chip main memory is realized by DRAM [31]. Cache and SPM has the same access time, which is one cycle while the access time of main memory is about 10 – 20 cycles [8]. The data stored in SPM will not be sent to cache. When there are data requests, the data will be sent to processor core from cache if cache hits or from SPM if the data are in SPM. Otherwise, the data will be fetched from the off-chip memory.
Figure 1. Processor model of the embedded processor with SPM.
The address space of SPM is mapped to the uniform space of the whole system. SPM space will only occupy a very small part of the whole address space for its limited capacity. The remaining space will still be used by main memory. Thus though SPM is on-chip memory, the accesses to SPM can be as same as the accesses to main
memory. In fact, many embedded processors have adopted SPM as the fixed configuration on chip. These processors include low-end processors such as some DSP [32][33] and some high-end processors such as Intel/Marvell XScale PXA 272 [34], PXA 320 [35] and Motorola Dragonball [36]. In some processors, cache is replaced by SPM directly such as Motorola 68HC12 [37]. Such processor architecture will have improved performance.
B. ChipOS Architecture
EOS will encapsulate the on-chip resources such as the processor core and timer and so on and provide the uniform interfaces to the upper applications. Traditionally, EOS resides in main memory. So EOS can have abundant functions for the large capacity of main memory. However, SPM has only limited capacity and the new ChipOS has to be suitable to such restriction. There are three principles when we design ChipOS. (1) The size of ChipOS should be small. (2) The architecture of ChipOS is optimal; and (3) ChipOS will be organized by different components.
As shown in Fig. 2, ChipOS has four parts: microkernel, related components, security support and the extension of the operating system.
File System ChipOS Components Bootloader Microkernel Security Extension
Figure 2. The architecture of ChipOS.
Microkernel is the core of ChipOS. It plays the most important role in ChipOS architecture. This microkernel is designed to support the basic service of an embedded operating system [38]. The traditional EOS is analyzed and the most important functions are selected. These functions will be kept in the microkernel and the other functions will be cut down.
Related components are some important components and they can also be provided by the off-chip system. The current components are the ChipOS bootloader [39] and the file system [40]. They are not designed as the functions of microkernel but the related components, which have close relationship with microkernel.
ChipOS is designed with information security support. ChipOS can directly control the on-chip resources. When it executes in parallel with the general purpose operating
system (GPOS), ChipOS can detect the viruses or the intrusions to GPOS [41][42].
ChipOS only has limited functions compared with the traditional EOS. ChipOS can encapsulate the on-chip resources and then provide the virtual resources to GPOS [43]. The traditional EOS can execute based on these virtual resources. Thus more than one EOS can execute in parallel. At the same time, the encapsulation of ChipOS can also provide ChipOS extension. The current extension is that ChipOS can provide a novel way to construct the grid computing infrastructure based on the ChipOS supported dual OS [44]. In the following sections, the four parts of ChipOS will be described in detail.
IV. MICROKERNEL AND COMPONENTS OF CHIPOS A. Microkernel
Micorkernel will reside in SPM during the execution. It only provides the basic functions as a tidy embedded operating system. Thus microkernel can be divided into five modules as shown in Fig. 3
Microkernel Task Management SPM Management Power Management Resource Management Scheduler Module Figure 3. The organization of microkernel.
The five modules are resource management module, task management module, SPM management module, power management module and scheduler module. They have different functions and each module only has a single function. This will be helpful to reduce the size of this microkernel. When they are mapped to SPM space, they have their own spaces, which are called regions.
Resource management module is responsible for the management of the on-chip resources and recording the use of the resources. Microkernel is the software which is closest to the processor core. The resources on chip are under the control of microkernel. Thus the resource management module is designed to manage these resources. It will maintain a resource table according to the records. There are two advantages: first, the resource table will be provided to the task management module for task scheduling and second, it is possible to encapsulate the on-chip resources to provide virtual resources through the resource table.
Task management module is responsible for the scheduling of the tasks in the system. The size of SPM is limited, so the number of the tasks executing in SPM will be restricted. A set division based scheduling algorithm is used in microkernel [45]. The tasks are divided into different sets according to their features and then the different sets have different scheduling algorithms based on various resource requirements. Then the scheduling
sequences can be calculated as preparation partly. It will provide real-time response for embedded system.
SPM management module is responsible for the management of the SPM space. The information of SPM space will be collected and maintained by SPM management module. When there is more than on one process in parallel to share SPM, this module will also manage the operations such as request and swap etc. on the memory objects of these processes.
Power management module is responsible for the power control for the system. Power consumption is very important in embedded system. Power management module has adopted dynamic voltage scaling (DVS) technology [46] to reduce the power consumption. The frequency and voltage of the processor core will be scaled down in the appropriate moment during the execution to reduce the power consumption. When the system tends to be busy again, the frequency and voltage will be restored to normal status.
ChipOS has different components, while the size of SPM is associated with the type of the processors. Though ChipOS is designed optimally, the size of SPM will limit the loading of some components. Scheduler module is responsible for the scheduling of the components when SPM space is not enough or there are some special requirements to load or swap out some components.
B. Component-Based ChipOS
The different modules will be extracted and re-organized according to the design of ChipOS. These modules will be more independent from each other. Thus they can be abstracted as the components of ChipOS. The components are the basic units of ChipOS. Embedded system is application-specific. The component-based ChipOS can be adjusted to meet the different requirements from the using environments through the configuration of the components. And at the same time, the old components can be replaced by the new components. This will improve the performance and make ChipOS be scalable.
The granularity of the components is important for ChipOS. When ChipOS is divided into the different components, the baseline is the functions after the module abstraction. For example, the task management module of the microkernel can be a component for it only has the task scheduling function. If the granularity is too small, the number of the components will be increased greatly and the interfaces will be complex. If the granularity is larger, the size of the components will be too large and it is inconsistent with the design principles.
All the components will have the standard interface by definitions. The information of the components can be obtained from these standard interfaces. These interfaces can also be used to manage the components and they will be the channels of the data transmission among the components. Furthermore, the components can be organized in the component library. And some components can also be stored in the flash on chip. They can be scheduled into SPM according to the requirements of the configuration.
The five different modules of the microkernel are the components of ChipOS. These components are resource management component, task management component, SPM management component, power management component and scheduler component. That is why scheduler module can switch the components in and out of SPM space. There are also some other components of ChipOS. In the following sub-sections, the ChipOS bootloader and ChipOS based file system will be described in detail.
C. ChipOS Bootloader
Bootloader is used in embedded system to initialize the hardware and load the operating system [47]. EOS can not run without the support from bootloaders for the different hardware platform of embedded systems. Bootloader will process the variation of the different embedded processor architecture. Traditionally, bootloader can often be split into two stages. In the first stage, the binary code of the bootloader is found and loaded into memory from the flash memory. And then bootloader will detect, check and initialize the hardware resources in the system. In the second stage, bootloader will find the compressed kernel image and appropriate root file system image and load them into memory. Once these operations are completed, bootloader will hand the control of the system to the kernel. In this stage, bootloader will reside in SDRAM.
The performance of the second stage of bootloader can be improved for the residence in SDRAM. SDRAM has much access time compared with SPM. The microkernel of ChipOS is also an operating system for embedded system. So it needs the bootloader. And at the same time, GPOS in parallel with ChipOS will also need bootloader to complete the complicated functions before its startup. So in our design, the bootloader of ChipOS can be more effective through SPM. The key is that the second stage of bootloader should be done in SPM, which is faster than flash or SDRAM. Stage 2 Basic Loader ChipOS (Microkernel) GPOS Loader GPOS Stage 3 Load ChipOS Load GPOS ChipOS (Microkernel) Stage 1
The load stages of ChipOS bootloader is shown in Fig. 4. The basic loader is stored into the flash memory as the traditional bootloader. In stage 1, the basic loader first initializes the hardware resources and then the ChipOS laoder will copy the code of ChipOS (microkernel) inot SPM. ChipOS first starts up in stage 2. And then if the GPOS also needs to load, the stage 3 begins. In stage 3, a loader for GPOS is created and it will load the GPOS into memory. After ChipOS is loaded, a special user interface is provided to the users for their commands. And thus different GPOS kernels can be downloaded from remote hosts and then loaded in memory.
D. ChipOS Based File System
Traditional embedded file systems have fruitful functions to meet the requirements of the using environments. They reside in main memory to provide the service. Thus these file systems have to endure the long delays of the main memory accesses. According to the design of ChipOS, SPM will also make the embedded file system possible. The ChipOS based file system, which is also called SPM file system (SPMFS) is designed to improve the performance of the file system. SPMFS only has the key functions of the file system. It is also a component titled micro file system component (MFSC). MFSC is the core component of the SPMFS. Fig. 5 shows the architecture of the new file system.
Figure 5. Architecture of SPMFS
There are three layers in the new architecture based on ChipOS design. MFSC is the upper level of the architecture and the most important part of the new file system. It will execute in SPM. The other reduced functions from MSFC will be kept in the basic file system, which is the middle layer. The basic file system will occupy the space of main memory. Flash layer will complete the operations on flash memory.
MFSC is designed to be stored in the flash memory on chip for fast startup. MFSC itself will not be modified during the execution to avoid the writing back operations. If there are enough SPM space, MFSC will have its own space to manage the file data. It will maintain an open file table and special buffers to manage the files and provide faster responses. MFSC is designed as small as possible. It can be scheduled into SPM by the scheduler module of the microkernel.
The common functions of embedded file system are provided in basic file system. And when there is no SPM space for MFSC’s execution, basic file system can provide all the functions and work as the traditional file systems. The basic file system will always reside in main memory for its large size.
V. ENCAPSULATION
ChipOS is designed based on the on-chip memory. It can control the on-chip resources according to its features. ChipOS is close to the processor compared with GPOS. And the microkernel of ChipOS also has the resource management module and maintains the resource table. ChipOS can encapsulate the on-chip resources and provide virtual resources to GPOS. The structure of the encapsulation is shown in Fig. 6.
Figure 6. Encapsulation structure
ChipOS resides in SPM and controls all the resources on chip such as SPM, on-chip flash and on-chip processing units. GPOS resides in main memory, which is SDRAM. And ChipOS encapsulates these resources and organizes them as a logic CPU. This logic CPU is provided to GPOS. The physical CPU is controlled by ChipOS and concealed to GPOS. GPOS itself executes on the logic CPU and GPOS will dispatch its general tasks to execute on the logic CPU as this logic CPU is a real hardware resource. These general tasks all execute on GPOS. Some special tasks of GPOS especially the real-time tasks have specific solution. ChipOS will provide ChipOS API to these tasks. The real-time tasks will execute in SPM through ChipOS. Thus SPM can improve the real-time response. Through ChipOS API, real-time tasks will have better performance while the general tasks will not be impacted.
There are also some restrictions to protect GPOS when ChipOS encapsulate the processor. First, ChipOS can reserve some main memory space for its future use, but it must comply with the memory policies of GPOS. And it can not modify the main memory occupied by GPOS without restrictions. Second, ChipOS can manage files and share some files with GPOS through SPMFS. But the off-chip file system of GPOS can not be modified by ChipOS directly. The operations on such files including read/write can only be executed by owner GPOS. At last ChipOS will never be able to impact or change the scheduling algorithms of GPOS. It can only schedule the real-time tasks from GPOS through the special interfaces (ChipOS API).
The encapsulation by ChipOS can provide new security mechanisms as described in Section VI. And the encapsulation provides the possibility for multi-GPOS in parallel. ChipOS can encapsulate the resources as several or more logic processors and then support more than one
GPOS. The virtual resources can meet the requirements of multi-GPOS cooperation.
VI. CHIPOSSUPPORTED SECURITY
ChipOS can support security through the encapsulation of the hardware resources. The current security support in ChipOS is the virus detection and intrusion detection as depicted in this section respectively.
A. Virus Detection Framework Based on ChipOS
The virus detection framework based on ChipOS is designed as a Demilitarized Zone (DMZ), which is a computer host or small network inserted between the private network and the outside network as the isolated zone [41]. The encapsulation provided by ChipOS can separate GPOS from the real processor. GPOS can only access the resources through the logic processor. Then all the accesses from the GPOS can be observed by ChipOS and all the accesses to the resources will also be monitored by ChipOS. Our DMZ is based on such analysis and the DMZ framework is shown in Fig. 7.
Figure 7. DMZ framework
DMZ has a single entrance for GPOS. During the execution, GPOS can stop and then trap itself into ChipOS via interrupts when there are some suspicious activities detected. And then ChipOS will have the control. First ChipOS will save the context of trapped GPOS and then ChipOS scans the memory and GPOS to find the source of the suspicious activities. When the detection is completed, GPOS can resume through restoring its context saved by ChipOS if there are no serious problems. If the problems can not be fixed, ChipOS will still control the system and give the error messages to the users. The users can stop GPOS and restart it or have some other operation.
DMZ provides an anti-virus framework to embedded systems. ChipOS itself can not scan the software and find the virus. The anti-virus software can be loaded to ChipOS for the scan, detection and cleaning jobs. ChipOS is just a platform. It means that the virus detection programs are provided by third part companies and the maintenance and update of these programs are also done by these companies. These programs can execute based on the DMZ framework provided by ChipOS.
During the execution of these programs, ChipOS will allocate SPM space to them. And these programs will be protected by ChipOS. ChipOS is an operating system concealed to GPOS. It means that ChipOS is sheltered
from the tasks in GPOS. The virus software itself will not be attacked by virus or malicious programs.
B. Intrusion Detection Architecture Based on ChipOS Intrusion detection system (IDS) is designed to protect the systems from the network attacks. Traditional IDSs are running on operating systems to work. And this is not a safe and dependable way for the unsafe operating system [42]. Operating system and IDS themselves will also be attacked perhaps.
ChipOS is an underlying operating system and transparent to GPOS. It provides the opportunity to design a different architecture for IDS. IDS based on ChipOS can have direct control of the hardware resource and will not be attacked by the programs from GPOS. Fig. 8 shows the new IDS architecture based on ChipOS. In this architecture, IDS is located in SPM.
Figure 8. Intrusion detection architecture based on ChipOS
There are four layers in the intrusion detection architecture based on ChipOS as shown in Fig. 8 (a): hardware, ChipOS, GPOS and the applications. IDS is located in ChipOS as a module shown as the shadow area. SPM will make IDS have faster access time.This architecture is not an implementation of IDS itself. It provides an architecture to locate the detection system just as same as the virus detection framework based on ChipOS.
Many host based IDS may work improperly when the network drivers of GPOS are attacked. Such events will make the system dangerous. Our design can work as normal when there are some errors in GPOS for its location in SPM. The SPM management module can allocate SPM space to IDS, monitor such space and then lock or protect such space.
As shown in Fig. 8 (b), our design has the following modules including Ethernet controller buffer, interrupt handler, SPM packet buffer, information abstraction and IDS. The buffers are hardware components. And the interrupt handler and DIS are software components. The network data will be first received in the Ethernet controller buffer. Then interrupt handler will receive the interrupt signals and the raw data in Ethernet controller buffer will be copied to SPM packet buffer. Information extraction is responsible for splitting data stream into the single packets. At last, these packets will be sent to IDS. IDS will analyze these packets and find out the potential
attacks. Thus IDS can complete its work with the help of ChipOS and improve its performance via SPM.
VII. CHIPOSBASED GRID COMPUTING
Grid computing has become one of the most popular approaches of distributed computing. Embedded systems are used as the real-time information collectors in grid computing. However, embedded systems have deployed almost everywhere and it is possible to take advantages of embedded systems for grid computing. In this section, we will describe ChipOS based grid computing, which is the extension of ChipOS.
ChipOS controls the hardware resources on SOC chips. And it can provide fast read and write speed compared with off-chip memory. Such data access speed can improve the memory usage for the applications. ChipOS can complete the basic support tasks for grid computing including package dispatching, connectivity check and transportation for higher efficiency.
ChipOS based grid computing has three layers as shown in Fig. 9. The Internet and ChipOS are organized as the basic fabric of the grid. The second layer is the GPOS layer. In this layer, GPOS will execute as normal as there are no ChipOSs. The third layer consists of the applications.
All the nodes in such a grid have the same structure. And each node in this fabric has three parts: ChipOS, GPOS and the applications. So each node will have a ChipOS residing in SPM. ChipOS provides grid API as the interfaces to the upper-level. Some basic functions are also provided by the grid API. The specific service can be defined through these APIs to requirements from the applications. GPOS will provide the traditional grid service to the applications. Grid service is a part of GPOS and it can communication with ChipOS through the interfaces between grid service (in GPOS) and grid API (in ChipOS).
Figure 9. Layers of ChipOS based grid computing
The main change between the traditional grid computing and ChipOS based grid computing is that some basic functions of grid middleware are directly integrated into ChipOS for its higher performance. ChipOS is responsible for the following functions: package management, connectivity check, transportation and necessary communication among ChipOSs. The other functions of the middleware are provided by the service and protocols in GPOS.
In ChipOS based grid computing, the task distribution process is different as described in the following. (1) Grid
application will call the grid service and grid service will notify ChipOS through grid API; (2) When ChipOS is ready, it will collect the data from grid application and distribute the tasks to the other nodes in the fabric; (3) When the nodes complete their tasks, the results are returned to the original ChipOS; and (4) at last, the results will be returned to the grid application.
VII EXPERIMENTAL RESULTS A. Experiment Setup
The hardware platform used in the experiments is the Intel/Marvel PXA272 embedded processor [34]. It is an integrated SOC microprocessor designed for high-performance and low-power consumption. PXA272 provides extra 256K SRAM on chip, which can be used by programmers as the internal memory. Such SRAM is just SPM in PXA 272, which has four SRAM banks with 64KB. Each bank can be set in standby mode and the data will be stored in the banks in run mode. So the size of SPM in PXA272 can be adjusted according to the requirements of the experiments.
GNU tool chain [48] is adopted as the development toolkit. The implementation of ChipOS is based on the embedded Linux [49]. We select eleven benchmarks from two different benchmark sets as shown in Table. 1. CRC32, Dijkstra, qsort, FFT and sha are selected from MIBench [50]. Cjpeg, djpeg, mpeg2enc, mpeg2dec, pgp and G.721 are selected from MediaBench [51]. These benchmarks are used to test the task management module of the microkernel.
TABLE I. BENCHMARKS
Name Source Description
CRC32 MIBench 32-bit standard CRC verification Dijkstra MIBench Shortest path algorithm
qsort MIBench Quick sort algorithm
FFT MIBench FFT
sha MIBench Security encryption algorithm cjpeg MediaBench JPEG compress
algorithm Djpeg MediaBench JPEG decompress
algorithm mpeg2enc MediaBench MPEG compress
algorithm mpeg2dec MediaBench MPEG decompress
algorithm
pgp MediaBench PGP encryption
algorithm G.721 MediaBench G.721 audio compress
B. Parameters of ChipOS
ChipOS is cut down from embedded Linux. And most of the functions are cut and only several most important functions are kept in ChipOS. The reserved modules are organized as the microkernel. The other modules including the security support and the extensions are configured as the components of ChipOS. The basic parameters of ChipOS are shown in Table 2.
The load time of ChipOS is 3 ms on average and the kernel size of ChipOS is about 8 KB. Switch time is 4 us on average. These parameters are obtained from the related contexts stored or restored in on-chip memory. The faster access time of SPM helps ChipOS to improve its parameters.
The kernel size of different embedded operating system is shown in Fig. 10. The size of ChipOS is very small compared with the other operating systems. But ChipOS has only several functions and it can not have the same functions to them according to the restriction of the limited size of SPM. 2048 8 40 128 1024 28 1024 8 0 500 1000 1500 2000 2500 Win C E Vxwo rk s PS OS QN X Pa lm O S LynxOS Symb ia n Chi p O S Kernel Size(KB)
Figure 10. Kernel size of different embedded operating system
C. Experimental Results and Analysis of Microkernel According to the features of the hardware platform, the size of SPM is set to 0KB (without SPM), 16KB, 32KB, 64KB, 128KB, 192KB and 256KB. The size of cache is set to 32KB and the states of cache are on or off respectively during the experiments. The benchmarks are scheduled by the microkernel to test the scheduling time. At the same time, the power consumption of the scheduling is also tested in these experiments. Fig. 11 shows the experimental results of the task scheduling by the microkernel. In this experiment, only task management module is optimized.
Fig. 11 (a) shows that the task scheduling time on average is reduced 20.3% (cache off) and 25.9% (cache
off). The faster access time of SPM helps task management of ChipOS to reduce the switch time. When the size of SPM is increased, more related contexts can be stored in SPM and the time is further reduced. But when all the related contexts are contained, the optimization results will be constant (the results of 192KB and 256KB almost the same in Fig. 11 (a)).
(a)Task Switch Time Comparison
0% 20% 40% 60% 80% 100% 0KB 16KB 32KB 64KB 128K B 192K B 256K B Ave rage
Cache Off Cache On
(b)Power Consumption Comparison
0% 20% 40% 60% 80% 100% 0KB 16KB 32KB 64KB 128K B 192K B 256K B Ave rage
Cache Off Cache On
Figure 11. The experimental results of task management optimization
Fig. 11 (b) shows the power consumption of task management optimization. The average power consumption is reduced 26.1% (cache off) and 30.7% (cache on). The reduced main memory access times are the main reason of such improvements.
The microkernel itself is also tested in the experiments. The execution time and the power consumption are shown in Fig. 12. When the size of SPM is too small to contain all the components (without SPM or less than the size of microkernel), ChipOS has to fetch data from main memory. The access time and the power consumption are both very large. This will make the advantages of ChipOS be deprived and lost the optimization. When the size of SPM is increased, ChipOS can execute in SPM completely. And thus ChipOS can work effectively. The execution time is reduced 26.7% (cache off) and 30.8% (cache on) respectively and the average power consumption is reduced 31.9% (cache off) and 36.3% (cache on) respectively. When the whole microkernel is TABLE II. PARAMETERS OF CHIPOS*
Item Parameter Load Time 3 ms on average
Kernel Size About 8 KB Switch Time 4 us on average *The frequency of CPU is 520 MHz
in SPM, the optimization is better than only task management module in SPM.
(a)Execution Time Comparison
0% 20% 40% 60% 80% 100% 0KB 16KB 32KB 64KB 128K B 192K B 256K B Aver age
Cache Off Cache On
(b)Power Consumption Comparison
0% 20% 40% 60% 80% 100% 0KB 16KB 32KB 64KB 128K B 192K B 256K B Aver age
Cache Off Cache On
Figure 12. The experimental results of the microkernel
A data access program is created on both SPMFS and YAFFS2 [50] to test the performance of the file systems based on Nand Flash, which is used in embedded systems as the nonvolatile memory. As shown in Fig. 13.
0 1 2 3 4 5 6 7 8 YA FF S2 SP MF S YA FF S2 SP MF S YA FF S2 SP MF S YA FF S2 SP MF S 8K 64K 256K 8M
M b/s Writing Reading Deletion
Figure 13. The comparison of YAFFS2 and SPMFS
Compared with YAFFS2, the performance of SPMFS is better and improved to some extent especially when the sizes of the files are less than 256KB, which is the maximum size of SPM. SPM based file system can provide better performance if the capacity of SPM is enough.
A 1 Mbytes data flow is constructed, which contains about 10% packets with intrusive data. The intrusive data consist of “bash” and consecutive “nop” and so on, which are often used in buffer overflow attacks. For simplicity, the simplest comparison algorithm is adopted to detect the attacks by compared the packets with the signatures in signature records. This simple IDS is also used in GPOS for comparison. Fig. 14 shows the comparison of the experimental results. 0 1000 2000 3000 4000 5000 6000
SPM IDS(ms) GPOS IDS(ms)
Copy to SPM Split into Packet
Analysis Comparison
Store to SDRAM
Figure 14. The comparison of IDS in ChipOS and GPOS
Fig. 14 shows that the comparison stage consumes much time of GPOS IDS and ChipOS based IDS (56% for ChipOS based IDS and 86% for GPOS IDS). The reason is that duplicate loops used by the comparison algorithm are time consuming. ChipOS based IDS copies a bulk of data instead of copying the packets one by one. So ChipOS will have shorter latency in store to SDRAM stage. Copy to SPM stage only consumes 6.2% of the whole SPMOS based IDS latency. ChipOS based IDS only spends about 500ms in detecting instead of 6037ms by GPOS IDS. The performance of ChipOS based IDS is better than GPOS IDS.
The experimental results show that ChipOS can take advantages of the characteristics of SPM. This make ChipOS can reduce the memory footprints and have better performance.
VIIICONCLUSIONS AND FUTURE WORK
SOC provides different types of on-chip memory for embedded systems. Though SPM is software-controlled on-chip memory, it has more flexibility compared with the hardware-controlled on-chip memory. In this paper, we propose a novel operating system on chip with information security support for embedded system. ChipOS has a microkernel and it consists of different components. Our experimental results show that ChipOS has better performance compared with GPOS.
Our future work is to expand ChipOS architecture to embedded multi-core systems. Many multi-core processors have SPM as the local memory. ChipOS is very small and it is suitable to work in such environments.
ACKNOWLEDGMENT
This work was supported by National Nature Science Foundation of China with granted No. 60673149, the National High-Tech Research and Development Program of China (863) with granted No. 2007AA01Z105 and the Research Foundation of Education Bureau of Zhejiang Province with granted No. Y200803333.
REFERENCES
[1] T.Z. Chen, J.W. Huang and W. Hu, “SMART: The next
generation software platform of embedded system”, In Proc. of 16th IASTED International Conference on Modelling and Simulation, Cancun, Mexico, pp. 18-5-25, May 2005.
[2] P.R. Panda, F. Catthoor and N.D. Dutt et al, “Data and
memory optimization techniques for embedded systems”, ACM Trans. Des. Autom. Electron. Syst., Vol. 6, Issue. 2, 2001, pp. 149-206, 2001. 22
[3] J.E. Stine, J. Grad and I. Castellanos et al, “A framework
for high-level synthesis of system on chip designs”, In Proc. of 2005 IEEE International Conference on Microelectronic Systems Education, 2005 (MSE '05), pp. 67-68, June 2005.
[4] T. Watanabe, R. Fujita and K. Yanagisawa, “Low-power
and high-speed advantages of DRAM-logic integration for multimedia systems”, IECE Transactions on Electron, 80 (12): 1523–1531, 1997.
[5] V. Delaluz, M. Kandemir, N. Vijaykrishnan and M.J. Irwin,
“Energy-Oriented Compiler Optimizations for Partitioned Memory Architectures”, In Proc. of International Conference on Compilers, Architecture, and Synthesis for Embedded Systems, pp. 138–147, ACM Press, 2000.
[6] R. Banakar, S. Steinke, B.S. Lee, M. Balakrishnan and P.
Marwedel, “Scratchpad memory: A design alternative for cache on-chip memory in embedded systems”, In Proc. of 10th International Symposium on Hardware/Software Codesign (CODES), pp. 73-78, ACM Press, 2002. 122
[7] J. Hennessy, D. Patterson, Computer Architecture A
Quantitative Approach, Palo Alto, CA: Morgan Kaufmann, 3 edition, 2002. 28
[8] P.R. Panda, N.D. Dutt and N. Alexandru, “Efficient
Utilization of Scratch-Pad Memory in Embedded Processor
Applications”, In Proc. of the 1997 European conference
on Design and Test, pp. 7-11, 1997. 29
[9] S. Anantharaman and S. Pande, “An Efficient Data
Partitioning Method for Limited Memory Embedded
Systems”, In Proc. of the ACM SIGPLAN Workshop on
Languages, Compilers, and Tools for Embedded Systems, pp. 108-122, 1998. 68
[10]O. Avissar, R. Barua and D. Stewart, “An optimal memory
allocation scheme for scratch-pad-based embedded systems”, IEEE Trans. on Embedded Computing Sys., 1(1), pp. 6-26, 2002. 69
[11]J. Absar and F. Catthoor, “Reuse analysis of indirectly
indexed arrays”, ACM Trans. Des. Autom. Electron. Syst., 11(2), pp. 282-305, 2006. 61
[12]C.L. Yang, H.W. Tseng, C.C. Ho and J.L. Wu,
“Software-controlled cache architecture for energy efficiency”, IEEE
Transactions on Circuits and Systems for Video Technology, 15(5), pp. 634-644, 2005. 62
[13]L. Wehmeyer and P. Marwedel, “Influence of memory
hierarchies on predictability for time constrained embedded software”, In Proc. of Design, Automation and Test in Europe, vol 1, pp. 600-605, 2005. 63
[14]F. Angiolini, M. Francesco and F. Alberto et al, “A
post-compiler approach to scratchpad mapping of code”, In Proc. of the 2004 international conference on Compilers, architecture, and synthesis for embedded systems, pp. 259-267, 2004. 64
[15]M. Verma and P. Marwedel, “Overlay techniques for
scratchpad memories in low power embedded processors’, IEEE Transactions on Very Large Scale Integration(VLSI) Systems, 14(8), pp. 802-815, 2006. 65
[16]K.D. Cooper and T.H. Harvey, “Compiler-controlled
memory”, In Proc. of the eighth international conference
on Architectural support for programming languages and operating systems,pp. 2-11, 1998. 70
[17]L. Wehmeyer, U. Helmig and P. Marwedel,
“Compiler-optimized usage of partitioned memories”, In Proc. of the 3rd workshop on Memory performance issues: in conjunction with the 31st international symposium on computer architecture, pp. 114-120, 2004. 74
[18]O. Ozturk, G. Chen, M. Kandemir and M. Karakoy et al,
“An integer linear programming based approach to simultaneous memory space partitioning and data allocation for chip multiprocessors”, In Proc. of the IEEE Computer Society Annual Symposium on VLSI (ISVLSI), pp. 50-58, 2006. 77
[19]T.Z. Chen, Y. Zhao, W. Hu and B. Xie, “Well Utilization
of Cache-Aware Scratchpad Concerning the Influence of the Whole Embedded System”, In Proc. of the 2006 IEEE/ASME International Conference on Mechatronic and Embedded Systems and Applications, pp. 26-29, 2006. 78
[20]M. Kandemir, “A. Choudhary. Compiler-directed scratch
pad memory hierarchy design and management”, In Proc. of the 39th conference on Design automation, pp. 628-633, 2002. 23
[21]O. Ozturk, M. Kandemir and I. Kolcu, “Shared scratch-pad
memory space management”, In Prec. of 7th International Symposium on Quality Electronic Design, pp. 576-584, 2006. 97
[22]A. Ramachandran and M.F. Jacome, “Xtream-fit: an
energy-delay efficient data memory subsystem for embedded media processing”, IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, 24(6), pp. 832-848, 2005. 98
[23]M. Ruggiero, A. Guerri and D. Bertozzi et al,
“Communication-aware allocation and scheduling framework for stream-oriented multi-processor systems-on-chip”, In Proc. of the conference on Design, automation and test in Europe, pp. 3-8, 2006. 100
[24]B. Scholz, B. Burgstaller and J.L. Xue, “Minimizing bank
selection instructions for partitioned memory architecture”, In Proc. of the 2006 international conference on Compilers, architecture and synthesis for embedded systems, pp. 201-211, 2006. 101
[25]S. Udayakumaran and R. Barua, “Compiler-decided
dynamic memory allocation for scratch-pad based embedded systems”, In Proc. of the 2003 international conference on Compilers, architecture and synthesis for embedded systems, pp. 276-286, 2003. 102
[26]S. Udayakumaran, A. Dominguez and R. Barua, “Dynamic
allocation for scratch-pad memory using compile-time
decisions”, ACM Trans. on Embedded Computing Sys.,
[27]P. R. Panda, N. D. Dutt and A. Nicolau et al, “Data memory organization and optimizations in application-specific systems”, IEEE Design & Test of Computers, 18(3), pp. 56-68, 2001. 118
[28]M. Kandemir and I. Kadayif, “Compiler-directed selection
of dynamic memory layouts”, In Proc. of the ninth international symposium on Hardware/software codesign, pp. 219-224, 2001. 119
[29]G. Chen, O. Ozturk, M. Kandemir and M. Karakoy,
“Dynamic scratch-pad memory management for irregular array access patterns”, In Proc. of the conference on Design, automation and test in Europe, pp. 931-936, 2006. 120
[30]A.M. Abdelkhalek and T.S. Abdelrahman, “Locality
management using multiple SPMs on the Multi-Level Computing Architecture”, In Proc. of the 2006 IEEE/ACM/IFIP Workshop on Embedded Systems for Real Time Multimedia, pp. 67-72, 2006. 121
[31]C. Zhang and F Kurdahi, “On combining iteration space
tiling with data space tiling for scratch-pad memory
systems”, In Proc of the 2005 conference on Asia South
Pacific design automation, pp. 973-976, 2005.
[32]Motorola/Freescale. MPC500 32-bit MCU Family,
http://www.freescale.com/files/microcontrollers/doc/factsh eet/MPC500FACT.pdf, 2002.
[33]Philips. LPC2290 16/32-bit Embedded CPU,
http://www.semiconductors.philips.com/acrobatdownload/ datasheets/LPC2290-01.pdf, 2004.
[34]Intel Corporation. Intel XScale® PXA27x Processor
Family, http://www.intel.com/design/pca/probref/25382 0.htm.
[35]Marvell Corporation. Marvell PXA320 Processor Series
Brief, http://www.marvell.com/products/cellular/applicati on/PXA320_PB_R4.pdf.
[36]Motorola/Freescale. Dragonball MC68SZ328 32-bit
Embedded CPU, http://www.freescale.com/files/32bit/doc/ factsheet/MC68SZ328FS.pdf, 2003.
[37]Motorola Corporation. CPU12 Reference Manual,
http://e-www.motorola.com/brdata/PDFDB/MICROCONTROLLE RS/16 BIT/68HC12 FAMILY/REF MAT/CPU12 RM.pdf, 2000.
[38]T.Z. Chen, Y. Lian and W. Hu, “Chip OS: New
Architecture for Next Generation Embedded System”, In Proc. of the 2006 International Conference on Embedded Systems and Applications (ESA'06), http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.
131.5595&rep=rep1&type=pdf, 2006.
[39]N. Zhang, J.J. Ma, J. Chen and T.Z. Chen, “SPM-Based
Boot Loader”, In Proc. of the 2008 International Conference on Embedded Software and Systems, Chengdu, China, pp. 164-168, 2008.
[40]T.Z. Chen, F. Sha, W. Hu and Q.S. Shi, “A new type of
embedded file system based on SPM”, In Proc. of the Third International Conference on Embedded Software and Systems, Daegu, Korea, pp. 174-180, 2007.
[41]T.Z. Chen, J.J. Ma, N. Zhang and Q.S. Shi, “A virus
detection framework based on SPMOS”, In Proc. of the 2008 International Conference on embedded Software and Systems, Chengdu, China, pp. 610-615, 2008.
[42]Q.S. Shi, D. Chen, N. Zhang, J.J. Ma and T.Z. Chen,
“SPMOS-based Intrusion Detection Architecture”, In Proc. of the Fifth IEEE International Symposium on Embedded Computing, Beijing, China, pp. 82-87, 2008.
[43]Q.S. Shi, D.G. Feng, J.J. Ma, N. Zhang and T.Z. Chen,
“Dual OS Support Peripheral Device Encapsulation”, In
Proc. of the Fifth IEEE International Symposium on Embedded Computing, Beijing, China, pp. 67-72, 2008.
[44]J.J. MA, M. Cao, W. Ma and T.Z. Chen, “ChipOS based
Grid Computing”, In Proc. of 7th WSEAS International conference on Simulation, Modelling and Optmization, Beijing, China, pp. 171-176, 2007.
[45]T.Z. Chen, W. Hu, B. Xie and L.K. Yan, “A Real-Time
Scheduling Algorithm for Embedded Systems with Various Resource Requirements”, In Proc. of International Workshop on Networking, Architecture, and Storages, Shenyang, China, pp. 43-46, August 2006.
[46]T.Z. Chen, J.W. Huang, J. Qian and X. Liang, “Using
Dynamic and Static Approach with Compiler-Assisted in Power Management for DVS-Enabled Embedded System”, WSEAS TRANSACTIONS on COMPUTERS, vol 6, issue 6, pp. 967-972, June 2007.
[47]K.H. Chung, M.S. Choi and K.S. Ahn, “A Study on the
Packaging for Fast Boot-up Time in the Embedded Linux”, In Proc. of 13th IEEE International Conference on Embedded and Real-Time Computing Systems and Applications, pp. 89-94, 2007.
[48]CodeSourcery. http://www.codesourcery.com/
[49]W. Hu, T.Z. Chen, B. Xie and Q.S. Shi, “Embedded
Real-Time Linux on Chip: Next Generation Operation System for Embedded System”, In Proc. of Eighth Real-Time Linux Workshop, pp. 167-172, 2006.
[50]Aleph One Company, “The Yet Another Flash Filing
System(YAFFS)”, http://www.aleph1.co.uk/yaffs/
Wei Hu was born in Xinyang, Henan Province of China in 1979. He got his bachelor degree in 2002, master degree in 2005 and Ph.D degree in 2008 with the major of computer science in Zhejiang University at Hangzhou, Zhejiang province.
He was an ASSISTANT when he was the Ph.D candidate. And he became the teacher after obtaining his Ph.D degree. Now he is the LECTURER of Zhejiang University in Hangzhou. His current research is computer architecture and embedded system.
Dr. Hu is the member of IEEE, ACM and CCF (China Computer Federation).
Tianzhou Chen was born in Lishui, Zhejiang Province of China in 1970. He entered Zhejiang University mixed class (Honors Program of Engineering), in 1990, and obtained his B.S. degree in computer software in 1994. He studied for M.S. degree in computer architecture, and received his PH.D degree in computer application from Zhejiang University in 1998.
He is a PROFESSOR of computer science at Zhejiang University. His current research is computer architecture and embedded system.
Prof. Chen is the member of IEEE, ACM and senior member of CCF (China Computer Federation).
Qingsong Shi was born in Hangzhou, Zhejiang Province of China in 1963. He obtained his B.S. degree in 1986.
After he obtained his B.S. degree, he became a LECTURER of computer science at Zhejiang University. And now he is an ASSOCIATE PROFESSOR of computer science at Zhejiang University. His current research is computer architecture and embedded system.
Assoc. Prof. Shi is the member of IEEE, ACM and CCF (China Computer Federation).
