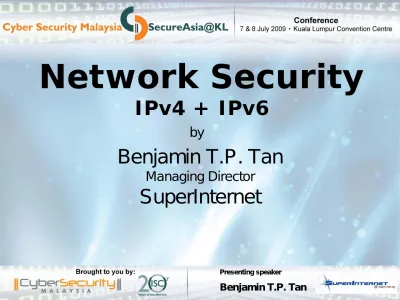

Network Security
IPv4 + IPv6
Benjamin T.P. Tan
Managing Director
SuperInternet
by
Overview
• Confidentiality? Integrity? Availability! • IPv6 Issues (Compared with IPv4)
• Physical Security of the Network Assumptions:
• Generally familiar with – Network Security
– Telecommunications Infrastructure • Technical Management
Neglected Areas
• Not the usual Topics: IPSec, VPNs, SSL VPNs, PKI,
Firewalls, IDS/IPS
– Confidentiality on the Network
• Many available solutions
• Data Integrity on the Network
– Several issues solved by end-to-end crypto
(Application) IF implemented. Else Network HELPS!
– Somewhat known solutions: DHCP Snooping, ARP
inspection, L3 Micro segmentation
– Routing Subversion
• Network Availability
– DoS at all levels
– Physical Infrastructure Weaknesses
IPv6 – Dual Stack
• 2 protocols on the same wire • VLANs still segregate
• BUT IPv4 Subnets DO NOT New-Old Problems:
• IPv6 Global Unicast Addresses
– PUBLIC IP on the machine!
– IF configured route-able then node is fully
IPv4 DHCP Issues
• Flashback before IPv6• IP Address Conflicts?! • Rogue DHCP Servers
– APs on your LAN?!
• Users Setting Static IPs
– Desktop Lockdown?
• DHCP Snooping and IP Source Guard
ip source binding mac-address Vlan vlan-id ip-address interface interface-name
(Conf-if) ip verify source vlan dhcp-snooping port-security
IPv6 – Dual Stack (Cont’d)
• Autoconfiguration– As If a DHCP server were running (but
Stateless)
– Only Router needs to be configured
• Public Address on Router? (ref. prev. slide!) Do you have a shadow network running?
• Flashback: IPv4 - Router Unresponsive due to Attack
• Data Plane can handle load, but Control Plane cannot
• Sluggish response
• Policy-Map on Control-Plane
Dual Stack Resource Contention
• Performace:– IPv6 in H/W or S/W? – Tunnels in H/W or S/W? – What about v4?
• Flooding v6 results in v4 outage as well • Control Plane Resource Issues
Flat Networks
• Network may already been segregated by VLANs, Subnets and Firewall rules between segments. Good for IPv4 – BUT… (see next slide)
• Non Dual Stack on same interface/wire.
– BUT implemented as 1 Large VLAN ?!
• IPv6 address space allows for large flat networks • Risks of large flat networks
– Same as IPv4: Layer 2 Attacks!
(Ref earlier notes about shadow networks even if separate VLAN)
ISATAP
• Intra-Site Automatic Tunnel Addressing Protocol • Summary:
– lookup IPv4 DNS for isatap.domain.name – Establish Tunnel to ISATAP server
– Get IPv6 address
• All Peers on Same Tunnel are Peers!
• What if Enterprise security model is based on VLAN-Subnet segregation?!
• New-Old Problem: Tunnels inside and outside the organization.
IPv6 Firewalls / IDS,IPS
• Does your Firewall support IPv6? • For ALL features that you need? • IDS/IPS ? Or will you do without?• Is IPv6 implemented as a tunnel over IPv4 which goes Through the Firewalls?!
Note from previous slides: IPv6 address is usually a Globally Routable IP! (“Public Address”)
Routing Protocol Security
• Dynamic Routing Issues• BGP MD5
• OSPF Area Authentication • Default Interface passive
• Bad Routes by real neighbours
• Does your Infrastructure support OSPFv3? MP-BGP? Else Static Routes? Redistributed?
Is the Dynamic Routing Protocol used in your network secured?
Miscellaneous IPv6 Issues
• EUI-64: – GUID leakage – Vendor leakage – Organization Size? • ICMPv6– Firewall “defaults” changed
• L2: Neighbour Discovery / SEcure ND
– Router/Neighbour Solicitation (“ARP”)
– SEND only in Win2008 and Win7 (not in Vista) – Overheads!
IPv6 IPSec
• IPSec is ALWAYS in the IPv6 Stack • Should you turn it on?
• What are we trading for what?
– No more MITM, Replay, sniffing, etc – Firewall? IDS / IPS?
– QoS?
Section Summary
• Watch out for weaknesses opened by transitional mechanisms.
– E.g. Dual Stacks, ISATAP, Tunnels.
• Ensure that your existing policy can be mapped to IPv6 and that feature parity is available.
– E.g. Firewall, IPS/IDS
• Several Issues are not new. Already in IPv4. IPv6 does not solve these issues.
– E.g. Dynamic Routing Protocol security
Data Centers
• E.g. Singapore: 1Net, Equinix, GlobalSwitch • Co-Lo
• [Easy] Access • TATP?!
• “Everyone” is there • Peering
Cable Landing Stations
MDF Rooms and Risers
• Cables within Buildings• Who has Access to the MDF Room? • Access to Risers?
Lead-In pipes
• Telecommunications Links
• Buildings to Telecom Exchanges • Plans generally available!
Low Tech Attacks
• Electrical Overload to Ethernet switch
– Capacitive discharge from Ethernet ports – (MDF/Riser to Router)
• Is fiber more resilient?
– Fiber fuse
• Critical Infrastructure in Car Parks...
– [salt] Water?
– Carbon Particles? – SMOKE!
