(1)

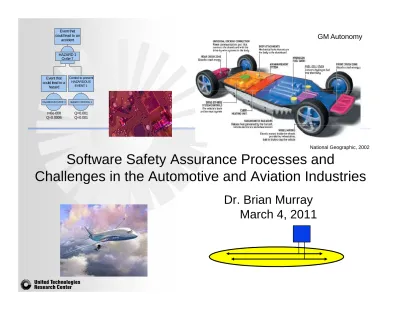

Software Safety Assurance Processes and

Challenges in the Automotive and Aviation Industries

National Geographic, 2002 GM Autonomy HAZARD 1 Q=6e-7 Event that could lead to an accident HAZARDOUS EVENT 1 Event that could lead to a hazard r=6e-008 Q=0.0006 HAZARD CONTROL 1 Control to prevent HAZARDOUS EVENT 1 Q=0.001 Q=0.001

Dr. Brian Murray

March 4, 2011

(2)

United Technologies

aerospace

systems

aerospace

systems

power

solutions

power

solutions

building

systems

building

systems

UTC Power

UTC Power

Otis

Otis

UTC Fire

UTC Fire

& Security

& Security

Hamilton

Hamilton

Sundstrand

Sundstrand

Sikorsky

Sikorsky

Carrier

Carrier

Pratt & Whitney

Pratt & Whitney

(3)

Brief Bio Brian Murray

Education

1982 – Albion College, BA physics and mathematics

1984 – Duke University, MSEE, IC manufacturing

1994 – University of Michigan, Ph.D., computer engineering

25 years in automotive industry, 1.5 years United Technologies Research

Center (aerospace and buildings)

Auto industry

General Motors and Delphi Corp.

Researcher IC design tools, especially for testing

Project manager future engine controller architecture

Project manager for system safety process development

Manager systems engineering for drive-by-wire, including embedded

systems

Manager advanced vehicle dynamics and active safety

Manager system safety for electric power steering

Currently

Manager embedded systems and networks UTRC

Principle investigator investigating design of complex systems

Professional (Relevant)

Safety-Critical Systems Session organizer/session chair, SAE

Congress, 10 years

(4)

Outline

Views of system safety

Safety-critical systems in the automotive

industry

Some comparisons of system and software

safety standards

Some comparisons of automotive and

aerospace systems

Addressing safety issues of active safety

systems

Future of design for complex systems

(5)

What is System Safety?

What are Safety-Critical Systems?

Any system with the potential to cause harm

A system defined both by what it is supposed to do and by what it is

NOT supposed to do

System Safety is the application of systems engineering principles to

ENABLE

the development of safety-critical systems by managing safety

risk

Concept

Product

in Service

Design Process

Functional Requirements

(What system is supposed to do)

Safety Process

Safety Requirements

(6)

What is System Safety?

Identify problems

Find a way to fix the problems Convincingly show that

(7)

Model for System Safety Theory & Practice

Safety-Critical

Systems

Safety

Cases

Safety

Concepts

Identify problems

Find a way to fix

the problems

Convincingly show that

(8)

Key Principles of System Safety

Risk is a function of the severity and likelihood of a mishap

Hazards are conditions that could lead to a mishap

 Caused by failures or other conditions

Hazard Controls mitigate the risk of a hazard

Standards dictate how residual risk should be evaluated

Hazard avoidance goals must be captured as realizable engineering

requirements

Add Hazard

Controls

Risk

Acceptable?

No

Yes

Deploy

Identify

Hazards

Evaluate

Residual

Risk

Avoid

Hazards

(9)

System Safety (Safety Case View)

Safety Case

 Evidence that safety requirements

are understood

 Evidence that safety requirements

are met

 Argument for acceptance of

residual risk based on the evidence

 For all stakeholders– OEMs,

Suppliers, Society

System Safety Process

 Sequence of tasks leading to the

development and acceptance of a safety case, usually involves:

 Safety Requirements

 Safety Concept

 Safety Case

 Resolution of stakeholder

requirements related to safety

Safety Case

Generic Safety

Process Steps

Customer

Requirements

Argument

Evidence

Evidence

(10)

System Safety (Process View – Work Products)

Preliminary Hazard Analysis Hazard Control Specifications (Diagnostics, Design Safety Margins, …) Safety Verification Safety Case System Safety Program Plan Hazard Control Specifications (Safety Requirements) Safety Concept & Detailed Hazard Analysis Conceptual Design Requirements Analysis Arch. Design Detailed Design Verification & Validation Production & Deploy.

(11)

Other Dependability Attributes: Reliability and Availability vs Safety

Reliability focuses on reducing overall failure

probability

Availability focuses on maximizing up-time

Safety focuses on identifying and minimizing

risks associated with hazards and avoiding

mishaps

 May identify controls for potential undesired effects rather than focus on causes

 Still require credible scenarios

Safety may decrease reliability and availability

 Diagnostics and shutdown mechanisms

Reliable systems may not be safe

 Uncovered hazards in ultra-reliable systems may be severe

 Serious accidents have occurred when all system components were functioning exactly as specified (without failure)

Safety programs prioritize concerns

 With finite design time and resources, focus on issues of biggest concern first

Reliability Safety

(12)

Motivations for System Safety in the Automotive Industry

Inflation-adjusted price

of vehicles has

declined for several

years

Auto companies seek

to identify value-adding

features to gain price

as well as market

share

Safety, Energy,

Infotainment

Society more risk

averse over time

Reduction in deaths

and injuries due to

seat belts, etc. has

leveled off

Society

Drivers

Business

Drivers

Technology

Enablers

Solid-state cameras

Network communication

systems

Safety-critical computing

platforms

Actuators capable of

autonomous control

Cars Are

Safety-Critical Systems

(13)

Safety-Critical Chassis Systems Enable Active

Safety

Braking:

Electronic Stability Control Electric Brake by Wire

Rear Steering:

Active Rear Steer

Engine:

Torque Management

Front Steering:

Electric Power Steering

Active Front Steering Steer by Wire

Controlled Suspension:

Controlled Dampers Active Stabilizer Bar

(14)

Active Safety Path

In

c

re

a

s

in

g

s

y

s

te

m

a

u

to

n

o

m

y

Time

360° surround sensing & autonomous vehicle control

collision warning system collision avoidance system GPS/Maps Vehicle-to-Vehicle communication Intersection/Roadway Infrastructure Satellite-linked communication Stand-alone systems

Adaptive Cruise Control Lane/Roadway departure Side detection

Backup Aid ESC & RSE

Sensor-fusion Integrated Systems

Driver Support system

Collision warning & mitigation Pre-crash & mitigation

Lane-change assist Lane-keeping

Advanced Stability Control – Coordination of ESC and other chassis systems

(15)

Attributes of Automotive Systems

High expectations for quality

 Less than 1 ppm

 10yrs, 100,000 -> 20yrs, 250,000 -> Lifetime

 Low expectations for maintenance

Efficiency

 Engineers fight over inches of space and pennies of cost

Safety

 In the US alone, the total vehicle miles traveled is measured in billions  Around the world there are about 806

million cars and light trucks on the road

 Goal: zero traffic deaths

Electronics market driver

 Automotive market has not driven the electronics market since the 1980s

High production volumes and

user populations

 In 2007, 71.9 million new

automobiles were sold worldwide

Large diversity of users

 In countries with the highest growth, many people have never even driven cars

Complexity

 Configuration complexity

 Brands, models, dozens of controllers per vehicle  System complexity

 Until now moderate complexity

 New active safety systems are rapidly growing in complexity

(16)

Attributes of Aerospace Systems

High expectations for safety

 Focused on very low failure rates for

critical components, e.g., 10-9

 Continuous maintenance

Efficiency

 Engineers fight over inches of space but worry less about cost

Electronics market driver

 Specialty electronics

 Driven to, but reluctant to use COTS

Very low production volumes

but high passenger

populations

Low diversity of users – only

highly trained pilots

Complexity

(17)

System Safety Standards & Guidelines

Regula-tions

Analysis

Mechanical

Electrical/

Electronics

Software

System/SW Safety Process

Reliability

MIL-Std-882C/D

DEF Std 00-56

SAE FMEA

VDA FMEA

NUREG

0492

FTA

FMVSS 135

ISO 26262

Mil-Hdbk-217

RDF 2000/UTEC 80810

MISRA

DO-178B

00-55

IEC 61508

(18)

One Page History of System Safety Standards in

Automotive

1990 – Motor Industry Software Reliability Association (MISRA)

publishes guidelines for safety-critical automotive software

 Very influential, but not a safety process

1993 – MIL-STD-882C published – primary strategy for system

safety in US

1998 – MIL-STD-882C used within US automotive industry

1998 – IEC 61508 safety standard published

 Very influential in Europe

 Framework standard

 Adopted by European vehicle manufacturers

July 2009 – Draft International Standard ISO 26262

June 2011 – Final DIS (FDIS) ISO 26262 expected

(19)

IEC 61508

IEC 61508 developed by IEC Industrial-Process Measurement

Committee

Equipment Under Control

EUC Control

System

Safety-Related

System

Equipment Under Control

EUC Control System &

Safety-Related System

Safety Functions

(A) Separate

Safety-Related System

(B) Integrated

Safety-Related System

Electrical/Electronic/Programmable Electronic System

Focus of

IEC 61508

(20)

ISO 26262 vs IEC 61508

IEC 61508:

 Framework standard

 Scope: functional aspects of

electronic, electrical and software systems

 Implied context of

Process/Automation industries (where validation is done after install)

 Safety Integrity Levels, “SIL”

 SIL 1 – SIL 4

 Focus on safety functions

 Architectural metrics

 Defines acceptable software process

elements according to SIL

ISO CD 26262:

 IEC 61508 Automotive Sector adaptation

 Brings in some concepts of

MIL-STD-882

 Applies to passenger vehicles

 Automotive SIL, “ASIL”

 Expands SIL1-3 to four (ASIL A-D)

 SIL4 not applicable

 No top-level probability associated

with an ASIL

 Focus on safety goals

 Adds required work products

 New architectural metrics

 Defines acceptable software process

(21)

DO 178B vs ISO 26262

International: jointly developed by US RTCA SC-167 and the European

Organization for Civil Aviation Equipment (EUROCAE) WG-12

DO 178B

 Provides guidelines for the production

of software for airborne systems and equipment

 Design Assurance Levels – A-E

 Increasing number of software process

objectives and independence with level

 Highest level includes suggestions for

software coverage techniques such as MCDC

 Addresses software requirements only

 Focused toward suppliers of electronic

systems

 Highly detailed but not prescriptive

 Implies high degree of documentation

ISO CD 26262:

 Focused on automotive industry

 Automotive Safety Integrity Levels – A-D

 Includes notion of controllability

 Increasing number of software process

objectives with level

 Highest level includes suggestions for

software coverage techniques such as MCDC

 Addresses functional safety associated

with electronic controllers – hardware and software

 Addresses both design faults in hardware

and software as well random failures in hardware

 Addresses both OEM and supplier issues

 Highly detailed – sometimes prescriptive

(22)

Proposed Automotive Active Safety System

Taxonomy and Examples*

System Classification Example Feature Driver Interaction Type Expected Driver

Responsibility Potential Safety Risk

Driver Information

Monitor / Supervise

Non Safety Related NA

Safety Related Rear back up camera No Monitoring /

No Supervision

Non Safety Related NA

Safety Related Engine Temperature

Driver Warning

Monitor / Supervise

Non Safety Related NA

Safety Related Rear back up alert No Monitoring /

No Supervision

Non Safety Related NA

Safety Related Red Brake Tell Tale Vehicle Action /

Control

Monitor / Supervise

Non Safety Related NA

Safety Related Lane Keeping System No Monitoring /

No Supervision

Non Safety Related NA

(23)

Emerging Guideline: PReVENT/RESPONSE 3

Project

European project to develop an Advanced Driver Assistance Systems Code of

Practice

CoP describes a methodology for evaluating and assessing interactions

between the driver (and vehicle occupants) and the system being controlled

Provides guidance to help ensure potential issues of concern are identified and

resolved during development

Coupling CoP and ISO 26262

 CoP helps identify

safety-related requirements

 26262 helps ensure safety

requirements are

implemented with high integrity

 Helps ensure the safety-critical aspects of

active safety systems are handled appropriately

(24)

Thoughts on Future of Complex Embedded Systems

All products (not just automotive or aerospace)

are increasingly adding autonomous features –

adding functional complexity

Modularity and networking provide opportunity

for creating new systems but also add complexity

Testing all of the states of these systems is

impractical

Increasing trend toward “Model-Based Design”

Inspiration is the integrated circuit industry

Design proceeds through series of

abstraction levels

Models are the primary design artifact (as

opposed to code or drawings)

Verification and validation primarily aimed at

models and aided by automated reasoning

Code and hardware synthesized from

models, in some cases

“correct-by-construction”

Testing aimed at confirmation

Safety cases (certification packages, …) should

become modular and incremental

Appropriate reasoning about need and type

of verification and validation for all design

modifications

off on regen Dynamics Discrete control inputs Guard condition based on state

References

Related documents
