Temperature Variation. Temperature Fluctuation at 37 [± / ] Temperature Variation. Temperature Fluctuation 0.5 / / 0.18

(1)

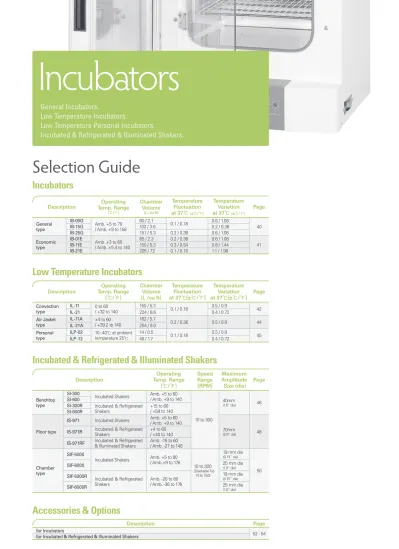

General Incubators.

Low Temperature Incubators.

Low Temperature Personal Incubators.

Incubated & Refrigerated & Illuminated Shakers.

Incubators

Selection Guide

Incubators

Description Temp. RangeOperating

(℃/℉) Chamber Volume (L /cu ft) Temperature Fluctuation at 37℃ [±℃/℉] Temperature Variation at 37℃ [±℃/℉] Page General type IB-05G Amb. +5 to 70 / Amb. +9 to 158 60 / 2.1 _{0.1 / 0.18} 0.6 / 1.08 40 IB-15G 102 / 3.6 0.2 / 0.36 IB-25G 151 / 5.3 0.2 / 0.36 0.6 / 1.08 Economic type IB-01E _{Amb. +3 to 60} / Amb. +5.4 to 140 65 / 2.3 0.2 / 0.36 0.6 / 1.08 41 IB-11E 150 / 5.3 0.3 / 0.54 0.8 / 1.44 IB-21E 205 / 7.2 0.1 / 0.18 1.1 / 1.98

Low Temperature Incubators

Description Temp. RangeOperating (℃/℉) Chamber Volume (L /cu ft) Temperature Fluctuation at 37℃[±℃/℉] Temperature Variation at 37℃[±℃/℉] Page Convection type IL -11 0 to 60 / +32 to 140 150 / 5.3 0.1 / 0.18 0.5 / 0.9 42 IL -21 224 / 8.6 0.4 / 0.72 Air Jacket

type IL -11AIL -21A +4 to 60/ +39.2 to 140 162 / 5.7 254 / 9.0 0.2 / 0.36 0.5 / 0.9 44 Personal type ILP -02 10~40℃ at ambient temperature 25℃ 14 / 0.5 0.1 / 0.18 0.5 / 0.9 45 ILP -12 48 / 1.7 0.4 / 0.72

Incubated & Refrigerated & Illuminated Shakers

Description Temp. RangeOperating (℃/℉) Speed Range [RPM] Maximum Amplitude

Size (dia) Page

Benchtop type

SI-300 _{Incubated Shakers} Amb. +5 to 60 / Amb. +9 to 140

10 to 300 40mm

(1.6” dia) 46

SI-600

SI-300R Incubated & Refrigerated

Shakers +15 to 60 / +59 to 140 SI-600R

Floor type

IS-971 Incubated Shakers Amb. +5 to 60_{/ Amb. +9 to 140}

70mm

(2.8” dia) 48

IS-971R Incubated & Refrigerated _Shakers +4 to 60 _{/ +40 to 140} IS-971RF Incubated & Refrigerated _{& Illuminated Shakers} Amb. -15 to 60 _{/ Amb. -27 to 140}

Chamber type

SIF-5000

Incubated Shakers Amb. +5 to 80 _{/ Amb.+9 to 176}

10 to 300 (Stackable Top : 10 to 250) 19 mm dia (0.75” dia) 50

SIF-6000 25 mm dia_{(1.0” dia)}

SIF-5000R _{Incubated & Refrigerated}

Shakers Amb. -20 to 80 / Amb. -36 to 176

19 mm dia

(0.75” dia)

SIF-6000R 25 mm dia_{(1.0” dia)}

Accessories & Options

Description Page

for Incubators _{52 - 54}

(2)

Safety functions

1) Self-protecting cut-off function and signal - For over temperature, the power supply is

automatically cut from the heater and controller systematically before the unit shuts down. - 2 separate over-current fuses for user safety. 2) Time setting function for automated ON / OFF. - Integrated time setting: Delayed ON / OFF. (from 1 min to 99 hr 59 min)

- Operating settable function: After a power inter-ruption, select automated run or manual run. 3) Door-open warning alarm :

- Intermittent tone and optical signal alarm 5 min. after automated cut-off.

- Heating element and fan automaically stop when door opening to minimize heat loss and protect operator.

Optimum control performance

1) Profession electronic controls and program control. - Microprocessor PID temperature control with

very simple calibration and auto-tuning features. - Conveniently preset 3 most commonly used

temperature settings.

- Select between Celsius and Fahrenheit. - Self-diagnostic function identifies any errors and

advises the user with the correct procedure.

2) Applicable control display considering HMI (Human Machine Interface) network system :

- Very similar key arrangement throughout the whole temperature chambers, bath circulators and shakers series.

- Operator-friendly controller with the splash-proof / easy-to-clean keypads and clear LED displays.

- A quick lock button prevents accidental resetting of parameters. (Only incubatator series)

- Shaker and lamp mechanism have their own ON / OFF switch for independent incubation. (Only SI, SIF, IS-971RF series)

Ideal construction

1) High quality 304 grade stainless steel inner chamber and dirt-repellent powder coating external surface.

2) Perfectly sealed door gasket minimizes heat loss and fully insulated chambers keep the exterior at a safe temperature.

3) Adjustable stainless steel and electro polished wire shelves allows for better air-flow and allow for easy clean. (Only IB, SIF series)

Technical Benefits

General Applications

General applications

General, Low temp.

& Low temp. personal Incubators Incubated & Refrigerated & Illuminated Skakers

IB series IL series ILP series SI & SIF series IS series

Antibody Testing • • •

Bacterial Research • •

Bacterial suspensions • •

Chemical Storage • •

Chick Embryo Studies • •

Clinical Science • • •

Cultivating Low Temperature Microbes

and Plant Cells •

Crystallization Studies • •

Cultivating Thermophilic Bacteria •

Drying And Staining Procedures • •

Denaturalizing Tests for Food • •

Environmental technology

(waste water and soil analysis) • •

Enzyme Digestion Studies • •

Extraction procedures • •

Fermentation

(Pharmacy and biotech -DNA and Enzymes) • •

General mixing • •

Hematological Testing • • •

Histochemical Procedures • •

Measuring COD/ BOD •

Medical researches. (Diagnostic tests) • •

Microbiological Determinations • • •

Microorganism • • •

Molecular biology • •

Organism Germs for Life Science • • •

Organism Pharmacy • • •

Paraffin Embedding • •

Pharmaceutical Stability Testing •

Plasmid purification • •

Protein expression in bacteria • •

Solubility • •

Staining and destaining • •

Tissue Culturing • • •

(3)

40 Incubators

- General type

Exclusive gravity convection type incubators

for all laboratory purposes.

IB-G series are the most useful incubators for general purpose use

air-jacketed

convection style for excellent temperature variation without external air

disturbance.

Operating features

• +5℃ above room temperature to 70℃.

• Microprocessor PID control / Auto-tuning / Calibration.

• Digital timer: 1 min ~ 99 hr 59 min, delayed ON / OFF.

• Over-temperature limiter / Door open alarm.

• 3 different temperature values memorable.

• Digital LED display (0.1℃ resolution) using touch-sensitive keypads.

• RS-232 interface available.

Constructional features

• Fully insulated dual-wall door with rubber magnetic seal gasket keeps setting temperature.

• Stackable two high using the stacking kit. (optional)

• Optimized sample inspection through a tempered inner glass door without affecting the chamber temperature.

• Detachable shelves and rounded inner chamber corners for easy cleaning.

• Highly durable incoloy heating element with fins that guarantee better radiation.

• Attach other electric instruments to the inside of the chamber through a side cable port.

• Cable port allow for control of the amount of airflow in the cha-mber. (dia 38mm/1.5℃, Provided silicon or rubber cap)

IB-05G

Included Accessories • 2 wire shelves

Optional Accessories • Perforated shelves

see page 52 • Stacking kits for stackable chambers

Incubators

Specifications & Ordering Informations

Model IB-05G IB-15G IB-25G

Chamber Volume (L / cu ft) 60 / 2.1 102 / 3.6 151 / 5.3 Temperature Range (℃ / ℉) Amb. +5 to 70 / Amb. +9 to 158 Fluctuation 1)_{(±℃ / ℉)}_{at 37}_℃ _{0.1 / 0.18} _{0.1 / 0.18} _{0.2 / 0.36} Variation 1)_{(±℃ / ℉)}_{at 37}_℃ _{0.6 / 1.08} _{0.2 / 0.36} _{0.6 / 1.08} Dimensions (W×D×H) Interior (mm / inch) 400×360×420 _{/ 15.7×14.2×16.5} 480×410×520 _{/ 18.9×16.1×20.5} 610×460×540 _{/ 24×18×21.3} Exterior (mm / inch) 595×555×745 _{/ 23×22×29} 675×605×855 _{/ 27×24×34} 805×655×885 _{/ 32×26×35} Net weight (Kg / lbs) 45 / 99 55 / 121 62 / 136

Electrical Requirements (230V, 50 / 60Hz) 1.3A 2.2A 3.1A

Cat. No. AAH21162K AAH21172K AAH21182K

Cat. No. AAH21166U AAH21176U AAH21186U 1) Technical data. (according to DIN 12880)

(4)

41 Specifications & Ordering Informations

Model IB-01E IB-11E IB-21E

Chamber Volume (L / cu ft) 65 / 2.3 150 / 5.3 205 / 7.2 Temperature Range (℃ / ℉) Amb. +3 to 60 / Amb. +5.4 to 140 Fluctuation 1)_{(±℃ / ℉)}_{at 37}_℃ _{0.2 / 0.36} _{0.3 / 0.54} _{0.1 / 0.18} Variation 1)_{(±℃ / ℉)}_{at 37}_℃ _{0.6 / 1.08} _{0.8 / 1.44} _{1.1 / 1.98} Dimensions (W×D×H) Interior (mm / inch) 423×355×445 _{/ 16.7×14×17.5} 500×515×585 _{/ 19.7×20.3×23} 632×515×630 _{/ 24.9×20.3×24.8} Exterior (mm / inch) 533×475×725 _{/ 21×18.7×28.5} 595×630×865 _{/ 23.5×24.8×34} 740×630×910 _{/ 29.1×24.8×35.8} Net weight (Kg / lbs) 33 / 72.8 47 / 103.6 57 / 125.7

Cat. No. AAH26015K AAH26025K AAH26035K

Incubators

- Economic type

Space saving design and dependable, trouble-free heating system.

Operating features

• +3℃ above room temperature to 60℃.

• Over-temperature limit / Door open alarm.

• Preset 3 most commonly used temperature settings.

• Digital LED display (0.1℃ resolution) using touch-sensitive keypads.

Constructional features

• Completely safe anti-vibration design is helpful for cultivating yeast.

• Space saving dimensions, lightweight, and compact design with fully sealed gasket.

• Stackable two high using the stacking kits. (optional)

• Without affecting the chamber temperature Sample inspection viewing is made easy due to the inner tempered glass door.

• Detachable shelves and rounded inner chamber corners allow for easy cleaning.

IB-E series complete inner chamber is a film type heater that is perfectly safe, it is vibration

and noise free, and in addition it is most likely to not have mechanical troubles.

IB-01E

Optional Accessories • Perforated shelves

see page 52 • Stacking kits for stackable chambers

(5)

42 Low Temperature Incubators

IL-21 / IL-21A

Incubators

Please visit

.com

For further information on Jeio Tech´s Low Temperature Incubators products Information is readily available on our website.

(6)

43 Low Temperature Incubators

- Forced Convection

Intensive low temperature incubating performance with compressor

cooling system.

IL series has an excellent HBP type compressor cooling system which is noiseless and

reduces water-evaporation within the chamber.

IL-21

Included Accessories • 2 wire shelves for IL -11 • 3 wire shelves for IL -21

Optional Accessories • Perforated shelves see page 52

Incubators

Operating features

• 0℃ to 60℃.

• 9 step temperature and up to 200 cycles of repetition programmable for each profile.

• Adjustable 3 step fan speed with defrosting time / period control.

• Digital LED display (0.1℃ resolution) using touch-sensitive keypad.

Constructional features

• Forced-air convection with an optimal cross flow type fan for excellent variation.

• Large size chamber with maximum of 244L. (8.6cu ft)

• One electrical outlet with a safety cover which other electronic instruments can be used in the chamber.

• Viewing is made easy due to the inner tempered glass door.

Specifications & Ordering Informations

Model IL -11 IL -21 Chamber Volume (L / cu ft) 150 / 5.32 244 / 8.6 Refrigerator (Hp) 1 / 8 HBP 1 / 6 HBP Temperature Range (℃ / ℉) 0 to 60 / +32 to 140 Fluctuation 1)_{(±℃ / ℉)}_{at 25}_℃ _{0.1 / 0.18} Variation 1)_{(±℃ / ℉)}_{at 25}_℃ _{0.5 / 0.9} _{0.4 / 0.72} Dimensions (W×D×H) Interior (mm / inch) 600×500×500 _{/ 24.0×20.0×20.0} 500×520×940 _{/ 20.0×20.5×37.0} Exterior (mm / inch) 735×742×1010 _{/ 28.9×29.0×40.0} 635×740×1630 _{/ 25.0×29.0×64.0} Net weight (Kg / lbs) 100 / 220.0 135 / 297.0

Electrical Requirements (230V) 50Hz, 4.5A 60Hz, 4.5A 50Hz, 6.4A 60Hz, 6.4A

Cat. No. AAH22042K AAH22041K AAH22052K AAH22051K

Electrical Requirements (120V) 60Hz, 8.3A 60Hz, 10.6A

Cat. No. AAH22046U AAH22056U 1) Technical data (according to DIN 12880)

(7)

44 Operating features

•+4℃ to 60℃.

• 9 step temperature and up to 200 cycles of repetition program-mable for each profile.

• Adjustable defrosting time / period control.

Constructional features

• Air-jacketed type: independently exchanges heat outwardly with inner gravity convection.

• Large size chamber with a maximum volume of 254L. (9cu ft)

• One electrical outlet with safety cover allows use of other electric instruments in the chamber.

• Viewing is made easy due to the inner tempered glass door.

IL-11A

Included Accessories • 2 wire shelves for IL-11A • 3 wire shelves for IL-21A

Low Temperature Incubators

- Air-jacket

Air-jacketed convection type incubators, prevent outside air disturbance

in the inner chamber and has excellent temperature variation.

IL-A series is perfectly safe from water-evaporation due to the use of an evaporator cooling

system or blower, especially ideal for incubating tests that consist of easily drying samples

outside.

Incubators

Specifications & Ordering Informations

Model IL -11A IL -21A

Chamber Volume (L / cu ft) 162 / 5.7 254 / 9.0 Refrigerator (Hp) 1 / 6 HBP 1 / 4 HBP Temperature Range (℃ / ℉) +4 to 60 / +39.2 to 140 Fluctuation 1)_{(±℃ / ℉)}_{at 25}_℃ _{0.2 / 0.36} Variation 1)_{(±℃ / ℉)}_{at 25}_℃ _{0.5 / 0.9} Dimensions (W×D×H) Interior (mm / inch) 600×540×500 _{/ 24×21.3×20} 500×540×940 _{/ 20×21.3×37} Exterior (mm / inch) 770×772×1060 _{/ 30×30×42} 670×760×1680 _{/ 26×30×66} Net weight (Kg / lbs) 108 / 238.1 145 / 319.7

Cat. No. AAH22063U AAH22073U 1) Technical data. (according to DIN 12880)

(8)

45 Low Temperature Personal Incubators

Compact, lightweight with reliable incubating performance for

important testing.

Operating features

•+10℃ to 40℃ at room temperature 25℃.

• Over-temperature limit.

• 9 step temperature and up to 200 cycles of repetition program-mable for each profile.

Constructional features

• Tempered inner glass door is equipped with all models! (14L / 48L)

• Maximum 2×1000mL Erlenmeyer flasks can be stored in the smallest chamber. (14L)

• Environment-friendly insulation material-EPDM used for safety and convenience. (ASTM-C534)

• Space-saving compact size on bench-top and easily stackable.

ILP series has a thermal electric module-Peltier cooling chip type which is very quiet, with

no vibration, and small generation of heat to just fit a bench-top personal incubator!

ILP-02 stackable chambers

Included Accessories • 1 wire shelf for ILP-02 • 2 wire shelves for ILP-12

Incubators

Specifications & Ordering Informations

Model ILP -02 ILP -12

Chamber Volume (L / cu ft) 14 / 0.5 48 / 1.7 Temperature

Range (℃ / ℉) 10~40℃(50~104℉) at ambient temperature 25℃

Fluctuation 1)_{(±℃ / ℉)}_{at 25}_℃ _{0.1 / 0.18} Variation 1)_{(±℃ / ℉)}_{at 25}_℃ _{0.5 / 0.9} _{0.4 / 0.72} Dimensions (W×D×H) Interior (mm / inch) 315×200×230 _{/ 12.4×7.9×9.1} 334×334×430 _{/ 13.1×13.1×17} Exterior (mm / inch) 430×495×400 _{/ 17×19.4×15.7} 430×665×620 _{/ 17×26.2×24.4} Net weight (Kg / lbs) 27.5 / 60.6 49 / 108

Cat. No. AAH24033U AAH24043U 1) Technical data. (according to DIN 12880)

(9)

46

SI-600R Control Display

Incubated Shakers

- Benchtop type

SI-600R

Optional Accessories • Universal / Dedicated platforms, Rubber mats, Universal attachments see page 78-81 • Flask clamps, Funnel clamps

• Test tube racks, Spring wire racks • Microplate holders (three styles)

• Lab sticker

Incubators

Please visit

.com

For further information on Jeio Tech´s Incubated Shaker products Information is readily available on our website.

(10)

47 Shaking features

•Select between orbital or reciprocating action.

• Speed range: 10 to 300 rpm.

• Programmable shaking motion.

- Run time: 10 sec to 999 hr 59 min 59 sec.

- Forward & Backward, Pause: 10 sec to 59 min 59 sec.

• Maximum orbit size: 40mm dia. (1.6˝ dia.)

Operating features

• +5℃ above room temperature to 60℃ for SI-300, 600. +15℃ to 60℃ for SI-300R, 600R.

• Digital timer: 1 min to 99 hr 59 min, delayed ON / OFF.

• Digital LED display for temperature (0.1℃ resolution), speed, and shaking motion.

• Adjustable 3 step fan speed.

Constructional features

•Brushless DC motor for long maintenance-free use.

• High-velocity fan ensures rapid thermal recovery and excellent temperature variation.

• Gas spring door and lid guards against sudden closures.

• Acryl lid and inner lamp functions allow observation of flask contents.

• Uses CFC-free refrigerant. (for SI - 300R, 600R)

• Attached fluorescent lamp offered bright observation in a chamber.

Inside of SI series

Incubated Shakers

- Benchtop type

Combines a benchtop incubator, refrigerator with dual-action in orbital and reciprocating

shaker. Fulfills a variety of molecular biology, general incubation, and cell culture

applications.

Digital incubating/ refrigerating benchtop shakers.

Incubators

Specifications & Ordering Informations

Model SI-300 SI-300R SI-600 SI-600R

Temperature

Range (℃ / ℉) Amb. +5 to 60 _{+15 to 60} (Amb. +9 to 140) for SI-300, 600 (+59 to 140) for SI-300R, 600R Fluctuation 1)_{at 37}_℃_{(±℃ / ℉)} _{0.3 / 0.54} _{0.6 / 1.08} _{0.1 / 0.18} _{0.2 / 0.36} Variation 1)_{at 37}_℃_{(±℃ / ℉)} _{1.6 / 2.88} _{1.5 / 2.7} _{0.7 / 1.26} _{0.3 / 0.54} Refrigerator (Hp) - 1 / 8 HBP _{1 / 6 HBP}(220V, 230V) - 1 / 8 HBP (220V, 230V) (100V, 120V) 1 / 6 HBP (100V, 120V) Shaking system

Motion type Orbital or Reciprocating motion selectable

Speed range (RPM) 10 to 300

Timer _{Forward & Backward, Pause: 10 sec to 59 min 59 sec}Run time: 10 sec to 999 hr 59 min 59 sec Amplitude size (mm / inch, dia.) 20, 30, 40 / 0.8, 1.2, 1.6 Available - Standard 30 / 1.2

Recip stroke length (mm / inch) 20, 30, 40 / 0.8, 1.2, 1.6 Available - Standard 30 / 1.2 Dimensions Volume (L / cu ft) 53 / 1.9 83 / 2.9 Platform (W×D) (mm / inch) 350×350 / 13.8×13.8 450×450 / 17.7×17.7 Internal (W×D×H) (mm / inch) 410×410×320 / 16.1×16.1×12.6 510×510×320 / 20.1×20.1×12.6 Overall (W×D×H) (mm / inch) 442×740×622 / 17.4×29.1×24.5 542×850×622 / 21.4×33.5×24.5 Net weight (Kg / lbs) 74 / 163 85 / 187 91 / 200 102 / 225

Electrical Requirements (230V) 50 / 60Hz, 4.0A 60Hz, 5.5A 50Hz, 5.5A 50 / 60Hz, 4.0A 60Hz, 5.5A 50Hz, 5.5A

Cat. No. AAH23105K AAH23111K AAH23112K AAH23205K AAH23211K AAH23212K

Electrical Requirements (120V) 50 / 60Hz, 7.5A 60Hz, 10.1A 50 / 60Hz, 7.5A 60Hz, 10.1A

Cat. No. AAH23106U AAH23113U AAH23206U AAH23213U 1) Technical data. (according to DIN 12880)

(11)

48

IS-971R Control Display

Incubated Shakers

- Floor type

IS-971R

Optional Accessories • Universal / Dedicated platforms, Rubber mats, Universal attachments

see page 53-55 • Flask clamps, Funnel clamps • Test tube racks, Spring wire racks • Microplate holders (three styles)

• Lab sticker

Incubators

Please visit

.com

For further information on Jeio Tech´s Incubated Shaker products Information is readily available on our website.

(12)

49 Incubated Shakers

- Floor type

Large and heavy capacity shaking with rapid heating / cooling

performance.

Advanced shaking for heavy workload and flask up to maximum 4×6L.

Exclusive drive mechanism delivers years of dependable service.

Shaking features

•Speed range: 10 to 300 rpm.

•Programmable shaking motion.

•Maximum orbit size: 70mm dia. (2.8˝ dia.)

Operating features

• +5℃ above room temperature to 60℃ for IS-971 -15℃ above room temperature to 60℃ for IS-971RF +4℃ to 60℃ for IS-971R.

•Microprocessor PID control / Auto-tuning / Calibration.

•Digital timer: 1 min to 99 hr 59 min, delayed ON / OFF.

•Over-temperature limit/ Door open alarm.

• Digital LED display for temperature (0.1℃ resolution), speed, and shaking motion.

Constructional features

• Viewing window in top-opening provides a clear inner chamber view, minimizing the need for opening the lid. (without IS - 971RF)

• Controlling 5 steps illumination lamp available. (Max. 12,000 lux IS-971RF)

• Gas spring door and lid guards against sudden closures.

• Casters easily makes the unit mobile.

• Door can be secured with a lock and key.

• Uses CFC-free refrigerant. (for IS-971R, IS-971RF)

Inside of IS series

Incubators

Specifications & Ordering Informations

Model IS-971 IS-971R IS-971RF

Temperature

Range (℃ / ℉) _{/ Amb. +9 to 140}Amb. +5 to 60 +4 to 60 / +40 to 140 Amb. -15 to 60 / Amb. -27 to 140

Fluctuation 1)_{at 37}_℃_{(±℃ / ℉)} _{0.2 / 0.36}

Variation 1)_{at 37}_℃_{(±℃ / ℉)} _{0.8 / 1.44}

Refrigerator -_- _{1 / 6 HBP}1 / 3 LBP (AC 120V) 1 / 3 LBP (AC 120V)

(AC 230V) 1 / 4 HBP (AC 230V)

Shaking system

Motion type Orbital or Reciprocating motion selectable

Speed range (RPM) 10 to 300

Timer _{Forward & Backward, Pause: 10 sec to 59 min 59 sec}Run time : 10 sec to 999 hr 59 min 59 sec Amplitude size (mm / inch, dia.) 30, 40, 50, 60, 70 / 1.2, 1.6, 2.0, 2.4, 2.8 Available - Standard 30 / 1.2 Recip stroke length (mm / inch) 30, 40, 50, 60, 70 / 1.2, 1.6, 2.0, 2.4, 2.8 Available - Standard 30 / 1.2

Dimensions Volume (L / cu ft) 270 / 9.5 Platform (W×D) (mm / inch) 755×481 / 29.7×18.9 Internal (W×D×H) (mm / inch) 894×634×480 / 35.2×25.0×18.9 Overall (W×D×H) (mm / inch) 1,132×810×1,045 / _{44.6×31.9×41.1} 1,132×810×1,075 /_{44.6×31.9×42.3} Net weight (Kg / lbs) 180.0 / 396.8 195.0 / 429.9 210.0 / 462.9

Electrical Requirements (230V) 50 / 60Hz, 5.2A 60Hz, 7.3A 50Hz, 7.3A 60Hz, 9.3A 50Hz, 9.3A

Cat. No. AAH23306K AAH23321K AAH23322K AAH23351K AAH23352K

Electrical Requirements (120V) 60Hz, 11.2A 60Hz, 13.8A 60Hz, 17.0A

※Certification only for the IS-971, IS-971R.

(13)

50 Incubated Shakers

- Chamber type

Incubators

SIF-6000R Control Display

SIF-6000R

Optional Accessories • Universal / Dedicated platforms, Rubber mats, Universal attachments see page 52-55 • Flask clamps, Funnel clamps

• Test tube racks, Spring wire racks • Microplate holders (three styles)

• Lab sticker

Please visit

.com

For further information on Jeio Tech´s Incubator products Information is readily available on our website.

(14)

51 Incubated Shakers

- Chamber type

Space- saving provides various locations on/under your lab benches,

or double-stacked on the Floor

Multi-purpose laboratory incubated shakers accept flasks up to 2ea x 6 L

(SIF-6000(R)).

Two adjustable-height shelves provide added incubating or storage samples.

Incubators

Shaking features

•Speed range: 10 to 300 rpm. (Stackable Top :10 to 250)

•Programmable shaking motion.

• Maximum orbit size : 19mm / 0.75″ dia (SIF 5000/R), 25mm / 1.0″ dia (SIF 6000/R)

Operating features

• +5℃ above room temperature to 80℃ for SIF-5000/6000 -20℃ below room temperature to 80℃ for SIF-5000R/6000R

•Microprocessor PID control / Auto-tuning / Calibration.

•Digital timer: 1 min to 99 hr 59 min, delayed ON / OFF.

•Over-temperature limit / Door open alarm.

• Digital LED display temperature (0.1℃ resolution), speed and shaking motions.

•Preset 3 most commonly used temperature settings.

• Adjustable fan speed within 3 steps and defrosting time / period control.

•RS-232 interface available.

Constructional features

•Stackable 2 steps up to maximize spave efficiency.

• Viewing window in the front-opening provides a clear inner chamber view, minimizing the need for opening the lid.

•Observation lamp as standard.

• Electrical socket inside chamber provides power to small equipments

•Casters easily makes the unit mobile.

•Door can be secured with a lock and key.

•Uses CFC-free refrigerant. (For SIF-5000R/6000R)

Inside of SIF series

Specifications & Ordering Informations

Model SIF-5000 SIF-5000R SIF-6000 SIF-6000R

Temperature 1)

Range (℃ / ℉) _{Amb.-20 to 80}Amb.+5 to 80 [Amb.+41 to 176] for SIF -5000, 6000 [Amb. -4 to 176] for SIF -5000R, 6000R

Fluctuation at 37℃(±℃ / ℉) 0.1 / 0.18

Variation at 37℃(±℃ / ℉) 1.0 / 1.8

Refrigerator (Hp) - 1/8Hp, HBP - 1/6Hp, HBP

Shaking system

Motion type Orbital or Reciprocating motion (Default : Orbital motion)

Speed range (RPM) 10 to 300 (Stackable Top :10 to 250)

Timer _{Pause, Forward, Backward}Run time(10sec ~ 999hr 59min 59sec) _{(10sec ~ 59min 59sec)} Amplitude size (mm / inch, dia.) 13, 19 / 0.5, 0.75 Available - Standard 19 / 0.75

Recip stroke length (mm / inch) 19, 25 / 0.75, 1.0 Available - Standard 25 / 1.0

Dimensions

Volume (L / cu ft) 80 / 2.8 150 / 5.3

Platform (W×D, mm / inch) 350×350 / 13.8x13.8 450×450 / 17.7×17.7

Interior (W×D×H, mm / inch) 440×440×418 / 17.3×17.3×16.5 540×540×518 / 21.3×21.3×20.4 Exterior (W×D×H, mm / inch) 570×815×900 / 22.4×32.1×35.4 670×895×980 / 26.4×35.2×38.6

Shelves (Standard / Max) 2 / 8 2 / 11

Net weight (kg / Ibs) 120 / 264.6 130 / 286.6 140 / 308.6 150 / 330.7

Electrical Requirements (230V) 50 / 60Hz, 5.4A 60Hz, 7.2A 50Hz, 7.2A 50 / 60Hz, 5.4A 60Hz, 7.3A 50Hz, 7.3A

Cat. No. AAH27025K AAH27121K AAH27122K AAH27015K AAH27111K AAH27112K

Cat. No. AAH27026U AAH27123U AAH27016U AAH27113U

※ Permissible ambient Condition : Temperature 5℃ to 40℃, Maximum relative humidity 80% ※ All specifications are under ambient temperature 20℃(with refrigerator) / 25℃(without refrigerator), no load

(15)

52 Accessories & Options for Incubators

Incubators

Universal Platforms

Wire Shelves Perforated Shelves

Wire Shelves

Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

Cat. No. Models Description

Included Maximum W×L (mm / inch)

EDA8136 IB-05G 2 8 366×316 / 14.4×12.4 EDA8135 IB-15G 2 12 446×366 / 17.6×14.4 EDA8137 IB-25G 2 12 576×419 / 22.7×16.5 EDA8136 IB-01E 2 11 366×316 / 14.4×12.4 EDA8220 IB-11E 2 14 466×490 / 17.6×19.3 EDA8219 IB-21E 2 15 566×466 / 22.3×17.6

EDA8219 IL-11 / 11A 2 12 566×466 / 22.3×17.6

EDA8220 IL-21 / 21A 3 26 466×490 / 17.6×19.3

EDA8223 ILP-02 1 6 195×310 / 7.7×12.2

EDA8221 ILP-12 2 11 305×299 / 12.0×11.8

AAA31521 SIF-5000 / R 2 8 416×406 / 16.4×16.0

AAA31522 SIF-6000 / R 2 11 516×506 / 20.3×19.9

Perforated Shelves

Stainless steel shelf system is removed easily without using tools for easy cleaning.

Maximum W×L (mm / inch) AAA12531 IB-05G 8 366×316 / 14.4×12.4 AAA12532 IB-15G 12 446×366 / 17.6×14.4 AAA12535 IB-25G 12 576×419 / 22.7×16.5 AAA12531 IB-01E 11 366×316 / 14.4×12.4 AAA22522 IB-11E 14 466×490 / 17.6×19.3 AAA22521 IB-21E 15 566×466 / 22.3×17.6

AAA22521 IL-11 / 11A 12 566×466 / 22.3×17.6

AAA22522 IL-21 / 21A 26 466×490 / 17.6×19.3

AAA24501 ILP-02 6 195×310 / 7.7×12.2

AAA24502 ILP-12 11 305×299 / 12.0×11.8

Stacking Kits

Stackable 2 steps up to maximize space efficiency with exclusive stacking kits. (Only for IB-G, IB-E series)

AAA21521 IB-05G Stacking kits for stackable chambers

AAA26501 IB-01E Stacking kits for stackable chambers

AAA26502 IB-11E Stacking kits for stackable chambers

(16)

53 Accessories & Options for Incubators

Incubators

Flask Clamps Plastic Clamps

Funnel Clamps

Universal platforms & Flask clamps, Funnel clamps

The universal platforms provide flexibility for mixing different sized assortment of test tubes and glassware on a single platform. Available in different size assortment of clamps for Erlenmeyer flasks and Separatory funnels.

Description SI-300(R) SI-600(R) SI-971(R/F) SIF-5000(R) SIF-6000(R)

Universal platform Cat. No. AAA23501-V1 AAA23502-V1 AAA23503-V1 AAA31501-V1 AAA31502-V1

Max. mountable fl ask clamps * Cat. No. _{Erlenmeyer fl ask size} Steel Plastic

AAA23550 AAA30570 for 50mL 28 45 99 36 55

AAA23551 AAA30571 for 100mL 24 36 74 28 44

AAA23552 AAA30573 for 250mL 13 18 39 13 24

AAA23556 AAA30574 for 300mL 13 18 39 13 24

AAA23553 AAA30575 for 500mL 9 13 25 10 16

AAA23554 AAA30576 for 1L 4 7 14 5 8

AAA23555 AAA30577 for 2L 2 5 9 4 5

AAA23557 - for 2.8L 1 2 6 2 4

AAA23558 - for 4L - - 4 - 2

AAA23559 - for 6L - - 4 - 2

Max. mountable funnel clamps * Cat. No. Separating funnel size

AAA23562 for 250mL 4 6 11 4 6

AAA23563 for 500mL 2 3 9 2 3

AAA23564 for 1L - 2 5 - 2

AAA23565 for 2L - - 4 -

Dedicated platforms

If using a single flask size only, the dedicated platforms provide maximum capacity, and come with clamps installed. Provided standard clamp size are 250mL and 500mL, but possibly provide the other size of clamps also.

Cat. No. Description

AAA23611 An universal platform for SI-300 series with 250mL fl ask clamps 13ea AAA23612 An universal platform for SI-300 series with 500mL fl ask clamps 9ea AAA23621 An universal platform for SI-600 series with 250mL fl ask clamps 18ea AAA23622 An universal platform for SI-600 series with 500mL fl ask clamps 13ea AAA23631 An universal platform for IS-971 series with 250mL fl ask clamps 39ea AAA23632 An universal platform for IS-971 series with 500mL fl ask clamps 25ea AAA31551 An universal platform for SIF-5000 series with 250mL fl ask clamps 13ea AAA31552 An universal platform for SIF-5000 series with 500mL fl ask clamps 10ea AAA31561 An universal platform for SIF-6000 series with 250mL fl ask clamps 24ea AAA31562 An universal platform for SIF-6000 series with 500mL fl ask clamps 16ea * A dedicated platform is sold with setting each max. mountable amount of fl ask clamps on.

(17)

54 Accessories & Options for Incubators

Incubators

Rubber Mats Universal attachments Spring Wire Racks

Spring wire racks

Ideal for holding a wide variety of tubes, flasks, and other glassware. All component are made of stainless steel.

Description SI-300(R) SI-600(R) SI-971(R/F) SIF-5000(R) SIF-6000(R)

Spring wire racks Cat. No. AAA23521 AAA23522 AAA23523 AAA31521 AAA31522

Max. inserting flask clamps Erlenmeyer flask size

for 50mL 16 25 40 16 25 for 100mL 9 16 28 9 16 for 250ml 4 9 15 4 9 for 300mL 4 9 15 4 9 for 500ml 4 5 10 4 5 for 1L 2 4 8 2 4 for 2L 1 2 4 1 2 for 2.8L 1 2 4 1 2

Rubber mats

The non-skid rubber mats are designed for low-speed applications, allow for quick addition or removal of flasks, plates or tubes.

Models SI-300(R) SI-600(R) SI-971(R/F) SIF-5000(R) SIF-6000(R)

Cat. No. AAA23531 AAA23532 AAA23533 AAA31531 AAA31532

Universal attachments (Utility carriers)

Several adjustable clamping bars to quickly secure a variety of glassware or tubes on non-skid rubber mat. Suitable for different sizes of flat bottomed flasks.

Models SI-300(R) SI-600(R) SI-971(R/F) SIF-5000(R) SIF-6000(R)

Cat. No. AAA31511 AAA31512 AAA31513 AAA31511 AAA31512

Please visit

.com

For further information on Jeio Tech´s Incubators products Information is readily available on our website.

(18)

55 Accessories & Options for Incubators

Incubators

Test tube racks

Highly durable stainless steel racks with adjustable angle and tube height support. Simply release and mount racks. Requires an universal platform which are sold separately.

Cat. No. Description Mountable capacity of racks *

AAA23581 for 86 test tubes 8mm dia. (0.3˝)

* No declination

※ We can manufacture other size of test tube racks to meet your specific requirements. Contact us for details.

Microplate holders

Available in three styles. A Tower type holder, two Flat types (small and large) and a Single type. The large flat holders will hold 4 standard or deep well plates. The small flat holders will hold 3 standard or deep well plates. The single holders will hold only 1 standard or deep well plate.

Microplate holders Tower type Flat-A type (large) Flat-B type (small) Single type

Cat. No. AAA23651 AAA23652 AAA23653 AAA23654

Max. mountable holders

SI-300(R) 5 - 2 7 SI-600(R) 7 2 2 12 IS-971(R / F) 16 3 5 25 SIF-5000 (R) 6 - 2 8 SIF-6000 (R) 10 2 3 15 * Microplate holders need to be mounted on an universal platform which is sold separately.

Lab Sticker

Alternative to flask clamps for securing vessels to a shaker platform the ideal way to secure containers such as bottles and dishes on the universal platform is that cannot be held with conventional flask clamps. The lab sticker can be re-generated to a new condition by washing it with mild detergent and water. It cannot be used in water baths. For safe operation, suggest increasing the RPM gradually.

Description Lab Sticker

Lab Sticker Cat. No. AAA30551

Size (mm / inch, W×D×H) 200×200×5 / 7.9×7.9×0.2

* Lab Sticker need to be mounted on an universal platform which is sold separately.

SI-300(R) SI-600(R) IS-971(R/ F) SIF -5000 Series SIF-6000 Series

2EA 4EA 6EA 2 EA 4 EA

Test Tube Racks
