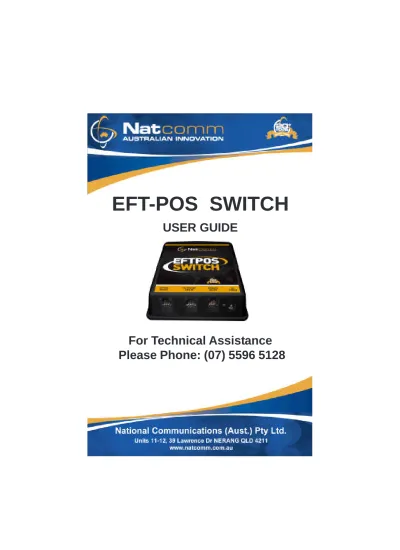

EFT-POS SWITCH
USER GUIDE
For Technical Assistance
Please Phone: (07) 5596 5128
Page 2 National Communications
PACKING LIST
Before commencing installation, please check that you have the following items:
Description Quantity
EFT-POS Line Sharer 1
12VAC Power Supply 1
RJ11 to RJ11 Telephone Cables 2
TABLE OF CONTENTS
Description Page 3
Installation Instructions Page 4
Installation Diagram Page 5
PABX Operation Page 6
PABX Installation Page 7
Specifications Pages 8
Warranty Information Pages 8
DESCRIPTION
EFTPOS SWITCH has been designed to allow an occasionally used EFTPOS device to share an existing telephone line used for Voice, Fax, Modem or PAY PHONE use.
This will save the installation and ongoing rental costs associated with operating a separate telephone line.
EFTPOS SWITCH is transparent in operation and will not affect the normal operation of the telephone line that it is connected to.
Incoming and outgoing telephone calls to the line can take place exactly as they always have.
EFTPOS SWITCH will automatically connect your EFTPOS device to the telephone line as soon as it has been activated by the user, so that it can process the transaction.
An EXCLUSION FACILITY is provided to ensure that the other attached telephone device(s) connected to EFT-POS switch cannot interfere or
‘Barge-In’ on the EFTPOS transaction.
If the telephone line is already in use when the EFTPOS device attempts to initiate a transaction, it will be blocked from the line and will not be allowed access to the line until the line is free.
EFTPOS SWITCH is suitable for businesses that use their EFTPOS facility on an occasional basis.
EFTPOS SWITCH is provided with a 2 YEAR FACTORY WARRANTY.
Page 4 National Communications
INSTALLATION
1. UNPLUG all equipment from the telephone socket to be used.
2. REMOVE the telephone line cords that are fitted to the TELEPHONE DEVICE which need to be connected to your EFTPOS SWITCH (ie unplug the telephone cables connected to your device where the new style modular plug connects to your device).
3. TELEPHONE LINE CONNECTION
CONNECT the modular end from the cable which you have removed, to the TELEPHONE LINE port of your EFTPOS SWITCH . Then CONNECT the other end, with the male Telstra/Telstra plug, direct to your telephone line socket.
4. PRIMARY DEVICE CONNECTION
(Fax Machine, Modem, Pay Phone or other telephone device)
Using one of the supplied Modular - Modular line cords, CONNECT the telephone device which you require to RECEIVE all incoming calls for your telephone line, to the PRIMARY DEVICE port of your EFTPOS SWITCH.
If you require more than 1 telephone device to RECEIVE all incoming calls for your telephone line, then you should connect all required telephones to this same port. This may require rewiring of your telephone outlets by a telephone technician.
5. EFTPOS CONNECTION
Using the remaining supplied Modular - Modular line cord, CONNECT the EFTPOS device to the EFTPOS DEVICE port of your EFTPOS SWITCH.
6. POWER ADAPTOR CONNECTION
Connect the supplied 12VAC power adaptor and switch it ON.
7. TEST
Installation is now complete. Please test all devices and if you require
assistance, please call us on (07) 55965128.
INSTALLATION DIAGRAM
Page 6 National Communications
PABX OPERATION
EFTPOS SWITCH can also be used with ANY PABX, Commander or other Multi Line Telephone System.
See Installation Diagram on page 7.
This is done by connecting the Telephone Line port of the EFTPOS Switch direct to an incoming telephone line, prior to the system controller.
The EFTPOS SWITCH port is then connected to the EFTPOS device.
The PRIMARY DEVICE port is then connected to the appropriate line input of the PABX, Commander or Multi Line Telephone System.
An EXCLUSION FACILITY is provided to ensure that the EFTPOS device cannot ‘Barge-In’ on a telephone call and a Telephone call cannot ‘Barge- In’ on an EFTPOS transaction.
If the telephone line is already in use when the EFTPOS device attempts to initiate a transaction, it will be blocked from the line and will not be allowed access to the line until the line is free.
It will be necessary to have this installation done by a suitably qualified Telephone Technician.
Please call (07)55965128 for further details.
Telephone System Controller Main Line Additional Line Additional Line Additional Line Additional Line Last Line
Telephone Handsets
Power Adaptor Supplied
Incoming Telephone Lines Eftpos Device
