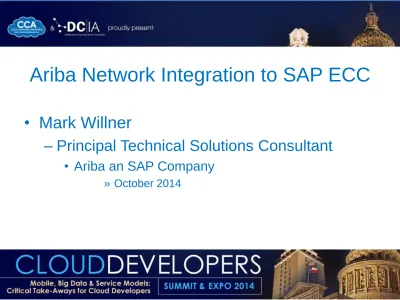

Ariba Network Integration to SAP ECC

(1)

Ariba Network Integration to SAP ECC

• Mark Willner

– Principal Technical Solutions Consultant

• Ariba an SAP Company

(2)

ERP Materials Management Core Integration Scenario

Ariba Collaborative Commerce, Ariba Collaborative Finance

ERP

MM

Inbound Delivery

PO’s, PO Changes & PO Cancel Order Confirmation Advanced Ship Notice

Invoice /

Accounting

Doc.

Invoice Invoice Status Update Payment Proposal Pay Me Now

Payment Run

Remittance Advice / CC Invoice

Remittance Advice Update PO Inquiry

Service Entry Sheet

Service Entry

Entry Sheet Response

Purchase Order

(3)

Buyer Connectivity

Ariba Business Network

Trading Partners

Any

eDoc

HTML

EDI

CSV

cXML

Buyer

(4)

(5)

(6)

Pre-Packaged Integration Options for

SAP and Other Customers

1. SAP Direct Integration

2. Ariba SAP PI Adapter + RDS

3. Oracle Adapter

4. Customer Adapter

5. Open Adapter

(7)

Integration to buyers SAP environment

SAP AddOn - Direct ERP Integration

Ariba Business Network

Trading Partners

Direct Integration

HTTP

Buyer

cXML

FI

MM

No SAP PI or

Adapter required

(mediated

connection

(8)

(9)

ERP

CRM

SAP Suite Add-On for Ariba Integration

Main Benefits

Modification free, release

independent

Simple

installation

Robust, out of the box integration

Well known and proven

infrastructure

Add-On for SAP Business Suite

systems (e.g. ERP >= 6.0 EhP0, SRM

>= 7.00)

Connectivity setup within

short time frame

Integration via application interfaces

Using cXML (commerce eXtensible Markup

SAP NetWeaver Web Service

Infrastructure

(10)

Integration to buyers SAP environment

Ariba SAP Netweaver PI Adapter

Ariba Business Network

Trading Partners

Buyer

IDOC/RFC

+

Data Transfer

cXML

HTTP

Data Translation

SAP Netweaver PI 7.3 Ariba Network Adapter Message Mapping

FI

MM

SRM

+ RDS

(11)

RDS is an add-on service to Ariba Collaborative Commerce delivering:

• Fast baseline implementation – just 4 – 7 weeks to deploy

• Clearly defined scope

• Predictable costs

SAP consultants will install the Ariba Network PI Adapter, message

mappings, and configure PI to fully integrate SAP ERP with the Ariba

Network, connecting up to 10 suppliers

(12)

(13)

Integration to buyers Oracle environment

Ariba Oracle Fusion Adapter

Ariba Business Network

Trading Partners

Data Transfer

cXML

HTTP

Buyer

Oracle Fusion Ariba Network

Adapter

Mappings

(14)

Integration to buyers ERP environment

Customer Adapter

Ariba Business Network

Trading Partners

cXML

HTTP

Buyer

DATA TRANSPORT

DATA TRANSLATION

CODA

SAP ORACLE

NAVISION

MFGPro

INHOUSE

(15)

Integration to buyers ERP environment

Ariba Open Adapter

Ariba Business Network

Trading

Partners

DATA TRANSPORT

cXML

HTTP

Buyer

CODA SAP ORACLE NAVISION MFGPro INHOUSE JDE

File Transfer

(SFTP/AS2 etc)

Ariba Open

Adapter

DATA TRANSPORT

DATA TRANSLATION

(16)

cXML Attachment Support

Ariba supports attachments for the following cXML transactions

Purchase order

Order confirmation

Advanced Shipping Notice

Invoice

Ariba supports two methods

Embedded within cXML message (Base64 encoded)

External reference link to server location

Attachments such as PDF, JPG, .DOC, TXT etc. are supported.

(17)

Error Handling

The PI Runtime Work Bench and the Integration Engine Monitor (transaction SXMB_MONI)

are used to track error messages and email notifications, and to notify users about errors in

inbound processing (getPending transaction).

The cXML Adapter notification emails include an Ariba Network Adapter for SAP NetWeaver

error code, and a response status code. The response status code refers to the cXML

error/status codes received from the server. The cXML status codes indicate success,

transient errors, or permanent errors. The status code range 2xx denotes success, 4xx

denotes permanent errors, and 5xx denotes transient errors.

(18)

(19)

Sample XML

(20)

(21)

(22)
