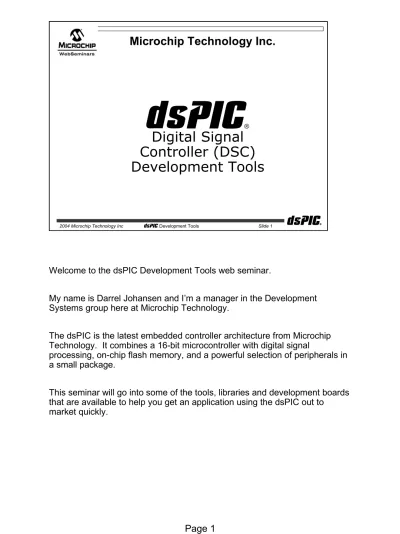

Digital Signal Controller (DSC) Development Tools

(1)

Page 1

Welcome to the dsPIC Development Tools web seminar.

My name is Darrel Johansen and I’m a manager in the Development Systems group here at Microchip Technology.

The dsPIC is the latest embedded controller architecture from Microchip Technology. It combines a 16-bit microcontroller with digital signal

processing, on-chip flash memory, and a powerful selection of peripherals in a small package.

This seminar will go into some of the tools, libraries and development boards that are available to help you get an application using the dsPIC out to

market quickly.

DS

2004 Microchip Technology Inc DS Development Tools Slide 1

DS

Digital Signal

Controller (DSC)

Development Tools

(2)

Page 2

DS

MPLAB ICD 2 Project Manager Built-in Editor Source Level Debugger ASM/LINK30 LIB/tools Languages Programmers MPLAB SIM Simulators Emulators MPLAB C30 MPLAB®

Integrated Development Environment

MPLAB PM3 Visual Device Initializer MPLAB ICE 4000

MPLAB

®

_IDE

_{Components for dsPIC}

®

_DSC

Encryption Libraries Soft Modem Math DSP Encryption Echo Cancel Noise Suppress Stimulus Control Demo/Eval 28-pin Starter GP Dev Board dsPICDEM.net™ 1 dsPICDEM.net 2 dsPICDEM™ MC1 Speech Recog

MPLAB IDE is Microchip’s Integrated Development Environment for developing embedded applications. MPLAB IDE contains a number of components specifically for dsPIC

development.

The Microchip dsPIC tool suite running under the MPLAB IDE has Language and Library support, Simulator, Emulator, Programmer and Evaluation board components.

The tools in yellow are standard components of MPLAB IDE, available at no charge, and can be downloaded from the Microchip web site along with the MPLAB IDE software.

Since MPLAB’s editor, project manager, simulator and assembler are available for free, you can write and test code for dsPIC devices by simply downloading MPLAB IDE and installing it on your PC.

Also free is the Visual Device Initializer, or VDI. It can be used to graphically set up the dsPIC peripherals and core.

Many libraries are available to assist in specific applications. They are all available for download.

The items in green are available as components to be purchased from Microchip as options for MPLAB IDE. These optional components include the MPLAB C30 C compiler, MPLAB ICE 4000 in-circuit emulator, MPLAB PM3 device programmer, and MPLAB ICD 2 In-circuit debugger.

The last column shows fully functional circuit boards with source code which can be used for evaluation and for prototyping custom circuitry.

(3)

Page 3

DS

MPLAB

®

_{IDE Desktop}

I’ll take a few minutes to walk through the highlights of MPLAB IDE. These are covered in more detail in other seminars, and you should view them to get better understanding of the power and capabilities of MPLAB IDE. The MPLAB IDE desktop looks like many other Windows applications.

(4)

Page 4

DS

MPLAB

®

_{IDE Desktop}

(5)

Page 5

DS

Project Window

The MPLAB IDE Project Window keeps track of your source files, as well as compilers, assembler and linker settings, switches and optimizations. The project manager builds the files into the final application.

(6)

Page 6

DS

Breakpoints

Y Breakpoints halt the code to inspect and change variables and special function registers, and to single step through the code

Y Breakpoints can be set by specifying a location in the code with an address or a label

Y Breakpoints can be set on a line of code with the right mouse button

Breakpoints are part of the MPLAB In-circuit Debugger. Breakpoints allow you to halt the code and inspect variables and registers and then single step through the code.

•Breakpoints can be used with the simulator, the in-circuit debugger or the in-circuit emulator.

•Breakpoints can be set by specifying a location in the code with an address or a label from your source code

•Breakpoints can also be set on a specific line of code with the right mouse button

(7)

Page 7

DS

Setting Breakpoints

When the right mouse button is clicked, this menu pops-up and allows you to set a breakpoint.

Note that there are other features on the menu, including “Run to Cursor,” “Set Bookmarks,” and search functions. This window is the editor window, and is where you can write and test your code. Both debug and editing functions are available while in this window. This allows you to quickly test, then modify your code.

Advanced functions allow searching for matching braces, and commenting out blocks of code.

(8)

Page 8

DS

Complex Breakpoints

Y MPLAB® ICD 2 and MPLAB ICE 4000 can set complex breakpoints

Y Complex breakpoints allow pre-qualifiers, pass counters, and breaking on data Y Example:

After GetSpeed executes, then after ReadRPM executes,

then after Scount[] receives 20 bytes, break when Rcount > 128.

Complex breakpoints can be used with the hardware debuggers to capture events in real time.

Complex breakpoints allow conditions to be described to halt the processor at a breakpoint. An example would be to wait until the function named “GetSpeed” calls a subroutine named “ReadRPM” and then wait while 20 bytes of data are written into the array named “Scount,” then break when the variable “Rcount” becomes greater than 128.

Complex breakpoints assign a detailed description to halt the application code in order to zero in on a problem area. If you know the conditions where a problem exists in an application, often a complex breakpoint can find the problem much more quickly than simple address breakpoints and single-stepping.

(9)

Page 9

DS

Watch Windows

Watch windows can display complex structures, formatted with the values according the data types as defined in your source code.

Variables can be dragged and dropped from the source code to be placed in the watch window, can be selected from drop down lists or can simply be typed in by name or address.

(10)

Page 10

DS

Watch Windows

In the watch window above, the structure named “RTclock” consists of four elements,

(11)

Page 11

DS

Watch Windows

(12)

Page 12

DS

Watch Windows

(13)

Page 13

DS

Watch Windows

(14)

Page 14

DS

Watch Windows

and a floating point variable called “total time.”

MPLAB IDE automatically shows the values in the proper format for each variable.

Note that “seconds” has only two digits, since it is an 8-bit value, while “timer” and “ticks” have four because they are 16-bit values.

(15)

Page 15

DS

Watch Windows

Below the structure “RTclock” the variable “sticks” in this watch window is labeled as “Out of Scope.”

This means that “sticks” is a local variable, and the current breakpoint is not in the function where “sticks” is relevant.

At the breakpoint, changes in values are indicated with red text.

You can modify the contents of a variable by clicking on the value in the watch window and typing in a new number.

(16)

Page 16

DS

Source View

MPLAB IDE shows the code in different windows with different formats. Single stepping through source files allows you to step through lines of source code and inspect values of variables and registers at each step.

(17)

Page 17

DS

Source View

Placing the cursor on a line in the source code and pressing the right mouse button brings up this menu.

(18)

Page 18

DS

Source View

If you execute “Run,” it stops at this breakpoint, as indicated by the green arrow on top of the red breakpoint icon.

(19)

Page 19

DS

Source View

Now you can single-step through the code. The breakpoint is still set at the previous line, so if you were to reset and run again, the code would be halted there again.

(20)

Page 20

DS

Source View

(21)

Page 21

DS

Source View

(22)

Page 22

DS

Source View

(23)

Page 23

DS

Machine Code View

Alternatively code can be viewed as dsPIC machine code in the Program Memory window.

Single stepping through the Program Memory window steps through all the dsPIC assembly instructions, not just the lines of C code as shown

(24)

Page 24

DS

Machine Code View

(25)

Page 25

DS

Machine Code View

(26)

Page 26

DS

Machine Code View

(27)

Page 27

DS

Machine Code View

(28)

Page 28

DS

Machine Code View

(29)

Page 29

DS

Machine Code View

(30)

Page 30

DS

Disassembly Listing View

In a Disassembly Listing View window display, the original C source code is shown interspersed with the dsPIC assembly code that it generated.

This view shows the information in both the preceding views, allowing you to see the machine instructions generated by the C source code.

(31)

Page 31

DS

Disassembly Listing View

The C source code is shown in black with the line number from the source code file shown on the left column in green.

(32)

Page 32

DS

Disassembly Listing View

The generated machine hex code and the corresponding disassembled instructions are shown in blue.

(33)

Page 33

DS

Disassembly Listing View

For the machine code instructions, the left column is the address of the instruction in program memory

(34)

Page 34

DS

Disassembly Listing View

(35)

Page 35

DS

Disassembly Listing View

(36)

Page 36

DS

Mixed Disassembly Listing View

(37)

Page 37

DS

Mixed Disassembly Listing View

(38)

Page 38

DS

Mixed Disassembly Listing View

(39)

Page 39

DS

Mixed Disassembly Listing View

(40)

Page 40

DS

Mixed Disassembly Listing View

(41)

Page 41

DS

MPLAB

®

_SIM

Most Cost-Effective Debugger dsPIC®_{Simulation Core}

•ALU

•DSP Engine •Program Memory •Data Memory

dsPIC Simulated Peripherals •Timers

•UARTs •A/D •I/O Pins

•Most other peripherals

The simulator has been used to demonstrate the debug features of MPLAB IDE. MPLAB SIM is a cost-effective way to test and debug code.

Free with MPLAB IDE software, the simulator is a software tool running on the PC that allows you to run dsPIC code, set breakpoints, single-step, and watch variables as the code executes.

The simulator models the dsPIC core, including the ALU and DSP engine, as well as the program memory, data memory, plus the core and peripheral traps and interrupts.

Important peripherals are simulated including the general purpose timer, the UART, and the I/O pins.

(42)

Page 42

DS

MPLAB

®

_SIM

The simulator also allows you to accurately measure code time as it

executes. Depending upon the speed of your PC and how many peripherals are running in simulation, the simulator typically does not run at the full speed of the actual part, but it’s time calculations are exact calculations for when the actual device is running in your target.

When you enter the frequency of the target in the simulator settings, the simulator’s instruction execution is calculated exactly with this setting.

(43)

Page 43

DS

Timing Code

Once you’ve set the frequency for the clock, time measurements of the code can be done.

With the Stopwatch code segments can be timed according to the number of instruction cycles, or the speed of the final design as set in the previous dialog.

(44)

Page 44

DS

Code Timing

To time a section of code, a breakpoint is set at the start of the code and another at the end of the section being analyzed.

The Stopwatch will accurately measure the number of instruction cycles executed and the calculated time of the code segment.

(45)

Page 45

DS

Simulator Trace

Another simulation tool is the Trace window.

The simulator trace contains a wealth of information to show how the program executes in time.

It captures instructions as they execute, marked with their •address in program memory,

•the opcode

(46)

Page 46

DS

Simulator Trace

data read/writes on the X and Y data bus as well as all register read/writes are shown in the columns denoted by SXA through DD, with a time stamp on each instruction so precise timing measurements can be made.

The data on the source buses is shown in six columns, showing the address and data for the x and y memory areas of the dsPIC as well as the standard file register bus.

(47)

Page 47

DS

Simulator Trace

The trace captures instructions as they execute, so it can show the flow of code as it responds to interrupts and follows calls and branches.

Note in the above trace, the branch opcode at address 1DC executes, and the code immediately goes to address 1E4.

When a branch occurs, an extra cycle is executed as the program counter is changed in the dsPIC.

So a “No-Op” instruction is seen as being executed for one cycle at 1E4 before the actual instruction, a “MOVE” instruction begins to execute. As each instruction executes, changes in registers are clearly shown, and each instruction gets tagged by a time stamp.

(48)

Page 48

DS

Simulator Stimulus

•The Simulator can be controlled by stimuli representing signals

external to the application

•Manually “fired”

•Synchronously clocked

•Defined in external files

•Set by complex lists of events

Another simulator tool is the stimulus.

The stimulus features allow you to provide “inputs” to the simulator in order to simulate the actions of signals from external sources.

You can manually fire a stimulus by using a dialog button.

You can define a synchronous stimulus that acts like a repeating clock waveform

You can make lists of data in external files to be applied to registers or pins. And you can define complex conditions for starting and stopping stimulus sequences.

(49)

Page 49

DS

Manual Stimulus Control

The Stimulus Control dialog allows asynchronous stimulus events to be set up and “fired” at any time.

This allows you to manually simulate events happening on the pins of the dsPIC as the simulation executes.

This could simulate changing switches, or asynchronous external signals. There are a number of possible actions:

•Set pin high •Set pin low •Pulse pin high •Pulse pin low

•Toggle pin from the current state to the opposite state.

Pulse widths can be set, and comments can be added to each stimulus to document it’s usage.

(50)

Page 50

DS

Clock Stimulus Control

Synchronous clock signals can be set to occur repeatedly. The period of the signals is set in the “High” and “Low” columns, representing the number of cycles the signal will remain high and low, respectively.

The signals can be triggered to be started and ended at an address, or from another signal transition.

(51)

Page 51

DS

File Stimulus Control

More complex stimulus signals can be set up from external files. Here registers receive a series of input values stored in files. The file values are input as the registers are read by the program.

(52)

Page 52

DS

Complex List Stimulus Control

Another type of stimulus control allows listing a series of events that are applied to registers or pins.

These are identified as occurring at a fixed time after another event occurs. In this instance, after IC6BUF gets a value of 55, by whatever means, the sequence will begin.

30 microseconds later, IC4BUF will get a value of 58.

At a total of 54 microseconds after IC6BUF equaled 55, IC4BUF will get a new value of 66.

(53)

Page 53

DS

Using print(f)

MPLAB C30 “printf” functions can be used in code to route output to the MPLAB IDE Output window or to a file for complex debugging and analysis. Lines 60-63 have been added to this code for debugging purposes.

This debugging code will print a header title, “Product Array,” then print each element from “array_index” to an output window on MPLAB IDE each time the “printf” function executes.

(54)

Page 54

DS

printf() Output

The output window now contains a record of the values of the array each time the loop runs.

(55)

Page 55

DS

Data Can Be Imported/Exported

When using any debugger, including the simulator, data can be imported and exported into memory.

This allows data to be exported to an external graph for analysis, and allows large sets of complex data to be imported into memory for digital signal processing.

(56)

Page 56

DS

MPLAB

®

_{ICD 2}

While the simulator is handy and free with MPLAB IDE, when an application gets

programmed into a device, there may be subtle interactions with real-time signals that the simulator will not easily handle. Even though the simulator can tell you if sections of code are functioning correctly, it is difficult to anticipate all the interactions that will occur when the target hardware is operational. When you debug a running application, you often need a hardware debugger.

With a logic analyzer you can probe the circuits on your design to see if external signals are present on the input pins of the microcontroller, and you can attach probes to output pins to see activity there.

But to efficiently debug your application at this stage, you need to see what happens on these pins when particular sections of code execute. For this you need a hardware debugger. Microchip provides two types of hardware debuggers, MPLAB ICE and MPLAB ICD 2.

The MPLAB ICD 2 connects to the target application in order to program and debug the dsPIC device. and connects via a USB or RS-232 cable to the PC for control by MPLAB IDE.

(57)

Page 57

DS

MPLAB

®

ICE 4000

{ Emulator Pod Kit

MPLAB ICE 4000 pod Power supply USB cable Literature MPLAB CD-ROM Tripod Logic probes Modular flex cable

| Processor Module

} Device Adapter (includes board and adapter plugs)

~ Transition Socket (optional )

{

|

}

~

For the ultimate in hardware debugging, MPLAB ICE 4000 helps find complex, real-time bugs quickly in your final application, while it runs at full speed.

MPLAB ICE 4000 consists of the main “Emulator Pod”, a “Processor Module,” which often supports a number of dsPIC devices, a “Device Adapter” for interconnection to your target application, and a optional “Transition Socket” to adapt to other package types.

The ICE offers unlimited breakpoints, whereas the ICD typically has three, at most. Plus the ICE offers a full hardware trace buffer to collect a record of the application’s code execution, register values, along with a time stamp on each instruction.

The other advantage the ICE has over the ICD is that it requires no pins for communication to the target. MPLAB ICD 2 needs to reserve some pins for communication as well as a small amount of memory for its operations.

(58)

Page 58

DS

MPLAB

®

_PM3

Universal Programmer

Y Production-graded

programmer for PICmicro®

MCUs and dsPIC30F Y Stand-alone operation Y In-Circuit Serial

Programming™ (ICSP™) built in

Y Fast programming times! Y Serial Quick Turn

Programming (SQTPSM₎

support

Y SD/MMC support

DV007004

For programming dsPIC devices MPLAB PM3 offers a number of powerful features:

It can run either with MPLAB IDE and a PC or in a stand-alone mode. It has In-Circuit Serial Programming as a standard interface, so you can program your devices in circuit.

Serial Quick Term Programming support allows sequential IDs to be programmed into devices.

A standard SD/MMC memory card allows data to be quickly transported and saved.

(59)

Page 59

DS

Hardware Development

Y

dsPICDEM™ 28-Pin Starter Demo

Board

Y

dsPICDEM General Purpose

Development Board

Y

dsPICDEM.net™ 1 Connectivity

Development Board (FCC/JATE)

Y

dsPICDEM.net 2 Connectivity

Development Board (CTR-21)

Y

dsPICDEM MC1 Motor Control

Development System

A number of demonstration evaluation boards are available. These include working software and source code and a prototyping area for custom circuitry.

(60)

Page 60

DS

dsPICDEM™ 1.1 General Purpose

Development Board

• Emulator and ICD 2 interface

• RS-232

communication channel

• Analog and digital prototyping area

• CAN, RS-232, RS-485 • Voiceband codec • 122 x 32 dot

addressable LCD • Analog circuits, LED,

switches

The dsPIC general purpose development board provides the application designer with a low cost development tool.

The board features an active demonstration program loaded on the installed dsPIC306014 device. Several program functions are selectable via a menu system displayed on the LCD. These include: temperature and voltage measurements, frequency domain characteristics of a sine wave signal generated on-board, various digital filter selections and DTMF tone generator using the Codec interface peripheral.

(61)

Page 61

DS

dsPICDEM™ MC1 Motor Control

Development Boards

The Motor Control Development System provides the application developer with a system for quick prototyping and validation of motor control

applications.

The three main components are: •Motor Control Development Board,

•a 3-Phase Low Voltage Power Module and •a 3-Phase High Voltage Power Module.

(62)

Page 62

DS

dsPICDEM.net™ Internet/Ethernet

Demo Board

Connect to a

Network using

a PICmicro

®

MCU with

TCP/IP stack

software.

The dsPICDEM.net™ 1 and dsPICDEM.net 2 connectivity development boards offer the application developer a basic platform for developing and evaluating both connectivity and non-connectivity based requirements. The dsPICDEM.net boards provide the hardware circuitry for supporting both the Public Switched Telephone Network and 10-Base T MAC interfaces.

(63)

Page 63

DS

dsPIC

®

_{Design Tools and}

Real Time Operating Systems

*subject to change dsPICworks™ Data Analysis

Digital Filter Design

IAR Embedded Workbench for dsPIC30F HI-TECH ANSI C Compiler for dsPIC30F CMX-Tiny™+ for dsPIC30F

CMX-MicroNet™ TCP/IP Connectivity and Protocol Support

CMX-RTX™ for dsPIC30F

CMX-Scheduler™ for dsPIC Devices

In addition to the tools mentioned, there are a number of other tools for dsPIC application development. Check out the Microchip Web site for information on

dsPICworks data analysis package Digital Filter Design

IAR’s embedded workbench for dsPIC HI-Tech C compiler

(64)

Page 64

DS

dsPIC

®

_Libraries

*subject to change • dsPIC Math Library

• dsPIC Peripheral Library • dsPIC DSP Algorithm Library • dsPIC Soft Modem Library

• dsPIC Acoustic Echo Cancellation Library • dsPIC Noise Suppression Library

• dsPIC Speech Recognition Library

• dsPIC Asymmetric Key Embedded Encryption Library • dsPIC Symmetric Key Embedded Encryption Library

Libraries are available and can be used with the free MPLAB ASM30 assembler or with the MPLAB C30 C compiler. These are high-speed, optimised libraries that can help you get your application to market without re-inventing the wheel.

Libraries include

•a general purpose Math Library •A Peripheral Library

•A DSP Algorithm Library •Acoustic Echo Cancellation •Noise Suppression

•Speech Recognition •And Encryption Libraries.

(65)

Page 65

DS

Third Party Tools

There are more than 120 third-party companies

supporting Microchip products. These vendors can be referenced from the Microchip Web site:

Programming/Emulation Adapters

Development Boards

In-Circuit Emulators

Gang Programmers

Device Programmers

Software Tools

Training Tools

In addition to these development tools from Microchip Technology, there are more than 120 third party companies supporting Microchip products. These vendors can be referenced from the Microchip web site.

(66)

Page 66

DS

For More Information

www.microchip.com

Thank you for your time. Please go to our Web site for complete

descriptions of all these tools, as well as our free development software package, MPLAB IDE. You’ll be sure to find that the steps for creating an
