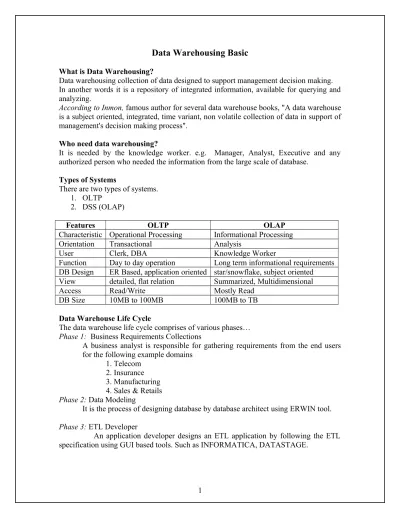

Data Warehousing Basic
What is Data Warehousing?Data warehousing collection of data designed to support management decision making. In another words it is a repository of integrated information, available for querying and analyzing.
According to Inmon, famous author for several data warehouse books, "A data warehouse
is a subject oriented, integrated, time variant, non volatile collection of data in support of management's decision making process".
Who need data warehousing?
It is needed by the knowledge worker. e.g. Manager, Analyst, Executive and any authorized person who needed the information from the large scale of database.
Types of Systems
There are two types of systems. 1. OLTP
2. DSS (OLAP)
Features OLTP OLAP
Characteristic Operational Processing Informational Processing
Orientation Transactional Analysis
User Clerk, DBA Knowledge Worker
Function Day to day operation Long term informational requirements DB Design ER Based, application oriented star/snowflake, subject oriented View detailed, flat relation Summarized, Multidimensional
Access Read/Write Mostly Read
DB Size 10MB to 100MB 100MB to TB
Data Warehouse Life Cycle
The data warehouse life cycle comprises of various phases…
Phase 1: Business Requirements Collections
A business analyst is responsible for gathering requirements from the end users for the following example domains
1. Telecom 2. Insurance 3. Manufacturing 4. Sales & Retails
Phase 2: Data Modeling
It is the process of designing database by database architect using ERWIN tool.
Phase 3: ETL Developer
An application developer designs an ETL application by following the ETL specification using GUI based tools. Such as INFORMATICA, DATASTAGE.
Phase 4: ETL Testing
This phase is completed by ETL tester as well as application developer also. Carried out the following test in the test environment
1. ETL unit testing 2. System Testing 3. Performance Testing
4. UAT (User Acceptance Testing)
Phase 5: Report Development
Design the reports by fulfilling the report requirements templates using following tools.
Cognos BO
Phase 6: Deployment
It is a process of migrating ETL and Report development application to the production environment.
Phase 7: Maintenance
Maintain the Data warehousing in 24*7 environments with the help of production support team.
Data warehouse design Database Design
A data warehouse design with the following types of schemas. 1. Star Schema
2. Snow Flake Schema 3. Galaxy Schema 1. Star
Schema:-Is a database design which contains a centrally located fact table surrounded by dimension tables. Since the database design looks like a star hence it is called star schema Database design.
• A fact table contains facts. • Facts are numeric measure.
• Not every numeric measure is fact but numeric switch over the time keep performance indicator known as facts.
• A dimension is a descriptive data which describes the key performance indicators known as facts.
• Dimension tables are de-normalized.
• A dimension provides answers to the following question. Who, What, When, Where
Star Schema
2. Snowflake Schema
The snowflake schema is a variant of star schema, where some Dimension tables are normalized, thereby further splitting the data into additional tables. The resulting schema graph forms a shape similar to snowflake.
Adv:-• Space can be minimized by splitting into the normalized table.
Disadv:-• It can hamper the query performance due to more number of joins.
a
Snowflake Schema
3. Galaxy Schema (Fact Constellation Schema)
Sophisticated application may require multiple facts table to share dimension table. This type of schema can be viewed as combination of stars hence called galaxy schema or fact constellation schema.
Sales Fact Sale_d(pk) Cust_id (fk) Store_id (fk) Product_id(fk) Date_in (fk) Sales Fact Sale_d(pk) Cust_id (fk) Store_id (fk) Product_id(fk) Date_in (fk) Store Dimension Time Dimension Customer Dimension Product Dimension Store Dimension Time Dimension Customer Dimension Product Dimension Item Dimension City Dimension D1 D5 D6 D7
Galaxy Schema
Dimensions
Dimension tables are sometimes called lookup or reference table.
1. Confirmed Dimension : - A dimension table which can be shared by multiple fact tables is known as confirmed dimension.
2. Junk Dimension :- A dimension with the type descriptive, flag, Boolean which are not used to describe the key performance indicators knows as facts, such dimensions are called junk dimensions. Example, Product description, Address, Phone number etc.
3. Slowly Changing Dimension: - A Dimensions that change over time are called Slowly Changing Dimensions. For instance, a product price changes over time; People change their names for some reason; Country and State names may change over time. These are a few examples of Slowly Changing Dimensions since some changes are happening to them over a period of time. Slowly Changing Dimensions are often categorized into three types namely Type1, Type2 and Type3. The following section deals with how to capture and handling these changes over time.
Type 1: Overwriting the old values.
In the year 2005, if the price of the product changes to $250, then the old values of the columns "Year" and "Product Price" have to be updated and replaced with the new values. In this Type 1, there is no way to find out the old value of the product "Product1" in year 2004 since the table now contains only the new price and year information.
Type 2: Creating another additional record.
In this Type 2, the old values will not be replaced but a new row containing the new values will be added to the product table. So at any point of time, the difference between the old values and new values can be retrieved and easily be compared. This would be very useful for reporting purposes.
Type 3: Creating new fields.
In this Type 3, the latest update to the changed values can be seen. Example mentioned below illustrates how to add new columns and keep track of the changes. From that, we are able to see the current price and the previous price of the product, Product1.
Data Modeling
A Data model is a conceptual representation of data structures (tables) required for a database and is very powerful in expressing and communicating the business requirements.
A data model visually represents the nature of data, business rules governing the data, and how it will be organized in the database.
Data modeling consists of three phases to design the database. 1. Conceptual Modeling
• Understand the business requirements • Identify the entities (tables)
• Identify the columns (attributes) • Identify the relationship
2. Logical Modeling
• Design the tables with the required attributes. 3. Physical Modeling
• Execute the logical tables to exist physical existence in the database. Data modeling tools
There are a number of data modeling tools to transform business requirements into logical data model, and logical data model to physical data model. From physical data model, these tools can be instructed to generate SQL code for creating database.
INFORMATICA
Introduction
Is GUI based ETL product from Informatica corporation. Is a client server technology.
Is developed using JAVA language.
Is an integrated tool set (To Design, To Run, To Monitor) Versions: 1. 5.0 2. 6.0 3. 7.1.1 4. 8.1.1 5. 8.5 6. 8.6 Meta Data
Meta Data is a “Data about Data” means Data that describes data and other structures, such as objects, business rules, and processes.
Example: Table Structure (column name, data type, precision, scale and kyes), Description
Mapping
Is a GUI representation for the data flow from source to target. In other words, the definition of the relationship and data flow between source and target objects.
Requirements for mappings
a) Source Metadata b) Business logic c) Target Metadata Repository
Central Database or Metadata Storage place
Informatica Informatica
Source Database Target Data warehouse
Staging Area
A place where data is processed before entering the warehouse. Source System
A database, application, file, or other storage facility from which the data in a data warehouse is derived.
Target System
A database, application, file, or other storage facility to which the "transformed source data" is loaded in a data warehouse.
Cleansing
The process of resolving inconsistencies and fixing the anomalies in source data, typically as part of the ETL process.
Transformation
The process of manipulating data. Any manipulation beyond copying is a transformation. Examples include cleansing, aggregating, and integrating data from multiple sources. Transportation
The process of moving copied or transformed data from a source to a data warehouse. Working Professional Divisions
Two Flavors
1. Informatica Power center For Big Scale Industries. 2. Informatica Power mart For Small Scale Industries. Components of Informatica
Client Components
1. Designer
Designation Roles
ETL Architects Designing Schema, ETL Specification Developer Developing ETL Application
5. Admin Console
Roles for Designer 1. Use Mapping 2. Source analyze
3. Connect to source Database with ODBC 4. Target Designer
5. Mapping Designer 6. Mapplet Designer
7. Transformation Developer Roles for Workflow Manager
1. Task Developer 2. Work flow designer 3. Worklet designer
Designer
Import Source Definition Import Target Metadata Import Designing Mapping
Mapping (M_xyz) Save | Repository Workflow Manager 1.Create Session Mapping (S_xyz) Save 2. Create Workflow Start --Executing into Informatica server. --Integration services are responsible for execution.
Workflow Monitor
Monitoring (Mapping) Session
Admin Console For Administrative Purpose.
Working flow of Client Component in Informatica Note:- To Run the Mapping in the Informatica is called Creating Session.
How the Mapping can be done? Customer CID number(4)pk Cfname varchar2(5) Clname varchar2(5) Gender number(1)
Concat ( Cfname, Clname ) Decode (Gender, 0,’F’,1,’M’)
Note: - At the time of plan (mapping) you worked with metadata only. At the time of execution you worked with data records.
Power Center Components
When we install the power center enterprise solution the following components get
install:-1. Power Center Clients 2. Power Center Repository 3. Repository Services 4. Integration Services 5. Web Service Hub 6. Power Center domain
7. Power Center administration console
Dim_CustomerCID number(4)pkCname varchar2(10)Gender varchar(1) Client(GUI)
E
T
L
Customer CONCAT() Dim_Customer CID DECODE() CID
Cfname Cname Clname Gender Gender MAPPING ODB C ODB C Source Database Data Warehouse [Target Database]
Designer Workflow Manger Workflow Monitor Repository Manager
Create Source
Definition Create session for each Mapping View workflow & session status Create Edit & Delete folders Create target
Definition Create Workflow Get Session log Create Users, groups, assign permission. Define T/R Rule Execute Workflow
Design Mapping Schedule Workflow
Informatica PowerCenter Client Architecture
Note: One Workflow can contain more than one session but one session will contain only one mapping.
Workflow is upper layer of the development while session is middle layer and mapping is inner layer. External Client Repository Services Integration Services Web Services Hub Mapping Source Definition Target Definition T/R Rule Session Workflow Session log Schedule Info Repository Target DB Source DB Staging Area E T L
Power Center Clients
The following power center clients gets installed
1. Designer
It is a GUI based client component which allows you to design the plan of ETL process called mapping.
The following types of metadata objects can be created using designer client.
a) Create Source Definition b) Create Target Definition
c) Design Mapping with or without a Transformation rule.
2. Workflow Manager
It is a GUI based client component which allows you to create the following task.
a) Create session for each mapping. b) Create workflow
c) Execute workflow d) Schedule workflow
3. Workflow Monitor
It is a GUI based client component which provides the following information:
a) Give the workflow and session status (Succeeded or Failed) b) Get Session Log from the repository.
c) Start, Stop sessions and workflows.
4. Repository Manager
The Repository manager is GUI based administrative client which allows you to create following objects.
a) Create, Edit and Delete folders which are required to organize the metadata and the repository.
b) Create users, user groups, assign permissions and privileges.
5. Power Center Repository
The Power Center Repository is a Relational Database (System Database) which contains instruction required to extract transform and load data.
The Power Center client application can access the repository database through repository service.
The Repository consists of metadata which describes the different types of objects such as source definition, target definition, mapping etc.
The Integration service uses repository objects to perform extraction, transformation and load data.
The repository also stores administrative information such as username, passwords, permission and privileges.
The Integration service also creates metadata such as session-log, workflow and session status, start and finish time of the session and stores in repository through repository service.
6. Repository Service
The Repository service manages connections to the power center repository from client applications.
The Repository service is a multithreaded process that inserts, retrieves, deleted and updates metadata in the repository.
The Repository service ensures the consistency of the metadata in the repository.
The Following Power Center applications can access the repository service
a) Power Center Client b) Integration Service c) Web Service Hub
d) Command Line Program (For backup and Recovery for administrative purpose)
7. Integration Service
The Integration Service reads mappings and session information from the repository.
It extract the data from the mapping source stores in the memory (Staging Area) where it applies the transformation rule that you can configure in the mapping.
The Integration Service loads the transformed data into the mapping targets.
The integration service connects to the repository through repository service to fetch the metadata.
8. Web Service Hub
The Web Service Hub is a web service gateway for the external clients. The web service clients (Internet Explorer, Mozilla) access the integration service and repository service through web service hub.
It is used to run and monitor web enabled work flows. Definitions
Session: A Session is a set of instruction which perform extraction, transformation and
loading.
A session Created to make the mapping available for execution.
Workflow: A Workflow is a start task which contains a set of instruction to execute the
other task such as session.
Workflow is a top object in the power center development hierarchy.
Schedule Workflow: A Schedule workflow is an administrative task which specifies the
data and time to run the workflow.
**
The following client component makes communication to integration service. 1. Workflow ManagerTransformation
A transformation is an object used to define business logic for processing the data. Transformation can be categorized in two categories
1. Based upon no. of rows processing 2. Based upon connection
Based upon no. of rows processing there are two types of Transformation 1. Active Transformation
2. Passive Transformation Active Transformation:
A transformation which can affect the number of rows while data is going from source to target is known as active transformation.
The following are the list of active transformation used for processing the data. 1. Source Qualifier Transformation
2. Filter Transformation 3. Aggregator Transformation 4. Joiner Transformation 5. Router Transformation 6. Rank Transformation 7. Sorter Transformation
8. Update Strategy Transformation 9. Transaction Control Transformation 10. Union Transformation 11. Normalizer Transformation 12. XML Source Qualifier 13. Java Transformation 14. SQL Transformation Passive Transformation:
A transformation which does not affect the number of rows when the data is moving from source to target is known as passive transformation.
The following are the list of passive transformation used for processing the data. 1. Expression Transformation
2. Sequence Generator Transformation 3. Stored Procedure Transformation 4. Lookup Transformation
Example:
Example of Active Transformation.
14 rows 14 rows 14(I) 6(O)
SQ_Emp
Emp SAL>3000 T_Emp
Example of Passive Transformation
14 Rows 14 Rows 14(I) 14(O)
Based on Connection there are two types of Transformation 1. Connected
2. Unconnected
Connected: A transformation which is participated in mapping data flow direction (connected to the source and target) is known as connected transformation.
--All active and passive transformation can be used as connected transformation.
--A connected transformation can receive the multiple inputs and can provide multiple outputs.
S
T
S
I
O
Tax
I
O
Annual Sal
Unconnected: A transformation which is not participating in a mapping data flow direction (neither connected to source nor to the target) is known as unconnected transformation.
-- An unconnected transformation can receives the multiple inputs but provides a single output.
-- The following transformation can be used as unconnected transformation. 1. Stored Procedure Transformation
2. Lookup Transformation
S
T
SQ_Emp
Emp Tax=Sal*0.10 T_Emp
Expression Transformation T/R SAL COM T/R T/R Mapping
Port & Types of Port
A Port represents column of the database table or file. The following are the types of port.
1. Input Port 2. Output Port
Input Port: A port which can receive the data is known as input port, which is represented as I.
Output Port: A port which can provide the data is known as output port, which is represented as O.
ETL Specification Document (Mapping Specification Document)
A mapping specification document is an excel sheet or word document which contains information about following objects.
1. Source 2. Target
3. Business Logic (Transformation Rule)
Source Target Transformation Rule
Source Type Target Type Calculate Tax (sal*0.10)
Source Table Target Table for top 3 employees based
Source Column Target Column on the salary in dept 30; Format Type P, S Format Type P, S
Description Description
DFD
14 Rows 14 Rows 14(I) 6(O) 6(I) 3(O) 3(I) 3(O)
1. Filter Transformation
This is of type an active transformation which allows you to filter the data based on given condition.
-- A condition is created with the three elements 1. Port
2. Operator 3. Operand
The integration service evaluates the filter condition against each input record, returns TRUE or FALSE.
-- The integration service returns TURE when the records is satisfied with the condition and the records are given for further processing or loading the data into the target.
-- The integration service returns FALSE when the input record is not satisfied with the condition and those records are rejected from filter transformation.
-- Filter transformation does not support “IN” operator.
-- The filter transformation supports to send the data to the single target. -- Use filter transformation to perform data cleansing activity.
-- The filter transformation functions as WHERE clause in terms of SQL. 2. Rank Transformation
This is of type an active transformation which allows you to identify the TOP and BOTTOM performers.
-- The rank transformation can be created with following types of ports. 1. Input Port
2. Output Port 3. Rank Port (R) 4. Variable Prot (V)
Rank Port: - The port based on which rank is determined is known as Rank Port. Variable Port: - A port which can store the data temporally is known as a variable port. The following properties need to be set for calculating the Ranks.
1. Top/Bottom 2. Number of Rank
The Rank transformation by default create with an output port called Rank index. Dense Ranking: - It is a process of calculating the ranks for each group.
Sampling: - It is a process of reading the data of specified size (No. of records) for testing.
3. Expression Transformation
This is a type of passive transformation which allows you to calculate the expression for each record.
The expression can be calculated only in the output ports.
Used expression transformation to perform data cleansing and data scrubbing activities. Expression transformations define only on the output port.
4. Sorter Transformation:
5. Aggregator Transformation
This is of type of an Active transformation which allows you to calculate the summary for a group of records.
Aggregator transformation is created with following four components.
1. Group by: It defines the group on a port for which summaries are calculated. Ex. Deptno
2. Aggregate Expression:- The aggregate expressions can be developed only in the output ports using following aggregate function.
--sum( ) --max( ) -- avg( )
3. Sorted Input: - An aggregator transformation receives sorted data as an input to improve the performance of summary calculations.
The port on which group is defined, the same ports need to be sorted, using sorter transformation. (Only group by port need to be sorted by sorter transformation)
4. Aggregate Cache: - The Integration service creates cache memory when the first time session executes on it.
-- The aggregate cache stored on server hard drive.
-- An incremental Aggregation uses aggregate cache to improve the performance of session.
Incremental Aggregation
It’s a process of calculating the summary for only new records, which pass through mapping using historical cache.
Note: - Both sorted input and incremental aggregation can not be used for a same application to achieve the greater performance. (Session gets failed because ROWID will not matched)
6. Lookup Transformation
This is of type of passive transformation which allows you to perform a lookup on relational tables, flat files, synonyms and views.
-- When the mapping contains a lookup transformation the integration service queries the lookup data and compares it with transformation port values (EMP.DEPTNO=DEPT.DEPTNO).
-- A lookup transformation can be created with the following types of port. 1. Input Port ( I )
2. Output Port ( O ) 3. Lookup Port ( L ) 4. Return Port (R) --There are two lookups
-- Use lookup transformation to perform following tasks. 1. Get related value
2. In updating slowly changing dimension.
Difference between Expression and Aggregator Transformation
Expression Transformation Aggregator Transformation Passive Transformation Active Transformation
Expressions are calculated for each record
Expressions are calculated for group of record
Non-Aggregate functions used Aggregate functions used 7. Joiner Transformation
This is of type of an Active transformation which allows you to combine the data from multiple sources into a single output based on given join condition.
-- The joiner transformation is created with the following types of ports. 1. Input Port
2. Output Port 3. Master Port (M)
A Source which is defined with lesser number of records than other source is designated as master source.
A master source is created with the master ports. The joiner transformation can be created with following types of join.
1. Normal join (Equi Join) 2. Master outer join 3. Detail outer join 4. Full outer join.
The default type of joiner transformation is Normal join (Equi Join). 1. Normal Join keeps only matching rows on the condition.
2. Master Outer Join Keeps all rows from detail and matching rows from master. 3. Detail Outer Join Keeps all rows from master and matching rows from detail. 4. Full Outer Join Keeps all rows from both master and detail.
Joiner transformation does not support non-equi join.
Use joiner transformation to perform merge the data records horizontally. Use joiner transformation to perform join on the following types of sources.
1. Table + Table 2. Flat file + Flat file 3. XML file + XML file 4. Table + Flat file 5. Table + XML file 6. Flat file + XML file
Merging
Horizontally Vertical
Joiner Transformation Union Transformation
Equi-Join Master outer join Detail outer join
Full Outer Join
8. Router Transformation
Router transformation is a type of active transformation which allows to apply multiple condition, to load multiple target table.
-- Is created with two types of group.
1. Input Group: - Which receives the data from source. 2. Output Group: - Which sends the data to target. Output groups are also of two types.
1. User defined group allows to apply condition. 2. Default group captures the rejected record.
Difference between Filter & Router transformation.
Filter Router
Single Condition based Multiple Condition based Single Target Multiple Target
Can not capture rejects Capture the rejects DFD Router Transformation Input State=HR State=DL State=KA Default 9. Union Transformation
Union transformation combines multiple input flows into a single output flow. It supports homogeneous and heterogeneous sources also.
Created with two groups.
1. Input group: - Receives the information
2. Output group: - Sends the information to the target. Union transformation works as union all in Oracle.
Note: All the sources should have the same structure. 10. Stored Procedure Transformation
This is of type passive transformation which is used to call the stored procedure from the database.
A stored procedure is a set of pre compiled SQL Statements which receives the input and provides the output.
There are two types of stored procedure transformation. 1. Connected Stored Procedure
2. Unconnected Stored Procedure
The following properties need to be set for stored procedure transformation.
i. Normal
ii. Source Pre Load
Sales Sales_SQ
State HR State DL State KA Default
Use the normal property when the stored procedure involves is performing calculation 11. Source Qualifier Transformation
This is a type of an active transformation which allows you to read the data from databases and flat files (text file).
SQL Override
It’s a process of changing the default SQL using Source filter, User defined joins, Sorting input data and Eliminating duplicates (Distinct)
Source Qualifier transformation supports SQL override when the source is database. The above logic gets process on the database server.
The business logic process is sharing between integration service and database server. This improves the performance of data acquisition.
User Defined Joins If the two sources are belongs to the same database user account or same ODBC then apply the joins in the source qualifier rather than using joiner
transformation.
Mapplet & Types of Mapplet
A mapplet is reusable metadata object created with business logic using set of transformation.
A mapplet is created using mapplet designer tool. There are two types of mapplet.
1. Active mapplet: - It’s created with the set of active transformation. 2. Passive mapplet: - It’s created with the set of passive transformation. It can be reused in a multiple mappings, having the following restrictions.
1. When you want to use stored procedure transformation you should use the stored procedure transformation with the type Normal.
2. When you want to use sequence generator transformation you should use the reusable sequence generator transformation.
3. The following objects can not be used to create a mapplet. i. Normalizer Transformation
ii. XML Source Qualifier Transformation iii. Pre/Post Stored Procedure Transformation iv. Mapplets (Nested Mapplet)
Note: Reusable TransformationContains Single Transformation Mapplet Contains Set of Transformation
Reusable Transformation
A Reusable transformation is reusable metadata object which contains the business logic created with single transformation.
It is created in two different ways…
i. Using Transformation developer
ii. Converting a Non-Reusable transformation into a Reusable Transformation Restriction
Source Qualifier transformation does not support to create reusable transformation. Constraints Based Load Ordering (CBL)
A CBL specifies the load order into the multiple targets based on primary key and foreign key relationship.
A CBL is specified when you want to load the data into snow-flake schema dimensions, which is having primary and foreign key relationship.
-Empno -Ename -Job -Sal -Deptno -Dname -Loc Scheduling Workflow
A schedule specifies the data and time to run the workflow. There are two types of schedule.
1. Reusable Schedule: - A schedule which can be attached to the multiple workflow is known as reusable schedule.
2. Non-reusable: - A schedule which is created at the time of creating workflow is known as non-reusable schedule.
A non-reusable schedule can be converted into reusable schedule. Target Load Plan
A target load plan specifies the order in which data being extracted from Source Qualifier Transformation.
Flat Files
A flat file is an ASCII text file which are saved with an extension .txt, .csv There are two types of flat files.
1. Delimited Flat Files: - In this type of file each field or columns separated by some
Emp_Dept Emp S_Q Emp Dept -Empno -Ename -Job -Sal -Deptno -Deptno -Dname -Location
Note:-
-- Relational Reader It’s reads the data from relational sources. -- File Reader It’s reads the data from flat files.
-- XML Reader It’s reads the data from XML Reader.
--Relational Writer It’s writes the data to the relational targets. -- File writers It’s writes the data to the flat file targets.
--XML writer It’s writes the data to the XML file targets.
-- DTM (Data Transformation Manager) It’s process the business logic defined in the mapping.
The above readers, writers and DTM are known as Integration service components. File List
A file list is a list of flat files with the same data definition, which needs to be merged with the source file type as indirect.
XML Source Qualifier Transformation
This transformation is used to read the data from XML files. (Just like Source Qualifier) Every XML source definition by default associates with XML source qualifier
transformation.
An XML is a case sensitive markup language saved with extension “.xml” Note: XML files are case sensitive file.
XML File Example: Emp.xml <EMP_DETAILS> <EMP> <EMPNO>100 </EMPNO> <ENAME>PRAKASH</ENAME> <JOB>DEVELOPER</JOB> <SAL>17000</SAL> <DEPTNO>20</DEPTNO> </EMP> <EMP> <EMPNO>200 </EMPNO> <ENAME>JITESH</ENAME> <JOB>MANAGER</JOB>
</EMP> </EMP_DETAILS>
Normalizer Transformation
This is of type of an active transformation which reads the data from Global file source. It is used to read the file from COBOL source. Every COBOL source definition by default associate with Normalizer transformation.
Normalizer transformation functions like a source qualifier which reading the data from COBOL Sources.
User Normalizer transformation to convert a single input record from source into multiple output data records. “This process is known as data pivoting”
Example:
File name: Account.txt
Year Account Month1 Month2 Month3
2008 Salary 25000 30000 28000
2008 Others 5000 6000 4000
Output
Year Account Month Amount
2008 Salary 1 25000 2008 Salary 2 30000 2008 Salary 3 28000 2008 Others 1 5000 2008 Others 2 6000 2008 Others 3 4000
Transaction Control Transformation
This is of type an active transformation which allows to controls the transaction by set of commit and rollback condition.
If you want to control the transactions then use transaction control transformation at mapping level.
We can define control expression by using the following predefined variables. TC_ROLLBACK_BEFORE
TC_ROLLBACK_AFTER TC_COMMIT_BEFORE
A transaction can be control at session level also by using the property commit interval. Sequence Generator Transformation
This is of type passive transformation which allows you to generate the sequence number to be treated as primary keys.
-- A surrogate key is a system generated sequence number to be used as primary key to maintain the history in a dimension tables.
-- A surrogate key is also known as dimensional key or artificial key or synthetic key. -- A sequence generator transformation is created with two default output ports.
i. Nextval ii. Curval
-- This Transformation does not allow you to create a new ports or edit the existing output ports.
This transformation is used in implementing slowly changing dimensions type2 to maintain the history in type2 SCD.
The following are the properties to be set to generate the sequence number. 1. Start Value
2. Current Value 3. Increment by
Update Strategy Transformation
This is of type an active transformation which flag the source records for Insert, Update, Delete, and Reject data driven operations.
This transformation functions an DML command in terms of SQL. There are two different ways to implement an update strategy.
i. Using update strategy transformation at mapping level. ii. Using target table options at session level.
The conditional update strategy expressions can be developed using following constraints.
DD_Insert 0 DD_Update 1 DD_Delete 2 DD_Reject 3
-- DD stands for Data Driven
The default update strategy expression is DD_Insert.
Update strategy transformation functions works on target definition table. The target table should contain primary key.
Use the following target table options at session level to implement an update strategy i. Insert: - It inserts the records in the target.
ii. Update: - Update as Update--It updates the record in the target. iii. Delete: - It deletes the records on the target.
iv. Update as insert: - For each update it insert a new record in the target.
v. Update else insert: - It updates the record if exist else insert new record in the target.
Use an update strategy transformation to update SCD. CACHE JOINER CACHE
How it Works
There are two types of cache memory, index and data cache. All rows from the master source are loaded into cache memory.
The index cache contains all port values from the master source where the port is specified in the join condition.
The data cache contains all port values not specified in the join condition.
After the cache is loaded the detail source is compared row by row to the values in the index cache.
Upon a match the tows from the data cache are included in the stream. Key Point
If there is not enough memory specified in the index and data cache properties the overflow will be written out to disk.
Performance consideration
The master source should be the source that will take up the least amount of space in cache.
Another performance consideration would be the sorting of data prior to the joiner transformation. (Sorted Input).
Note: The index cache is saved with an extension .idx and data cache is saved with an extension .dat
Joiner Cache
Index Cache Data Cache
LOOKUP CACHE How it works
There are two types of cache memory index and data cache.
All ports value from the lookup table where the port is part of the lookup condition are loaded into index cache.
The index cache contains all ports value from the lookup table where the port is specified in the lookup condition.
The data cache contains all port values from the lookup table that are not in lookup condition and are specified as “output” ports.
After the cache loaded, values from the lookup input ports that are part of lookup condition are compared to index cache.
Upon a match the rows from the cache are included in stream. Types of Lookup Cache
When the mapping contains lookup transformation the integration service queries the lookup data and stores in the lookup cache.
The following are the types of cache created by integration service. 1. Static Lookup Cache
This is the default lookup cache created by integration service, it is the read only cache, can not be updated.
2. Dynamic Lookup Cache
The cache can be updated during the session run and particularly used when you perform a lookup on target table in implementing Slowly Changing Dimension.
Deptno 10 20 30 40 Dname Location HR HYBD IT NDLS MKT KA SALE CHE
It the lookup table is the target the cache is changed dynamically as target load rows are processed.
New row to be inserted or updated in the target are also written to the cache.
Business Purpose
In a data warehousing dimensions tables are frequently updated and changes to the new row data must be captured within the load cycle.
New Lookup Row
0 The integration service does not update or insert the row in cache. 1 The integration service inserts the row into the cache.
2 The integration service updates the row into the cache. Key Points
1. The lookup transformation “Associated port” matches a lookup input port with the corresponding part in the lookup cache.
2. The “Ignore null inputs for updates” should be checked for ports where null data in the input stream may overwrite the corresponding field in the lookup cache. 3. The “Ignore in Comparison” should be checked for any port that is not to be
compared.
4. The flag “New Lookup Row” indicates the type of row manipulation of the cache. If an input row creates an insert n the lookup cache the flag is set to “1”. If an input row creates an update of the lookup cache the flag is set to “2”. If no changes is detected the flag is set to “0”. A filter or router transformation can be used with an update strategy transformation to set the proper row tag to update a
Dynamic Lookup Cache Lookup Transformation Lookup Response Lookup Request Write to Cache Target Table Write to Target
Performance Consideration
A large lookup table may require more memory resources than available. A SQL override in the lookup transformation can be used.
Persistent Lookup Cache
The cache can be reused for multiple session runs. It improves the performance of the session.
AGGREGATE CACHE How it Works
When the first time session executes on integration service, the integration service creates an aggregate cache which is made up of index cache and the data cache.
The integration service uses an aggregate cache to perform incremental aggregation. This improves the performance of session.
There are two types of cache memory, index and data cache. All rows are loaded into cache before any aggregation tasks place. All index cache contains group by port values.
The data cache contains all ports value variable and connected output ports. Non-group by input ports used in non-aggregate output expression.
Non group by input/output ports. Local variable ports.
Ports containing aggregate function (multiply by three).
One output rows will be required for each unique occurrence of the group ports.
When you perform the incremental aggregation the integration service reads the record from the source and check in the index cache for the existence of group value.
If the group value exist then it performs the aggregation calculation incrementally using historical cache.
If it does not find the group in he index cache it creates the group and perform aggregation.
Performance Consideration
Sorted Input: - Aggregator performance can be increased when you sort the input in the same order as the aggregator group by ports prior to doing the aggregation. The
aggregator stored input property would need to be checked.
Relational source data can be sorted using an “order by” clause in the source qualifier override.
Flat file source data can be sorted using an external sort application or the sorter transformation. Cache size is also important in assuring optimal performance in the aggregator. Make sure that your cache size settings are large enough to accommodate all
Perform incremental aggregation using aggregate cache. Perform group on numerical port rather than using character port.
Aggregate Cache
Index Cache Data Cache
SORTER CACHE How it Works
If the cache size is specified in the properties exceeds the available amount of memory on the integration service process machine then the integration service fails the session. All of the incoming data is passed into cache memory before the sort operation is performed.
If the amount of incoming data is greater than the cache size specified then the PowerCenter will temporary store the data in the sorter transformation work directory. Key Points
The integration service requires disk space of at least twice the amount of incoming data when storing data in work directory.
Performance Consideration
Using sorter transformation may improve performance over an “Order by” clause in a SQL override in aggregate session when the source is a database because the source database may not be tuned with the buffer size needed for a database sort.
Performance Consideration in Various Transformations Filter Transformation
Keep the filter transformation as close to the source qualifier as possible to filter the data
Deptno 10 20 30 40 Sum(Sal) 8000 12000 6000 99000
Router Transformation
When splitting row data based on field values a router transformation has a performance advantage over multiple filter transformation because a row is read once into the input group but evaluated multiple times based in the number of groups. Whereas using multiple filter transformation requires the same row data to be duplicated for each filter transformation.
Update Strategy Transformation
The update strategy transformation performance can vary depending on the number of updates and inserts. In some cases there may be a performance benefit to split a mapping with updates and insert into two mapping and sessions. One mapping with inserts and other with updates.
Expression Transformation Use operator instead of functions
Ex: Instead of using concat function use || operator to concatenate two string fields. Simplify the complex expressions by defining variable ports.
Try to avoid the usage of aggregate function.
TASK and TYPES OF TASK
A task is defined as a set of instructions. There are two types of task.
i. Reusable Task: - A task which can be defined for multiple workflows is known as reusable task. A reusable task is created using task developer tool. Ex: Session, command, Email.
ii. Non-Reusable Task: A task which is created and defined at the time of creating workflow is known as non-reusable task. Ex: Session, Command, Email, Decision task, Control task, Timer task, Event wait task, Event raise task, Worklet.
Note:- A non-reusable task can be converted into reusable task. Types of Batch Processing
There are two types of batch processing.
i. Parallel batch processing: - In a parallel batch processing all the session start executing at the same point of time. Session execute concurrently.
WKF F
S-10 S-20
ii. Sequential batch processing: - Session executes one after another.
The above pictorial representation defines as follows:
If S-10 is finished (Succeeded or Failed) then S-20 start and so on. Link Condition
In sequential batch processing the session executed sequentially and conditionally using link condition. Define the link conditions using a predefined variable called
PrevTaskStatus
The above pictorial representation defined as follows, If the S-10 succeeded then S-20 will execute and so on.
WORKLET and TYPE OF WORKLET A Worklet is defined as group of tasks. There are two types of worklet.
i. Reusable Worklet: - A worklet which can be defined in a multiple workflows is known as reusable worklet.
A reusable worklet is created using worklet designer tool. In a workflow manager. A worklet can be executed using a start task known as workflow.
ii. Non-reusable Worklet: - a worklet which is created at the time of creating workflow is known as non-reusable worklet.
A non-reusable worklet can be converted into the reusable worklet. COMMAND TASK
You can specify one or more shell commands to run during the workflow with command task.
You specify the shell commands in the command task to delete, reject file, copy file etc. Use command task in the following ways:
WKF F S-10 S-20 S-30 WKF F S-10 S-20 S-30 $S-10: PrevTaskStatus: SUCCEEDED $S-20: PrevTaskStatus: SUCCEEDED
2. Pre-Post Session shell command: - you can call the command task as the pre-post session shell command for a session task.
You can use any valid UNIX commands for UNIX servers and any valid DOS command for WINDOWS server.
Event Task
You can define the events in the workflow to specify the sequence of task execution. The event is triggered based on the completion of sequence of the task.
Use the following task to define the vent in the workflow.
i. Event Raise Task: - The event raise task represent User defined event. When the integration service runs the event raise task. The event raise target triggers the event. Use event raise task with event wait task to define the events.
ii. Event Wait Task: - The event wait task waits for an event to occur. Once the event triggers the integration service continues executing the rest of workflow. You may specify the following types of event for event wait and event raise task.
a) Pre-defined: - A predefined event is the file watch event. For a predefined events use event wait task to instruct the integration service to wait for specified indicator file. To appear before continuing with the rest of workflow. When the integration service locates the indicator file it starts the next task in the workflow.
b) User Defined Event: - A user defined event is a sequence of task in the workflow. Use an event raise task to specify the location of user defined event in the workflow.
Decision Task
You can enter a condition that determines the execution of the workflow with decision task, similar to the link condition. The decision task has a predefined variable called $decision_task_name.condition that represents the result of decision condition.
The integration service evaluates the condition in the decision task and sets the pre-defined condition variable to True or False.
Use decision task instead of multiple link condition in the workflow. WKF
F
S-10 CMD Task
Stand Alone Command Task Copy C:\test.txt D:\New Test
Timer Task
You can specify the period of time to wait before integration service runs the next task in the workflow with the timer task.
The timer task has two types of settings.
i. Absolute type: - We can specify the time that integration service starts running the next task in the workflow.
ii. Relative type: - You instruct the integration service to wait for specified period of time. After the timer task.
Ex: A workflow contains two sessions. You want the integration service wait 10 minutes after the first session completes, before it runs the second session.
Use the timer task after the first session, in the relative time setting of a timer task. Specify 10 minutes for start time of the timer task.
Assignment Task
You can assign a value to user defined workflow variable with the assignment task. To use assignment task in the workflow first create an add an assignment task to workflow. Then configure the assignment task to assign value or expression to user defined variable.
Email Task
Email task is used to send an email within a workflow. Note: - Emails can also be set post session in a session task.
-- Can be used within a link condition to notify success or failure of prior task. PMCD Utility
The PMCD is a command line program utility which communicates with integration services.
Using PMCD the following task can be preformed i. Start Workflow
ii. Schedule Workflow iii. Get Service details iv. Ping Service
The following commands can be used with PMCD Utility.
1. Connect it connect the PMCD program to the integration service. 2. Disconnect It disconnects the PMCD from the integration service.
4. Ping Service Verifies the integration service is running or not. 5. Help Returns the syntax for the command that you specify with help. 6. Start Workflow It starts the workflow on integration service.
7. Schedule Workflow Instructs the integration service to schedule a workflow. Before working with these commands you have to set environment variable for command prompt.
Set the Environment Variable
1. My ComputerRight ClickPropertiesAdvancedEnvironment Variable 2. ClickNew (User Variables for Administrator)
Variable Value
Infa_Home C:\Program Files\Informatica\PowerCenter 8.6.0 3. From System VariableSelect PathEditAssign the variable C:\Program Files\Informatica\PowerCenter 8.6.0\Server\bin
Open the Command Prompt type the PMCD i. Syntax for Connect Command
Connect –sv service name –d domain name –u Username –p Password ii. Syntax for Start Workflow
Startworkflow –f folder name –wkf workflow name
** Rest of the command and Syntax you can find in the help menu of Informatica Client Designer window.
PMREP Utility
The PMREP is a command line program utility. That provides a communication to repository service. To administrate the repository and update the repository content. The following Commands can be used with PMREP Utility
1. Connect Connect –r Repository Name –d Domain_name –x Password Ex: connect –r nipuna_rep –d domain_admin –n administrator –n administrator
2. Backup Use this command to the backup of the repository in .rep file format. backup –o filename
backup –o C:\backup\batch7pm.rep
3. Create Folder It creates a new folder in the repository Create folder –n folder name
5. Exit Exit the PMREP from command line. User Defined Function
It lets you to create customized function or user specific function to meet the specific business task that is not possible with built in functions.
The user defined functions can be private or public. Mapping Parameters
A mapping parameters represents a constant value that can be define before mapping run. A mapping parameter is created with the name, type, datatype, precision and scale. A mapping parameter is defined in a parameter file, which is saved with an extension .prm
A mapping can be reused for various business rules by parameterize the mappings. Represented by $$.
Parameter file Syntax
[Folder Name .WF: workflow name . ST : Session name] $$ parameter = Value
Example:
[Batch7pm . WF: wkf_mp . ST: S_mp] $$ deptno = 30
$$ tax = 0.15
Mapping Parameters are specific to the mapping and local to the mapping. Mapping Variables
A mapping variable represent a value that can be change during mapping run. A mapping variable is created with the name, time, data type, precision, scale and aggregation.
Business Purpose
A mapping variable is defined to perform incremental extraction from source. Note: A mapping variable can be used in Source Qualifier Transformation also.
A variable with the value stored in repository. A mapping variable is created to perform value based increment extraction.
Session Parameter
A Session parameter defines connection path to database system and file system. A Session parameter defines in parameter file saved with an extension with .prm.
[Folder . Session]
$ session parameter = Connection
Tracing Level
A tracing level determines the amount of information in the session log. The following are the types of tracing levels.
1. Normal 2. Verbose 3. Verbose Data 4. Terse
The default tracing level is Normal.
Tracing Level Description
Normal Integration Service logs initialization and status information, errors encountered and skipped rows due to transformation row errors. Summarizes session results, but not at the level of individual rows. Terse Integration Service logs initialization information and error
messages and notification of rejected data. Verbose
Initialization In addition to normal tracing, Integration Service logs additional initialization details names of index and data files used, and detailed transformation statistics.
Verbose Data In addition to verbose initialization tracing, Integration Service logs each row that passes into the mapping. Also notes where the Integration Service truncates string data to fit the precision of a column and provides detailed transformation statistics.
Allows the Integration Service to write errors to both the session log and error log when you enable row error logging.
When you configure the tracing level to verbose data, the Integration Service writes row data for all rows in a block when it processes a transformation.
.
Session Recovery
If you stop a session or an error passes a session to stop. Then identified the reasons for the failure and start the session again using one of the following methods.
2. Perform session recovery if the integration service has issued at least one commit. When you start the recovery session the integration service reads the ROWID of last row committed record from OPB_SRVR_RECOVERY table.
The integration service reads all the source data and start processing from next ROWID. DEBUGGER
It is used to debug the mapping to check the business functionality. Metadata Extension
A metadata extension provides information about the developer who has created an object.
Metadata extension includes the following information. 1. Developer Name
2. Object Creation Date 3. Email ID
4. Desk Phone etc
Difference between Normal and Bulk Loading
Normal Loading The integration service make an entry of the data record into the data log before loading into the target. The integration service consumes more time to load the data into the target.
Bulk Loading: - The integration service bypasses the data log and make an entry of the data record directly into the target.
It improves the performance of data loading.
Note: - In bulk loading you can not perform session recovery.
UNIT TESTING
A unit test for the data warehouse is a white box testing. It should check the ETL procedure, mappings, and front end developed reports.
Executes the following test cases 1. Data Availability
Connect to the source database with valid username and password. Run the SQL Query on the database to verify that the data is available in the table from where it needs to be extracted.
Expected Behavior
-- The login to the database should be successful. -- The table should contain relevant data.
Actual Behavior -- As expected Test Result -- Pass or Fail 2. Data Load/Insert
Ensure that records are being inserted in the target. Test Procedure
i. Make sure that target table is not having any records
ii. Run the mapping and check that records are being inserted in the target table. Expected Behavior
The target table should contain inserted record. Actual Behavior
-- As expected Test Result -- Pass
3. Data Load/Update
Ensure that update is properly happening in the target. Test Procedure
i. Make sure that some records are there in the target already.
ii. Update the value of the some field in a source table record which has been already loaded into the target.
iii. Run the mapping Expected Behavior
The target table should contain updated record. Actual Behavior
-- As expected Test Result -- Pass
Test Procedure
i. Add new record with new values in addition to already existing record in the source. ii. Run the mapping
Expected Behavior
The target table should be added with only new record. Actual Behavior
-- As expected Test Result -- Pass
5. Data Accuracy
The data from the source should be populated into the target accurately. Test Procedure
i. Add new record with new values in addition to already existing record in the source. ii. Run the mapping
Expected Behavior
The column values in the target should be the same the data source value. Actual Behavior
-- As expected Test Result -- Pass
6. Verify Data Loss
Check the number of records in the source and target. Test Procedure
i. Run the mapping and check the number of records inserted in the target and number of records rejected.
Expected Behavior
No. of records in the source table should be equal to the number of records in the target table + rejected records.
Actual Behavior -- As expected Test Result -- Pass
7. Verify Column Mapping
i. Perform a manual check to confirm that source columns are properly linked to the target columns.
Expected Behavior
The data from the source columns should be placed in target table accurately. Actual Behavior
-- As expected Test Result -- Pass
8. Verify Naming Standard
Ensure that objects are created with industry specific naming standard. Test Procedure
i. A manual check can be performed to verify the naming standard. Expected Behavior
Objects should be given appropriate naming standards. Actual Behavior
-- As expected Test Result -- Pass
9. SCD Type2 Mapping
Ensure that surrogate keys are properly generating for a dimensional change. Test Procedure
i. Insert a new record with new values in addition to already existing records in the source.
ii. Change the value of some field in a source table record which has been already loaded into the target run the mapping.
ii. Verify the target for appropriate surrogate keys. Expected Behavior
The target table should contain appropriate surrogate key for insert and update. Actual Behavior
-- As expected Test Result -- Pass
SYSTEM TESTING System testing also called Data Validation Testing.
A simple technique of counting the number of records in the source table that should be tie up with Number of records in the target table + Number of records rejected
Test the rejects for business logic.
The ETL system is tested with the full functionality and is expected to function as in production.
In many case the dimension table exists as masters in OLTP and can be checked directly.
Performance Testing and Optimization
The first step in performance tuning is to identify the performance bottleneck in the following order. 1. Target 2. Source 3. Mapping 4. Session 5. System
The most common performance bottleneck occurs when the integration service writes the data to target.
1. Identifying Target Bottleneck
Test Procedure: A target bottleneck can be identified by configuring the session to write
to a flat file target.
Optimization:
i. User Bulk loading instead of Normal load. ii. Increase Commit Interval
iii. Drop index of target table before loading 2. Identifying Source Bottleneck
Test Procedure: A source bottleneck can be identified by removing all the transformation
in test mapping and if the performance is similar then there is source bottleneck.
Test Procedure: Add a filter condition after the Source Qualifier to false so that no data is
processed passed the filter transformation. If the time it takes to run the new session is same as original session there is a source bottleneck.
Optimization:
i. Create Index
ii. Optimize the query using hint = ‘WHERE’ clause. 3. Identifying Mapping Bottleneck
Optimization:
i. Joiner Transformation 1. Use Sorted Input
2. Define the source as master source which occupies the least amount of memory in the cache.
ii. Aggregator Transformation 1. Use Sorted Input
2. Incremental aggregation with aggregate cache. 3. Group by simpler ports, preferably Numeric Ports. iii. Lookup Transformation
1. Define SQL Override on lookup table 2. User persistent lookup cache.
iv. Expression Transformation
1. Use operators instead of function
2. Avoid the usage of aggregate function call.
3. Simplify the expression by creating variable ports. v. Filter Transformation
1. Keep the filter transformation as close to the source qualifier as possible to filter the data early in the data flow.
4. Identifying Session Bottleneck
Test Procedure: Use Collect performance details to identify session bottleneck. Low
(0-20%) buffer input efficiency and buffer output efficiency counter values indicates session bottleneck.
Optimization:
Tune the following parameters in the session. 1. DTM buffer size 6M to 128M
2. Buffer block size 4K to 128K 3. Data cache size 2M to 24M 4. Index cache size 1M to 12M
Test Procedure: Double Click Session Properties Tab Select “Collect
performance Data” Click ApplyOk Execute the Session.
The Integration service creates a performance file that saved with an extension .pref The .pref file located in session log directory.
If there is no target, source, mapping and session bottleneck then there may be a system bottleneck. Use the system tool to monitor CPU usage and memory usage.
On Windows Operating System used Task Manager, on Unix Operating System use system tool such as iostat, sar.
Optimization:
Improve Network Speed Improve CPU Usage
SQL Transformation
The SQL Transformation processes the SQL queries in the pipeline. You can insert, delete, update and retrieve rows from the database. You can pass the database connection information to the SQL Transformation as input data at run time.
You can configure the SQL Transformation to run into the following modes.
1. Script Mode: - An SQL Transformation running in script mode runs SQL Scripts from the text file.
You pass each script file name from source to SQL Transformation using script name port.
The Script file name contains complete path to script file.
An SQL Transformation configure for script mode has the following default ports. i. Script Name – Input port
ii. Script Result – Output Port (Returns passed if the script execution succeeded otherwise returns fail)
iii. Script Error – Output Port (Returns Error Message)
2. Query Mode: - When a SQL Transformation runs in query mode it executes an SQL Query that you define in the transformation.
When you configure the SQL Transformation to run in a query mode you create an active transformation. The transformation can returns multiple rows for each row.
Unconnected Stored Procedure
An Unconnected stored procedure transformation is not a part of data flow. It can be called through other transformation using :sp( ) Identifier.
An Unconnected stored procedure can receive act as function that can be called through other transformation such as expression transformation.
An Unconnected stored procedure can receive multiple inputs but provides single output. Difference between Connected and Unconnected Lookup Transformation
2 Returns multiple values (by linking Output ports to another transformation.)
Returns one value by checking the Return Port option for the output port that provides the return value.
3 Execute for every record passing through the transformation
Only executed when the lookup function is called
4 More visible, shows where the
lookup values are used. Less visible as the lookup is called from an expression within another transformation. 5 Default values are used. Default values are ignored.
Joins Versus Lookup Source Qualifier Join
Advantage
Can join any number of tables
Full functionality of standard SQL variable. May reduce volume of data on network
Disadvantage
Can only join homogeneous relational tables Can affect performance on the source database.
Joiner
Advantage
Can join Heterogeneous source Can join non-relational source Can join partially transformed data
Disadvantage
Can only join two input data steams per joiner Only supports equijoin
Does not support “OR” condition
Lookup
Advantage
Can reuse cache across session run Can reuse cache with mapping Can modify cache dynamically Can chose to cache or not to cache
SQL Override supported
Can be unconnected and invoked as needed
Disadvantage
Can not output multiple matches
Unconnected can only have one return value Does not support “OR” condition
Unconnected Lookup Transformation
An unconnected transformation is not a part of data flow, act as a lookup that can be called through other transformation using :LKP identifier.
It improves the efficiency of mapping.
High Level Design
The following activities need to be identified. 1. Identify the source system
2. Identify the RDBMS
3. Identify the hardware requirements
4. Identify the ETL & OLAP software requirement. 5. Identify the operating system requirements.
ETL Development Life Cycle
ETL Project Plan Business Requirements
High Level Design Low Level Design ETL Development ETL Unit Testing System Testing Performance Testing ETL User Acceptance Testing
Deployment
Warranty, Stabilization Period Maintenance
