(1)

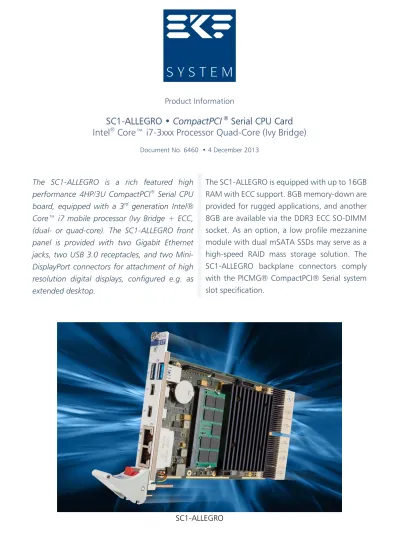

SC1-ALLEGRO

Product Information

SC1-ALLEGRO • CompactPCI

®

Serial CPU Card

Intel

®

Core™ i7-3xxx Processor Quad-Core (Ivy Bridge)

Document No. 6460 • 4 December 2013

The SC1-ALLEGRO is a rich featured high

performance 4HP/3U CompactPCI

®

Serial CPU

board, equipped with

a 3

rd

generation

Intel®

Core™ i7 mobile processor (Ivy Bridge + ECC,

(dual- or quad-core). The SC1-ALLEGRO front

panel is provided with two Gigabit Ethernet

jacks, two USB 3.0 receptacles, and two

Mini-DisplayPort connectors for attachment of high

resolution digital displays, configured e.g. as

extended desktop.

The SC1-ALLEGRO is equipped with up to 16GB

RAM with ECC support. 8GB memory-down are

provided for rugged applications, and another

8GB are available via the DDR3 ECC SO-DIMM

socket. As an option, a low profile mezzanine

module with dual mSATA SSDs may serve as a

high-speed RAID mass storage solution. The

SC1-ALLEGRO backplane connectors comply

with the PICMG® CompactPCI® Serial system

slot specification.

(2)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

Feature Summary

<

CompactPCI® Serial (PICMG® CPCI-S.0) System Slot Controller

<

Based on the Intel® Chief River Platform (Ivy Bridge + ECC CPU, Panther Point PCH)

<

Intel® Core™ i7 (i5/i3) Mobile +ECC Processor, 22nm Process Technology, Low Power, Dual-Core and

Quad-Core, Code Name Ivy Bridge

<

i7-3612QE Processor 2.1GHz • 35W TDP Standard Voltage Quad-Core

<

i7-3555LE Processor 2.5GHz • 25W TDP Low Voltage Dual-Core

<

i7-3517UE Processor 1.7GHz • 17W TDP Ultra Low Voltage Dual-Core

<

i5-3610ME Processor 2.7GHz • 35W TDP Standard Voltage Dual-Core

<

i3-3120ME Processor 2.4GHz • 35W TDP Standard Voltage Dual-Core

<

i3-3217UE Processor 1.6GHz • 17W TDP Ultra Low Voltage Dual-Core

<

Integrated HD Graphics Engine, 3 Independent Displays, Enhanced Media Processing

<

Integrated Memory Controller up to 16GB DDR3 +ECC 1333 and 1600

<

DDR3 +ECC Soldered Memory up to 8GB

<

DDR3 +ECC SO-DIMM Memory Module Socket up to 8GB

<

Intel® QM77 Panther Point Platform Controller Hub (PCH)

<

Up to 3 Display Configuration (Front Panel: Dual mDP or Single VGA Connector Option)

<

Max Resolution 2560 x 1600 (DisplayPort), 1920 x 1200 (VGA)

<

2 + 1 SATA Channels 6Gbps/3Gbps for Mezzanine Storage Modules (Connector HSE)

<

CompactFlash® Card with C40-SCFA Mezzanine Module Option (4HP Maintained)

<

CFast™ Card with C41-CFAST Mezzanine Module Option (4HP Profile Maintained)

<

SATA 1.8-Inch Solid State Drive with C42-SATA Mezzanine Card Option (4HP Maintained)

<

Dual mSATA Modules with C47-MSATA RAID Mezzanine Card Option (4HP Maintained)

<

7 x SATA Channels 3Gbps to Backplane Connectors, 5 Channels Available for Hardware RAID Configuration

Level 0/1/10 + Hot Spare (Option RAID Level 3/5)

<

4 x USB 3.0 XHCI SuperSpeed Channels (2 x to F/P Connectors, 2 x Backplane)

<

10 x USB 2.0 EHCI (6 x to Mezzanine Connectors, 4 x Backplane)

<

4 x Gigabit Ethernet Controllers (2 x F/P RJ-45 Jacks and 2 x Backplane Connector)

<

8 + 8 x PCI Express® Gen3 Lanes to CPCI Serial Backplane (CPCI Serial Fat Pipe 1 + 2)

<

4 + 4 x PCI Express® Gen2 Lanes (4 x Mezzanine Connector, 4 x Backplane)

<

Legacy I/O Mezzanine Expansion Connector EXP (USB, HD Audio, LPC)

<

High Speed I/O Mezzanine Expansion Connector HSE (3 x SATA, 4 x USB)

<

PCI Express® Mezzanine Expansion Connector PCIE (4 Lanes)

<

Third Display Mezzanine Expansion Connector SDVO/DP

<

Variety of Mezzanine Expansion Boards (Side Cards) Available with and w/o PCIe

<

Most Mezzanines Optionally Equipped with 2.5-Inch Single- or Dual-Drive

<

UEFI Phoenix BIOS with ACPI

<

Long Term Availability

<

Coating, Sealing, Underfilling on Request

<

RoHS compliant

<

MTBF 104 x 10

3

h (11.9 years) @ 50° C

Related Information

SC1-ALLEGRO Home

www.ekf.com/s/sc1/sc1.html

SC1-ALLEGRO User Guide

www.ekf.com/s/sc1/sc1_ug.pdf

(3)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(4)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

SC1-ALLEGRO w. C42-SATA Storage Module

(5)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

P1 P2 P3 P4 P5 P6

CompactPCI® Serial • © EKF • ekf.com

HSE EXP PCIE

SDVO/DP Dual GbE VGA DP 2 DP 1 2 x USB 3.0

CompactPCI® Serial

Connectors P1-P6

System Slot

up to 40 x PCIe

© EKF • ekf.com 8 x GE 7 x SATA 7 x USB3 4 x USB2 8 x PE (1) x PE (2) 4 3 x USB2 I/O (DP) 4 4 x PE (5) 4 x PE (6) x PE (4) 4 x PE (3) 4 x PE (8) 4 Clk PE (1-8) x PE (7) 4 x PE (1) 1 x SATA 1 x USB2/3 Sideband Po w er

Backplane Connector Assignment

According to PICMG® CPCI-S.0

While mechanically compliant to CompactPCI®

Classic, CompactPCI® Serial (PICMG® CPCIS.0)

defines a completely new card slot, based on

PCI Express®, SATA, Gigabit Ethernet and USB

serial data lines. Up to 6 high-speed backplane

connectors P1 - P6 are provided on a system

slot controller such as the SC1-ALLEGRO, which

can be considered as a root hub with respect to

most signal lines. A passive backplane is used

for distribution of a defined subset of I/O

channels from the system slot to each of up to

eight peripheral slots in a CompactPCI® Serial

system.

Most CompactPCI® Serial peripheral slot cards

require only the backplane connector P1, which

comprises PCIe, SATA and USB signals, resulting

in a concise and inexpensive peripheral board

design. More powerful peripheral cards profit

from so called Fat Pipe slots (PCIe x 8).

The SC1-ALLEGRO is a native CompactPCI®

Serial CPU card, suitable for usage in a pure

CPCI Serial environment. Due to its generous

backplane capabilities (20 x PCI Express® lanes,

6 x USB, 7 x SATA/RAID, 2 x GbE), very powerful

industrial systems can be built.

(6)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

SC1-ALLEGRO as CompactPCI® Serial System Slot Controller

Related Documents CompactPCI® PlusIO & CompactPCI® Serial

CompactPCI® PlusIO & Serial Overview

www.ekf.com/s/cpci_serial_overview.pdf

CompactPCI® PlusIO Home

www.ekf.com/p/plus.html

(7)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

SC1-ALLEGRO

Core™ i7 CPU

Intel® Ivy Bridge © EKF • ekf.com P1 P2 P3 P4 P5 P6

SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com

HSE

2 x SATA 6G 4 x USB

1 x SATA 3G LPC USBSMBus HD Audio EXP PCI Express® x 4 PCIE Flat-Panel Video DP/DVI SDVO/DP

Mezzanine

Expansion

Options

Dual GbE VGA DP 2 DP 1 2 x USB 3.0

SC1-ALLEGRO • Mezzanine Board Connectors

The SC1-ALLEGRO is equipped with a set of

high-speed local expansion interface

connectors, which can be optionally used to

attach a mezzanine side board. A variety of

expansion cards is available, e.g. providing

legacy I/O such as RS-232, and additional PCI

Express® based I/O controllers such as SATA,

USB 3.0 and Gigabit Ethernet, and also a third

video output.

Most mezzanine side cards can accommodate

in addition a 2.5-inch drive. Typically, the

SC1-ALLEGRO and the related side card would

come as a readily assembled 8HP unit. As an

alternate, MicroSATA or mSATA SSD based low

profile mezzanine mass-storage modules are

available that fit on the SC1-ALLEGRO 4HP

envelope, nevertheless suitable for installation

of any popular operating system.

Related Documents Mezzanine Modules and Side Cards

C40 ... C45 Series

Mezzanine Storage Modules

www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf

Mezzanine Side Cards Overview

www.ekf.com/c/ccpu/mezz_ovw.pdf

(8)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(9)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

Typical 8HP Assembly w. PCS-BALLET Side Card & C42-SATA

(10)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(11)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

SC1-ALLEGRO • See-Through Heatsink

(12)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

C40-CFA • CompactFlash Mezzanine Module

(13)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(14)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

C42-SATA • Solid State Drive Low Profile Mezzanine Module

(15)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

C44-SATA • 2.5-Inch HDD/SSD Mezzanine Side Card (8HP F/P Assembly)

(16)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

SC1-ALLEGRO w. C47-MSATA Dual mSATA Mezzanine Module (RAID)

(17)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(18)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(19)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

SC1-ALLEGRO w. PCS-BALLET & Half-Slim SATA SSD (8HP)

(20)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(21)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(22)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

Block Diagram

SD V O /D P Me zzan in e Side Ca rd I/O VG A

QM77

Mobile

PCH

DP1 Front P an el Stuf fing Alt ernate s -eith er M ini D isp la yP or t or VG A USB3

8257

9

LM

Fl

ash

SPI

8257

4

IT

8257

4

IT

PC

Ie

Gen2 Sw

itch

Hub

USB

Si

mplified B

lock

Dia

gr

am

SC1-AL

LEGRO Rev

. 2

PICMG Comp actPC I Ser ia l Sy

stem Slot Controller

®® Pa nther P oint PC Ie PC Ie SPI USB2/3 USB2/ 3 USB 2 USB 2 2+ 9 LP C/ A udio/SMB/GP IO 4 4 2 2 DP 2

DDR3 ECC Soldered

DDR3

ECC

SODIMM

DM I2 5G T/s FD I

Iv

y Brid

ge

EC

C

Em be dd ed Mobile

2/4

-Co

re

CPU

8 DDR3 1 600 Dual C hannel up to 16G B Ivy B rid ge +E CC PC Ie G en3 8 2+ 6 2 4 4 SA TA 6 G /3 G 2/1 Gb E 2

SA

TA

RA

ID

0/1/3/ 5/6 SA TA 3 G 1 5 SA TA 3 G 2 Gb E Gb E

Intel®

Chief

River Pla

tfo

rm

PC Ie G en3 PC Ie PC Ie G en2 3G Fr on t Pa ne l I/O

GbE

1

GbE

2

Bac kplane Compa ctP CI Se rial P1 P2 Fa t P ip e 1 P2 Fa t P ip e 2

(23)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

USB 3.0 G-ETH SC1-ALLEGRO Dual - mDP mDP 1 PG GP HD GEB RST 2 SC1-ALLEGRO VGA © EK F • dr af t do no t scal e • e kf .co m V G A HD GEB RST PG GP USB 3.0

Front Panel Options

(24)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

Convection Cooling

Option VGA Connector

(25)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

Top & Bottom Component Assembly

SC

1-ALL

EGRO

© EK F • ekf .com Ivy Bridge i7 CPU 2 Channel ECC DDR3 SODI MM ECC DDR3 P1 P2 P3 P4 P5 P6 SDVO/DP PCIE EXP HSE

SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com Dual GbE VGA P-GP P-RTC BAT P-MFG 1 1 1 1 DP 2 DP 1 2 x USB 3.0 QM77 PCH Mobile So lde red ECC D D R3

SC1-ALLEGRO

© EKF • ekf.com

SC1-ALLEGRO • CompactPCI® Serial • © EKF • ekf.com

LED PGD DIP Switch DS-P LED GP PLD P-IS P XD P 1 1 LED HD LED GEB Reset BTN Solde red EC C DD R3

(26)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

System Integration

SC1-ALLEGRO (Multi-DP & Storage Configuration)

(27)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

CompactPCI® Serial Backplanes Available

(28)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(29)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

(30)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

System Rack for 8 Peripeheral Slot Cards (w/o RIO)

(31)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

System Rack for 8 Peripeheral Slot Cards (with RIO)

(32)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

SC1-ALLEGRO

GE (1-2) 2 x SATA (PCH) 5 x SATA (RAID) 1 x USB3 3 x USB2 8 x PE (1) x PE (2) 4 3 x USB2 I/O 4 4 Links x 1 Lane x PE (3-6) Clk PE (1-6) 4 x PE (1) 1 x USB3 Sideband

Fat Pipe

Slot

Peripheral

Slot

GE (1) PE Gen3 x 8 USB3 GE (2) PE Gen2 x 1 SATA (RAID) USB2 PE Gen2 x 1 SATA (RAID) USB2 PE Gen2 x 1 USB2 PE Gen2 x 1 USB2

1

2

3

4

5

6

7

8

Fat Pipe

Slot

Peripheral

Slot

Peripheral

Slot

Peripheral

Slot

Peripheral

Slot

Peripheral

Slot

USB3

SC1-ALLEGRO Rev. 2 • Ressources w. 1+8 Slots Backplane

© EKF • ekf.com

SATA (RAID) SATA (RAID) SATA (PCH) SATA (PCH)

PE Gen3 x 8 SATA (RAID)

(33)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

Ordering Information

For popular SC1-ALLEGRO SKUs please refer to www.ekf.com/liste/liste_21.html#SC1

For popular Mezzanine Side Cards please refer to www.ekf.com/liste/liste_20.html#C40

(34)

SC1-ALLEGRO • CompactPCI

®

Serial CPU Board • Quad-Core Intel® i7-3xxx Processor

Industrial Computers Made in Germany

boards. systems. solutions.

EKF Elektronik GmbH

Philipp-Reis-Str. 4

59065 HAMM

Germany

Phone +49 (0)2381/6890-0

Fax +49 (0)2381/6890-90

Internet www.ekf.com

E-Mail [email protected]

References

Download now ( PDF - 34 Page - 3.16 MB )

Related documents

HOW CLOSE ARE THE OPTION PRICING FORMULAS OF BACHELIER AND BLACK-MERTON-SCHOLES?

P has a natural interpretation (in Bachelier’s times it was called “´ ecart”, i.e. the “spread” of an option): it is the price P of a european put at maturity T with strike

THE GREAT RUBE GOLDBERG ENERGY CHALLENGE

The student demonstrates conceptual understanding of (S1c) transfer of energy, such as transformation of energy as heat; light, mechanical motion, and sound; and the nature of

Bioengineering Doctoral Program University of Puerto Rico - Mayagüez

degree, 34 credit-hours will be required in the following manner: nine credit-hours in core courses, three credit-hours in bioengineering courses, three credit-hours in

Strange Horizons: Understanding Causal Barriers Beyond General Relativity

evolving black holes, a quite significant amount of work has been devoted to considering extensions to the usual notion of surface gravity that would be suitable for

Good Firms, Worker Flows and Productivity

A simulation indicates that worker ‡ows explain 10-15 percent of the productivity gains experienced by other …rms when HWFs in the same industry are added to a local labor market..

A Nation Going Under: Legal Protection for “Climate Change Refugees”

have the potential to diminish the adaptation efforts of states like Kiribati and contribute to “a sense of fatalism that accelerates the[ir] demise.” 53 Yet the use of the

The Relationship Between Schools Utilizing Positive Behavior Interventions and Support Programs and Student Achievement

This study was conducted to determine if there is a significant relationship between the four year implementation of a Positive Behavior Intervention and Support (SWPBIS) model

Mit tehet az alkotmányjog a demokrácia és a jogállamiság eróziója ellen? A demokrácia és a jogállamiság védelmének elválaszthatatlanságáról

szupranacionális politikai fellépés (ez az elem, vagyis a politikai akarat volt az, ami hiányzott uniós szinten, amikor Magyarországon és Lengyelországban megindult az
