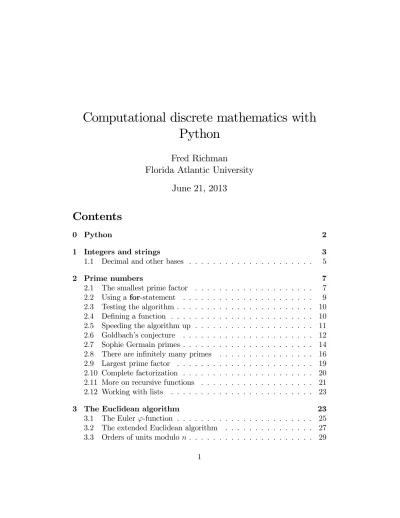

Computational discrete mathematics with

Python

Fred Richman

Florida Atlantic University

June 21, 2013

0 Python

You can’t do computational mathematics without writing programs. In this course, all of the programs are to be written in Python. There is a lot of

(3)

material on Python on the web. The particular version I’m going to use is Python 2.7.3. The …rst thing you need to do is to download Python 2.7.3. You can do this at

http://www.python.org/getit/

After you have downloaded Python, open IDLE, the Python GUI (graph-ical user interface). This gives you an interactive window in which you can play with Python. The prompt line looks like

>>>

You can try various arithmetic operations …rst. If you type 2+7, and then “Enter”, you should see

9 >>>

Try typing 2*7 and 2/7 and 2**7. The last one should give you 27 which is 128. Now try 2**100. The L at the end of the number means that it is a “long integer”.

Now type range(10). You should get a list of the …rst ten numbers, starting with 0. Lists in Python are enclosed with square brackets, and the entries are separated by commas. Now try range(5,10) and range(-5,10). Try range(a,b) with various values of a and b until you understand how it works.

Now type range(0,100,7) and range(-20,20,3). What do these look like? Try a few more.

Exercise 1. Write down a description of what range(a,b) is for arbi-trary integers a and b.

Exercise 2. Write down a description of what range(a,b,c) is for arbitrary integers a, b, and c.

1 Integers and strings

We will be working mostly with the integers:

(4)

Your …rst project is to familiarize yourself with the Python operator %. Get into the Python interactive mode (shell or console). One way to do this is just to open IDLE from the start menu. You should see the prompt:

>>>

If you type 2+3, and then “Enter”, you should see 5

>>>

If you type 100%17, and then “Enter”, you should see 15

>>>

That’s because when you divide 100 by 17 you get a remainder of 15. That is, 100 = 5 17 + 15. I have no idea why they use the percent sign to indicate that function— the same thing is done in the language C.

What happens when you type 100%-17 or -100%17 or -100%-17? If you type 100/17, and then “Enter”, you should see

5 >>>

That’s because when you divide 100 by 17 you get a quotient of 5 (and a remainder of 15). So 100 is equal to (100/17)*17+(100%17). Type that last expression into Python, in the interactive mode, and press “Enter”. What do you get?

Exercise 1. Come up with a description of a%b when a and b are arbi-trary integers.

Exercise 2. Describe b/a for arbitrary integers a and b.

Exercise 3. Despite its name, the division algorithm is a mathematical theorem, not an algorithm. One way of stating it is:

If a and b are integers, and a 6= 0, then b = qa + r for unique integers q and r, with 0 r < _{jaj. The integer q is called the} quotient, and the integer r, the remainder.

Your question is, what is the relationship between q and a/b, and between r and b%a? You can only …nd out by experimenting with Python. You are trying to describe how Python behaves. Experiment with both negative and positive values of a and b.

(5)

1.1 Decimal and other bases

When we write a number like 1776, we use the standard decimal notation. That is, we use ten digits, 0; 1; 2; 3; 4; 5; 6; 7; 8; 9, and their value depends on their position. The …rst occurrence of the digit 7 in the string of digits ‘1776’ stands for seven hundred; the second stands for seventy. The digit 1 stands for one thousand, and the digit 6 stands for six. That is,

1776 = 1 1000 + 7 100 + 7 10 + 6 1 or

1776 = 1 103+ 7 102+ 7 101+ 6 100

Technically, we can distinguish the numeral ‘1776’from the number 1776, just like we distinguish the three-letter word ‘cat’from a cat. Another numeral that stands for 1776 is ‘MDCCLXXVI’.

We say that the string of digits ‘1776’is the decimal representation of the number 1776, or the base-10 representation.

If we want to get hold of the last digit in the decimal representation of the number we can use the Python operation %. The number n%10 is the last digit in the decimal representation of n. Try it with 1776. That’s because 1776 = 177 10+6. If we want to get hold of the next to the last digit of 1776, we look at 177%10. The number 177 is obtained by by writing 1776/10.

Here is a short program that illustrates this: n = 1776

print n, n/10, n%10

Run this program. You should see: 1776 177 6. The two commas separate the three numbers on the same line, but they don’t appear on that line with the numbers. Now we want to do the same thing with 177, so we add two lines to the program:

n = 1776

print n, n/10, n%10 n = n/10

print n, n/10, n%10

The third line replaces n by n=10, that is, it will replace 1776 by 177. The fourth line is the same as the second line because we want to see the same things, but with 177 rather than with 1776.

(6)

Run this program. You should see

1776 177 6 177 17 7

We can continue by repeating those two lines several more times: n = 1776 print n, n/10, n%10 n = n/10 print n, n/10, n%10 n = n/10 print n, n/10, n%10 n = n/10 print n, n/10, n%10 n = n/10 print n, n/10, n%10

Maybe I went overboard there. Run this program. You should see 1776 177 6

177 17 7 17 1 7 1 0 1 0 0 0

Notice that we have picked o¤ the four digits of 1776 as the last numbers on each line. I suppose we can consider the number 0 at the end of the …fth line as the coe¢ cien of 104 in the representation of 1776 as

0 104+ 1 103+ 7 102+ 7 101+ 6 100

but we never write the digit 0 as the …rst digit in a number. So I should have quit as soon as n became 0. We want to repeat the lines

print n, n/10, n%10 n = n/10

as long as n remains positive. But we don’t want to write those lines over and over again. Instead we write

(7)

n = 1776 while n > 0:

print n, n/10, n%10 n = n/10

There are several things to notice here. The …rst is the colon after “while n > 0”. That is essential. The second is that the next two lines are both indented. That’s so Python will know to execute both of them until n becomes zero. If you write this program in the IDLE editor (which you should), the colon will cause the next line to be indented automatically. If we had written

n = 1776 while n > 0:

print n, n/10, n%10 n = n/10

our program would have printed out 1776 177 6 until doomsday. What do you think would happen if we had written

n = 1776 while n > 0: print n, n/10, n%10 n = n/10 Try it.

2 Prime numbers

A prime number is an integer that is greater than 1, but is not the product of two integers that are greater than 1. The two smallest prime numbers are 2 and 3. The number 4 is not prime because 4 = 2 2; the number 51 is not prime because 51 = 3 17. The …rst twenty prime numbers are

2; 3; 5; 7; 11; 13; 17; 19; 23; 29; 31; 37; 41; 43; 47; 53; 59; 61; 67; 71

2.1 The smallest prime factor

We want to write a Python program that computes the smallest prime factor p of a given number n. That is, we want to implement Proposition 31 of Book VII of Euclid’s Elements which says that any number greater than 1 is divisible by a prime.

(8)

You can do this in the interactive mode, but it is less harrowing to do it in the IDLE mode. In that mode, we work with a (built in) text editor on a …le containing a Python program. You can create such a …le from the IDLE interactive mode: open a new window by clicking on the “File” button and then choosing “New Window”. An IDLE editing window comes up. You are now set to write some Python code which you can save afterwards by clicking on the “File” button and then choosing “Save As”. At that point you will have to choose where you want to save your …le, and what its name will be. Call it “…ddle.py”, or something more descriptive, but with the “.py” extension.

In the IDLE editing window, type the short version of the classic …rst program:

print "Hello"

If you are writing a program in the IDLE editing window, you have to use the word print in order to get any output. The quotation marks indicate that the word Hello is text. Without the quotation marks, Python would assume that it was a variable. You can use single quotes or double quotes. The single quote on my keyboard is on the same key as the double quote. I can’t seem to get an appropriate single quote with the word processor I’m using. The best I can do is

print ’Hello’

To run the program, press the F5 key. If you haven’t named the program …le before, you will be asked to do so now. Otherwise, Python will simply ask you if it is okay to save the …le, which you will normally agree to. The output should then appear in another window called "Python shell". This window is essentially the interactive window that you worked with before. So you will normally have two windows going: one where you write your program, and one where you see your output. The output for this program should be Hello.

Try running the program after removing the quotation marks. You should get an ugly error message in red saying that Hello is not de…ned. Without putting back the quotation marks, insert the line

Hello = 3

at the beginning of the …le, before the print command. This will set the vari-able named Hello equal to 3. Run the program again to see what happens.

(9)

The smallest prime factor of n is the smallest integer p greater than 1 which divides n. We might as well assume that n 0 because if n < 0, we could look at n instead. If n = 0, then I guess its smallest prime factor is 2; what do you think? If n = 1, then it has no prime factors. (Nobody considers 1 to be a prime, although one can argue that it is.) Those are the only exceptional cases: The number 0 is exceptional because it is smaller than its smallest prime factor; the number 1 is exceptional because it has no prime factor.

So, for the computation, you may assume that n > 1. You want to try to divide n successively by 2; 3; 4; 5; : : : until you are successful. You can do that with the function n % m. So you want to see when n % m is …rst equal to zero. The condition that n % m is equal to zero is written

n % m == 0

with two equal signs (as in C). A single equal sign is used in an assignment statement: x = a+b says to set the value of x equal to a+b. The expression x == a + b doesn’t say to do anything— it has the value True if x is equal to a + b, and the value False if x is not equal to a + b. An expression that takes on the values True or False is called a boolean expression. Another boolean expression is x < y.

A typical use of boolean expressions is in an if statement. The statement if n % m == 0: print ’Hello’

prints out ‘Hello’ if m divides n. The boolean expression is n % m == 0. Note the colon. You need that. It separates the boolean expression from the commands. Here we have only one command: print ’Hello’.

Exercise 1. What do you see if you print the boolean expression 3 % 2 == 0? The boolean expression 2 < 3? What if you print ’2 < 3’?

2.2 Using a for-statement

Suppose n > 1 is an integer. We want to run through the integers m, starting at 2, to see if any of them divide the positive integer n. When we come across one that does, we’ll print it out so we can see it. There is at least one that does, namely n itself. We can do this as follows for the integer n = 91:

(10)

for m in range(2,n+1): if n % m == 0:

break print m

Note the colons after the for-statement and after the if-statement. The “break” instruction says “get out of this for-statement”. The indentations are very important in Python. They tell you that the for-statement goes on until the statement print m. The list range(2,n+1) consists of those integers m such that 2 m < n + 1. Note that 2 is an allowable value of m, but n + 1 is not. In general, the set range(a,b) consists of those integers m such that a m < b. The value of m when we exit the for-loop will be the smallest integer greater than 1 that divides n.

Exercise 1. Write this program in your …le …ddle.py, or write it in a another …le with a name like temp.py. Run this program using di¤erent values of n. What can you say about n if the program prints out n?

2.3 Testing the algorithm

You should test the program to see if it works. Of course you just could try it on a few selected numbers, and you should do that. Another thing you could do is print out what it does on the …rst 100 numbers greater than 1 (for example) and eyeball the results to see if they look okay. This, of course, would be done with another for-loop, which would start:

for n in range(2,102):

Inside that for-loop we have to put our original for-loop. Moreover, you should not just print out m, you should print out both n and m, so you will get a list of pairs: the number, and its smallest prime factor. Something like

print n,m

which prints out n followed by a space followed by m.

2.4 De…ning a function

Better yet, you can de…ne a function that takes a natural number n > 1 and returns its least prime factor. Then you can call that function instead of having to worry about nested for-loops. You already have the required lines of code, you just have to write it down as a function:

(11)

def spf(n):

for m in range(2,n+1): if n % m == 0:

return m

The …rst line says that we are de…ning a function called spf that will act on a variable n. The command “return m” makes m the result of applying the function spf to n. You don’t have to write break to get out of the loop because a return statement takes you out of the whole function.

To test this function, write a for-loop that runs n from 2 to 50, say, and print out n together with the smallest prime dividing n. Your print statement will look something like

print n, spf(n)

2.5 Speeding the algorithm up

This is a dumb algorithm. For one thing, it’s pointless to see if m divides n when m2 _{is greater than n. Why is that? Well, if m}2 _{> n} _{and m divides}

n, then n=m < m also divides n so we would have already broken out of the loop when we tested the smaller number n=m. Once m2 _{is greater than n, we}

already know that n is prime, so we should just return n. Notice that if n is around 1000000, this means that you will be doing around 1000 tests rather than 1000000 tests, so this improvement is well worth doing. It doesn’t take much, just (essentially) one more line:

def spf(n): for m in range(2,n+1): if n % m == 0: return m if m*m > n: return n

You can write this in fewer lines by putting the return-statements up on the same lines as the if-statements:

def spf(n):

for m in range(2,n+1):

(12)

if m*m > n: return n

The upper limit n + 1 is only necessary when n = 2, otherwise we could use the upper limit n (why is that?). We could add a line after the for-loop that returns 0, so that the function will return something even if n is less than 2, but we are really only interested in what happens when n 2.

2.6 Goldbach’s conjecture

Goldbach’s conjecture is that you can write any even number greater than 2 as the sum of two primes. Here is a short table showing how that works:

4 = 2 + 2 6 = 3 + 3 8 = 3 + 5 10 = 3 + 7 12 = 5 + 7 14 = 3 + 11 16 = 3 + 13 18 = 5 + 13 20 = 3 + 17 22 = 3 + 19 24 = 5 + 19 26 = 3 + 23 28 = 5 + 23 30 = 7 + 23 32 = 3 + 29 Some even numbers can be written as sums of two primes in more than one way. For example, 10 = 3 + 7 = 5 + 5 and 22 = 3 + 19 = 5 + 17 = 11 + 11. Goldbach’s conjecture is one of the big unsolved problems in mathematics. Nobody knows whether it is true or false.

About twenty years ago, Apostolos Doxiadis wrote a novel called Uncle Petros and Goldbach’s conjecture. The main character of this novel was determined to settle Goldbach’s conjecture. The publishers o¤ered a prize of one million dollars to anyone who proved Goldbach’s conjecture within two years. As I recall, Uncle Petros goes o¤ the deep end when he …nds out that it is conceivable that Goldbach’s conjecture is true, yet not provable. That’s from a famous result in logic by Kurt Gödel, who was a bit crazy himself.

Be that as it may, we can write a program that tries to write even numbers as sums of two primes. The number 4 is an anomaly, as it is the only even number that can be written as the sum of two primes where one of the primes is 2. In fact, Goldbach’s conjecture is often stated in the form: any even number greater than 4 is the sum of two odd primes.

So we want to run through some even numbers and try to write each one as the sum of two odd primes. An even number is a multiple of 2, so we want to run through numbers of the form 2n for n = 2; 3; 4; 5; 6; : : :. Let’s start out by running n from 2 to 16, so that we will duplicate the results in the table above. We can do that with the line

(13)

If 2n is the sum of two primes, then the smaller prime is at most n, so we want to run through the primes p with p n. We also want 2n p to be a prime. So we run through the numbers p with p n, and test to see if p and 2n p are both primes. That’s why we write the second line as follows:

for n in range(2,17): for p in range(2,n+1):

To test whether p and 2n p are both primes, we use an if-statement and our function spf. Here is what a third line might look like:

for n in range(2,17): for p in range(2,n+1):

if spf(p) == p and spf(2*n-p) == 2*n-p: print 2*n,"=",p,"+",2*n-p

Notice the use of our function spf to check whether p and 2n p are primes. Not also the use of the word “and” to make the if-statement dependent on two conditions. Finally, notice that we have to write 2*n, not 2n to indicate the number 2n.

Run this program. If everything is working right, it should print out all possible ways of writing each even number as the sum of two primes. Try using di¤erent numbers for 17.

Exercise 1. Write a program that, instead of printing out the di¤erent ways each even number can be written as the sum of two primes, prints the number of ways each even number can be written as the sum of two primes. So next to the number 90 it would print the number 9, because 90 can be written in 9 ways as the sum of two primes. At least according to my calculations.

Exercise 2. What is the smallest even number that can be written as a sum of two primes in 11 ways? What is the smallest even number that can be written as the sum of two primes in exactly 11 ways?

It’s a little cryptic to use the function spf to see if a number is prime. Here is an function that does this directly.

def prime(n):

if n < 2: return False for m in range(2,n):

if n % m == 0: return False return True

(14)

The purpose of the …rst line is to avoid returning True for negative numbers and for the numbers 0 and 1. The next two lines test to see if n is divisible by a number m such that 2 m < n, and returns False if it is. Note that if n = 2, then there are no such numbers m. If n does not get eliminated this way, then the last line returns True. A re…nement on this function is to add a line that returns True as soon as m2 _{> n, because in that case we already}

know, without further testing, that n must be prime. So we could write def prime(n): if n < 2: return False for m in range(2,n): if n % m == 0: return False if m*m > n: return True return True

This re…nement helps if we are testing a very large prime.

2.7 Sophie Germain primes

Sophie Germain, a French mathematician who lived from 1776 to 1831, worked on one of the most famous problems in mathematics: Fermat’s last theorem. One of her results concerning this problem involved primes p such that 2p + 1 is also a prime. These primes have come to be known as Sophie Germain primes. The …rst few Sophie Germain primes are 2, 3, 5, 11, and 23. You can see that 2 2 + 1 = 5 is a prime, as are 2 3 + 1 = 7, 2 5 + 1 = 11, 2 11 + 1 = 23, and 2 23 + 1 = 47. The primes 7 and 13 are not Sophie Germain primes because 2 7 + 1 = 15 and 2 13 + 1 = 27 are not primes.

Fermat’s last theorem says that if p is an odd prime, then there are no solutions to the equation

xp+ yp = zp

with x, y, and z positive integers. The so-called “…rst case”of Fermat’s last theorem is to show that there are no solutions with x, y, and z, not divisible by p. Sophie Germain proved that the …rst case of Fermat’s last theorem is true if p is a Sophie Germain prime.

Fermat’s last theorem was not the last theorem that Fermat proved, or the last theorem that Fermat claimed to be true. For a long time it was the only theorem of Fermat that remained unproved, among the theorems that he had claimed were true. In 1995, Andrew Wiles published a proof of Fermat’s last theorem, 358 years after it was stated.

(15)

If p is a Sophie Germain prime, then the prime q = 2p + 1 is said to be a safe prime. This term has its origin in cryptography. It refers to the fact that q 1does not have many prime factors— in fact it has only two: 2 and p. That makes the prime q useful for certain encryption algorithms. A prime q is safe exactly when the number (q 1) =2 is prime.

The largest known Sophie Germain prime is

18543637900515 2666667 1

A Cunningham chain (of the …rst kind) is a sequence of primes such that each one is twice the preceding one plus 1. So the sequence 2, 5, 11, 23, 47 is a Cunningham chain. This chain cannot be extended because 2 47 + 1 = 95 is not a prime. Another Cunningham chain is the sequence 89, 179, 359, 719, 1439, 2879. The longest known Cunningham chain consists of 17 primes, the …rst of which is 2759832934171386593519.

A Cunningham chain is complete if it cannot be extended, in either di-rection, to form a larger Cunningham chain. So the …rst term in a complete Cunningham chain is not a safe prime, and the last term is not a Sophie Germain prime. Note that in the Cunningham chain 89, 179, 359, 719, 1439, 2879, the number 89 is not safe because (89 1) =2 = 44 is not a prime, and 2879 is not a Sophie Germain prime because 2 2879 + 1 = 5759 = 13 443 is not a prime.

Here is a simple function that returns True when applied to numbers that are prime but not safe (unsafe primes), and False otherwise.

def unsafe(n):

if prime(n) and not prime((n-1)/2): return True return False

Exercise 1. Write a program to …nd the longest Cunningham chain whose …rst prime is less than 1000. This chain will necessarily be complete. Exercise 2. One can think of the primes as being partitioned into com-plete Cunningham chains. The chains of length one are the primes that are neither Sophie Germain primes nor safe primes. The …rst such chain is 13. What is the …rst chain of length two?

Exercise 3. Write a program that lists all the Sophie Germain primes p less than 1000 that are not safe primes, together with the length of the complete Cunningham chain starting at p.

(16)

2.8 There are in…nitely many primes

In Book VII, Proposition 37, Euclid proves that any number greater than 1 is divisible by a prime number. The function spf(n) is an implementation of that proposition: you give it a number n > 1, and it returns a prime number that divides n. Of course what spf(n) actually does is to return the smallest number p > 1 that divides n. This number p is necessarily prime because if phad a nontrivial factor, that factor would be smaller than p and would also divide n.

There is a great presentation of Euclid’s elements by David Joyce on the web, complete with Java applets to illustrate the propositions. The url is

aleph0.clarku.edu/~djoyce/java/elements/elements.html

Click on the number of the book that you want, then click on the proposition that you are interested in.

In Book IX, Proposition 20, Euclid proves that prime numbers are more than any assigned multitude of prime numbers. By that he meant that if you are given any (…nite) list of prime numbers, then you can construct a prime number that is not on that list. This is a positive formulation of the statement that there are in…nitely many primes. We can implement this proposition of Euclid also.

Euclid’s proof says to multiply all the primes in the given list together to get a product P , and then consider the number P + 1. The number P + 1 cannot be divisible by any of the primes on the list, because P is divisible by all those primes. But Proposition 37 of Book VII says that P + 1 is divisible by some prime. So that prime cannot be on the list.

This procedure can be used to generate a sequence of primes, starting from nothing. To get a prime, we have to start with a list of primes, but we can take the initial list to be empty! What is the product P of the primes on an empty list? As we shall see, when we actually write down the program, the product of an empty list of numbers is equal to 1. That might seem a little surprising, but it turns out to be very natural. So P + 1 is equal to 2, the …rst prime generated by Euclid’s construction.

So our list starts out empty, which in Python is the list [ ]. Then we get the list [2]. Applying Euclid’s construction to that list gives P = 2 and P +1 = 3. So the next prime we get is 3, and our list of primes becomes [2,3]. Continuing in this way, you can see that we get the prime 7 = 2 3 + 1, then the prime 43 = 2 3 7+1. The next number we consider is 2 3 7 43+1 = 1807.

(17)

But 1807 = 13 139 is not prime. So, since we are taking the smallest prime dividing P + 1, the next prime on our list is 13.

Here is a program that multiplies all the numbers on a list L together: P = 1

for i in L: P = P*i

After this program has executed, the variable P will be the product of the numbers in the list L. For example, if L = [2,3,5], then P will start out as 1, then become P i = 1 2 = 2, then P i = 2 3 = 6, then 6 5 = 30. You can see that if the list L is empty, then P remains equal to 1, its initial value, because there are no numbers i in L.

So how do we implement Book IX, Proposition 20? First we decide how many times we want to repeat the basic construction. Let’s call that number m, and set it equal to 5 at …rst. So our …rst line will be m = 5. Then we set up the list L which is initially empty. So our second line will be L = [ ]. Then have some variable run through the numbers from 0 to m 1. It makes no di¤erence what we call that variable, the idea is simply to repeat the basic construction m times. Then we multiply all the numbers in the list L, as before. So our …rst few lines will be

m = 5 L = [ ]

for n in range(m): P = 1

for i in L: P = P*i

Now what? The construction says to …nd a prime that divides P + 1. So our next line should be to compute spf(P+1). Call that prime p and print it out so we can see what’s happening. Then, and this is crucial, we have to tack p onto the end of the list L. Perhaps the easiest way to do that is with the command L.append(p). Another way is L = L + [p], or even L += [p]. We can use a plus sign to put two lists together. I …nd that easier to remember, but you have to be sure you are putting two lists together, so we need to write [p] rather than p. So our program becomes

m = 5 L = [ ]

for n in range(m): P = 1

(18)

p = spf(P+1) print p

L.append(p)

Notice that this program calls on the function spf, so the de…nition of that function has to be in our …le also.

When I try to run this program for m = 9, Python, or my computer, gets angry because it can’t hold a list of the size required in the function spf. Because of that, I modi…ed the program for spf so that it doesn’t use the range operation, which is what creates the big list. I rewrote it this way:

def spf(n): i = 2 while i*i < n+1: if n%i == 0: return i i = i+1 return n

Do you see what that does? I got rid of the for-statement and replaced it by a while-statement. The indented commands below the while-statement keep repeating as long as the condition i2 _{< n + 1} _{holds. So we have to}

change i by hand, so to speak, whereas before the for-statement changed it automatically. If we get to the point where the condition i2 < n + 1 fails to hold, then we know that n is prime because we have tried to divide n by on all numbers whose squares are at most n.

With this new de…nition, I managed to get the program to run with m = 14. The fourteenth prime that it generated was 5471. With a little more patience on my part, it ran with m = 15. The …fteenth prime generated was 52662739. What is the eighth prime in this sequence?

If your program is taking a long time to factor some large number, there is help on the web. A good site is www.alpertron.com.ar/ECM.HTM which will factor very large numbers in very little time.

There are at least two other ways to implement Book IX, Proposition 20. The …rst is to multiply the …rst few primes together, add one, and …nd a prime factor of the result. So we would start with 2. As 2 + 1 = 3 is prime, the next prime we get is 3. As 2 3 + 1 = 7 is prime, the next prime we get is 7. As 2 3 5 + 1 = 31 is prime, the next prime we get is 31. See how this algorithm di¤ers from our …rst in which we looked at 2 3 7+1 = 43, omitting the prime 5. The next prime we get in this new sequence is 2 3 5 7+1 = 211,

(19)

which is also prime. If 211 were not a prime, we would calculate its smallest prime factor.

Exercise 1. Write a program that computes this sequence. Do you always get primes without factoring, or do we sometimes get a composite number which we have to factor to get our new prime?

Another way to show there are in…nitely many primes is to show that for each number n, prime or not, there is a prime greater than n. In a way, this is the simplest algorithm: we simply …nd a prime factor of n! + 1. That number cannot be divisible by a prime i n, because if i n, then i divides n!. The …rst few numbers we get that way are 1! + 1 = 2, 2! + 1 = 3, and 3! + 1 = 7. The next number is 4! + 1 = 25, which is not a prime but all of its prime factors are bigger than 4. The next number is 5! + 1 = 121 which (I think) is a prime.

Exercise 2. Write a program that uses this procedure to …nd a prime greater than n for as many numbers n as you can. Print out n, followed by the prime that is greater than n, for each number n.

2.9 Largest prime factor

Suppose we want to calculate the largest prime factor of a number n. Here is a plan. First compute the smallest prime factor p of n. We already have a program for that. If p = n, then p is the largest prime factor of n. Otherwise, the largest prime factor of n is equal to the largest prime factor of n=p. That’s because p is the smallest prime factor of n, and n = p n=p.

How to we turn this plan into a program? The …rst couple of lines are clear:

def Lpf(n): p = spf(n)

if p == n: return n

Now what? What we want to do now is …nd the largest prime factor of n=p. That is the function that we are in the middle of de…ning! In fact, we can use that function as part of its own de…nition. This is known as a recursive de…nition. So we simply add one more line:

def Lpf(n): p = spf(n)

(20)

return Lpf(n/p)

This works because n=p is always smaller than n. What actually happens when we compute Lpf(50)? The …rst line of the de…nition calculates the smallest prime factor p = 2 of 50. As 2 is not equal to 50, we go to the third line which has us compute Lpf(25). Now we are at the …rst line of the program with n = 25, which calculates the smallest prime factor p = 5 of 25. As 5 is not equal to 25, we go to the third line which computes Lpf(5). To do that, we …nd the smallest prime factor p = 5 of 5. But then n = p, so, in accordance with the second line of the de…nition, we return 5, the largest prime factor of 50.

2.10 Complete factorization

How do we get a program to tell us what all the prime factors of a number are? We want to enter a number n and have the output be a list of the primes dividing n. Probably we want to allow repetitions on this list, so when we enter the number 72, the list that gets returned is [2; 2; 2; 3; 3] rather than just [2; 3]. Note that a list is Python is written as a sequence of elements, separated by commas, and enclosed in square brackets. If we “add”two lists in Python, we get the concatenation of the two lists. Thus

[1] + [2] = [1; 2]

[1; 2; 10] + [2; 13] = [1; 2; 10; 2; 13] [1] + [] = [1]

The natural way to handle this problem is via a recursive function, one that calls on itself. Let’s denote the function we want to de…ne by allpf (n). Then what we want to do is …rst compute

m = spf (n)

and then form a list allpf (n) whose …rst element is m and whose remaining elements form the list allpf (n=m). The list allpf (n) can be constructed in Python as the sum of two lists:

(21)

This last equation is the recursion: we de…ne allpf in terms of itself. How does it work in practice? If n = 12, then m = spf (12) = 2, and n=m = 6, so we have allpf (12) = [2] + allpf (6) Proceeding, we get allpf (6) = [2] + allpf (3) so allpf (12) = [2] + [2] + allpf (3) Finally, allpf (3) = [3] + allpf (1) = [3] + [] = [3] so allpf (12) = [2] + [2] + [3] = [2] + [2; 3] = [2; 2; 3]

This works because of two things. One is that the number n=m that we apply the function allpf to on the right, is always smaller than the number n that we apply allpf to on the left. The other is that if n is small enough (equal to 1), then we know directly what allpf (n) is.

So here is the general idea. If n = 1, then return the empty list. If n > 1, then set m = spf (n), and return the list [m] + allpf (n=m). Here is a formal de…nition in Python:

def allpf(n):

if n == 1: return [] m = spf(n)

return [m] + allpf(n/m)

2.11 More on recursive functions

The prototype recursive function is one that computes the factorial function, the product of the integers from 1 to n:

n! = n (n 1) (n 2) 3 2 1

The key fact is that n! is equal to n times (n 1)!, at least if n is positive, as you can see by looking at the product. Thus if we could compute (n 1)!we

(22)

would know how to compute n!. The computation for 4! would go as follows: 4! = 4 3!

3! = 3 2! 2! = 2 1! 1! = 1 0!

but now we can’t go further, we have to know what 0! is. Well, 0! is equal to 1. That’s our exit condition. Then we work our way backwards through the equations to …nd that

1! = 1 0! = 1 1 = 1 2! = 2 1! = 2 1 = 2 3! = 3 2! = 3 2 = 6 4! = 4 3! = 4 6 = 24 The program would look like:

def fac(n):

if n == 0: return 1 return n*fac(n-1)

What happens when it runs on n = 4? When we run fac(4), it tries to return 4*fac(3), so it has to run fac(3). We now have two programs running at once: fac(4) and fac(3), with fac(4) waiting for the result from fac(3). Similarly fac(3) tries to return 3*fac(2), so it has to run fac(2). We now have three programs running at once. And so on. We can indicate this by a table:

program returns fac(4) 4*fac(3) fac(3) 3*fac(2) fac(2) 2*fac(1) fac(1) 1*fac(0) fac(0) 1

At the end we have …ve fac programs running at once. But fac(0) knows what to do without calling fac any more: it returns 1. Now fac(0) = 1 is passed to the fac(1) program giving the result fac(1) = 1*1 = 1. Then fac(1) = 1 is passed to the fac(2) program giving the result fac(2) = 2*1 = 2. This result is passed to the fac(3) program, yielding fac(3) = 3*2 = 6, and …nally this result is passed to the fac(4) program yielding fac(4) = 4*6 = 24.

(23)

2.12 Working with lists

A list is a sequence indexed by the integers 0; 1; 2; : : : ; n 1. The n elements of the list a are denoted a[0], a[1], a[2], . . . , a[n-1]. The number n is the length of the list and can be accessed by writing len(a).

A string s can be thought of as a special type of list whose elements are alphanumeric characters. Its length is also denoted len(s), but a string is handled a little bit di¤erently from a list.

The simplest way to create a list is by the statement a = []

which creates a list with no elements— an empty list. An empty list has length 0. So, if after de…ning the list a above, you printed out len(a), you should see 0.

You can put an element m onto the end of an array a by writing a.append(m). If a is an empty list, then a.append(17) changes a into the list [17]. If you want a list containing the squares of the numbers from 0 to 9, you can get one by …rst setting a = [] and then running the loop

for i in range(0,10): a.append(i*i)

We can stick an element m onto the beginning of the list a by writing a.insert(0,m). If take the list a generated by the loop above, and then write a.insert(0,22), the list a would become [22,0,1,4,9,16,25,36,49,64,81].

Actually, I have trouble remembering how to use append and insert. I …nd it easier to use addition of lists. So instead of writing a.append(m), I write a = a + [m], and instead of writing a.insert(0,m), I write a = [m] + a. The general idea is that when you add two lists, the result is a list consisting of the two lists put together. The list

[22,0,1,4,9] + [16,25,36,49,64,81] is the list

[22,0,1,4,9,16,25,36,49,64,81]

3 The Euclidean algorithm

The Euclidean algorithm is one of the oldest and best algorithms we have. It computes the greatest common divisor of two positive integers a and b.

(24)

You can …nd it in Book VII Proposition 2 of Euclid’s Elements. Euclid also showed that any number that divides both a and b divides their greatest common divisor. I think of that fact as being the “algebraic gcd property”.

Here is a short program that computes the gcd: def gcd(a,b):

while a!=0: a,b = b%a,a return abs(b)

The Euclidean algorithm is most naturally written recursively. Euclid pointed out that the common divisors of a and b (those numbers that divide both a and b) are the same as the common divisors of a and b a. So if 0 < a b, we can reduce the problem of …nding gcd (a; b) to that of …nding gcd(a; b a). The latter is a simpler problem because the numbers are smaller (certainly their sum is smaller). We can re…ne that observation a bit for our purposes by noticing that we can repeatedly subtract a from b until we get a number that is smaller than a. Actually, Euclid noted that also: he talked about repeatedly subtracting the smaller number from the larger number. If you repeatedly subtract a from b until b becomes smaller than a, you end up with the remainder you get when you divide b by a. (Recall that division of positive integers can be thought of as repeated subtraction.) So using the Python % notation for the remainder, the key equation is

gcd (a; b) = gcd (b % a; a)

Here the b % a is written …rst because it is (strictly) smaller than a. Of course b % a might be equal to zero, in which case we are done because gcd (0; a) = a. This gives us our exit condition from the recursion: if a is 0, then gcd (a; b) = b. The usual convention is that gcd (0; 0) = 0 even though, strictly speaking, there is no greatest common divisor of 0 and 0. However, zero is obviously the algebraic gcd of 0 and 0 because any number that divides both 0 and 0 divides zero (and zero is the only number with that property). Rather than making your algorithm foolproof, at least at …rst, just make it work when it is handed integers a and b with 0 a b. Use the exit condition

gcd(0; b) = b

and the recursion displayed above. Test your algorithm on a few small pairs a and b where you know what the answer is.

(25)

There is a built-in Python function that will return gcd (a; b). You can import it from the module fractions. If you put the line from fractions import gcd at the top, then you can use their function gcd(a,b) in your programs.

3.1 The Euler

'-function

Two positive integers a and b are said to be relatively prime, or coprime, if they have no common divisors except for 1. Notice that 1 is relatively prime to any positive integer. It’s easy to see that two numbers a and b are relatively prime exactly when gcd (a; b) = 1, so the Euclidean algorithm provides a test for when a and b are relatively prime. The Euler '-function is de…ned, for n > 1, by setting ' (n) equal to the number of positive integers less than n that are relatively prime to n. Thus ' (10) = 4 because the numbers less than 10 that are relatively prime to 10 are 1, 3, 7, and 9. Usually people set ' (0) = 0 and ' (1) = 1, but we really don’t care about those values, especially ' (0). We can justify ' (1) = 1 by modifying the de…nition of ' (n) to read “the number of positive integers less than or equal to n that are relatively prime to n.” This, in fact, is the usual de…nition. It also gives ' (0) = 0.

Once you get your gcd function working, you can use it to compute the ' function. For each m just run through the numbers 1; 2; : : : ; m, checking each one to see if it is relatively prime to m, and counting how many times that happens. After writing such a function, test it by printing out, in two columns, the values m and ' (m) for m = 2; : : : ; n.

The …rst few values of the Euler '-function are

n 0 1 2 3 4 5 6 7 8 9 10 ' (n) 0 1 1 2 2 4 2 6 4 6 4 Verify this table.

As a …nal check on your ' function, you can compute it in a di¤erent way. The formula is

' (n) = n Q

p2P

1 1 p where P is the set of primes that divide n. So

' (10) = 10 1 1 2 1

1 5

(26)

and

' (12) = 12 1 1 2 1

1 3

If you write it that way, you will be dealing with real numbers, at least as intermediate values. In order to deal only with integers, you can rewrite the formula as n Q p2P 1 1 p = n Q p2P p 1 p = n Q p2Pp Q p2P (p 1)

So for n = 10, the set P is f2; 5g and the productQ_p2P pis 10. The product Q

p2P (p 1) is 1 4 = 4 so

' (10) = 10 104 = 4

For n = 12, the set P is f2; 3g and the product Qp2Pp is 6. The product

Q

p2P (p 1) is 1 2 = 2 so

' (12) = 12 6 2 = 4

You can use allpf(n) to …nd the set P . What you need to do is to eliminate the duplicates from the list that allpf(n) returns. It’s probably better to modify the function allpf(n) so that it doesn’t return any duplicates. When you …nd the smallest prime dividing n, keep dividing n by that prime until you can’t anymore, then go on to …nd the smallest prime dividing what’s left. You should probably give the modi…ed function a di¤erent name.

Let’s do it. We’ll call the function allpd(n) for “all prime divisors”. def allpd(n):

if n == 1: return [] #the number 1 has no prime divisors i = 2 #the number 2 is the smallest prime while i*i <= n: #looking for the smallest prime divisor of n

if n%i == 0: #found it!

while n%i == 0: n = n/i #keep dividing n by i return [i] + allpd(n) #put i in front of the list i = i+1 #increase i and keep trying return [n] #n must be prime, so the list is [n]

Once you get a list A whose entries are the elements of the set P with no duplicates, you can easily compute the two required productsQ_p2P pand

(27)

Q

p2P (p 1). Now you can get a third column to your output consisting of

the values of ' (n) computed by this formula, and you can see if it agrees with the values of ' (n) that you got by counting.

Euler’s Theorem. Fermat’s theorem says that if n is a prime, and n does not divide a, then an 1 1 (mod n). When n is a prime, then ' (n) = n 1, and n does not divide a exactly when a and n are relatively prime. So we can rewrite Fermat’s theorem as “if n is a prime, and a and n are relatively prime, then a'(n) 1 (mod n). Euler showed that this is true even when n is not prime. So, for example, 26 _{1 (mod 9), as you can easily check. Indeed,}

you should write a program that checks Euler’s theorem for the numbers n from 2 to 100.

3.2 The extended Euclidean algorithm

The extended Euclidean algorithm is a re…nement of the Euclidean algorithm that …nds integers s and t so that sa + tb divides both a and b. If sa + tb is positive, which we can always arrange, it follows that sa + tb is the greatest common divisor of a and b, which is why this is a re…nement of the Euclidean algorithm The equation

sa + tb = gcd (a; b)

is known as Bezout’s equation. Usually either s or t is negative.

An interesting aspect of Bezout’s equation is that if the left-hand side, sa + tb, divides both a and b, then sa + tb must be the greatest common divisor of a and b. Indeed, if d is any common divisor of a and b, then d must divide sa + tb (by the distributive law) so, if everything is positive, d must be smaller (or equal to) sa + tb.

We will assume that 0 a b. If that’s not the case, we can always replace a and b by their absolute values, and interchange them if necessary. The simplest, if not the most understandable, algorithm is a recursive one. The “exit strategy” is that if a = 0, then we will choose s = 0 and t = 1 because gcd (0; b) = b = 0 0 + 1 b. (Is gcd (0; 0) = 0?)

The idea behind the Euclidean algorithm is that if b = qa + r, where 0 r < a, then gcd(a; b) = gcd(r; a). Thus we can reduce the computation of gcd (a; b) to the computation of gcd (r; a), and repeat. In Python, or in C, the number r is equal to b%a. Because r + a < a + b, these reductions eventually end with gcd (0; b) = b.

(28)

The same thing happens with the extended Euclidean algorithm. Suppose again that b = qa + r with 0 r < a. If

s0r + t0a = gcd (r; a) then, substituting r = b qa into this equation gives

s0(b qa) + t0a = gcd (r; a) so

(t0 s0q) a + s0b = gcd (r; a) = gcd (a; b)

Thus taking s = t0 _s0_q _{and t = s}0 _{solves the Bezout equation. That gives}

us the following (informal, not Python) algorithm that accepts two integers 0 a b and returns a pair of integers s and t such that sa + tb = gcd (a; b):

bez (a; b) If a = 0 return (0; 1) Set r = b mod a Set q = (b r) =a Set (s; t) = bez (r; a) return (t sq; s)

Of course you have to write that in Python. A pair of integers can be implemented by a list of length 2 so that you can return the pair at one go. Thus the function bez takes two integers, a and b, and returns an integer list of length 2. To return the pair (0; 1), you simply return the list [0,1]. For the …nal return, you return [t - s*q, s]. What are s and t? If you set a variable y equal to bez (r; a), then s is y[0] and t is y[1].

Watch out for the “If a = 0” because “a = 0” in Python, as in C, sets the variable a equal to zero, it does not test for whether a is equal to zero. That’s done with “a == 0”. Everybody makes that mistake, more than once. Fortunately, this gives a syntax error in Python so you know when you make this mistake.

How do you test your function bez once you write it? Run through a bunch of numbers a and b, and print them out together with the correspond-ing s and t, and also sa + tb. Maybe run a from 5 to n and b from a to n for modest values of n. See if the answers look correct.

You can automate the checking also. Compute sa + tb and check to see if it divides both a and b.

(29)

3.3 Orders of units modulo

n

If gcd (a; b) = 1, we say that a and b are relatively prime. Now …x a number n, say n = 15. The numbers that are less than n and relatively prime to n are 1, 2, 4, 7, 8, 11, 13, and 14. Those are called the units modulo 15. If we multiply two of them, and reduce modulo n, we get another. The multiplication table for n = 15 is

1 2 4 7 8 11 13 14 1 1 2 4 7 8 11 13 14 2 2 4 8 14 1 7 11 13 4 4 8 1 13 2 14 7 11 7 7 14 13 4 11 2 1 8 8 8 1 2 11 4 13 14 7 11 11 7 14 2 13 1 8 4 13 13 11 7 1 14 8 4 2 14 14 13 11 8 7 4 2 1

If the number a is relatively prime to n, then the order of a modulo n is the least exponent m 1 such that am _{1 (mod n). So the order of 2 modulo}

15 is 4 as you can see by the sequence of powers of 2 2, 4, 8, 1

The order of 2 modulo 19 is 18 as you can see by the sequence of powers of 2 2, 4, 8, 16, 13, 7, 14, 9, 18, 17, 15, 11, 3, 6, 12, 5, 10, 1

What is the order of 2 modulo 11?

Here is a Python program order(a,n) that is supposed to compute the order of a modulo n. We need a to be relatively prime to n, so we check for that right away. You don’t have to do that if you make sure that you never invoke order(a,n) except when a is relatively prime to n, but it is safer to guard against that.

def order(a,n):

if gcd(a,n) != 1: return 0 #the order of a unit is never 0 b = a%n #b will be the various powers of a e = 1 #a to the e is equal to b

(30)

b = (a*b)%n #multiply b by a (modulo n) e += 1 #increase the exponent by 1 return e #when b = 1 for the …rst time, e is the order of a

Exercise 1. Find the smallest two numbers that have over 30 units of order 2.

Exercise 2. Find the smallest two numbers that have over 20 units of order 3.

Exercise 3. Find out how many units of order 2 there are modulo n if n is the product of the …rst k odd primes, for k = 1; 2; 3; 4; 5; 6. Those numbers are 3; 3 5; 3 5 7; 3 5 7 11; : : :.

Exercise 4. For what numbers n is the order of 2 equal to ' (n)? For what numbers n is there a number a with order ' (n)?

4 Sieving for primes

One way to construct a list of the primes from 1 to 1000 is to test each number from 1 to 1000 to see if it is a prime. A more e¢ cient way is to use the “Sieve of Eratosthenes”. This is the same Eratosthenes who, around 240 BC, calculated the circumference of the Earth.

The idea is to list the numbers from 2 to 1000

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 : : : then eliminate all multiples of 2 (except 2 itself) which is the …rst number

2 3 5 7 9 11 13 15 17 19 21 23 25 : : : then eliminate all multiples of 3 which is the next number remaining

2 3 5 7 11 13 17 19 23 25 : : : then eliminate all multiples of 5 which is the next number remaining

2 3 5 7 11 13 17 19 23 : : :

If we continue in this way until we eliminate all multiples of 31, then we are left with exactly the primes from 1 to 1000.

One way to implement this sieve in a program is to create a list with 999 entries, indexed by the numbers from 2 to 1000. Fill this array with the

(31)

boolean value True, indicating that, as far as we now know, it is true that each of these numbers is prime. Now we change the entries whose indexes are (proper) multiples of 2 to the boolean value False, because we know that 4; 6; 8; 10; 12; : : : are not primes. Next we change the entries whose indexes are multiples of 3 to False, because we know that 6; 9; 12; 15; : : : are not primes. Notice that 6 and 12 get eliminated twice, but that is harmless. And so on.

You can de…ne an empty list A with the line A = [ ]

in your program. Then, to get a list of length 1001 (indexed by the numbers from 0 to 1000), each entry being True, you could have a line like

for i in range(1001): A.append(True) Alternatively, you get the desired list at one go with the line

A = [True]*1001

Now set A [0] and A [1] equal to False, because 0 and 1 are not primes. That’s the initial set up. The core of the program eliminates all the composite numbers (they fall through the sieve), by setting some entries equal to False. You will have some prime p, which initially is 2, and you will set A[ip] equal to False for i = 2; 3; 4; : : :. that is, you will set A[ip] equal to False for i = 2; 3; 4; : : :. That line might look like

for i in range(p*p,1001,p): A[i] = False

The third argument to range tells it to only include every p-th number: p2_{; (p + 1) p; (p + 2) p; : : :, where number is less than 1001. Notice that we}

can start with p2 because we have already set A [ip] equal to False for i < p. What do we want p to range over? It su¢ ces to look at primes that are smaller than p1001, because if a number less than 1001 is divisible by a prime, then it is divisible by a prime less than p1001. Nowp1001is a little over 31, so we can run p from 2 to 31. So we start with the line

for p in range(2,32):

We don’t have to work with p unless it is prime, so our next statement checks A[p]. The full code for sieving A is

(32)

A = [True]*1001 A[0] = False A[1] = False

for p in range(2,32): if A[p]:

for i in range(p*p,1001,p): A[i] = False

Computing the number 32 by hand is a little hokey. The Python expression for p1001 is 1001**0.5, but we need an integer to replace 32, not a real number. The simplest thing to use is int(1001**0.5) + 1, which, in fact, is 32. The Python function int rounds a positive real number down, so we add 1 to make sure the end of the range is large enough.

A more ‡exible arrangement would be to replace both occurrences of 1001 by n+1, and set n = 1000 at the top. Then we can sieve up to whatever we want, simply by setting n equal to whatever we want at the top. Like 20000, or 1000000.

4.1 Counts

Once we have the boolean list A set up, we can do various counts. The simplest is just to count the number of primes between 1 and n. This is accomplished by counting how many of the entries of A are equal to True. The following function does that:

def nprimes(): count = 0 for b in A:

if b: count+=1 return count

You may not even want a function here. Just use the middle three lines and then print count.

Twin primes are two primes that di¤er by 2, like 17 and 19, or 71 and 73. While we have known since Euclid that there are an in…nite number of primes, no one has succeeded in proving that there are an in…nite number of twin primes. We can count the number of (pairs of) twin primes in the same way we counted the number of primes:

def ntwins(n): count = 0

(33)

for m in range(2,len(A)):

if A[m] and A[m-2]: count+=1 return count

The conditional statement count+=1 is executed exactly when both A[m] and A[m-2] are True, that is, when m 2; m is a pair of twin primes.

The gap between consecutive primes p and q is q p 1. The gap between 2 and 3 is zero (there are no nonprimes between 2 and 3) while the gap between 7 and 11 is three (there are three nonprimes, 8; 9; 10, between 7 and 11). The gap between twin primes is 1.

Our next task is to count the number of gaps of di¤erent sizes between consecutive primes from 1 to n. Our result should be an array G such that G [i] is the number of gaps of size i. It will be convenient to focus on the larger of the two consecutive primes. So our main loop will run i from 3 to n. But we have to compare i with the value of the previous prime, so we will need a variable to take care of that: say lastprime. Since we are starting at i = 3, we initially set the value of lastprime equal to 2. So our function will contain the lines:

def gaps(n): lastprime = 2 for i in range(3,n-1):

return G

Of course we have to set up G as a list at the beginning, and we will only do something in the loop when i is prime. Also, when we …nd the next prime i, and we do something in the loop, we have to set lastprime equal to i before we go looking for the next prime after i. So our function will contain the lines: def gaps(n): G = [] lastprime = 2 for i in range(3,n-1): if(A[i]): lastprime = i return G

(34)

Now what do we want to do with the numbers lastprime and the next prime after it, which will be i? The gap g between those two consecutive primes is i - lastprime - 1. We want to increase G[g] by 1. A problem here is that G[g] may not be de…ned because this may be the …rst gap of size g or more that we have encountered. So we test to see if G[g] is de…ned. If it isn’t, we append zeros to G until it is. So our function becomes:

def gaps(n): G = [] lastprime = 2 for i in range(3,n+1): if A[i]: g = i - lastprime - 1

while g >= len(G): G.append(0) G[g]+=1

lastprime = i return G

A prime triple (or triplet) is a sequence of three primes p0 < p1 < p2

such that p2 = p0+ 6. Here are the …rst six examples:

(5; 7; 11); (7; 11; 13); (11; 13; 17); (13; 17; 19); (17; 19; 23); (37; 41; 43) You can see a list of the …rst elements of the prime triples of the form (p; p + 2; p + 6), like (5; 7; 11), from 5 to 5477 at oeis.org/A022004, and one of the …rst elements of the prime triples of the form (p; p + 4; p + 6), like (7; 11; 13), from 7 to 5437, at oeis.org/A022005.

Exercise 1. Write a program that counts the number of prime triples of the form (p; p + 2; p + 6) in the …rst two thousand numbers. Compare your results with those of Thomas R. Nicely on his site at http://www.trnicely.net/ triplets/t3a_0000.htm.

5 Mersenne primes

A Mersenne prime is a prime of the form 2n _{1. So 3 = 2}2 ₁_{is a Mersenne}

prime, as are 7 = 23 ₁ _{and 31 = 2}5 _{1. Of course 15 = 2}4 ₁ _{is not a}

prime at all, let alone a Mersenne prime. In fact it is not di¢ cult to show that if 2n ₁_{is a prime, then so is n. Essentially the argument is}

(35)

if you can call that an argument. It shows that 2a ₁ _{is a nontrivial factor}

of 2ab 1 if a is a nontrivial factor of ab.

So the question is, for what primes p is 2p ₁_{a prime. We denote 2}p ₁_by

Mp, in honor of Mersenne. We have seen that M2, M3, and M5 are primes.

What about M7 = 27 1 = 127. Yes, it’s also prime. Marin Mersenne

said, in 1644, that for the primes p 157, the ones for which Mp is prime

are 2; 3; 5; 7; 13; 17; 19; 31; 67; 127; 157. In 1750, Euler showed that M31was a

prime. In 1883, Pervouchine showed that M61 is prime, so Mersenne missed

one.

Mersenne primes are interesting because, among other things, they are tied up with perfect numbers. Euclid talked about perfect numbers, and showed that an even number is perfect exactly when it is of the form (2n _{1) 2}n 1_,

and 2n ₁ _{is prime. So we get a perfect number for n = 2; 3; 5; 7; 13; : : :.}

These numbers are 6, 28, 496, 8128, 33 550 336, . . . . The …rst four of these numbers have been known since antiquity. St. Augustine made a big deal out of the fact that 6 was a perfect number, saying that God created the world in six days because of this.

No one knows whether or not there are any odd perfect numbers.

Write a program that …gures out for which primes p < 60 the number Mp

is a prime. When Mp is not prime, this program should print out its smallest

prime factor. However, that there is technical problem with the function spf when applied to very large numbers. Here is the function spf as we de…ned it before:

def spf(n):

for m in range(2,n+1):

if n % m == 0: return m if m*m > n: return n

The problem is that the list, range(2,n+1), is just too big. What we need to do is to de…ne the function spf without forming that list. For this purpose we use a while-loop instead of a for-loop. The …rst three lines would be

def spf(n): m = 2

while m*m <= n:

First we set m equal to 2, then we run a block of code for as long as m2 _does

not exceed n. Of course that might be forever, so we have to be careful when writing the block that m2 _{eventually exceeds n. To do that, we will increase}

(36)

m by 1 at the end of the block, so that the whole thing acts like a for-loop. We are looking for the smallest nontrivial factor m of n, so we test to see if m divides n, as before. Here is the whole de…nition:

def spf(n): m = 2 while m*m <= n: if n % m == 0: return m m = m+1 return n

Notice there are two things we have to do with a while-loop that were taken care of automatically by the for-loop. We have to de…ne the starting value of m outside the loop, and we have to increase m inside the loop.

5.1 The Lucas-Lehmer test

There’s a really good test that tells you whether or not Mp is prime for a

given prime p. It is mainly because of this test that the largest known prime at any given time has always been a Mersenne prime. Lucas himself used it to show that M127 was prime in 1876. This number is 170 141 183 460

469 231 731 687 303 715 884 105 727.

Here’s how Lucas’s test, as modi…ed by Lehmer, goes. To see if Mp is

prime, we form a sequence of numbers s0; s1; s2; : : : ; sp 1. Set s0 = 4, and

then, for each k > 0, set sk = s2k 1 2 until you get up to sp 2. It turns out

that Mp is prime exactly when it divides sp 2. In order to keep the numbers

reasonably small, do all the computations sk = s2k 1 2 modulo Mp, rather

than waiting until the end to divide some monstrous number by Mp. So Mpis

prime, exactly when we end up with sp 2= 0. Using the Lucas-Lehmer test,

you should be able to …gure out for which primes p < 1000 the number Mp

is a prime. Do it. That will also tell you what all the even perfect numbers are that are less than . . . what?

5.2 Repunits

A repunit is a number whose digits are all 1’s. That is, they are the numbers 1, 11, 111, 1111, 11111, etc. Sometimes these numbers are written as Rn, so

(37)

R7 = 1111111. It is easy to see that

Rn =

10n ₁

9

because 10n ₁ _{is an n-digit number consisting of only 9’s. These numbers}

were named by Albert H. Beiler in his 1964 book, Recreations in the theory of numbers.

What repunits are primes? The …rst two are R2 = 11 and R19 =

1111111111111111111. The next three repunit primes are R23, R317 and

R1031. These are the only repunits that have been proven to be primes,

al-though the repunits R49081 and R86453 are almost certainly primes, as are

R109297 and R270343. Just as for Mersenne primes, the number Rp can be

prime only if p is prime. In fact, the Mersenne primes are just the repunit primes in base 2, rather than in base 10.

Exercise 1. Write a program that …nds the prime factorization of all repunits with fewer than 19 digits. Observe that if m divides n, then Rm

divides Rn.

5.3 Emirps and palindromic primes

An emirp is a prime which forms a di¤erent prime when its digits are re-versed. The …rst four emirps are 13, 17, 31, and 37. A prime which reads the same backwards and forwards, like 11 and 353, or, for that matter, 2, 3, 5, and 7, is called a palindromic prime, not an emirp.

Exercise 1. Write a program to …nd all the emirps and palindromic primes that are less than 2000.

6 Fermat’s theorem

Fermat’s theorem says that if n is a prime, and a is an integer not divisible by n, then

an 1 1 (mod n)

This is sometimes referred to as “Fermat’s little theorem” as opposed to “Fermat’s great theorem”better known as “Fermat’s last theorem”because it was the last of Fermat’s theorems to be proved (not by Fermat, as far as we know). Fermat’s last theorem says that if n > 2, then there are no nonzero integer solutions x; y; z to the equation xn+ yn= zn. Fermat’s last theorem

(38)

is very di¢ cult to prove, and remained unproved for over three hundred years after Fermat stated it. Fermat’s little theorem is fairly easy to prove and you can use Google to …nd lots of proofs of it on the web.

Our …rst project with Fermat’s theorem will be to check it on lots of examples. So we want to take some primes n, and some numbers a with 1 a < n, and see if an 1 _{1 (mod n). Of course this equation holds for}

a = 1, so we need only look at numbers a such that 1 < a < n.

Just checking the equation on primes n is a little boring. It is also a little dangerous because the output of the program will just be, “yes, it checks”, so we won’t have any evidence as to whether the program is working right or not. More interesting would to check the equation not only on primes n but also on composites. In fact, we will be more interested in what happens with composites than with primes because we are going to use Fermat’s theorem to test whether or not n is a prime. The test will be: choose a number a from f2; 3; : : : ; n 1_{g and compute a}n 1 _{modulo n. If the result is 1, then}

n might be a prime, or it might not. But if the result is not 1, then n is de…nitely not a prime.

So our …rst project will be to run through the integers n from 2 to 100, and for each n run through the integers a from 2 to n 1 to see whether or not an 1 1 (mod n). What do we want the output to be? For each n, we will count the number of integers a from 2 to n 1 such that an 1 _{is not}

equal to 1 modulo n. So if n is prime, this count should be zero according to Fermat’s theorem. We want to print out the number n together with the count. A check on the program will be to see if the numbers n where we get a count of zero are exactly the primes. The …rst few lines of output should be: 2. 0 3. 0 4. 2 5. 0 6. 4 7. 0 8. 6 9. 6

We can get a probabilistic test for the primality of a number n by choosing, at random, a number a from 1 to n 1 and seeing if an 1 _{1 (mod n). To}

(39)

from random import randint

at the top of the …le. Then we can use the Python function randint(c,d) which returns a random integer a such that c a d. To set a equal to a random integer between 1 and n 1 we write

a = randint(1,n-1)

Try running this test 100 times on the number 15906120889 and counting the number of times you get 1. Then try factoring this number with spf.

6.1 Carmichael numbers

A Carmichael number is a number n so that an 1 _{1 (mod n)}_whenever

gcd(a; n) = 1. So a Carmichael number will pass the Fermat test unless you happen to choose a number a that has a common factor with n. If that were easy to do, then you could just choose such a number a, compute gcd (a; n), which is a quick computation, and you would have a factor of n. Carmichael numbers are sometimes called pseudoprimes. The …rst few Carmichael numbers are 561, 1105, 1729, 2465, 2821, 6601, 8911, 10585, 15841, 29341. Two bigger ones are 294409 = 37 73 109 and 56052361 = 211 421 631. Also interesting are 6733693 = 109 163 379 and 17236801 = 151 211 541. The probability that a number less than 56052361 is relatively prime to 56052361 is 210 420 630=56052361 = 0:99132. So this is the probability that 56052361 passes the Fermat test. The probability that it will pass ten Fermat tests is 0:9913210_{= 0:91651, pretty good odds.}

For all Carmichael numbers less than 1012_{, see}

http://www.kobepharma-u.ac.jp/~math/notes/note02.html

See also http://math.fau.edu/richman/carm.htm

Some other big Carmichael numbers are 492559141 = 367 733 1831, 413138881 = 617 661 1013, 16157879263 = 1667 2143 4523, 25749237001 = 1901 2851 4751, 58094662081 = 2633 4513 4889.

What do all these numbers have in common? They are all products of three primes, n = pqr, and n 1is divisible by p 1, q 1, and r 1. For example, 29341 = 13 37 61 and 29340 = 22₃2_{5 163} _{which is divisible by}

12, 36, and 60. This re‡ects Korselt’s criterion which says that a number n > 1 is a Carmichael number exactly when n is square free (is not divisible by the square of a prime) and if p is any prime divisor of n, then p 1divides n 1.

(40)

6.2 The Miller-Rabin test

The most commonly used probabilistic primality test is the Miller-Rabin test. This test, which is a variant of Fermat’s test, cannot be fooled by Carmichael numbers. If the numbers a that we use to test are chosen at random, then the probability that a composite n will pass the test is less than 1=2. So if we test 20 times in succession, choosing the numbers a independently, then the probability of a composite passing these 20 tests is less than 1=220_{, that is, less than 1 in a million.}

There is one new idea in the test: If the square of a number is 1 modulo n, and n is a prime, then the number has to be either 1 or 1 modulo n. That’s because z2 _{1 = (z} _{1) (z + 1), so if z}2 ₁_{is divisible by a prime n,}

then n has to divide either z 1 or z + 1.

How do we run across a number whose square is equal to 1 modulo n? When the number n passes Fermat’s test. In that case, an 1 _{is equal to 1}

modulo n, and an 1 _{is the square of a}(n 1)=2_{. We know that n} ₁ _{is even,}

because n were even, we would know that it wasn’t a prime. So we can check to see if a(n 1)=2 _{is equal to 1 or} ₁_{modulo n. That already is a better test}

than just Fermat’s test.

Here is the Miller-Rabin test. You are given a number n that wish to test for primality. Write n 1 = 2s_d _{where d is odd. This is always possible:}

you just keep dividing n 1by 2 until you get an odd number. For the test, you choose a number a at random so that 0 < a < n. Then you compute x = ad _{(mod n). The test is to consider, modulo n, the sequence}

x; x2; x4; x8; : : : ; x2s

There are s + 1 terms in this sequence (because the exponents of x are 20_{; 2}1_{; 2}2_{; 2}3_{; : : : ; 2}s_{), and the last is x}2s

= ad2s

= an 1_{. Of course the last}

term should be 1— that’s Fermat’s test.

Now each term in our sequence is the square of the previous term. So if a term is 1, and the last term must be 1 or we would know that n was not a prime by Fermat’s test, then the previous term must be 1. If that doesn’t happen, we know that n is not a prime. So the good sequences look like

1; 1; 1; 1; 1; 1; 1; 1 1; 1; 1; 1; 1; 1; 1 ; ; ; 1; 1; 1; 1

Computational discrete mathematics with Python
