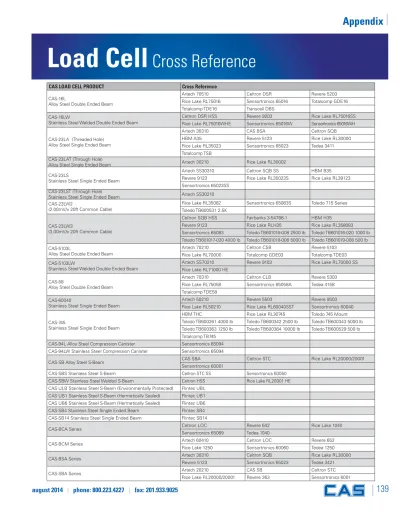

Load Cell Cross Reference

(1)

CAS-16L

Alloy Steel Double Ended Beam

Artech 70510 Celtron DSR Revere 5203 Rice Lake RL75016 Sensortronics 65016 Totalcomp GDE16 Totalcomp TDE16 Transcell DBS

CAS-16LW

Stainless Steel Welded Double Ended Beam

Celtron DSR HSS Revere 9203 Rice Lake RL75016SS Rice Lake RL75016WHE Sensortronics 65016W Sensortronics 65016WH CAS-23LA (Threaded Hole)

Alloy Steel Single Ended Beam

Artech 30310 CAS BSA Celtron SQB

HBM A35 Revere 5123 Rice Lake RL30000

Rice Lake RL35023 Sensortronics 65023 Tedea 3411 Totalcomp TSB

CAS-23LAT (Through Hole)

Alloy Steel Single Ended Beam Artech 30210 Rice Lake RL30002 CAS-23LS

Stainless Steel Single Ended Beam

Artech SS30310 Celtron SQB SS HBM B35 Revere 9123 Rice Lake RL35023S Rice Lake RL39123 Sensortronics 65023SS

CAS-23LST (Through Hole)

Stainless Steel Single Ended Beam Artech SS30210 CAS-23LW2

(2.00mV/v 20ft Common Cable)

Rice Lake RL35082 Sensortronics 65083S Toledo 715 Series Toledo TB600531 2.5K

CAS-23LW3

(3.00mV/v 20ft Common Cable)

Celtron SQB HSS Fairbanks 3-54786-1 HBM H35 Revere 9123 Rice Lake RLH35 Rice Lake RL358083 Sensortronics 65083 Toledo TB601016-008 2500 lb Toledo TB601016-020 1000 lb Toledo TB601017-020 4000 lb Toledo TB601018-008 5000 lb Toledo TB601019-008 500 lb CAS-5103L

Artech 70210 Celtron CSB Revere 5103 Rice Lake RL70000 Totalcomp GDE03 Totalcomp TDE03 CAS-5103LW

Stainless Steel Welded Double Ended Beam

Artech SS70210 Revere 9103 Rice Lake RL70000 SS Rice Lake RL71000 HE

CAS-58

Artech 70310 Celtron CLB Revere 5303 Rice Lake RL75058 Sensortronics 65058A Tedea 4158 Totalcomp TDE58

CAS-60040

Artech 50210 Revere 5503 Revere 9503 Rice Lake RL50210 Rice Lake RL60040SST Sensortronics 60040 CAS-745

HBM THC Rice Lake RL30745 Toledo 745 Mount Toledo TB600261 4000 lb Toledo TB600342 2500 lb Toledo TB600343 5000 lb Toledo TB600363 1250 lb Toledo TB600364 10000 lb Toledo TB600529 500 lb Totalcomp TB745

CAS-94L Alloy Steel Compression Canister Sensortronics 65094 CAS-94LW Stainless Steel Compression Canister Sensortronics 65094

CAS-SB Alloy Steel S-Beam CAS SBA Celtron STC Rice Lake RL20000/20001

Sensortronics 60001

CAS-SBS Stainless Steel S-Beam Celtron STC SS Sensortronics 60050 CAS-SBW Stainless Steel Welded S-Beam Celtron HSS Rice Lake RL20001 HE CAS ULB Stainless Steel S-Beam (Environmentally Protected) Flintec UBL

CAS UB1 Stainless Steel S-Beam (Hermetically Sealed) Flintec UB1 CAS UB6 Stainless Steel S-Beam (Hermetically Sealed) Flintec UB6 CAS-SB4 Stainless Steel Single Ended Beam Flintec SB4 CAS-SB14 Stainless Steel Single Ended Beam Flintec SB14

(2)

M

o

unts

/L

C

Model CAS-SBM ITM CAS-5304LB ITM CAS-5304B1 ITM CAS-5304B6 ITM

Applications Mechanical conversions,_{hanging hoppers & bins} Mechanical conversions,_{hanging hoppers & bins} Mechanical conversions,_{hanging hoppers & bins} Mechanical conversions,_{hanging hoppers & bins} Features

Multidirectional movement, load cell isolation, with self-checking capabilities.

Multidirectional movement, load cell isolation, with self-checking capabilities. Capacity 50 lbs. - 20,000 lbs. 220 lbs. to 11,000 lbs. 2,250 lbs. - 11,240 lbs. 225 lb. to 1125 lbs.

Material

Load cell Alloy steel Stainless steel Stainless steel Stainless steel

Assembly

Aircraft grade, stainless steel load stem; main hous-ing - cold drawn steel coated with zinc and clear chromate plating

Galvanized steel mount and stainless steel mount

Seal Type Environmentally sealed - _IP67 Stainless steel, potted, IP67 Complete hermetic seal, _IP68/IP69K Complete hermetic seal, _IP68/IP69K

Design S-Beam S-Beam S-Beam S-Beam

Accuracy class 0.03% FS 0.03% FS 0.03% FS 0.03% FS

NTEP approved load cell YES YES YES YES

FM Approved YES YES YES YES

Safe sideload

Safe overload 200% of rated capacity 200% of rated capacity 200% of rated capacity Ultimate overload 150% FS 300% of rated capacity 300% of rated capacity 300% of rated capacity

UBC Seismic rating NO NO NO NO

Load plate Self-aligning Self-aligning Self-aligning Self-aligning

Self checking YES YES YES YES

Height adjustment Threads Threads Threads Threads

Rated output 3mV/V 2mV/V 2mV/V 2mV/V

Bridge resistance 350 0hms 1,000 Ohms 1,000 Ohms 1,000 Ohms

Cable length 20’ 19’ 19’ 19’

Cable type Polyurethane Polyurethane Polyurethane Polyurethane

(3)

M

o

unts

/L

C

TANK MOUNTS

Model CAS-59M CAS-5205 CAS-5213 CAS-RTM

Applications Light to medium capacitytanks, bins, hoppers, & conveyors.

Light to medium capacity

Light to medium capacity hopper, tank, mixer weighing.

Light to medium capacity hopper, tank, mixer weighing. Features Accomodates vibration _{and thermal expansion.}

Self aligning rubber element with fl ange. Low profi le design.

Sliding system - 2 directional bumper and free sliding mounts available.

Expansion & contraction due to thermal changes &side loading is handled by rocker pin mounting. Capacity 500 lbs to 5,000 lbs 1125 lbs to 11250 lbs 500 lbs. to 22,500 lbs 500 lbs. to 10,000 lbs Material

Load cell Mild steel / Stainless steel Stainless steel Stainless steel Stainless steel Assembly Stainless steel mount_{Neoprene isolation pad} Zinc plated and_{stainless steel} Galvanized steel and_{stainless steel} Stainless steel mount Seal Type IP65/IP67 Complete hermetic seal._IP68/IP69K Complete hermetic seal._{IP68/ IP69K} Hermetic seal welded cap _IP67

Design Single-ended beam Single-ended beam Single-ended beam Single- ended beam

Accuracy class 0.03% FS 0.05% FS 0.05% FS 0.03% FS

NTEP approved load cell YES NO NO YES

Safe sideload 100% of rated capacity 100% of rated capacity 100% of rated capacity

Safe overload 150% of rated capacity 200% of rated capacity 200% of rated capacity 150% of rated capacity Ultimate overload 300% of rated capacity 300% of rated capacity 300% of rated capacity

UBC Seismic rating NO NO NO NO

Load plate Semi-fl oating Semi-fl oating Fully - fl oating Semi-fl oating

Height adjustment Shim Shim Shim Shim

Bridge resistance 350 Ohms 1000 Ohms 1000 Ohms 350 Ohms

Cable length 20’ 19’ 19’ 30’

Kits available YES YES YES YES

(4)

M

o

unts

/L

C

Model CAS-82M CAS-23M CG-16M CAS-03M

Applications

Light to medium capacity hopper, tank, mixer weighing.

Light to medium capac-ity tanks, bins, hoppers, & conveyors.

Medium to heavy capacity tanks, bins, & hoppers.

Medium to heavy capacity tanks, bins, & hoppers. Features Articulating mounting plate

Spherical washer design combines multi-directional movement with self-checking

Popular, center pivot loading, self checking, easy to install mount.

Ideal for applications that see a lot of gitation, vibra-tion, expansion & contraction. Capacity 250 lbs. to 20,000 lbs. 250 lbs. to 10,000 lbs. 1,000 to 125,000 lb. 5,000 lbs. to 250,000 lbs. Material Load cell Mild steel / Stainless Steel Mild steel/Stainless steel Mild steel/Stainless steel Mild steel/Stainless steel Assembly Mild steel / Stainless steel Mild steel/Stainless steel Mild steel/Stainless steel Mild steel/Stainless steel Seal Type Hermetic seal welded cap_IP67

Environmentally protected to hermetic seal welded cap - IP67

Design Single-ended beam Single-ended beam Double-ended shear beam Double-ended shear beam Accuracy class 0.03% FS 0.03% of FS 0.03% of FS 0.03% of FS

NTEP approved load cell YES YES NO YES/NO

Safe sideload 150% of rated capacity 150% of rated capacity 150% of rated capacity Safe overload 150% of rated capacity 150% of rated capacity 150% of rated capacity 150% of rated capacity Ultimate overload

UBC Seismic rating NO NO YES NO

Load plate Semi-fl oating Semi-fl oating Semi-fl oating Semi-fl oating

Height adjustment Threads Shim Shim Shim

Bridge resistance 350 ohms 350 ohms 700 ohms 700 ohms

Cable length 20’ 20’ 50’ 50’

Kits available YES YES YES YES

(5)

M

o

unts

/L

C

TANK MOUNTS

Model CAS-412M CAS-SP9M CAS-94M

Applications Medium to heavy capacity _{tanks, bins, & hoppers.} Medium to heavy capacity _{tanks, bins, & hoppers.} Medium to heavy capacity tanks, bins, reactores, & silos.

Features

Low profi le s/s canister with integral mounting plates. Si-los, tanks, bins, & hoppers.

Storage silos, bins, and tanks.

Easy installation & self-checking capability. Cost effective

Capacity 10,000 lbs to 50,000 lbs 1,000 lbs to 250,000 lbs 50,000 lbs to 300,000 lbs Material Load cell Stainless steel Stainless steel Alloy steel/Stainless steel Assembly Stainless steel Stainless steel Mild steel/Stainless steel Seal Type Hermetic seal_IP67 Hermetic seal Environmentally sealed - _IP67

Design Canister assembly Compression canister Compression canister

Accuracy class 0.05% of FS 0.05% of FS

NTEP approved load cell NO NO NO

FM Approved YES YES YES

Safe sideload

Safe overload 150% of rated capacity 150% of rated capacity 150% of rated capacity Ultimate overload 300% of rated capacity

UBC Seismic rating NO NO NO

Load plate Semi-fl oating Semi-fl oating Fully-fl oating

Self checking YES YES

Height adjustment Shim Shim Shim

Rated output 2mV/V 2mV/V 2mV/V

Bridge resistance 1000 ohms 350 ohms 350 ohms

Cable length 50’ 50’ 50’

Cable type Polyurethane Polyurethane Braided shield cable

Kits available YES YES YES

(6)
