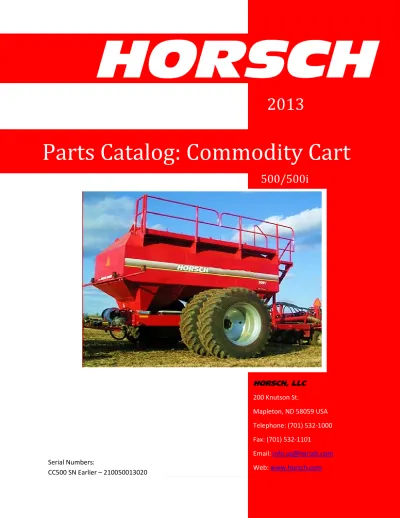

Parts Catalog: Commodity Cart

(1)

1 | P a g e

Parts Catalog: Commodity Cart

2013

HORSCH, LLC 200 Knutson St. Mapleton, ND 58059 USA Telephone: (701) 532-1000 Fax: (701) 532-1101 Email: [email protected] Web: www.horsch.com

500/500i

Serial Numbers: CC500 SN Earlier – 210050013020

(2)

(3)

(4)

4 | P a g e

Frame & Commodity Cart 175-75-250 BU

Item Part Number Description Quantity Serial Number

1 05403200 Tank Frame Model 2007 1

1 05403110 Tank Frame – CC 1 Previous - CC5000059

2 33730502 Dummy Load Cell 4

3 33730600 Mounting Plate, Load Cell 4

4 33730504 Struts, Horizontal 4

5 S5B12000 Washer, Flat - ¾” 8

6 M1A20030 Bolt, Hex HD - M20-2.5 x 30 LG. DIN 933 8

7 00370093 Zerk, Grease - H1-M8 x 1 8

8 33730508 Stop Plate 4

9 M5A12000 Washer, Flat - M12, DIN125 ZN 8

10 M1A12035 Bolt, Hex HD - M12-1.75 x 35 LG. DIN 933 8

12 M1A16035 Bolt, Hex HD - M16-2.0 x 35 LG. DIN 933 8 13 05406200 Bare Tank, Model 2007 175-75-250 1

13 05415001 Bare 500 BU Tank, 175-75-250 1 Previous - CC5000059 14 M1A24180 Bolt, Hex HD - M24-3.0 x 180 LG. DIN 931 4

(12)

12 | P a g e

(13)

13 | P a g e

Frame & Commodity Cart 175-75-250 BU

1 05403110 Frame, Commodity Cart 1

5 S5B12000 Washer, Flat – ¾” 8

6 M1A20030 Bolt, Hex HD – M20-2.5 x 30 LG DIN 933 8

7 00370093 Zerk, Grease – H1-M8 x 1 8

8 33730508 Stop Plate 4

9 M5A12000 Washer, Flat – 12MM 8

12 M1A16035 Bolt, Hex HD – M16-2.0 x 35 LG DIN 933 8 13 05415001 Bare 400 Commodity Cart, 175-75-250 1 14 M1A24170 Bolt, Hex HD – M24-3.0 x 170 LG DIN 931 4

(14)

14 | P a g e

(15)

15 | P a g e

Frame & Commodity Cart 200-150-150 BU

1 05403110 Frame, Commodity Cart 1

5 S5B12000 Washer, Flat – ¾” 8

7 00370093 Zerk, Grease – H1-M8 x 1 8

8 33730508 Stop Plate 4

12 M1A16035 Bolt, Hex HD – M16-2.0 x 35 LG DIN 933 8 13 33730200 Bare 500 Commodity Cart, 200-150-150 1 14 M1A24170 Bolt, Hex HD – M24-3.0 x 170 LG DIN 931 4

(16)

16 | P a g e

(17)

17 | P a g e

Hydraulics – Fan Only

1 00501122 Nipple, Quick Coupler – ½” NPT 1

2 00501123 Connector, STR ½” JIC – ½” NPT 1

3 00501124 Assembly, Hose – ½” x 368”, 8FJIC90 x 8FJIC 1

4 00501125 Connector, STR ½” JIC – 06 O-Ring 2

5 00501126 Assembly, Hose – ¾” x 20”, 12FJIC90 x 12FJIC 2

6 00501127 Connector, STR ¾” JIC – 12 O-Ring 2

7 00501069 Tee, ¾” JIC – ¾” O-Ring 2 CC5000100-Current

00501128 Tee, ¾” JIC – ¾” NPT 2 CC5000001-CC5000099

8 00501067 Valve, Check – 5 PSI, O-Ring Fitting 1 CC5000100-Current

00501129 Valve, Check – 5 PSI 1 CC5000001-CC5000099

9 00501130 Assembly, Hose – ¾” x 166” 1

10 00501131 Connector, STR ¾” JIC – ¾” NPT 4

11 00501132 Valve, Hydraulic Diverter 1

12 00501133 Assembly, Hose – ¾” x 184” 1

13 00501134 Nipple, Quick Coupler – ¾” 2

14 S5F04000 Washer, Lock – ¼” ZN 2

15 S1A04018 Bolt, Hex HD – ¼” x 2-1/4”, Gr. 5 ZN 2 16 00501135 Assembly, Hose – ¾” x 354”, 12FJIC x 12FJIC 1

17 00501136 Tee, ¾” JIC – ¾” FJIC – ¾” JIC 2

18 00501137 Cap, ¾” 1

19 00501210 Elbow, Swivel – 90 Degree, ½” JIC 1 20 00501284 Assembly, Hose – ½” x 27”, 8FJIC90 x 8FJIC 1

21 00501283 Reducer, ½” JIC x ¾” FJIC 1

22 00501286 Orifice, Screw-In 1 See Note below

NOTE: Remove Orifice (PN 00501286) or Orifice fitting (newer style, PN 04519101) from old motor when replacing, from top T port and install new motor to top T port between ports A & B, or warranty is void!

(18)

18 | P a g e

(19)

19 | P a g e

Electrical Grounding

1 00341156 Strap, Grounding 4

2 S5F05000 Washer, Split-Lock - 5/16” ZN 2

3 - - - Not Listed

4 S3A05000 Nut, Hex – 5/16”-18 Gr. 5 ZN 2

5 - Sealer, Clear 0.01 mL Source Locally

(20)

20 | P a g e

(21)

21 | P a g e

Assembly, Frame – Commodity Cart

1 05403245 Hitch, Cast – Tank Frame 1 CC50000060 - Current

(Standard Tow Behind)

2 S1B16064 Bolt, Hex HD – 1”-8 NC x 8” Gr. 8 YZN 3 3 S5C16000 Washer, Flat – 1” SAE Thru-Hard YZN 6

4 S3D16000 Nut, Hex – Nylock, 1”-8 Gr.8 YZN 3

5 01415300 Assembly, Lid w/ Gas Cylinder 3

6 33328100 Charging Filter 3

7 05404160 Gauge, Seed Depth 1

8 33730800 Bracket, Support - Hydraulic Hose 1

9 M5A10000 Washer, Flat – B 10MM 8

10 M1A10040 Bolt, Hex HD – M10-1.5 x 40 LG DIN 931 4 11 M3C10000 Nut, Hex – Nylock, M10-1.5 DIN 985 ZN 4 12 00501243 Holder, Electric – 7-Pin Connector 1

13 33743401 Holder, Hose – 3” x ¾” (HM) 2

14 33743404 Holder, Hose – 2-11/16” x 7/8” (HM) 1

16 M1A10060 Bolt, Hex HD – M10-1.5 x 60 LG DIN 931 3 17 M3C10000 Nut, Hex – Nylock, M10-1.5 DIN 985 ZN 3

19 33122253 Bracket, HYD Hose Connectors 1

20 M5A08000 Washer, Flat - M8, DIN125 ZN 2 CC5000001-CC5000058

S5B06000 Washer, Flat – 3/8” ZN 2 CC5000059 – Current

21 M1A08020 Bolt, Hex HD – M8-1.25 x 20 LG DIN 933 2 CC5000001-CC5000058 S1A06008 Bolt, Hex HD – 3/8”-16 x 1” LG Gr. 5 2

23 33328400 Cleaning Lid 3

24 00200074 Seal Profile 1300 Lg. 18

26 00370101 Screw, Knob – 8 x 40 6

28 S5B08000 Washer, Flat – ½” USS 4

29 S1A08012 Bolt, Hex HD – ½” x 1-1/2” 4

30 S5A10000 Washer, Flat – 5/8” SAE 4

31 S1A10012 Bolt, Hex HD – 5/8”-11 x 1-1/2” Gr. 5 ZN 4

35 00390564 Digital Scale 1

36 00340892 Battery, 9-Volt 1

37 01432300 Metering Test Bucket 1

39 05406335 Plug, Cap – 1-1/4” Pipe 2

42 05404110 Assembly, Jack 1

43 00509350 Box, Storage Tote 1 Previous – CC5000181

44 00509640 Strap, Tarp – 10’ 2 Previous – CC5000181

45 05403243 Bracket, Support – Chain 1

(22)

22 | P a g e

Assembly, Frame – Commodity Cart

47 S3D12000 Nut, Hex – Nylock, ¾” NC Gr. 8 YZN 1

48 S5B12000 Washer, Flat – ¾” 2

49 00250105 Chain, Safety Security 1 CC5000001-CC5000067

00250106 Chain, Safety security 1 CC5000068 – Current

50 00508516 Scale Storage Box Frame 1 Previous – CC5000181

51 S5B12000 Washer, Flat – ¾” 1 Previous – CC5000181

52 00501308 Bolt, Hex HD – ¾”-10 x 2” Gr. 5 ZN 1 Previous – CC5000181 53 S3C12000 Nut, Hex – Nylock, ¾” NC Gr. 5 1 Previous – CC5000181 54 S3C08000 Nut, Hex – Nylock, ½”-13 NC Gr. 5 1 Previous – CC5000181

55 S1A08012 Bolt, Hex HD – ½” x 1-1/2” 5 Previous – CC5000181

56 00370420 Nut, Hex – 10/24, SS 6

57 00370425 Washer, Lock - #10, SS 6

58 00370415 Bolt, Pan HD – Phillips, 10/24 x 1, SS 6

59 05415568 Cover, Bin Sensor 3

(23)

23 | P a g e

(24)

24 | P a g e

04596565

Assembly, CAT IV/V 3-Hole Perfect Hitch w/ Hardware

(25)

25 | P a g e

04596565

Assembly, CAT IV/V 3-Hole Perfect Hitch w/ Hardware

1 00500920 Perfect Hitch, CAT V w/ Insert – 3-Hole 1

2 S1C16072 Bolt, Hex HD – 1”-8 x 9” Gr.9 YZn 3

3 S5C16000 Washer, Flat – 1” SAE Thru Hard YZn 36

4 S3D16000 Nut, Hex – Nylock, 1”-8 NC YZn 3

5 05499422 Decal: CAT V Hitch 1

6 00500923 Plate, ADJ CTD Perfect Hitch 1

7 00500922 Bolt, Carriage – 5/8”-11 x 4” Perfect Hitch 1 8 00500921 Spring, Compression – Perfect Hitch 1

10 S3C10000 Nut, Hex – Nylock, 5/8”-11 Gr. 5 ZN 1

11 04649511 Shim, Hitch – 1/1.5” x .075” 3

12 04649510 Shim, Hitch – 1/1.5” x .134” 3

* See Item 1.

(26)

26 | P a g e

(27)

27 | P a g e

04596575

Assembly, CAT IV 2-Hole Perfect Hitch w/ Hardware

1 00501041 Perfect Hitch, CAT IV - 2-Hole, 2” 1

4 S3D16000 Nut, Hex – Nylock, 1”-8 NC YZn 2

5 04649511 Shim, Hitch – 1/1.5” x .075” 2

(28)

28 | P a g e

(29)

29 | P a g e

04596580

Assembly, CAT IV Bull Pull Hitch w/ Hardware

1 04679505 Bull Pull, CAT IV – 3-Hole 1

4 S3E16000 Nut, Top Lock – 1”-8 Gr. C Zn 3

5 05950150 Ball, CAT IV Bull Pull 1

6 05950151 Insert, CAT IV Bull Pull – 1-1/2” 1

7 05950152 Insert, CAT IV Bull Pull – 2” 1

8 05950153 Snap Ring, CAT IV Bull Pull 1

9 00507175 Zerk, Grease – ¼”-28, Straight 2

10 04649511 Shim, Hitch – 1/1.5” x .075” 3

(30)

30 | P a g e

(31)

31 | P a g e

04596585

Assembly, CAT V Bull Pull Hitch w/ Hardware

1 04679504 Bull Pull, CAT V – 3-Hole 1

4 S3E16000 Nut, Top Lock – 1”-8 Gr. C Zn 3

5 05950155 Ball, CAT V Bull Pull 1

6 05950156 Insert, CAT V Bull Pull – 2-3/4” 1

7 05950157 Snap Ring, CAT V Bull Pull 1

8 00507175 Zerk, Grease – ¼”-28, Straight 2

9 04649511 Shim, Hitch – 1/1.5” x .075” 3

(32)

32 | P a g e

(33)

33 | P a g e

04596595

Hitch Assembly, CAT III/IV – Articulating

1 04234920 Articulating Hitch, CAT IV Assembly 1 2 04234923 Insert for Ball, CAT IV to CAT III 1 3 S5C16000 Washer, Flat – 1” SAE Thru Hard YZN 36

4 S1C16072 Bolt, Hex – 1”-8x9”, Gr.C YZN 3

5 S3D16000 Nut, Nylock – 1”-8, Gr. 8 YZN 3

6 04234921 Articulating Hitch, CAT III/IV Casting 1 7 04234922 Articulating Ball Insert, CAT IV, Small 1

(34)

34 | P a g e

(35)

35 | P a g e

04596590

Hitch Assembly, CAT IV/V – Articulating

1 04234910 Articulating Hitch, CAT V Assembly 1 2 04234914 Insert for Ball, CAT V to CAT IV 1 3 S5C16000 Washer, Flat – 1” SAE Thru Hard YZN 36

4 S1C16072 Bolt, Hex – 1”-8x9”, Gr.C YZN 3

5 S3D16000 Nut, Nylock – 1”-8, Gr. 8 YZN 3

6 04234911 Articulating Hitch, CAT IV/V Casting 1

7 04234912 Articulating Ball Insert, CAT V 1

(36)

36 | P a g e

00340446

Coupling Head Ball Hitch, 80mm

10

(37)

37 | P a g e

00340446

Coupling Head Ball Hitch, 80mm

Item Part Number Description Quantity Notes

1 00346058 Plate, Ball Hitch – 80mm 1

2 00346059 Hold Down, Ball Hitch – K80 15 deg. 1

3 00346060 Locking Pin 1

4 M1B20110 Bolt, Hex HD – M20 x 110 DIN 931 8.8 galv. 1 5 M3C20000 Nut, Hex – Nylock, M20 DIN 985 CL.8 ZN 1

6 00250080 Chain, 300mm 1

7 00170195 Linch Pin, 4.5 x 40 LG 1

8 00260059 Key Ring, 30mm diam. 1

9 00370260 Zerk, Grease – H1 – M10 x 1 1

(38)

38 | P a g e

(39)

39 | P a g e

95120740

Ball Coupling, 80mm – Pivoting Flanged

1 95120740 Ball Coupling, 80mm – Pivoting Flanged 1

2 95120744 Hold-down Assembly 1

3 - Circlip 2 Source Locally

4 00311305 Ball, 80mm 1

5 - Hitch Casting, Pivoting Flanged 1 Not Available

6 00507175 Zerk, Grease – Straight 1

(40)

40 | P a g e

Front Hitch w/ Rotatable Loop (Service Part Only)

1

2

(41)

41 | P a g e

Front Hitch w/ Rotatable Loop (Service Part Only)

1 33730700 Rotatable Loop Hitch 1 Previous - CC5000059

2 M1A24050 Bolt, Hex HD – M24-3.0 x 50 LG 8 Previous - CC5000059

3 M5A24000 Washer, Flat – M24 16 Previous - CC5000059

(42)

42 | P a g e

(43)

43 | P a g e

01415300

Assembly, Lid – Tank w/Gas Cylinder

1 01410100 Lid, Tank 1

2 00200070 Rubber, 8mm – 620 x 30 x 8 2

3 00200071 Rubber, 8mm – 860 x 30 x 8 2

4 01415200 Bow, Lid 1

6 S3F10000 Nut, Hex – Jam, 5/8”-11, GR.5 ZN 4

7 S3A10000 Nut, Hex – 5/8”-11 Gr. 5 ZN 2

9 00110621 Cylinder, Gas – 1700 N, 100MM 42.58 1

10 M5A10000 Washer, Flat – M10 8

14 01415301 Tube, Steel – 28 x 5.5-13 VZ 2

17 M3F16000 Nut, Hex – Jam, M16-2.0 DIN 439B CL.4 ZN 2

18 00501425 Hook, Lid Latch 1

19 00501426 Spring, Lid Latch 1

(44)

44 | P a g e

(45)

45 | P a g e

05402120

Assembly, Hydraulic Fan w/ Motor

1 S3C08000 Nut, Hex – Nylock, ½”-13 2

2 00501002 Cap, Fanscreen – 6” 1

3 S1A08012 Bolt, Hex HD – ½”-13 x 1-1/2” 2

4 00370122 Washer, Flat – Fender, ¼” 6

5 00501183 Nut, Hex – Serrated Flange, ¼” 15

6 00501182 Bolt, Hex – Serrated Flange, ¼” x 1” ZN 15

7 00370005 Screw, Self-Tapping – ¼” x ½” 6

8 S5B08000 Washer, Flat – ½” SAE 2

9 05495453 Screw, Self-Tapping – ¼” x ¾” 12

10 05950001 Plug, Plastic – ¼” 1

11 05493022 Plug, Plastic – 7/16” 2

12 00380127 MOTOR, HYDRAULIC 10CM^3 1 Not Available

See 05015174

13 00380126 Bushing, 20MM QD-JA 1

14 05950002 Weldment, Screen – Fan 6” 1

15 00380119 Housing, Fan – RH, 6” w/ Butterfly 1 16 00380118 Rotor, Fan – 12.88 x 2.5CCW, ALUM w/ HDWR 1

17 00380124 Plate, Hub/Motor Mount – 6” 1

18 00380115 Housing, Fan – LH, 6” w/ Butterfly 1

19 00380128 Seal, Motor Plate – Hub 1

20 05493029 Tag, Fluid Notice 1

21 00380261 Repair Kit, HYD Motor, 10CCM, V-Type 1

- 05950003 Manual, Startup Motor – HYD Piston 1 Not Shown

* For a complete fan assembly replacement with motor, order Part # 05402120. ** For a complete fan assembly only without motor, order Part # 05402110. For further fan assemblies and components see PN 05125120 – Fan Air Cooler Kit.

(46)

46 | P a g e

(47)

47 | P a g e

05015174

Kit, Motor Replacement, 10CCM Blower

1 00111357 HYD MOTOR AXIAL PISTON SUCTION VALVE 10CCM 1

1.1 00111430 Seal Kit, Parker Axial Piston 6-12ccm 1 Not Shown

2 00380681 ROTOR FLANGE BUSHING PARKER 6-19CCM D=25 1

3 00381140 SUPPORT PARKER MOTOR 6/10/12/14 CCM 1

4 M5A16000 WASHER, FLAT, M16, DIN125, ZN 2

5 M5A08000 WASHER, FLAT, M8, DIN125, ZN 6

6 M3P12000 NUT, NYLON, FLANGE, M12-1.75, DIN6926, CL.8, ZN 2 7 M1F12045 BOLT, CARRIAGE, M12-1.75X45, CL.8.8, ZN 2

8 00380320 SCREW, UNC 10-24X1’’ 3

9 M1A08030 BOLT, HEX, M8-1.25X30, DIN931, 8.8, ZN 6

10 M5F08000 WASHER, LOCK, M8, DIN127, ZN 6

11 S5A04000 WASHER, FLAT, ¼’’ SAE, ZN 6

12 05019524 SCREW, SELF-TAPPING – ¼’’ X 1’’ 6

13 05019525 ADPT, STRT, MBSPP-12(ED) X MJIC-12 2

16 05015174 Kit, Motor Replace, 10ccm Blower 1 Items 1-15

NOTE: If replacing existing 00380127 motor you MUST order the complete kit, PN 05015174. Items listed above are for service parts only after the complete kit has been installed.

(48)

48 | P a g e

(49)

49 | P a g e

05125120

Fan Air Cooler Kit

1 S5B04000 WASHER, FLAT, ¼’’, USS, ZN 6

2 S1A04008 BOLT, HEX, ¼’’-20X1’’, GR.5, ZN 6

3 24381900 FAN CAGE TILTABLE W/ TUBE COOLER 6’’ 1

4 05029613 ELBOW, 90, MJIC-12XMBSPP-12 2

5 05409603 HOSE, ¾’’X28, FJIC-12 X FJIC-12 1

6 05605316 HOSE, ¾’’X40, FJIC-12 X FJIC-12 1

7 00501290 ADPT, STRT, MJIC-12 X MJIC-12 1

8 05125120 FAN AIR COOLER KIT 1 Includes Items 1-7

NOTE: VERTICAL COOLER/HINGE ORIENTATION. COOLER INTAKE CONNECTS TO FAN "A" PORT (GREEN).

(50)

50 | P a g e

(51)

51 | P a g e

Assembly, Ladder & Catwalk

1 05406310 Assembly, Ladder 1

6 05406320 Brace, Ladder – Model 2007 1

7 S5C14000 Washer, Flat – 7/8” SAE Hi-Strength ZN 2 8 S1A14012 Bolt, Hex HD – 7/8”-9 x 1-1/2”, GR.5 ZN 2

10 05406322 Mounting Plate 1

11 S5B08000 Washer, Flat – ½” 26

12 S1A08088 Bolt, Hex HD – ½”-13 x 11”, GR.5 ZN 4 13 S3C08000 Nut, Hex – Nylock, ½”-13 NC Gr. 5 Zn 20

15 05406330 Rail, Ladder – Model 2007 1

17 S1A08020 Bolt, Hex HD – ½”-13 x 2-1/2” LG Gr. 5 ZN 6

18 05406307 Strap, Plastic 2

19 05406306 Step, Short 1 CC5000059–CC5000070

20 S1A08012 Bolt, Hex HD – ½”-13 x 1-1/2” 10

21 05406311 Step, Bottom 1

25 05406220 Rail, Front Side – Model 2007 1

26 05406240 Rail, Back Side– Model 2007 1

27 05406230 Rail, Rear – Model 2007 1

29 M1A12080 Bolt, Hex HD – M12-1.75 x 80 LG DIN 931 8.8 6 30 M3C12000 Nut, Hex – Nylock, M12-1.75 DIN 985 CL.8 ZN 6

32 33733601 Pin, w/ 2-holes 12-65 6

33 00260059 Key Ring 6

34 00501204 Clip, Hitch Pin – 2-5/8” Size 11 6

35 00250037 Chain, Twin Loop - #5 3.5’

37 05406250 Rail, Front Hand – Model 2007 1

39 M1A12070 Bolt, Hex HD – M12-1.75 x 70 LG DIN 931 8.8 2 40 M3C12000 Nut, Hex – Nylock, M12-1.75 DIN 985 ZN 2

(52)

52 | P a g e

05406100

Assembly, Ladder & Catwalk

(53)

53 | P a g e

05406100

Assembly, Ladder & Catwalk

Serial # Previous – CC5000059

1 33731100 Assembly, Ladder – 500bu 1 Previous – CC5000059

3 M1A16065 Bolt, Hex HD – M16-2.0 x 65 LG DIN 931 8.8 2 4 M3C16000 Nut, Hex – Nylock, M16-2.0 DIN 985 CL.8 ZN 2

6 33731200 Support, Ladder – 500bu 1

7 M5A20000 Washer, Flat – M20, DIN125 ZN 2

10 33731203 Flange Plate, 141 x 141 x 15 1

11 S5B08000 Washer, Flat – ½” 8

12 S1A08088 Bolt, Hex HD – ½”-13 x 11” 4

13 S3C08000 Nut, Hex HD – Nylock, ½”-13 NC Gr. 5 ZN 4

15 33731300 Railing, Ladder – 500bu 1

20 33731400 Railing – 500bu 1

22 M1B12040 Bolt, Hex HD – M12-1.75 x 40 LG DIN 931 10.9 2 23 M3C12000 Nut, Hex – Nylock, M12-1.75 DIN 985 ZN 2

25 33731500 Railing, Front Right 1

26 33731700 Railing, Back Right 1

27 33731800 Railing, Back 1

32 33733601 Pin, w/ 2-holes, 12-65 6

33 00260059 Key Ring 6

34 00501204 Clip, Hitch Pin – 2-5/8” Size 11 6

35 00250037 Chain, Twin Loop - #5 42”

37 33731600 Railing, Front Left 1

42 33735800 Step, Additional Support 1

44 M1B12040 Bolt, Hex HD – M12-1.75 x 40 LG DIN 931 4 45 M3C12000 Nut, Hex – Nylock, M12-1.75 DIN 985 ZN 4

(54)

54 | P a g e

(55)

55 | P a g e

Decals

1 00501119 Decal: Yellow Reflective 5

2 00501121 Decal: Red Reflective 2

3 00501120 Decal: Red/Orange Florescent 2

4 00507202 Sign: Slow Moving – Adhesive Back 1

5 00501046 Decal: Stop Engine 1

6 00501034 Decal: Air Flow 1

7 00501032 Decal: Stop Fan 1

8 00501043 Decal: Nameplate 1

9 00501044 Decal: Vehicle Speed 1

10 00501045 Decal: Do Not Stand on Tank 1

11 00501033 Decal: Air Leaks 3

14 00507201 Decal: 500 Commodity Cart – 4” 2

15 00507190 Decal: Horsch Anderson – 7” 2 CC5000001-CC5000076

05407110 Decal: Horsch w/ Stripe – 7” 2 CC5000077 – 2150013004 16 00380220 Decal: Tank, Gray & Yellow – 7-1/2” 9 CC5000001-CC5000076

05407115 Decal: Anderson w/ Stripe – 7” 2 CC5000077 – 2150013004 17 00380177 Decal: Horsch Anderson – 3-1/8” 1 Previous - 2150013004

18 00380167 Surface, Non-Skid Strip – 24” 1 CC5000001-CC5000076

19 00501176 Decal: Wheel Bolt Torque 2

20 05407220 Decal: www.horschanderson.com 1 CC5000082 – 2150013004

05499413 Decal: www.horsch.com 2 2150013005 – Current

05029403 Decal, Website, 2015, .8’’ x 7.25’’ 2

21 00501073 Decal: Max Transport Speed 2 CC5000096 – Current

22 00500500 Manual Holder 1 CC5000098-CC5000181

23 00500505 Decal: Horsch Anderson, Manual Holder 1 CC5000098 – Current 24 00501196 Screw, Hex – Self-Tapping, #10-16 x ¾” 4 CC5000098-CC5000181

25 S5B04000 Washer, Flat – ¼” ZN 4 CC5000098 – Current

26 00501450 Decal: FEMA Member 1

05499401 Decal: Horsch 6.5 x 40 1 2150013005 - Current

05499403 Decal: Tank 1, 3” 1 2150013005 - Current

05499416 Decal: Made by Horsch Anderson 1 2150013005 - Current

05499417 Decal: ISO, ECU Cover 1 2150013005 - Current

05499418 Decal: 175BU 1 2150013005 - Current

05499419 Decal: 75BU 1 2150013005 - Current

(56)

56 | P a g e

(57)

57 | P a g e

Decals – Filling Auger

1 00501028 Decal: Electric Line 1

2 00501036 Decal: Roadway Collisions 1

3 00501029 Decal: Electrocution 1

4 00501037 Decal: Auger Direction 1

(58)

58 | P a g e

(59)

59 | P a g e

Assembly, Rear Axle

1 05408115 Axle, Rear 1

2 M1A24080 Bolt, Hex HD – M24-3.0 x 80 LG DIN 931 8.8 ZN 8

4 M3C24000 Nut, Hex – Nylock, M24-3.0 DIN 985 ZN 8 5 S5C14000 Washer, Flat – 7/8” SAE Hi-Strength ZN 20 6 S2B14020 Bolt, Hex HD – 7/8”-14 NF x 2-1/2” GR.8 YZN 20 7 00505540 Assembly, Tire/Wheel – Right, 520/85R42-157A 2 8 00505530 Assembly, Tire/Wheel – Left, 520/85R42-157A 2

9 00501013 Wheel Rim 4

10 -- Tire, 520/85R42 4 Tire not sold separately

12 00501168 Bolt, Alignment 2

13 05408210 Assembly, Hub 2 See 05408210

14 00501016 Spindle, 4.5’’x26.5’’ 2

15 S1B10056 Bolt, Hex HD – 5/8”-11 x 7” Gr. 8 YZN 2

16 S3D10000 Nut, Hex – Nylock, 5/8”-11 GR.8 YZN 2

(60)

60 | P a g e

(61)

61 | P a g e

05408210

Assembly, Hub & Spindle

1 S1A05004 Bolt, Hex – 5/16”-18 x 0.5 GR.5 ZN 4

2 00501362 Cap, Hub – Dust Cover 1

3 04599538 Pin, Cotter – 5/16” x 4” 1

4 04599537 Nut, Spindle – 2-12 UN2B 1

5 04599536 Washer, Flat – 4” x 2-1/16” x ¼” 1

6 00501361 Bearing, Cone – Outer 1

7 04599525 Bearing, Cup – Outer 1

8 00501365 Hub Casting 1

9 04599523 Bearing, Cup – Inner 1

10 00501360 Bearing, Cone – Inner 1

11 00501363 Seal, Grease – Hub/Spindle 1

(62)

62 | P a g e

Road Lighting Equipment

(63)

63 | P a g e

Road Lighting Equipment

1 00501152 Weldment, Light Bar 1

3 M1A12025 Bolt, Hex HD – M12-1.75 x 25 LG DIN 933 8.8 4

4 00501157 Weldment, Light Extension 2

5 00501291 Light, Red Tail – Finish 2

6 00501292 Light, Amber – Flashing/Signal – Finish 2

7 S3A08000 Nut, Hex – ½”-13, GR. 5 ZN 4

8 S1A08012 Bolt, hex HD – 1/2'” x 1-1/2” 4

9 00509755 Strap, Tie – 15” HD 20

10 S5B04000 Washer, Flat – ¼” USS ZN 36

11 S1A04010 Bolt, Hex HD – ¼”-20 NC s 1-1/4” Gr. 5 ZN 18 13 S3C04000 Nut, Hex – Nylock, ¼”-20, GR. 5 ZN 18

(64)

64 | P a g e

Drill Manager

(65)

65 | P a g e

Drill Manager

1 01503200 Metering Unit, Electric Drive 3 See 01503200

2 M5J08000 Washer, Flat – M8, DIN125 A2, SS 12

3 M1R08020 Bolt, Hex HD – M8 x 20 DIN 933 A2-70 SS 12

11 33734904 Plate, Module – Half Width 2

13 M1A08025 Bolt, Hex HD – M8-1.25 x 25 LG DIN 933 4 14 M3C08000 Nut, Hex – Nylock, M8-1.25 DIN 985 4

16 33337400 Motor, Drive – Electric 3

17 M5J05000 Washer, Flat – M5, DIN125 A2 SS 12

18 M1R05020 Bolt, Hex HD – M5-0.8 x 20 A-2 SS 6 19 M3N05000 Nut, Hex – Nylock, M5-0.8 DIN 985 ZN 6

20 00340962 Cable, Module – Strong, 23ft 1

25 M5A06000 Washer, Flat –M6, DIN125 ZN 8

27 M1A06110 Bolt, Hex HD – M6-1.0 x 110 LG DIN 933 4 28 M3C06000 Nut, Hex – Nylock, M6-1.0 DIN 985 CL.8 ZN 4

29 00340647 Radar Adapter 1

30 00340651 Cable, Minidin – 1-1/2ft. 1

32 00340646 Sensor, Bin 3

36 00340653 Cable, Minidin – 5ft. 2

39 23473801 Bracket, Fan Sensor 1

41 00340645 Sensor, Fan 1

45 00340654 Cable, Minidin – 6ft. 2

47 00380894 Sign: Radar Warning 1

48 00509755 Strap, Tie – 15” HD 40

50 00501017 Radar Gun 1

(66)

66 | P a g e

(67)

67 | P a g e

ISO ECU Electronics

1 00340645 Sensor, Fan 1

2 M3N08000 Nut, Hex – Nylock, M8-A2 SS 2

3 M3N06000 Nut, Hex – Nylock, M6-A2 SS 4

4 M1R06018 Bolt, Hex HD – M6-1.0 x 18 DIN933 A2-70 SS 4 5 M1R08030 Bolt, Hex HD – M8 x 30 DIN933 A2-70 SS 2

8 2343801 Bracket, Fan Sensor 1

9 61007007 ECU, ISO 1

10 61007040 Sensor, BIN – ISO 6

11 61007085 Plate, ISO Job Computer Mounting 1

12 61007090 Adapter, Minidin – ISO System 1

13 61007310 Harness, ISO ECU Tank Cable 1

(68)

68 | P a g e

(69)

69 | P a g e

05401500

ECU Cover Assembly

1 05401501 Cover, ECU 1

2 05401502 Hinge, ECU Cover 1

3 05401503 Latch 1

4 61007085 Plate, Mounting – ISO 1

5 M3N04000 Nut, Hex – Nylock, M4-0.7 4

6 M3N05000 Nut, Hex – Nylock, M5-0.8 A-2 Stainless 6

7 M5J05000 Washer, Flat – M5 A-2 Stainless 6

8 M1N04010 Screw, Button – M4-0.7x10 ISO7380 A2-70 SS 4 9 M1N05016 Screw, Button – M5-0.8x16 ISO7380 A2-70 SS 6

(70)

70 | P a g e

(71)

71 | P a g e

05429100

Assembly, ISO Scale – 500i

1 S3C06000 Nut, Hex – Nylock, 3/8”-16 ZN 8

2 00508518 Mount, SHIM-CT – 7/16” 8

3 00508931 Bracket, Anti-Rotating 4

4 00508933 Spacer, Anti-Rotating Bracket 8

6 00509755 Strap, Tie – 15” HD 50

7 05429150 Harness, ISO – Digi-Star 1

8 05496031 Scale Link, SL2110 ISO 4M12/R/S/ACC 1

9 05429120 Load Cell, CT50KTC-30 EZ Mate 4

(72)

72 | P a g e

(73)

73 | P a g e

01503200

Metering Unit, Electric Drive

1 01501901 Retaining Plate – 138 x 20 x 1-1/2 1

2 01501902 Strip, Rubber – 139 x 43 x 6 1

3 01501905 Shaft, Meter – Electric Drive 1

4 01501904 Bushing, Guide – Metering Unit 1

5 01501100 Brush Holder 1 6 01500001 Brush 2 7 00240001 Bearing, 62205 2RS INA 1 8 00240002 Seal, 40 x 52 x 5 INA 2 9 00260125 Ring, Snap – 52 x 2, A2 1 10 00260126 Ring, Snap – 25 x 1-1/2, A2 1 11 00260190 Circlip, 15 x 1-1/2, Stainless 2

12 M1R06025 Bolt, Hex HD – M6-1.0 x 12, DIN912 A2-70 SS 6

13 00360371 Thumbscrew, M8 x 12, A2 10

14 M1R06018 Bolt, Hex HD – M6-1.0 x 18 LG DIN 931 3

15 00170053 Clip, Hitch – Double 5 1

16 33336100 Bushing, Drive 1

17 00370246 Screw, Allen HD – M5 x 16 LG DIN 914 1

18 96154030 Flange, Housing 1

19 M3N06000 Nut, Hex – Nylock, M6 A2, SS 6

20 00347015 Motor, Drive – VDO, 63M x 60 +P52/25 1

20.1 00240149 Bearing, 6001 2 RSR 1 21 M5J06000 Washer, Flat – M6 A2 SS 15 22 00230042 Shim, 20 x 28 x 1.0 6 00230037 Shim, 20 x 28 x 0.20 6 00300579 Shim, 20 x 28 x 0.10 6 23 M5J08000 Washer, Flat – M8 A2 SS 10

24 01503301 Housing, Metering Unit 1

25 01503304 Cap, Housing 1

26 01503302 Cap, Conductivity 1

27 01503303 Flange, Bearing – Metering Unit 1

28 01503600 Divider, Meter 1

29 01500804 Flute, Low Rate – Sunflower, 40 CCM RED 1 01500805 Flute, High Rate – Sunflower, 100 CCM BLUE 1

30 01503700 Roller, Metering – 20 CCM 1 See following pages

31 00370183 Screw, Allen HD – M6 x 20 LG 3 32 01501203 Spacer, 100 x 28 2 33 01502701 Washer, Cell – 10 CCM, A2 2 34 01501202 Spacer, 100 x 70 1 35 00240054 Bearing, 6004 2 RSR 4 36 00230061 Key Stock, 5 x 5 x 18 1

37 00340636 Plug, Motor – Drive 1

38 M1R05012 Bolt, Hex HD – M5-0.8x12 LG DIN 933 A2-70 SS 4

39 M5M05000 Washer, Lock – M5, DIN127 A2 SS 4

(74)

74 | P a g e

01503200

Metering Unit, Electric Drive

41 00360407 Screw, Wing – M8 x 16, A2 2

42 01503435 Plate, Stiffener 1

43 00370117 Washer, Flat – R11 2

44 01500600 Roller, Metering – 250 CCM BLACK 3

01512400 Roller, Metering – 500 CCM YELLOW 3 01504100 Roller, Metering – 800 CCM SS 3 45 01503210 Plate, Stripping – 135 x 68 x 0.5 1

(75)

75 | P a g e

(76)

76 | P a g e

(77)

77 | P a g e

01503700

Roller, Metering – 20 CCM, Electric

1 01502701 Cell Disc, 10 ccm V2A 2

2 01501202 Spacer, Diam. 100-70 1

3 01501203 Spacer, Diam. 100-28 2

4 00370183 Bolt, Socket HD – M6 x 20 8.8 galv. 3 5 01501905 Rotor Shaft, Metering Unit – Electric, # 17 1

6 00260190 Circlip, 15 x 1.5 V2A 2

7 00230042 Shim, Ring – 20 x 28 x 1.0 A 6

8 00230125 Adjusting Washer, 20 x 28 x 0.20 A2 10

9 00240054 Bearing, 6004 2 RSR 6

(78)

78 | P a g e

(79)

79 | P a g e

01507400

Roller, Metering – 170 CCM, Electric

1 01501905 Rotor Shaft, Metering Unit – Electric, # 17 1

2 - - - Not Shown

3 01507401 Cell Divider Module, 85 ccm 2

4 01501207 Spacer, Diam. 100-32 3

5 00370183 Bolt, Socket HD – M6 x 20 8.8 galv. 3

6 - - - Not Shown 7 00240054 Bearing, 6004 2 RSR 6 8 - - - Not Shown 9 00230042 Shim, Ring – 20 x 28 x 1.0 A 4 10 00230125 Adjusting Washer, 20 x 28 x 0.20 A2 10 11 01500210 Disc, 40 x 40 x 1 2 12 00260190 Circlip, 15 x 1.5 V2A 2

(80)

80 | P a g e

(81)

81 | P a g e

61008500

Half Width Module Kit

3 01505300 Actuator 1

4 00340679 Module, Half Width 1

5 M3C10000 Nut, Hex – Nylock, M10-1.5 DIN 985 ZN 2

6 M5J08000 Washer, Flat – A 8.7 A2, SS 4

7 M1R08035 Bolt, Hex HD – M8-1.25x35 DIN933 A2-70 SS 2

8 M3N08000 Nut, Hex – Nylock, M8-A2, SS 2

9 M1R05020 Bolt, Hex HD – M5-0.8 x 20 A2, SS 2

10 M5J05000 Washer, Flat – M5 A2, SS 4

11 00341165 Sensor, Half Width 1

12 M3N05000 Nut, Hex – Nylock, M5-0.8 A2, SS 2

(82)

82 | P a g e

Hydraulics – Tow Behind, Single Fan Unit

(83)

83 | P a g e

Hydraulics – Tow Behind, Single Fan Unit

1 00501072 Coupler, Quick – Male, ½” O-Ring 2

2 00501068 Adapter, STR – ¾” JIC-1/2” O-Ring 2

3 00501159 Assembly, Hose – ¾” x 440” 12FJIC X 12FJIC90 2 4 -- --- --

5 00501177 Adapter, ½” O-Ring, ½” JIC Male 1

6 00501160 Assembly, Hose – ½” x 440” 8FJIC90 X 8FJIC 1 7 00501188 Connector, Bulkhead – ¾” JIC – ¾” NPT 2 8 00501142 Connector, Bulkhead – ½” NPT – ½” JIC 1

9 00501167 Coupler, Quick – ¾” 2

10 00501141 Coupler, Quick – ½” 1

11 00501161 Holder, Hydraulic Connector 1 CC5000001-CC5000095

12 M5A10000 Washer, Flat – M10 2 CC5000001-CC5000095

13 M1A10025 Bolt, Hex HD – M10-1.5 x 25 LG DIN 933 8.8 ZN 2 CC5000001-CC5000095

14 - Tag, Econ. Poly – Case Drain Hose 1 No longer available

15 00509760 Strap, Tie – Hose Marking Kit 1 Previous – 2009

16 00504125 Cap, HYD End – Blue, ¾” 2 2010 – Current

17 00504126 Plug, HYD End – Blue, ¾” 2 2010 – Current

18 00504119 Cap, HYD End – Red, ½” 1 2010 – Current

19 00504123 Plug, HYD End – Red, ½” 1 2010 – Current

(84)

84 | P a g e

(85)

85 | P a g e

Hydraulics, Tow Behind – Double Fan Unit

1 00501072 Coupler, Quick – Male, ½” O-Ring 2

2 00501068 Adapter, STR – ¾” JIC – ½” O-Ring 2

3 00501159 Assembly, Hose – ¾” x 440” 12FJIC90 X 12FJIC 1

4 00509760 Strap, Tie – Hose Marking Kit 1 Previous - 2009

6 00501160 Assembly, Hose – ½” x 440” 8FJIC90 X 8FJIC 1 7 00501188 Connector, Bulkhead – ¾” JIC – ¾” NPT 2 8 00501142 Connector, Bulkhead – ½” NPT – ½” JIC 1

9 00501167 Coupler, Quick – ¾” 2

10 00501141 Coupler, Quick – ½” 1

11 00501161 Holder, Hydraulic Connector 2 CC5000001-CC5000095

12 M5A10000 Washer, Flat – M10 2 CC5000001-CC5000095

13 M1G10035 Bolt, Hex HD – M10-1.5 x 35 DIN 933 8.8 ZN 4 CC5000001-CC5000095

14 - Tag, Econ. Poly-Case Drain Hose 1 No longer available

15 05421001 Strap, Dual HYD Holder – 10” 1 CC5000001-CC5000095

16 00501210 Elbow, Swivel – ½” JIC 1

17 00501293 Adapter, Tee – 6804-8 1

18 M3C10000 Nut, Hex – Nylock, M10-1.5 2 CC5000001-CC5000095

19 00504127 Cap, HYD End – ¾”, YELLOW 2 2010 – Current

20 00504128 Plug, HYD End – ¾”, YELLOW 2 2010 – Current

*NOTE: Also uses all Plugs and Caps for hydraulic ends used on the Single Fan Unit shown on previous pages.

(86)

86 | P a g e

(87)

87 | P a g e

Hydraulics, Tow Behind

1 00501141 Coupler, Quick – ½” 4

2 00501142 Connector, Bulkhead – ½” NPT x ½” JIC 4 3 00501003 Assembly, Hose – ½” x 344” 8FJIC X 8FJIC 4

4 00501123 Connector, STR – ½” JIC – ½” NPT 4

6 00509760 Strap, Tie – Hose Marking Kit 1 Previous – 2009

7 00504118 Cap, HYD End – ½”, YELLOW 2 2010 – Current

8 00504122 Plug, HYD End – ½”, YELLOW 2 2010 – Current

9 00504120 Cap, HYD End – ½”, GREEN 2 2010 – Current

(88)

88 | P a g e

(89)

89 | P a g e

05413000

Single Torpedo Hitch

1 33736200 Weldment, Single Torpedo Hitch 1

3 M1A24050 Bolt, Hex HD – M24-3.0 x 50 DIN 933 10.9 YZN 4 4 M1A24090 Bolt, Hex HD – M24-3.0 x 90 LG DIN 931 4 5 M3C24000 Nut, Hex – Nylock, M24x3.0 DIN 985 ZN 4 6 05499563 Torpedo Hitch, HYD – Anderson, 9000LB 1

7 S5A10000 Washer, Flat – 5/8” 12

8 S1A10016 Bolt, Hex HD – 5/8”-11 x 2” Gr. 5 ZN 6

9 S3C10000 Nut, Hex – Nylock, 5/8”-11 6

10 00506710 Valve, Hydraulic – Single Spool 1 11 S1A06018 Bolt, Hex HD – 3/8”-16 x 2-1/4” Gr. 5 ZN 3

12 S5B06000 Washer, Flat – 3/8” 3

(90)

90 | P a g e

(91)

91 | P a g e

05423000

Dual Torpedo Hitch

1 33736400 Hitch, Dual Frame 1

3 M1A24050 Bolt, Hex HD – M24-3.0 x 50 LG DIN 933 4 4 M1A24090 Bolt, Hex HD – M24-3.0 x 90 LG DIN 931 4 5 M3C24000 Nut, Hex – Nylock, M24-3.0 DIN 985 ZN 4 7 05499563 Torpedo Hitch, HYD – Anderson, 9000LB 2

10 S3C10000 Nut, Hex – Nylock, 5/8” NC 12

11 00506560 Valve, Hydraulic – Two Spool 1

24 S1A06016 Bolt, Hex HD – 3/8”-16 x 2” GR.5 ZN 2

(92)

92 | P a g e

(93)

93 | P a g e

Hydraulics, Single Torpedo Hitch

Item Part Number Description Quality Serial Number

1 00501131 Connector, STR – ¾” JIC x ¾” NPT 3

2 00501163 Assembly, Hose, ¾"x201", FJIC-12 x 90FJIC-12 1 3 00501232 Elbow, 90 Degree – ½” NPT x ½” JIC 2 4 00501237 Assembly, Hose – ½” x 33” 8FJIC90 X 8FJIC 2

5 00501236 Connector, STR – ½” JIC-10 O-Ring 2

6 00501166 Assembly, Hose, ¾"x 50", FJIC-12 x 90FJIC-12 1

7 00506710 Valve, Hydraulic – Single Spool 1

(94)

94 | P a g e

(95)

95 | P a g e

Hydraulics, Dual Torpedo Hitch

1 00501131 Connector, STR – ¾” JIC x ¾” NPT 3

2 00501163 Assembly, Hose, ¾"x201", FJIC-12 x 90FJIC-12 1 3 00501232 Elbow, 90 Degree – ½” NPT x ½” JIC 4 4 00501233 Assembly, Hose, 1/2"x 47", FJIC-12 x 90FJIC-12 2

5 00501236 Connector, STR – ½” JIC-10 O-Ring 4

6 00501166 Assembly, Hose, ¾"x 50", FJIC-12 x 90FJIC-12 1

7 00506560 Valve, Hydraulic – Double Spool 1

8 00501211 Elbow, Swivel – ¾” JIC 1

(96)

96 | P a g e

(97)

97 | P a g e

Hydraulics, Fan – Front Tow Behind (Double Shoot)

2 00501123 Connector, STR – ½” JIC – ½” NPT 1

3 00501198 Assembly, Hose – ½” x 285” 8FJIC90 X 8FJIC 1

4 00501125 Connector, STR – ½” JIC 06 O-Ring 2

5 00501126 Assembly, Hose – ¾” x 20” 12FJIC90 X 12FJIC 2

6 00501127 Connector, STR – ¾” JIC 12 O-Ring 2

7 00501069 Tee, ¾” JIC – ¾” JIC – ¾” O-Ring 2 CC5000100 – Current 00501128 Tee, ¾” JIC – ¾” JIC – ¾” NPT 2 CC5000001-CC5000099 8 00501067 Valve, Check – 5 PSI, O-Ring Fitting 1 CC5000100 – Current

00501129 Valve, Check – 5 PSI 1 CC500001-CC5000099

9 00501136 Tee, ¾” JIC – ¾” FJIC – ¾” JIC 1

10 00501131 Connector, STR – ¾” JIC – ¾” NPT 2

11 00501210 Elbow, Swivel – ½” JIC 1

12 00501199 Assembly, Hose – ¾” x 262” 12FJIC X 12FJIC 1

13 00501134 Nipple, Quick Coupler – ¾” 2

14 00501283 Reducer, ½” JIC x ¾” FJIC 1

15 00501284 Assembly, Hose – ½” x 27” 8FJIC90 X 8FJIC 1 16 00501200 Assembly, Hose – ¾” x 259” 12FJIC X 12FJIC 1

(98)

98 | P a g e

(99)

99 | P a g e

Scale System, 500 Bu

4 S1A06022 Bolt, Hex HD – 3/8”-16 x 2-3/4” 8

5 S3C06000 Nut, Hex – Nylock, 3/8”-16 NC ZN 8

7 00508518 Shim, CT Mount – 7/16’ 8

8 00508519 Load Cell, 50 – KTC-30 0.10% 4

11 00508523 J-Box, 4 pt – 15’ 1

15 00508540 Scale Head – EZ400 1 CC5000095 – Current

00508517 IND-2000 1 CC5000001-CC5000094

16 00508545 Bracket, Mounting – EZ400 1 CC5000095 – Current

00508934 Bracket, Mounting – Digi-Star Scale 1 CC5000001-CC5000094

20 00508521 Power Cord, 4-wire – 10’ 1

21 00508524 Kit, Ext – J-Box, 30’ (Tractor) 1

22 00508525 Kit, Ext – J-Box, 40’ (Seeder) 1

(100)

100 | P a g e

(101)

101 | P a g e

Scale System, 500 Bu w/ Remote

4 S1A06022 Bolt, Hex HD – 3/8”-16 x 2-3/4” 8

5 S3C06000 Nut, Hex – Nylock, 3/8”-16 NC ZN 8

7 00508518 Shim, CT Mount – 7/16’ 8

8 00508519 Load Cell, 50 – KTC-30 0.10% 4

11 00508523 J-Box, 4 pt – 15’ 1

14 05429015 Remote, RD440 1

15 05429010 EZ 2400 V REM IND 1

16 00508934 Bracket, Mounting – Digi-Star Scale 1

20 00508521 Power Cord, 4-wire – 10’ 1

21 05429020 Cable, REM – EXT, 40’ 1

22 05429030 Cable, REM – EXT, 25’ 1

(102)

102 | P a g e

Filling Auger

(103)

103 | P a g e

Filling Auger

Serial # CC5000059 - Current

1 05425200 Holder, Auger 1

5 05425230 Extended Arm, #1 – Auger 1 CC5000077 – Current

05425220 Extended Arm, #1 – Auger 1 CC5000001-CC5000076

6 05225001 Bushing, Tension – 2”OD x 1-1/2” LG, Steel 6 9 S5C24000 Washer, Flat – 1-1/2” SAE Thru Hard YZN 2

10 05425210 Pin, 1-1/2” x 13-3/8” 1

13 00370093 Zerk, Grease – H1-M8 x 1 2

15 05425260 Extended Arm, #2 – Auger 1 CC5000077 – Current

05425250 Extended Arm, #2 – Auger 1 CC5000001-CC5000076

18 00230048 Fitting Washer, 42 x 52 x 0.50 1

19 05425211 Pin, 1-1/2” x 8-3/4” 1

20 M1A12070 Bolt, Hex HD – M12-1.75 x 70 LG DIN 931B 1 21 M3C12000 Nut, Hex – Nylock, M12-1.75 DIN 985 ZN 1

22 00370093 Zerk, Grease – H1-M8 x 1 1

29 05425280 Link, Auger 1

30 05224032 Pin, Roll – 3/8” x 2-1/2” 1

31 M1A12040 Bolt, Hex HD – M12-1.75 x 40 DIN 933 8.8 ZN 2 32 00508300 Assembly, Fill Auger – 10” x 21’ w/o motor 1

36 AM1030567 Rivet, Button Head – 8-8 10

37 05425100 Brace, Auger Support 1

38 M5A12000 Washer, Flat – 12MM 4 CC5000077 – Current

S5B08000 Washer, Flat – ½” USS 4 CC5000059-CC5000069

39 S1A08012 Bolt, Hex HD – ½”-13 x 1-1/2” 4

40 05425154 Yoke, Plastic 1 CC5000089 – Current

33734001 Poly Strip, 80 x 3-530 L:20 7/8” 1 CC5000001-CC5000087

41 05425150 Support Yoke, Extended 1

42 S3A16000 Nut, Hex – 1”-8 Gr. 5 ZN 2

44 05425770 Auger Clamp 1

46 M1A12025 Bolt, Hex HD – M12-1.75 x 25 LG DIN 933 4 CC5000059-CC5000068 S1A08008 Bolt, Hex HD – ½” NC x 1” Gr. 5 ZN 4 CC5000069 – Current

47 33732900 Clamp, Actuating – 1 ER 1

(104)

104 | P a g e

Filling Auger

(105)

105 | P a g e

Filling Auger

Serial # Previous – CC5000059

1 33731900 Holder, Auger 1

5 33732000 Arm, #1 – Auger 1

6 00230005 Bushing, 50/40 x 30 4

9 00370112 Washer, Flat – B 43 VZ 1

10 23811510 Pin, 40-340 1

13 00370093 Zerk, Grease – H1-M8 x 1 2

15 33732100 Arm, #2 – Auger 1

16 00230005 Bushing, 50/40 x 30 2

18 00230048 Fitting Washer, 42 x 52 x 0.50 1

19 03020201 Pin, 40-225 1

22 00370093 Zerk, Grease – H1-M8 x 1 1

24 33732300 Pin, Locking – Auger 1

25 00170087 Spring, Pressure – 2-1/2” x 25 x 50 1

27 00170098 Pin, Split – 4 x 36 1

29 33732200 Link, Auger 1

30 00370066 Pin, Spring Type – M12 x 70 1

31 M1A12040 Bolt, Hex HD – M12-1.75 x 40 LG DIN 931 2 32 00508300 Assembly, Filling Auger – 10” x 21’ w/o motor 1

36 AM1030567 Rivet, Button head – 8-8 8

37 33732400 Brace, Support – Auger 1

40 05425154 Yoke, Plastic 1

41 33734000 Support Yoke – Auger 1

42 S3A20000 Nut, Hex – 1-1/4”-7 Gr. 5 ZN 2

44 33733700 Assembly, Clamp – Auger 1

(106)

106 | P a g e

(107)

107 | P a g e

(108)

108 | P a g e

05425900

Kit, Hydraulic Auger

1 05425840 Mount, Auger – Hydraulic Assist 1

3 S5A10000 Washer, Flat – 5/8” 16

5 S3C10000 Nut, Hex – Nylock, 5/8”-11 6

6 S5C24000 Washer, Flat – 1-1/2” 2

7 05425910 Arm, Telescoping – Outer 1

8 05225001 Bushing, Tension – Steel, 2” OD x 1-1/2” LG 4

9 05425820 Arm, Telescoping – Inner 1

10 05425210 Pin, 1-1/2” x 13-3/8” 1

11 05425831 Plate, Wear Strip 3

05496015 Tape, 3M VHB ½” 24 FT Not Shown

12 05425832 Plate, Side Wear Strip 2

05496015 Tape, 3M VHB ½” 24 FT Not Shown

14 M3C12000 Nut, Hex – Nylock, M12-1.75 1

15 05425290 Auger Link w/Tab 1

16 05425860 Support, Clamp 1

17 S1A08008 Bolt, Hex HD – ½” NC x 1” Gr. 5 ZN 4

18 S5B08000 Washer, Flat – ½” 4

19 05425850 Auger Clamp w/Mounts - Lower 1

20 05425855 Support, Clamp Bolt 4

23 M3C24000 Nut, Hex – Nylock, M24-3.0 DIN 985 ZN 1 24 S3C07000 Nut, Hex – Nylock, 7/16”-14 GR. 5 ZN 12 25 S1A07016 Bolt, Hex HD – 7/16”-14 x 2” Gr. 5 ZN 6 26 S1A07020 Bolt, Hex HD – 7/16”-14 x 2-1/2” Gr. 5 ZN 6

27 05224032 Pin, Roll – 3/8” x 2-1/2” 1

28 00370093 Zerk, Grease – M8 x 1 2

29 05425824 Valve Bracket 1

30 S1G05008 Bolt, Hex HD – 5/16”-18 x 1” FT Gr. 5 ZN 4

31 S5B05000 Washer, Flat – 5/16” 8

32 S3C05000 Nut, Hex – Nylock, 5/16”-18 Gr. 5 4 33 S1A05016 Bolt, Hex HD – 5/16”-18 x 2” Gr. 5 ZN 3

34 05425864 Twin Clamp, ¾” Rubber 3

35 05425866 Twin Clamp, ¾” Cover Plate 3

36 S1A05010 Bolt, Hex HD – 5/16”-18 x 1-1/4” Gr. 5 5

(109)

109 | P a g e

05425900

Kit, Hydraulic Auger

38 04599542 Twin Clamp, Cover Plate – 3/8” Hose 5

40 05425870 Auger Clamp, Plate - Upper 1

41 04599543 Twin Clamp, Stacking Bolt – 3/8” Hose 2

42 05425803 Cylinder, HYD – 2” x 4” PRINCE STD 1 Not Shown, See following pages 43 05425801 Cylinder, HYD – 2” x 12” PRINCE STD 1 Not Shown, See following pages 44 05425802 Cylinder, HYD – 2” x 30” PRINCE STD 1 Not Shown, See following pages

(110)

110 | P a g e

(111)

111 | P a g e

05429570

Kit, Hydraulic Hose – Auger Assist

1 05425971 Assembly, Hose – ¼” x 320” 6-FJIC90 x 6-FJIC 1 2 05425972 Assembly, Hose – ¼” x 226” 6-FJIC90 x 6-FJIC 1 3 05425973 Assembly, Hose – ¼” x 245” 6-FJIC90L x 6-FJIC 1 4 05425974 Assembly, Hose – ¼” x 216” 6-FJIC90 x 6-FJIC 1 5 05425975 Assembly, Hose – ¼” x 224” 6-FJIC90L x 6-FJIC 1 6 05425976 Assembly, Hose – ½” x 168” FJIC-8 x MB-08 2

9 05425977 Connector, ¾”-16 MSAE x MJIC-6 6

10 00501072 Coupler, Quick Male – ½” O-Ring 4

11 05429557 Elbow, HYD – ¾”-16 MSAE x MJIC-6 6

12 05425978 Assembly, Hose – ¼” x 320” 6-FJIC90L x 6-FJIC 1

14 05425980 Fitting, HYD – MSAE-10 x MJIC-8 2

15 00501210 Fitting, FSAE-8 x MJIC8 90 2

16 05409698 Assembly, Hose – ½” x 428” FJIC-8 x MB-08 2 17 00501142 Connector, Bulkhead – ½” MPT x MJIC-8 2

(112)

112 | P a g e

(113)

113 | P a g e

05429564

Valve Block, HYD Auger Assist

1 05950040 Cartridge, Flow Control 1

2 05950041 Kit, Hardware – Tie Rods & Nuts, M8 1

3 05950042 Housing, Cartridge 1

4 05950043 Valve Inlet 1

5 05499116 Coil, 12V w/ Deutsch Connector 3

6 05950044 Pressure Reducer Valve 1

(114)

114 | P a g e

05429560

Hydraulic Auger Assist, Radio Valve Kit

3

(115)

115 | P a g e

05429560

Hydraulic Auger Assist, Radio Valve Kit

1 05429563 Transmitter, HYD Auger Assist 1

2 05429561 Harness, HYD Auger Assist 1

(116)

116 | P a g e

(117)

117 | P a g e

05425803

Cylinder, HYD – 2” x 4” PRINCE STD

1 05425807 Piston Rod 1

2 05425808 Tube, Cylinder 1

3 05499214 Butt, Cylinder 1

4 05499215 Gland, Cylinder 1

5 05499216 Piston, Tube – Cylinder 1

6 05499217 Nut, Lock – Piston Rod 1

7 05425809 Assy, Tie-Rod – Bolt 4

8 05499218 Assy, Clevis 1

9 05499219 Pin, Clevis 2

10 05499220 Pin, Cotter – 3/16” x 1-3/4” 4

11 05499221 Kit, Seal – Crown 1

12 05499222 Kit, O-Ring – Piston Rod 1

13 05499223 Kit, O-Ring – Tube, Cylinder 2

14 05499224 Kit, Washer – Butt, Cylinder 2

15 05499225 Kit, U-Cup – Gland, Cylinder 1

(118)

118 | P a g e

Parts Catalog: Commodity Cart
