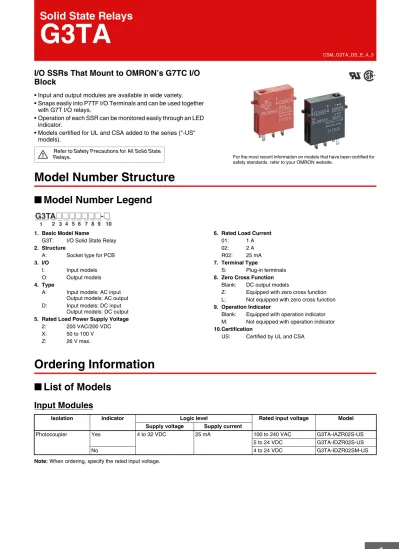

CSM_G3TA_DS_E_4_3Solid State Relays
G3TA
I/O SSRs That Mount to OMRON’s G7TC I/O
Block
• Input and output modules are available in wide variety. • Snaps easily into P7TF I/O Terminals and can be used together
with G7T I/O relays.
• Operation of each SSR can be monitored easily through an LED indicator.
• Models certified for UL and CSA added to the series ("-US" models).
Refer to Safety Precautions for All Solid State
Relays. For the most recent information on models that have been certified for safety standards, refer to your OMRON website.
Model Number Structure
■ Model Number Legend
1. Basic Model Name
G3T: I/O Solid State Relay
2. Structure
A: Socket type for PCB
3. I/O
I: Input models O: Output models
4. Type
A: Input models: AC input Output models: AC output D: Input models: DC input
Output models: DC output
5. Rated Load Power Supply Voltage
2: 200 VAC/200 VDC X: 50 to 100 V Z: 26 V max.
6. Rated Load Current
01: 1 A 02: 2 A R02: 25 mA
7. Terminal Type
S: Plug-in terminals
8. Zero Cross Function
Blank: DC output models
Z: Equipped with zero cross function L: Not equipped with zero cross function
9. Operation Indicator
Blank: Equipped with operation indicator M: Not equipped with operation indicator
10.Certification
US: Certified by UL and CSA
Ordering Information
■ List of Models
Input Modules
Note: When ordering, specify the rated input voltage.
1 2 3 4 5 6 7 8 9 10
G3TA
@@@@@@@-@
Isolation Indicator Logic level Rated input voltage Model Supply voltage Supply current
Photocoupler Yes 4 to 32 VDC 25 mA 100 to 240 VAC G3TA-IAZR02S-US 5 to 24 VDC G3TA-IDZR02S-US
2
Output Modules
Note: 1. For information on products that are certified for international standards, consult your OMRON sales representatives.
(Models certified for UL and CSA standards have "-US" at the end of the model number.)
2. Input Modules are mainly suitable for signal input to PLCs. For load switching, consider using an Output Module.
I/O Indication
The modules are classified as Input Modules and Output Modules according to the main application of the Module.
I/O module classification and AC/DC use are indicated on the mark affixed to the top of the product.
■ Accessories (Order Separately)
Connecting Socket
Isolation Zero cross
function Indicator Rated output load Rated input voltage Model
Phototriac Yes Yes 2 A at 100 to 240 VAC at 60°C 12 VDC G3TA-OA202SZ-US 24 VDC No 12 VDC G3TA-OA202SL-US 24 VDC Photocoupler --- 2 A at 5 to 48 VDC at 60°C 12 VDC G3TA-ODX02S-US 24 VDC 1 A at 48 to 200 VDC at 40°C 12 VDC G3TA-OD201S-US 24 VDC
Mark indication Specification
AC IN Input module, AC input DC IN Input module, DC input AC OUT Output module, AC output DC OUT Output module, DC output
Mark attached to the top of product
I/O classification Rated voltage Model
Input (NPN, – common) 12 VDC P7TF-IS16 24 VDC
100/110 VDC 100/110 VAC 200/220 VAC
Output (NPN, + common) 12 VDC P7TF-OS16 24 VDC
Output (PNP, – common) 12 VDC P7TF-OS16-1 24 VDC
Output (NPN, + common) 12 VDC P7TF-OS08 24 VDC
3
Specifications
■ Ratings (at an Ambient Temperature of 25°C)
Input Module
Input
Output
Output Module
Input
Output
Note: The minimum current value is measured at 10°C min.
Model Rated voltage Operating voltage Input current Voltage level
Must operate voltage Must release voltage G3TA-IAZR02S-US 100 to 240 VAC 80 to 264 VAC 5 mA max. 80 VAC max. 10 VAC min.
G3TA-IDZR02S-US 5 to 24 VDC 4 to 32 VDC 4 VDC max. 1 VDC min.
G3TA-IDZR02SM-US 4 to 24 VDC 3 to 32 VDC 3 VDC max.
Model Logic level supply voltage
Output breakdown voltage
Output current Output current (load current)
VCEO
(reference value) G3TA-IAZR02S-US 4 to 32 VDC 32 VDC max. 25 mA max. 0.1 to 25 mA 80 V
G3TA-IDZR02S-US G3TA-IDZR02SM-US
Model Rated voltage Operating voltage Input impedance Voltage level
Must operate voltage Must release voltage G3TA-OA202SZ-US 12 VDC 9.6 to 13.2 VDC 0.9 kΩ±20% 9.6 VDC max. 2 VDC min.
24 VDC 19.2 to 26.4 VDC 1.7 kΩ±20% 19.2 VDC max. G3TA-OA202SL-US 12 VDC 9.6 to 13.2 VDC 0.9 kΩ±20% 9.6 VDC max. 24 VDC 19.2 to 26.4 VDC 1.7 kΩ±20% 19.2 VDC max. G3TA-ODX02S-US 12 VDC 9.6 to 13.2 VDC 3.5 kΩ±20% 9.6 VDC max. 24 VDC 19.2 to 26.4 VDC 6.5 kΩ±20% 19.2 VDC max. G3TA-OD201S-US 12 VDC 9.6 to 13.2 VDC 3.6 kΩ±20% 9.6 VDC max. 24 VDC 19.2 to 26.4 VDC 6.4 kΩ±20% 19.2 VDC max.
Model Rated load voltage Load voltage range Load current (See note.)
Inrush current VDRM, VCEO
(reference value) G3TA-OA202SZ-US 100 to 240 VAC 75 to 264 VAC 0.05 to 2 A 30 A (60 Hz, 1 cycle) 600 (VDRM)
G3TA-OA202SL-US 100 to 240 VAC 75 to 264 VAC
G3TA-ODX02S-US 5 to 48 VDC 4 to 60 VDC 0.01 to 2 A 12 A (10 ms) 80 (VCEO)
4
■ Characteristics
Input Module
Output Module
Item G3TA-IAZR02S-US G3TA-IDZR02S-US G3TA-IDZR02SM-US Operate time 20 ms max. 0.5 ms max.
Release time 20 ms max. 0.5 ms max.
Output ON voltage drop 1.6 V max. 1.6 V max.
Leakage current 5 µA max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance Malfunction: 1,000 m/s2
Ambient temperature Operating: –30°C to 80°C (with no icing or condensation) Storage: –30°C to 100°C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Certified standards UL508 file No. E64562/CSA C22.2 (No. 0, No. 14) file No. LR35535
Weight Approx. 16 g
Item G3TA-OA202SZ-US G3TA-OA202SL-US G3TA-ODX02S-US G3TA-OD201S-US Operate time 1/2 of load power source
cycle + 1 ms max.
1 ms max. 0.5 ms max. 2 ms max.
Release time 1/2 of load power source cycle + 1 ms max. 2 ms max. 2 ms max.
Output ON voltage drop 1.6 V rms max. 1.6 V max. 2.5 V max.
Leakage current 5 mA max. (at 200 VAC) 1 mA max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance Malfunction: 1,000 m/s2
Ambient temperature Operating: –30°C to 80°C (with no icing or condensation) Storage: –30°C to 100°C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Certified standards UL508 file No. E64562, CSA C22.2 (No. 14) file No. LR3553
Weight Approx. 23 g
G3TA G7T G3TA G7T
With up to four G3TA SSRs mounted before G7T Relays, switching is possible at the rated load current for each Relay.
G3TA
5
Engineering Data
Load Current vs. Ambient Temperature Characteristics
One Cycle Surge Current: Non-repetitive
Connections
■ External Connections (Bottom
View)
Note: The load is possible to connect either + side or - side.
■ Circuit Configurations
G3TA-OA202SZ/OA202SL/ODX02S-US G3TA-OD201S-US
Ambient temperature (°C) Ambient temperature (°C)
Load current (A) Load current (A)
Single-point mounting 16-point mounting
Single-point mounting
16-point mounting
G3TA-OA202SZ/OA202SL-US G3TA-ODX02S-US G3TA-OD201S-US
Non-repetitive (Keep the inrush current to half the rated value if it occurs repetitively.)
Inr
ush current (A.
P
eak)
Energized time (ms)
Inr
ush current (A.
P
eak)
Energized time (ms)
Inr
ush current (A.
P eak) Energized time (ms) G3TA-IAZR02S G3TA-IDZR02S/IDZR02SM G3TA-OA G3TA-OD 3 + 4 − 5 1 3 + 4 − 5 1 3 + 4 5 1 − 3 + 4 − 5 1 + − Output Output Load
Load power supply
Load
Load power supply Output Output
Load
Load power supply
Load
Load power supply
I/O module classifi-cation Model Case color Oper-ation indi-cator Circuit AC
output G3TA-OA202SZ(with zero cross) G3TA-OA202SL (without zero cross)
Black yes
DC
output G3TA-ODX02SG3TA-OD201S Black yes
AC
input G3TA-IAZR02S Red yes
DC
6
Dimensions
Note: All units are in millimeters unless otherwise indicated.
28.4 31.7 24 7.1 7.5 9 6 33.5 max. 39 max. 10 max. 182 85 26 34 8 10 M3.5 68 32.5 21 35.3+0.2 0 Connecting Sockets
7
Safety Precautions
Refer to Safety Precautions for All Solid State Relays.
■ Precautions for Correct Use
Please observe the following precautions to prevent failure to operate, malfunction, or undesirable effect on product performance.
Connection
With the SSR for DC switching, the load can be connected to either positive or negative output terminal of the SSR.
Protective Component
Since the SSR does not incorporate an overvoltage absorption component, be sure to connect an overvoltage absorption component when using the SSR under an inductive load.
P7TF-OS16 P7TF-OS08 M3.5 8 10 85 102 182 85 8 10 M3.5 68 32.5 21 35.3+0.2 0 68 32.5 21 35.3+0.2 0 P7TF-O5 59 max. For Output (NPN, + Common)
For Output (PNP, + Common)
19 max.
71.5 max.
59 max. Five, M3.5 x 8
Square washer faced screw
In the interest of product improvement, specifications are subject to change without notice. ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
