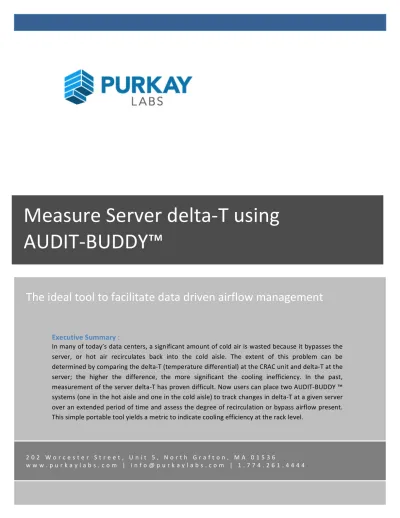

Measure Server delta-‐T using
AUDIT-‐BUDDY™
Executive Summary :
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 1 Introduction
An efficient data center requires an effective cooling and airflow management system. The modern forced air cooled data center is designed to maximize the passage of cold air through the server. In reality, a fair amount of cold air bypasses the servers completely or recirculates with hot air, leading to poor efficiency and un-‐necessarily higher electricity usage. The problem has become more difficult with the addition of high-‐energy consuming blade servers and rapid changes in an active facility. It is possible to assess the cooling efficiency by comparing the server delta-‐T with the HVAC delta-‐T at the CRAC units. In the past, it was difficult to measure the server delta-‐T. Now, users can place two AUDIT-‐BUDDY™ systems in the hot and cold aisle and to track the changes in delta-‐T at a given server over an extended period of time. The information gathered, when compared to the HVAC delta-‐T, can be used to assess the degree of recirculation or bypass airflow and address the cooling (in)efficiency.
Data Center Cooling
The data center cooling model has changed significantly over the years. Previously, the cooling objective was to cool the whole data center at a uniform temperature, around 68°F.1 Now, the aim is to direct
cooling to servers and not overcool portions of the room that don’t need to be cooled.2 The basic premise is by separating the hot and cold aisles the cold supply air goes to the server intakes and allow hot server exhaust to go directly to the cooling unit return air.3 This allows data centers to maintain a
specific inlet temperature designated by the equipment manufacturer’s specifications, while keeping cooling costs low. (See Diagram 1: Airflow Distribution-‐ Underfloor)
Diagram 1: Underfloor Airflow Distribution
1 Lucian Lipinsky de Orlov “Lowering Data Center Cooling Costs with Airflow Modeling and Perforated raised-‐floor tiles” 27 April 2009 at http://searchdatacenter.techtarget.com/news/1354850/Lowering-‐data-‐center-‐cooling-‐costs-‐with-‐airflow-‐modeling-‐ and-‐perforated-‐raised-‐floor-‐tiles
2 Arthur Cole and Wally Phelps “Simple Steps to a Greener Data Center” 25 November 2008 at
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 2 Unfortunately, a fair amount of cold air is wasted. The biggest and most common problem is that the cold air supply air “bypasses” the server rack and mixes with the warm return air without cooling the server. Another associated problem occurs when the hot air from the server exhaust “recirculates” back into the cold aisle instead of returning to the CRAC unit. (See Diagram 2: Bypass & Recirculation Airflow). Both these factors contribute significantly to a poor PUE number and the CRAC units are forced to work harder to compensate for the cold air inefficiency, raising the cost of cooling.
Diagram 2: Bypass & Recirculation Airflow
The immediate inclination is to add additional cooling units or crank up the CRAC and “overcool” the facility to address the temperature variation at the rack. This mistakenly assumes that inlet server temperature is too hot or too cold because there is not enough cold air being supplied or that the air is not cold enough. Instead, the fundamental issue is that the cold air is not reaching the server efficiently, and instead is being lost or wasted through bypass or recirculation airflow.4 Data Center Managers must
improve their airflow management in order to improve cooling conditions. This means identifying and eliminating the airflow waste to ensure that the majority of cold air supplied to the data center produces effective cooling at the server.5
4 Vali Sorell “Airflow Management Strategies for Efficient Data Center Cooling” March 2009 at
http://searchdatacenter.techtarget.com/tip/Air-‐flow-‐management-‐strategies-‐for-‐efficient-‐data-‐center-‐cooling 5 Vali Sorell “Airflow Management Strategies for Efficient Data Center Cooling” March 2009 at
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 3 Determining Airflow Waste & Cooling Efficiency through the delta-‐T ratio
The Data Center Manager must first measure the temperatures at both the CRAC unit and at the server. Data Center Managers can then quantify the amount of airflow waste by comparing the server delta-‐T (at the server rack) with the HVAC delta-‐T (at the CRAC unit). The server delta-‐T (ΔTServer) is difference
between inlet and outlet temperature of a server. HVAC delta-‐T (ΔTHVAC) is the difference between the
supply air and the return air.
If the ΔTHVAC is the same or similar to the ΔTServer, then cooling is efficient. This means that there is little
to no change in temperatures between the CRAC unit and the Server, and all or the majority of the cold air supply is reaching the server.
If the ΔTHVAC is greater than the ΔTServer, then there is bypass air circulation. This means that some of the
cold air is returning to the CRAC unit without cooling the server. The greater the difference, the more cold air is bypassing the server, and the data center is being over cooled unnecessarily.
If the ΔTHVAC is less than the ΔTServer, then there is recirculation airflow present. This means that hot air
from the server exhaust “recirculates” back into the cold aisle instead of returning to the CRAC unit. The greater the difference, more likely there is not enough HVAC airflow reaching the server and there is high chance of hotspots.
Cooling Pattern Cooling Condition
Result
ΔTHVAC = ΔTServer Efficient Cooling
Cold air reaches server with no or minimal wasteΔTHVAC > ΔTServer Bypass Airflow
Cold air not reaching server; overcoolingΔTHVAC < ΔTServer Recirculation Airflow
Server exhaust mixing with cold air
A simple metric to characterize cooling efficiency is to compare the ratio of ΔTHVAC to ΔTServer or
the delta-‐T rati ( ∆TRATIO). The ∆TRATIO is defined as: With this formula, Data Center Managers can determine the extent of bypass or recirculation airflow.
Table 1 delta-‐T Ratio (ΔTRATIO) for Rack 20010
Below 0.9
0.9 to 1.2
Above 1.2
Implication
Bypass Dominates – Low
Entering Temperatures,
Excessive HVAC usage
Normal Operating
Conditions
Recirculation
Dominates – too little
HVAC airflow, high
entering temperatures
Corrective
Action
Better containment
required for safe
operation of servers.
Strive for 1.0
Consider blanking
panels and other
corrective actions.
delta-‐T ratio (∆TRATIO) = ___________________________________________________
_ HVAC delta-‐T (ΔTHVAC) : [Return Temperature – Supply Temperature]
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 4
The Problem of Measuring ΔTServer
While ΔTRATIO is a simple and effective way to gauge cooling efficiency, measuring the ΔTRATIO is not
common practice in the modern data center.
The reason is that it is far easier to measure the ΔTHVAC at the CRAC unit, than measure the ΔTServer at the
server rack. CRAC units are supplied with temperature sensors and controls at the return and supply. Busy Data Center Managers can easily make adjustments, and supply colder air to the racks without any extra measurements. But, as mentioned previously, colder air does not compensate for cooling inefficiencies due to bypass or recirculation airflow. If anything, “overcooling” gives a false sense of reliability, which leaving the server open to hot spots and server failures.
Measurement of ΔTServer is extremely important, but difficult to ascertain. The temperature at these
multiple server, rack and aisle locations will vary greatly at any given point. Data Center Managers measuring the ΔTServer cannot just hold a thermometer at the inlet and outlet of the server and get an
accurate measurement of ΔTServer.
Data Center Managers have to take three factors into account when measuring ΔTServer.
(1) Rack Height: Every server rack contains multiple servers, and the temperature will vary greatly across the server profile. One simply has to look at a CFD model or thermal contour map to see that the inlet temperature at the front of the rack will vary from the top to the bottom. One
must measure delta-‐T at different heights to account for variance across the server profile.
(2) Aisle Composition: In the same vein as the individual server rack, there will be temperature variation from rack to rack across an aisle. The inlet temperature at one end of an aisle will not necessarily be the same as inlet temperature at the other end. This is further complicated by the mix of old servers and high-‐energy blade servers. One must measure delta-‐T at different
racks to account for variations across an aisle.
(3) Time: The IT load varies throughout the day in an active data center. The IT load in a financial services firm may be much higher during the day during trading hours than at night. As a result the delta-‐T will change over time in a dynamic environment due to server loading, cooling algorithms, and airflow variance. One must measure delta-‐T over a long period of time (24
hours) to account for load variations.
Traditional methods of measurement such as BAS or DCIM are inadequate to measure ΔTServer because
none monitor the inlet and outlet at multiple rack heights simultaneously, or measure over a long period of time. Hand held devices are good for spot measurements only and completely miss the time variance aspect. IR guns are simply not accurate enough.6
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 5 Given these challenges —rack height, aisle composition, time—Data Center Managers have mostly chosen to ignore or approximate server delta-‐T values.
The only practical solution is to use two AUDIT-‐BUDDY™ systems to measure the inlet and outlet air temperature at the server. AUDIT-‐BUDDY™ is a stand-‐alone temperature and humidity monitor that measures true air quality in Data Centers. Each system consists of three temperature and humidity (TH1) Modules and an adjustable carbon fiber rod. The design permits facility managers to measure inlet air temperature at three different heights (up to 84”-‐ 48U). AUDIT-‐BUDDY™ is battery powered and weights 5.5lbs so it can measure multiple servers, and then be moved across an aisle to measure be moved across multiple racks. The weighted triangular base allows the AUDIT-‐BUDDY™ to be placed as close as 1 inch away from the server rack, allowing the patent pending fan design to draw in air and quickly adjust to the thermal ambient.
Measuring ΔTServer with AUDIT-‐BUDDY™
To measure delta-‐T across a rack, place one AUDIT-‐BUDDY™ in the Cold Aisle side and the other on the Hot Aisle side (See Figure 1). The TH1 Modules may be placed at any height on the adjustable Carbon
Fiber Rod. This allows for measurement of three different servers on the rack at the same time. The placement of the TH1 Modules should be as shown with the TH1 Module as close to the server inlet and exhaust as possible. Figure 2 illustrates a close up for measurement of a particular server. The design of the AUDIT-‐BUDDY™ system allows the TH1 Module to be as close as 1” from the server.
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 6 Once the Modules are positioned, both TH1 Modules should be set to collect data using LongScan mode with a sample rate of 1 minute. The sampling duration is dependent on the test interval. For example, if the desire is to track the delta-‐T performance through a work day of 9 hours, set the collection period to 12 hours or higher.
After the data collection is completed, the data is transferred from the TH1 Modules using a USB stick directly to the PC or MAC® Excel Program.
Analysis of Data
Purkay Labs offers the delta-‐T Excel Macro along with the delta-‐T package. This Macro runs both on a PC or Mac® computers running Excel 2010 or higher. Starting the Macro is achieved simply by clicking the Start button.
Once the Macro is enabled, the program asks the user to identify the data collected by the two TH1 Modules. The data is stored in the USB in a special compressed format and the files are identified as .PKL files. The file name reflects the time when the data collection was started and is named automatically based on when the Data collection was started in a PMDDHHMM format. For example, if measurement for the Inlet TH1 Module in the middle position was started at July 12 at 7:45PM, the file name will be M7121945.PKL.
Figure 2 Close-‐up of Measurement of one Server
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 7 The program will ask the user to identify both files. It does not matter which file is identified first. The program determines which files represents the inlet and outlet readings automatically. The program lines up the measurements even though the TH1 Module units may have been started slightly different times. The ΔTServer information is calculated and presented automatically. The program, as an option,
allows the user to input the Operator and Specific Server Name, before allowing the user to save the information in a .CSV file.
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 8
The Macro Utility also allows the user to generate a Plot of the ΔTServer over time (Figure 5) to be
exported to a .GIF or .PNG file.
The trend plot allows for one to synchronize wide variance of ΔTServer with specific server loads. This
information would be useful in either tuning the server load via virtualization or changing the cooling strategy around that particular server. For example, a higher ΔTServer at certain parts of the day would
indicate perhaps the airflow is not uniform when the server is drawing lot more IT Load. This would be an indicator that corrective action may be necessary for that specific server.
The Macro Utility also allows for integrating six Module Data into one report to report to the user the overall summary of Bypass or Recirculation airflow present in the rack by calculating an aggregate ∆T-‐ RATIO for the particular rack where the measurements were conducted.
Towards a more Energy Efficient Data Center
AUDIT-‐BUDDY™ Delta-‐T Package gives the Data Center Manager an economical tool to measure ∆TServer
in a facility in simple, inexpensive manner. One can get the ∆TServer of three servers averaged over a
period of operation without requiring any additional infrastructure additions, permanent or temporary installs in the cabinet or learning a new software tool.
Once the average ∆TServer is gathered, one can get the ∆T-‐RATIO for the Data Center by looking at the ∆THVAC.
The Manager now has an idea of how efficient the cooling air flow is and the degree of over cooling
Measure Server delta-‐T using AUDIT-‐BUDDY™ Page 9 present and what corrective actions are required
Now the manager has the metric in hand to guide whether to raise the operating temperature of the facility or simply shut down some of the extra CRAC units, or do some simple air flow management with tiles. One can measure ∆T-‐RATIO again after the changes have been made to decide whether the lever has
been moved sufficiently or there are more efficiency opportunities to be realized.
Given that almost every Data Center is overcooled because of different factors cited above, the AUDIT-‐ BUDDY™ Delta T Package gives the Data Center Manager the metric through which one could implement a clear air flow management strategy, reduce operational expense – without affecting the reliability of the data centers. This low hanging fruit can be realized quite easily using AUDIT-‐BUDDY™ Delta-‐T Package while reducing the carbon footprint of the Data Center.
Summary
AUDIT-‐BUDDY™ offers an economical way to measure ΔTServer throughout the Data Center taking in to
account variations on the server load throughout the day. It is accurate, measures true air temperature and best of all is portable. It may be moved from rack to rack as the dynamics of the Data Center change. Powered by 3 AA alkaline batteries, AUDIT-‐BUDDY™ can be installed in minutes and requires little back-‐end management. It can be used on demand, and stored when not needed. The system imposes no demands on the existing infrastructure and may be deployed throughout the Data Center floor as required. This inexpensive tool will allow the Facility Engineer to manage the Data Center more efficiently and reduce Operational Expense by establishing better cooling strategies without putting the servers at risk.
