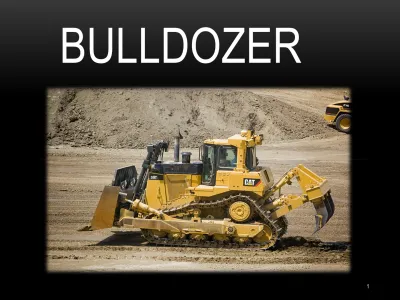

Bulldozer Ppt

1

TABLE OF CONTENTS:

 Dozer primary tools.

 blade.  Ripper.  Caterpillar.  Caterpillar d9  Available power  Example  Production of dozer  Example  End.

3

• A bulldozer is a crawler (continuous tracked tractor) equipped with a substantial metal plate (known as a blade) used to push large quantities of soil, sand, rubble, or other such material during

construction or conversion work and typically equipped at the rear with a claw-like device (known as a ripper) to loosen

densely-compacted materials.

• The term "bulldozer" is often used erroneously to mean any heavy equipment (sometimes a loader and sometimes an excavator), but precisely, the term refers only to a tractor (usually tracked) fitted with a dozer blade. That is the meaning used here

HISTORY

4

• In 1923, a young farmer named James Cummings and a draftsman named J. Earl McLeod made the first designs for the bulldozer. A replica is on display at the city park in Morrowville, Kansas where the two built the first bulldozer. On December 18, 1923

• Over the years, bulldozers got bigger and more powerful in response to the demand for equipment suited for ever larger

5

• Bulldozers can be found on a wide range of sites, mines (مجانملا( and

quarries )رجاحملا(, military bases, heavy industry factories, engineering projects and farms.

TYPE OF DOZERS

6

1.

Crawler (track laying) tractor.

2.

Wheel type tractor.

A.

Single axle.

B.

Two-axle.



Single axle drive.

7

Wheel-type tractor

Crawler-type tractor

DOZERS USES

8



Typical project applications are:



Land clearing.



Dozing (pushing material)



Ripping.



Towing other pieces of construction equipment's

DESCRIPTION

9

• Most often, bulldozers are large and powerful tracked heavy equipment. The tracks give them excellent ground hold and

mobility through very rough terrain. Wide tracks help distribute the bulldozer's weight over a large area (decreasing pressure), thus preventing it from sinking in sandy or muddy ground. Extra wide tracks are known as 'swamp tracks' or "LGP (low ground

pressure)tracks". Bulldozers have excellent ground hold and a torque divider designed to convert the engine's power into

improved dragging ability. The Caterpillar D9, for example, can easily tow tanks that weigh more than 70 tons. Because of these attributes, bulldozers are used to clear areas of obstacles,

THE BULLDOZER'S PRIMARY

TOOLS

BLADES

11

•

The bulldozer

blade

is a heavy metal

plate on the front of the tractor, used to

push objects, and shoving

sand

, soil and

DOZER BLADES USUALLY COME IN

FOUR VARIETIES

12

o

A straight blade ("S blade") which is short and

has no lateral curve and no side wings and can

be used for fine grading.

13

•

A universal blade

("U blade")

which is tall and very

curved, and has large side wings to carry more

14

•

An

"S-U" combination blade

which is shorter, has

less curvature, and smaller side wings. This blade is

typically used for pushing piles of large rocks, such

as at a quarry.

CUSHION DOZER BLADES

15

• Cushion Dozers are used to

push load scrapers or track-type tractors.

• The heavy duty design includes a wear-resistant center liner plate and a reinforced cutting edge section.

• Narrow width increases

maneuverability when lining up for the next pass.

16

•

Blades can be fitted straight across the

frame, or at an angle, sometimes using

additional 'tilt cylinders' to vary the angle

while moving. The bottom edge of the

blade can be sharpened, e.g. to cut tree

stumps

BLADE ADJUSTMENTS

17

•

Tilting

BLADE ADJUSTMENTS (CONT’D)

18

•

Angle

RIPPER

20

•

The ripper is the long claw-like device on the

back of the bulldozer. Rippers can come as a

single shank/giant ripper) or in groups of two or

more (multi shank rippers). Usually, a single

shank is preferred for heavy ripping. The ripper

shank is fitted with a replaceable

tungsten

steel

alloy

tip.

•

Ripping rock breaks the ground surface rock or

pavement into small rubble easy to handle and

transport, which can then be removed so

CATERPILLAR

21

• The best known maker of bulldozers is probably Caterpillar in the USA, which earned its reputation by making tough, durable, reliable machines.

• Komatsu, JCB and John Deere are present-day competitors. Although these machines began as modified farm tractors, they became the mainstay for big civil construction projects, and

found their way into use by military construction units worldwide. The best known model, the Caterpillar D9, was also used to

22

• The Caterpillar D9 is a large track-type tractor designed and manufactured by Caterpillar Inc. Though it comes in many

configurations it is usually sold as a bulldozer equipped with a detachable large blade and a rear ripper attachment.

• The D9, with 354 kW (474 hp) of gross power and an operating weight of 49 tons, is in the upper end (but not the heaviest), of Caterpillar's track-type tractors, which range in size from the D3 57 kW (77 hp), 8 tons, to the D11 698 kW (935 hp), 104tons.

• The size, durability, reliability, and low operating costs have made the D9 one of the most popular large track-type tractors in the

23

• Engineering Role: Heavy bulldozer

• Propulsion: Caterpillar tracks

• Engine model: CAT C18 ACERT (D9T)

• 3408 HEUI (D9R) • Gross power: 464 hp (346 kW) D9T • 474 hp (354 kW) D9R • Flywheel power: 410 hp (306 kW) D9T • 410 hp (306 kW) D9R • 375 hp (280 kW) D9N • 460 hp (343 kW) D9L

24

• Drawbar pull: 71.6 tons

• Operation Weight: 108,000 lbs (48,784 kg) • Length: 26.5 ft (8.1 m) • Width: 14.7 ft (4.5 m) (blade) • Height: 13 ft (4 m) • Speed: 7.3 MPH (11.9 km/h) Forward • 9.1 MPH (14.7 km/h) Reverse

• Blade capacity: 17.7 yd³ (13.5 m³) 9 SU blade

26

27

Empty

Haul

28

29

30

Speed



9 mph

31

Speed



31 mph

COEFFICIENT OF TRACTION FOR VARIOUS

SURFACES

34

surface Rubber-tires Crawler-tracks

Dry, rough concrete 0.80-1 0.45

Dry, clay 0.50-0.70 0.9

Wet, clay 0.4-0.5 0.7

Wet sand and gravel 0.3-0.4 0.35

Loose, dry sand 0.2-0.3 0.3

Dry snow 0.2 0.15-0.35

Ice 0.1 0.1-0.25

Tractive effort (usable force) = coefficient of traction x weight

DOZER PRODUCTIVITY

PRODUCTION FACTORS: DOZERS

FIGURE 107. MAXIMUM PRODUCTION RATES FOR DIFFERENT

BULLDOZERS EQUIPPED WITH STRAIGHT BLADE IN RELATION TO HAUL DISTANCE. (FROM CATERPILLAR HANDBOOK, 1984).

41

• The graph provides the uncorrected, maximum production. In order to adjust to various conditions which affect production, correction factors are given in Table 39. Adjustment factors for grade (pushing uphill or downhill) are given in Figure 108

42

•

Table 39. Job condition correction

factors for estimating bulldozer earth

moving production rates. Values are for

track-type tractor equipped straight (S)

blade.

43

TRACK TYPE TRACTOR WHEEL TYPE TRACTOR

OPERATOR Excellent 1.00 1.00 Average 0.75 _0.60 Poor 0.60 0.50 MATERIAL Loose stockpile 1.20 _1.20

Hart to cut; frozen--

with tilt cylinder 0.80 0.75

without tilt cylinder 0.70 _-

cable controlled blade 0.60 -

Hard to drift; "dead" (dry, non-cohesive material)

or very sticky material 0.80 0.80

SLOT DOZING 0.60 - 0.80 -

SIDE BY SIDE DOZING 1.15 - 1.25 1.15 - 1.25

VISIBILITY --

Dust, rain, snow, fog, darkness 0.80 0.70

JOB EFFICIENCY --

50 min/hr 0.84 0.84

40 min/hr 0.67 0.67

DIRECT DRIVE TRANSMISSION

(0.1 min. fixed time) 0.80 -

BULLDOZER*

Angling (A) blade 0.50 - 0.75 -

Cushioned (C) blade 0.50 - 0.75 0.50 - 0.75

D5 narrow gauge 0.90 -

EXAMPLE

44

•

Determine the average hourly production of a 200 hp

bulldozer (D7) equipped with a straight blade and tilt

cylinder. The soil is a hard packed clay, the grade is 15

percent favorable, and a slot dozing technique is used.

The average haul or push distance is 30 m. The soil

weight is estimated at 1,200 kg/m3 loose, with a load

factor of 0.769 (30 % swell). An inexperienced operated

is used. Job efficiency is 50 min/hour.

EXAMPLE

45

Job efficiency (50 min/hr)

0.84

0.60

0.80

1.20

0.87

The uncorrected maximum production is 430 m3 loose/hour (from Figure 107) bulldozer curve D7S. Applicable correction factors are:

EXAMPLE

46

•

Production = Maximum Production * Correction

Factor

•

= (430 m3 loose/hr) (0.84) (0.60) (0.80) (1.20)

(0.87) = 181 m3 loose/hour

•

Production (bank m3) = (181 m3 loose/hr)

47

•

Prepared by

END
