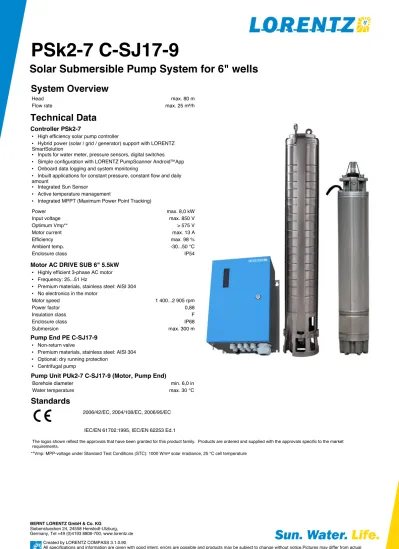

Head max. 80 m
Flow rate max. 25 m³/h
Controller PSk2-7
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 8,0 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 13 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 5.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...51 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 905 rpm
Power factor 0,88
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ17-9
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-7 C-SJ17-9 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 580 mm 750 mm 830 mm 143 mm 133 mm 2,5 inPump Unit
Net weight Controller 18 kg Pump Unit 65 kg Motor 48 kg Pump End 17 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 50 m
Flow rate max. 42 m³/h
Controller PSk2-7
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 8,0 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 13 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 5.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...51 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 905 rpm
Power factor 0,88
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ30-6
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-7 C-SJ30-6 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 610 mm 750 mm 860 mm 143 mm 133 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 64 kg Motor 48 kg Pump End 16 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 30 m
Flow rate max. 76 m³/h
Controller PSk2-7
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 8,0 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 13 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 5.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...52 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 965 rpm
Power factor 0,88
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ42-3
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-7 C-SJ42-3 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 354 mm 750 mm 604 mm 143 mm 147 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 61 kg Motor 48 kg Pump End 13 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 16 m
Flow rate max. 128 m³/h
Controller PSk2-7
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 8,0 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 13 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 5.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...54 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...3 080 rpm
Power factor 0,88
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ95-1
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-7 C-SJ95-1 (Motor, Pump End)
Borehole diameter min. 8,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 240 mm 750 mm 490 mm 143 mm 197 mm 5 inPump Unit
Net weight Controller 18 kg Pump Unit 68 kg Motor 48 kg Pump End 20 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
Head max. 180 m
Flow rate max. 12 m³/h
Controller PSk2-9
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 10 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 17 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 7.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...51 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 905 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ8-44
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-9 C-SJ8-44 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 2 736 mm 645 mm 2 091 mm 144 mm 98 mm 2 inPump Unit
Net weight Controller 18 kg Pump Unit 78 kg Motor 51 kg Pump End 27 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 90 m
Flow rate max. 25 m³/h
Controller PSk2-9
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 10 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 17 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 7.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...54 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...3 080 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ17-11
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-9 C-SJ17-11 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 568 mm 645 mm 923 mm 144 mm 133 mm 2,5 inPump Unit
Net weight Controller 18 kg Pump Unit 72 kg Motor 51 kg Pump End 21 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 50 m
Flow rate max. 39 m³/h
Controller PSk2-9
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 10 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 17 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 7.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ30-7
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-9 C-SJ30-7 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 583 mm 645 mm 938 mm 144 mm 133 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 69 kg Motor 51 kg Pump End 18 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 140 m
Flow rate max. 22 m³/h
Controller PSk2-15
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 15 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 24 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 11kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ17-18
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-15 C-SJ17-18 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 2 083 mm 711 mm 1 372 mm 144 mm 133 mm 2,5 inPump Unit
Net weight Controller 18 kg Pump Unit 86 kg Motor 57 kg Pump End 29 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 100 m
Flow rate max. 39 m³/h
Controller PSk2-15
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 15 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 24 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 11kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ30-12
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-15 C-SJ30-12 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 2 145 mm 711 mm 1 434 mm 144 mm 133 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 84 kg Motor 57 kg Pump End 27 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 50 m
Flow rate max. 65 m³/h
Controller PSk2-15
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 15 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 24 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 11kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ42-6
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-15 C-SJ42-6 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 670 mm 711 mm 959 mm 144 mm 147 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 79 kg Motor 57 kg Pump End 22 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 35 m
Flow rate max. 126 m³/h
Controller PSk2-15
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 15 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 24 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 11kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ75-3
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-15 C-SJ75-3 (Motor, Pump End)
Borehole diameter min. 8,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 451 mm 711 mm 740 mm 144 mm 197 mm 5 inPump Unit
Net weight Controller 18 kg Pump Unit 89 kg Motor 57 kg Pump End 32 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
Head max. 25 m
Flow rate max. 114 m³/h
Controller PSk2-15
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 15 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 24 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 11kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ95-2
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-15 C-SJ95-2 (Motor, Pump End)
Borehole diameter min. 8,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 325 mm 711 mm 614 mm 144 mm 197 mm 5 inPump Unit
Net weight Controller 18 kg Pump Unit 83 kg Motor 57 kg Pump End 26 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
Head max. 16 m
Flow rate max. 235 m³/h
Controller PSk2-15
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 15 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 24 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 11kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ150-1
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-15 C-SJ150-1 (Motor, Pump End)
Borehole diameter min. 9,8 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 10" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 431 mm 711 mm 720 mm 144 mm 230 mm 6 inPump Unit
Net weight Controller 18 kg Pump Unit 103 kg Motor 57 kg Pump End 46 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 10" wells
Head max. 120 m
Flow rate max. 43 m³/h
Controller PSk2-21
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 21 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 33 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 15kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ30-16
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-21 C-SJ30-16 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 2 597 mm 777 mm 1 820 mm 144 mm 133 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 102 kg Motor 67 kg Pump End 35 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 90 m
Flow rate max. 62 m³/h
Controller PSk2-21
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 21 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 33 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 15kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ42-10
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-21 C-SJ42-10 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 2 191 mm 777 mm 1 414 mm 144 mm 147 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 96 kg Motor 67 kg Pump End 29 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 55 m
Flow rate max. 112 m³/h
Controller PSk2-21
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 21 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 33 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 15kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ75-4
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-21 C-SJ75-4 (Motor, Pump End)
Borehole diameter min. 8,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 640 mm 777 mm 863 mm 144 mm 197 mm 5 inPump Unit
Net weight Controller 18 kg Pump Unit 107 kg Motor 67 kg Pump End 40 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
Head max. 30 m
Flow rate max. 218 m³/h
Controller PSk2-21
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 21 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 33 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 15kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ120-2-1
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-21 C-SJ120-2-1 (Motor, Pump End)
Borehole diameter min. 9,8 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 10" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 337 mm 777 mm 560 mm 144 mm 230 mm 6 inPump Unit
Net weight Controller 18 kg Pump Unit 103 kg Motor 67 kg Pump End 36 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 10" wells
Head max. 200 m
Flow rate max. 38 m³/h
Controller PSk2-25
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 25 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 40 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 18.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ30-22
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-25 C-SJ30-22 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 3 412 mm 1 018 mm 2 394 mm 143 mm 133 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 118 kg Motor 73 kg Pump End 45 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 90 m
Flow rate max. 66 m³/h
Controller PSk2-25
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 25 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 40 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 18.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...50 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 850 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ42-12
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-25 C-SJ42-12 (Motor, Pump End)
Borehole diameter min. 6,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 2 655 mm 1 018 mm 1 637 mm 143 mm 150 mm 3 inPump Unit
Net weight Controller 18 kg Pump Unit 100 kg Motor 73 kg Pump End 27 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 6" wells
Head max. 60 m
Flow rate max. 112 m³/h
Controller PSk2-25
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 25 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 40 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 18.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...52 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...2 965 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ95-4
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-25 C-SJ95-4 (Motor, Pump End)
Borehole diameter min. 8,0 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 884 mm 1 018 mm 866 mm 143 mm 197 mm 5 inPump Unit
Net weight Controller 18 kg Pump Unit 108 kg Motor 73 kg Pump End 35 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 8" wells
Head max. 35 m
Flow rate max. 228 m³/h
Controller PSk2-25
▪ High efficiency solar pump controller
▪ Hybrid power (solar / grid / generator) support with LORENTZ SmartSolution
▪ Inputs for water meter, pressure sensors, digital switches ▪ Simple configuration with LORENTZ PumpScanner Android™App ▪ Onboard data logging and system monitoring
▪ Inbuilt applications for constant pressure, constant flow and daily amount
▪ Integrated Sun Sensor
▪ Active temperature management
▪ Integrated MPPT (Maximum Power Point Tracking)
Power max. 25 kW
Input voltage max. 850 V
Optimum Vmp** > 575 V
Motor current max. 40 A
Efficiency max. 98 %
Ambient temp. -30...50 °C
Enclosure class IP54
Motor AC DRIVE SUB 6" 18.5kW
▪ Highly efficient 3-phase AC motor ▪ Frequency: 25...53 Hz▪ Premium materials, stainless steel: AISI 304 ▪ No electronics in the motor
Motor speed 1 400...3 020 rpm
Power factor 0,87
Insulation class F
Enclosure class IP68
Submersion max. 300 m
Pump End PE C-SJ150-2-2
▪ Non-return valve▪ Premium materials, stainless steel: AISI 304 ▪ Optional: dry running protection
▪ Centrifugal pump
Standards
2006/42/EC, 2004/108/EC, 2006/95/EC
IEC/EN 61702:1995, IEC/EN 62253 Ed.1
The logos shown reflect the approvals that have been granted for this product family. Products are ordered and supplied with the approvals specific to the market requirements.
Pump Unit PUk2-25 C-SJ150-2-2 (Motor, Pump End)
Borehole diameter min. 9,8 in
Water temperature max. 30 °C
Technical Data
System Overview
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
Solar Submersible Pump System for 10" wells
H = H1 = H2 = W1 = W2 = D = D1 = 500 mm 450 mm 421 mm 320 mm 290 mm 9,0 mm 226 mm
Controller
A = B = C = D = E = S = 1 738 mm 1 018 mm 720 mm 143 mm 230 mm 6 inPump Unit
Net weight Controller 18 kg Pump Unit 106 kg Motor 73 kg Pump End 33 kg*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
Dimensions and Weights
Pump Chart
Vmp* > 575 V
BERNT LORENTZ GmbH & Co. KG
Siebenstuecken 24, 24558 Henstedt-Ulzburg, Germany, Tel +49 (0)4193 8806-700, www.lorentz.de
Created by LORENTZ COMPASS 3.1.0.90
All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual products depending on local market requirements and regulations.
