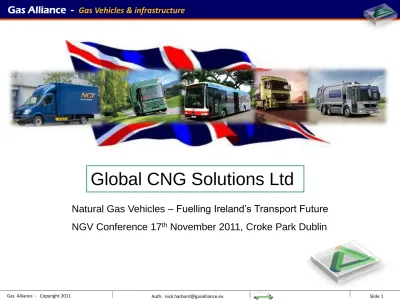

Natural Gas Vehicles – Fuelling Ireland’s Transport Future NGV Conference 17th November 2011, Croke Park Dublin
Gas Alliance - Who we are
Global CNG Solutions Ltd
Biogas-to-grid Projects
Virtual Pipeline Projects
Gas Alliance Solutions
Refuelling Infrastructure and fuel supply
Combined Gas Vehicle experience of 71 Years An Alliance of CNG experts
Gas Stations
Gas Supply Contracts
Gas Engine Engineering Feasibility Studies
H&S, Risk Ass. and COSHH Fuel Delivery Systems
Training Programmes
Research & Development Gas Vehicles Sales & Marketing
Bio-Gas Development
Emissions Development Government Lobbying
Gas Alliance - Who we are
Gas Alliance - History
• Chartered Engineer since 1997
• British Gas Vehicle Fuels – Senior Refuelling Systems Engineer • Set up and managed ~20 CNG Stations in the UK
• Compressor Supplier – Global CNG Sales Manager • Worked on CNG projects in Europe, Asia & Africa • Global CNG Solutions Ltd – Managing Director
• Designed and built 1st CNG station in Tanzania
• Designed and built 1st CNG station in Kazakhstan
• Other projects: United Utilities, Manx Gas, BG Group, Coca Cola, Tesco • Gas Alliance Ltd – Operations Director
• MAN CNG bus trials, infrastructure growth and fuel supply
• Mercedes & VW van trials, infrastructure growth and fuel supply • 1st large scale biogas-to-grid project in UK (Crouchlands Farm)
Gas Alliance - History
Leicester, Pallex Gas Station Veolia, Camden Gas Station Tesco Middlewich Trial Gas Station
Kazakhstan gas station and infrastructure development Tanzania (TPDC) gas station and
infrastructure development
Daily gas demand graph
0 500 1000 1500 2000 2500 3000 3500 12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Time of day sc m /h r
Scotland – Design consultancy
Gas Alliance - History
Gas Station examples – designed and built
UK – CNG infrastructure & fuel supply Crouchlands Biogas-to-grid project
Gas Alliance - Contents
1. CO2emissions, Fuel pricing & NGV Growth
2. Traditional Grid stations:
• Design, Standards, Installation & Operation • Cost – Capex and cost per scm/hr delivered • Safety – Hazardous Area Zones & Operation
3. Biomethane Stations: • Biogas clean-up • Compression
• Virtual Pipeline transport • Grid Injection
Gas Alliance - CO2 (WTW)
Source: German Energy Agency (DENA) Study 2010
Gas Alliance - Fuel price forecasting
Gas Alliance - Traditional CNG Station design - Standards
There are no UK, European or International standards for CNG stations!
UK have a withdrawn standard (but can still be referenced)... The Institution of Gas Engineers Utilization Procedures:
• IGE/UP/5 Pt 1 – Design & Installation of Filling Stations • IGE/UP/5 Pt 3 – Filling Station Operations
• IGE/UP/5 Pt 2-4 – Vehicle Fuel Systems & Operations
Europe has a draft standard..
• CEN TC 326 (prEN 13638) – NGV Filling Stations
And Germany has VdTUV510 – Guideline for planning, construction,
Gas Alliance - Traditional CNG Station design - Standards
Codes &
Standards
Layout & separation
distances
Gas Alliance - Traditional CNG Station design - Standards
IGE/UP/5 Pt 1 – Design & Installation of Filling Stations
• Legal & Allied Considerations (i.e. HSAWA, Gas Act 1986, PSR) and Competency
• Gas supply and metering (system protection, gas quality etc.)
• Gas compressors (design, gas recovery, PRV’s, pipework, filtration etc.) • Gas Storage (PRD’s, certification etc.)
• Shut down and safety systems (valves, procedures, isolation, HP pipework, buried pipework, pressure testing etc.)
• Vehicle filling dispensers (Hoses, nozzles, vent systems, control systems, metering etc.)
• Testing & commissioning (purging)
Gas Alliance - Traditional CNG Station design - Standards
IGE/UP/5 Pt 3 – Filling Station Operations • Hazardous Area Zones (Zone 1,2,3 etc.)
• Precautions against leakages (Barriers, inspection, testing, replacement etc.) • Operating & Emergency Procedures (Inspection, Testing, Maintenance etc.) • Notices & Instructions (isolation valves, “No Smoking” signs etc.)
• Emergency Action & Equipment (999, Fire extinguishers etc.)
• Gas Dispensing operations (nozzle type, instructions, notices, usage etc.) • Gas Storage Operations (Examination & testing)
• Gas Compressor Operations (Permit to Work System etc.)
Gas Alliance - Traditional CNG Station design
Gas Mains
Gas Meter CNG Compressor
Slow-fill (time-fill) CNG station (grid supply)
Ideal for small fleets, depot based operations (overnight parking), and large bus fleets. Not suitable for public access stations.
Gas Alliance - Traditional CNG Station design
Gas Mains
Gas Meter Storage
Cascade CNG Compressor
Fast-fill CNG station (grid supply)
Ideal for larger fleets, depot based operations or public access stations. Typically used with a Fuel Management system.
Gas Alliance - Traditional CNG Station costs
Fast-fill CNG station (grid supply) - Costs
Small CNG Station: 5 buses or 20 vans (500 scm/day)
Capex cost (including basic civils and utility supplies) = £115,000 Cost per scm/hr = £2,300 per scm/hr
Medium CNG Station: 20 buses or 80 vans (2000 scm/day)
Capex cost (including basic civils and utility supplies) = £245,000 Cost per scm/hr = £1,225 per scm/hr
Large CNG Station: 50 buses or 200 vans (5000 scm/day)
Capex cost (including basic civils and utility supplies) = £345,000 Cost per scm/hr = £690 per scm/hr
Gas Alliance - Traditional CNG Station costs
Fast-fill CNG station (grid supply) –
Costs (10 yr Capex depreciation)Capex Cost per scm/hr
0 50 100 150 200 250 50 100 150 200 250 300 350 400 450 500 550 600 scm/hr C o s t (£ ) p e r s c m /h r
Combined Heat & Power
(CHP)
Combined Heat & Power
(CHP)
Gas Alliance - BioGas to grid to vehicle
X
Gas Alliance - Summary
Summary
• Traditional grid CNG station: Design, installation and costs – great
idea and available now, then switch to Biomethane through the grid
once more AD and Sewage plants come on-line and start injecting
in the grid.
• Biomethane opportunities: Biogas production, Gas clean-up and
grid injection – cost effective use of renewable gas leading to a
“perfect circle” of waste production and energy use
• Future transport fuel is biomethane from renewable biogas
supplied through the grid and accessed at point of use
Gas Alliance - Thank You
