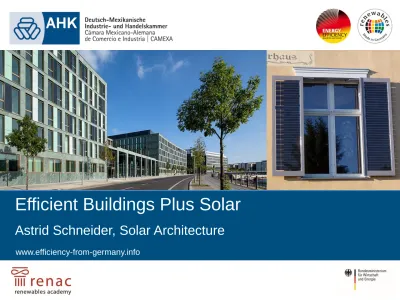

Efficient Buildings Plus Solar

(1)

www.efficiency-from-germany.info

Efficient Buildings Plus Solar

(2)

Latest developments in Research, Realisation and

building standards for highly efficient buildings

with active solar energy generation

at the building shelter

(3)

Specialized as Architect and Author on solar

Architecture and Photovoltaic-Building-Integration:

– Solar Architecture / Design Solar Integration

– PV-Product Development

– BIPV-Research Projects

(4)

Latest state of the art in Research, Realization and standards

(5)

EU-Directive for ‚Nearly Zero Energy Buildings‘

Directive 2010/31/EU:

of the European Parliament and of the Council of 19 May 2010 on

the energy performance of buildings:

„Nearly zero-energy building: a building that has a very high energy performance. The nearly zero or very low amount of energy required should be covered to a very significant extent by energy from

renewable sources, including energy from renewable sources produced on-site or nearby.“

(6)

EU-Directive ‚Nearly Zero Energy Buildings‘



Germany = Europe aims to construct and refurbish due to

EU-Directive 2010/31/EU and consecutive national laws (EnEV 2014)

‚Nearly Zero Energy Buildings‘.



Measures:

 Highest efficiency by strong insulation and heat recovery

 Solar energy generation at the building skin

 Use of environmental energy by heat pumps

 ‚Life Cycle‘-analysis of used materials (DGNB)

 Construction and operation contracts for huge public buildings for about 25 – 30 years to allow investment in renewable energy and efficiency

(7)

Efficiency standards for buildings in Germany in 1980-2020

Primary energy demand for heating for a semi detached house in [kWh/m2_a]

Source: BMUB – Wege zum Effizienzhaus Plus 2015 –www.bumb.bund.de

(8)

Solar Systems Price -68% Solar Electricity grows

In Germany are Photovoltaic Systems with 39 GW installed until Juli 2015 .

In 2014 Electricity Generation by Photovoltaic Systems = 5.8% of German Electricity Demand

Source: Bundesverband Solarwirtschaft –www.solarwirtschaft.de

35

TWh

in 2014

(9)

Costs of Solar Electricity Generation – Public Electricity

Solar Electricity should be competitive in Mexico

(10)

Efficiency House Plus

Complete energy demand shall be covered by Solar Generation on the south façade and the flat roof

(11)

Efficiency House Plus

Energy system:

 PV-panels facade and roof

heat pump

heat recovery ventilation

 battery

 electric cars and bikes Energy Balance:

panels facade

(12)

Efficiency House Plus – Energy Balance

Yearly Energy Balance 2012/2013:

Solar generation: 13,306 kWh

Energy demand: 12,400 kWh

Direct self consumption: 6,555 kWh

Feeding into grid: 6,751 kWh

Consumption from grid: 5,800 kWh Energy Use:

47 % heating and hot water

4 % light

25 % household energy

24 % ventilation, auxiliary energy

Surplus usable for electric mobility: 906 kWh

(13)

Efficiency House Plus

Energy rating by official labeling

(14)

Federal Ministry for Education and Research in Berlin

The building received ‚Gold‘ Certification according to BNB / DGNB-Standard

Architects: Heinle, Wischer and Partner – Christian Pelzeter; Berlin

Facade Planning, Sustainability, Energy Planning: Werner Sobek, Stuttgart

(15)

Federal Ministry for Education and Research in Berlinrlin

Solar Electricity is produced on the facade and at the roof

(16)

Solar Electricity Generation at the Facade – alterning glass and stone

-with custom sized monocrystalline Solar Modules

(17)

Analysis Solar Irradiation Building Skin – Gas fired fuel cell

(18)

Federal Ministry for Education and Research in Berlin

Building Data:

 Average U-Value 0,16 (W/m²K)

 Transparent facade areas U-Value 0,84 (W/m²K)

 Glass roofs U-Value 1,70 (W/m²K)

Photovoltaik-System:

 Capacity 115 kW_p– Energy Generation ca.100 000 kWh/year

 Companies: SunStrom GmbH, Solar World AG, GSS – Gebäude Solar Systeme GmbH

Energy System:

 Fuel Cell: 250 kW_elder FuelCell Energy Solution GmbH – IKTS,

 Absorption Chiller: 105 kW, Heat Pump: 80 kW, CHP fired with Gas: 140 kW_el,

 Compression Chiller: 590 kW, Gas-Boiler: 400 kW

(19)

Federal Ministry for Education and Research in Berlin

Energiebedarf gemäß Energieeinsparverordnung:

EnEV 2009:Primärenergiebedarf 36,1 kWh/(m2_∙a)

‚Gold‘ Certification according to BNB / DGNB-Standard

Life Cycle Analysis :

for building construction and energy-, airing-, and water-supply systems (KG 300 und 400 nach DIN 277)

im Betrachtungszeitraum 50 Jahre für die allseitig baulich umschlossene Nettogeschossfläche:

 Gesamtprimärenergiebedarf PE_ges101,32 kWh/(m2

NGFa·a)

Primärenergiebedarf nicht erneuerbar Pe_ne82,9 kWh/(m2

NGFa·a)

Anteil erneuerbarer Primärenergiebedarf am Gesamtprimärenergiebedarf PE_e18,2%

Treibhauspotenzial GWP 21,86 kg CO₂-Äqu./(m2

NGFa·a)

(20)

Federal Ministry for Education and Research in Berlin

Lessons learned:

 Gold-Certification = extremely efficient

 Such a huge building can not cover too much of it’s electricity / overall energy demand with relatively small solar facade and roof areas ‚on site’

 Big buildings stay dependent on external renewable energy supply from the countryside

(21)

Aktiv-Stadthaus – Active City Building in Frankfurt

Inner city solar house designed by Manfred Hegger, HHS-Arhitects

(22)

Aktiv-Stadthaus – Active City Building in Frankfurt

Solar Facade with Solar Cells in custom sized Glass-Glass module produced by solarnova Deutschland GmbH, Wedel / Mexico

(23)

Aktiv-Stadthaus – Active City Building in Frankfurt

Sewage Water System as Heat Source – Touchpad for Energy Management

(24)

Active City Building in Frankfurt – Final Energy Balance

Solar Electricity shall cover total demand by more than 100%

Source: EGS-Plan – Steinbeis Transfere Zentrum, Stuttgart

PV-facade Solar Generation PV Roof Solar Generation Mobility Electricity Demand Household Electricity Demand General Electricity Demand Auxiliary equipment El-Demand Hot water El. Demand

Heating El. Demand (both supplied with heat pump)

(25)

Active City Building in Frankfurt – Energy System Data

Photovoltaic system:

Sum Solar electricity production – 299 MWh/a

 Facade: 348 PV-Modules by Solarnova GmbH each 338 Wp, size 2106 x 1300 mm, Glass-Glass-Laminates with PVB-Foil, 117,6 kW Power, Solar generation 55 MWh/a

 Roof: 769 Modules by Sunpower with 333 Wp, size 1569 x 1046 mm, capacity 251 kWp, Solar generation 246 MWh/a

 Battery: 250 kWhCapacity



Heat pump:

with sewage system

as heat source, Hersteller Uhrig



Heat Demand:

 Space heating demand: 18,4 kWh/m²a (average COP WP 4,8)

 Hot water demand: 16,8 kWh/m²a (average COP WP 3,1)

(26)

Active City Building in Frankfurt – Project Data

New advanced Energy-Standard:



‚EffizienzhausPlus-Standard‘ – Efficiency Plus Standard:

 Renewable energy production ‚on site’ bigger, as demand for

heating, cooling, hot water, auxiliary equipment electricity demand (ventilation) and household electricity

U-Werte Gebäudehülle in (W/m2K)

 Facade 0,13

 Windows 0,80

 Roof 0,10

 Floor 0,14

(27)

Active City Building in Frankfurt – Project Partners

 Client: ABG FRANKFURT HOLDING GmbH

 Architects: HHS Planer + Architekten AG, Kassel

 Energy Planning: EGS-Plan Ingenieurgesellschaft für Energie-, Gebäude- und Solartechnik mbH, Stuttgart

 Research and Monitoring Energy data:

 TU Darmstadt Prof. Manfred Hegger, Darmstadt und Steinbeis Transferzentrum für Energie-, Gebäude- und Solartechnik, Stuttgart

 Research funded by German Federal Ministry for Construction and

(28)

Efficiency and Renewable Energy in Revitalization

The village ‚Nechlin‘ in North-East-Germany before refurbishment

(29)

Efficiency and Renewable Energy in Revitalization

‘Energy Village Nechlin‘ with solar facades – client: Wärme für Nechlin

Foto: Astrid Schneider, Solar Architecture

(30)

Nechlin as a left over Eastern German village

(31)

Efficiency and Renewable Energy in Revitalization

‘Energy Village Nechlin‘ – with Photovoltaic roofs and facades

(32)

‘Energy Village Nechlin‘ with solar facades

Foto: Astrid Schneider

(33)

(34)

Efficiency and Renewable Energy in Revitalization

(35)

‘Energy Storage’ – with custom sized glass-glass-modules, produced by Solarnova Deutchland GmbH

(36)

Efficiency and Renewable Energy in Revitalization

The ‚Schnitterhaus‘ with Solar Roofs, Shades and Solar Window Shutters

(37)

Solar Shading Solutions with Electricity Generation are interesting for sunny regions

(38)

Energy Village Nechlin: district heating with 100% Sun and Biomass

(39)

Conclusions:



Efficiency and renewable energy are uniting forces in a new

architecture, the ‚Efficiency Plus Solar Building‘



‚Passive House’ = ‚Efficiency House’ + ,Solar House’ = ,Active House‘

 Aim: Solar Energy generated on the building skin shall supply all needs in a yearly balance

 Solar and other renewable electricity activates often environmental heat and cold via heat pumps

 Often storage and battery use for high share of direct solar energy use

 Electric mobility is an integral future part of such energy concepts

 Not autarky, but a high self supply and an optimal integration in local energy networks in an interactive ‘smart’ manner is the aim

(40)

www.efficiency-from-germany.info

Astrid Schneider – Solar Architecture

Berlin

astrid (a) astrid-schneider.de

www.astrid-schneider.de

http://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex:32010L0031

www.bumb.bund.de

http://www.nechlin.de/
