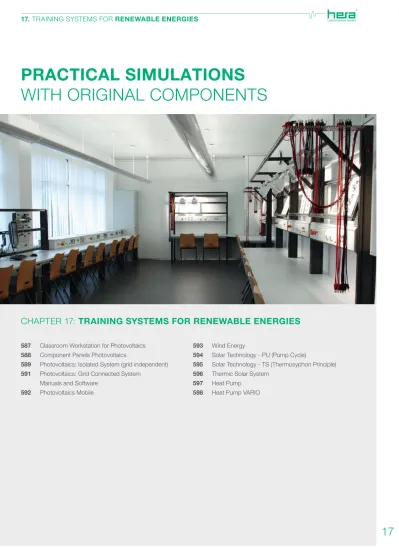

PRACTICAL SIMULATIONS WITH ORIGINAL COMPONENTS

(1)

PRACTICAL SIMULATIONS

WITH ORIGINAL COMPONENTS

587 Classroom Workstation for Photovoltaics 588 Component Panels Photovoltaics

589 Photovoltaics: Isolated System (grid independent) 591 Photovoltaics: Grid Connected System

Manuals and Software 592 Photovoltaics Mobile

593 Wind Energy

594 Solar Technology - PU (Pump Cycle)

595 Solar Technology - TS (Thermosyphon Principle) 596 Thermic Solar System

597 Heat Pump 598 Heat Pump VARIO

CHAPTER 17: TRAINING SYSTEMS FOR RENEWABLE ENERGIES

(2)

COMPREHENSIVE TESTS

WITH HIGH LEARNING EFFICIENCY

Renewable energies could be generated in many different ways. In the fi eld of

photovoltaics, solar thermic and heat pump we offer various possibilities for

fl exible and modular test set-ups, all of them for indoor use.

All siumulations are done with original components from manufacturers of real

systems. Components in transparent training boxes offer a good view to the

(3)

Photovoltaik Ausbildungsplatz Modular Set-Up with:

•

PROFI Laboratory Bench (see chapter 2)

•

PROFI Training System Frame (see chapter 2)

•

Energy Board with Equipment (see chapter 10)

CLASSROOM WORKSTATION FOR PHOTOVOLTAICS

•

Tilt Adjustment for Training System Frame

•

PROFI Overhead Frame (see chapter 2)

•

Light Unit for PROFI Overhead Frame

Classroom Workstation for Photovoltaics

Tilt Adjustment for Training System Frame with Tilt Angle Indication

461.020.000

Light Unit for Overhead Frame with Tilt - and Rotation Angle Indication

530.070.500

Light Unit 400W for Overhead Frame Tilt Adjustment for Training System Frame Components for Photovoltaics Workstation

530.070.500

(4)

You can even enhance your existing training system with

more component panels.

All training panels (DP) consist of original photovoltaic components from high-quality manufacturers.

COMPONENT PANELS PHOTOVOLTAICS

With the hera component panels you have a considerable choice of components to create your individual set-up of a photovoltaics system.

DP Load (Lamp 5W)

DP Load Potentiometer (47Ω / 4W + 2,2kΩ / 4W)

DP Solar Motor

DP Digital Multimeter MetraHit 2+

Manual Photovoltaik II, English

DP Solar Module 12V / 10Wp

DP Solar Module 12V / 10Wp with Shading 0-100%

DP Series - and Parallel Circuit and Shading Simulation DP Charge Controller with LCD Display

DP Lead-Gel-Accumulator (7,2Ah) 530.070.100 530.070.230 530.070.220 530.070.210 530.070.240 530.070.250 530.070.260 530.070.400 950.003.900 530.070.230 950.003.900 530.070.100 530.070.220 530.070.210 530.070.240 530.070.250 530.070.260 530.070.400 770.318.011 Component Panels Photovoltaics

(5)

PHOTOVOLTAICS: ISOLATED SYSTEM

The component set for isolated systems includes all required parts for comprehensive test proceedings. The Component Panels (DP) and the transparent Training

Boxes (DB) enable quick, clearly arranged and yet flexib -le test set-ups. If needed the set of components can be

enhanced with extra components.

DP (training panel) for

DIN-A4 Training System Frame DB (training box) for Installation Walls

Components Photovoltaics Isolated System

DP Photovoltaics Module 12V, 10W tiltable DP Halogen Lamp dimmable, 230V, 400W

DB Generator Connector with Voltmeter 15 / 150V

DB Overvoltage Protection 12V

DB Discharge Protection (Schottky Diode) DB Charge Regulator 12V, 4A

DB Deep Discharge Protection 12V, 15A DB Safety Lamp 12V, 5W contin. Voltage (Sofitte) DB Lead-Gel-Accumulator

DP Charging Unit for Lead-Gel-Accumulator DB Safety Lamp for Non-Maintained-Mode DB Lamp 230V

DB Relay 12V, 30A

DB Resistor 10Ω, adjustable DB Resistor 2kΩ, adjustable

DB Mains Adapter

DB Load 12V with Standard Socket KFZ (10A) and Lamp Socket E27

DB Circuit Breaker B6A, 3poles DB Relay 230V, 3NO, 1NC, 10A

DB Mains Monitoring Relay 230 / 400V

DB Residual Current Device 4pol., 30mA DB Distribution Fuse Board

Multimeter

Digital Lux Meter, 4½ digit

DP Inverter 300W constant output Light Bulbs

1x incandescent lamp 12V, 5W E14 a. 230V, 15W E14; 1x energy safing lamp 12V, 11W E27

Set of Electric Spare Parts

PV Storage Box with Fuses, Tool for Fuse Change

(blade-type) and Festoon Lamp

see page 520 for more pictures

770.310.010 770.310.020 770.310.030 770.310.040 770.310.050 770.310.060 770.310.070 770.310.080 770.310.090 770.310.100 770.310.110 770.310.120 770.310.130 770.310.140 770.310.150 770.310.160 770.310.170 770.310.180 770.310.190 770.310.200 770.310.210 770.310.220 770.310.230 770.310.240 770.310.250 770.310.270 770.310.290

770.310.000 Component Set with all Components 770.310.005 Set of Cables for 770.310.000 Component Set Photovoltaics Isolated System

(6)

COMPONENTS PHOTOVOLTAICS ISOLATED SYSTEM

770.310.110 770.310.120 770.310.100 770.310.210 770.310.220 770.310.230 770.310.240 770.310.030 770.310.010 770.310.020 770.310.060 770.310.050 770.310.040 770.310.250 770.310.070 770.310.080 770.310.090 770.310.130 770.310.140 770.310.160 770.310.150 770.310.170 770.310.180 770.310.190 770.310.200

(7)

Handbücher und Software Photovoltaik

PHOTOVOLTAICS: GRID-CONNECTED SYSTEM

The component set for grid-connected system includes all required parts for comprehensive test proceedings.

The Component Panels (DP) and the transparent Training

Boxes (DB) enable quick, clearly arranged and yet flexib -le test set-ups. If needed the set of components can be

enhanced with extra components.

PHOTOVOLTAICS: MANUALS AND SOFTWARE

The manuals for the test proceedings to the hera®

Photovoltaics Training Systems hold many different test and theoretical information to the environment-friendly energy generation. With parts for students and instructors to isolated and grid-connected system.

PV*SOL® Pro is a suitable simulation software for the

dimensioning and efficiency calculation of grid-connected

and grid-independent photovoltaic systems.

The software includes a sufficient module - and inverter

data base with automatic update function.

Manual Photovoltaics I, English Manual Photovoltaics II, English

PV*SOL®_{Pro 4.5 set Software / Single License} PV*SOL® _{Pro 4.5 set Software / 10fold Licenses} Photovoltaics: Manuals and Software

770.311.050 770.311.040 770.311.021 770.311.010 770.318.010 770.318.011 530.970.010 530.970.020 770.311.010 770.311.021

DP Photovoltaics Module 48V, foldable and with

stepless adjustable tilting angle, with 4x 400W

Lamps for Sun Simulation

DP Feeding-Inverter with Monitoring Unit

770.311.040 770.311.050 770.320.000

DB Energy - and Power Meter 230V DB DC-Isolator

Set Photovoltaics: Grid-Connected System Set and Components Photovoltaics: Grid-Connected System

(8)

Optional for Indoor Use:

•

Lamp Unit 4x 400W for Sun Simulation.

•

Incl. Holder and Power Distribution.

PROFI PHOTOVOLTAICS MOBILE

Consisting of:

•

Mobile Base 970x700x130mm (WxDxH).

•

3x PROFI Extensions, height: 1200mm.

•

Container 2x Drawers + 1 Door.

•

Installation Wall for Training Boxes.

•

Photovoltaics Module 4fold 48V, foldable.

•

Tilting Angle 0...60° stepless adjustable.

PROFI Photovoltaics Mobile

DP Remote-Unit for Inverter / ENS

DB Power - and Energy Meter 230V DB DC-Isolator

PROFI Photovoltaics Mobile, with tilt adjustment, foldable for compact storage, measuring units hooked in installation wall

PROFI Photovoltaics Mobile

Lamp Unit 4x 400W with Holder

DP Feeding-Inverter 530.800.000 530.890.000 770.311.021 770.311.030 770.311.040 770.311.050

(9)

WIND POWER

The wind power panel is for the simulation of a real wind power plant. The development was done in cooperati-on with cooperati-one of the leading manufactuers for wind power plants.

Automatic Mode:

Settings of nominal values are done either on integrated

potentiometers or external sensors.

Setting for Wind Direction:

• Integrated Graycode Switch

• External Graycode (4bit or 8bit)

• 4-20mA • 0-10V

Setting for Wind Speed:

• 0-10V • 4-20mA • PWM-Signal

Setting for Degree of Daylight:

• Internal LDR

After entering all nominal values, the panel operates completely autarc and simulates all options of a real wind power plant.

• Pitch-adjustment (rotor blade), depending on the wind force between 0° (full surface) to 90° (break).

• Azimuth tracking (wind direction), depending on the wind direction the azimuth is automatically positioned. • The rotation speed of the rotor changes with the wind speed.

• Change between day - and night light (warning light for aviation) with respect to the degree of ambient daylight.

• Drivetrain break for emergency stop mode.

All functions in case of emergency stop, service mode and power failure could be simulated with switches.

A 7-segment-display indicates the actual wind speed, rpm of the rotor and the generated and consumed power.

Manual Operation (Optional):

In manual operation the overall automatic controls are disabled. Now all actuators could be controlled by SPS and all integrated sensors could be read out, connection is done to SUB-D socket.

Actuators:

• Rotation speed of the rotor via PWM-signal • Pitch adjustment via PWM-signal

• Azimuth tracking via +24V left or right signal

• LED break • LED day light • LED night light

Sensors:

• Wind direction (Graycode) • Azimuth position (Graycode) • Service switch (24V) • Enable switch (24V)

• Emergency stop switch (24V) • Power failure (24V)

• Actual value rotation speed (pulses per minute) • Brightness sensor (0-10V)

• Wind speed (0-10V)

530.075.000 Wind Power Panel 530.118.001 Manual with CD, English: Wind Power Panel Wind Power

(10)

Learning Contents:

• Basic information about thermic solar systems.

• Get to know and explain the typical components of a

solar system.

• Comprehension and explanation of the set-up,

functionality and effect of all components.

• Determination and analysation of system specific

parameter.

• Determination of cost-effective system variables. • Characteristics of the safety - and control devices. • Start-up and handover of a solar systems.

Technical Details:

• Dimensions: approx. 800 x 470 x 1000mm (WxDxH) • Weight: approx. 40kg

• Electrical connection: Schuko 230V AC • Cold water connection SK - ¾“ • Waste water connection SK - ¾“

SOLAR TECHNOLOGY WITH PUMP CYCLE (PU)

This model imparts detailed knowledge about the function of a solar system with pump cycle.

The miniature collector could be operated outside with

natural sun or indoor with the artifical light unit.

The clearly arranged and yet compact set-up of the training system is ideal either for theoretical or practical lessons.

Integrated meters directly indicate the actual temperature,

flow volume and pressure and allow the determination of specific parameters with high repeating accuracy.

Optionally we offer a mobile base for this bench-top model, this assures the convenient transportation between various class rooms.

770.104.000 770.104.001

Solar Technology with Pump Cycle (PU) Connectors

770.104.003 Mobile Base Solar Technology with Pump Cycle (PU)

(11)

SOLAR TECHNOLOGY WITH THERMOSYPHON PRINCIPLE - TS

This model imparts detailed knowledge about the function of a solar system in thermosyphon principle.

The miniature collector can be operated outside with

natural sun or indoor with the artifical light unit.

A transparent tank and partly transparent pipes allow the view inside and visualize the natural circulation in different operation modes. Integrated connectors for meters allow temperature measurements at different points of the sys-tem. This helps the students to understand the processes of the system.

As we mostly integrated original components of real systems, the imparted knowledge could be easily trans-fered into practice. The clearly arranged and yet compact set-up of the training system is ideal either for theoretical or practical lessons.

Optionally we offer a mobile base for this bench-top model, this assures the convenient transportation between various class rooms.

Learing Contents:

• Basic information about the thermosyphon principle.

solar system.

• Determination and analysation of system specific

parameter.

• No electrical connection required • Cold water connection SK - ¾“ • Waste water connection SK - ¾“

770.104.100 770.104.101

Solar Technology with Thermosyphon Principle (TS) Connectors

770.104.103 Mobile Base Solar Technology with Thermosyphon Principle (TS )

(12)

THERMAL SOLAR SYSTEM

This system enables to study the set-up and function of a

thermal solar system for the provision of hot water. It expla -nes the settings, the adjusting possibilities and operation. As we consequently integrated original components of real systems, the imparted knowledge could be easily

transfered into practice.

Integrated connectors for meters and openings at all relevant points enable the collection of parameters like collector feed and collector supply, tank temperature and system pressure. For the collection of the data and comparisson with the manufacturers parameters we offer a complete set of digital meters, but you can even use

existend ones.

The operation of the system bases on temperature differences. To keep the model independent from weather and time of day, it could optionally be equipped with a light unit.

The standard product is equipped with a plastic tank. On

demand an approx. 50l water tank or a stainless steel tank with approx. 30l and layering measurement could be

integrated.

• Planning and dimensioning thermal solar systems. • Preparation of a customer hand-over check list with

demonstrations at the model.

• Preparing an argumentation aid for meetings with customers.

• Performing check-ups and maintenances at the model.

solar system.

• Determine and analyse system specific parameters like collector capacity / efficiency / layering, etc. • Regulation / control of a thermal solar system.

• Dimensions: approx. 2250 x 2080 x 800mm (WxHxD) • Weight: approx. 105kg

• Electrical connection: Schuko 230V AC

770.106.000 770.106.005 770.106.006 770.106.007

Thermal Solar System Lamp Unit

Tank 50ltr.

Stainless Steel Tank with Layering Measurement

770.106.010 770.106.011 770.106.012 785.050.000

Set of Digital Meters Maintenance Case Solar Filling - and Rinsing Device Planning Software T-Sol Thermal Solar System

(13)

HEAT PUMP

The bench top model Heat Pump is the ideal base for the

explanation of all important processes within a heat pump

system.

The model holds various possibilities for tests and calcula-tions of the heat pump process.

Integrated meters for the collection of following parameters:

• Power consumption • Pressure, sucion side • Pressure, discharge side

• Temperature sucion - and discharge side • Flow quantity primary - and secudary side • Temperature primary - and secundary side

Characteristics:

• 1x Heat pump unit • 1x Coaxial capacitor • 1x Digital thermometer • 1x Energy meter • 1x Flow meter

• 1x Pressure - and temperature meter, low pressure • 1x Pressure - and temperature meter, high pressure • 1x Condensate pan

• 1x Complete piping and wiring of the system

• Dimensions: approx. 500 x 600 x 450mm (WxHxD) • Cold water connector: quick connector 3/4”

• Waste water hose: DN 50

• Electrical connection: Schuko 230V AC

Heat Pump

Heat Pump Model Mobile Base

740.105.000 740.105.001

(14)

HEAT PUMP VARIO

This model is to study the functionality of 4 different principles of heat pumps.

By simply switching over, the system mode could be

changed between air/air, air/water, water/air

and water/water. As we mostly integrated original compo -nents of real systems, the imparted knowledge could be easily transfered into practice.

The clearly arranged and yet compact set-up of the training system is ideal either for theoretical or practical lessons.

Integrated meters for direct indication of temperatures and pressures in the cooling cycle as well as the water

quan-tity in the heating cycle allow the determination of specific

parameters with high repeating accuracy.

Pressure resistant glasses are integrated at the allowed points for the visualization of the cooling mediums‘ aggre-gate state.

Optionally the model could be equipped with a PC con-nected data logging system. All relevant data could be logged, visualized and evaluated by software.

The solid aluminium base could optionally be equipped with a hardwearing cabinet for the storage of the measuring instruments and the manuals.

• Identification of all heat pump components. • Comprehension and explanation of the set-up,

• Identification of the cooling mediums‘ aggregat states.

• Determination and analyze of system relevant parameters.

• Comparing the data for air/air -, air/water -, water/air - and water/water systems.

• Determine the limitation of each system and thus the resulting applications.

• Characteristics of the safety - and control devices. • Checking the safety - and control devices.

• Determination of possible malfunctions of heat pumps

and explanation of its effects to functionality.

• Preparing an argumentation aid for meetings with customers.

• Preparing a check list for the regular service on heat pumps.

• Electrical connection: Schuko 230V AC • Cold water connection SK - ¾“ • Waste water connection SK - ¾“

740.106.000 740.106.001

Model Heat Pump VARIO Connectors

740.106.003 Integrated Data Logging incl. Analyzing Software Heat Pump VARIO
