MERLIN LEGEND Communications System Release 3.0 System Programming

AT&T

AT&T 555-630-111

Issue 2

January 1995

MERLIN LEGEND

Communications System

R e l e a s e 3 . 0

System

Every effort was made to ensure that the information in this book was complete and accurate at the time of printing However, informahon is subject to change.

See Appendix A, “Customer Support Information, ” for important information

Security of Your System: Preventing Toll Fraud

As a customer of a new telephone system, you should be aware that there exists an increasing problem of telephone toll fraud Telephone toll fraud can occur in many forms, despite the numerous efforts of telephone companies and telephone equipment manufacturers to control it. For important information regarding your system and toll fraud, see Appendix A, “Customer Support Information. ”

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules These Iimits are designed to provide reasonable protection against harmful interference when the equipment IS operated in a commercial environment This equipment generates, uses, and can radiate radio frequency energy and, if not Installed and used in accordance with the instruction manual, may cause harmful Interference to radio communications. Operation of this equipment (in a residential area IS likely to cause harmful Interference, in which case the user will be required to correct the Interference at his own expense. For further FCC Information, see Appendix A, “Customer Support Information. ”

Canadian Department of Communications (DOC) Interference Information

This dlgital apparatus does not exceed the Class A Iimits for radio noise emissions set out in the radio Interference regulations of the Canadian Department of Communications.

Le Present Appareil Numerique n’emet pas de bruits radioelectriques depassant Ies Iimites applicable aux appareils numeriques de la class A prescrites clans Ie Reglement sur Ie brouillage radioelectrique edicte par Ie ministere des Communications du Canada

Trademarks

5ESS, Accunet, Megacom, MERLIN, MERLIN LEGEND, Magic On Hold, MultiQuest, and Systimax are registered trademarks and 4ESS, AUDIX Voice Power, FAX Attendant System, HackerTracker, MERLIN MAIL, MERLIN PFC, MLX-10, MLX-10D, MLX-10DP, MLX-16DP, MLX-20L, MLX-28D, PassageWay, and PictureTel are trademarks of AT&T in the U.S. and other countries.

MS-DOS IS a registered trademark of Microsoft Corp.

Hayes IS a registered trademark of Hayes Microcomputer Products, Inc

Supra, StarSet, and Mirage are registered trademarks of Plantronics, Inc. UNIX is a registered trademark of UNIX System Laboratories, Inc.

Ordering Information

The ordering number for this document is 555-630-111, To order this document, call the AT&T GBCS Publication Fulfillment Center at 1-800-457-1235. For more information about AT&T documents, refer to the section entitled, “Related Documents” in “About This Book. ” The Pocket Reference, listed in that section, provides full ordering Information for replacement parts, accessories, and other compatible equipment; or, contact your AT&T representative

Support Telephone Number

In the continental U.S., AT&T provides a toll-free customer helpline 24 hours a day. Call the AT&T Helpline at 1-800-628-2888 if you need assistance when installing or using your system.

Outside the continental U.S., contact your local AT&T representative

Warranty

J

- The inspect feature ca” be used w,rh (h!s menu opl!on Press I“SPBC! or PgDn

About this Book

■ Related Documents

■ How to Comment on This Document

1

Programming Basics

■ Introduction to System Programming ■ System Programming Console ■ Programming Procedures

■ Access to System Programming from the MLX-20 Console

■ Idle States

■ Product Enhancements

2

Programming with SPM

■ System Requirements ■ Installing the SPM Software ■ Connecting the PC

■ Accessing SPM ■ Using SPM 2-16 ■ System Programming ■ Upgrading the System

■ Surrogate Mode Programming

xv xv xvi xviii xix xx

1-1 1-4 1-10 1-38 1-41 1-44

2-2 2-3 2-9 2-12

2-42 2-48 2-53

3

Common Administrative Procedures

Basic System Operating Conditions System Renumbering

System Operator Positions Optional Operator Features QCC Optional Features Telephones

Fax Machines

Optional Telephone Features Optional Group Features

Optional Group Calling Features System Features Night Service Labeling Print Reports Memory Card 3-1 3-4 3-12 3-20 3-26 3-30 3-55 3-76 3-81 3-104 3-119 3-140 3-183 3-194 3-207 3-215

4

Programming Procedures

Introduction

Basic System Operating Conditions System Renumbering

System Operator Positions Lines and Trunks

DSI Facilities Tie Trunks DID Trunks PRI Facilities Telephones Auxiliary Equipment

Optional Telephone Features Optional Operator Features

Programming Procedures, continued

■ Optional Group Features

■ Optional Group Calling Features ■ System Features

■ Remote Access Features ■ Automatic Route Selection ■ Night Service

■ Labeling ■ Print Reports ■ Data Features

■ Integrated Administration ■ Memory Card

4-195 4-203 4-209 4-216 4-233 4-254 4-281 4-285 4-289 4-293 4-296 4-299

5

Centralized Telephone Programming

■ Access to Centralized Telephone Programming ■ Program Extension

■ Copy Extension

■ Feature Quick Reference

A

Customer Support Information

B

Menu Heirarchy

5-1 5-2 5-3 5-8 5-12

C

LED Displays

D

General Feature Use and Telephone Programming

E

Button Diagrams

F

Sample Reports

G

General System Programming Sequence

H

Programming Special Characters

GL

Glossary

1

Programming Basics

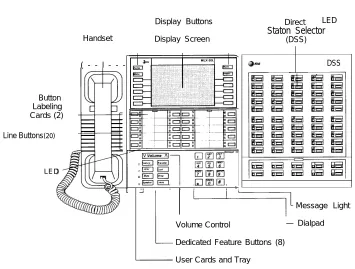

1-1. MLX-20L Telephone with Direct Station Selector (DSS)

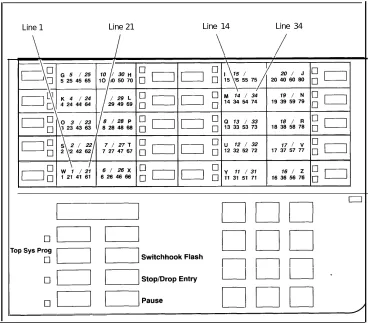

1–2. Console Buttons and Main Menu 1–3. Console Overlay

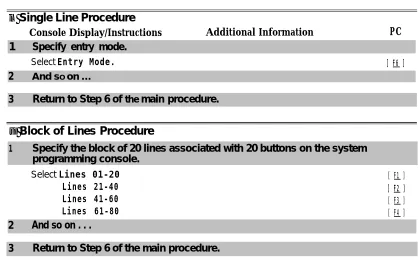

1–4. Selecting a Block of Lines/Trunks 1–5. Information Screen

1–6. Menu Selection Screen 1–7, Data Entry Screen 1–8. Inspect Example 1–9. Sample Inspect Screen 1–10. Screen Keys

1-11. System Programming Menu Screens 1–12. System Busy Screen

1-4 1-6 1-8 1-9 1-11 1-11 1-12 1-13 1-13 1-18 1-39 1-42

2

Programming with SPM

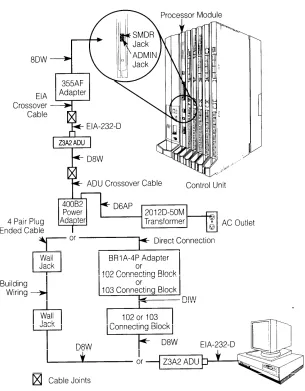

2–1. Direct Local Connection 2-9

2-2. Direct Local Connection, PC More Than 50 ft. Away 2-10

2–3. Local Modem Connection 2-11

2–4. Remote Modem Connection 2-12

2-5. SPM Display 2-17

2-6. SPM Help 2-21

2-7. Pass-Thru 2-35

3

Common Administrative Procedures

3-2. 3-Digit Numbering 3–3. Set Up Space Numbering 3-4. PCMCIA Memory Card 3–5. Inserting the Memory Card

4

Programming Procedures

4-1. 4-2. 4-3. 4-4. 4-5.

2-Digit Numbering 3-Digit Numbering Set Up Space Numbering PCMCIA Memory Card Inserting the Memory Card

3-13 3-13 3-14 3-216 3-217

4-13 4-13 4-14 4-300 4-301

E

Button Diagrams

E-1. MLX Telephone Button Diagram (Hybrid/pBX Mode) E-2 E–2. Analog Multiline Telephone Button Diagram

(Hybrid/PBX Mode) E-3

E-3. MLX Telephone Button Diagram

(Key and Behind Switch Mode) E-4

E-2. Analog Multiline Telephone Button Diagram

1

Programming Basics

1–3. System Programming Menu Options 1–4. Exiting System Programming

1-7 1-19 1-40 1-41

2

Programming with SPM

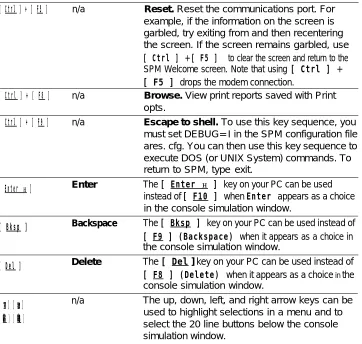

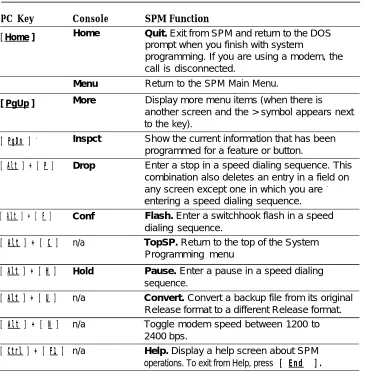

2–1. SPM Configuration File (ams.cfg) Options 2-2. Function of PC Keys in SPM

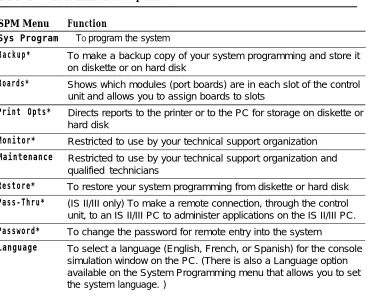

2–3. SPM Main Menu Options
