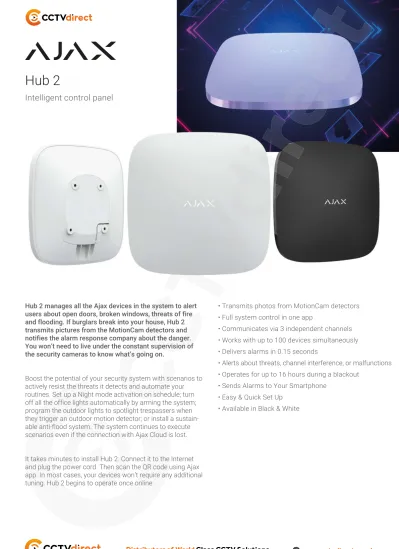

Hub 2. Intelligent control panel.

(1)

• Transmits photos from MotionCam detectors

• Full system control in one app

• Communicates via 3 independent channels

• Works with up to 100 devices simultaneously

• Delivers alarms in 0.15 seconds

• Alerts about threats, channel interference, or malfunctions

• Operates for up to 16 hours during a blackout

• Sends Alarms to Your Smartphone

• Easy & Quick Set Up

• Available in Black & White

Hub 2

Intelligent control panel

Hub 2 manages all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flooding. If burglars break into your house, Hub 2 transmits pictures from the MotionCam detectors and notifies the alarm response company about the danger.

You won’t need to live under the constant supervision of the security cameras to know what’s going on.

Boost the potential of your security system with scenarios to actively resist the threats it detects and automate your routines. Set up a Night mode activation on schedule; turn off all the office lights automatically by arming the system;

program the outdoor lights to spotlight trespassers when they trigger an outdoor motion detector; or install a sustain- able anti-flood system. The system continues to execute scenarios even if the connection with Ajax Cloud is lost.

It takes minutes to install Hub 2. Connect it to the Internet and plug the power cord. Then scan the QR code using Ajax app. In most cases, your devices won’t require any additional tuning. Hub 2 begins to operate once online.

(2)

Specification

Classification The radio channel central unit with the support of visual alarm verification detectors Installation Indoors

Connected devices 100

Video surveillance support Up to 25 cameras or DVRs

Users 50

Rooms 50

Security groups 9

MotionCam detectors support + Communication channels Ethernet

Two 2G SIM-cards

Alarm signals Delivery time: 0.15 sec

Notification types: SMS, call, push-notification Switching between the SIM-cards 4 minutes

CMS connectivity Contact ID, SIA The speed of alarm delivery to the CMS Instant

Software OS Malevich

Power supply Main supply: 110−240 V Battery backup: Li-Ion 2 А·h

Up to 16 hours of offline operation when the Ethernet is switched off Jeweller radio technology Communication range with detectors — up to 2,000 m in an open space

Two-way communication between devices Operating frequencies — 868,0-868,6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Detector polling period — 12−300 s

Frequency hopping

Wings radio technology Transmission of visual confirmations Delivery verification of packages Operating temperature range From −10°С to +40°С

Size 163 × 163 × 36 mm

Weight 362 g

Warranty Replacement and repair within 24 months of the date of sale.

Batteries are not covered under warranty.

Complete set Ajax Hub 2 intelligent control panel

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

SIM card (depending on region)

User’s guide

(3)

Motion detector with a photo camera to verify alarms

MotionCam

• Only compatible with Ajax Hub 2

• Transmits a photograph in under 9 sec

• Sees in the dark

• Operates up to 4 years on the pre-installed batteries

• Communicates at a distance of up to 1700 m from the Ajax Hub 2

• Available in Black & White With MotionCam, you’ll know about the actual situation at

home even before the burglars understand that they’re busted. An animated series of photos follows the instant motion detection alarm for an accurate situation appraisal.

MotionCam is designed to control your security, not your personal life. The motion detector is unable to take pictures by request. The camera activates only in response to a motion detection alarm. The data is encrypted throughout the processes of transmission and storage. No one analyzes it, even the AI. You won’t need to live under the constant supervision of the security cameras to know why the alarm went off.

MotionCam connects to the Ajax Hub 2 security system in a few taps. Open the Ajax app, scan the QR code, and assign the detector to one of the rooms.

Mount the detector on a wall without disassembling. Make sure that no vases, wardrobes, or glass objects are blocking its view angle. You’re all set!

(4)

Specification

Classification Electro-optical combined radio channel security detector with a photo camera

Device type Wireless

Installation Indoors

Motion detection distance Up to 12 m Pet immunity Weight: up to 20 kg

Height: up to 50 cm

Compatibility Only with Hub 2

Sensing element PIR sensor

Detection angles Horizontal — 88.5°

Vertical — 80°

Camera view angle 90°

Alarm signal delivery time 0.15 sec

Photo verification Time to deliver a photograph with default settings: up to 9 sec Photo quality: 160 x 120, 320 x 240, 640 x 480

Pictures in a series: 1-5 pcs IR backlight for night mode pictures Yes

Sensitivity Adjustable, 3 levels Recommended installation height 2.4 m

Power supply Batteries: CR123A (x2) Power supply voltage: 3 V

Battery life: up to 4 years (up to 2.5 years if “Delay when entering” setting is activated) Jeweller radio technology Communication range with detectors: up to 1,700 m in the line of sight

Two-way communication between devices Operating frequencies: 868.0-868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Detector polling period: 12−300 s

Frequency hopping

Wings radio technology Transmission of visual alarm verifications Temperature sensor Available

Operating temperature range From 0°С to +40°С Operating humidity Up to 75%

Anti-sabotage Fraud protection

Jamming notification

Tamper-resistant

CMS compatibility Motion alarms are transmitted to CMSs that support SIA and Contact ID protocols Visual alarm verifications are transmitted to the Manitou CMS and Ajax PRO Desktop app Remote configuration and testing Yes

Protection class IP50

Dimensions 135 × 70 × 60 mm

Weight 167 g

Warranty Replacement and repair for a period of 24 months from the date of sale.

(5)

DoorProtect

Wireless magnetic opening detector

• Protects Entrances from Break-Ins

• Built-In Tampering Alarm

• Controlled Using a Mobile App

• Includes Various Magnets for Installation

• 7 Year Battery Life

• Available in Black & White The DoorProtect from Ajax Systems, the most awarded

wireless security system in Europe, is a Door Contact that detects a door/window being opened. Featuring two modules (detector & magnet) the set includes two magnets: the bigger magnet is installed at a distance of up to 2cm & the smaller magnet up to 1cm.

Simplicity is key, the DoorProtect is ready to operate straight out of the box: the battery is already installed, meaning there is no need to disassemble the detector.

With just one click, it can be connected to the hub in the smartphone app & can be mounted on the SmartBracket in just a few minutes.

A required authentication means your system is prevented from forgery as well as including a tampering alarm,

jamming detection and communication channels encryption.

(6)

Classification Point magnetic and contact radio channel security detector

Type of detector Wireless

Installation method Indoors

Compatibility Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge

Sensing element Reed switch

Alarm signal delivery time 0.15 s

Activation threshold Small magnet — 1 cm, Big magnet — 2 cm Power supply Battery: CR123A battery

Power supply voltage: 3 V Battery life — up to 7 years

Jeweller radio technology Communication range with central unit — up to 1,200 m in an open space Two-way communication between devices

Operating frequencies — 868.0-868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Detector polling period — 12−300 s Temperature sensor Available

Operating temperature range +5°С to +40°С Permissible humidity Up to 75%

Anti-sabotage Protection against fraud

Jamming detection

Tamper-resistant Remote setting and testing +

Dimensions Diameter: 20 mm

Height: 90 mm

Weight 29 g

Certification Grade 2, CE

Complete set DoorProtect opening detector

Two magnets

CR123A battery (pre-installed)

Specification

(7)

SpaceControl

Two-way wireless key fob with panic button

The SpaceControl from Ajax Systems is a key fob for controlling security modes. Features a panic button for sending alarms to your inner circle and a security company in case of trouble.

The device controls the security modes and sends an alarm signal to the Central Monitoring Station by pressing the buttons on the key fob.

Authentication prevents replacement of the device and false alarms.

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.

• Protects Entrances from Break-Ins

• Authentication to prevent forgery

• Jamming detection and communication channels encryption

• Built-In Panic Button

• Activates with Just One Touch

• Two-Way Communication

(8)

Specification

Classification Four-button key fob with command delivery indication

Compatibility Operates with all Ajax hubs, and range extenders, ocBridge Plus, uartBridge

Number of buttons 4

False alarm prevention Yes, long press or double press (firmware version 5.54.1.0 or higher.

Manufacture date from March 19, 2020)

Deactivation of the panic button Available

Power supply Battery: CR2032 battery

Power supply voltage: 3 V Battery life — up to 5 years

Operating frequencies — 868.0-868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Device polling period — 12−300 s

Operating temperature range From -25°С to +50°С Permissible humidity Up to 95%

Dimensions 65 х 37 х 10 mm

Weight 13 g

Complete set SpaceControl keyfob

CR2032 battery (pre-installed)

User’s guide

(9)

The HomeSiren from Ajax Systems, the most awarded wireless security system in Europe, is a Wireless Internal Siren used for loudly notifying you of an alarm during detector activation. It's best installed internally to warn of danger or to deter intruders.

Not only does the HomeSiren warn of danger or intrusion, you will be notified as soon as the detector has been activated with an audible alarm. The alarms are customisable so that you can alter the sound level and alarm length within the mobile app. As an extra feature, you can connect an external LED to monitor the security system status for full cover security.

Simplicity is key, the HomeSiren is ready to operate straight out of the box: the battery is already installed, meaning there is no need to disassemble the keypad. With just one click, it can be connected to the hub in the smartphone app.

A required authentication means your system is prevented from forgery as well as including a tampering alarm,

jamming detection and communication channels encryption.

• Wireless Siren

• Indicates Armed/Disarmed State

• Customisable Sound Level

• Customisable Alarm Length

HomeSiren

Wireless indoor siren

(10)

Classification Radio channel security sounder

Type of detector Wireless

Installation method Indoors

Compatibility Operates only with Hub, Hub Plus and ReX Type of notification Sound

Connector for external LED Available

Sound volume level Adjustable, 81−105 dB at a distance of 1 m Alarm length Adjustable, 3−180 s

Indication of armed/disarmed status Yes Alarm signal delivery time 0,15 s

Power supply Battery: Two CR123A batteries Power supply voltage: 3 V Battery life — up to 5 years

Operating frequencies — 868.0−868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Device polling period — 12−300 s Temperature sensor Available

Operating temperature range From -10°С to +40°С Permissible humidity Up to 75%

Protection class of body IP50

Anti-sabotage Protection against fraud

Jamming detection

Tamper-resistant Remote setting and testing +

Dimensions 75х76х27 mm

Weight 97 g

Batteries are not covered under warranty Complete set HomeSiren siren

Connector for LED indicator

Two CR123A batteries (pre-installed)

Installation set

User’s guide
