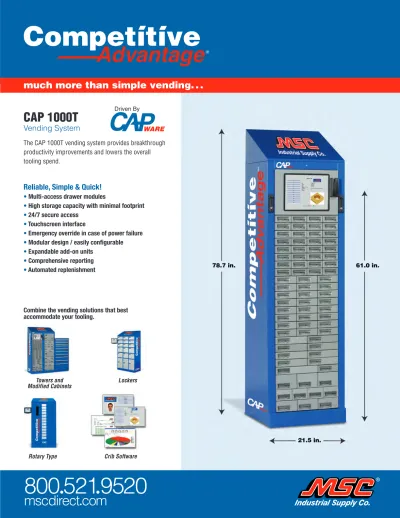

The CAP 1000T vending system provides breakthrough productivity improvements and lowers the overall tooling spend.
Reliable, Simple & Quick!
• Multi-access drawer modules
• High storage capacity with minimal footprint
• 24/7 secure access
• Touchscreen interface
• Emergency override in case of power failure
• Modular design / easily configurable
• Expandable add-on units
• Comprehensive reporting
• Automated replenishment
Combine the vending solutions that best accommodate your tooling.
Towers and
Modified Cabinets Lockers
Rotary Type Crib Software
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
Driven ByZ Drawer – Single level tall.
Perfect for small items such as inserts. Up to 12 compartments measuring 1″ x 1″ x 2.5″.
A Drawer – Single level tall.
Perfect for medium-length end mills under 1″ dia. Up to 12 compartments measuring 1″ x 1″ x 3.8″.
C Drawer – Single level tall.
Will accommodate longer tools, such as drills and extended-length end mills under 1″ dia. Up to 12 compartments measuring 1″ x 1″ x 6.5″.
Double A Drawer – Single level
tall. Will accommodate one longer (up to 9.8″) and one reduced-length tool (up to 3.8″) in up to 12 compartments.
B Drawer – 2 levels tall and up to
12 compartments deep. Perfect for larger diameter (under 2″), shorter items.
Twin Module – 1.5 levels tall and
up to 12 compartments deep. Offered in a wide array of drawer sizes to accommodate items under 1.5″ diameter.
T4 Cupboard – Can be secured
for excess or overstock.
Double B – 2 levels tall. Can
accommodate one longer, one shorter item such as safety glasses and gloves.
D Drawer – 2 levels tall.
Typically used for a bulky item such as safety glasses.
T6 Cupboard – Typically used for
overstock or bulk item control.
F Drawer – 2 levels tall. Can
accommodate larger diameter, longer tools.
G Drawer – 3 levels tall. Typical
use is for larger items such as hand or pneumatic tools.
J Drawer – 4 levels tall. Typical
use is for abrasive wheels.
CAP 1000T
Vending System
800
•
521
•
9520
mscmetalworking
•com
Modular design can
also be reconfigured
as needs change!
One Touchscreen Interface Can Control Multiple “Add-On” Units800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
Driven ByCAP 1000T
Vending System
Tower Drawer Tray Specifications
Drawer Sizes
• 11 different types of drawer trays are available
• Multiple levels (heights) available
• Vertical or slanted drawer dividers available
• Each drawer is 13.5 in. deep
• Up to 12 compartments per drawer
• Each drawer allows for individual access
• Cupboards available for bulk storage
• Customizable to your unique and changing needs
800
•
521
•
9520
mscmetalworking
•com
Z
Z
Z
Z
A
A
A
AA
B
B
B
C
D
D
E
F
G
H
J
J
C
A
Drawer No. of Internal Width Internal Height No. of Tray Drawers Levels (mm) (inch) (mm) (inch) Compartments
Z 4 1 63 2.5 23 0.9 12, 6, 4, 3, 2, 1 A 3 1 97 3.8 23 0.9 12, 6, 4, 3, 2, 1 AA 2 1 250 9.8 23 0.9 12, 6, 4, 3, 2, 1 B 3 2 97 3.8 68 2.7 12, 6, 4, 3, 2, 1 C 2 1 164 6.5 23 0.9 12, 6, 4, 3, 2, 1 D 2 2 164 6.5 70 2.8 12, 6, 4, 3, 2, 1 E 1 1 385 15.1 23 0.9 12, 6, 4, 3, 2, 1 F 1 2 385 15.1 68 2.7 12, 6, 4, 3, 2, 1 G 1 3 397 15.6 120 4.7 12, 6, 4, 3, 2, 1 H 1 4 397 15.6 175 6.9 12, 6, 4, 3, 2, 1 J 2 4 160 6.3 175 6.9 12, 6, 4, 3, 2, 1
Internal Drawer Dimensions (Including liners)
Drawers are supported on roller-bearing runners with a maximum weight capacity for Z, A, AA, B, C, D and E of 44 lbs. and F, G, H and J of 75 lbs. per drawer.
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
800
•
521
•
9520
mscmetalworking
•com
CAPWare software provides full inventory management with complete control, reordering, audit trail and reporting capability and is ready to connect to your network for analysis and management of your crib activity.
Stock Management
• Supports tool crib management functions including issue and return, swap, reworking and scrap, inventory adjustment, move stock and kit issue
• Tracks the location of items by six different user-
defined criteria, such as machine, job and user, for complete analysis
• Manages both expendable and non-perishable items
by controlling the issue and return of new, used, and reworked items
• Enforces limits by employee and other criteria, such as machine and job
• Prints tickets for transaction records or receipts • Maximizes efficiency through touchscreens
• Accommodates graphics and hyperlinks at item level
• Contains functionality for shopping cart and recently used items
Rework and Scrap Management
Manages the full rework cycle and the scrapping of tools at end-of-life:
•The return of used items needing rework •Stock waiting to be picked up for rework
•The return process of reworked items •Stock in rework
•Provides reporting on the rework and scrap processes
Batch and Expiration Control
• Controls batch-numbered items and items with expiration dates
• Provides audit trail of all item activity
Comprehensive Reporting
• Comprehensive suite of standard and customizable reports
• System dashboard for quick status view
•Reports generated and transmitted automatically or manually; can
be exported, saved and/or transmitted in many standard formats
Replenishing and Reordering
• Replenishment orders can be generated manually or automatically
and then electronically transmitted
• Receiving and restocking are controlled by the software and all transactions are recorded by the software
Multiple Vending System and Tool Crib Management and Consolidation
• Multiple CAP vending machines and tool cribs are controlled
within a single database with common software
• Common object creation for all points of use; Individual minimum, maximum, stock levels, etc., for each point of use
• Consolidated and individual ordering for all points of use; reporting by both consolidated and individual point of use
Complete Support and Utility Software
• Complete database import and export functionality
• Interfaces to external systems, Access or SQL Server databases
• Barcode capability
• Mass update functions • Automatic backup capability
Searching and Selection
• Easy-to-use search functions, including graphics, images and catalogs
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
Driven By
800
•
521
•
9520
mscdirect
•com
CAP 1000L
Locker Vending System
Increase your Competitive Advantage!
•Accommodates a wide variety of items, including large or heavy items
•Available as a stand-alone or as an add-on unit
•Allows 24/7 access
•Provides complete user accountability
•Great for check-out / check- in items
Small Medium Large Unit Number Lockers Lockers Lockers
S2 (6-6-6) 0 18 0 S3 (9-9-9) 27 0 0 S4 (M-M-M) 9 6 3 S5 (9-6-M) 12 8 1
Locker Sizes
Locker Units
Small Medium Large Unit Number Lockers Lockers Lockers
Small 9 0 0 Medium 0 6 0 Mixed 3 2 1
Locker Stacks
Dimensions
The footprint for each of these units is 43ʺW x 20ʺD. Each locker is capable of holding up to 165 lbs.
A locker unit consists of three vertical stacks of electronically controlled cupboards. Available configurations are shown below under locker units.
*Measurements are for the door opening. There is approximately 11 in. of additional usable width behind the locking mechanism.
Height Width Depth Unit (Inches) (Inches) (Inches)
Small* 6.0 10.0 18.75 Medium* 9.5 10.0 18.75 Large* 20.30 10.0 18.75
Model S4 Shown
800
•
521
•
9520
mscmetalworking
•com
CAPWare software provides full inventory management with complete control, reordering, audit trail and reporting capability and is ready to connect to your network for analysis and management of your crib activity.
Stock Management
• Supports tool crib management functions including issue and return, swap, reworking and scrap, inventory adjustment, move stock and kit issue
• Tracks the location of items by six different user- defined criteria, such as machine, job and user, for complete analysis
•Manages both expendable and non-perishable items
by controlling the issue and return of new, used, and reworked items
• Enforces limits by employee and other criteria, such as machine and job
• Prints tickets for transaction records or receipts • Maximizes efficiency through touchscreens
• Accommodates graphics and hyperlinks at item level
• Contains functionality for shopping cart and recently used items
Rework and Scrap Management
Manages the full rework cycle and the scrapping of tools at end-of-life:
• The return of used items needing rework
• Stock waiting to be picked up for rework
• The return process of reworked items
• Stock in rework
• Provides reporting on the rework and scrap processes
Batch and Expiration Control
• Controls batch-numbered items and items with expiration dates
• Provides audit trail of all item activity
Comprehensive Reporting
• Comprehensive suite of standard and customizable reports
• System dashboard for quick status view
• Reports generated and transmitted automatically or manually; can be exported, saved and/or transmitted in many standard formats
Replenishing and Reordering
• Replenishment orders can be generated manually or automatically
and then electronically transmitted
• Receiving and restocking are controlled by the software and all transactions are recorded by the software
Multiple Vending System and Tool Crib Management and Consolidation
• Multiple CAP vending machines and tool cribs are controlled within a single database with common software
• Common object creation for all points of use; individual minimum, maximum, stock levels, etc., for each point of use
• Consolidated and individual ordering for all points of use; reporting by both consolidated and individual point of use
Complete Support and Utility Software
• Complete database import and export functionality
• Interfaces to external systems, Access or SQL Server databases
• Barcode capability
• Mass update functions • Automatic backup capability
Searching and Selection
• Easy-to-use search functions, including graphics, images and catalogs
800
•
521
•
9520
mscdirect
•com
800
•
521
•
9520
mscmetalworking
•com
CAP 5000T
Carousel-Type
Vending Machine
The CAP 5000T carousel-type vending units are an ideal solution to securely manage a large number of different items in a limited space and, when used in conjunction with our CAP 1000T Tool Management Towers, can satisfy your metalworking and non-metalworking needs.
Versatile Item Management
• Provides 468 secure locations
- Single item dispense
- Multiple quantity dispense (semi-secure) - Lock down by expiration date
• Allows 24/7 access
• Includes secure return capabilities
• Accommodates a wide variety of items
• Available in stand-alone or add-on models
• Able to use up to 10 units in-line
• Easy to use
Overall Dimensions 44ʺW x 40ʺD x 80ʺH
Door Dimensions 3ʺW x 3ʺH
Compartments 11.5ʺ deep and taper to back
Power Requirements 110V Weight 1040 LBS.
SPECIFICATIONS
3” 3” 11.5” Compartment Dimensions800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
Driven ByCAPWare Software provides full inventory management with complete control, reordering, audit trail and reporting capability and is ready to connect to your network for analysis and management of your inventory activity.
Stock Management
Supports tool inventory management functions including issue and return, swap, reworking and scrap, inventory adjustment, move stock and kit issue.
Tracks the location of items by six different user- defined criteria, such as machine, job and user, for complete analysis.
Enforces limits by employee and other criteria, such as machine and job.
Contains functionality for shopping cart and recently used items.
Rework and Scrap Management
Manages the full rework cycle and the scrapping of tools at end-of-life:
• The return of used items needing rework • Stock waiting to be picked up for rework • The return process of reworked items • Stock in rework
• Provides reporting on the rework and scrap processes
Batch and Expiration Control
Controls batch-numbered items and items with expiration dates. Provides audit trail of all item activity.
800
•
521
•
9520
mscmetalworking
•com
Searching and Selection
Easy-to-use search functions, including graphics, images and catalogs.
Comprehensive Reporting
Comprehensive suite of standard and customizable reports. System Dashboard for quick status view.
Reports generated and transmitted automatically or manually; can be exported, saved and/or transmitted in many standard formats.
Replenishing and Reordering
Replenishment orders can be generated manually or automatically and then electronically transmitted.
Receiving and restocking are controlled by the software and all transactions are recorded by the software.
Multiple Vending System and Consolidation
Multiple CAP vending machines can be controlled within a single database with the common software.
Consolidated and individual ordering for all points of use; reporting by both consolidated and individual point of use.
Complete Support and Utility Software
Complete database import and export functionality.
• Access or SQL Server databases • Mass update functions
• Automatic backup capability
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
Driven By
800
•
521
•
9520
mscmetalworking
•com
CAP 600C
Electronically Controlled
Tool Cabinet
The CAP 600C Electronically Controlled Tool Cabinet is an ideal solution to manage a large number of different items in a limited space and, when used in conjunction with our CAP Dispensing Units, can satisfy your metalworking and non-metalworking needs.
Versatile Item Management
• Allows 24/7 access
• Provides countless configurations
• Uses industry standard cabinets
• Offers low to high security
• Accommodates any number of items
- Metalworking
- Safety and MRO Items - Gauging and Measuring Items
• Available in stand-alone or add-on models
• Easy to use
Stand-Alone Unit Shown
May be easily integrated to the CAP 1000T vending system
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
CAPWare Software provides full inventory management with complete control, reordering, audit trail and reporting capability and is ready to connect to your network for analysis and management of your inventory activity.
Stock Management
Supports tool inventory management functions including issue and return, swap, reworking and scrap, inventory adjustment, move stock and kit issue.
Tracks the location of items by six different user- defined criteria, such as machine, job and user, for complete analysis.
Enforces limits by employee and other criteria, such as machine and job.
Contains functionality for shopping cart and recently used items.
Rework and Scrap Management
Manages the full rework cycle and the scrapping of tools at end-of-life:
• The return of used items needing rework
• Stock waiting to be picked up for rework
• The return process of reworked items
• Stock in rework
• Provides reporting on the rework and scrap processes
Batch and Expiration Control
Controls batch-numbered items and items with expiration dates. Provides audit trail of all item activity.
800
•
521
•
9520
mscmetalworking
•com
Searching and Selection
Easy-to-use search functions, including graphics, images and catalogs.
Comprehensive Reporting
Comprehensive suite of standard and customizable reports. System Dashboard for quick status view.
Reports generated and transmitted automatically or manually; can be exported, saved and/or transmitted in many standard formats.
Replenishing and Reordering
Replenishment orders can be generated manually or automatically and then electronically transmitted.
Receiving and restocking are controlled by the software and all transactions are recorded by the software.
Multiple Vending System and Consolidation
Multiple CAP vending machines can be controlled within a single database with the common software.
Consolidated and individual ordering for all points of use; reporting by both consolidated and individual point of use.
Complete Support and Utility Software
Complete database import and export functionality.
• Access or SQL Server databases
• Mass update functions
• Automatic backup capability
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
Driven By
800
•
521
•
9520
mscmetalworking
•com
CAP 600C
Electronically Controlled
Tool Cabinet
The CAP 600C Electronically Controlled Tool Cabinet is an ideal solution to manage a large number of different items in a limited space and, when used in conjunction with our CAP Dispensing Units, can satisfy your metalworking and non-metalworking needs.
Versatile Item Management
• Allows 24/7 access
• Provides countless configurations
• Uses industry standard cabinets
• Offers low to high security
• Accommodates any number of items
- Metalworking
- Safety and MRO Items - Gauging and Measuring Items
• Available in stand-alone or add-on models
• Easy to use
Stand-Alone Unit Shown
May be easily integrated to the CAP 1000T vending system
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
CAPWare Software provides full inventory management with complete control, reordering, audit trail and reporting capability and is ready to connect to your network for analysis and management of your inventory activity.
Stock Management
Supports tool inventory management functions including issue and return, swap, reworking and scrap, inventory adjustment, move stock and kit issue.
Tracks the location of items by six different user- defined criteria, such as machine, job and user, for complete analysis.
Enforces limits by employee and other criteria, such as machine and job.
Contains functionality for shopping cart and recently used items.
Rework and Scrap Management
Manages the full rework cycle and the scrapping of tools at end-of-life:
• The return of used items needing rework
• Stock waiting to be picked up for rework
• The return process of reworked items
• Stock in rework
• Provides reporting on the rework and scrap processes
Batch and Expiration Control
Controls batch-numbered items and items with expiration dates. Provides audit trail of all item activity.
800
•
521
•
9520
mscmetalworking
•com
Searching and Selection
Easy-to-use search functions, including graphics, images and catalogs.
Comprehensive Reporting
Comprehensive suite of standard and customizable reports. System Dashboard for quick status view.
Reports generated and transmitted automatically or manually; can be exported, saved and/or transmitted in many standard formats.
Replenishing and Reordering
Replenishment orders can be generated manually or automatically and then electronically transmitted.
Receiving and restocking are controlled by the software and all transactions are recorded by the software.
Multiple Vending System and Consolidation
Multiple CAP vending machines can be controlled within a single database with the common software.
Consolidated and individual ordering for all points of use; reporting by both consolidated and individual point of use.
Complete Support and Utility Software
Complete database import and export functionality.
• Access or SQL Server databases
• Mass update functions
• Automatic backup capability
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscdirect
•com
Driven By
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
800
•
521
•
9520
mscmetalworking
•com
A compliment of full- and mixed-security drawers provides the ability to control products requiring different levels of secure storage using industry-proven solutions.
The 800DS vending system includes dual-security and is ideal for easy deployment away from or in the absence of main tool cribs.
The 800DS provides the benefits that you’ve come to expect from a premier vending solution:
• Automated replenishment
• 24/7 system access through the web
• Consolidated or individual point-of-use reporting • Time-tested and proven technology
• Item selection using lists OR graphic images
Dual-Security Vending
mscdirect
•com
800
•521
•9520
Web Based Software provides comprehensive inventory management with complete change management, reordering, audit trail and reporting capabilities through a web-hosted database. The unit is controlled by a powerful microprocessor that transmits and receives all necessary information to and from the database hosted in a cloud server. Simply connect to the Internet via any web browser for system access and configuration changes, reporting and ordering can be done anywhere, anytime.
Stock Management
• Supports tool inventory management functions including issue and return, inventory adjustments, and cycle counts.
• Tracks the location of items by machine, job, and user. • Provides audit trail of all item activity.
Searching and Selection
• Item selection using graphics/images or descriptions. Replenishing and Reordering
• Replenishment orders generated automatically and electronically transmitted. • Receipt and restock transactions are recorded by the software.
Comprehensive Reporting
• Comprehensive suite of standard and customizable reports; quick status view from the system dashboard.
• Reporting for MSC vending machines can be at the consolidated or individual point-of-use level.
• Reports generated and transmitted automatically or manually; can be exported, saved and/or transmitted in many standard formats including, but not limited to, Excel, Tab Delimited, Rich Text, and XML.
Support and Utility Software • Database import and
export functionality. • Mass update functions. • Automatic backup capability.
Drawer Specifications
Full Security: Single Item/Single Dispense access capability (the top unit)
• 3 different tray widths to choose from
• Can have 1, 2, 3, 4, 6, or 12 compartments per drawer
Mixed Security: Mix of Items/Multiple Dispense access (the bottom tooling cabinet)
• 7 medium security drawers • Internal drawer dimensions:
(Maximum 48 compartments per drawer) -Six (6) drawers: 24ʺW x 3.0ʺH x 24ʺD -One (1) drawer: 24ʺW x 5.0ʺH x 24ʺD
*Based on maximum of 12 compartments/drawer
No. of Individual Compartment Drawer Drawers Dimensions*
Tray Across W x H x D (inches)
Z 4 2.5 x 0.9 x 1.0
A 3 3.8 x 0.9 x 1.0
C 2 6.5 x 0.9 x 1.0
Connectivity Requirements • A dedicated Ethernet connection. • A secure Internet connection. • Adobe Acrobat Reader
version 4.0 or higher.
An 800DS Vending System Footprint: 30 in. x 30 in. Overall Height: 57 in.
