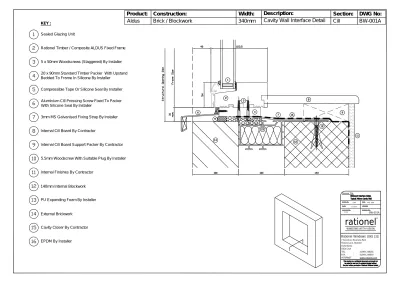

rationel WINDOWS WITH VISION

(1)

Sealed Glazing Unit

Rationel Timber / Composite ALDUS Fixed Frame

5 x 50mm Woodscrews (Staggered) By Installer

20 x 90mm Standard Timber Packer With Upstand Bedded To Frame In Silicone By Installer

Compressible Tape Or Silicone Seal By Installer

Aluminium Cill Pressing Screw Fixed To Packer With Silicone Seal By Installer

3mm MS Galvanised Fixing Strap By Installer

Internal Cill Board By Contractor

Internal Cill Board Support Packer By Contractor

5.5mm Woodscrew With Suitable Plug By Installer

Internal Finishes By Contractor

140mm Internal Blockwork

PU Expanding Foam By Installer

External Brickwork

Cavity Closer By Contractor

EPDM By Installer KEY :

Product:

Aldus

Construction:

Brick / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

BW-001A

Drawing No. BW-001A APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

Rationel Windows (UK) Ltd.

7 Avonbury Business Park Howes Lane, Bicester Oxfordshire OX26 2UA TEL. : 01869 248181 FAX. : 01869 249693 INTERNET : www.rationel.com

rationel

® WINDOWS WITH VISION

(2)

Sealed Glazing Unit

Insulated Steel Head Lintel

*Additional 10mm Tolerance* - As Shown

External Brickwork EPDM By Installer KEY :

Product:

Aldus

Construction:

Brick / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

BW-001B

Drawing No. BW-001B APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(3)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Brick / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

BW-001C

Drawing No. BW-001C APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(4)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Cant Brick / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

BW-002A

rationel

(5)

Product:

Aldus

Construction:

Cant Brick / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

BW-002B

Sealed Glazing Unit

External Brickwork EPDM By Installer KEY : Drawing No. BW-002B APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(6)

Product:

Aldus

Construction:

Cant Brick / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

BW-002C

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

rationel

(7)

Sealed Glazing Unit

Aluminium Cill Bedded To Packer In Silicone By Installer

5.5mm Woodscrew By Installer

100mm x 50mm Internal Timber Framing

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Brick / Timber Framing

Width:

285mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

BW-004A

rationel

(8)

Sealed Glazing Unit

100mm Internal Timber Framing

Product:

Aldus

Construction:

Brick / Timber Framing

Width:

285mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

BW-004B

rationel

(9)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Brick / Timber Framing

Width:

285mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

BW-004C

rationel

(10)

Sealed Glazing Unit

150mm x 100mm Steel R.H.S

External Brickwork

EPDM By Installer

KEY :

5.5mm Self Drilling Tek Screw By Installer

Product:

Aldus

Construction:

Brick / Steel R.H.S Framing

Width:

260mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

BW-005A

rationel

(11)

Sealed Glazing Unit

Product:

Aldus

Construction:

Brick / Steel R.H.S Framing

Width:

260mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

BW-005B

rationel

(12)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

150mm x 100mm Steel R.H.S

Product:

Aldus

Construction:

Brick / Steel R.H.S Framing

Width:

260mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

BW-005C

rationel

(13)

Sealed Glazing Unit

150mm x 75mm Internal Met Sec Framing

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Brick / Steel Stud Framing

Width:

325mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

BW-006A

rationel

(14)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Brick / Steel Stud Framing

Width:

325mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

BW-006B

Steel Head Lintel

rationel

(15)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Brick / Steel Stud Framing

Width:

325mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

BW-006C

rationel

(16)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

External Render Finish

Product:

Aldus

Construction:

Render / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

R-001A

Drawing No. R-001A APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(17)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

R-001B

External Render Stop End

Drawing No. R-001B APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(18)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

R-001C

Drawing No. R-001C APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(19)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

R-002A

rationel

(20)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

R-002B

rationel

(21)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

R-002C

rationel

(22)

Sealed Glazing Unit

EPDM By Installer

KEY :

100mm External Blockwork

Product:

Aldus

Construction:

Render / Blockwork

Width:

250mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

R-003A

rationel

(23)

Sealed Glazing Unit

EPDM By Installer

KEY :

External Render Finish 100mm Internal Concrete 100mm External Concrete

Product:

Aldus

Construction:

Render / Blockwork

Width:

250mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

R-003B

rationel

(24)

Sealed Glazing Unit

KEY :

EPDM By Installer

100mm External Blockwork

Product:

Aldus

Construction:

Render / Blockwork

Width:

250mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

R-003C

rationel

(25)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render (Cant Brick) / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Cill

DWG No:

R-004A

rationel

(26)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render (Cant Brick) / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Head

DWG No:

R-004B

rationel

(27)

Sealed Glazing Unit

External Brickwork

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Render (Cant Brick) / Blockwork

Width:

340mm

Cavity Wall Interface Detail

Section:

Jamb

DWG No:

R-004C

rationel

(28)

Sealed Glazing Unit

EPDM By Installer

KEY :

No.12 Wood Screw With Cover Cap And Plug By Installer

150mm Internal Concrete

Insulated Render/Cladding System By Sub-Contractor

Product:

Aldus

Construction:

Insulated Render / Concrete

Width:

340mm

Solid Wall Interface Detail

Section:

Cill

DWG No:

R-005A

rationel

(29)

KEY :

Sealed Glazing Unit

EPDM By Installer

Product:

Aldus

Construction:

Insulated Render / Concrete

Width:

340mm

Solid Wall Interface Detail

Section:

Head

DWG No:

R-005B

rationel

(30)

KEY :

Sealed Glazing Unit

EPDM By Installer

Product:

Aldus

Construction:

Insulated Render / Concrete

Width:

340mm

Solid Wall Interface Detail

Section:

Jamb

DWG No:

R-005C

rationel

(31)

Sealed Glazing Unit

Internal Cill Board Support Packer By Contractor Internal Finishes By Contractor

EPDM By Installer

KEY :

No.12 Wood Screw With Cover Cap By Installer

Product:

Aldus

Construction:

Hardwood Surround / Timber

Width:

150mm

Timber Wall Interface Detail

Section:

Cill

DWG No:

TF-001A

Drawing No. TF-001A APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(32)

Sealed Glazing Unit

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Hardwood Surround / Timber

Width:

150mm

Timber Wall Interface Detail

Section:

Head

DWG No:

TF-001B

Drawing No. TF-001B APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(33)

KEY :

Sealed Glazing Unit

EPDM By Installer

Product:

Aldus

Construction:

Hardwood Surround / Timber

Width:

150mm

Timber Wall Interface Detail

Section:

Jamb

DWG No:

TF-001C

rationel

(34)

Sealed Glazing Unit

EPDM By Installer

KEY :

External Timber Cladding By Sub-Contractor

Product:

Aldus

Construction:

Timber Cladding / Timber Framing

Width:

150mm

Timber Frame Interface Detail

Section:

Cill

DWG No:

TF-002A

Drawing No. TF-002A APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(35)

Sealed Glazing Unit

KEY :

EPDM By Installer

Product:

Aldus

Construction:

Timber Cladding / Timber Framing

Width:

150mm

Timber Frame Interface Detail

Section:

Head

DWG No:

TF-002B

rationel

(36)

KEY :

Sealed Glazing Unit

EPDM By Installer

Product:

Aldus

Construction:

Timber Cladding / Timber Framing

Width:

150mm

Timber Frame Interface Detail

Section:

Jamb

DWG No:

TF-002C

Drawing No. TF-002C APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(37)

Sealed Glazing Unit

EPDM By Installer

KEY :

Rainscreen Cladding System By Sub-Contractor

Product:

Aldus

Construction:

Rainscreen Cladding / Steel Stud Framing

Width:

156mm

Steel Frame Interface Detail

Section:

Cill

DWG No:

SF-001A

Drawing No. SF-001A APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(38)

Sealed Glazing Unit

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Width:

156mm

Steel Frame Interface Detail

Section:

Head

DWG No:

SF-001B

Drawing No. SF-001B APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(39)

Sealed Glazing Unit

EPDM By Installer

KEY :

Product:

Aldus

Construction:

Width:

156mm

Steel Frame Interface Detail

Section:

Jamb

DWG No:

SF-001C

Drawing No. SF-001C APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(40)

Sealed Glazing Unit

KEY :

No.12 Wood Screw And Cover Cap By Installer

Product:

Aldus

Coupled Mullion Joint

Section:

Jamb

DWG No:

C-001A

Aluminium Coupling Trim By Rationel

Coupling Timber By Rationel (Bedded On Silicone By Installer)

Drawing No. C-001A APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(41)

Sealed Glazing Unit

KEY :

Product:

Aldus

Close Coupled Mullion Joint Detail

Section:

Jamb

DWG No:

C-001B

Drawing No. C-00B APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(42)

Sealed Glazing Unit

KEY :

Product:

Aldus

Coupled Transom Joint Detail

Section:

Head/Cill

DWG No:

C-002

Drawing No. C-002 APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(43)

Sealed Glazing Unit

KEY :

Silicone Seal By Installer

Timber Post By Rationel

2mm Aluminium Top Hat Pressing (Colour To Match Frames) By Rationel

Product:

Aldus

Typical 115mm Timber Post Detail

Section:

Jamb

DWG No:

C-003

5 x 15mm Woodscrews By Installer

rationel

(44)

Sealed Glazing Unit

KEY :

Timber Corner Post By Rationel

Product:

Aldus

Typical External Corner Post Detail

Section:

Jamb

DWG No:

C-004A

Silicone Seal In Grooves By Installer

rationel

(45)

Sealed Glazing Unit

KEY :

Internal Timber Corner Post By Rationel

Product:

Aldus

Typical Internal Corner Post Detail

Section:

Jamb

DWG No:

C-004B

rationel

(46)

Sealed Glazing Unit

KEY :

60 Degree Timber Corner Post By Rationel

Product:

Aldus

Typical 60° Corner Post Detail

Section:

Jamb

DWG No:

C-005

rationel

(47)

Sealed Glazing Unit

KEY :

Product:

Aldus

Typical 45° Corner Post Detail

Section:

Jamb

DWG No:

C-005A

rationel

(48)

Sealed Glazing Unit

KEY :

Product:

Aldus

Typical 30° Corner Post Detail

Section:

Jamb

DWG No:

C-005B

rationel

(49)

Sealed Glazing Unit

KEY :

Tek Screw And Cover Cap By Installer

Steel Post (SHS) By Sub-Contractor

2mm Aluminium Top Hat Pressing

(Colour To Match Frames) By Installer/Contractor

Product:

Aldus

Typical Steel External Corner Post Detail

Section:

Jamb

DWG No:

C-006A

Tight Shims By Installer

rationel

(50)

Sealed Glazing Unit

KEY :

Steel Post (SHS) By Sub-Contractor

Product:

Aldus

Typical Steel External Corner Post Detail

Section:

Jamb

DWG No:

C-006A

rationel

(51)

Sealed Glazing Unit

KEY :

5.5mm x 32mm Woodscrew (Staggered) By Installer

50MM X 6MM Galvanised MS Reinforcing Bar (Subject To Formal Calculation) By Installer

Product:

Aldus

Typical Steel Flitch Plate Detail

Section:

Jamb

DWG No:

SFP-001A

Butyl Tape By Installer

Drawing No. SFP-001A APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(52)

Sealed Glazing Unit

KEY :

Product:

Aldus

Typical Steel Flitch Plate Detail

Section:

Jamb

DWG No:

SFP-001B

Drawing No. SFP-001B APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(53)

Sealed Glazing Unit

KEY :

Product:

Aldus

Typical Steel Flitch Plate Detail

Section:

Jamb

DWG No:

SFP-002A

rationel

(54)

Sealed Glazing Unit

KEY :

100/120MM X 10MM Galvanised MS Reinforcing Bar (Subject To Formal Calculation) By Installer

Product:

Aldus

Typical Steel Flitch Plate Detail

Section:

Jamb

DWG No:

SFP-002B

rationel

(55)

Sealed Glazing Unit

KEY :

Compressible Tape Or Silicone Seal By Installer Tek Screw And Cover Cap By Installer

130MM X 8MM Galvanised MS Reinforcing Bar (Subject To Formal Calculation) By Installer Steel Section SHS Or CHS To Suit Applied Wind Loadings. By Contractor/Installer (Subject To Formal Calculation)

Product:

Aldus

Typical Steel Flitch Plate Detail

Section:

Jamb

DWG No:

SFP-003A

rationel

(56)

Sealed Glazing Unit

KEY :

Compressible Tape Or Silicone Seal By Installer Tek Screw And Cover Cap By Installer

130MM X 10MM Galvanised MS Reinforcing Bar (Subject To Formal Calculation) By Installer Steel Section SHS Or CHS To Suit Applied Wind Loadings. By Contractor/Installer (Subject To Formal Calculation)

Product:

Aldus

Typical Steel Flitch Plate Detail

Section:

Jamb

DWG No:

SFP-003B

rationel

(57)

Sealed Glazing Unit

KEY :

Coupling Timber (Bedded On Silicone) By Installer

Fire Stop To Architects Detail by Sub-Contractor Internal Finish By Contractor

200mm Internal Concrete Wall By Contractor

Obscured Panel (Aluminium or Emlite) By Rationel

Product:

Aldus

Typical Fire Stop Detail Between Wall

Section:

Jamb

DWG No:

FS-001

Drawing No. FS-001 APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(58)

Sealed Glazing Unit

KEY :

M8 Countersunk Coach Screws With Suitable Plug By Installer

Fire Stop To Architects Detail by Sub-Contractor Galv. M/Steel Continuous Angle With Slotted Holes For Slab Movement. Detail By Steelwork

Contractor Or Main Contractor

Compressible Tape Or Silicone Seal By Installer Internal Finish By Contractor

250mm Concrete Floor Slab

Product:

Aldus

Typical Fire Stop Detail Between Floor Slab

Section:

Head/Cill

DWG No:

FS-002

Obscured Panel (Aluminium or Emlite) By Rationel Coupling Timber By Rationel

(Bedded On Silicone By Installer)

Rockwool Insulation (or similar) By Contractor

rationel

(59)

Sealed Glazing Unit

KEY :

Internal Finish By Contractor

Fire Stop To Architects Detail by Sub-Contractor

200mm Internal Concrete Wall By Contractor

Product:

Aldus

Typical Fire Stop Detail Between Wall

Section:

Jamb

DWG No:

FS-003

rationel

(60)

Sealed Glazing Unit

KEY :

M8 Anchor Bolt or Similar By Installer

Fire Stop To Architects Detail by Sub-Contractor

2mm Aluminium Top Hat Pressing (to Match Frame) By Installer/Contractor

250mm Concrete Floor Slab By Contractor

Product:

Aldus

Typical Fire Stop Detail Between Floor Slab

Section:

Head/Cill

DWG No:

FS-004

Galv. M/Steel Continuous Angle With Slotted Holes For Slab Movement. Detail By Steelwork

Contractor Or Main Contractor

rationel

(61)

Sealed Glazing Unit

KEY :

20 x 85mm Non-Standard Timber Packer With Upstand Bedded To Frame In Silicone By Installer

5.5mm Woodscrew With Suitable Plug By Installer 2-Part Pressing Arrangement Allows For Differential Movement At Head & Floor Slab Below. By Installer Render, Stud, Insulation Vapour Barriers & Lining Board By Contractor

5mm Woodscrew With Suitable Plug By Installer

Screw Fixing & 3mm Slotted Galvatite Movement Cleats & M6 Nuts & Bolts By Installer

Air Seal By Contractor

250mm Concrete Floor Slab

Mineral Wool Insulation By Installer

Product:

Aldus

Typical Floor Slab Movement Detail

Section:

Head

DWG No:

MOV-001

Drawing No. MOV-001 APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(62)

Sealed Glazing Unit

20 x 85mm Non-Standard Timber Packer With Upstand Bedded To Frame In Silicone By Installer

5.5mm Woodscrew With Suitable Plug By Installer 2-Part Pressing Arrangement Allows For Differential Movement At Head & Floor Slab Below By Installer

Brickwork, Lintol, EPDM By Installer, Cavity Closer By Contractor, Insulation & Lining Board By Contractor

5mm Woodscrew With Suitable Plug By Installer

Screw Fixing & 3mm Slotted Galvatite Movement Cleats & M6 Nuts & Bolts By Installer

Air Seal By Contractor

250mm Concrete Floor Slab By Contractor

Mineral Wool Insulation By Installer

KEY :

Product:

Aldus

Typical Floor Slab Movement Detail

Section:

Head

DWG No:

MOV-002

Drawing No. MOV-002 APR. 2009 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked

rationel

(63)

KEY :

EPDM By Installer or By Contractor

Door Threshold Bedded On Silicone By Installer Sealed Glazing Unit

Internal Finish Applied On Top Of Screed By Sub-Contractor

Product:

Aldus

Typical Out. Open. Door Threshold Detail

Section:

Cill

DWG No:

THE-001

Transport Packer To Be Removed Prior To Installation By Installer, Transport Packer Can Be Used If Required To Fit Cill Pressings But Tolerance Of Door Needs To Be Adjusted To Suit. Drawing No. THE-001 NOV. 2011 Date Drawing Title Scale Drawn By Contract No. *** CWG 1:2 @ A3 Checked
