581 Double Hung. Features. Windows 581 Double Hung. Options. Limitations

(1)

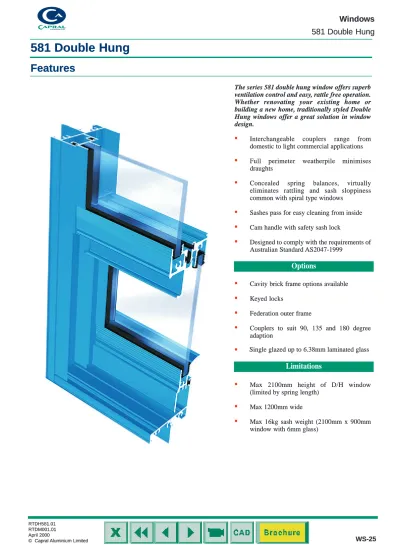

581 Double Hung

Windows

581 Double Hung

Features

WS-25

RTDH581.01 RTDM001.01 April 2000

Limitations

The series 581 double hung window offers superb

ventilation control and easy, rattle free operation.

Whether renovating your existing home or

building a new home, traditionally styled Double

Hung windows offer a great solution in window

design.

• Interchangeable

couplers

range

from

domestic to light commercial applications

• Full perimeter weatherpile minimises

draughts

• Concealed

spring

balances,

virtually

eliminates rattling and sash sloppiness

common with spiral type windows

• Sashes pass for easy cleaning from inside

• Cam handle with safety sash lock

• Designed to comply with the requirements of

Australian Standard AS2047-1999

• Max 2100mm height of D/H window

(limited by spring length)

• Max 1200mm wide

• Max 16kg sash weight (2100mm x 900mm

window with 6mm glass)

Options

• Cavity brick frame options available

• Keyed locks

• Federation outer frame

• Couplers to suit 90, 135 and 180 degree

adaption

• Single glazed up to 6.38mm laminated glass

581 Double Hung

Windows

581 Double Hung

Features

WS-25

RTDH581.01 RTDM001.01 April 2000

Limitations

The series 581 double hung window offers superb

ventilation control and easy, rattle free operation.

Whether renovating your existing home or

building a new home, traditionally styled Double

Hung windows offer a great solution in window

design.

• Interchangeable

couplers

range

from

domestic to light commercial applications

• Full perimeter weatherpile minimises

draughts

• Concealed

spring

balances,

virtually

eliminates rattling and sash sloppiness

common with spiral type windows

• Sashes pass for easy cleaning from inside

• Cam handle with safety sash lock

• Designed to comply with the requirements of

Australian Standard AS2047-1999

• Max 2100mm height of D/H window

(limited by spring length)

• Max 1200mm wide

• Max 16kg sash weight (2100mm x 900mm

window with 6mm glass)

Options

• Cavity brick frame options available

• Keyed locks

• Federation outer frame

• Couplers to suit 90, 135 and 180 degree

adaption

(2)

Product Performance Data

RTDH581MKI.01 RTDM001.01 July 2002 © Capral Aluminium Limited

581I–2

Windows

581 Double Hung MKI

Structural performance

NATA report: 9915S4A (2030mm x 910mm, type D sample)

• Housing (span/150):

Serviceability limit state: +1500 Pa (span/190); -1500 Pa (span/222)

Ultimate strength: ±2300 Pa

• Residential (span/180)

Serviceability limit state: +1500 Pa (span/190); -1500 Pa (span/222)

Ultimate strength: ±2300 Pa

• Water penetration: 200 Pa

• Air infiltration: +75 Pa: 4.56

+150 Pa: 5.66

• Operating force: initiate movement: 82.6N (worst measurement)

maintain movement: 115.6N (worst measurement)

Acoustic performance

ATF report: 1141 (1200mm x 1810mm sample, type DF 6.38mm glass)

• STC: 31

• OITC: 28

• Rw = 31

• C

T

= -1

• C

TR

= -1

• C

T

(50-5000) = 0

• C

TR

(50-5000) = -2

• Rw (C

T

; C

TR

)= 31(-1;-1)

• Rw (C

T

; C

TR

; C

T

(50-5000); C

TR

(50-5000)) = 31(-1; -1; 0; -2)

Energy performance

Note:

1. Subscript 'w' refers to whole-window properties, which apply to all parameters except the damage-weighted fading transmittance, Tdw. Uw is the whole-window U-value. SHGCw is the whole-window solar heat gain coefficient. Tvw is the whole-window visible (light) transmittance.

2. Percentage improvement figures are compared with using base-case Generic Window 1 (3mm clear in std aluminium frame). 3. A negative percentage improvement figure indicates performance worse than the base-case window and a positive

percentage improvement figure indicates performance better than the base-case window.

4. Maximum air infiltration is 0.5 L/s.m2 at a positive pressure difference of 75 Pa as measured according to AS 2047. 5. Static performance (Uw, SHGCw, Tvw, Tdw) calculated using Window 4.1 and Therm 2.1 software (Lawrence Berkeley

National Laboratory), 2000-2001.

6. Annual energy performance (stars and % improvements) calculated using Nationwide House Energy Rating Software (NatHERS) according to procedures of WERS 2000 (Australasian Window Council), www.wers.net.

(3)

Windows

581 Double Hung MKI

RTDH581MKI.01 RTDM001.01 June 2002

(4)

Windows

581 Double Hung MKI

RTDH581MKI.01 RTDM001.01 June 2002 © Capral Aluminium. Limited 581I–4

Hardware

M029737 25 x 6 Pan HD Frame Screw M029659MF Rivet 4.8 x 3.2 M027229 3mm G/Channel M027235 4-5mm G/Channel 100m roll M027246 6mm G/Channel 100m roll M027103

Glazing Wedge 7 Gap 100m roll

M027104

Glazing Wedge 8 Gap 150m roll

M027105

Glazing Wedge 9.5 Gap 150m roll

M027248

Hi-Fin Weatherpile 500m roll

M027257

Single sided tape 9 x 1.6

M027409 Sill Flashing M027243 Spring Cover 4m long M027314 Bulbseal 6mm M028259 15 x Pan HD M028378 Lock Washer3/₁₆” M028752 10 x 8 Pan HD M029697 15 x 6 Csk HD M029672 12 x 6 Pan HD M571100 Friction Shoe LH M571101 Friction Shoe RH M571102

Spring Fixing Block

M571103

Spring Eye Adaptor

M571121 Flyscreen Hook M571125 Sash Guide M571153 Spring Package 0.81g x 405mm M571158 Spring Package 0.91g x 779mm M571163 Spring Package 1.02g x 779mm M571169 Spring Package 1.02g x 629mm M571171 Spring Package 1.12g x 929mm M571172 Spring Package 1.25g x 929mm M585072 Sash Stop M016CASECLIPCLR Casement Clip 1.6mm MSSS276617 Cam Handle Package M580251 Transom Plug

(5)

Windows

581 Double Hung MKI

(6)

Windows

581 Double Hung MKI

(7)

Windows

581 Double Hung MKI

(8)

W

indows

581 Do

uble

H

u

n

g

M

K

I

RT DH5 8 1 M K I. 0 1 R T D M 0 01. 01 J une 20 02 © C ap ral A lu mi ni u m . L im ited 581 I–8

Half

size

assem

bly

(cont)

(9)

W

indows

5

8

1 D

oub

le

Hung

M

K

I

Ha

lf

size

assem

bly

(con

t)

(10)

Windows

581 Double Hung MKI

(11)

Windows

581 Double Hung MKI

(12)

Windows

581 Double Hung MKI

Structural tables

Type D

R=Residential l/180 H=Housing l/150 Meeting Stile

Wind Pressure Serviceability Limit

State kPa

Wind Pressure Serviceability Limit

State kPa

Window size

H x W (mm)

Mullion Type 1

Window size

H x W (mm)

Mullion Type 1

900 x 610 R 5.000 1500 x 610 R 5.000 H 3.000 / N4 H 3.000 / N4 900 x 910 R 2.038 1500 x 910 R 1.529 H 2.446 / N4 H 1.835 / N4 900 x 1210 R .781 1500 x 1210 R .526 H .937 / N2 H .631 / N1 1000 x 610 R 5.000 1860 x 610 R 5.000 H 3.000 / N4 H 3.000 / N4 1000 x 910 R 1.887 1860 x 910 R 1.503 H 2.264 / N4 H 1.803 / N4 1000 x 1210 R .713 1860 x 1210 R -H .856 / N2 H .564 / N1 1200 x 610 R 5.000 2030 x 610 R 5.000 H 3.000 / N4 H 3.000 / N4 1200 x 910 R 1.681 2030 x 910 R 1.503 H 2.017 / N4 H 1.803 / N4 1200 x 1210 R .615 2030 x 1210 R -H .738 / N2 H .548 / N1 1370 x 610 R 5.000 H 3.000 / N4 1370 x 910 R 1.576 H 1.891 / N4 1370 x 1210 R .558 H .670 / N1

Note: These tables are based on theoretical section properties, not on approved tests as specified by AS2047

The N values in the above table represent the complete window rating based on NATA test reports, structural calculations and reinterpreted data from NATA test reports.

(13)

Windows

581 Double Hung MKI

Structural tables (cont)

Type DD

R=Residential l/180 H=Housing l/150

Mullion type 1

Italics represent Deflection limited by Mullion

Wind Pressure Serviceability Limit

State kPa

Wind Pressure Serviceability Limit

State kPa

Window size

H x W (mm)

Mullion Type 1

Window size

H x W (mm)

Mullion Type 1

900 x 1510 R 3.959 1500 x 1510 R 1.324 H 3.000 / N4 H 1.589 / N4 900 x 1810 R 2.078 1500 x 1810 R 1.158 H 2.493 / N4 H 1.390 / N3 900 x 2110 R 1.231 1500 x 2110 R .865 H 1.477 / N3 H 1.038 / N3 900 x 2410 R .791 1500 x 2410 R .534 H .949 / N2 H .640 / N1 1000 x 1510 R 3.721 1860 x 1510 R .669 H 3.000 / N4 H .803 / N2 1000 x 1810 R 1.924 1860 x 1810 R .575 H 2.309 / N4 H .690 / N1 1000 x 2110 R 1.130 1860 x 2110 R .512 H 1.357 / N3 H .614 / N1 1000 x 2410 R .723 1860 x 2410 R -H .867 / N2 H .561 / N1 1200 x 1510 R 2.749 2030 x 1510 R .509 H 3.000 / N4 H .611 / N1 1200 x 1810 R 1.715 2030 x 1810 R -H 2.058 / N4 H .523 / N1 1200 x 2110 R .988 2030 x 2110 R -H 1.185 / N3 H -1200 x 2410 R .624 2030 x 2410 R -H .749 / N2 H -1370 x 1510 R 1.775 H 2.130 / N4 1370 x 1810 R 1.568 H 1.882 / N4 1370 x 2110 R .908 H 1.089 / N3 1370 x 2410 R .566 H .680 / N1

(14)

Windows

581 Double Hung MKI

Structural tables (cont)

Type DF

R=Residential l/180 H=Housing l/150

Mullion type 1

Wind Pressure Serviceability Limit

State kPa

Wind Pressure Serviceability Limit

State kPa

Window size

H x W (mm)

Mullion Type 1

Window size

H x W (mm)

Mullion Type 1

900 x 1510 R 3.959 1370 x 1510 R 2.011 H 3.000 / N4 H 2.413 / N4 900 x 1810 R 2.078 1370 x 1810 R 1.610 H 2.493 / N4 H 1.932 / N4 900 x 2110 R 1.231 1370 x 2110 R .908 H 1.477 / N3 H 1.089 / N3 900 x 2410 R .791 1370 x 2410 R .566 H .949 / N2 H .680 / N1 1000 x 1510 R 3.721 1500 x 1510 R 1.500 H 3.000 / N4 H 1.799 / N4 1000 x 1810 R 1.924 1500 x 1810 R 1.311 H 2.309 / N4 H 1.574 / N4 1000 x 2110 R 1.130 1500 x 2110 R .865 H 1.357 / N3 H 1.038 / N3 1000 x 2410 R .723 1500 x 2410 R .534 H .867 / N2 H .640 / N1 1200 x 1510 R 3.113 1860 x 1510 R .758 H 3.000 / N4 H .910 / N2 1200 x 1810 R 1.715 1860 x 1810 R .652 H 2.058 / N4 H .782 / N2 1200 x 2110 R .988 1860 x 2110 R .579 H 1.185 / N3 H .695 / N1 1200 x 2410 R .624 1860 x 2410 R -H .749 / N2 H .573 / N1

(15)

Windows

581 Double Hung MKI

Structural tables (cont)

Type DFD

R=Residential l/ 180 H=Housing l/150 Mullion type 1 DF Mullion type 2 DF H/D Meeting Stile

Window size H x W (mm)

Wind Pressure Serviceability Limit State kPa

Mullion Type 1

Mullion Type 2

900 x 2710 R 2.094 2.094 H 2.513 / N4 2.513 / N4 1000 x 2710 R 1.939 1.939 H 2.327 / N4 2.327 / N4 1200 x 2710 R 1.729 1.729 H 2.075 / N4 2.075/ N4 1370 x 2710 R 1.624 1.624 H 1.948 / N4 1.948 / N4 1500 x 2710 R 1.313 1.577 H 1.576 / N4 1.892 / N4 1860 x 2710 R .653 1.553 H .783 / N2 1.864 / N4 2030 x 2710 R .500 1.553 H .593 / N1 1.864 / N4
