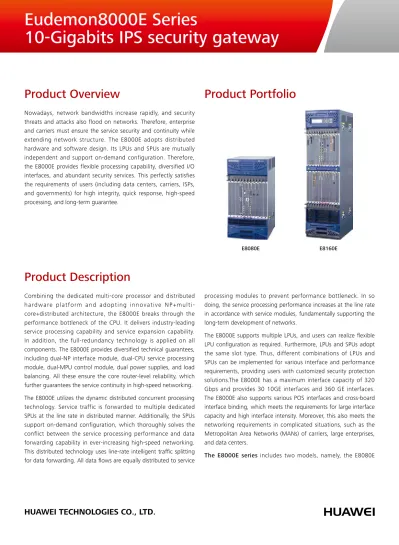

Eudemon8000E Series 10-Gigabits IPS security gateway

(1)

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

HUAWEI TECHNOLOGIES CO., LTD.

Product Overview

Nowadays, network bandwidths increase rapidly, and security threats and attacks also flood on networks. Therefore, enterprise and carriers must ensure the service security and continuity while extending network structure. The E8000E adopts distributed hardware and software design. Its LPUs and SPUs are mutually independent and support on-demand configuration. Therefore, the E8000E provides flexible processing capability, diversified I/O interfaces, and abundant security services. This perfectly satisfies

the requirements of users (including data centers, carriers, ISPs, and governments) for high integrity, quick response, high-speed

processing, and long-term guarantee.

Product Description

Combining the dedicated multi-core processor and distributed hardware platform and adopting innovative NP+multi-core+distributed architecture, the E8000E breaks through the performance bottleneck of the CPU. It delivers industry-leading service processing capability and service expansion capability. In addition, the full-redundancy technology is applied on all

components. The E8000E provides diversified technical guarantees,

including dual-NP interface module, dual-CPU service processing module, dual-MPU control module, dual power supplies, and load balancing. All these ensure the core router-level reliability, which further guarantees the service continuity in high-speed networking.

The E8000E utilizes the dynamic distributed concurrent processing

technology. Service traffic is forwarded to multiple dedicated SPUs at the line rate in distributed manner. Additionally, the SPUs support on-demand configuration, which thoroughly solves the conflict between the service processing performance and data forwarding capability in ever-increasing high-speed networking.

This distributed technology uses line-rate intelligent traffic splitting for data forwarding. All data flows are equally distributed to service

processing modules to prevent performance bottleneck. In so doing, the service processing performance increases at the line rate in accordance with service modules, fundamentally supporting the long-term development of networks.

The E8000E supports multiple LPUs, and users can realize flexible LPU configuration as required. Furthermore, LPUs and SPUs adopt

the same slot type. Thus, different combinations of LPUs and SPUs can be implemented for various interface and performance

requirements, providing users with customized security protection

solutions.The E8000E has a maximum interface capacity of 320 Gbps and provides 30 10GE interfaces and 360 GE interfaces. The E8000E also supports various POS interfaces and cross-board

interface binding, which meets the requirements for large interface

capacity and high interface intensity. Moreover, this also meets the

networking requirements in complicated situations, such as the

Metropolitan Area Networks (MANs) of carriers, large enterprises, and data centers.

The E8000E series includes two models, namely, the E8080E

Product Portfolio

(2)

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Product Feature

Advanced NP + multi-system + distributed

architecture — breaking traditional performance

bottlenecks

E8000E adopts the architecture of independent control modules,

■

interface modules, and service processing modules. Based on the dual NP, the interface module ensures the line-speed forwarding of interface traffic. Based on the multi-core and multi-thread architecture, the service processing module ensures the high-speed concurrent processing of multiple services, such as the Network Address Translation (NAT), Application Specific Packet Filter (ASPF), Anti-DDoS, and VPN. E8000E adopts the distributed concurrent processing mechanism, which greatly enhances the product performance. Thus, users can expand capacities with low pre-phase investment.

High firewall performance

— guaranteeing

users’ key services

The three main indexes of the E8000E, throughput, number of

■

connections established per second, and maximum number of concurrent connections, are in leading roles. The throughput of

one service processing module of E8000E is 20 G; the number of connections established per second is 500,000; and the maximum

number of concurrent connections is 8,000,000. Furthermore, E8000E has a maximum of eight service processing modules and

its entire throughput reaches 160 G; the number of connections

established per second is 4,000,000; the maximum number of concurrent connections is 64,000,000; and the number of virtual firewalls is 1024. The high performance and expandability of E8000E can meet high-end users’ requirements for high performance.

Stable and reliable security gateway — ensuring

consistency of users’ services

Network security is a key point for enterprise operations. E8000E

■

supports the redundant components, such as interface, fan, and power, networking of hot swap, dual processing engine, master/ backup, master/master, and high reliability. Different service boards of E8000E support the load balancing and mutual hot

backup, so the abnormity of a single board will not influence the

entire system. Meanwhile, together with BYPASS devices, services will not be interrupted even if faults or power failures occur on devices. The mean time between failures of E8000E is as long as 500,000 hours, and the failover time is less than 0.1 second. These ensure the consistent and stable service operations.

Optimal VPN performance — adapting to

requirements for encrypted transmission of mass

services

With the increase of network applications, more and more

■

services need to be transmitted on the public network safely.

Subsequently, services that require mass VPN access gateway

and E8160E. The E8160E provides industry-leading security protection capability and scalability. It supports 16 extension

slots. The maximum firewall throughput reaches 160 Gbps; the IPS performance is 64 Gbps; the number of new connections per second is 4M, and 64M concurrent connections are supported;

the VPN performance is 96 Gbps. The E8080E adopts the same software and hardware architecture as the E8160E. The E8080E, however, supports only 8 extension slots, and its integrated performance is just half that of the E8160E.

The SPU, heart of the E8000E, processes all services.To realize

flexible configuration, the board combination design is adopted. Each SPU contains two parts, that is, the mother board and extension board, which can be deployed either independently or separately. The mother board provides 10G firewall performance and the mother board+extension board provides 20G firewall performance.The SPU adopts the multi-core+multi-processor hardware and implements service features through software

modules. The heartbeat detection mechanism is realized between

the SPU and LPU. Moreover, the SPU supports mutual backup.When an SPU is faulty, all its traffic is immediately distributed to other SPUs, preventing service interruption.

The LPU, limb of the E8000E, is responsible for external connection and data transmission.The LPU integrates the high-speed network processor to ensure flexibility.Certain firewall functions can be

implemented on the LPU, which significantly reduces the pressure of

the SPU.The network processor provides special processing design for each type of packets, for example, dedicated co-processor for hardware-based table searching and professional bit operation

design, enabling unique advantage for small packet processing. Thus, the E8000E can realize almost-line-rate performance when processing mixed traffic on the network.Through the interworking

between the LPU and SPU, the E8000E delivers high performance for services processing, as well as sound scalability.

(3)

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

of 100-Gigabit emerge, such as mobile security access, Short Message Service (SMS) push, and email push. E8000E provides a maximum of 96 Gbps encryption and decryption performance and supports 320,000 concurrent VPN tunnels, which is the VPN access gateway of the highest performance for the moment. E8000E also supports the IKEv2 protocol and enhances the functions of user authentication, packet authentication, and NAT

traversal. Thus, E8000E eliminates the hidden hazards of the

middleman attack and the DDoS attack, and supports wireless authentication protocols, such as EAP-SIM and EAP-AKA, which effectively ensures the wireless network security.

Practical IPS feature — defending against

external threats and promoting network security

The core technologies of the IPS are embodied in the detection

■

engine performance, signature identification efficiency, and integrated processing performance. Adopting the advanced IPS detection engine and mature signature database, Huawei E8000E defends against various threats, including system vulnerabilities,

unauthorized automatic downloading, spoofing software,

spyware/adware, abnormal protocols, and P2P anomalies' single vulnerability-based signature covers thousands of attacks. Supplemented with globally deployed honeypot system, the E8000E can capture the latest attack, worm, and Trojan horse

features, thus providing zero-day attack defense capability. Moreover, the practicability of the IPS is significantly promoted.

The E8000E adopts internal off-line and "one board one feature"

technologies; certain necessary service traffic is split to the

dedicated SPU. In so doing, the service processing capability is

improved; further more, the traffic processing does not affect the basic services of the firewall, ensuring service continuity.

Product Specification

Models E8080E E8160E

Performance

Firewall throughput (Max) 80Gbps 160Gbps

Firewall throughput (IMIX) 80Gbps 160Gbps

Firewall throughput (HTTP) 78Gbps 156Gbps

Firewall packets per second (64bytes) 30Mpps 60Mpps

IPSec VPN performance (3DES) 48Gbps 96Gbps

IPSec VPN performance (AES) 48Gbps 96Gbps

Maximum IPS performance 32Gbps 64Gbps

New sessions per second 2M 4M

Maximum concurrent sessions 32M 64M

Maximum security policies 128K 128K

Maximum users supported unrestricted unrestricted

MAC table size 128K/LPU 128K/LPU

Connectivity

Available slots 8 (SPU+LPU) 16 (SPU+LPU)

Main control slots 2 2

SPU options Mother board: 2CPU + 8G memory

Daughter board: 2CPU + 8G memory

Interfaces ETH: 24×GE / 2×10GE / 1×10G+12×GE

POS: OC192 Firewall basic feature

Working mode Transparent / Routing / Hybrid

ASPF Yes

Access control Yes

State validation detection Yes

Black/White list Yes

Virtual Firewall Yes

(4)

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Application level recognition Yes Defense of DDoS attack

Bi-directional protection Yes

SYN Flood Yes

SYN-ACK Flood Yes

FIN/RST Flood Yes

UDP Flood Yes

DNS Query Flood Yes

HTTP Flood Yes

ICMP flood Yes

Intrusion Prevention System

Stateful protocol signatures Yes Simple Configuration IPS Yes

Attack detection mechanisms Abnormal protocol / Abnormal traffic / Pattern matching Attack response mechanisms Drop connection / Close connection / log / email

Worm protection Yes

zero Day attack protection Yes

Trojan protection Yes

Adware/key logger protection Yes Web Attack Toolkit Attack detection Yes Web 2.0 Attack protection Yes Drive by download attack prevention Yes

Botnet Protection Yes

Protection against attack proliferation from

infected systems Yes

Interception protection Yes

Application level DDoS attacks protection Yes Compound attacks protection Yes Vulnerability-based signature database Yes Multi-levels compressed file Yes Independent PDF detection Yes Custom attack signatures Yes Attack editing (port range) Yes

Stream signatures Yes

Overload protection Yes

Approximate number of attacks covered 8000+ NAT

Destination NAT/PAT Yes

Destination NAT within same subnet as ingress

interface IP Yes

Destination addresses to one single address

(M:1) Yes

Destination addresses to another range of

addresses (M:M) Yes

NO-PAT Yes

PAT Yes

Source NAT - IP address persistency Yes

Source pool grouping Yes

Source IP outside of the interface subnet Yes

NAT Server Yes

(5)

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

NAT-ALG Yes

Unlimited address expansion Yes Policy-based destination NAT Yes VPN

IPSec VPN tunnels 320K

DES/3DES/AES encryption Yes

MD-5 and SHA-1 authentication Yes Manual key, PKI (X.509), IKEv2 Yes Perfect forward secrecy (DH groups) 1, 2, 5

Prevent replay attack Yes

Remote access VPN Yes

EAP certification Yes

Redundant VPN gateways Yes

GRE Tunnel 8192

High Availability

Active/passive active/active Yes Configuration synchronization Yes Session synchronization for firewall and IPSec

VPN Yes

Device failure detection Yes

Link failure detection Yes

Dual control Yes

User Authentication and Access Control

Built-in (internal) database Yes

RADIUS accounting Yes

Web-based authentication Yes Public Key Infrastructure (PKI)

PKI certificate requests (PKCS 10) Yes

Certificate authorities Yes

Self-signed certificates Yes Routing

BGP routes 200K

BGP peers 1000

BGP instances 1000

OSPF routes 200K

OSPF instances 2000

RIP v2 table size 200K

RIP v1/v2 instances 2000

Dynamic routing Yes

Static routing Yes

Source-based routing Yes

Policy-based routing Yes

PBR instances 1024

FIB Yes

Routing iteration Yes

IPv6

State filtering Yes

OSPFv3 Yes

BGP4+ Yes

ISIS6 Yes

(6)

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

Eudemon8000E Series

10-Gigabits IPS security gateway

General Disclaimer

The information in this document may contain predictive statements including,

without limitation, statements regarding the future financial and operating results,

future product portfolio, new technology, etc. There are a number of factors that could cause actual results and developments to differ materially from those expressed or implied in the predictive statements. Therefore, such information is provided for reference purpose only and constitutes neither an offer nor an acceptance. Huawei may change the information at any time without notice.

HUAWEI TECHNOLOGIES CO., LTD. Huawei Industrial Base Bantian Longgang Shenzhen 518129, P.R. China Tel: +86-755-28780808 Version No.: M3-110019999-20110629-C-1.0

www.huawei.com

IPv6 ACL Extended Yes

IPv6 interface statistic Yes

NATPT (4 to 6, 6 to 4,) Yes

IPv6 ND Yes

Virtualization

Maximum security zones Root firewall: 32 Virtual firewall: 8 Maximum virtual firewall 1024

Maximum VLAN supported per interface 4094 Management

WebUI (HTTP and HTTPS) Yes

CLI (console) Yes

CLI (telnet) Yes

CLI (SSH) Yes

U2000/VSM network management Yes Level-based administrator Yes

Software upgrade Yes

Configuration rollback Yes

Logging/Monitoring

Structured syslog Yes

SNMP (v2) Yes

Binary log Yes

Traceroute Yes

Logging server (eLog) Yes

Dimensions and Power

Dimensions (W×H×D) 442×669×886 442×669×1600

Weight 100Kg 150Kg

AC Power supply AC: 180~275V; 50/60Hz AC: 180V~264V; 50/60Hz

DC Power supply DC: -75~-38V DC: -75~-38V

Maximum Power draw 3000W 5000W

Operating temperature 0~45°C 0~45°C

Humidity 0~95% 0~95%

Certification

Safety certification Yes

EMC Yes

CB Yes

Rohs Yes

FCC Yes

MET Yes

C-tick Yes
