Influence of oxygen in the sputter gas

on creating a conducting interface in

LaAlO

3

/SrTiO

3

THESIS

submitted in partial fulfillment of the requirements for the degree of

MASTER OF SCIENCE

in PHYSICS

Author : C.S. Remeijer BSc

Student ID : 0778745

Supervisor : Prof. dr. J. Aarts

C. Yin MSc

2ndcorrector : Prof. dr. ir. T.H. Oosterkamp

(2)
(3)

Influence of oxygen in the sputter gas

on creating a conducting interface in

LaAlO

3

/SrTiO

3

C.S. Remeijer BSc

Huygens-Kamerlingh Onnes Laboratory, Leiden University P.O. Box 9500, 2300 RA Leiden, The Netherlands

22 February 2019

Abstract

In this study we investigate if we can change the interfacial conductivity in

LaAlO3/SrTiO3heterostructures by adding some oxygen to the argon sputter

gas.

We vary the deposition parameters to minimise the effect of the oxygen. We find that an increase in oxygen partial pressure increases the surface roughness. We also find that an increase in argon flow increases surface roughness. The optimised parameters, which minimise surface roughness, are in agreement with previous results of growing a conducting interface in LaAlO3/SrTiO3by

sputter-ing. However all our samples grown with oxygen are found to be insulatsputter-ing. A possible explanation for the effect of oxygen in the sputter gas is that the species oxidise before reaching the sample.

(4)

Contents

1 Introduction . . . . 5

2 Theory . . . . 7

2.1 LaAlO3/SrTiO3heterointerface . . . 7

2.2 Sputtering . . . 14

3 Experimental methods . . . . 17

3.1 Substrate termination . . . 17

3.2 Thin film deposition . . . 21

3.2.1 90° off-axis sputter machine . . . 21

3.2.2 Sputter deposition procedure . . . 22

3.3 Sample characterization . . . 26

4 Results . . . . 29

4.1 Total pressure . . . 29

4.2 Oxygen partial pressure . . . 33

4.3 Sputter power and temperature . . . 37

4.4 Control measurements . . . 40

5 Discussion . . . . 43

6 Conclusion . . . . 47

References . . . . 49

(5)

Chapter

1

Introduction

In 2004 Ohtomo & Hwang discovered a conducting two-dimensional layer with a high electron mobility at the interface of LaAlO3(LAO) and SrTiO3(STO) [1].

Its discovery stimulated many investigations into oxide heterostructures. The LAO/STO interface exhibits a wide range of intriguing physical phenomena des-pite STO and LAO being simple band insulators. LAO/STO has been reported to display interfacial superconductivity [2], magnetism [3, 4], a gate tunable insu-lator to superconductor transition [5] and gate tunable spin-orbit interactions [6]. Oxide heterostructures are of interest as electronic devices because they exhibit a high degree of tunability and a wide variety of physical phenomena. However the mechanism behind the interfacial conductance and other phenomena is still not clear despite the many investigations.

Ohtomo & Hwang used pulsed laser deposition (PLD) to make LAO/STO and ever since it is the most common growth method for LAO/STO heterostructures. In PLD laser pulses ablate particles from a target, which then transfer to a sub-strate as a plasma plume and form a thin film. PLD can be performed in vacuum, but oxides are usually grown with an appropriate oxygen background to deposit crystalline films with the correct oxygen stoichiometry [7]. A disadvantage of PLD is that the high energy incident particles cause oxygen vacancies and cation intermixing at the interface [8].

(6)

6 Introduction

The insulating nature of stoichiometric samples calls into question the electronic reconstruction model for the conducting interface. The results from MBE and sputtering support the oxygen vacancy model instead.

Sputtering has the advantage over PLD that it is a scalable process. The ability to produce larger samples is an important aspect for industrial applications. Sputtering is also cheaper than PLD.

Initial attempt to make a conducting interface in LAO/STO by sputtering gave insulating samples with a high La/Al ratio of 1.1 [11, 12]. The samples were grown in high oxygen pressure with an on-axis geometry. Later Podkaminer et al. [13] demonstrated that sputtering can give interfacial conductance by using a 90° off-axis sputter geometry and sputtering in argon.

The gas pressure is an important growth parameter in both PLD and sputter-ing. The switch of sputter geometry lowered the necessary gas pressure, but Podkaminer et al. also changed the sputter gas from oxygen to argon. They also tried a mixture of oxygen and argon in a 3:4 ratio and found only insulating interfaces [13]. These oxygen partial pressures are quite high though.

(7)

Chapter

2

Theory

2.1

LaAlO

3

/SrTiO

3

heterointerface

In this section we describe the materials studied in this research project, i.e.

SrTiO3(STO) and LaAlO3(LAO), and how a two-dimensional conducting layer

can form at the interface of the LAO/STO heterostructure.

LAO and STO

Strontium titanate and lanthanum aluminate are both band insulators with a perovskite structure. Table 2.1 lists their most important material properties.

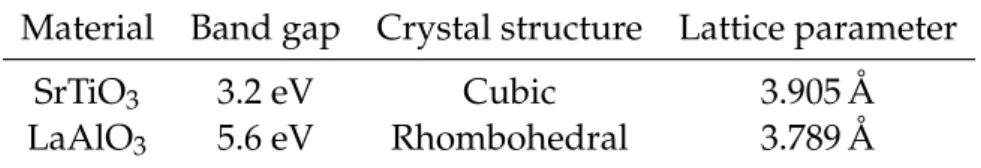

Table 2.1:Material properties of STO and LAO at room temperature.

Material Band gap Crystal structure Lattice parameter

SrTiO3 3.2 eV Cubic 3.905 ˚A

LaAlO3 5.6 eV Rhombohedral 3.789 ˚A

Perovskite oxides have a chemical formula of the form ABO3. Figure 2.1 shows

the perovskite structure with a larger A and a smaller B cation and three oxygen atoms per unit cell. The A atom is located at the cube corner (0, 0, 0), the B atom is located at the body-centred position (1/2, 1/2, 1/2) and the oxygen atoms sit at face-centred positions, e.g. (1/2, 1/2, 0). The A and B cations can take several charge values to make the ABO3structure neutral, e.g. A4+B2+or A3+B3+

(8)

8 Theory

Figure 2.1: Ideal cubic perovskite structure. The green atoms are the larger A cations located at the cube corners, the blue atoms the smaller B cations located at the body-centred positions and the red atoms are the oxygen atoms located at the face-body-centred positions.

Sr has valence state Sr2+and Ti has several valance states of which Ti4+and Ti3+ are the most common so neutral STO has Sr2+Ti4+O3 electronic configuration.

The valance state of La is La3+and of Al it is Al3+so neutral LAO has La3+Al3+O3

electronic configuration. The (001) planes of these ABO3materials are

alternat-ing AO and BO2 planes. In the (001) direction STO can be seen as a stack of

alternating neutral (001) planes (SrO)0and (TiO2)0. LAO can be seen as a stack

of alternating polar (001) planes of (LaO)+and (AlO2)−.

The LAO/STO heterostructure we discuss here is epitaxially grown LAO on STO cleaved in the (001) direction. The STO crystal has a small miscut angle giving rise to a mixed termination of TiO2and SrO. It is possible to make the surface

singly terminated. LAO grown on TiO2-terminated STO always starts with

LaO and LAO grown on SrO-terminated STO starts with AlO2[1]. Figure 2.2a

shows LAO grown on TiO2-terminated STO resulting in the (LaO)+/(TiO2)0

interface and figure 2.2bshows LAO grown on SrO-terminated STO resulting

in the (AlO2)−/(SrO)0interface. The lattice mismatch between LAO and STO is

(9)

2.1 LaAlO3/SrTiO3heterointerface 9

a b

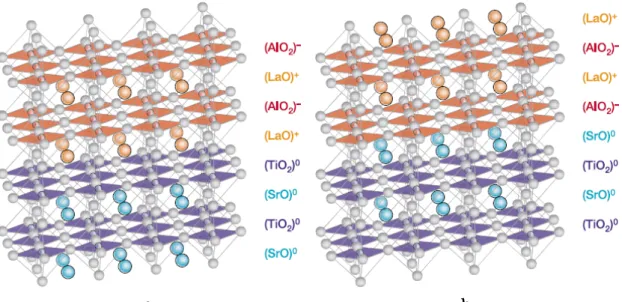

Figure 2.2: Schematic models of the two possible interfaces between LaAlO3 and

SrTiO3in the (001) orientation. aSchematic of the resulting (LaO)+/(TiO2)0interface,

showing the composition of each layer and the ionic charge state of each layer. b

Schem-atic of the resulting (AlO2)−/(SrO)0interface. Figure reprinted from [1].

Interfacial conductance

Ohtomo & Hwang [1] showed in 2004 that the n-type (LaO)+/(TiO2)0interface

is conducting. It has a high carrier density (1.05×1013cm−2 at 250 mK) and a very high carrier mobility (2.9×103cm2·V−1·s−1 at 250 mK) [14]. The two-dimensional nature of the interfacial conductance was proven several years later by Shubnikov–de Haas experiments [14]. The conducting interface is also called a two-dimensional electron gas (2DEG), a two-dimensional electron liquid (2DEL) or a two-dimensional electron system (2DES).

Conducting interfaces have also been found in LAO/STO for the (110) and (111) orientations of STO [15, 16] and in STO based heterostructures with other polar layers such as LaVO3[17], LaTiO3[18] and NdGaO3[19]. Several models have

been proposed to explain the interfacial conductance: electronic reconstruction, oxygen vacancies and cation intermixing.

Electronic reconstruction

(10)

10 Theory

Nakagawa et al. [20] proposed an electronic reconstruction in order to prevent the potential from diverging. Unlike in semi-conductors where only the ions can move, in oxide structures the electrons can move so that the ions do not have to. If a mixed valance state is available and the cost of redistributing electrons is lower than redistributing ions then a mixed valance charge compensation can occur. Figure 2.3a,cshows the electronic reconstruction of the (LaO)+/(TiO2)0

interface. Half an electron per unit cell is transferred from the LAO surface to the (LaO)+/(TiO2)0interface, where the Ti4+ion becomes Ti3.5+. This electronic

reconstruction makes the (LaO)+/(TiO2)0interface a n-type interface with half

an electron per two-dimensional unit cell available at the interface. Figure 2.3 does not show the surface of the LAO, but at the surface oxygen vacancies avert the polar catastrophe leading to an insulating surface [21].

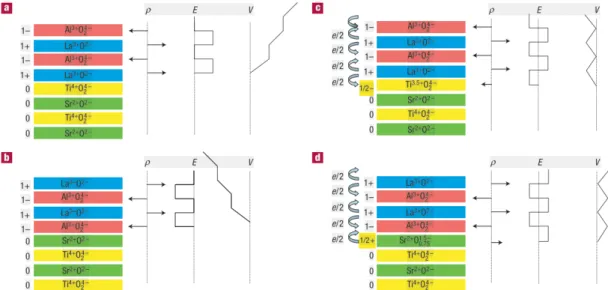

Figure 2.3: The polar catastrophe illustrated for atomically abrupt (001) interfaces between LaAlO3and SrTiO3. aThe unreconstructed interface has neutral (001) planes

in SrTiO3, but the (001) planes in LaAlO3have alternating net charges (ρ). If the interface

plane is (LaO)+/(TiO2)0, this produces a non-negative electric field (E), leading in turn

to an electric potential (V) that diverges with thickness. b If the interface is instead

placed at the (AlO2)−/(SrO)0plane, the potential diverges negatively.cThe divergence

catastrophe at the (LaO)+/(TiO2)0interface can be avoided if half an electron is added to

the last Ti layer. This produces an interface dipole that causes the electric field to oscillate

about 0 and the potential remains finite. d The divergence for the (AlO2)−/(SrO)0

interface can also be avoided by removing half an electron from the SrO plane in the form of oxygen vacancies. Figure reprinted from [20].

At the (AlO2)−/(SrO)0interface the polar catastrophe can be averted by

(11)

2.1 LaAlO3/SrTiO3heterointerface 11

Figure 2.3b,dshows the atomic reconstruction of the (AlO2)−/(SrO)0interface.

This interface was expected to be p-type, but until recently experiments showed that this interface is insulating [1]. No mixed valance states are available (Sr3+ and Ti5+ are energetically inaccessible) so an atomic reconstruction was thought to be required to avert the polar catastrophe leading to an insulating interface, introducing oxygen vacancies in the top SrO layer [20].

In 2018 Lee et al. [21] found simultaneous conducting interfaces, both a 2DEG and a two-dimensional hole gas (2DHG), in a STO/LAO/STO heterostructure. Growing this heterostructure in the correct conditions prevents positive ionic charges in the form of oxygen vacancies from averting the polar catastrophe at the p-type interface. They found p-type conduction with only holes as carriers.

Thiel et al. [22] showed that a critical thickness of 4 unit cells of LAO is needed for the conducting interface to form. The internal electric field in LAO due to the polar nature of the (001) layers builds up a potential that bends the electronic bands. At some critical thickness tc, see figure 2.4a, the valance band of LAO

reaches the energy of the conduction band of STO and a Zener breakdown occurs. Above the critical thickness electrons are transferred from the surface of LAO to the interface making it conducting. Interfacial conductivity of crystalline LAO on STO shows little dependence on LAO thickness beyond the critical thickness [23].

The simple electrostatic model in figure 2.4 by Reinle-Schmitt et al. [24] provided further evidence for the electronic reconstruction model. They calculated the critical thicknesstc of LAO according to equation 2.1 withe0the electric constant,

eLAOthe relative permittivity of LAO,∆Ethe difference in energy between the

valance band of LAO and the conduction band of STO,ethe electron charge and PLAO0 the formal polarization of LAO. This gives a critical thickness of 3.5 unit cells, in good agreement with experiment.

tc = e0eLAO∆E

e PLAO0 (2.1)

(12)

12 Theory

a b

Figure 2.4: Electrical potential build-up at polar interfaces. aThe band-level scheme shows band bending in the pure LAO layer of the valence band (VB) and conduction

band (CB), and the critical thicknesstcand potential build-upeVcrequired to induce the

electronic reconstruction.φnis the valence-band offset between STO and LAO.b

Schem-atic of the potential build-up as a function of its thickness t for LAO and LASTO:0.5,

assuming the same relative permittivity but different formal polarizationsP0induced by

the charge of the successive A-site and B-site sublayers. The critical thicknesses for the

electronic reconstruction are labelledt(c1)andt(c2)for LAO and LASTO:0.5, respectively.

Figure reprinted from [24].

Oxygen vacancies

The second proposed explanation is that oxygen vacancies in STO cause the interfacial conductance [25]. Oxygen vacancies are point defects in the lattice, an empty lattice site where normally an oxygen atom sits. Oxygen vacancies can be induced in STO by growing a film on top in reducing conditions [26].

Growing amorphous LAO, La2O3 or Al2O3 films on STO can also result in a

conducting interface [27]. At low enough oxygen pressure during deposition a redox reaction at the interface oxidises the deposited films and reduces the STO. These samples turn insulating after annealing in oxygen showing that the charge carriers of the conducting interface came from oxygen vacancies [27, 28].

(13)

elec-2.1 LaAlO3/SrTiO3heterointerface 13

tronic reconstruction and oxygen vacancies give interfacial conductance [29, 30]. These results also show that crystallinity is a requirement for the electronic re-construction to occur. A combined experimental and theoretical research by Slooten et al. [31] found that oxygen vacancies in the topmost AlO2layer of the

LAO can provide half an electron per unit cell to the interface thereby creating a conducting interface.

Cation intermixing

The third proposed explanation of the interfacial conductance is cation intermix-ing. Willmott et al. [32] performed surface x-ray diffraction and phase-retrieval measurements to show that the interface is not a smooth transition, but that there is cation intermixing in the interface. Sr and La intermix at greater depth than Al and Ti atoms leading to the formation of one or two monolayers of metallic La1-xSrxTiO3. Density functional theory calculations showed that the Fermi level

near the interface rises above the bottom of conduction band giving a conducting interface. The high energy of the incident particles in PLD leads to a strong tendency to intermix at the interface rather than form an abrupt transition [8].

Stoichiometry

Another factor that is important to the formation of the conducting interface is the stoichiometry. Warusawithana et al. [9] made LAO/STO heterostructures with molecular-beam epitaxy (MBE) and found that the LAO layer needs to be Al-rich to give interfacial conductance. Stoichiometric and La-rich samples are insulating. The maximum La/Al ratio for interfacial conductance to occur is 0.97. The stoichiometry can be controlled with PLD by tuning the laser fluence [23] and with sputtering by tuning the pressure [10].

Warusawithana et al. [9] argues that La vacancies can be filled by Al, but not the other way around, so in Al-rich samples an electronic reconstruction takes place. Breckenfeld et al. [23] on the other hand argues that Al-rich films induce oxygen reduction in the STO. In La-rich samples Al2O3-vacancy complexes form,

which leads to an atomic reconstruction and insulating samples [9]. However the cation vacancies argument for electronic reconstruction does not explain why stoichiometric samples made by MBE and sputtering are insulating. This result seems to support oxygen vacancies as the source of the interfacial conductance.

(14)

14 Theory

2.2

Sputtering

In this section we describe how the thin film deposition technique sputtering works and why we use RF magnetron sputtering in a 90° off-axis geometry.

Sputtering is a physical vapour deposition technique suitable to deposit (very) thin films. In sputtering atoms are ejected from a target by high energy ionized particles and then fly to a substrate. The ejected particles from the target, the species, arrive at the substrate and a thin film grows in a continuous way until sputtering is stopped.

In order to grow a pure film the target needs to be a high purity material and the sputtering needs to take place in a vacuum chamber. The chamber is evacuated to remove most contaminants and then a sputter gas, often argon as that is an inert gas, is let into the chamber for the sputtering process. Next a plasma needs to be created. Paschen’s law states that you need a minimum breakdown voltage to ignite a plasma depending on the pressure, distance and type of gas, which is why sputtering requires high voltages and a minimum gas pressure.

DC sputtering

Sputtering is most easily understood by considering DC sputtering. In DC sputtering a negative DC voltage is applied to the target, while the rest of the chamber is grounded, to ignite a plasma. The potential causes free electrons to flow away from the target material. The electrons collide with gas atoms, say argon for simplicity, knocking an electron from the argon atoms making them positively charged argon ions. The result of this collision is an argon ion and two electrons. The electrons can cause further collisions with argon atoms sustaining the plasma. Argon ions can also react with electrons becoming neutral again. This recombination releases energy in the form of a photon causing the plasma to glow.

Figure 2.5 shows a schematic representation of DC sputtering in an on-axis geometry. The argon ions are accelerated to the target by the negative potential and the collisions eject atoms from the target material. Atoms are only ejected if the incoming particle has sufficient energy to overcome the binding energy of the atoms in the target. Hence sputtering always needs high applied potentials.

(15)

2.2 Sputtering 15

Figure 2.5:Schematic representation of DC sputtering in an on-axis geometry.

to perform a random walk on the surface and find a place with low energy to sit. With the correct combination of sputter power, gas pressure, target-sample distance and sample temperature a thin films can be grown epitaxially.

RF magnetron sputtering

If the target material is conducting sputtering can be performed with a DC voltage, but if the target material is insulating then an applied negative DC voltage causes a charge build-up in the target. This causes electrical discharges. Sputtering of insulating materials is commonly done by RF sputtering. In RF sputtering an AC voltage is applied to the target and during the part of the cycle with negative voltage the gas ions continue to impact on the target. During the positive part of the cycle the charge build-up is removed preventing arcing from happening. The applied AC voltage usually has a radio frequency of 13.56 MHz, which is an international standard for RF power supply equipment.

(16)

16 Theory

90° off-axis sputtering

The most used sputter geometry is on-axis, where the sample is located in front of the target. This is the simplest geometry and gives the highest deposition rate as a larger part of the ejected particles from the target reaches the sample compared to other geometries. However the sputter machine used in this research has an off-axis sputter geometry. The sample is not located in front of the target, but at an angle. Here an angle of 90° is employed.

(17)

Chapter

3

Experimental methods

3.1

Substrate termination

In this section we describe the materials, equipment, machines and methods we use to process the as-received STO substrate. The goal of processing the STO is to make a TiO2-terminated STO substrate, which enables us to make a conducting

interface by depositing a thin layer of a few nanometre of LAO on top of it.

The used STO wafer has a small miscut angle and thus has a mixed SrO- and TiO2-termination. To obtain TiO2-terminated STO we etch the STO in a buffered

HF solution [33]. We clean the STO, immerse it in water, etch the STO in a buffered HF solution, clean it again and anneal it at high temperature in oxygen.

The STO substrate we use is a 5 mm×5 mm×0.5 mm piece of SrTiO3 (100)K

with a miscut angle of 0.2° to 0.3° that is polished on one side. The STO is bought from CrysTec.

We use several solvents to clean glassware, tweezers and substrates: deionized Type I water from Millipore (18.2 MΩ·cm at 25◦C), ethanol (C2H5OH) and

isopropanol (C3H7OH or 2-propanol).

(18)

18 Experimental methods

We use a digital optical microscope in a cleanroom to look for contaminants and large structures on our samples and to save images of this. This microscope has a magnification range from 50 to 1000 times.

Cleaning the STO (before etching)

The STO is cleaned by sliding Salm en Kipp lens paper with a little bit of isopro-panol applied to it over the substrate followed by sliding the substrate upside down over lens paper soaked in isopropanol while applying light pressure. We examine the substrate with an optical microscope and repeat if necessary.

The next step is removing smaller contaminants with an ultrasonic bath. The STO is sonicated in ethanol for 5 min, in isopropanol for 10 min and in Type I water for 30 min. During transfer from one solvent to the next we spray the next solvent on the substrate to keep it wet at all times.

The last step of sonicating in Type I water is not just for cleaning purposes, but also a crucial step to make nearly perfect TiO2-terminated STO. The SrO reacts

with H2O and CO2 at room temperature, which causes the topmost layer of

SrO-terminated domains to form a Sr-hydroxide complex, while the chemically very stable TiO2does not react with water. This Sr-hydroxide complex dissolves

much faster in an acidic solution than the TiO2[33].

HF etching

After the sonication in Type I water we transfer the STO to a beaker with a stand-ard commercially available buffered HF (BHF) solution. For the BHF we use a beaker made of polytetrafluoroethylene (PTFE) and we transfer the substrate into and out of the BHF with tweezers made of Ethylene

ChloroTriFluoroEthyl-ene (ECTFE). The BHF is a buffered HF solution (12.5 % HF and 87.5 % NH4F)

bought from J.T.Baker.

The BHF etches the Sr-hydroxide complex much faster than the TiO2allowing

us to obtain single TiO2-termination with the correct etching duration. After 30 s

we take the substrate out, dip it and move it around in two consecutive beakers with Type I water to wash away remaining BHF and put it in a third beaker with Type I water.

Cleaning the STO (after etching)

(19)

3.1 Substrate termination 19

isopropanol again and blowing it dry with nitrogen gas. This removes large contaminants. Note that the substrate has been immersed in liquid or been wet since it is put in ethanol for sonication. We examine the substrate with an optical microscope and repeat if necessary.

Figure 3.1:Optical microscope image with the contrast increased of a STO substrate after HF etching and cleaning. The substrate is very clean with only very few contaminants sitting near the edges of the substrate.

(20)

20 Experimental methods

Annealing STO

To facilitate recrystallization and further remove remnants of the HF etching the STO is annealed at 980◦C for 70 min. The substrates are placed on a quartz boat in a quartz tube through the oven and we let 100 sccm to 150 sccm of 5N oxygen flow through this tube. The temperature is raised at a rate of 16◦C·min−1and after the annealing the temperature setpoint is lowered at the same rate. The

temperature drops to≈50◦C in roughly two hours by opening the oven when

the temperature reaches 400◦C. Afterwards the oxygen flow is stopped and the substrates taken out of the oven.

We process three substrates simultaneously and we have checked the cleanliness of one batch of three substrates after annealing with the optical microscope. The substrates were very clean before the annealing and were also very clean after annealing.

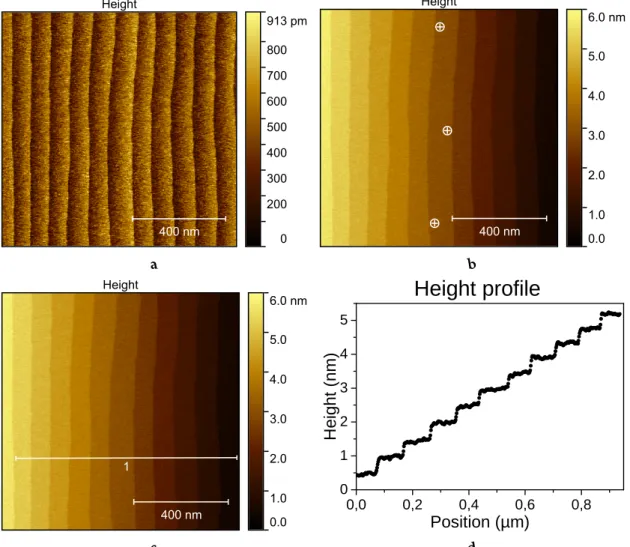

AFM STO

(21)

3.2 Thin film deposition 21

3.2

Thin film deposition

In this section we describe the materials, equipment, machines and methods we use to deposit LAO on top of the TiO2-terminated STO. The goal of sputtering

the LAO on the STO is to determine if some oxygen in the sputter gas affects the properties of the conducting interface.

3.2.1

90° off-axis sputter machine

We start with a description of the 90° off-axis sputter machine (hereafter just called sputter machine) we use and its components. A schematic view of the sputter machine and peripherals can be seen in figure 3.2.

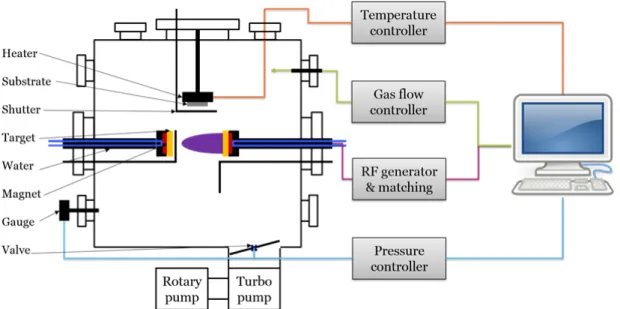

Figure 3.2:Schematic view of the 90° off-axis sputter machine including pumps, gauges and computer controlled operation. Image reprinted with permission from C. Yin.

The sputter machine has one vacuum chamber with a top cover that can be hoisted up to allow a sample to be inserted or taken out. To create the vacuum a TPU 261 PC turbomolecular pump from Pfeiffer Vacuum with a pumping speed of 170 L·s−1for N2is used backed by a Duo 10 M rotary vane pump from Pfeiffer

Vacuum with a maximum pumping speed of 12 m3·h−1to create a fore-vacuum. Between the turbo pump and the vacuum chamber a butterfly valve (BFV) from VAT is situated that can be opened in steps of 0.1%.

(22)

22 Experimental methods

5×10−3mbar to 10 mbar and a hot-cathode Bayard–Alpert ionization gauge

(hereafter called UHV gauge) from Kurt J. Lesker Company with a detection range of 10−9mbar to 10−4mbar. The Baratron is an absolute pressure gauge, whereas the Pirani and UHV gauge are gas-sensitive gauges.

The substrate is glued to a heater with silver paste, which is heated by resistive heating. The temperature of the heater is measured with a type K thermocouple. A molybdenum shutter, which can be rotated away or in front of the heater, is placed underneath the heater to shield the substrate from the plasma.

Mass flow controllers from Brooks Instrument are used to control the flow of gas into the sputter chamber. Three gases can be input: argon, oxygen and nitrogen. The minimum of these gases is 0.5 sccm (standard cubic centimetre per minute), a lower value can’t be set in a controllable way. The maximum flow of argon is 200 sccm and of oxygen 100 sccm.

The sputtering target is a 2 inch single crystal LAO wafer from MTI Corporation. The distance between the surface of the target and the axis of the heater is 45 mm and the distance between the surface of the heater and the axis of the target is 75 mm. Note that the correct total pressure for deposition depends on the working distance. The sputter machine has four targets in total and all targets have a molybdenum shutter, which can be rotated away or in front of the target, to shield the target from the plasma of another target.

To create the plasma a radio frequency (RF) sputter controller and impedance matching unit from Advanced Energy is used.

3.2.2

Sputter deposition procedure

In this subsection we describe the parameters and methods we use to sputter LAO on top of the TiO2-terminated STO.

Preparations for sputtering

Before inserting a substrate into the sputter machine we check the cleanliness of the substrate with the optical microscope and blow away any dirt with nitrogen gas.

(23)

3.2 Thin film deposition 23

substrate. Finally the substrate is pressed on the heater by applying some force to opposite corners of the substrate with tweezers tips.

After inserting the heater back in the sputter machine and pumping it down, the silver paste is baked to harden it. The silver paste bake-out consists of ramping to 200◦C with 5◦C·min−1, dwelling at 200◦C for 1 h and ramping back to 20◦C with 5◦C·min−1.

Setting temperature, gas flow and pressure

For sputtering in oxygen and argon the heating program consists of ramping up to the desired temperature with 25◦C·min−1, dwelling at that temperature

for the pre-sputtering and sputtering and then ramping back to 20◦C with

10◦C·min−1.

For sputtering in argon the heating program includes annealing. The program is as follows: ramp up to 800◦C with 25◦C·min−1, dwell at 800◦C for the pre-sputtering and pre-sputtering, ramp down to 600◦C with 10◦C·min−1, dwell for 1 h and then ramp back to 20◦C with 10◦C·min−1.

When the temperature has almost reached the desired value, we close the BFV or set it to a low setpoint and start the gas flow into the sputter chamber. The mass flow controller adjusts the gas flow quickly and the new flow is reached within a second. If oxygen is used, nitrogen gas is let into the turbo pump directly to protect it from oxidation.

We use two methods to control the total pressure: pressure control and position control. For pressure control a calibration has been made of the correct combin-ation of flow and CPA setpoint for a number of different pressures. After the gas flow(s) have been started the desired setpoint is set in the CPA and then the software controls the setpoint of the BFV with a feedback mechanism to attain the desired pressure. We use this method at first and for the control samples.

Position control does not have a feedback mechanism. It has a wider range of possible combinations of flow and pressure because the feedback mechanism leads to a heavily oscillating BFV if the flow is too high. With position control the gas flow(s) are started and the BFV is set to a fixed position. After a couple of minutes the pressure is stabilized. This method requires a separate calibration to find out which BFV positions give the desired pressures for different total flows.

(24)

24 Experimental methods

pressure step of≈0.4×10−2mbar. In order to exactly attain the desired pressure the flow might need to be adjusted.

Oxygen partial pressure

The Pirani gauge is only used to measure rough vacuum when we vent or pump down the sputter machine. The Baratron gauge is used to measure the total pressure for sputtering. The UHV gauge is used to measure the base pressure after a night (or longer) of pumping down before sputtering a sample. The base pressure is a measure of how clean the sputter chamber and the substrate are.

The only pressure gauge that is an absolute pressure gauge is the Baratron. The oxygen partial pressures we are use are in the 10−4mbar to 10−3mbar regime, which is below the detection range of the Baratron. We calculate the oxygen partial pressure by multiplying the total pressure measured with the Baratron by the fraction of the oxygen flow of the total flow.

The pressure is a result of the continuous flow of gas into the sputter chamber and the continuous pumping of gas out of the chamber. However the pumping speed of a turbo pump depends on the mass of the molecule. The mass of argon is 40 u and the mass of oxygen is 32 u, which means that the pumping speed for oxygen is≈5 % higher than for argon*. We ignore this small difference in

pumping speed and assume the pressure ratio is the same as the flow ratio.

Pre-sputtering and sputtering

When the temperature, flow(s) and pressure are all set, we close the substrate shutter and make sure the LAO shutter is open. Then we turn on the RF sputter controller and the impedance matching unit, turn on the sputtering, look at the plasma to see if it looks normal, and pre-sputter for at least 15 min. We pre-sputter to make sure that any contaminants on the target are removed and that the plasma is stable.

After the pre-sputtering we open the substrate shutter, start a timer and set the remaining dwelling time for the heater to the remaining sputter time. After the desired sputter time we turn the sputtering off and the heating program starts to ramp down immediately.

When we sputter in argon and oxygen and use a fixed BFV setpoint we stop the argon flow after the sputtering is finished, but keep the oxygen flow and BVF

setpoint constant. When the temperature has dropped below 70◦C we stop the

*Working with Turbopumps, Introduction to high and ultra high vacuum production, Pfeiffer

(25)

3.2 Thin film deposition 25

oxygen flow and open the BFV completely. The sample is cooled down in the same oxygen partial pressure as it is sputtered in until the temperature is low enough that the oxygen is not mobile anymore.

When sputtering in pure argon we stop the argon flow after the sputtering is finished and open the BFV to pump away the argon. When the temperature has reached 600◦C we start the annealing.

Annealing LAO

To anneal a sample we close the BFV when the temperature has reached 600◦C, input 40 sccm oxygen and set the pressure in the CPA at 1 mbar. Then we anneal the sample for 1 h. Afterwards the heating program starts to ramp down and we stop the oxygen flow and open the BFV completely when the temperature has

dropped below 70◦C. The sample is cooled down in the same oxygen partial

(26)

26 Experimental methods

3.3

Sample characterization

In this section we describe the equipment, machines and methods we use to characterize the LAO/STO heterostructures by Atomic Force Microscope (AFM) imaging and resistance measurement.

Atomic Force Microscopy

To assess the structure of the surface of substrates and samples and to check for dirt too small to see with an optical microscope we use the Bruker MM-NS5 AFM. We use tapping mode in air and we use an OMCL-AC160TS cantilever bought from Olympus. It is made from silicon and has a nominal resonance frequency of 300 KHz and a nominal spring constant of 26 N·m−1.

An AFM has a cantilever hanging over a sample with a very sharp tip at the free end with a typical tip radius of 10 nm to 20 nm. The cantilever is driven to oscillate with a frequency near its resonance frequency. The tip oscillates between actually touching the surface and no contact at a distance of 50 nm to 100 nm from the surface. Proximity to the surface of the sample leads to interaction forces like Van der Waals forces and dipole-dipole interactions. The interaction forces between sample and tip changes the amplitude of the oscillation, which is kept constant with a feedback mechanism. The interaction forces also depend on the material the surface is made of. Different materials give a difference in phase, but height differences also give phase differences. The amplitude and the phase of the tip with respect to the driving signal are measured in addition to the height of the surface.

We use Gwyddion to process AFM images. AFM images can be levelled using different algorithms. The first algorithm we use is aligning rows, which can be done with e.g. a polynomial function, and the second algorithm is fitting a plane through three points. These points are circles with a certain radius and the averages of the circles are set to zero height, which levels the height of the entire image by the plane they define. If necessary data is tilted manually to make the terraces horizontal. We also make line scans and save the height profiles.

The surface roughness of samples was determined with Gwyddion. We define

the average surface roughness Sa of a 1 µm×1 µm area levelled by aligning

rows as the roughness of a sample.

AFM on STO

(27)

3.3 Sample characterization 27

whether the terraces are flat and straight and a larger area of 4 µm×4 µm is imaged to look at larger features and to more easily see surface defects and anomalies in the terraces on a larger scale. The larger area is scanned at a different spot than the smaller image, shifted by 3 µm.

400 nm 913 pm 0 200 300 400 500 600 700 800 Height a 400 nm 6.0 nm 0.0 1.0 2.0 3.0 4.0 5.0 Height b 400 nm 1 6.0 nm 0.0 1.0 2.0 3.0 4.0 5.0 Height c

0 , 0 0 , 2 0 , 4 0 , 6 0 , 8

0 1 2 3 4 5

H e i g h t p r o f i l e

H e ig h t (n m )

P o s i t i o n ( µ m ) d

Figure 3.3:AFM images of TiO2-terminated STO, where the colour represents the height

according to the scale bar. a,b Height images levelled by (a) aligning rows with a

polynomial function and (b) setting the plane defined by the indicated points to equal

height.cThe line scan from right to left withdthe height profile along this line.

Figure 3.3 gives an example of good quality TiO2-terminated STO. Figure 3.3ais

(28)

28 Experimental methods

smoothness and the step height. Figure 3.3dis the height profile of the line in figure 3.3c, which is an average over the width of 10 pixels.

The right half of the plateau around 1 nm in figure 3.3dhas an average height of 0.992 nm and the left half of the next plateau around 1.4 nm has an average height of 1.395 nm. The step height is 0.403 nm. The same procedure gives a step height of 0.384 nm between the terraces at 4.3 nm and 4.7 nm. Both values are close to the theoretical value for STO of 0.3905 nm. We look at only one step at a time and do not average over multiple steps and also take only half of a terrace to average over in order to look only at the step height and not at any residual tilt in the data.

AFM on LAO

After depositing the LAO the sample is taken out of the sputter machine and checked for cleanliness with the optical microscope. Then the sample is im-aged with the AFM to determine the surface morphology. A smaller area of 1 µm×1 µm is imaged to look closely at the surface and the terraces and a larger area of 4 µm×4 µm is imaged to look at larger features and to see whether the features of the small area are representative for the sample. Subsequent AFM images of the same sample are shifted by 3 µm.

Resistance measurement

We use a Fluke 115 True RMS multimeter to test whether the sample is conducting or insulating. We test all six combinations of corners for conductivity by pressing the sharp multimeter probe tips against the corner of the sample from above. The LAO itself is an insulator, but the metal tips of the multimeter probes penetrate the LAO layer that is only a few nanometre thick thereby contacting the interface and measuring its resistance. The highest resistance the multimeter can measure, the measurement limit, is 40 MΩ.

(29)

Chapter

4

Results

4.1

Total pressure

In this section we show the results of our first attempts to make a conducting interface by 90° off-axis sputtering with oxygen in the sputter gas and the results of determining the total pressure that gives the best surface morphology.

Parameters that are relevant for sputter deposition are the surface roughness (Sa), the total pressure (P), the oxygen partial pressure (PO2), the oxygen pressure as a percentage of the total pressure (%O2), the argon flow (QAr), the oxygen flow

(QO2), the RF sputter power (FP), the sample temperature (T) and the growth time (t). Each section contains a table with the deposition parameters of the samples discussed in that section, while appendix A gives an overview of the deposition parameters of all samples.

Yin et al. [10] have shown that a conducting interface can be made in a smooth film of LAO/STO by 90° off-axis sputtering in an argon environment. This was done with a pressure of 0.04 mbar to 0.08 mbar, an argon flow of 16 sccm

to 20 sccm, 50 W RF sputter power and a sample temperature of 800◦C. After

sputtering the samples were annealed in 1 mbar oxygen for 1 h to remove the oxygen vacancies induced in the STO substrate by sputtering at high temperature in a reducing atmosphere.

(30)

30 Results

We use the same sputter machine as in ref. [10] to make our samples. The deposition rate depends on the total pressure: 4.27 ˚A·min−1 at 0.04 mbar and 3.20 ˚A·min−1 at 0.10 mbar total pressure [10]. The samples we grow at higher total pressures are sputtered for longer in order to give all samples approximately the same thickness of 15 unit cells (≈5.6 nm).

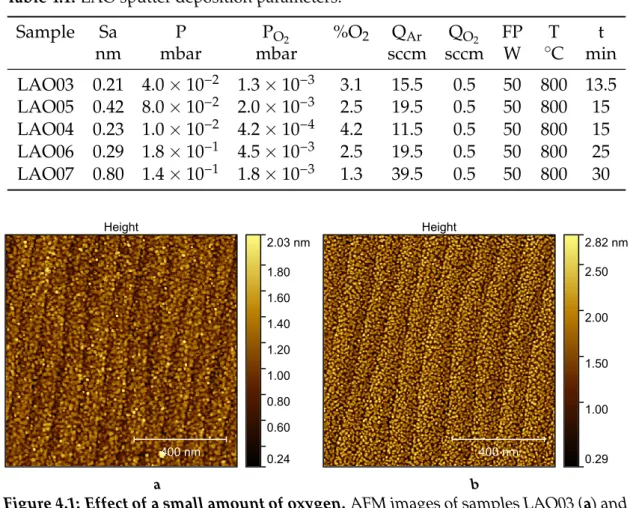

Table 4.1:LAO sputter deposition parameters.

Sample Sa P PO2 %O2 QAr QO2 FP T t

nm mbar mbar sccm sccm W ◦C min

LAO03 0.21 4.0×10−2 1.3×10−3 3.1 15.5 0.5 50 800 13.5

LAO05 0.42 8.0×10−2 2.0×10−3 2.5 19.5 0.5 50 800 15

LAO04 0.23 1.0×10−2 4.2×10−4 4.2 11.5 0.5 50 800 15

LAO06 0.29 1.8×10−1 4.5×10−3 2.5 19.5 0.5 50 800 25

LAO07 0.80 1.4×10−1 1.8×10−3 1.3 39.5 0.5 50 800 30

400 nm 2.03 nm 0.24 0.60 0.80 1.00 1.20 1.40 1.60 1.80 Height a 400 nm 2.82 nm 0.29 1.00 1.50 2.00 2.50 Height b

Figure 4.1: Effect of a small amount of oxygen. AFM images of samples LAO03 (a) and

LAO05 (b), where the colour represents the height according to the scale bar next to the

image.

We start by replicating the method in ref. [10] and replacing a bit of argon flow by

oxygen flow. We use the lower (4.0×10−2mbar, sample LAO03) and upper end

(31)

4.1 Total pressure 31

gas already has a significant effect on the surface morphology and transport properties of the LAO/STO samples.

400 nm 2.13 nm 0.00 0.50 1.00 1.50 Height a 400 nm 0.3 deg −46.1 −35.0 −30.0 −25.0 −20.0 −15.0 −10.0 −5.0 Phase b 400 nm 3.19 nm 0.00 0.50 1.00 1.50 2.00 2.50 Height c 400 nm 4.93 nm 0.61 1.50 2.00 2.50 3.00 3.50 4.00 4.50 Height d

Figure 4.2: Effect of lower and higher total pressure.AFM images of

samples LAO04 (a,b, 1.0×10−2mbar), LAO06 (c, 1.8×10−1mbar) and

LAO07 (d, 1.4×10−1mbar).

(32)

32 Results

Samples LAO04, LAO06 and LAO07 are grown with total pressures of

(33)

4.2 Oxygen partial pressure 33

4.2

Oxygen partial pressure

In this section we describe the results of our efforts to get the oxygen partial pressure as low as possible to reduce the effect the oxygen in the sputter gas has on the surface morphology and transport properties of the samples. This is accomplished by increasing the argon flow far beyond the flow used in ref. [10] and setting the pressure by position control instead of pressure control (see subsection 3.2.2). The oxygen flow used is 0.5 sccm for all samples (except for the control samples grown in pure argon).

Table 4.2:LAO sputter deposition parameters.

Sample Sa P PO2 %O2 QAr QO2 FP T t

nm mbar mbar sccm sccm W ◦C min

LAO08 0.24 7.7×10−2 4.8×10−4 0.63 79.5 0.5 50 800 15

LAO13 0.10 4.9×10−2 2.5×10−4 0.50 99.5 0.5 50 800 15

LAO14 0.14 4.9×10−2 2.0×10−4 0.42 119.5 0.5 50 800 15

LAO15 0.13 5.0×10−2 1.6×10−4 0.31 159.5 0.5 50 800 15

LAO24 0.29 5.0×10−2 2.5×10−4 0.50 99.5 0.5 50 800 15

400 nm 2.76 nm 0.00 0.50 1.00 1.50 2.00 2.50 Height a 400 nm 1.20 nm 0.00 0.20 0.40 0.60 0.80 1.00 Height b

Figure 4.3: Effect of a higher argon flow.AFM images of samples LAO08 (a, 80 sccm)

and LAO13 (b, 100 sccm).

(34)

34 Results

total pressure. 5×10−2mbar is closer to the lower end of the pressure regime that gives a conducting interface and allows the oxygen partial pressure to be lower compared to when using a higher total pressure.

Samples LAO08, the first sample made with position control, and LAO13 are grown with oxygen partial pressures of 4.8×10−4mbar and 2.5×10−4mbar and total flows of 80 sccm and 100 sccm respectively. Their deposition parameters can be found in table 4.2. Figure 4.3 shows the AFM images of samples LAO08 and LAO13. Sample LAO08 has a grainy surface with a roughness of 0.24 nm and sample LAO13 has terraces with what could be small islands on top and a roughness of 0.10 nm. Both samples are insulating.

400 nm 3.14 nm 2.07 2.40 2.60 2.80 3.00 Height a 400 nm 1.21 nm 0.15 0.40 0.60 0.80 1.00 Height b

Figure 4.4: Effect of an even higher argon flow.AFM images of samples

LAO14 (a, 120 sccm) and LAO15 (b, 160 sccm).

After the first sample that was not grainy, the argon flow is increased even more. Samples LAO14 and LAO15 are grown with oxygen partial pressures of 2.0×10−4mbar and 1.6×10−4mbar and total flows of 120 sccm and 160 sccm respectively. Their deposition parameters can be found in table 4.2. Figure 4.4 shows the AFM images of samples LAO14 and LAO15. Sample LAO14 has a grainy surface and sample LAO15 looks to have a lot of holes in its surface. In-creasing the flow beyond 100 sccm makes the surface morphology and roughness worse. Both samples are insulating.

(35)

4.2 Oxygen partial pressure 35

0 , 0 5 , 0 x 1 0 - 4

1 , 0 x 1 0 - 3

1 , 5 x 1 0 - 3

2 , 0 x 1 0 - 3 0 , 0

0 , 1 0 , 2 0 , 3 0 , 4

R o u g h n e s s v s . o x y g e n p a r t i a l p r e s s u r e

R

o

u

g

h

n

e

s

s

(

n

m

)

O x y g e n p a r t i a l p r e s s u r e ( m b a r ) 0 . 0 5 m b a r

0 . 0 8 m b a r

Figure 4.5: Effect of the oxygen partial pressure on surface roughness.Surface rough-ness as a function of oxygen partial pressure for two different total pressures.

(36)

36 Results

400 nm

2.46 nm

0.00 0.50 1.00 1.50 2.00 Height

a

400 nm

36.8 deg

22.5 26.0 28.0 30.0 32.0 34.0 Phase

b

(37)

4.3 Sputter power and temperature 37

4.3

Sputter power and temperature

In this section we describe the results of varying two important parameters in the sputtering process: the sputter power that attracts the gas ions to the target and the temperature of the sample, which gives the species arriving at the sample the needed energy and mobility on the surface to form a smooth thin film.

Table 4.3:LAO sputter deposition parameters.

Sample Sa P PO2 %O2 QAr QO2 FP T t

nm mbar mbar sccm sccm W ◦C min

LAO10 0.26 6.2×10−2 3.9×10−4 0.63 79.5 0.5 50 850 15

LAO18 0.14 4.9×10−2 3.1×10−4 0.63 79.5 0.5 50 750 15

LAO16 0.38 4.9×10−2 2.5×10−4 0.50 99.5 0.5 30 800 25

LAO17 0.33 5.1×10−2 2.6×10−4 0.50 99.5 0.5 80 800 9.5

In finding the best total pressure and oxygen partial pressure we used the same sputter power and deposition temperature as in ref. [10]. Having found the best pressures we vary the sample temperature: a sample with higher temperature and one with lower temperature is made.

Samples LAO10 and LAO18 are grown with sample temperatures of 850◦C

and 750◦C respectively. Their deposition parameters can be found in table 4.3. Figure 4.7 shows the AFM images of samples LAO10 and LAO18. Sample LAO10 has a grainy surface with a strange pattern, which makes it hard to say something about surface composition. Sample LAO18 has a lot of very small islands. The height difference between the islands and the terraces is quite small, below 1 nm, and the islands are also visible in the phase image with a small positive phase difference of about 2°. The phase difference is quite small as well, which means that the islands are probably made of LAO. Changing the sample temperature makes the surface morphology worse. Both samples are insulating.

Next the sputter power is varied. We make a sample with higher power and one with lower power. The sputter time is decreased and increased accordingly to give these samples the same approximate thickness as the other samples.

(38)

38 Results 400 nm 3.35 nm 0.00 1.00 1.50 2.00 2.50 3.00 Height a 400 nm 17.1 deg 12.0 13.0 14.0 15.0 16.0 Phase b 400 nm 1.34 nm 0.22 0.40 0.60 0.80 1.00 1.20 Height c 400 nm 9.49 deg 3.22 5.00 6.00 7.00 8.00 Phase d

Figure 4.7: Effect of higher and lower sample temperature. AFM images of samples

LAO10 (a,b, 850◦C) and LAO18 (c,d, 750◦C).

(39)

4.3 Sputter power and temperature 39 400 nm 2.89 nm 0.00 0.50 1.00 1.50 2.00 2.50 Height a 400 nm 143 deg 128 132 134 136 138 140 Phase b 400 nm 3.03 nm 0.00 0.50 1.00 1.50 2.00 2.50 Height c 400 nm 5.6 deg −2.5 −1.0 0.0 1.0 2.0 3.0 4.0 Phase d

Figure 4.8: Effect of lower and higher sputter power.AFM images of samples LAO16

(40)

40 Results

4.4

Control measurements

In this section we describe the results of two different control measurements. In order to compare the insulating samples grown with some oxygen in the sputter gas to samples grown in only argon we make a control sample with a low argon flow and a control sample with an argon flow of 100 sccm.

Table 4.4:LAO sputter deposition parameters.

Sample Sa P PO2 %O2 QAr QO2 FP T t

nm mbar mbar sccm sccm W ◦C min

LAO22 0.07 5.0×10−2 16 50 800 14

LAO23 0.11 4.9×10−2 100 50 800 14

400 nm 5.1 nm 0.0 1.0 2.0 3.0 4.0 Height a

0 , 0 0 , 2 0 , 4 0 , 6 0 , 8

1

2

3

4

5

H e i g h t p r o f i l e

H e ig h t (n m )

P o s i t i o n ( µ m ) b

Figure 4.9: aAFM image of sample LAO22.bHeight profile of the line inafrom left to right.

Sample LAO22 is the first control sample. It is grown in only argon using pressure control with the same flow as in ref. [10]. Its deposition parameters can be found in table 4.4. Note that the control samples are annealed in oxygen after sputter deposition to remove the oxygen vacancies induced in the STO by sputtering at high temperature in a reducing atmosphere. Figure 4.9ashows an AFM image of sample LAO22 with a 10 pixels wide line scan perpendicular to the terraces and figure 4.9bshows the height profile of the line in figure 4.9a, which is an average over the width of 10 pixels. The sample has flat terraces, a roughness of 0.07 nm and is conducting.

(41)

4.4 Control measurements 41

400 nm

7.5 nm

0.0 2.0 3.0 4.0 5.0 6.0 Height

a b

Figure 4.10: aAFM image of sample LAO23. bMultimeter resistance measurement.

the lowest surface roughness. Its deposition parameters can be found in table 4.4.

Figure 4.10ashows an AFM image of sample LAO23 and figure 4.10ban image

of measuring the resistance with the multimeter. The surface is slightly rougher than that of the first control sample, but is almost smooth with a roughness of 0.11 nm, comparable to the roughness of sample LAO13. Sample LAO23 is conducting. Pressing the multimeter contacts against the sample gave a resistance of the order of 9 MΩat room temperature.

At a certain moment we switched from the pressure control method to the posi-tion control method. This enabled us to reduce the oxygen partial pressure while keeping the total pressure constant by increasing the total flow. Figure 4.5 shows that for 2.5×10−4mbar to 2×10−3mbar decreasing the oxygen partial pressure decreases the roughness. This effect is visible at two different total pressures while keeping the other growth parameters constant. The samples grown at

0.05 mbar total pressure show a minimum in roughness at 2.5×10−4mbar. We

believe this is due to the effect of the increased flow necessary to reduce the oxygen partial pressure. Beyond the optimum the roughness increases again as the effect of the increase in flow is larger than the effect of the decrease in oxygen partial pressure.

(42)

42 Results

0 2 0 4 0 6 0 8 0 1 0 0 1 2 0 1 4 0 1 6 0

0 , 0 0 , 1 0 , 2

R o u g h n e s s v s . f l o w

R

o

u

g

h

n

e

s

s

(

n

m

)

F l o w ( s c c m )

O x y g e n A r g o n

Figure 4.11: Effect of the flow on surface roughness. Surface roughness as a function of gas flow with and without oxygen in the sputter gas.

(43)

Chapter

5

Discussion

In this chapter we discuss the results of our research and the experimental details and limitations of our research. We also present a possible explanation of the effect the oxygen in the sputter gas has.

We have used the calibration of ref. [10] for the deposition rate. We have not measured the LAO thickness of our samples. The LAO layer needs to be at least four unit cells thick in order to create a conducting interface in LAO/STO [22]. All samples have a LAO thickness between 10 and 20 unit cells, a regime in which the interfacial conductivity shows little dependence on thickness [34].

AFM measurements measure height, but other information like the phase and amplitude of the tip relative to the drive signal are also recorded. The exact composition of the surface can not be determined with AFM measurements, but AFM images can be used for qualitative statements about surface composition. The phase of the tip relative to the drive signal is different for different materials, but a height difference also leads to a phase difference. A significant phase difference with a very small (<1 nm) height difference is a strong indication that the surface consists of regions of different materials.

(44)

44 Discussion

Growth parameters

The first objective was to make samples with a smooth surface grown in an epi-taxial manner. The parameters that produce the sample with the lowest surface roughness and no grains are a total pressure of 5.0×10−2mbar, an oxygen par-tial pressure of 2.5×10−4mbar, a sputter power of 50 W, a sample temperature of 800◦C and a growth time of approximately 15 min. These parameters are the same as when samples are grown in a pure argon environment. It is sufficient to show that a total pressure of 5.0×10−2mbar, which falls in the pressure range of 4×10−2mbar to 8×10−2mbar of ref. [10], is the total pressure that produces the best surface. The exact range of total pressures that give smooth-like terraces without grains is not determined.

The higher flow with respect to ref. [10] not only increases surface roughness, but also causes an experimental problem. Inputting this much gas and keeping the BFV opened at a constant position puts a severe load on the turbo pump. The current the turbo pump uses comes close to its maximum when using a total flow of 160 sccm, but already with a total flow of 100 sccm the turbo pump becomes warm after some time. This strain on the turbo pump and its heating up reduces the life expectancy of the turbo pump. Decreasing the oxygen partial pressure below the found optimum of 2.5×10−4mbar cannot be achieved in the current experimental set-up by increasing the argon to oxygen flow ratio.

Comparison with pure argon sputter gas

The optimised parameters for oxygen in the sputter gas have the same total pres-sure, temperature, sputter power and growth time as used to make a conducting interface in pure argon. The two differences are oxygen added to the sputter gas and the higher flow needed to keep the oxygen partial pressure low. So we made a control sample just the same as in ref. [10] to see if our sample fabrication process was done correctly and can create a conducting interface to begin with. Control sample LAO22 shows that our substrate preparation and sample growth can generate a conducting interface.

(45)

45

The effect of oxygen

The minimum flow the mass flow controllers can input in a controllable way is 0.5 sccm. As discussed before decreasing the oxygen partial pressure by further increasing the argon flow does not work. If the effect of a lower oxygen partial pressure than used in this research is to be studied, one has to either change something in the experimental set-up or find a clever way to do so in the current set-up. One method that might work is using a mixture of argon and oxygen instead of pure oxygen. The oxygen partial pressure can be decreased with e.g. a factor of 10 by using a mixture of 10 % oxygen and 90 % argon. The issue with making such a mixture however is that it is very hard, maybe even impossible, to do this in a controllable manner.

A conducting interface in LAO/STO is most often made with PLD and can also be made with MBE and sputtering. In PLD pure oxygen is always used as gas. Early attempt to make a conducting interface in LAO/STO by (on-axis) sputtering used oxygen as sputter gas, but this resulted in insulating interfaces with the high La/Al ratio of 1.1. The parameter window necessary for a smooth surface gave a stoichiometry that did not produce a conducting interface. Most notably the pressure was an order of magnitude higher than with off-axis sputtering [11, 12].

Podkaminer et al. [13] were the first to make a conducting interface in LAO/STO by sputtering. They used 90° off-axis sputtering with argon as sputter gas. They claim that the sputtered single crystal LAO target provides a large enough

background pressure of O2and atomic oxygen, which creates an environment

similar to PLD. This raises the question what the partial pressures of O2 and

atomic oxygen are. We also have the same background gas coming from the target and add to that a small oxygen partial pressure. However it is unclear how much oxygen comes from the target and what oxygen partial pressure this effectively gives. Oxygen must go from the target to the sample or else only an alloy of lanthanum and aluminium would be grown with argon as sputter gas. The effect we find from a low oxygen partial pressures is an indication that the oxygen from the target gives a partial pressure that can not be very high.

(46)

46 Discussion

front of the plume where the species meet the oxygen. They found no such effect with an argon background. However an oxygen pressure of 10−2mbar and 1×10−1mbar was needed to see the effect of oxidation of La and Al respectively, which is much higher than the oxygen partial pressures used in the research.

Warusawithana et al. [9] and Yin et al. [10] showed that only Al-rich LAO gives a conducting interface in LAO/STO. This indicates that excess Al acts as an oxygen getter reducing the top layers of STO and that the created oxygen vacancies provide the charge carriers that form the conducting interface. With oxygen in the sputter gas the species oxidise before reaching the sample and the STO is not reduced. Hence no conducting interface forms. Warusawithana et al. argues that La-rich samples show cation vacancies at the interface and that this atomic reconstruction gives an insulating interface.

In previous (on-axis) sputtering research the oxygen caused backsputtering [11]. The bombardment of the sample by energetic particles can damage the growing film. This should however not happen in a significant degree in magnetron sputtering because the applied magnetic field keeps the charged particles close to the target.

Resistance measurement

The transport properties are only qualitatively measured with a simple 2-probe measurement at room temperature. We compare this behaviour with known behaviour of LAO/STO samples. By performing the resistance measurement in a 2-probe set-up instead of a 4-probe Van der Pauw geometry we also measure the contact resistance of the multimeter. We cannot accurately determine the sheet resistance of the conducting interface in this way nor can we determine the carrier concentration or the Hall resistance. It is however sufficient to determine whether a sample is insulating or conducting. The only conducting samples we made were the control samples grown in pure argon and their resistances were

high, over 1 MΩat room temperature.

Previous research of growing conducting interfaces in LAO/STO by off-axis sputtering has shown that the a 4-probe configuration yields sheet resistances

of 104Ω/to 105Ω/at room temperature with metallic behaviour between

(47)

Chapter

6

Conclusion

In this research project we determined if and how the properties of the conduct-ing interface in LAO/STO can be affected by introducconduct-ing some oxygen in the sputter gas.

The sputtering parameters that give the best surface are a total pressure of 5.0×10−2mbar, an oxygen partial pressure of 2.5×10−4mbar, a sputter power of 50 W and a sample temperature of 800◦C. This is in agreement with ref. [10].

Introducing a small amount of oxygen in the sputter gas has a profound effect on the LAO growth and results in an insulating interface. The oxygen partial pressure is in the regime that gives interfacial conductance in PLD. Increasing the oxygen partial pressure increases the surface roughness. Increasing the total flow also increases the roughness. These parameters are related, which leads to an optimum for the surface morphology.

(48)
(49)

References

[1] A. Ohtomo and H. Y. Hwang, “A high-mobility electron gas at the LaAlO3/SrTiO3heterointerface,”Nature, vol. 427, pp. 423–426, jan 2004.

[2] N. Reyren, S. Thiel, A. D. Caviglia, L. F. Kourkoutis, G. Hammerl, C. Richter, C. W. Schneider, T. Kopp, A.-S. Ruetschi, D. Jaccard, M. Gabay, D. A. Muller, J.-M. Triscone, and J. Mannhart, “Superconducting Interfaces Between Insu-lating Oxides,”Science, vol. 317, pp. 1196–1199, aug 2007.

[3] A. Brinkman, M. Huijben, M. van Zalk, J. Huijben, U. Zeitler, J. C. Maan, W. G. van der Wiel, G. Rijnders, D. H. a. Blank, and H. Hilgenkamp, “Mag-netic effects at the interface between non-mag“Mag-netic oxides,”Nature Materials, vol. 6, pp. 493–496, jul 2007.

[4] J. A. Bert, B. Kalisky, C. Bell, M. Kim, Y. Hikita, H. Y. Hwang, and K. A. Moler, “Direct imaging of the coexistence of ferromagnetism and superconductivity at the LaAlO3/SrTiO3 interface,”Nature Physics, vol. 7, pp. 767–771, oct

2011.

[5] A. D. Caviglia, S. Gariglio, N. Reyren, D. Jaccard, T. Schneider, M. Gabay, S. Thiel, G. Hammerl, J. Mannhart, and J.-M. Triscone, “Electric field control of the LaAlO3/SrTiO3interface ground state,”Nature, vol. 456, pp. 624–627,

dec 2008.

[6] A. D. Caviglia, M. Gabay, S. Gariglio, N. Reyren, C. Cancellieri, and J.-M. Triscone, “Tunable Rashba Spin-Orbit Interaction at Oxide Interfaces,” Physical Review Letters, vol. 104, p. 126803, mar 2010.

(50)

50 References

[8] S. Chambers, M. Engelhard, V. Shutthanandan, Z. Zhu, T. Droubay, L. Qiao, P. Sushko, T. Feng, H. Lee, T. Gustafsson, E. Garfunkel, A. Shah, J.-M. Zuo, and Q. Ramasse, “Instability, intermixing and electronic structure at the epitaxial LaAlO3/SrTiO3(001) heterojunction,”Surface Science Reports,

vol. 65, pp. 317–352, oct 2010.

[9] M. P. Warusawithana, C. Richter, J. a. Mundy, P. Roy, J. Ludwig, S. Paetel, T. Heeg, a. a. Pawlicki, L. F. Kourkoutis, M. Zheng, M. Lee, B. Mulcahy, W. Zander, Y. Zhu, J. Schubert, J. N. Eckstein, D. a. Muller, C. S. Hellberg, J. Mannhart, and D. G. Schlom, “LaAlO3stoichiometry is key to electron

liquid formation at LaAlO3/SrTiO3 interfaces,” Nature Communications,

vol. 4, p. 2351, aug 2013.

[10] C. Yin, D. Krishnan, N. Gauquelin, J. Verbeeck, and J. Aarts, “Influence of stoichiometry on interfacial conductance in LaAlO3/SrTiO3grown by 90°

off-axis sputtering.” arXiv, nov 2018.

[11] I. M. Dildar, D. B. Boltje, M. H. S. Hesselberth, J. Aarts, Q. Xu, H. W.

Zand-bergen, and S. Harkema, “Non-conducting interfaces of LaAlO3/SrTiO3

produced in sputter deposition: The role of stoichiometry,”Applied Physics Letters, vol. 102, p. 121601, mar 2013.

[12] I. M. Dildar, M. Neklyudova, Q. Xu, H. W. Zandbergen, S. Harkema, D. Boltje, and J. Aarts, “Growing LaAlO3/SrTiO3 interfaces by sputter

deposition,”AIP Advances, vol. 5, p. 067156, jun 2015.

[13] J. P. Podkaminer, T. Hernandez, M. Huang, S. Ryu, C. W. Bark, S. H. Baek, J. C. Frederick, T. H. Kim, K. H. Cho, J. Levy, M. S. Rzchowski, and C. B. Eom, “Creation of a two-dimensional electron gas and conductivity switching of nanowires at the LaAlO3/SrTiO3interface grown by 90° off-axis sputtering,”

Applied Physics Letters, vol. 103, p. 071604, aug 2013.

[14] A. D. Caviglia, S. Gariglio, C. Cancellieri, B. Sac´ep´e, A. Fˆete, N. Reyren, M. Gabay, A. F. Morpurgo, and J.-M. Triscone, “Two-Dimensional Quantum Oscillations of the Conductance at LaAlO3/SrTiO3 Interfaces,” Physical

Review Letters, vol. 105, p. 236802, dec 2010.

[15] G. Herranz, F. S´anchez, N. Dix, M. Scigaj, and J. Fontcuberta, “High mobility conduction at (110) and (111) LaAlO3/SrTiO3interfaces,”Scientific Reports,

vol. 2, p. 758, dec 2012.

(51)

References 51

T. Venkatesan, and Ariando, “Anisotropic two-dimensional electron gas at the LaAlO3/SrTiO3(110) interface,”Nature Communications, vol. 4, p. 1838,

may 2013.

[17] Y. Hotta, T. Susaki, and H. Y. Hwang, “Polar Discontinuity Doping of the LaVO3/SrTiO3 Interface,” Physical Review Letters, vol. 99, p. 236805, dec

2007.

[18] J. Biscaras, N. Bergeal, A. Kushwaha, T. Wolf, A. Rastogi, R. Budhani, and J. Lesueur, “Two-dimensional superconductivity at a Mott insulator/band insulator interface LaTiO3/SrTiO3,”Nature Communications, vol. 1, pp. 1–5,

oct 2010.

[19] P. Perna, D. Maccariello, M. Radovic, U. Scotti di Uccio, I. Pallecchi, M. Codda, D. Marr´e, C. Cantoni, J. Gazquez, M. Varela, S. J. Pennycook, and F. M. Granozio, “Conducting interfaces between band insulating ox-ides: The LaGaO3/SrTiO3heterostructure,”Applied Physics Letters, vol. 97,

p. 152111, oct 2010.

[20] N. Nakagawa, H. Y. Hwang, and D. A. Muller, “Why some interfaces cannot be sharp,”Nature Materials, vol. 5, pp. 204–209, mar 2006.

[21] H. Lee, N. Campbell, J. Lee, T. J. Asel, T. R. Paudel, H. Zhou, J. W. Lee, B. Noesges, J. Seo, B. Park, L. J. Brillson, S. H. Oh, E. Y. Tsymbal, M. S. Rzchowski, and C. B. Eom, “Direct observation of a two-dimensional hole gas at oxide interfaces,”Nature Materials, vol. 17, pp. 231–236, mar 2018.

[22] S. Thiel, G. Hammerl, A. Schmehl, C. W. Schneider, and J. Mannhart, “Tun-able Quasi-Two-Dimensional Electron Gases in Oxide Heterostructures,” Science, vol. 313, pp. 1942–1945, sep 2006.

[23] E. Breckenfeld, N. Bronn, N. Mason, and L. W. Martin, “Tunability of con-duction at the LaAlO3/SrTiO3heterointerface: Thickness and compositional

studies,”Applied Physics Letters, vol. 105, p. 121610, sep 2014.

[24] M. Reinle-Schmitt, C. Cancellieri, D. Li, D. Fontaine, M. Medarde, E. Pomjak-ushina, C. Schneider, S. Gariglio, P. Ghosez, J.-M. Triscone, and P. Willmott, “Tunable conductivity threshold at polar oxide interfaces,”Nature

Commu-nications, vol. 3, p. 932, jan 2012.

[25] A. Kalabukhov, R. Gunnarsson, J. B ¨orjesson, E. Olsson, T. Claeson, and

D. Winkler, “Effect of oxygen vacancies in the SrTiO3 substrate on the

electrical properties of the LaAlO3/SrTiO3 interface,”Physical Review B

(52)

52 References

[26] G. Herranz, M. Basleti´c, M. Bibes, C. Carr´et´ero, E. Tafra, E. Jacquet, K. Bouze-houane, C. Deranlot, A. Hamzi´c, J.-M. Broto, A. Barth´el´emy, and A. Fert, “High Mobility in LaAlO3/SrTiO3Heterostructures: Origin, Dimensionality,

and Perspectives,”Physical Review Letters, vol. 98, p. 216803, may 2007.

[27] Y. Z. Chen, D. V. Christensen, F. Trier, N. Pryds, A. Smith, and S. Linderoth, “On the origin of metallic conductivity at the interface of LaAlO3/SrTiO3,”

Applied Surface Science, vol. 258, pp. 9242–9245, sep 2012.

[28] D. H. Kim and C. W. Bark, “Structural properties of LaAlO3/SrTiO3

in-terfaces deposited by using off-axis RF sputtering,” Journal of the Korean Physical Society, vol. 68, pp. 1395–1398, jun 2016.

[29] W. Siemons, G. Koster, H. Yamamoto, W. A. Harrison, G. Lucovsky, T. H. Geballe, D. H. A. Blank, and M. R. Beasley, “Origin of Charge Density at LaAlO3on SrTiO3Heterointerfaces: Possibility of Intrinsic Doping,”Physical

Review Letters, vol. 98, p. 196802, may 2007.

[30] Z. Q. Liu, C. J. Li, W. M. L ¨u, X. H. Huang, Z. Huang, S. W. Zeng, X. P. Qiu, L. S. Huang, A. Annadi, J. S. Chen, J. M. D. Coey, T. Venkatesan, and Ariando, “Origin of the Two-Dimensional Electron Gas at LaAlO3/SrTiO3

Interfaces: The Role of Oxygen Vacancies and Electronic Reconstruction,” Physical Review X, vol. 3, p. 021010, may 2013.

[31] E. Slooten, Z. Zhong, H. J. A. Molegraaf, P. D. Eerkes, S. de Jong, F. Massee, E. van Heumen, M. K. Kruize, S. Wenderich, J. E. Kleibeuker, M. Gor-goi, H. Hilgenkamp, A. Brinkman, M. Huijben, G. Rijnders, D. H. A. Blank, G. Koster, P. J. Kelly, and M. S. Golden, “Hard x-ray photoemission and dens-ity functional theory study of the internal electric field in SrTiO3/LaAlO3

oxide heterostructures,”Physical Review B, vol. 87, p. 085128, feb 2013.

[32] P. R. Willmott, S. A. Pauli, R. Herger, C. M. Schlep ¨utz, D. Martoccia, B. D. Pat-terson, B. Delley, R. Clarke, D. Kumah, C. Cionca, and Y. Yacoby, “Structural Basis for the Conducting Interface between LaAlO3and SrTiO3,”Physical

Review Letters, vol. 99, p. 155502, oct 2007.

[33] G. Koster, B. L. Kropman, G. J. H. M. Rijnders, D. H. A. Blank, and H. Rogalla, “Quasi-ideal strontium titanate crystal surfaces through forma-tion of strontium hydroxide,”Applied Physics Letters, vol. 73, pp. 2920–2922, nov 1998.

(53)

References 53

conductance in LaAlO3/SrTiO3,”Physical Review Letters, vol. 110, p. 196804,

may 2013.

[35] C. Aruta, S. Amoruso, R. Bruzzese, X. Wang, D. Maccariello, F. Mi-letto Granozio, and U. Scotti di Uccio, “Pulsed laser deposition of SrTiO3/LaGaO3and SrTiO3/LaAlO3: Plasma plume effects,”Applied

Phys-ics Letters, vol. 97, p. 252105, dec 2010.

[36] K. Orsel, R. Groenen, H. M. J. Bastiaens, G. Koster, G. Rijnders, and K. J. Boller, “Spatial and temporal mapping of Al and AlO during ox-idation in pulsed laser ablation of LaAlO3,”Journal of Instrumentation, vol. 8,

(54)

Figure

Updating...

Related subjects :
