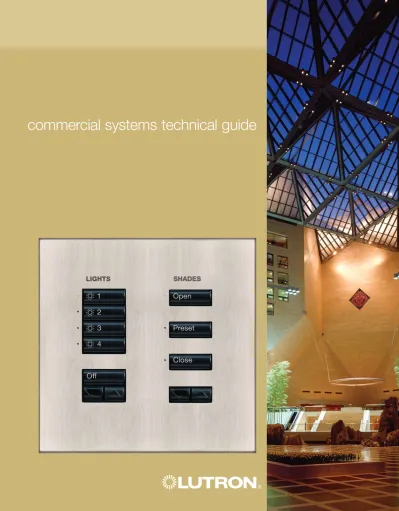

commercial systems technical guide

(1)

commer

cial systems technical guide

www.lutron.com

Lutron Electronics Co., Inc. 7200 Suter Road

Coopersburg, PA 18036-1299 World Headquarters 1.610.282.3800 Technical Support Center 1.800.523.9466 Customer Service 1.888.LUTRON1

06/2004 Lutron Electronics Co., Inc. Made and printed in the U.S.A P/N 367-573

(2)

Technical Support: 1.800.523.9466…24 hours/7 days (US/CAN) To Order: 1.888.LUTRON1…8a.m.–8p.m./M-F ET (US/CAN)

Lutron World Headquarters, Coopersburg, Pennsylvania

Innovation and quality from the

world leader in lighting controls.

In 1961, Lutron introduced the world’s first electronic (solid-state)

dimmer. From that point forward, Lutron innovations transformed

the world of lighting controls. Today, with more than 75 utility

and 180 design patents, and more than 10,000 products

shipped to 80 countries worldwide, Lutron continues to lead

the way with innovation and quality.

seeTouch

™

Wallstations from Lutron – the new standard

(3)

Commitment to innovation

Lutron has been dedicated to producing innovative lighting controls for homes of every type and style since 1961. A dedication matched only by our commitment to quality, performance, value and service for our customers.

World-class quality

Lutron quality is fueled by a relentless pursuit of the highest standards. Constant improvement activities include an integrated quality system, strict engineering guidelines, and world-class quality and manufacturing processes.

Comprehensive lighting control solutions

for electric and natural light

Lutron is your comprehensive resource for lighting control solutions for any commercial or institutional application.

• Architectural dimming systems • Theatrical dimming capabilities • Low-voltage switching systems • Floor plan based control software • Integrated lighting • Factory service plans

automation systems

Please contact us for information on Lutron’s residential lighting control products.

Lutron’s first principle

is to take care of our customer.

1

Worldwide sales and service

The Lutron Team is here to support you whenever you need us.

Technical Support: 24 Hours/7 Days 1·800·523·9466

Customer Service: 8am-8pm ET 1·888·LUTRON1

Internet Support: www.lutron.com

For the lighting control professional:

The Commercial Systems Technical Guide is part of the Lighting Controls for Commercial Applications binder (P/N 367-589).

The complete binder includes: • Commercial Products Update

• Commercial Wallbox Lighting Controls Catalog • Architectural dimming systems and integration • Window treatment systems

• Factory services plans • Pricing

Note: Detailed CSI specifications can be found on the internet at www.lutron.com/product or please contact your Lutron representative to learn more about our online CSI specification software tool – Spec Editor.

(4)

Commercial Systems

Overview

4

Lighting Control Design Elements

6

Colors and Finishes

10

Customization

12

Features and Benefits

GRAFIK Eye Control Units

14

Power Panels

16

Digital microWATT

18

GRAFIK Eye

3000 Series

How to Lay Out a System

22

Overall Wiring

24

Power-Handling Control Units

26

Load Interfaces

29

4000 Series

32

Overall Wiring

34

Control Units

36

Slider Control Units

39

Power Panels Overview

40

Wallstations

seeTouch

43

Architectural

46

European-style

49

Slim Button

52

Large Button

53

Architrave

54

Infrared Controls

55

Control Interfaces

Selection Guide

57

Contact Closures

58

RS-232/Infrared

59

Partitioning

60

Theatrical

61

Daylighting

62

Occupancy

63

Accessories

64

RadioRA

65

Window Treatments

Controllers

67

Wallstations

68

Application Notes

70

Wiring Diagrams

72

Centralized Lighting Control System

88

Overall Wiring

90

Processor Panels

92

eLumen Managers

95

Software Licenses

96

Graphic Design Service

98

System Interfaces

100

Wallstations

Viseo 102

seeTouch

105

1-Button

107

Architectural

108

European-style

110

Slim Button

112

Large Button

113

Architrave

114

2

(5)

Infrared Controls

115

Power-Handling Control Units

117

Control Units

119

Slider Control Units

121

Control Interfaces

Selection Guide

123

Contact Closures/RS-232

124

Partitioning

125

Daylighting

126

Occupancy

127

Theatrical

128

Accessories

129

Window Treatment Wallstations

132

seeTouch Model Guide

136

Schedules

138

Power Panels

Introduction

146

Selection Guide

148

Overview

150

GP Dimming Panels

152

Dimming Panels for Japan

157

LP Dimming Panels

158

XP Softswitch Panels

162

DC Dimming Panels

170

Custom Combination Panels

172

Application Notes

175

Wiring Diagrams

184

Digital microWATT

How To Lay Out a System

192

Overall Wiring

194

Overview

196

Software

198

Servers

200

System Interfaces

201

Lighting Zone Controllers

202

Lighting Control Panels

204

Power Interfaces

206

PerSONNA System

208

Local Wall Controls

210

Digital Wallstations

212

Contact Closure Interface

214

Sensors

216

Accessories 218

Application Notes

220

Wiring Diagrams

222

System Layout Sheet

230

Accessory Schedule

233

Lutron Fluorescent Controls

234

Lutron Fluorescent

Dimming Ballasts

236

Global Services

238

GRAFIK Eye

Centr

alized Lighting Contr

ol System

GRAFIK Power Panels

Digital micr oW A T T 3

(6)

4 www.lutron.com Lutron World Headquarters: 1.610.282.3800

GRAFIK Eye

3000, pg.22

GRAFIK Eye

4000, pg.32

Compatible Products

Preset architectural lighting control units with integral dimmers for scene-based control of several smaller wattage lighting zones. Low-voltage wallstations may be added to provide additional points of control.

Similar to GRAFIK Eye 3000 Series with the addition of remote power panels for scene-based control of multiple larger wattage lighting zones.

Lutron Fluorescent Dimming Ballasts

Softswitch

™

For over 25 years, Lutron has manufactured dimming ballasts and controls specially engineered to work together to deliver reliable fluorescent dimming. Lutron offers ballasts that dim all popular fluorescent lamp types and a wide range of control options.

For more information on Lutron dimming ballasts, see pg.236.

A full line of switching systems for projects of any size. Lutron switching systems use patented Softswitch technology that ensures average rated relay life of over 1,000,000 cycles (on/off) for fully loaded circuits (16A) of any lighting load. Softswitch 128 shown, Softswitch 512 is available for larger projects. (See the Switching Systems Technical Guide for more information)

System Maximums:

GRAFIK EYE 4000

Number of zones: 64

Number of Power Panels: 32 Number of Control Station Devices: 16

System Maximums:

GRAFIK EYE 3000

Number of zones: 48

Number of Control Units: 8 Number of Control Station Devices: 16

Control Unit Wallstation Dimming Panel Wallstation Softswitch 128 Softswitch 512 Detailed in Switching Systems Technical Guide (P/N 367-860)

GRAFIK Eye

®

Switching Systems

System Maximums:

Softswitch 128 512

Number of relays per system: 128 3,072 Number of Switching Panels: 8 64 Number of Control

(7)

5

Technical Support: 1.800.523.9466…24 hours/7 days (US/CAN) To Order: 1.888.LUTRON1…8a.m.–8p.m./M-F ET (US/CAN) 5

GRAFIK 5000

™

/

6000

®

pg.88

GRAFIK 7000

™

, pg.88

Similar to GRAFIK Eye 4000 Series with the addition of a central processor and optional LCD controls for scene-based control of many dimming and switching zones. Zoning is defined in system soft-ware. Optional LCD control provides local access to program, monitor, and operate every lighting zone and scene in the processor.

Similar to GRAFIK 5000/6000with the additional capability of controlling multiple central processors from one location. Optional floor plan software allows user to graphically navigate through the system to operate or modify lighting status of any area in the system.

PerSONNA System™

PerSONNA Systemwireless remote control dimming allows people to set the light output precisely of individual fluorescent fixtures as tasks change. It lets them fine-tune the visual environment for optimum performance for activities like:

•CAD design – very low light to see detail on black screens

•Word processing – nice, soft light compatible with brighter screens

•Detailed paperwork – bright lighting appropriate for the task.

For more information on PerSONNA System, see pg.208.

System Maximums:

GRAFIK 7000 Number of zones

per Processor: 512

Number of Processors: 32 Number of Control Station

Devices per Processor: 192

System Maximums:

GRAFIK 5000 6000

Number of zones

per Processor: 128 512

Number of Control Station

Devices per Processor: 32 196

Digital microWATT

, pg.192

Web-based lighting automation system with distributed and centralized lighting controllers that intelligently manage dimming and switching based on wall controls, photosensors, and occupant sensors. Non web-based microWATT®is also available.

Contact Lutron for details.

System Maximums:

DIGITAL MICROWATT Number of Lighting Zone

Controllers: 3,969

Number of Digital Wallstations/

Contact Closure Interfaces: 3,969

Use a combination of commercial systems for total building lighting control

LCD Control

Floor Plan Software Screen Processor

Wallstation Lighting Zone Controller

Digital microWATT Software Screen Wallstation

LCD Control

(8)

Preset scene control

Create and recall lighting looks made from multiple lighting zones to attract attention, create drama, set a mood, or match an activity.

Recall light levels automatically or at the touch of a button. Ideal for spaces that require repeatable lighting looks on a regular basis.

Lighting Control Design Elements

Use these pages to identify lighting control design elements that are required in the project. The page reference chart refers to the specific ordering pages for the products used to achieve that design element.

www.lutron.com Lutron World Headquarters: 1.610.282.3800

Partitioning

Adapt lighting controls to coordinate with the status of moveable partition walls. Operate lighting zones in each “room” independently from others when partition walls are closed and together when partition walls are open.

Ideal for hotels, conventions centers, ballrooms, and meeting rooms.

6

Sequencing

Create dynamic lighting effects by continuously cycling preset lighting scenes automatically. Applications include retail displays, store front windows, landscape lighting, artwork lighting, and museum exhibit lighting.

GRAFIK Eye® 4000 Series Centralized Lighting Control System Digital microWATT™ pg.36 pg.116 pg.212 GRAFIK Eye® 3000 Series pg.26 pgs. 55, 65 pg.115 pgs. 55, 65 pgs. 45, 48, 60 pg.125 pgs. 45, 48, 60 pgs. 42, 58 pg.92 pgs. 42, 58

A B

2

1

3 4

Wireless control

Add control flexibility anywhere in the space from an Infrared Wireless Remote Control. Use radio frequency control if an additional Wallstation is necessary and wire installation is not convenient.

Ideal for lecture halls, conference rooms, and home theaters. Lutron’s RadioTouch™offers zone-by-zone wireless control of lighting, controllable window treatments, and projection screens. To learn more about this entire-room wireless control, refer to Lutron’s Commercial Wallbox Catalog.

(9)

7

Technical Support: 1.800.523.9466…24 hours/7 days (US/CAN) To Order: 1.888.LUTRON1…8a.m.–8p.m./M-F ET (US/CAN)

Low voltage switching

Control, monitor, and manage all non-dim fixtures in a project.

Integrate to building management systems for control of lighting system from one location.

Works seamlessly with Lutron dimming systems to provide total building lighting control solutions.

Ideal for office buildings, hotels, and convention centers.

DMX integration

Control DMX512, fiber optic, and LED fixtures (send DMX) when these fixtures are incorporated in an architectural lighting plan .

Operate architectural lighting power panels from two data protocols simultaneously, one from Lutron®architectural

control systems and the other from theatrical systems operated by DMX512 (receive DMX).

Ideal for houses of worship, ballrooms, and convention spaces.

GRAFIK Eye® 4000 Series Centralized Lighting Control System Digital microWATT™ GRAFIK Eye® 3000 Series pg.151 pg.151 pg.61 pg.162 pg.162 pg.202 pg.66 pg.132 pg.214 pg.66

Integrating shading solutions

Seamlessly integrate shades and draperies with lighting control systems for control of natural and artificial light in any space.

Control shades and draperies independently from the same lighting control system using complementary-style controls, or use one control for both natural and artificial lighting. Ideal for restaurants, hospitality spaces, conference areas, and classrooms.

Daylight controls

Automatically adjust electric lighting in response to ambient daylight to achieve optimal light levels and energy savings.

Best suited for areas with large windows or skylights, such as atriums, perimeter offices, malls, and classrooms.

pg.62 pg.126 pg.217

(10)

www.lutron.com Lutron World Headquarters: 1.610.282.3800

8

Personal controls

Enable employees to adjust individual workspace lighting to achieve optimal light levels for task at hand and personal preference.

Applications include open plan office environments, computer workstation areas, and private offices.

Local controls

Provide control points throughout a space. Control entire system from master locations. Access preset light levels.

Integrate lighting control wallstations under a common wallplate with other room function controls

(e.g., HVAC, audio, etc.).

Typical wallstation locations include doorway entry/exits, A/V control booths, podiums.

Centralized graphical control software

Monitor and control the entire lighting system from one location.

Integrate from building management system to lighting control system from a single point of contact.

Applications include convention spaces, office buildings, casinos, campus-wide control.

Time scheduling

Turn lights on and off automatically based on a user-defined schedule.

Base events on time of day or on sunrise and sunset. Applications include office spaces, restaurants, retail spaces, and hotels.

GRAFIK Eye® 4000 Series Centralized Lighting Control System Digital microWATT™ GRAFIK Eye® 3000 Series pg.42 pg.102 pg.210 pg.42 pg.208 pg.98 pg.198 pg.58 pg.92 pg.198 pg.58

Lighting Control Design Elements

Use these pages to identify lighting control design elements that are required in the project. The page reference chart refers to the specific ordering pages for the products used to achieve that design element.

(11)

9

Technical Support: 1.800.523.9466…24 hours/7 days (US/CAN) To Order: 1.888.LUTRON1…8a.m.–8p.m./M-F ET (US/CAN)

Occupant response

Dim lights slowly to a low level or turn lights off when space is unoccupied.

Turn on lights automatically when someone enters the space.

Best suited for enclosed areas such as meeting rooms and offices.

Power metering

Monitor, record, and report on power and energy consumption in selected areas or for the entire lighting control system at a circuit level. Ideal for office buildings, tenant spaces, and campus environments. GRAFIK Eye® 4000 Series Centralized Lighting Control System Digital microWATT™ GRAFIK Eye® 3000 Series

BMS integration

Control lighting system through contact closures, PC or digital A/V equipment, RS-232 commands, BACnet.

Select preset light levels, dim or brighten lights, monitor system status, and receive button feedback.

Integrate with fire alarm and security systems. Ideal for teleconferencing rooms, and campus-wide total building system management.

pg.176 pg.176 pg.220 pg.57 pgs. 58, 63 pgs. 124, 127 pg.216 pgs. 58, 63 pg.56 pg.122 pgs. 200, 214 pg.56 pgs. 202, 204

Improve security/enhance life safety

Create uniform pathways of light to indicate exit routes.

Uniformly dim lights on emergency generators to reduce power demand while lighting more areas of the building. Detect and report unauthorized presence using occupant sensors.

Ideal for office buildings, hotels, and schools.

F C -40 -40 -20 20 40 60 0 40 80 120 140 140 0

(12)

www.lutron.com Lutron World Headquarters: 1.610.282.3800

10

Notes:

Gloss colors meet NEMA color standards where standards exist. Wall controls and accessories with metal faceplates are supplied with black plastic inserts. Due to printing limitations, colors and finishes shown cannot be guaranteed to perfectly match actual product colors. All products may not be offered in all colors; see chart on next page. Biscuit (BI) is color matched to Kohler®_{/American Standard}®_kitchen

and bath products. Hot (HT) and Kiwi (KW) are color matched to Corian®_{solid surface products.}

Matte Finishes

Metal Finishes

Satin Finishes

(available Fall 2004)

Gloss Finishes

White WH Beige BE Ivory IV Gray GR Brown BR Black BL Satin Brass SB Bright Brass BB Bright Chrome BC Antique Brass QB Antique Bronze QZ Satin Chrome SC Satin Nickel SN Bright Nickel BN Gold-Plated AU White GWH Ivory GIV Almond GAL Light Almond GLA Clear Anod. Aluminum CLA Black Anod. Aluminum BLA Brass Anod. Aluminum BRA Snow SW Biscuit BI Eggshell ES Taupe TP Midnight MN Blue Mist BT Limestone LS Stone ST Desert Stone DS Terracotta TC Ochre OC Hot HT MR Merlot GB Greenbriar BG Bluestone CB Cobalt SI Sienna

(13)

11

Technical Support: 1.800.523.9466…24 hours/7 days (US/CAN) To Order: 1.888.LUTRON1…8a.m.–8p.m./M-F ET (US/CAN) GRAFIK Eye®Control Units

GRAFIK Eye 3000 Series, pg.26 GRAFIK Eye 4000 Series, pg.36

Centralized Lighting Control System, pg.117

seeTouch™ GRAFIK Eye, pg.43

Architectural GRAFIK Eye, pg.46

Architrave™ GRAFIK Eye, pg.54

Centralized Lighting Control System, pg.114 European-style

GRAFIK Eye, pg.49

Centralized Lighting Control System, pg.110 Viseo™

Vareo®

Digital MicroWATT™, pg.210

NovaTa®

Digital MicroWATT, pg.210

Accessories and Wallplates,pgs.129, 218 Slim Button:GRAFIK Eye, pg.52

Centralized Lighting Control System, pg.112 Large Button:GRAFIK Eye, pg.53

Commercial Systems

Color and Finishes

Matte Gloss Metal Satin

1

1 1

1 Not all products are available in all colors. See product pages for specific color information.

(14)

www.lutron.com Lutron World Headquarters: 1.610.282.3800

12

With a swatch or sample, Lutron can perfectly color-match your controls to your decor.

• Provide a swatch, sample, or a Sherwin Williams or Benjamin Moore®number

• Contact Lutron Customer Service to get started

Mauve

02564-5

Majestic Purple 0256

4-4

Lily Glow

02564-3

Choose from 12 architectural metal finishes for a truly refined look.

• Consult Lutron Customer Service for pricing and delivery of metal wallplates

• Consult Lutron Customer Service to specify the color of any plastic parts shipped with wallplates (sliders are always plastic)

Add engraving to make your controls easier to use. • Identify each control in a group

• Label preset scenes

• Fax an Engraving Schedule, pg.143, to Lutron Customer Service to get started • For additional engraving forms see

www.lutron.com/engraving

Add your corporate logo or complement the decor with silk screen images.

• Full color printing of the images you provide • Contact Lutron Customer Service to get started

Customize controls to meet the unique requirements of any project.

Customized paint matching, engraving, logos, and personalized designs are available.

Consult Lutron for the right custom solution to match your personalized design.

Silk Screening

Color Matching

Custom Multigang and Metal Wallplates

(15)

13

Technical Support: 1.800.523.9466…24 hours/7 days (US/CAN) To Order: 1.888.LUTRON1…8a.m.–8p.m./M-F ET (US/CAN)

Custom Controls

Commercial Systems

Customization

GRAFIK Eye

®

Control Units

Replacement Covers

Choose a Finish and Faceplate size: For example: GRX - 2 - GRC - T- WH - E 1 2 3 2 Faceplate Size1_: 2 = two-gang

(2-zone Control Units) 3 = three-gang

(3-zone Control Units) 4 = four-gang

(4-, 6-, 8-, 16-, 24-zone Control Units)

Cover Choice: A = Opaque

Cover matches Finish Choice. T = Translucent

Smoked gray translucent cover allows view of zone status LEDs when cover is closed. Matte: A or T

Gloss: A only Metal: T only Satin: A only Finish Choice:

For available colors and finishes, see pg.10. Engraving:

Identify control unit function and scene control buttons. See pg.143 for engraving schedules. 1 3 4 4 Footnote, pg.13

1 For 230V applications,all GRAFIK Eye3000 Series Control Units are four-gang units.

Lutron will create new designs integrating customer-supplied components.

Shown above: Bright Brass GRAFIK Eye®Scene Selection

Control with Thermostat by another manufacturer.

Custom Combination Panels

2 1 3 4 TVM Modules LP Dimming Modules ELV Dimming Modules Motor Modules XP Switching Modules Lutron will create custom dimming/switching panels

tailored to your project’s requirements.

• Dimming Modules for incandescent (tungsten)/halogen, magnetic low-voltage, neon/cold cathode, and Tu-Wire®

Lutron ballasts

• Dimming Modules for electronic low-voltage sources • Switching Modules for all sources

• Control Modules for operating 0-10V or DSI loads

(16)

Microprocessors

• Lutron’s microprocessor assigns Square Law Dimming curves to dimmers for smooth, linear control of popular lighting sources

• Lighting levels remain constant throughout changes in power line conditions with our patented filter circuit, RTISS_™– Real Time Illumination Stability System

Power Boosters/Interfaces and Dimming Panels can

be added to increase individual load capacity

Temporary Override

The intensity of any zone (including non-dim) can be temporarily altered without changing stored preset light levels Infrared Receiver Built-in infrared receiver provides remote control option Triac

Control unit includes a triac tested to operate up to 200% of maximum rated load; Control is able to withstand surges of 6000V, 200A (equivalent of a near lightning strike) without impairment of performance

Smooth Fade Transitions

Programmable fade times provide smooth transitions between scenes from 0 to 59 seconds or 1 to 60 minutes

GRAFIK Eye®3000 Series Filtering Network

Oversized choke minimizes or eliminates RFI Interference

Faceplate

Choose from many distinct colors and metal finishes for stylized designs that

match all decors

(17)

Feature

Benefits

· Lutron Dimmers control all popular sources – incandescent, magnetic low-voltage, electronic low-voltage, fluorescent, neon/cold cathode, and HID (non-dim only).

· The common control architecture of GRAFIK Eye®and Centralized

Lighting Control System allows the products to be operated as one system and maintain the same user interface.

· Optional Wallstations and Control Interfaces provide additional capabilities, such as infrared or radio frequency control, manual scene and zone selection, sequencing, partitioning, contact closures, and astronomical timeclock, as well as capability to interface with RS-232 and DMX512 protocols.

· Lutron’s optional Designersoftware allows for faster system design.

· With Lutron’s patented filter circuit technology (RTISS™–Real Time

Illumination Stability System), the microprocessor compensates for incoming line-voltage variations, such as changes in RMS (Root Mean Square) voltage, frequency shifts, harmonics, and line noise. Lutron Dimmers are capable of maintaining constant light levels with no visible flicker under conditions of a ± 2% change in RMS voltage per cycle and a ± 2Hz change in frequency per second.

· All Lutron Dimmers have Power-Failure Memory–once power is restored, all lighting zone levels and preset scenes return to their status prior to the emergency condition, not a preset default or full on or off. · Terminal blocks provide for simple installation.

· Installation instructions are available in multiple languages. Contact Lutron or visit the Lutron website for more information. · GRAFIK Eyeproducts are designed with an intuitive approach to

setting light levels. Programming of preset scenes is accomplished without the use of “enter,”“store,”or “learn” buttons.

· Optionally, preset scene levels and fade times can be set with Windows®

-based PC software offering the precision of saving light levels in 1% increments (with 3500 and 4500 Models and Centralized Lighting Control Systems). The software allows preset scenes to be saved or uploaded for archiving purposes.

· In the event that some spaces require tamper protection, there are four levels of electronic protection available.

· Lutron products are designed with common architecture from wallbox choices to dimming panels, for simple user interface and programming. · In addition to its 24 hours/7 days a week toll-free Technical Hotline,

Lutron offers a variety of warranty and field-service programs. See pg.238 for specific programs and information.

· In addition to its standard product line, Lutron manufactures controls for custom functions, custom graphics, integration of customer-supplied components, and new designs.

· Lutron has over 35 years experience in custom lighting control solutions. Contact Lutron for details.

Flexibility

High-Performance Power Electronics

Power Failure Memory

Ease of Installation

Ease of Programming

Technical Support

For Specific Customized Needs

Standards listed below apply to one or more products in the Lutron product line. Consult factory for specific information.

LUTRON Quality Systems registered to ISO 9001 UNDERWRITERS LABORATORIES INC. UNITED STATES CANADIAN STANDARDS ASSOCIATION CANADA NOM CERTIFICATION MARK MEXICO HARMONIZED EUROPEAN STANDARD DENTORI T-MARK JAPAN UL ”EMC-MARK” FOR EUROPE TUV RHEINLAND BAUART LICENSE GERMANY DEMKO APPROVAL DENMARK N.V. KEMA THE NETHERLANDS

VDE TESTING AND CERTIFICATION INSTITUTE GERMANY

C-TICK MARK EMC STANDARDS

AUSTRALIA

GLOBAL PRODUCT ACCEPTANCE

(18)

Circuit Selector

• Electronically assigns each circuit to any zone and light source (including non-dim) and can be reassigned at any time without rewiring or repro-gramming the entire system • 2Link™option provides DMX512 Control directly to Dimming Panels Power Feed Options • Feed through • Main lugs • Main breaker • Isolator switch Bypass Jumpers • Panels shipped with each dimmer in a bypass position to ensure dimmer protection during installation and maintenance • Allow Panel to be used as a temporary lighting panel • Electronic bypass

feature sends dim-mer output to full on when circuit breaker is turned off and on and dimmer is not receiving intensity data from a control

Heat Sink Base

• Unique patented ribbed heat sink base conducts heat out of panels via convection cooling (without fans)

Filter Chokes

• Reduce lamp noise and RFI, minimizing interference with audiovisual and other equipment; for more information see Application Notes, pg.175

GP Dimming Panel

Dimmers

• Provide Square Law Dimming curves for smooth, linear control • Capable of 16A

continuous,

100-277VAC, 50/60Hz • UL-listed specifically

for each light source • Lighting levels remain

constant throughout changes in power line conditions with our patented RTISS™

filter circuit; for more information see Application Notes, pg.179 16 Dimmer Card Mechanical relay provides positive air gap off for each circuit Thermal Magnetic Circuit Breakers • Integral thermal magnetic circuit breakers are UL-498-type rated for 120V or 277V and IEC 898-rated for 220-240V

(19)

LUTRON Quality Systems registered to ISO 9001 UNDERWRITERS LABORATORIES INC. UNITED STATES CANADIAN STANDARDS ASSOCIATION CANADA NOM CERTIFICATION MARK MEXICO HARMONIZED EUROPEAN STANDARD DENTORI T-MARK JAPAN UL ”EMC-MARK” FOR EUROPE TUV RHEINLAND BAUART LICENSE GERMANY DEMKO APPROVAL DENMARK N.V. KEMA THE NETHERLANDS

VDE TESTING AND CERTIFICATION INSTITUTE GERMANY

C-TICK MARK EMC STANDARDS

AUSTRALIA

GLOBAL PRODUCT ACCEPTANCE

17

Feature

Benefits

· Lutron Panels include one standard dimmer card that can control all popular sources–incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, fluorescent and HID (non-dim only).

· Lutron’s 2Link_™option allows a panel to accept two data protocols

simultaneously so that an architectural space can be operated by

an architectural control system, like Lutron’s GRAFIK Eye®4000,

Centralized Lighting Control System, and a theatrical system operated by DMX512 protocol, such as a theatrical console. For more information, see pg.151.

· Lutron provides an air gap off for every circuit in its panels. Lutron uses an air gap for all its products; when you select “off”at a Lutron Wallstation, all power is removed from the lighting circuit.

· Lutron Dimmers incorporate a solid-state switching device that operates at 20ºC (68ºF) below its rated temperature without the use of fans. These dimmers are also designed to withstand surges of 6000V, 3000A (equivalent to a near lightning strike) as specified by ANSI/IEEE Standard C62.41 without impairment to performance.

· Before shipment, Lutron tests every panel at full rated load for several hours in an enclosure that is heated to 40ºC (104ºF ambient), simulating worst-case field conditions.

· In addition to its 24-hour toll-free Technical Hotline, Lutron offers a variety of warranty and field-service programs, including local support in-country, preinstallation site visit, commissioning, 72-hour emergency response around the world, and training of all personnel. See pg.238 for specific programs and information.

· With Lutron’s patented filter circuit technology,RTISS_™–Real Time

Illumination Stability System–Lutron Panels compensate for

incoming line-voltage variations, such as changes in RMS (Root Mean Square) voltage, frequency shifts, harmonics, and line noise. Lutron Dimmers are capable of maintaining constant light levels with no visible flicker under conditions with a ±2% change in RMS voltage per cycle and a ±2Hz change in frequency per second. For more information, see Application Notes, pg.179.

· Lutron Dimmers and Switching Relays are capable of withstanding inrush current 50 times operating current. With its patented technology

used in Lutron’s XP Softswitch™Panel, Lutron’s relay does not arc when

it turns on or off. Lutron has verified an average rated relay life of 1,000,000 cycles(on/off).

· Where emergency circuits are required, selected circuits in Lutron Panels immediately go to a ”full-on“ condition when normal power fails. For more information, see Application Notes, pg.176.

· Lutron Panels include Power Failure Memory – once power is restored, all lighting zones return to their status prior to emergency condition, not a default or full on or off.

· Lutron Panels are completely preassembled. Under Lutron’s Quick Ship Program, standard panels typically ship in three to five business days from receipt of approved drawings.

· Lutron Panels are capable of operating from various power voltage sources—single phase, split phase, or three phase (Delta feeds or Wye feeds)—and can operate from normal power, constant hot, generator, or UPS system with true sine wave output and be rated for dimming applications, maximum of 10% THD.

· Lutron Panels also are capable of controlling 0-10V fluorescent dimming ballasts with optional Ten Volt Modules (TVM); see pg.173.

Flexibility For Specific Customized Needs Preassembly/ Quick Shipment Quality/Reliability High Performance Power Electronics Emergency/

(20)

18

Softswitch™Relay

• Employs unique, patented arcless relay rated for a full 16A circuit of resistive, inductive, or capacitive loads • Capable of handling

50 times current inrush

• Average rated relay life is verified for 1,000,000 cycles (on/off)

external power supplies for occupant sensors, daylight sensors, and local wall controls

Microprocessors

• Lutron’s microprocessor assigns Square Law Dimming curves to dimmers for smooth, linear control of popular lighting sources by incorporating inputs from occupant sensors, daylight sensors, and local wall controls for maximum energy savings

Power Meter

• Continuous metering of current and voltage provides power usage information for monitoring and measurement of energy savings

Lighting Zone Controller

Occupant Sensors, Daylight Sensors, and Local Wall Controls wire directly to Lighting

(21)

19

Feature

Benefits

· Lutron Lighting Zone Controllers and Lighting Control Panels logically integrate inputs from occupant sensors, daylight sensors, and local wall controls to maximize energy savings.

· Web-based Graphical User Interface is based on Internet Protocol technology which supports operation of the system from anywhere in the world.

· Lighting Zone Controllers and Lighting Control Panels provide

smooth continuous dimming of Lutron Hi-lumeand ECO-10™

(Eco-Series) Fluorescent Dimming Ballasts, and are rated to switch up to 16 Amps of virtually any 120V or 277V lighting load and small motor loads.

· Optional BACnet Ethernet interface provides capability of interfacing to other equipment like Building Automation Systems, Security Systems, Fire Alarm Systems, Life Safety Systems, and Card Access Systems.

· Lutron provides an air gap off for every circuit. Lutron uses an air gap for all its products; when you select “off”at a Lutron Wallstation, all power is removed from the lighting circuit.

· Lighting Zone Controllers are designed to withstand surges of 6000V, 200A as specified by ANSI/IEEE standard of C62.41 without impairment to performance.

· Lutron Dimmers and Switching Relays are capable of withstanding

inrush current 50 times operating current. With its patented Softswitch™

technology, Lutron’s relay does not arc when it turns on or off. Lutron

has verified an average rated relay life of 1,000,000 cycles(on/off).

· Where emergency circuits are required, selected circuits immediately go to a ”full-on“ condition when normal power fails. For more information, see Application Notes, pg.220.

· Lutron Lighting Zone Controllers include Power Failure Memory– once power is restored, all lighting zones return to their status prior to emergency condition, not a default or full on or off.

· In addition to its 24-hour toll-free Technical Hotline, Lutron offers a variety of warranty and field-service programs, including local support in-country, preinstallation site visit, commissioning, 72-hour emergency response around the world, and training of all personnel.

See pg.238 for specific programs and information.

· In addition to its standard product line, Lutron manufactures controls for custom functions, custom graphics, integration of customer-supplied components, and new designs.

· Lutron has over 35 years experience in custom lighting control solutions. Contact Lutron for details.

Flexibility

High-Performance Power Electronics

Emergency/

Power Failure Memory Quality/Reliability

Technical Support

For Specific Customized Needs

UNDERWRITERS LABORATORIES INC. UNITED STATES CANADIAN STANDARDS ASSOCIATION CANADA NOM CERTIFICATION MARK MEXICO HARMONIZED EUROPEAN STANDARD DENTORI T-MARK JAPAN UL ”EMC-MARK” FOR EUROPE TUV RHEINLAND BAUART LICENSE GERMANY DEMKO APPROVAL DENMARK N.V. KEMA THE NETHERLANDS

VDE TESTING AND CERTIFICATION INSTITUTE GERMANY

C-TICK MARK EMC STANDARDS

AUSTRALIA

GLOBAL PRODUCT ACCEPTANCE

LUTRON Quality Systems

registered to ISO 9001

(22)
