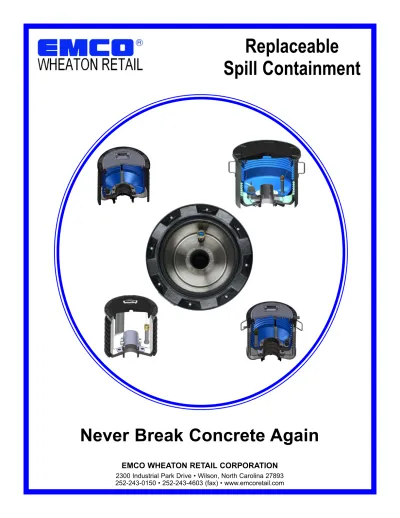

Replaceable Spill Containment

(1)

Replaceable

Spill Containment

EMCO WHEATON RETAIL CORPORATION

2300 Industrial Park Drive • Wilson, North Carolina 27893

252-243-0150 • 252-243-4603 (fax) • www.emcoretail.com

(2)

Selection Chart

Replaceable

Spill Containment

Phase I EVR

Below Grade

Remote Fill

Phase I EVR

Drain: A1004EVR-316A A1005-518ADR A1005-905D A1005-517ADR A1004EVR-215A

No Drain: A1004EVR-317A A1005-518A A1005-905 A1005-517A A1005-517AF A1004EVR-216A

Page #: 3 4 4 4 3

Single Wall

5 Gallon

15 Gallon

Poly

Thread On

Slip On

Glass On

Thread On

Stainless Steel

Double Wall

5 Gallon

15 Gallon

Poly

Thread On

Slip On

Glass On

Thread On

Stainless Steel

Phase I EVR

Remote Fill

Phase I EVR

Drain: A1004EVR-316S A1005-518GPDR A1005-517SFDR A1004EVR-215S

No Drain: A1004EVR-317S A1005-518G A1005-518GP A1005-517GS A1005-517SF A1004EVR-216S

(3)

Single Wall

Poly (HDPE)

5 Gallon

Thread-On

15 Gallon

Thread-On

Model No. Description Application Lid Dia. Lid Wt. Total Wt.

A1004EVR-316A Single wall poly, 16” center, drain, 5 gal, EVR Fill/Vapor 13.2” 15.9 lbs. 66.0 lbs. A1004EVR-317A Single wall poly, 16” center, no drain, 5 gal, EVR Vapor 13.2” 15.9 lbs. 63.0 lbs. A1004EVR-215A Single wall poly, drain, 15 gal, EVR Fill/Vapor 17.3” 30.0 lbs. 126.0 lbs. A1004EVR-216A Single wall poly, no drain, 15 gal, EVR Fill/Vapor 17.3” 30.0 lbs. 126.1 lbs. Add a “V” to the end of the variant number to include an A0076-124S Vapor Swivel Adapter and A0099-002 Vapor Cap; add an “X” to include an A0030-124S Fill Swivel Adapter and A0097-005 Fill Cap. Refer to pages 7&8 for repair kits and replacement parts.

Replaces all A1004EVR-210 variants

Installs on 16” centers

15.0 ”

16.0”

Screw-on Height 䡵 ULC Listed MH21149 Florida DEP #EQ-524 NC DENR, MO DNR

Adjustment screws

allow change in

elevation +- 1

1

/

₂

”

(5 gallon models)

HDPE Skirt Screw-on Height

18.0”

22.6”

䡵 ULC Listed MH21149 Florida DEP #EQ-695 NC DENR, MO DNR

Phase I EVR Certified

Executive Order VR-105

Galvanized Skirt

Never Break Concrete -

Easily

repair or replace primary unit from

grade without breaking concrete

Heavy duty, snow plow resistant

ductile iron, powder coated plow

rim

Water-resistant cast iron lid with

built-in handle, exclusive triple

wiper seal and vent valve. Meets

AASHTO H20 wheel loading

HDPE bellows

4 inch NPT or BSPT thread

Phase I CARB

EVR Certified

A1004EVR-316A

A1004EVR-317A

Phase I CARB

EVR Certified

(4)

Single Wall

Stainless Steel

Below Grade -

One-piece,

Rust-free Stainless Steel Construction

Grade level lid is composite; also

available in cast iron or diamond plate

with finger hole

Below grade lid is water-resistant cast

iron lid with built-in handle, exclusive

triple wiper seal and vent valve

Available with drain or drain plug;

models with drain include a

Phase I EVR approved

pull/push drain design

Optional locking mechanism

for below grade lid

13.1”

16.0”

Model No. Description Application Lid Dia. Lid Wt. Total Wt.

Slip-on

A1005-517A Single wall stainless steel, no drain, 5 gal Fill/Vapor 13.2” 15.9 lbs. 59.0 lbs. A1005-517ADEF Single wall stainless steel, no drain, composite lid, 5 gal DEF 13.2” 6.6 lbs. 49.7 lbs. A1005-517ADR Single wall stainless steel, drain, 5 gal Fill/Vapor 13.2” 15.9 lbs. 59.5 lbs.

Thread-on

A1005-518A Single wall stainless steel, no drain, 5 gal Fill/Vapor 13.2” 15.9 lbs. 80.7 lbs. A1005-518ADR Single wall stainless steel, drain, 5 gal Fill/Vapor 13.2” 15.9 lbs. 81.2 lbs. A1005-518ADRDEF Single wall stainless steel, drain, composite lid, 5 gal DEF 13.2” 6.6 lbs.

A1005-905 Below grade, stainless steel, 18” manhole, drain plug, 5 gal Fill/Vapor 17.0” 13.5 lbs. 78.8 lbs. A1005-905D Below grade, stainless steel, 18” manhole, drain, 5 gal Fill/Vapor 17.0” 13.5 lbs. 79.0 lbs. A1005-915 Below grade, stainless steel, 18” manhole, drain plug, 15 gal Fill/Vapor 17.0” 13.5 lbs. 97.8 lbs. A1005-915D Below grade, stainless steel, 18” manhole, drain, 15 gal Fill/Vapor 17.0” 13.5 lbs. 98.0 lbs. Add a “V” to the end of the variant number to include an A0076-124S Vapor Swivel Adapter and A0099-002 Vapor Cap; add an “X” to include an A0030-124S Fill Swivel Adapter and A0097-005 Fill Cap. Refer to pages 7&8 for repair kits and replacement parts.

5 Gallon

Slip-on

5 Gallon

Thread-on

5 Gallon

Below-Grade

4” NPT or BSPT Thread UL Approved Compression Seal

Easily

duc-tile iron, powder coated plow rim

Water-resistant cast iron lid with

built-in handle, exclusive triple wiper

seal and vent valve. Meets AASHTO

H20 wheel loading

16 gauge stainless steel primary unit

HDPE skirt

䡵 ULC Listed MH21149 Florida DEP #EQ-753

NC DENR, MO DNR

䡵 ULC Listed MH21149 Florida DEP #EQ-753

NC DENR, MO DNR

15.4”

䡵 ULC Listed MH21149

14.7”

5 gal.

24.8”

15 gal.

17.9”

Replaceable

from above

ground

(5)

Double Wall

Poly (HDPE)

Model No. Description Application Lid Dia. Lid Wt. Total Wt.

A1004-316S-CM Double wall poly, 16” center, drain, sensor, 5 gal Fill/Vapor 13.2” 15.9 lbs. 78.0 lbs. A1004EVR-316S Double wall poly, 16” center, drain, 5 gal, EVR Fill/Vapor 13.2” 15.9 lbs. 84.0 lbs. A1004-316S-CMX Double wall poly, 16” center, drain, sensor ready, 5 gal Fill 13.2” 15.9 lbs. 77.5 lbs. A1004EVR-317S Double wall poly, 16” center, no drain, 5 gal, EVR Fill/Vapor 13.2” 15.9 lbs. 79.9 lbs. A1004-317S-CM Double wall poly, 16” center, no drain, sensor, 5 gal Fill/Vapor 13.2” 15.9 lbs. 77.5 lbs. A1004EVR-215S Double wall poly, drain, 15 gal, EVR Fill/Vapor 17.3” 30.0 lbs. 151.0 lbs. A1004EVR-216S Double wall poly, no drain, 15 gal, EVR Fill/Vapor 17.3” 30.0 lbs. 151.1 lbs. A1004-215SF4 Glass-on remote fill, double wall poly, drain, 15 gal Remote Fill 17.3” 30.0 lbs.

A1004-216SF4 Glass-on remote fill, double wall poly, no drain, 15 gal Remote Fill 17.3” 30.0 lbs.

Add a “V” to the end of the variant number to include an A0076-124S Vapor Swivel Adapter and A0099-002 Vapor Cap; add an “X” to include an A0030-124S Fill Swivel Adapter and A0097-005 Fill Cap. Refer to pages 7&8 for repair kits and replacement parts.

Replaces all A1004EVR-210 variants

5 Gallon

Thread-On

15 Gallon

Thread-On

17.1 ”

16.0”

Screw-on Height

Easily

rim

Water-resistant cast iron lid with

built-in handle, exclusive triple

HDPE bellows

Galvanized skirt

4 inch NPT or BSPT thread

Screw-on Height

19.0”

22.6”

Phase I EVR Certified

Executive Order VR-105

Adjustment screws

allow change in

elevation +- 1

1

/

₂

”

(5 gallon models)

Phase I CARB

EVR Certified

Phase I CARB

EVR Certified

A1004EVR-316S

A1004EVR-317S

(6)

Double Wall

Stainless Steel

Model No. Description Application Lid Dia. Lid Wt. Total Wt.

Slip-on

A1005-517G Double wall stainless steel, no drain, gauge, 5 gal Fill/Vapor 13.2” 15.9 lbs. 84.5 lbs. A1005-517GDEF DW stainless steel, no drain, gauge, composite lid, 5 gal DEF 13.2” 6.6 lbs. 75.8 lbs. A1005-517S-CM Double wall stainless steel, no drain, sensor, 5 gal Fill/Vapor 13.2” 15.9 lbs. 68.3 lbs. A1005-517GS DW stainless steel, no drain, gauge, 5 gal, Allegheny seal Viton® _Fill/Vapor _13.2” _{15.9 lbs.} _{78.5 lbs.}

A1005-517GSN DW stainless steel, no drain, gauge, 5 gal, Allegheny seal Nitrile Fill/Vapor 13.2” 15.9 lbs. 78.5 lbs.

Thread-on

A1005-518G Double wall stainless steel, no drain, gauge, 5 gal Fill/Vapor 13.2” 15.9 lbs. 85.3 lbs. A1005-518GP Stainless steel primary, poly secondary, no drain, gauge, 5 gal Fill/Vapor 13.2” 15.9 lbs. 91.0 lbs. A1005-518GPDR Stainless steel primary, poly secondary, drain, gauge, 5 gal Fill/Vapor 13.2” 15.9 lbs. 91.5 lbs. Add a “V” to the end of the variant number to include an A0076-124S Vapor Swivel Adapter and A0099-002 Vapor Cap; add an “X” to include an A0030-124S Fill Swivel Adapter and A0097-005 Fill Cap. Refer to pages 7&8 for repair kits and replacement parts.

13.1”

16.0”

15.4”

5 Gallon

Slip-on

5 Gallon

Thread-on

Easily

rim

Water-resistant cast iron lid with

built-in handle, exclusive triple

16 gauge stainless steel primary and

secondary units

HDPE skirt

4 inch NPT or BSPT Thread

A1005-518GP

UL Approved Compression Seals

9.6”

䡵 ULC Listed MH21149 Florida DEP #EQ-764R

NC DENR, MO DNR

䡵 ULC Listed MH21149 Florida DEP #EQ-764R NC DENR, MO DNR

(7)

Replacement Parts

Drain Kits

Drain Plugs & Adapters

494697S

1 plug

no epoxy

Replaces 494551S Drain

494551

A1004-316 Poly

494551S

A1005 Stainless Steel

493508K

Series:

A1004-003

A1004-010

A1004EVR-316 Series

A1004-316LID

Lid & Seal, Composite

A1004-316CLID

Lid & Seal, Cast Iron

A1004-316LID-D

Yellow, ULSD, Composite

A1004-316CLID-D

Yellow, ULSD, Cast Iron

A1004-316LID-R

White, Regular, Composite

A1004-316CLID-R

White, Regular, Cast Iron

A1004-316LID-U

Red, Ultra/Premium, Composite

A1004-316CLID-U

Red, Ultra/Premium, Cast Iron

A1004-316LID-V

Orange, Vapor, Composite

A1004-316CLID-V

Orange, Vapor, Cast Iron

570012

Triple Wiper Seal

A1004-215 Series

494554

Lid & Seal Kit

569227

Triple Wiper Seal

Lids

Repair Kits

17.3” Diameter494554

A1004-316LID 13.2” Diameter A1004-210LID 15.3” Diameter

493820

Drain Wrench

For use on 493508K

and 494118 drains

494875

Adapter Kit

494551 Drain

2.26” top dia.

494952

Adapter Kit

494118 Drain

4.0” top dia.

Lid Included

with all Replacement Kits

A1004EVR-210 Series

494360EVR

Primary Replacement Kit (EVR-210A)

494466EVR

494466DEVR

Primary Replacement Kit (EVR-211AD)

494350EVR

Primary Replacement Kit (EVR-210S)

494350EVR-CM Primary Replacement Kit (EVR-210S-CM)

494467EVR

494467EVR-CM Primary Replacement Kit (EVR-211S-CM)

494467DEVR

Primary Replacement Kit (EVR-211SD)

A1004EVR-215 Series

494550EVR

Primary & Secondary Replacement Kit (-215S)

494660EVR

Primary & Secondary Replacement Kit (-216S)

A1004EVR-316 Series

494797EVR

494798EVR

494794EVR

494794EVR-CM

Primary Replacement Kit (EVR-316S-CM)

494795EVR-CM

494836

Primary Ri m Kit

495202

1 plug, no epoxy

494698

3 plugs, epoxy

Replaces 493508K

& 494118 Drains

494697P

1 plug

no epoxy

494697

3 plugs, epoxy

Replaces 494551 Drain

494118

EVR Series

A1004EVR-210 Series

A1004-210LID

Black, Cast Iron

A1004-210LID-C

Black, Composite

A1004-210LID-D

Yellow, ULSD, Cast Iron

A1004-210LID-CD

Yellow, ULSD, Composite

A1004-210LID-R

White, Regular, Cast Iron

A1004-210LID-CR

White, Regular, Composite

A1004-210LID-U

Red, Ultra/Premium, Cast Iron

A1004-210LID-CU

Red, Ultra/Premium, Composite

A1004-210LID-V

Orange, Vapor, Cast Iron

A1004-210LID-CV

Orange,Vapor, Composite

571815

Triple Wiper Seal

A1004-316CLID 13.2” Diameter

(8)

Replacement

Parts/Tools

Replacement Parts

494367

494641

A1004EVR Series

A1004-210/-316 Series

A0081-001H

Wrench, Primary

Base Removal

A0081-001S

Wrench, Secondary

Base Removal

A0081-001

Swivel Adapter

Wrench

494343

Test Adapter

A1004-210TEST

Vacuum Apparatus w/Test Adapter

A0031-175

1.75” ht.

A0031-250

2.50” ht.

A0333-002

Hand Pump

A0333-003

Includes mounting

bracket for 15

gallon series

Tools/Accessories

A0028-001

Riser Lock

Replacement Parts for

A1004-210TEST:

569194

Air Switch

569195

Air Regulator

A1004-001GAGE

- EZ-Gage for use

on 5 gallon double wall spill containment in

place of a dipstick. The EZ-Gage allows

for hands-free, visual inspection of

inter-stitial space, displaying green (OK) or

red (TEST) to indicate if liquid removal

is required.

A1004-001SEN

Replacement sensor

kit for S-CM models

569143

Test Cap Assembly

Test Equipment
