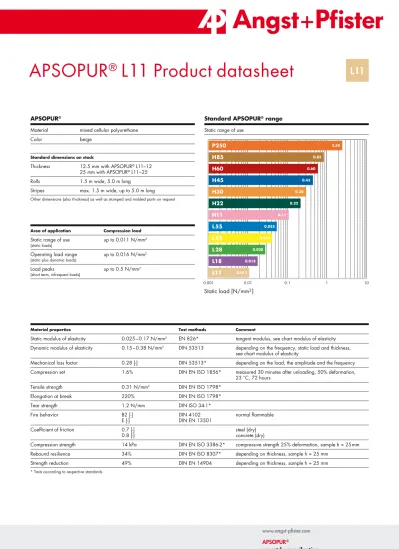

APSOPUR
®
L11 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color beige
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® L11–12
25 mm with APSOPUR® L11–25
Rolls 1.5 m wide, 5.0 m long
Stripes max. 1.5 m wide, up to 5.0 m long
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.011 N/mm²
Operating load range
(static plus dynamic loads) up to 0.016 N/mm 2
Load peaks
(short term, infrequent loads) up to 0.5 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 0.025 – 0.17 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 0.15 – 0.38 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.28 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 1.6% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 0.31 N/mm2 DIN EN ISO 1798*
Elongation at break 220% DIN EN ISO 1798* Tear strength 1.2 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.7 [-]
0.8 [-] steel (dry) concrete (dry)
Compression strength 14 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 34% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 49% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
L11 Product datasheet
Load deflection curve
Modulus of elasticity
0.011 N/mm2 25 mm 12 mm 50 mm 0 0.002 0.004 0.006 0.008 0.01 0.012 0.014 0.016 0.018 0.02 0 1 2 3 4 5 6 7 8 9 10 37 mm m m/ N[ Specific load 2] Deflection [mm] optimal load range dynamic load range Lastbereich optimale 2 Quasistatic 40 Hz 10 Hz 0 0.1 0.2 0.3 0.4 0 0.004 0.008 0.012 0.016 0.02 0. 011 N /m m Modulus of elasticity m m/ N[ 2] 2] Specific load [N/mm optimalload range load rangedynamic
Control of the deflection of APSOPUR
®L11
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®L11 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
L11 Product datasheet
-5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 0 dB/0% ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.011 N/mm2 0 0.004 0.008 0.012 0.016 0.02 5 10 15 20 25 m m/ N[ Specific load 2]
Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®L11 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®L11
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.011 N/mm2 0.007 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©L11 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets
ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX
Phone +33 (0)1 48 63 20 80 Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected]
China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa
Phone +90 224 261 26 21 Fax +90 224 261 26 20
www.laspargroup.com, [email protected] the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
L18 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color lavander
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® L18 – 12
25 mm with APSOPUR® L18 – 25
Rolls 1.5 m wide, 5.0 m long
Stripes max. 1.5 m wide, up to 5.0 m long
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.018 N/mm²
Operating load range
(static plus dynamic loads) up to 0.028 N/mm 2
Load peaks
(short term, infrequent loads) up to 0.8 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 0.05 – 0.25 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 0.25 – 0.55 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.25 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 2.0% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 0.4 N/mm2 DIN EN ISO 1798*
Elongation at break 220% DIN EN ISO 1798* Tear strength 2.0 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.7 [-]
0.8 [-] steel (dry) concrete (dry)
Compression strength 22 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 35% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 61% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
L18 Product datasheet
Load deflection curve
Modulus of elasticity
0.018 N optimal load range dynamic load range /mm² 25 mm 12 mm 37 mm 50 mm 0 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] N /m m 2 40 Hz 10 Hz 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0 0.005 0.01 0.015 0.02 0.025 0.03 0.035 0. 018 Modulus of elasticity m m/ N[ 2] 2] Specific load [N/mm Quasistatic optimalload range load rangedynamic
Control of the deflection of APSOPUR
®L18
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®L18 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
L18 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.018 N/mm2 0 0.005 0.01 0.015 0.02 0.025 0.03 0.035 5 10 15 20 25 m m/ N[ Specific load 2]
Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®L18 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®L18
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.018 N/mm2 0.009 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©L18 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX Phone +33 (0)1 48 63 20 80
Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected] China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa Phone +90 224 261 26 21
Fax +90 224 261 26 20
www.laspargroup.com, [email protected]
the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
L28 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color green
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® L28–12
25 mm with APSOPUR® L28–25
Rolls 1.5 m wide, 5.0 m long
Stripes max. 1.5 m wide, up to 5.0 m long
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.028 N/mm
2
Operating load range
(static plus dynamic loads) up to 0.04 N/mm 2
Load peaks
(short term, infrequent loads) up to 0.9 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 0.08 – 0.50 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 0.35 – 0.75 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.22 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 2.3% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 0.5 N/mm2 DIN EN ISO 1798*
Elongation at break 180% DIN EN ISO 1798* Tear strength 2.1 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.7 [-]
0.8 [-] steel (dry) concrete (dry)
Compression strength 39 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 47% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 69% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
L28 Product datasheet
Load deflection curve
Modulus of elasticity
0.028 N/mm2 25 mm 12 mm 37 mm 50 mm 0 0.01 0.02 0.03 0.04 0.05 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] optimal load range dynamic load range 0 0.2 0.4 0.6 0.8 1 0 0.01 0.02 0.03 0.04 0.05 40 Hz 10 Hz 2 0. 028 N /m m Modulus of elasticity m m/ N[ 2] 2] Specific load [N/mm optimalload range load rangedynamic
Quasistatic
Control of the deflection of APSOPUR
®L28
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®L28 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
L28 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% - 40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.028N/mm2 0 0.01 0.02 0.03 0.04 0.05 5 10 15 20 25 m m/ N[ Specific load 2]
Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®L28 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®L28
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014
All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.028N/m2 0.014N/m2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©L28 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets
ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX
Phone +33 (0)1 48 63 20 80 Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected]
China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa
Phone +90 224 261 26 21 Fax +90 224 261 26 20
www.laspargroup.com, [email protected] the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
L42 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color yellow
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® L42 – 12
25 mm with APSOPUR® L42 – 25
Rolls 1.5 m wide, 5.0 m long
Stripes max. 1.5 m wide, up to 5.0 m long
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.042 N/mm²
Operating load range
(static plus dynamic loads) up to 0.062 N/mm 2
Load peaks
(short term, infrequent loads) up to 1.2 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 0.21 – 0.8 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 0.60 – 1.05 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.2 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 3.2% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 0.9 N/mm2 DIN EN ISO 1798*
Elongation at break 210% DIN EN ISO 1798* Tear strength 4.5 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.7 [-]
0.8 [-] steel (dry) concrete (dry)
Compression strength 63 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 38% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 70% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
L42 Product datasheet
Load deflection curve
Modulus of elasticity
2 0.042 N/mm 25 mm 12 mm 37 mm 50 mm 0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] optimal load range dynamic load range 0.0 42 N/m m 2 Quasistatic 40 Hz 10 Hz 0 0.3 0.6 0.9 1.2 1.5 0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 2] Specific load [N/mm Modulus of elasticity m m/ N[ 2] optimalload range load rangedynamic
Control of the deflection of APSOPUR
®L42
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®L42 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
L42 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90 % -25 dB/94 % -30 dB/97 % -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.042 N/mm2 0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 5 10 15 20 25 m m/ N[ Specific load 2]
Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®L42 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®L42
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.042 N/mm2 0.021 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©L42 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX Phone +33 (0)1 48 63 20 80
Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected] China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa Phone +90 224 261 26 21
Fax +90 224 261 26 20
www.laspargroup.com, [email protected] the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
L55 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color light blue
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® L55 – 12
25 mm with APSOPUR® L55 – 25
Rolls 1.5 m wide, 5.0 m long
Stripes max. 1.5 m wide, up to 5.0 m long
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.055 N/mm²
Operating load range
(static plus dynamic loads) up to 0.08 N/mm 2
Load peaks
(short term, infrequent loads) up to 2 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 0.28 – 0.75 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 0.68 – 1.25 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.18 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 3.4% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 1.2 N/mm2 DIN EN ISO 1798*
Elongation at break 240% DIN EN ISO 1798* Tear strength 4.8 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.6 [-]
0.75 [-] steel (dry) concrete (dry)
Compression strength 82 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 44% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 72% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
L55 Product datasheet
Load deflection curve
Modulus of elasticity
0,055 N/mm2 25 mm 12 mm 37 mm 50 mm 0 0.02 0.04 0.06 0.08 0.1 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] optimal load range dynamic load range 0.0 55 N/m m 2 40 Hz 10 Hz 0 1 2 0 0.02 0.04 0.06 0.08 0.1 Modulus of elasticity m m/ N[ 2] 2] Specific load [N/mm Quasistatic optimalload range load rangedynamic
Control of the deflection of APSOPUR
®L55
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®L55 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
L55 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.055 N/mm2 0 0.02 0.04 0.06 0.08 0.1 5 10 15 20 25 m m/ N[ Specific load 2]
Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®L55 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®L55
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.055 N/mm2 0.028 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©L55 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets
ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX
Phone +33 (0)1 48 63 20 80 Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected]
China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa
Phone +90 224 261 26 21 Fax +90 224 261 26 20
www.laspargroup.com, [email protected] the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
H11 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color pink
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® H11–12
25 mm with APSOPUR® H11–25
Plates 1.5 m long, special lenghts available 1.0 m wide
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.11 N/mm²
Operating load range
(static plus dynamic loads) up to 0.16 N/mm 2
Load peaks
(short term, infrequent loads) up to 3 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 0.65 – 1.5 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 1.2 – 2.0 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.17 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 3.9% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 1.5 N/mm2 DIN EN ISO 1798*
Elongation at break 220% DIN EN ISO 1798* Tear strength 6.0 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.7 [-]
0.8 [-] steel (dry) concrete (dry)
Compression strength 170 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 57% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 68% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
H11 Product datasheet
Load deflection curve
Modulus of elasticity
optimal load range dynamic load range 0.11 N/mm2 25 mm 12 mm 37 mm 50 mm 0 0.04 0.08 0.12 0.16 0.2 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] m m/ N 1 1.0 2 Quasistatic 40 Hz 10 Hz 0 1 2 3 0 0.04 0.08 0.12 0.16 0.2 Modulus of elasticity m m/ N[ 2] Specific load [N/mm2] optimalload range load rangedynamic
Control of the deflection of APSOPUR
®H11
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®H11 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
H11 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.11 N/mm2 0 0.04 0.08 0.12 0.16 0.2 5 10 15 20 25 m m/ N[ Specific load 2]Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®H11 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®H11
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.11 N/mm2 0.055 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©H11 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX Phone +33 (0)1 48 63 20 80
Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected]
China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa Phone +90 224 261 26 21
Fax +90 224 261 26 20
www.laspargroup.com, [email protected] the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
H22 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color dark green
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® H22 –12
25 mm with APSOPUR® H22 –25
Plates 1.5 m long, special lenghts available 1.0 m wide
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.22 N/mm²
Operating load range
(static plus dynamic loads) up to 0.32 N/mm 2
Load peaks
(short term, infrequent loads) up to 4 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 1.07 – 2.5 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 2.2 – 3.7 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.15 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 4.2% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 2.4 N/mm2 DIN EN ISO 1798*
Elongation at break 240% DIN EN ISO 1798* Tear strength 9.3 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.7 [-]
0.8 [-] steel (dry) concrete (dry)
Compression strength 330 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 60% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 61% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
H22 Product datasheet
Load deflection curve
Modulus of elasticity
0.22 N/mm2 25 mm 12 mm 37 mm 50 mm 0 0.1 0.2 0.3 0.4 0 1 2 3 4 5 6 7 8 9 10 optimal load range dynamic load range m m/ N[ Specific load 2] Deflection [mm] m m/ N 22. 0 2 40 Hz 10 Hz 0 1 2 3 4 5 0 0.15 0.3 0.45 optimalload range load rangedynamic
Modulus of elasticity m m/ N[ 2] Specific load [N/mm2] Quasistatic
Control of the deflection of APSOPUR
®H22
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®H22 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
H22 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.22 N/mm2 0 0.1 0.2 0.3 0.4 5 10 15 20 25Natural frequency of the system [Hz]
m m/ N[ Specific load 2] optimal load range dynamic load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®H22 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®H22
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.22 N/mm2 0.11 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©H22 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland
Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets
ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX
Phone +33 (0)1 48 63 20 80 Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected]
Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected]
Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected]
Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected]
China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected]
Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa
Phone +90 224 261 26 21 Fax +90 224 261 26 20
www.laspargroup.com, [email protected]
the Online Shop of Angst + Pfister www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
H30 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color light orange
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® H30 –12
25 mm with APSOPUR® H30 –25
Plates 1.5 m long, special lenghts available 1.0 m wide
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.30 N/mm²
Operating load range
(static plus dynamic loads) up to 0.42 N/mm 2
Load peaks
(short term. infrequent loads) up to 4.5 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 3.6 – 5.0 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 5.1 – 6.3 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.14 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 4.4% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 2.9 N/mm2 DIN EN ISO 1798*
Elongation at break 210% DIN EN ISO 1798* Tear strength 14.1 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.6 [-]
0.7 [-] steel (dry) concrete (dry)
Compression strength 620 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 58% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 50% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
H30 Product datasheet
Load deflection curve
Modulus of elasticity
0.30 N/mm2 25 mm 12 mm 37 mm 50 mm 0 0.1 0.2 0.3 0.4 0.5 0.6 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] optimal load range dynamic load range m m/ N 03. 0 2 40 Hz 10 Hz 0 2 4 6 8 10 0 0.2 0.4 0.6 2] Modulus of elasticity m m/ N[ 2] optimalload range load rangedynamic
Specific load [N/mm Quasistatic
Control of the deflection of APSOPUR
®H30
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®H30 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
H30 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.30 N/mm2 0 0.1 0.2 0.3 0.4 0.5 0.6 5 10 15 20 25 m m/ N[ Specific load 2]
Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®H30 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®H30
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.30 N/mm2 0.15 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©H30 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX Phone +33 (0)1 48 63 20 80
Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected] China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa Phone +90 224 261 26 21
Fax +90 224 261 26 20
www.laspargroup.com, [email protected] the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
H45 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color dark blue
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® H45 –12
25 mm with APSOPUR® H45 –25
Plates 1.5 m long, special lenghts available 1.0 m wide
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.45 N/mm²
Operating load range
(static plus dynamic loads) up to 0.62 N/mm 2
Load peaks
(short term, infrequent loads) up to 5 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 4.2 – 5.7 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 6.8 – 10.0 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.12 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 6.2% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 3.6 N/mm2 DIN EN ISO 1798*
Elongation at break 230% DIN EN ISO 1798* Tear strength 18.5 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.6 [-]
0.7 [-] steel (dry) concrete (dry)
Compression strength 840 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 58% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 44% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
H45 Product datasheet
Load deflection curve
Modulus of elasticity
0.45 N/mm2 25 mm 12 mm 37 mm 50 mm 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] optimal load range dynamic load range m m/ N 54. 0 2 40 Hz 10 Hz 0 4 8 12 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 Modulus of elasticity m m/ N[ 2] Quasistatic optimalload range load rangedynamic
2]
Specific load [N/mm
Control of the deflection of APSOPUR
®H45
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
Testing at room temperature.
Form factor q = 3
Measurement of the dynamic modulus of
elasticity of APSOPUR
®H45 due to
sinusoidal excitation with a constant
medi-um load, oscillating range ± 0.25 mm.
Quasistatic modulus of elasticity as
a tangent modulus taken from the load
deflection curve.
Test according to DIN 53513.
Form factor q = 3
www.angst-pfister.com
APSOPUR
®APSOPUR
®
H45 Product datasheet
0 dB/0% -5 dB/44% -10 dB/69% -15 dB/82% -20 dB/90% -25 dB/94% -30 dB/97% -35 dB/98% -40 db/99% 0 10 20 30 40 50 60 70 80 90 100 5 10 15 20 25 ]z H[ Disturbing frequencyNatural frequency of the system [Hz]
Natural frequency
Vibration isolation efficiency
25 mm 12 mm 37 mm 50 mm 0.45 N/mm2 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 5 10 15 20 25 m m/ N[ Specific load 2]Natural frequency of the system [Hz]
optimal
load range
dynamic
load range
Natural frequency of a single-degree-of-
freedom system consisting of a fixed
mass and an elastic bearing consisting
of APSOPUR
®H45 based on a stiff
subgrade.
Form factor q = 3
Reduction of the transmitted mechanical
vibrations by implementation of an elastic
bearing consisting of APSOPUR
®H45
based on a stiff subgrade.
Parameter: transmission in dB,
isolation rate in %.
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
www.angst-pfister.com
APSOPUR
®we catch your vibration
Status January 2014All information and data is based on our current knowledge. The data can be applied for calculations and as guidelines, are subject to typical manufacturing tolerances and are not guaranteed. We reserve the right to amend the data.
Further characteristic values on request.
0.45 N/mm2 0.225 N/mm2 0 10 20 30 40 1 10 100 1000 10000 100000 ] % of the thickness[ Relative deflection Load duration [h]
Increase of the deformation of
APSOPUR
©H45 under the
same constant compressive load.
Form factor q = 3
Creep behavior
Switzerland Angst + Pfister AG
Thurgauerstrasse 66, Postfach, CH-8052 Zürich Phone +41 (0)44 306 61 11
Fax +41 (0)44 302 18 71
www.angst-pfister.com, [email protected] Angst + Pfister SA
Chemin de la Papeterie 1, CH-1290 Versoix Phone +41 (0)22 979 28 00
Fax +41 (0)22 979 28 78
www.angst-pfister.com, [email protected]
France
Angst + Pfister SA
Boîte postale 50115, 33, rue des Chardonnerets
ZAC Paris Nord ll, FR-95950 Roissy CDG CEDEX
Phone +33 (0)1 48 63 20 80 Fax +33 (0)1 48 63 26 90
www.angst-pfister.com, [email protected] Germany
Angst + Pfister GmbH
Schulze-Delitzsch-Strasse 38, DE-70565 Stuttgart Phone +49 (0)711 48 999 2-0
Fax +49 (0)711 48 999 2-69
www.angst-pfister.com, [email protected] Austria
Angst + Pfister Ges.m.b.H.
Floridsdorfer Hauptstrasse 1/E, AT-1210 Wien Phone +43 (0)1 258 46 01-0
Fax +43 (0)1 258 46 01-98
www.angst-pfister.com, [email protected] Italy
Angst + Pfister S.p.A.
Via Montefeltro 4, IT-20156 Milano Phone +39 02 30087.1 Fax +39 02 30087.100 www.angst-pfister.com, [email protected] Netherlands Angst + Pfister B.V. Boerhaavelaan 19, NL-2713 HA Zoetermeer Phone +31 (0)79 320 3700 Fax +31 (0)79 320 3799 www.angst-pfister.com, [email protected] Belgium
Angst + Pfister N.V. S.A.
Bedrijvencentrum Waasland Industriepark-West 75 BE-9100 Sint-Niklaas
Phone +32 (0)3 778 0128 Fax +32 (0)3 777 8398
www.angst-pfister.com, [email protected]
China
Angst + Pfister Trade (Shanghai) Co. Ltd.
Rm 1402, West Tower, Zhong Rong Hengrui Building No. 560 Zhangyang Road, CN-Shanghai 200122 Phone +86 21 5169 50 05
Fax +86 21 5835 8618
www.angst-pfister.com, [email protected] Turkey
Laspar Angst + Pfister
Advanced Industrial Solutions A.Ş. Dosab Gonca Sok. No:1, TR-16245 Bursa
Phone +90 224 261 26 21 Fax +90 224 261 26 20
www.laspargroup.com, [email protected]
the Online Shop of Angst + Pfister
www.apsoparts.com
www.angst-pfister.com
APSOPUR
®we catch your vibration
APSOPUR
®
H60 Product datasheet
APSOPUR
®Material mixed cellular polyurethane Color red
Standard dimensions on stock
Thickness 12.5 mm with APSOPUR® H60 –12
25 mm with APSOPUR® H60 –25
Plates 1.5 m long, special lenghts available 1.0 m wide
Other dimensions (also thickness) as well as stamped and molded parts on request
Standard APSOPUR
®range
Static range of use
Area of application Compression load
Static range of use
(static loads) up to 0.60 N/mm²
Operating load range
(static plus dynamic loads) up to 0.85 N/mm 2
Load peaks
(short term, infrequent loads) up to 6 N/mm 2
Material properties Test methods Comment
Static modulus of elasticity 5.5 – 7.8 N/mm2 EN 826* tangent modulus, see chart modulus of elasticity
Dynamic modulus of elasticity 7.9 – 13.0 N/mm2 DIN 53513 depending on the frequency, static load and thickness,
see chart modulus of elasticity
Mechanical loss factor 0.11 [-] DIN 53513* depending on the load, the amplitude and the frequency Compression set 4.8% DIN EN ISO 1856* measured 30 minutes after unloading, 50% deformation,
23 °C, 72 hours Tensile strength 4.0 N/mm2 DIN EN ISO 1798*
Elongation at break 210% DIN EN ISO 1798* Tear strength 19 N/mm DIN ISO 34-1* Fire behavior B2 [-]
E [-] DIN 4102DIN EN 13501 normal flammable
Coefficient of friction 0.6 [-]
0.7 [-] steel (dry) concrete (dry)
Compression strength 1050 kPa DIN EN ISO 3386-2* compressive strength 25% deformation, sample h = 25 mm Rebound resilience 59% DIN EN ISO 8307* depending on thickness, sample h = 25 mm
Strength reduction 39% DIN EN 14904 depending on thickness, sample h = 25 mm
* Tests according to respective standards
L11
L18
L28
L42
L55
H11
H22
H30
H45
H60
H85
P250
0.011 0.018 0.028 0.042 0.055 0.11 0.22 0.30 0.45 0.60 0.85 2.50 0.001 0.01 0.1 1 10Static load [N/mm
2]
www.angst-pfister.comAPSOPUR
®we catch your vibration
APSOPUR
®
H60 Product datasheet
Load deflection curve
Modulus of elasticity
0.60 N/mm2 25 mm 12 mm 37 mm 50 mm 0 0.2 0.4 0.6 0.8 1 1.2 0 1 2 3 4 5 6 7 8 9 10 m m/ N[ Specific load 2] Deflection [mm] optimal load range dynamic load range m m/ N 06. 0 2 40 Hz 10 Hz 0 4 8 12 16 0 0.2 0.4 0.6 0.8 1 1.2 Modulus of elasticity m m/ N[ 2] 2] Specific load [N/mm optimalload range load rangedynamic
Quasistatic
Control of the deflection of APSOPUR
®H60
between two flat steel plates, according to
DIN EN 826.
Recording of the 3
rdloading.
Loading time 20 secondes.
