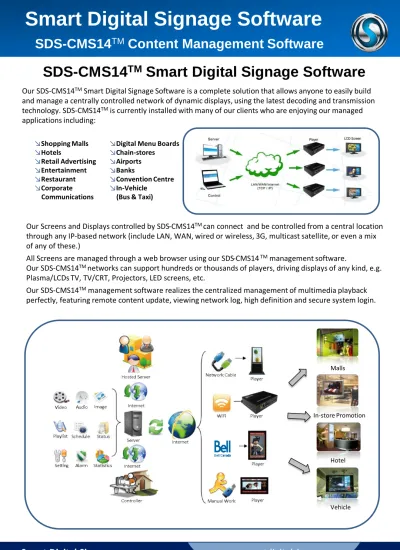

SDS-CMS14
TM
Content Management Software
SDS-CMS14
TM
Smart Digital Signage Software
Our SDS-CMS14TM Smart Digital Signage Software is a complete solution that allows anyone to easily build
and manage a centrally controlled network of dynamic displays, using the latest decoding and transmission technology. SDS-CMS14TM is currently installed with many of our clients who are enjoying our managed
applications including: ↘Shopping Malls ↘Hotels ↘Retail Advertising ↘Entertainment ↘Restaurant ↘Corporate Communications
↘Digital Menu Boards ↘Chain-stores ↘Airports ↘Banks
↘Convention Centre ↘In-Vehicle
(Bus & Taxi)
Malls
Smart Digital Signage Software
Our Screens and Displays controlled by SDS-CMS14TM can connect and be controlled from a central location
through any IP-based network (include LAN, WAN, wired or wireless, 3G, multicast satellite, or even a mix of any of these.)
All Screens are managed through a web browser using our SDS-CMS14 TM management software.
Our SDS-CMS14TM networks can support hundreds or thousands of players, driving displays of any kind, e.g.
Plasma/LCDs TV, TV/CRT, Projectors, LED screens, etc.
Our SDS-CMS14TM management software realizes the centralized management of multimedia playback
perfectly, featuring remote content update, viewing network log, high definition and secure system login.
In-store Promotion
Hotel
SDS-CMS14
TMControl Software
Layout Tool & Playlist Editing
Content Management
↘ Support Video, Image, Text Message, Audio,
Streaming, Local Time and Date, etc.
↘ Message: Adjustable background color, font
color, speed, effect and location. The font size is adjusted by the zone height. Transparent background for static message zone.
↘ Time and Date Zone: flexible formats;
synchronized with server time automatically.
↘ Content Management and Classification by
Directory.
↘ Support “Resume from Break Points” during content upload
↘ Set upload time to avoid busy hours and keep the
system’s stability
Player Configuration
↘ Set Auto Power on/off time
↘ Network Connection Setting: DHCP/Static IP,
WiFi, 3G, etc.
↘ Video Output and Resolution: CVBS, VGA, HDMI,
YPbPr, 1080P, 720P, 480P, etc.
↘ Set Volume according to time period.
↘ Update Firmware as required.
Program and Scheduling
↘ Define Idle-Loop task, On-Demand task, Inter-Cut task.
↘ Set the playback status of each program as Play
or Pause.
↘ The Priority of tasks: Inter-Cut task > On-Demand
task > Idle-Loop task.
↘ Idle-Loop task plays in recurrence, for example
seven days is a recurrence and different content for each day.
↘ On-Demand task requires Playback Duration, End
Time and Counts.
↘ Inter-Cut task is triggered by the remote, motion
sensor, keyboard, or network control.
User Management
↘ User Management and Approval System.
↘ Define the Privileges of every Role.
↘ Administrator distribute different roles to users
to manage the access level.
Language: English, French
↘ Layout Design tool: create new zones with quick
click and drag to desired size and location.
↘ Layout menu bar: modify the zones’ names and
values for size and position exactly.
↘ Background Picture and Background Music.
↘ Display Current Time and Date
↘ Flexible image switch effects: Cut-in Top/Bottom,
Cut-in Left/Right, Jalousie Hori/Vert, Grid, Scroll Up/Down, Scroll Left/Right.
↘ Static and Scrolling Message
↘ Main Playback Area
↘ Playlist Editing: Edit Playlist according to layout
template; set media list for each individual zone.
Playback Monitoring
↘ Check the current or previous playback content
of each player without on-site inspection.
↘ Check the network status of players from
controller.
↘ View Network Log of each Player.
↘ View More System Log, include regular startup,
exceptional startup, program download time, etc.
↘ Get the Latest Playback Condition of Player by Screenshot.
Network Media Player
Box Type:
SDS-8018
1080P Full HD, HDMI output, Local time and date, streaming Video, 3G & Wi-Fi.
Wall-Mounted LCD Type:
↘Available Sizes: 19”/22”/26”/32”/42”/47”/52”/55”/60”/65”. ↘VESA Mount.
↘Flexible Housing Design, support both portrait and landscaping Installation.
* More sizes customizable…
System Feature Highlights
Dedicated Players(Non-PC)
All of SDS-CMS14TM players are dedicated and they are
especially designed for digital signage applications. The advantages include:
↘ Cost effective: No need Windows license and client software.
↘ Fan-less: Dust proof, quiet running.
↘ Less Power Consumption: Consumes 1/20 power
of a PC power consumption.
↘ Boot Time: Less boot time than a PC.
Web-based Browser Interface
SDS-CMS14TM is Web Browser based, meaning that you
can easily operate anytime and anywhere. The latest IE and Chrome web browsers are supported. Applicable for multi-national users and business travelers.
High Definition Support
The SDS-CMS14TM player is integrated with 32 bytes
ARM based processor and supports 1080P full High Definition videos over both HDMI and YPbPr output.
Offline Update Software
In order to support sites with no Internet access, users can deploy content and schedules to signage appliances with the special offline update software.
Remote Control
Remote reboot, sleep, get screenshot, request programs from management software.
Floor-Standing LCD Type:
↘Available Sizes: 26”/32”/42”/46”/52”/55”/65”. ↘Metal Housing with Flexible Design.
Streaming
SDS-CMS14TM players support live streaming media from
Windows Media Services.
Wireless Solution
3G/Wi-Fi network connection are available if the project requires.
Items Model: SDS-8018 Photo C o n tent & P laybac k
Media Support Video / Audio / Picture / Scrolling text/Streaming Video
Video format MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS, DAT, MPG, MPEG, VOB
Audio format MP3, WMA, WMA Pro, AAC, MPEG1/2 Layer ½, ADPCM, OGG Vorbis, Dolby Digital AC3, Dolby Digital
Plus, RA-COOK, FLAC
Picture format JPEG, BMP, GIF, PNG, TIFF
Scrolling Message (Ticker) Horizontal, Adjustable speed, effect, font and background color
Display Resolution Up to 1920x1280, Both 16:9 and 4:3
High Definition(H.D.) 1080P Full H.D.
Portrait Mode Support
Local Time and Date Support
Live TV Support Support, live content from streaming media server Multiple Zones Display Support multiple zones on screen
H ard ware Sp ec ifi cat io n s
Platform Non-PC based , RISC or Embedded based platform
Video output YPbPr (1080P), HDMI (1080P), VGA (720P), CVBS (PAL/NTSC)
Audio Output HDMI, 2 x RCA L / R jack, SPDIF digital audio jack
Storage Default 8GB SD card (Maximum up to 128GB) /200GB Hard Disk(optional)
Processor ARM based Multimedia processor , 720MHz
Network 10/100 Mbps Fast Ethernet
Wireless Wi-Fi 802.11b/g, 3G (WCDMA HSDPA, CDMA2000)
USB USB2.0 x 1, USB1.0 x 1
Power Input DC 12V P erfo rm an ce
Operation Temperature 0~70°C Humidity:10%~85%
Storage Temperature -20°C~80°C Humidity:5%~90%
Mean Time Between Failure 10,000 hours
Life cycle 100,000 hours
Power Consumption 12W O th er Dimension 160 x 165 x 35 mm Net Weight 150 g Housing Plastic
Color Dark Blue, customization is available
Accessories AC Adapter (Input: AC/100-240V, Output: DV/12V), Power Cord
Certification CE, RoHS, FCC
Management Software
SDS-CMS14 Content Management Software
↘
Web-Based Interface (Using by IE browser)
↘
Support unlimited players
↘
Multiple-Corporation support
↘
Content Management
↘
Playlist Scheduling, Layout Change
↘
User Management, Reporting
Displaying Effect
About Us
Located in Toronto, Smart Digital Signage is dedicated to developing world-class digital signage systems for advanced information distribution.
With powerful R&D ability, we specialize in providing software and hardware for digital signage solutions, which is specifically designed to manage your multimedia display content. It is widely used in advertising, signage and information broadcasting to the public, such as department stores, shopping malls, retail stores, hotels, bars, restaurants, club houses, hospitals, government buildings, institutions, transportations and information centers.
At Smart Digital Signage, our priority is to provide our clients with the highest quality products, the most innovative solutions and the best customer service.
