08 FRIDGES & FREEZERS

(1)

-80°C FREEZERS

08

FRIDGES & FREEZERS

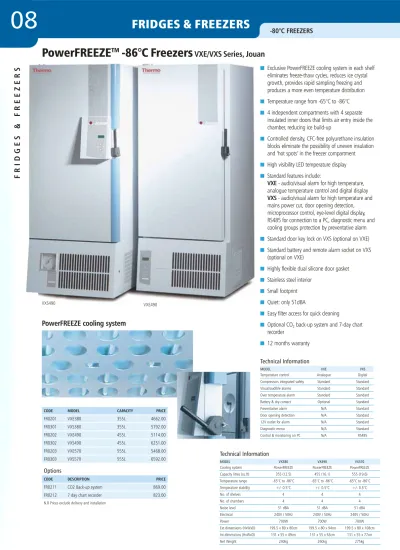

PowerFREEZE

TM

_{-86°C Freezers}

VXE/VXS Series, Jouan

Exclusive PowerFREEZE cooling system in each shelf eliminates freeze-thaw cycles, reduces ice crystal growth, provides rapid sampling freezing and produces a more even temperature distribution Temperature range from -65°C to -86°C 4 independent compartments with 4 separate insulated inner doors that limits air entry inside the chamber, reducing ice build-up

Controlled density, CFC-free polyurethane insulation blocks eliminate the possibility of uneven insulation and ‘hot spots’ in the freezer compartment High visibility LED temperature display Standard features include:

VXE - audio/visual alarm for high temperature,

analogue temperature control and digital display

VXS - audio/visual alarm for high temperature and

mains power cut, door opening detection, microprocessor control, eye-level digital display, RS485 for connection to a PC, diagnostic menu and cooling groups protection by preventative alarm Standard door key lock on VXS (optional on VXE) Standard battery and remote alarm socket on VXS (optional on VXE)

Highly flexible dual silicone door gasket Stainless steel interior

Small footprint Quiet: only 51dBA

Easy filter access for quick cleaning

Optional CO2back-up system and 7-day chart

recorder

12 months warranty

PowerFREEZE cooling system

CODE MODEL CAPACITY PRICE

FR0201 VXE380 355L 4662.00 FR0301 VXS380 355L 5792.00 FR0202 VXE490 455L 5114.00 FR0302 VXS490 455L 6251.00 FR0203 VXE570 555L 5468.00 FR0303 VXS570 555L 6592.00 Options

CODE DESCRIPTION PRICE

FR0211 CO2 Back-up system 869.00

FR0212 7 day chart recorder 823.00

N.B Prices exclude delivery and installation

Technical Information

MODEL VX380 VX490 VX570

Cooling system PowerFREEZE PowerFREEZE PowerFREEZE Capacity litres (cu.ft) 355 (12.5) 455 (16.1) 555 (19.6) Temperature range -65°C to -86°C -65°C to -86°C -65°C to -86°C Temperature stability +/- 0.5°C +/- 0.5°C +/- 0.5°C

No. of shelves 4 4 4

No. of chambers 4 4 4

Noise level 51 dBA 51 dBA 51 dBA Electrical 240V / 50Hz 240V / 50Hz 240V / 50Hz Power 700W 700W 700W Ext.dimensions (HxWxD) 199.5 x 80 x 80cm 199.5 x 80 x 94cm 199.5 x 80 x 108cm Int.dimensions (HxWxD) 131 x 55 x 49cm 131 x 55 x 63cm 131 x 55 x 77cm Net Weight 240kg 260kg 275kg Technical Information MODEL VXE VXS

Temperature control Analogue Digital Compressors integrated safety Standard Standard Visual/audible alarms Standard Standard Over temperature alarm Standard Standard Battery & dry-contact Optional Standard Preventative alarm N/A Standard Door opening detection N/A Standard 12V outlet for alarm N/A Standard Diagnostic menu N/A Standard Control & monitoring on PC N/A RS485

(2)

08

-80°C FREEZERS

FRIDGES & FREEZERS

Single drawer box

Double drawer box Triple drawer box

Racks for cryoboxes

Accessories

CODE DESCRIPTION PACK PRICE

FR0114 Cardboard cryoboxes 135 x 135 x 50mm w/o insert 12 55.00 FR0115 Cardboard cryoboxes 135 x 135 x 70mm w/o insert 12 78.00

FR0116 Inserts 100 x 12mm diameter 12 43.05

FR0120 Discs for 7 day chart recorder 100 39.00

FR0121 Pens for 7 day chart recorder 5 59.00

Racking for VX380

CODE DESCRIPTION INT. DIM NO. PER TOTAL PRICE (EA) (WXDXH) COMPARTMENT REQUIRED

FR0231 Single drawer box 132 x 406 x 287 4 16 76.00 FR0232 Double drawer box 260 x 390 x 139 2 8 204.00 FR0233 Triple drawer box 260 x 390 x 91 2 8 222.00 FR0234 Racks for cryoboxes 135 x 135 x 56 4 16 112.00

135 x 135 x 50

FR0237 Racks for microplates 130 x 95 x 92 4 16 111.00 127 x 87 x 14/41mm

See also:

Cryogenic storage boxes, page 36 Cryogenic storage vessels, pages 23-29

Labelling, pages 88-91

Racking for VX490

135 x 135 x 50

FR0335 Racks for cryoboxes 135 x 135 x 74 4 16 178.00 135 x 135 x 70

FR0339 Racks for tubes 1 per drawer in 2 4 16/24 84.00 13mm diameter or 3 drawer racks

Racking for VX570

135 x 135 x 50

FR0437 Racks for microplates 130 x 95 x 92 4 16 158.00 127 x 87 x 14/41mm

(3)

FRIDGES & FREEZERS

08

FRIDGES & FREEZERS

Economy Laboratory Fridges and Freezers

Labcold

Sparkfree Laboratory Fridges

Labcold

LC001

LC012 LC011

Low cost and robust construction Automatic defrosting on fridges All models have single piece moulded ABS interiors

LC003 and LC004 have temperature display and lockable doors LC004 has refrigerated shelves for greater temperature stability 12 month warranty

Laboratory safe, sparkfree interiors Lockable doors

Low energy models have improved insulation to reduce running costs and provide more stable operating temperature

Automatic defrosting Removable shelves Freezers with matching external dimensions are available 12 month warranty Economy Fridges

CODE TEMPERATURE CAPACITY SHELVES TEMP. DOOR EXT. DIMENSIONS PRICE RANGE DISPLAY LOCK H X W X D

LC001 +2°C to +8°C 117 litres 4 No No 855 x 505 x 500mm 295.00

LC003 +2°C to +5°C 505 litres 4 Digital Yes 1710 x 765 x 725mm 1195.00 Economy Freezers

CODE TEMPERATURE CAPACITY SHELVES TEMP. DOOR EXT. DIMENSIONS PRICE RANGE DISPLAY LOCK H X W X D

LC002 -15°C to -20°C 90 litres 4 drawers No No 855 x 505 x 500mm 315.00 LC004 -18°C to -25°C 505 litres 6 (fixed) Analogue Yes 1710 x 765 x 725mm 1195.00

CODE CAPACITY SHELVES DOOR LOCK EXT. DIMENSIONS H X W X D PRICE

LC011 60 litres 2 Optional 572 x 485 x 520mm 395.00

LC012* 160 litres 3 Yes 850 x 550 x 620mm 424.00

LC018* 285 litres 5 Yes 1430 x 600 x 635mm 565.00

LC019 360 litres 6 Optional 1850 x 690 x 605mm 920.00

LC020 490 litres 6 Yes 1775 x 760 x 720mm 1795.00

* Low energy models

Also available:

– Fan circulated laboratory fridges where greater temperature uniformity is required and sparkfree is not important

– Large capacity laboratory fridges and freezers up to 1400 litres

Please contact the Sales Office for further details

LC004

NEW NEW NEW

(4)

08

FRIDGES & FREEZERS

Temperature Monitoring

To protect valuable samples it is strongly recommended that temperature monitoring, recording and alarming is considered. To discuss your requirements please contact one of our technical representatives

Sparkfree Laboratory Freezers

Labcold

Laboratory safe, sparkfree interiors Upright or chest models Operator controlled defrosting Low energy models have improved insulation to reduce running costs and provide more stable operating temperature

Temperature display on upright freezers (optional on LC021 & LC027) Lockable doors available on all models 12 month warranty

Digital

Alarm

Labcold

Displays current cabinet temperature as well as highest and lowest temperatures since last reset Available as factory fitted

version (LC051) or as stand-alone (LC052) Adjustable alarm (audible and visual) for high or low temperature

Alarm continues to operate until reset by operator even if temperature has returned to normal (operator can see the highest and lowest temperatures during the alarm period) Supplied with cabinet sensor and 3m lead Typical 12 month battery life (with low battery warning)

CODE TEMPERATURE RANGE RESOLUTION PRICE

LC051 -50°C to +70°C 1°C 115.00 LC052 -50°C to +70°C 1°C 55.00

LC025 Upright Freezers

CODE CAPACITY SHELVES/ DOOR TEMPERATURE ALARM EXT. DIMENSIONS

DRAWERS LOCK SET POINT H X W X D PRICE

LC021 45 litres 1 shelf Optional -18°C to -23°C Optional 525 x 500 x 500mm 395.00 LC026* 120 litres 4 drawers Optional -18°C to -23°C Optional 850 x 550 x 620mm 428.00 LC027 245 litres 6 drawers Optional -18°C to -23°C Optional 1435 x 600 x 600mm 649.00 LC024 312 litres 3/4 Optional -18°C to -23°C Visual 1770 x 600 x 590mm 795.00 LC025 375 litres 6 shelves Standard -18°C to -23°C Optional 1850 x 595 x 640mm 995.00

* Low energy model

Chest Freezers

CODE CAPACITY STORAGE DOOR TEMPERATURE ALARM EXT. DIMENSIONS

BASKETS LOCK SET POINT H X W X D PRICE

LC031* 215 litres 1 Yes -18°C to -22°C Visual 860 x 700 x 730mm 595.00 LC034* 447 litres 2 Yes -18°C to -22°C Visual 860 x 1300 x 730mm 735.00 LC033* 607 litres 4 Yes -18°C to -22°C Visual 860 x 1700 x 730mm 925.00

* Low energy models

CODE TYPE FRIDGE FREEZER DOOR TEMP. ALARM EXT. DIMENSIONS PRICE (+2°C/+8°C) (-17°C/-23°C) LOCK DISPLAY H X W X D

LC043 Sparkfree 230 litre/4 shelves 160 litre / 4 baskets Optional Optional Optional 1965 x 595 x 630mm 895.00

NEW NEW NEW NEW LC043 Also available:

– Large capacity laboratory fridges and freezers up to 1400 litres

– Superfreezers which will operate down to -30°C to -40°C

Please contact the Sales Office for further details

Combined

Fridge/Freezer

Labcold

Storage at -20°C and +4°C in one combined unit

Laboratory safe, sparkfree interior Refrigeration compartments have automatic defrosting

Independent controls for fridge and freezer

Superior insulation to reduce costs and provide more stable operating temperatures

CFC & HCFC free 12 month warranty

(5)

FRIDGES & FREEZERS

08

FRIDGES & FREEZERS

FR0003 FR0005

FR0014

FR0013

Laboratory Rated +4°C Fridges

Swan

Strengthened hinges External temperature controllers Internally sparkfree

Adjustable shelving CFC free

Locks fitted as standard

Applications include storage of chemicals, poisons, general specimens and inflammable or volatile liquids Automatic defrost for user convenience 12 month warranty

Heavy Duty +4°C Fridges

Additional features: Industrial strength hinges

Thicker insulation than standard models Heavy duty compressor

CODE CAPACITY SHELVES EXT. DIMS H X W X D PRICE

FR0001 80 litre 1 635 x 505 x 515mm 391.50 FR0003 140 litre 2 850 x 505 x 590mm 439.00 FR0005 280 litre 4 1490 x 535 x 630mm 645.00

CODE CAPACITY SHELVES EXT. DIMENSIONS H X W X D PRICE

FR0012* 180 litre 3 850 x 605 x 600mm 656.50 FR0013 260 litre 3 1215 x 605 x 600mm 749.00 FR0014 350 litre 4 1590 x 605 x 600mm 827.00 FR0016 500 litre 5 1515 x 755 x 715mm 1139.00

* FR0012 has removeable worktop for under bench installation. Height without worktop 820mm

Fan Circulation Models

A range of fan circulation models is available. Ideal for applications requiring an even temperature distribution throughout the storage cabinet. These units are not internally sparkfree. Please contact the Sales Office for further details

Due to continual improvements the specification of refrigerators and freezers may change – please contact the Sales Office for the latest specifications

Optional Equipment Available with all Swan Fridges and Freezers

Optional Extras (where not fitted) Digital temperature displays, Audio/visual alarms, Castors, Drawers

Also Available Refrigerators and freezers available in larger capacities, with internal fan circulation, stainless steel interiors or electronic temperature controllers

Temperature Recording Temperature chart recorders are available including 7-day circular and 30-day strip type recorders

Remote Alarm and Monitoring Systems Temperature alarm and monitoring systems are available to suit all applications. Please contact the customer services office for further information

(6)

08

FRIDGES & FREEZERS

Strengthened hinges

External temperature controllers Locks fitted as standard

Manual defrosting eliminates the need for any internal heaters

Internally sparkfree

Fixed freezing shelves CFC free

Applications include storage of chemicals, poisons, general specimens and inflammable or volatile liquids 12 month warranty

Laboratory Rated -20°C Freezers

Swan

-20°C Freezers, Upright Freezers

Heavy Duty -20°C (upright) Freezers

Additional features:

Analogue or digital temperature display Locks fitted as standard

Industrial strength hinges

Thicker insulation than standard models Heavy duty compressor

White exterior with white interior FR0053 FR0067 FR0055 FR0026 FR0023 FR0063

Upright -25°C models (with solid plastic drawers)

Additional features:

All models have high temperature alarm

Fixed freezing shelves for even temperature distribution Solid internal storage drawers

CODE CAPACITY NO. OF SHELVES NO. OF BASKETS EXT. DIMENSIONS H X W X D PRICE

FR0052 60 litres 2 1 630 x 505 x 510mm 397.00

FR0053 105 litres 1 2 850 x 505 x 585mm 447.50

FR0055 230 litres 2 4 1490 x 535 x 630mm 666.00

CODE CAPACITY SHELVES EXT. DIMS H X W X D ALARM PRICE

FR0061 80 litre 2 630 x 555 x 600mm V 520.50

FR0062 130 litre 4 850 x 555 x 620mm V 676.00

FR0063 185 litre 5 1250 x 600 x 630mm A / V 790.50 FR0067 520 litre 14 1710 x 755 x 720mm A / V 1425.00

V = Visual high temperature A = Audio high temperature

CODE CAP. SHELVES BASKETS EXT. DIMS H X W X D DISPLAY PRICE

FR0021 150 litre 2 2 830 x 595 x 605mm Digital 680.00 FR0023 340 litre 6 0 1870 x 595 x 625mm Analogue 905.00 FR0025 505 litre 6 0 1790 x 770 x 725mm Analogue 1232.50 FR0026 525 litre 6 6 1710 x 755 x 730mm Digital 1270.88

(7)

FRIDGES & FREEZERS

08

FRIDGES & FREEZERS

Laboratory Fridges and Freezers

LEC

‘Spark-free’ interiors to reduce the risk of internal explosion Lockable doors available on all models

Fridges maintain internal air temperature between 0°C and +10°C

Freezers maintain internal air temperature at -18°C or below CFC and HCFC free

Optional door thermometer 12 month warranty

Economy Fridges

CODE ALT. TEMPERATURE CAPACITY SHELVES/ DOOR EXT. DIMENSIONS PRICE CODE RANGE DRAWERS LOCK H X W X D

FR1001 LR202 +0°C to +10°C 82 litres 2/1 Yes 636 x 500 x 515mm 234.00 FR1002 LR502 +0°C to +10°C 142 litres 2/1 Yes 850 x 500x 590mm 263.00 FR1003 LR902 +0°C to +10°C 277 litres 5/1 Yes 1486 x 530x 630mm 363.00 FR1006 LR1602 +0°C to +10°C 441 litres 5 Yes 1688 x 685 x 910mm 2076.00 Economy Freezers

CODE ALT. TEMPERATURE CAPACITY SHELVES/ DOOR EXT. DIMENSIONS PRICE CODE RANGE DRAWERS LOCK H X W X D

FR1010 ISU25 -18°C or lower 62 litres 2/1 Yes 636 x 500 x 515mm 273.00 FR1011 ISU55 -18°C or lower 105 litres 1/2 Yes 850 x 500 x 590mm 310.00 FR1012 ISU95 -18°C or lower 230 litres 3/3 Yes 1486 x 530 x 630mm 474.00

FR1012

‘Spark-free’ interiors to reduce the risk of internal explosion Lockable doors with two keys for product security Fridges maintain internal air temperature between 0°C and +10°C

Freezers maintain internal air temperature at -6°C (ISR25), -12°C (ISR55) and -18°C (IST45) Fully automatic defrosting of fridge

CFC and HCFC free Optional door thermometer 12 month warranty

CODE ALT. CAPACITY SHELVES/ EXT. DIMENSIONS PRICE CODE FRIDGE/FREEZER DRAWERS H X W X D

FR2010 ISR25 77 litres/ 5 litres 2/1 636 x 500 x 515mm 210.00

FR2011 ISR55 101 litres/ 9 litres 3/1 850 x 500 x 590mm 264.00 FR2012 IST45 99 litres/ 110 litres fridge - 2/1, freezer - 2/1 1486 x 530 x 630 mm 520.00

new

Combined Laboratory Fridge Freezers

LEC

new

FR1001

FR2012

(8)

08

ICE MAKERS

FRIDGES & FREEZERS

Flake Ice Makers

Porkka

Produces flake ice quietly and efficiently Uses an auger production system Stainless steel construction prevents rusting

Production rates range from 75kg to 165kg of ice per 24 hour cycle Indirect belt-drive system allows easy access to the whole system for servicing Optional water cooled condensers available

12 month warranty

FR3002

FR3100

Ice Makers

All ice makers require a potable mains water supply, water drain and electrical supply.

For full details on the requirements contact the Sales Office on 0121 472 7353

CODE CAPACITY DIMENSIONS PRICE

AC991 4.5 Litre 185 x 330 mm 42.96 PRODUCT GROUP AZ

Ice Buckets with Lid

Azlon

Excellent insulating properties, suitable for use with liquid nitrogen, dry-ice, water-ice and salt solutions Durable, rigid polyurethane-skinned foam ice bucket is unbreakable in normal use

new

CODE ALT. PRODUCTION BIN CAPACITY DIMENSIONS WEIGHT PRICE CODE (KG/24HR) (KG) (H X W X D)* (KG) FR3001 AF80 70 25 813 x 535 x 621 72 2509.00 FR3002 AF100 85 32 1006 x 592 x 622 63 3399.00 FR3003 AF200 120 32 1006 x 592 x 622 65 3942.00 FR3004 AF20 120 70 1006 x 969 x 613 97 4681.00 FR3005 AF30 200 70 1006 x 969 x 613 105 4795.00

* Add 120mm to height dimension to calculate height of unit if the supplied legs are fitted. Figures based on 24hr production, ambient temperature 21°C and water temperature 15°C

Flake Ice Makers

Scotsman

Self contained unit with integral storage bin

Produces flake ice, suitable for a wide range of applications Stainless steel construction prevents rusting

Front sliding door for convenient storage and removal of ice Production rates range from 70kg to 200kg of ice per 24 hour cycle 12 month warranty

new

CODE ALT. PRODUCTION BIN CAPACITY DIMENSIONS WEIGHT PRICE CODE (KG/24HR)* (KG) (H X W X D)* (KG)

FR3100 KF75 75 25 720 x 485 x 570 62 1995.00

FR3101 KF125 125 42 890 x 680 x 585 81 2285.00

FR3102 KF165 165 60 780 x 955 x 590 94 2795.00

* Add 140mm to height dimension to calculate height of unit if the supplied legs are fitted. Figures are based on 24hr production, ambient temperature +10°C and water temperature +10°C
