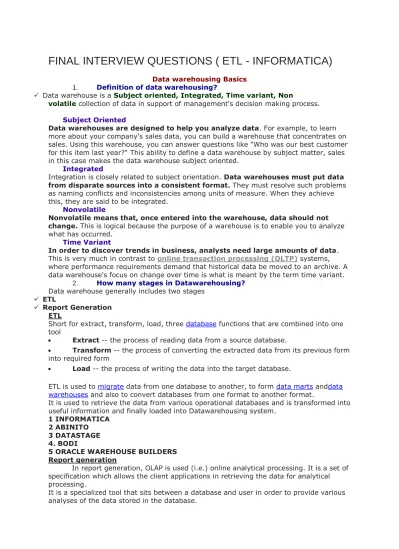

FINAL INTERVIEW QUESTIONS ( ETL - INFORMATICA)
Data warehousing Basics1. Definition of data warehousing?
Data warehouse is a Subject oriented, Integrated, Time variant, Non
volatile collection of data in support of management's decision making process.
Subject Oriented
Data warehouses are designed to help you analyze data. For example, to learn more about your company's sales data, you can build a warehouse that concentrates on sales. Using this warehouse, you can answer questions like "Who was our best customer for this item last year?" This ability to define a data warehouse by subject matter, sales in this case makes the data warehouse subject oriented.
Integrated
Integration is closely related to subject orientation. Data warehouses must put data from disparate sources into a consistent format. They must resolve such problems as naming conflicts and inconsistencies among units of measure. When they achieve this, they are said to be integrated.
Nonvolatile
Nonvolatile means that, once entered into the warehouse, data should not change. This is logical because the purpose of a warehouse is to enable you to analyze what has occurred.
Time Variant
In order to discover trends in business, analysts need large amounts of data. This is very much in contrast to online transaction processing (OLTP) systems, where performance requirements demand that historical data be moved to an archive. A data warehouse's focus on change over time is what is meant by the term time variant.
2. How many stages in Datawarehousing? Data warehouse generally includes two stages
ETL
Report Generation
ETL
Short for extract, transform, load, three database functions that are combined into one tool
Extract -- the process of reading data from a source database.
Transform -- the process of converting the extracted data from its previous form into required form
Load -- the process of writing the data into the target database.
ETL is used to migrate data from one database to another, to form data marts anddata warehouses and also to convert databases from one format to another format.
It is used to retrieve the data from various operational databases and is transformed into useful information and finally loaded into Datawarehousing system.
1 INFORMATICA 2 ABINITO 3 DATASTAGE 4. BODI
5 ORACLE WAREHOUSE BUILDERS Report generation
In report generation, OLAP is used (i.e.) online analytical processing. It is a set of specification which allows the client applications in retrieving the data for analytical processing.
It is a specialized tool that sits between a database and user in order to provide various analyses of the data stored in the database.
OLAP Tool is a reporting tool which generates the reports that are useful for Decision support for top level management.
1. Business Objects 2. Cognos 3. Micro strategy 4. Hyperion 5. Oracle Express 6. Microsoft Analysis Services
Different Between OLTP and OLAP
OLTP OLAP
1 Application Oriented (e.g., purchase order it is
functionality of an application)
Subject Oriented (subject in the sense customer, product, item, time) 2 Used to run business Used to analyze business
3 Detailed data Summarized data 4 Repetitive access Ad-hoc access 5 Few Records accessed at a
time (tens), simple query Large volumes accessed at a time(millions), complex query 6 Small database Large Database
7 Current data Historical data 8 Clerical User Knowledge User 9 Row by Row Loading Bulk Loading 10 Time invariant Time variant
11 Normalized data De-normalized data 12 E – R schema Star schema
3. What are the types of datawarehousing? EDW (Enterprise datawarehousing)
It provides a central database for decision support throughout the enterprise
It is a collection of DATAMARTS
DATAMART
It is a subset of Datawarehousing
It is a subject oriented database which supports the needs of individuals depts. in an
organizations
It is called high performance query structure
It supports particular line of business like sales, marketing etc.. ODS (Operational data store)
It is defined as an integrated view of operational database designed to support operational
monitoring
It is a collection of operational data sources designed to support Transaction processing
Data is refreshed near real-time and used for business activity
It is an intermediate between the OLTP and OLAP which helps to create an instance
5. What are the types of Approach in DWH?
Bottom up approach: first we need to develop data mart then we integrate these data mart into EDW
Top down approach: first we need to develop EDW then form that EDW we develop data mart
Bottom up
OLTP ETL Data mart DWH OLAP Top down
OLTP ETL DWH Data mart OLAP Top down
Cost of initial planning & design is high
Takes longer duration of more than an year
Bottom up
Planning & Designing the Data Marts without waiting for the Global warehouse design
Immediate results from the data marts
Tends to take less time to implement
Errors in critical modules are detected earlier.
Benefits are realized in the early phases.
It is a Best Approach
Data Modeling Types:
Conceptual Data Modeling Logical Data Modeling
Physical Data Modeling
Dimensional Data Modeling
1. Conceptual Data Modeling
Conceptual data model includes all major entities and relationships and does not contain
much detailed level of information about attributes and is often used in the INITIAL PLANNING PHASE
Conceptual data model is created by gathering business requirements from various
sources like business documents, discussion with functional teams, business analysts, smart management experts and end users who do the reporting on the database. Data modelers create conceptual data model and forward that model to functional team for their review.
Conceptual data modeling gives an idea to the functional and technical team
about how business requirements would be projected in the logical data model.
2. Logical Data Modeling
This is the actual implementation and extension of a conceptual data model.
Logical data model includes all required entities, attributes, key groups, and relationships that represent business information and define business rules.
3. Physical Data Modeling
Physical data model includes all required tables, columns, relationships, database
properties for the physical implementation of databases. Database performance, indexing strategy, physical storage and demoralization are important parameters of a physical model.
Logical vs. Physical Data Modeling
Logical Data Model Physical Data Model
Represents business information and defines business rules
Represents the physical implementation of the model in a database.
Entity Table
Attribute Column
Primary Key Primary Key Constraint
Alternate Key Unique Constraint or Unique Index Inversion Key Entry Non Unique Index
Rule Check Constraint, Default Value
Relationship Foreign Key
Definition Comment
Dimensional Data Modeling
Dimension model consists of fact and dimension tables
It is an approach to develop the schema DB designs
Types of Dimensional modeling
Star schema
Snow flake schema
Star flake schema (or) Hybrid schema Multi star schema
What is Star Schema?
The Star Schema Logical database design which contains a centrally located fact table
surrounded by at least one or more dimension tables
Since the database design looks like a star, hence it is called star schema db
The Dimension table contains Primary keys and the textual descriptions
It contain de-normalized business information
A Fact table contains a composite key and measures
The measure are of types of key performance indicators which are used to evaluate the
enterprise performance in the form of success and failure
Eg: Total revenue , Product sale , Discount given, no of customers
To generate meaningful report the report should contain at least one dimension and one
fact table
The advantage of star schema
Less number of joins
Improve query performance Slicing down
Easy understanding of data. Disadvantage:
Require more storage space Example of Star Schema: Snowflake Schema
In star schema, If the dimension tables are spitted into one or more dimension tables
The de-normalized dimension tables are spitted into a normalized dimension table
Example of Snowflake Schema:
In Snowflake schema, the example diagram shown below has 4 dimension tables, 4
lookup tables and 1 fact table. The reason is that hierarchies (category, branch, state, and month) are being broken out of the dimension tables (PRODUCT, ORGANIZATION, LOCATION, and TIME) respectively and separately.
It increases the number of joins and poor performance in retrieval of data.
In few organizations, they try to normalize the dimension tables to save space.
Since dimension tables hold less space snow flake schema approach may be avoided.
Bit map indexes cannot be effectively utilized
Important aspects of Star Schema & Snow Flake Schema In a star schema every dimension will have a primary key.
In a star schema, a dimension table will not have any parent table.
Whereas in a snow flake schema, a dimension table will have one or more parent tables.
Whereas hierarchies are broken into separate tables in snow flake schema. These
hierarchies help to drill down the data from topmost hierarchies to the lowermost hierarchies.
Star flake schema (or) Hybrid Schema
Hybrid schema is a combination of Star and Snowflake schema
Multi Star schema
Multiple fact tables sharing a set of dimension tables
Confirmed Dimensions are nothing but Reusable Dimensions.
The dimensions which u r using multiple times or in multiple data marts.
Those are common in different data marts
Measure Types (or) Types of Facts
Additive - Measures that can be summed up across all dimensions.
o Ex: Sales Revenue
Semi Additive - Measures that can be summed up across few dimensions and not with others
o Ex: Current Balance
Non Additive - Measures that cannot be summed up across any of the dimensions.
o Ex: Student attendance Surrogate Key
Joins between fact and dimension tables should be based on surrogate keys
Users should not obtain any information by looking at these keys
These keys should be simple integers
A sample data warehouse schema
WHY NEED STAGING AREA FOR DWH?
Staging area needs to clean operational data before loading into data warehouse.
Cleaning in the sense your merging data which comes from different source.
It‟s the area where most of the ETL is done
Data Cleansing
It is used to remove duplications
It is used to correct wrong email addresses
It is used to identify missing data
It used to convert the data types
It is used to capitalize name & addresses.
Types of Dimensions:
There are three types of Dimensions Confirmed Dimensions
Junk Dimensions Garbage Dimension
Degenerative Dimensions
Slowly changing Dimensions
Garbage Dimension or Junk Dimension
Confirmed is something which can be shared by multiple Fact Tables or multiple Data
Marts.
Junk Dimensions is grouping flagged values
Degenerative Dimension is something dimensional in nature but exist fact table.(Invoice
No)
Which is neither fact nor strictly dimension attributes. These are useful for some kind of analysis. These are kept as attributes in fact table called degenerated dimension
Degenerate dimension: A column of the key section of the fact table that does not have the associated dimension table but used for reporting and analysis, such column is called degenerate dimension or line item dimension.
For ex, we have a fact table with customer_id, product_id, branch_id, employee_id, bill_no, and date in key section and price, quantity, amount in measure section. In this fact table, bill_no from key section is a single value; it has no associated dimension table. Instead of creating a
Separate dimension table for that single value, we can Include it in fact table to improve performance. SO here the column, bill_no is a degenerate dimension or line item
dimension.
Informatica Architecture The Power Center domain
It is a primary unit of the Administration. Can have single and multiple domains. It is a collection of nodes and services. Nodes
A node is the logical representation of a machine in a domain
One node in the domain acts as a gateway node to receive service requests from clients and route them to the appropriate service and node
Integration Service:
Integration Service does all the real job. It extracts data from sources, processes it as per the business logic and loads data to targets.
Repository Service:
Repository Service is used to fetch the data from the repository and sends it back to the requesting components (mostly client tools and integration service)
Power Center Repository:
Repository is nothing but a relational database which stores all the metadata created in Power Center.
Power Center Client Tools:
The Power Center Client consists of multiple tools. Power Center Administration Console:
This is simply a web-based administration tool you can use to administer the Power Center installation.
Q. How can you define a transformation? What are different types of transformations available in Informatica?
A. A transformation is a repository object that generates, modifies, or passes data. The Designer provides a set of transformations that perform specific functions. For example, an Aggregator transformation performs calculations on groups of data. Below are the various transformations available in Informatica:
• Aggregator • Custom • Expression • External Procedure • Filter • Input • Joiner • Lookup • Normalizer • Rank • Router • Sequence Generator • Sorter
• Source Qualifier • Stored Procedure • Transaction Control • Union • Update Strategy • XML Generator • XML Parser • XML Source Qualifier
Q. What is a source qualifier? What is meant by Query Override?
A. Source Qualifier represents the rows that the PowerCenter Server reads from a relational or flat file source when it runs a session. When a relational or a flat file source definition is added to a mapping, it is connected to a Source Qualifier transformation. PowerCenter Server generates a query for each Source Qualifier Transformation whenever it runs the session. The default query is SELET statement containing all the source columns. Source Qualifier has capability to override this default query by
changing the default settings of the transformation properties. The list of selected ports or the order they appear in the default query should not be changed in overridden query. Q. What is aggregator transformation?
A. The Aggregator transformation allows performing aggregate calculations, such as averages and sums. Unlike Expression Transformation, the Aggregator transformation can only be used to perform calculations on groups. The Expression transformation permits calculations on a rowby-row basis only.
Aggregator Transformation contains group by ports that indicate how to group the data. While grouping the data, the aggregator transformation outputs the last row of each group unless otherwise specified in the transformation properties.
Various group by functions available in Informatica are : AVG, COUNT, FIRST, LAST, MAX, MEDIAN, MIN, PERCENTILE, STDDEV, SUM, VARIANCE.
Q. What is Incremental Aggregation?
A. Whenever a session is created for a mapping Aggregate Transformation, the session option for Incremental Aggregation can be enabled. When PowerCenter performs
incremental aggregation, it passes new source data through the mapping and uses historical cache data to perform new aggregation calculations incrementally. Q. How Union Transformation is used?
A. The union transformation is a multiple input group transformation that can be used to merge data from various sources (or pipelines). This transformation works just like UNION ALL statement in SQL, that is used to combine result set of two SELECT statements.
Q. Can two flat files be joined with Joiner Transformation?
A. Yes, joiner transformation can be used to join data from two flat file sources. Q. What is a look up transformation?
A. This transformation is used to lookup data in a flat file or a relational table, view or synonym. It compares lookup transformation ports (input ports) to the source column values based on the lookup condition. Later returned values can be passed to other transformations.
Q. Can a lookup be done on Flat Files? A. Yes.
Q. What is a mapplet?
A. A mapplet is a reusable object that is created using mapplet designer. The mapplet contains set of transformations and it allows us to reuse that transformation logic in multiple mappings.
Q. What does reusable transformation mean?
A. Reusable transformations can be used multiple times in a mapping. The reusable transformation is stored as a metadata separate from any other mapping that uses the transformation. Whenever any changes to a reusable transformation are made, all the mappings where the transformation is used will be invalidated.
Q. What is update strategy and what are the options for update strategy?
A. Informatica processes the source data row-by-row. By default every row is marked to be inserted in the target table. If the row has to be updated/inserted based on some logic Update Strategy transformation is used. The condition can be specified in Update Strategy to mark the processed row for update or insert.
Following options are available for update strategy:
• DD_INSERT: If this is used the Update Strategy flags the row for insertion. Equivalent numeric value of DD_INSERT is 0.
• DD_UPDATE: If this is used the Update Strategy flags the row for update. Equivalent numeric value of DD_UPDATE is 1.
• DD_DELETE: If this is used the Update Strategy flags the row for deletion. Equivalent numeric value of DD_DELETE is 2.
• DD_REJECT: If this is used the Update Strategy flags the row for rejection. Equivalent numeric value of DD_REJECT is 3.
Q. What are the types of loading in Informatica?
There are two types of loading, 1. Normal loading and 2. Bulk loading. In normal loading, it loads record by record and writes log for that. It takes comparatively a longer time to load data to the target.
In bulk loading, it loads number of records at a time to target database. It takes less time to load data to target.
Q. What is aggregate cache in aggregator transformation?
The aggregator stores data in the aggregate cache until it completes aggregate calculations. When you run a session that uses an aggregator transformation, the informatica server creates index and data caches in memory to process the
transformation. If the informatica server requires more space, it stores overflow values in cache files.
Q. What type of repositories can be created using Informatica Repository Manager?
A. Informatica PowerCenter includes following type of repositories:
• Standalone Repository: A repository that functions individually and this is unrelated to any other repositories.
contain shared objects across the repositories in a domain. The objects are shared through global shortcuts.
• Local Repository: Local repository is within a domain and it��s not a global
repository. Local repository can connect to a global repository using global shortcuts and can use objects in its shared folders.
• Versioned Repository: This can either be local or global repository but it allows version control for the repository. A versioned repository can store multiple copies, or versions of an object. This feature allows efficiently developing, testing and deploying metadata in the production environment.
Q. What is a code page?
A. A code page contains encoding to specify characters in a set of one or more
languages. The code page is selected based on source of the data. For example if source contains Japanese text then the code page should be selected to support Japanese text. When a code page is chosen, the program or application for which the code page is set, refers to a specific set of data that describes the characters the application recognizes. This influences the way that application stores, receives, and sends character data. Q. Which all databases PowerCenter Server on Windows can connect to? A. PowerCenter Server on Windows can connect to following databases:
• IBM DB2 • Informix • Microsoft Access • Microsoft Excel • Microsoft SQL Server • Oracle • Sybase • Teradata
Q. Which all databases PowerCenter Server on UNIX can connect to? A. PowerCenter Server on UNIX can connect to following databases:
• IBM DB2 • Informix • Oracle • Sybase • Teradata
Q. How to execute PL/SQL script from Informatica mapping?
A. Stored Procedure (SP) transformation can be used to execute PL/SQL Scripts. In SP Transformation PL/SQL procedure name can be specified. Whenever the session is executed, the session will call the pl/sql procedure.
Q.
What is Data Driven?
The informatica server follows instructions coded into update strategy transformations within the session mapping which determine how to flag records for insert, update, delete or reject. If we do not choose data driven option setting, the informatica server ignores all update strategy transformations in the mapping.
Q. What are the types of mapping wizards that are provided in Informatica? The designer provide two mapping wizard.
1. Getting Started Wizard - Creates mapping to load static facts and dimension tables as well as slowly growing dimension tables.
2. Slowly Changing Dimensions Wizard - Creates mappings to load slowly changing dimension tables based on the amount of historical dimension data we want to keep and the method we choose to handle historical dimension data.
Q. What is Load Manager?
A. While runninga Workflow, the PowerCenter Server uses the Load Manager
process and the Data Transformation Manager Process (DTM) to run the workflow and carry out workflow tasks. When the PowerCenter Server runs a workflow, the Load Manager performs the following tasks:
1. Locks the workflow and reads workflow properties.
2. Reads the parameter file and expands workflow variables. 3. Creates the workflow log file.
4. Runs workflow tasks.
5. Distributes sessions to worker servers. 6. Starts the DTM to run sessions.
7. Runs sessions from master servers.
8. Sends post-session email if the DTM terminates abnormally.
When the PowerCenter Server runs a session, the DTM performs the following tasks: 1. Fetches session and mapping metadata from the repository.
2. Creates and expands session variables. 3. Creates the session log file.
4. Validates session code pages if data code page validation is enabled. Checks Query conversions if data code page validation is disabled.
5. Verifies connection object permissions. 6. Runs pre-session shell commands.
7. Runs pre-session stored procedures and SQL.
8. Creates and runs mappings, reader, writer, and transformation threads to extract, transform, and load data.
9. Runs post-session stored procedures and SQL. 10. Runs post-session shell commands.
11. Sends post-session email.
Q. What is Data Transformation Manager?
A. After the load manager performs validations for the session, it creates the DTM process. The DTM process is the second process associated with the session run. The primary purpose of the DTM process is to create and manage threads that carry out the session tasks.
• The DTM allocates process memory for the session and divide it into buffers. This is also known as buffer memory. It creates the main thread, which is called the master thread. The master thread creates and manages all other threads. • If we partition a session, the DTM creates a set of threads for each partition to allow concurrent processing.. When Informatica server writes messages to the session log it includes thread type and thread ID.
Following are the types of threads that DTM creates:
Master Thread - Main thread of the DTM process. Creates and manages all other threads.
Mapping Thread - One Thread to Each Session. Fetches Session and Mapping Information.
Pre and Post Session Thread - One Thread each to Perform Pre and Post Session Operations.
Reader Thread - One Thread for Each Partition for Each Source Pipeline.
Writer Thread - One Thread for Each Partition if target exist in the source pipeline write to the target.
Transformation Thread - One or More Transformation Thread For Each Partition. Q. What is Session and Batches?
Session - A Session Is A set of instructions that tells the Informatica Server How And When To Move Data From Sources To Targets. After creating the session, we can use either the server manager or the command line program pmcmd to start or stop the session.
Batches - It Provides A Way to Group Sessions For Either Serial Or Parallel Execution By The Informatica Server. There Are Two Types Of Batches:
1. Sequential - Run Session One after the Other. 2. Concurrent - Run Session At The Same Time.
Q. How many ways you can update a relational source definition and what are they?
A. Two ways
1. Edit the definition 2. Reimport the definition Q. What is a transformation?
A. It is a repository object that generates, modifies or passes data. Q. What are the designer tools for creating transformations? A. Mapping designer
Transformation developer Mapplet designer
Q. In how many ways can you create ports? A. Two ways
1. Drag the port from another transformation 2. Click the add button on the ports tab. Q. What are reusable transformations?
A. A transformation that can be reused is called a reusable transformation They can be created using two methods:
1. Using transformation developer
2. Create normal one and promote it to reusable
Q. Is aggregate cache in aggregator transformation?
A. The aggregator stores data in the aggregate cache until it completes aggregate calculations. When u run a session that uses an aggregator transformation, the Informatica server creates index and data caches in memory to process the
transformation. If the Informatica server requires more space, it stores overflow values in cache files.
Q. What r the settings that u use to configure the joiner transformation?
Master and detail source
Type of join
Condition of the join
A. Normal (Default) -- only matching rows from both master and detail Master outer -- all detail rows and only matching rows from master Detail outer -- all master rows and only matching rows from detail
Full outer -- all rows from both master and detail (matching or non matching) Q. What are the joiner caches?
A. When a Joiner transformation occurs in a session, the Informatica Server reads all the records from the master source and builds index and data caches based on the master rows. After building the caches, the Joiner transformation reads records
from the detail source and performs joins. Q. What r the types of lookup caches?
Static cache: You can configure a static or read-only cache for only lookup table. By
default Informatica server creates a static cache. It caches the lookup table and lookup values in the cache for each row that comes into the transformation. When the lookup condition is true, the Informatica server does not update the cache while it processes the lookup transformation.
Dynamic cache: If you want to cache the target table and insert new rows into cache
and the target, you can create a look up transformation to use dynamic cache. The Informatica server dynamically inserts data to the target table.
Persistent cache: You can save the lookup cache files and reuse them the next time
the Informatica server processes a lookup transformation configured to use the cache.
Recache from database: If the persistent cache is not synchronized with the lookup
table, you can configure the lookup transformation to rebuild the lookup cache.
Shared cache: You can share the lookup cache between multiple transactions. You can
share unnamed cache between transformations in the same mapping. Q. What is Transformation?
A: Transformation is a repository object that generates, modifies, or passes data. Transformation performs specific function. They are two types of transformations: 1. Active
Rows, which are affected during the transformation or can change the no of rows that pass through it. Eg: Aggregator, Filter, Joiner, Normalizer, Rank, Router, Source qualifier, Update Strategy, ERP Source Qualifier, Advance External Procedure. 2. Passive
Does not change the number of rows that pass through it. Eg: Expression, External Procedure, Input, Lookup, Stored Procedure, Output, Sequence Generator, XML Source Qualifier.
Q. What are Options/Type to run a Stored Procedure?
A: Normal: During a session, the stored procedure runs where the
transformation exists in the mapping on a row-by-row basis. This is useful for calling the stored procedure for each row of data that passes through the mapping, such as running a calculation against an input port. Connected stored procedures run only in normal mode.
Pre-load of the Source. Before the session retrieves data from the source, the stored procedure runs. This is useful for verifying the existence of tables or performing joins of data in a temporary table.
Post-load of the Source. After the session retrieves data from the source, the stored procedure runs. This is useful for removing temporary tables.
Pre-load of the Target. Before the session sends data to the target, the stored procedure runs. This is useful for verifying target tables or disk space on the target system.
Post-load of the Target. After the session sends data to the target, the stored
procedure runs. This is useful for re-creating indexes on the database. It must contain at least one Input and one Output port.
Q. What kinds of sources and of targets can be used in Informatica?
Sources may be Flat file, relational db or XML.
Target may be relational tables, XML or flat files.
Q: What is Session Process?
A: The Load Manager process. Starts the session, creates the DTM process, and sends post-session email when the session completes.
Q. What is DTM process?
A: The DTM process creates threads to initialize the session, read, write, transform data and handle pre and post-session operations.
Q. What is the different type of tracing levels?
Tracing level represents the amount of information that Informatica Server writes in a log file. Tracing levels store information about mapping and transformations. There are 4 types of tracing levels supported
1. Normal: It specifies the initialization and status information and summarization of the success rows and target rows and the information about the skipped rows due to
transformation errors.
2. Terse: Specifies Normal + Notification of data
3. Verbose Initialization: In addition to the Normal tracing, specifies the location of the data cache files and index cache files that are treated and detailed transformation statistics for each and every transformation within the mapping.
4. Verbose Data: Along with verbose initialization records each and every record processed by the informatica server.
Q.
TYPES OF DIMENSIONS
?
A dimension table consists of the attributes about the facts. Dimensions store
the textual descriptions of the business.
Conformed Dimension:
Conformed dimensions mean the exact same thing with every possible fact table
to which they are joined.
Eg: The date dimension table connected to the sales facts is identical to the date
dimension connected to the inventory facts.
Junk Dimension:
A junk dimension is a collection of random transactional codes flags and/or text
attributes that are unrelated to any particular dimension. The junk dimension is
simply a structure that provides a convenient place to store the junk attributes.
Eg: Assume that we have a gender dimension and marital status dimension. In
the fact table we need to maintain two keys referring to these dimensions.
Instead of that create a junk dimension which has all the combinations of gender
and marital status (cross join gender and marital status table and create a junk
table). Now we can maintain only one key in the fact table.
A degenerate dimension is a dimension which is derived from the fact table and
doesn‟t have its own dimension table.
Eg: A transactional code in a fact table.
Slowly changing dimension:Slowly changing dimensions are dimension tables that have slowly increasing data as well as updates to existing data.
Q. What are the output files that the Informatica server creates during the session running?
Informatica server log: Informatica server (on UNIX) creates a log for all status and error messages (default name: pm.server.log). It also creates an error log for error messages. These files will be created in Informatica home directory
Session log file: Informatica server creates session log file for each session. It writes information about session into log files such as initialization process, creation of sql commands for reader and writer threads, errors encountered and load summary. The amount of detail in session log file depends on the tracing level that you set.
Session detail file: This file contains load statistics for each target in mapping. Session detail includes information such as table name, number of rows written or rejected. You can view this file by double clicking on the session in monitor window. Performance detail file: This file contains information known as session performance details which helps you where performance can be improved. To generate this file select the performance detail option in the session property sheet.
Reject file: This file contains the rows of data that the writer does not write to targets.
Control file: Informatica server creates control file and a target file when you run a session that uses the external loader. The control file contains the information about the target flat file such as data format and loading instructions for the external loader.
Post session email: Post session email allows you to automatically communicate information about a session run to designated recipients. You can create two
different messages. One if the session completed successfully the other if the session fails.
Indicator file: If you use the flat file as a target, you can configure the Informatica server to create indicator file. For each target row, the indicator file contains a number to indicate whether the row was marked for insert, update, delete or reject. Output file: If session writes to a target file, the Informatica server creates the target file based on file properties entered in the session property sheet.
Cache files: When the Informatica server creates memory cache it also creates cache files.
For the following circumstances Informatica server creates index and data cache files:
Aggregator transformation Joiner transformation Rank transformation Lookup transformation
Q. What is meant by lookup caches?
of a data in a cached look up transformation. It allocates memory for the cache based on the amount you configure in the transformation or session properties. The Informatica server stores condition values in the index cache and output values in the data cache.
Q. How do you identify existing rows of data in the target table using lookup transformation?
A. There are two ways to lookup the target table to verify a row exists or not : 1. Use connect dynamic cache lookup and then check the values of NewLookuprow Output port to decide whether the incoming record already exists in the table / cache or not.
2. Use Unconnected lookup and call it from an expression transformation and check the Lookup condition port value (Null/ Not Null) to decide whether the incoming record already exists in the table or not.
Q. What are Aggregate tables?
Aggregate table contains the summary of existing warehouse data which is grouped to certain levels of dimensions. Retrieving the required data from the actual table, which have millions of records will take more time and also affects the server performance. To avoid this we can aggregate the table to certain required level and can use it. This tables reduces the load in the database server and increases the performance of the query and can retrieve the result very fastly.
Q. What is a level of Granularity of a fact table?
Level of granularity means level of detail that you put into the fact table in a data warehouse. For example: Based on design you can decide to put the sales data in each transaction. Now, level of granularity would mean what detail you are willing to put for each transactional fact. Product sales with respect to each minute or you want to aggregate it upto minute and put that data.
Q. What is session?
A session is a set of instructions to move data from sources to targets. Q. What is worklet?
Worklet are objects that represent a set of workflow tasks that allow to reuse a set of workflow logic in several window.
Use of Worklet: You can bind many of the tasks in one place so that they can easily get identified and also they can be of a specific purpose.
Q. What is workflow?
A workflow is a set of instructions that tells the Informatica server how to execute the tasks.
Q. Why cannot we use sorted input option for incremental aggregation?
In incremental aggregation, the aggregate calculations are stored in historical cache on the server. In this historical cache the data need not be in sorted order. If you give sorted input, the records come as presorted for that particular run but in the historical cache the data may not be in the sorted order. That is why this option is not allowed. Q. What is target load order plan?
You specify the target loadorder based on source qualifiers in a mapping. If you have the multiple source qualifiers connected to the multiple targets, you can designate the order in which informatica server loads data into the targets.
The Target load Plan defines the order in which data extract from source qualifier transformation. In Mappings (tab) – Target Load Order Plan
Q. What is constraint based loading?
Constraint based load order defines the order of loading the data into the multiple targets based on primary and foreign keys constraints.
Set the option is: Double click the session
Configure Object –> check the Constraint Based Loading
Q. What is the status code in stored procedure transformation?
Status code provides error handling for the informatica server during the session. The stored procedure issues a status code that notifies whether or not stored procedure completed successfully. This value cannot see by the user. It only used by the informatica server to determine whether to continue running the session or stop.
Q. Define Informatica Repository?
The Informatica repository is a relational database that stores information, or metadata, used by the Informatica Server and Client tools. Metadata can include information such as mappings describing how to transform source data, sessions indicating when you want the Informatica Server to perform the transformations, and connect strings for sources and targets.
The repository also stores administrative information such as usernames and passwords, permissions and privileges, and product version.
Use repository manager to create the repository. The Repository Manager connects to the repository database and runs the code needed to create the repository tables. These tables stores metadata in specific format the informatica server, client tools use.
Q. What is a metadata?
Designing a data mart involves writing and storing a complex set of instructions. You need to know where to get data (sources), how to change it, and where to write the information (targets). PowerMart and PowerCenter call this set of instructions metadata. Each piece of metadata (for example, the description of a source table in an operational database) can contain comments about it.
In summary, Metadata can include information such as mappings describing how
to transform source data, sessions indicating when you want the Informatica
Server to perform the transformations, and connect strings for sources and
targets.
It is a web based application that enables you to run reports against repository
metadata. With a Meta data reporter you can access information about your repository without having knowledge of sql, transformation language or underlying tables in the repository.
Q. What are the types of metadata that stores in repository?
Source definitions. Definitions of database objects (tables, views, synonyms) or files that provide source data.
Target definitions. Definitions of database objects or files that contain the
target data. Multi-dimensional metadata. Target definitions that are configured as cubes and dimensions.
Mappings. A set of source and target definitions along with transformations containing business logic that you build into the transformation. These are the instructions that the Informatica Server uses to transform and move data.
Reusable transformations. Transformations that you can use in multiple mappings. Mapplets. A set of transformations that you can use in multiple mappings.
Sessions and workflows. Sessions and workflows store information about how and when the Informatica Server moves data. A workflow is a set of instructions that describes how and when to run tasks related to extracting, transforming, and loading data. A session is a type of task that you can put in a workflow. Each session
corresponds to a single mapping.
Following are the types of metadata that stores in the repository
Database Connections Global Objects Multidimensional Metadata Reusable Transformations Short cuts Transformations
Q. How can we store previous session logs?
Go to Session Properties –> Config Object –> Log Options Select the properties as follows….
Save session log by –> SessionRuns
Save session log for these runs –> Change the number that you want to save the number of log files (Default is 0)
If you want to save all of the logfiles created by every run, and then select the option Save session log for these runs –> Session TimeStamp
You can find these properties in the session/workflow Properties.
Q. What is Changed Data Capture?
Changed Data Capture (CDC) helps identify the data in the source system that has changed since the last extraction. With CDC data extraction takes place at the same time the insert update or delete operations occur in the source tables and the change data is stored inside the database in change tables.
The change data thus captured is then made available to the target systems in a controlled manner.
Q. What is an indicator file? and how it can be used?
Indicator file is used for Event Based Scheduling when you don‟t know when the Source Data is available. A shell command, script or a batch file creates and send this indicator
file to the directory local to the Informatica Server. Server waits for the indicator file to appear before running the session.
Q. What is audit table? and What are the columns in it?
Audit Table is nothing but the table which contains about your workflow names and session names. It contains information about workflow and session status and their details. WKFL_RUN_ID WKFL_NME START_TMST END_TMST ROW_INSERT_CNT ROW_UPDATE_CNT ROW_DELETE_CNT ROW_REJECT_CNT
Q. If session fails after loading 10000 records in the target, how can we load 10001th record when we run the session in the next time?
Select the Recovery Strategy in session properties as “Resume from the last check point“. Note – Set this property before running the session
Q. Informatica Reject File – How to identify rejection reason
D - Valid data or Good Data. Writer passes it to the target database. The target accepts it unless a database error occurs, such as finding a duplicate key while inserting. O - Overflowed Numeric Data. Numeric data exceeded the specified precision or scale for the column. Bad data, if you configured the mapping target to reject overflow or truncated data.
N - Null Value. The column contains a null value. Good data. Writer passes it to the target, which rejects it if the target database does not accept null values.
T - Truncated String Data. String data exceeded a specified precision for the column, so the Integration Service truncated it. Bad data, if you configured the mapping target to reject overflow or truncated data.
Also to be noted that the second column contains column indicator flag value „D‟ which signifies that the Row Indicator is valid.
Now let us see how Data in a Bad File looks like:
0,D,7,D,John,D,5000.375,O,,N,BrickLand Road Singapore,T
Q. What is “Insert Else Update” and “Update Else Insert”?
These options are used when dynamic cache is enabled.
Insert Else Update option applies to rows entering the lookup transformation with the
row type of insert. When this option is enabled the integration service inserts new rows in the cache and updates existing rows. When disabled, the Integration Service does not update existing rows.
Update Else Insert option applies to rows entering the lookup transformation with the
row type of update. When this option is enabled, the Integration Service updates
existing rows, and inserts a new row if it is new. When disabled, the Integration Service does not insert new rows.
Q. What are the Different methods of loading Dimension tables?
Conventional Load - Before loading the data, all the Table constraints will be checked against the data.
Direct load (Faster Loading) - All the Constraints will be disabled. Data will be loaded directly. Later the data will be checked against the table constraints and the bad data won‟t be indexed.
Q. What are the different types of Commit intervals?
The different commit intervals are:
Source-based commit. The Informatica Server commits data based on the number of
source rows. The commit point is the commit interval you configure in the session properties.
Target-based commit. The Informatica Server commits data based on the number of
target rows and the key constraints on the target table. The commit point also depends on the buffer block size and the commit interval.
Q. How to add source flat file header into target file?
Edit Task-->Mapping-->Target-->Header Options--> Output field names Q. How to load name of the file into relation target?
Source Definition-->Properties-->Add currently processed file name port Q. How to return multiple columns through un-connect lookup?
Suppose your look table has f_name,m_name,l_name and you are using unconnected lookup. In override SQL of lookup use f_name||~||m_name||~||l_name you can easily get this value using unconnected lookup in expression. Use substring function in expression transformation to separate these three columns and make then individual port for downstream transformation /Target.
--- Q. What is Factless fact table? In which purpose we are using this in our DWH projects? Plz give me the proper answer?
It is a fact table which does not contain any measurable data.
EX: Student attendance fact (it contains only Boolean values, whether student
attended class or not ? Yes or No.)
A Factless fact table contains only the keys but there is no measures or in other
way we can say that it contains no facts. Generally it is used to integrate the
fact tables
Factless fact table contains only foreign keys. We can have two kinds of
aggregate functions from the factless fact one is count and other is distinct
count.
2 purposes of factless fact
1. Coverage: to indicate what did NOT happen. Like to
Like: which product did not sell well in a particular region?
2. Event tracking: To know if the event took place or not.
Like: Fact for tracking student‟s attendance will not contain any measures.
Q. What is staging area?Staging area is nothing but to apply our logic to extract the data from source
and cleansing the data and put the data into meaningful and summaries of the
data for data warehouse.
Q. What is constraint based loading
Constraint based load order defines the order of loading the data into the
multiple targets based on primary and foreign keys constraints.
Q. Why union transformation is active transformation?
the only condition for a transformation to bcum active is row number changes.
Now the thing is how a row number can change. Then there are
2 conditions:
1. either the no of rows coming in and going out is diff.
eg: in case of filter we have the data like
id name dept row_num
1 aa 4 1
2 bb 3 2
3 cc 4 3
and we have a filter condition like dept=4 then the o/p wld
b like
id name dept row_num
1 aa 4 1
3 cc 4 2
So row num changed and it is an active transformation
2. or the order of the row changes
eg: when Union transformation pulls in data, suppose we have
2 sources
sources1:
id name dept row_num
1 aa 4 1
2 bb 3 2
3 cc 4 3
source2:
id name dept row_num
4 aaa 4 4
5 bbb 3 5
6 ccc 4 6
it never restricts the data from any source so the data can
come in any manner
id name dept row_num old row_num
1 aa 4 1 1
4 aaa 4 2 4
5 bbb 3 3 5
2 bb 3 4 2
3 cc 4 5 3
6 ccc 4 6 6
so the row_num are changing . Thus we say that union is an active transformation
Q. What is use of batch file in informatica? How many types of batch file
in informatica?
With the batch file, we can run sessions either in sequential or in concurrently.
Grouping of Sessions is known as Batch.
Two types of batches:
1)Sequential: Runs Sessions one after another.
2)Concurrent: Run the Sessions at the same time.
If u have sessions with source-target dependencies u have to go for sequential
batch to start the sessions one after another. If u have several independent
sessions u can use concurrent batches Which run all the sessions at the same
time
Q. What is joiner cache?
When we use the joiner transformation an integration service maintains the
cache, all the records are stored in joiner cache. Joiner caches have 2 types of
cache 1.Index cache 2. Joiner cache.
Index cache stores all the port values which are participated in the join condition
and data cache have stored all ports which are not participated in the join
condition.
Q. What is the location of parameter file in Informatica? $PMBWPARAM
Q. How can you display only hidden files in UNIX
$ ls -la
total 16
8 drwxrwxrwx 2 zzz yyy 4096 Apr 26 12:00 ./
8 drwxrwxrwx 9 zzz yyy 4096 Jul 31 16:59 ../
Correct answer is
ls -a|grep "^\."
$ls -a
Q. How to delete the data in the target table after loaded.
SQ---> Properties tab-->Post SQL
delete from target_tablename
SQL statements executed using the source database connection, after a pipeline
is run write post sql in target table as truncate table name. we have the property
in session truncate option.
Q. What is polling in informatica?
It displays the updated information about the session in the monitor window.
The monitor window displays the status of each session when you poll the
Informatica server.
Session level property error handling mention condition stop on errors:
10
--->Config object –> Error Handling –> Stop on errors
Q. How can we calculate fact table size?A fact table is multiple of combination of dimension tables
ie if we want 2 find the fact table size of 3years of historical date with 200
products and 200 stores
3*365*200*200=fact table size
Q. Without using emailtask how will send a mail from informatica?
by using 'mailx' command in unix of shell scripting
Q. How will compare two mappings in two different repositories?
in the designer client , goto mapping tab there is one
option that is 'compare', here we will compare two mappings in two different
repository
in informatica designer go to mapping tab--->compare..
we can compare 2 folders within the same repository ..
we can compare 2 folders within different repository ..
Q. What is constraint based load orderConstraint based load order defines the order in which data loads into the
multiple targets based on primary key and foreign key relationship.
Q. What is target load plan
Suppose i have 3 pipelines in a single mapping designer
emp source--->sq--->tar1
dept source--->sq--->tar2
bonus source--->sq--->tar3
my requirement is to load first in tar2 then tar1 and then finally tar3
for this type of loading to control the extraction of data from source by source
qualifier we use target load plan.
Q. What is meant by data driven.. in which scenario we use that..?
Data driven is available at session level. it says that when we r using update
strategy t/r ,how the integration service fetches the data and how to
update/insert row in the database log.
Data driven is nothing but instruct the source rows that should take action on
target i.e(update,delete,reject,insert). If we use the update strategy
transformation in a mapping then will select the data driven option in session.
Q. How to run workflow in unix?Syntax: pmcmd startworkflow -sv <service name> -d <domain name> -u
<user name> -p <password> -f <folder name> <workflow name>
Example
Pmcmd start workflow –service
${INFA_SERVICE} -domain
${ETLFolder} -wait ${ETLWorkflow} \
Q. What is the main difference between a Joiner Transformation and Union Transformation?
Joiner Transformation merge horizontally
Union Transformation merge vertically
A joiner Transformation is used to join data from hertogenous database ie (Sql
database and flat file) where has Union transformation is used to join data from
the same relational sources...(oracle table and another Oracle table)
Join Transformation combines data record horizontally based on join condition.
And combine data from two different sources having different metadata.
Join transformation supports heterogeneous, homogeneous data source.
Union Transformation combines data record vertically from multiple sources,
having same metadata.
Union transformation also support heterogeneous data source.
Union transformation functions as UNION ALL set operator.
Q. What is constraint based loading exactly? And how to do this? I think it is when we have primary key-foreign key relationship. Is it correct?
Constraint Based Load order defines load the data into multiple targets depend
on the primary key foreign key relation.
set the option is: Double click the session
Configure Object check the Constraint Based Loading
Q. Difference between top down(w.h inmon)and bottom up(ralph
kimball)approach?
Top Down
approach:-As per W.H.INWON, first we need to build the Data warehouse after that we
need to build up the DataMart but this is so what difficult to maintain the DWH.
Bottom up
approach;-As per Ralph Kimbal, first we need to build up the Data Marts then we need to
build up the Datawarehouse..
this approach is most useful in real time while creating the Data warehouse.
Q. What are the different caches used in informatica?
Static cache
Dynamic cache
Shared cache
Q. What is the command to get the list of files in a directory in unix?
$ls -lrt
Q. How to import multiple flat files in to single target where there is no common column in the flat files
in workflow session properties in Mapping tab in properties choose Source
filetype - Indirect
Give the Source filename : <file_path>
This <file_path> file should contain all the multiple files which you want to Load
Q. How to connect two or more table with single source qualifier?Create a Oracle source with how much ever column you want and write the join
query in SQL query override. But the column order and data type should be
same as in the SQL query.
Q. How to call unconnected lookup in expression transformation?
:LKP.LKP_NAME(PORTS)
Q. What is diff between connected and unconnected lookup?
Connected lookup:
It is used to join the two tables
it returns multiple rows
it must be in mapping pipeline
u can implement lookup condition
using connect lookup u can generate sequence numbers by
enabling dynamic lookup cache.
Unconnected lookup:
it returns single output through return port
it acts as a lookup function(:lkp)
it is called by another t/r.
not connected either source r target.
---CONNECTED LOOKUP:
>> It will participated in data pipeline
>> It contains multiple inputs and multiple outputs.
>> It supported static and dynamic cache.
UNCONNECTED LOOKUP:
>> It will not participated in data pipeline
>> It contains multiple inputs and single output.
>> It supported static cache only.
Q. Types of partitioning in Informatica?
Partition 5 types
1.
Simple pass through
2.
Key range
3.
Hash
4.
Round robin
Q. Which transformation uses cache?
1.
Lookup transformation
2.
Aggregator transformation
3.
Rank transformation
4.
Sorter transformation
5.
Joiner transformation
Q. Explain about union transformation?
A union transformation is a multiple input group transformation, which is used to
merge the data from multiple sources similar to UNION All SQL statements to
combine the results from 2 or more sql statements.
Similar to UNION All statement, the union transformation doesn't remove
duplicate rows. It is an active transformation.
Q. Explain about Joiner transformation?
Joiner transformation is used to join source data from two related heterogeneous
sources. However this can also be used to join data from the same source.
Joiner t/r join sources with at least one matching column. It uses a condition
that matches one or more pair of columns between the 2 sources.
To configure a Joiner t/r various settings that we do are as below:
1) Master and detail source
2) Types of join
3) Condition of the join
Q. Explain about Lookup transformation?
Lookup t/r is used in a mapping to look up data in a relational table, flat file,
view or synonym.
The informatica server queries the look up source based on the look up ports in
the transformation. It compares look up t/r port values to look up source column
values based on the look up condition.
Look up t/r is used to perform the below mentioned tasks:
1) To get a related value.
2) To perform a calculation.
3) To update SCD tables.
Q. How to identify this row for insert and this row for update in dynamic lookup cache?
Based on NEW LOOKUP ROW.. Informatica server indicates which one is insert
and which one is update.
Newlookuprow- 0...no change
Newlookuprow- 1...Insert
Newlookuprow- 2...update
Q. How many ways can we implement SCD2?
1) Date range
2) Flag
Q. How will you check the bottle necks in informatica? From where do
you start checking?
You start as per this order
1.
Target
2.
Source
3.
Mapping
4.
Session
5.
System
Q. What is incremental aggregation?
When the aggregator transformation executes all the output data will get stored
in the temporary location called aggregator cache. When the next time the
mapping runs the aggregator transformation runs for the new records loaded
after the first run. These output values will get incremented with the values in
the aggregator cache. This is called incremental aggregation. By this way we can
improve performance...
Incremental aggregation means applying only the captured changes in the
source to aggregate calculations in a session.
When the source changes only incrementally and if we can capture those
changes, then we can configure the session to process only those changes. This
allows informatica server to update target table incrementally, rather than
forcing it to process the entire source and recalculate the same calculations each
time you run the session. By doing this obviously the session performance
increases.
Q. How can i explain my project architecture in interview..? Tell me your
project flow from source to target..?
Project architecture is like
1. Source Systems: Like Mainframe,Oracle,People soft,DB2.
2. Landing tables: These are tables act like source. Used for easy to access, for
backup purpose, as reusable for other mappings.
3. Staging tables: From landing tables we extract the data into staging tables
after all validations done on the data.
4. Dimension/Facts: These are the tables those are used for analysis and
make decisions by analyzing the data.
5. Aggregation tables: These tables have summarized data useful for
managers who wants to view monthly wise sales, year wise sales etc.
6. Reporting layer: 4 and 5 phases are useful for reporting developers to
generate reports. I hope this answer helps you.
