API 650 Tank Design 1

(1)

6 7 8 9 10 11 12 13 125.30 Ft 14 15 46.00 Ft 16 17 18 19 20 21 22 23

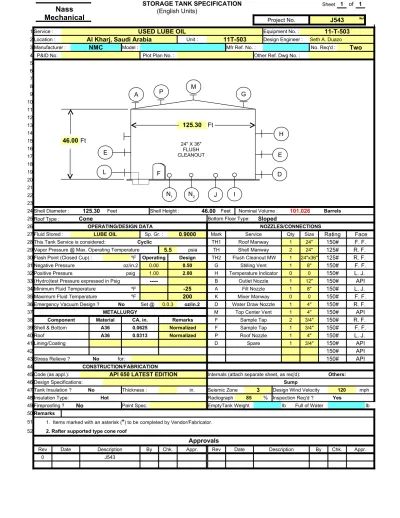

24 Shell Diameter : 125.30 Feet Shell Height : 46.00 Feet Nominal Volume : 101,026 Barrels

25 Roof Type : Cone Bottom Floor Type: Sloped

26 OPERATING/DESIGN DATA NOZZLES/CONNECTIONS

27 Fluid Stored : LUBE OIL Sp. Gr. : 0.9000 Mark Service Qty Size Rating Face

28 This Tank Service is considered: Cyclic TH1 Roof Manway 1 24" 150# F. F.

29 Vapor Pressure @ Max. Operating Temperature 5.5 psia TH Shell Manway 2 24" 125# R. F.

30 Flash Point (Closed Cup) : ºF Operating Design TH2 Flush Cleanout MW 1 24"x36" 125# R. F.

31 Negative Pressure oz/in.2 0.00 0.50 G Stilling Vent 1 8" 150# F. F.

32 Positive Pressure psig 1.00 2.00 H Temperature Indicator 0 0 150# L. J.

33 (Hydro)test Pressure expressed in Psig ---- B Outlet Nozzle 1 12" 150# API

34 Minimum Fluid Temperature ºF -25 A Fill Nozzle 1 8" 150# L. J.

35 Maximum Fluid Temperature ºF 200 K Mixer Manway 0 0 150# F. F.

36 Emergency Vacuum Design ? No Set @ 0.0.3 oz/in.2 D Water Draw Nozzle 1 4" 150# R. F.

37 METALLURGY M Top Center Vent 1 4" 150# API

38 Component Material CA, in. Remarks F Sample Tap 2 3/4" 150# R. F.

39 Shell & Bottom A36 0.0625 Normalized F Sample Tap 1 3/4" 150# F. F.

40 Roof A36 0.0313 Normalized P Roof Nozzle 1 4" 150# L. J.

41 Lining/Coating D Spare 1 3/4" 150# API

42 150# API

43 Stress Relieve ? No for: 150# API

44 CONSTRUCTION/FABRICATION

45 Code (as appl.): API 650 LATEST EDITION Internals (attach separate sheet, as req'd): Others:

46 Design Specifications: Sump

47 Tank Insulation ? No Thickness : in. Seismic Zone 3 Design Wind Velocity 120 mph

48 Insulation Type: Hot Radiograph 85 % Inspection Req'd ? Yes

49 Fireproofing ? No Paint Spec. EmptyTank Weight lb Full of Water lb

50 Remarks 51

52 2. Rafter supported type cone roof

Approvals

Rev Date Description By Chk. Appr. Rev Date Description By Chk. Appr.

0 J543

1. Items marked with an asterisk (*) to be completed by Vendor/Fabricator. 24" X 36" FLUSH CLEANOUT F A M P _G D E L E H N₂ N₁ J I

(2)

Shell Plate Design : FROM ( BOTTOM COURSE) PLATE TO (TOP COURSE) PLATE

SG = design Specific gravity of liquid 0.9

Sd = allowable Stress for Design condition 23,200 160 Mpa

E = joint efficiency 1.00

24,900 171 Mpa

CA = Corrosion Allowance 0.1180 3.00 mm

For First Course (Bottom) A36 Plate ; Provided thickness: 20mm

As per API 5.6.3.2 In US Customary units;

0.569 14.45 mm

0.589 14.95 mm

0.707 17.952 mm

D = Normal tank diameter , in feet = 125.30 H = depth of tank , in feet = 46.00 SG = design Specific gravity of liquid = 1.00 Sd = allowable Stress for Design condition 23,200

E = joint efficiency 1.00

24,900 CA = Corrosion Allowance 0.1180

For Second Course A36 Plate Provided thickness: 18.000

0.632 16.05 mm

0.589 14.95 mm

0.651 16.54 mm

D = Normal tank diameter , in feet 125.30 H = depth of tank , in feet 39.45 SG = design Specific gravity of liquid = 1.00 Sd = allowable Stress for Design condition 23,200

St = allowable stress A36 Hydro Test 24,900 CA = Corrosion Allowance 0.0625

For Third Course A36 Plate Provided thickness: 16.000

0.540 13.72 mm

0.503 12.78 mm

0.566 14.37 mm

St = allowable stress A36 Hydro Test 24,900 CA = Corrosion Allowance 0.0625 S_t = allowable stress A36 Hydro Test

t_d = 2.6(D)(H -1)(SG)/Sd= t_t = 2.6(D)(H-1)/St =

t_d = Minimum shell course thickness plus C.A, in inches =

S_t = allowable stress A36 Hydro Test

t_d = 2.6(D)(H -1)(SG)/Sd= t_t = 2.6(D)(H-1)/St =

(3)

For Fourth Course A36 Plate Provided thickness: 12.000

0.488 12.40 mm

0.417 10.60 mm

0.480 12.19 mm

For Fifth Course A36 Plate Provided thickness: 10mm

0.388 9.85 mm

0.332 8.43 mm

0.394 10.02 mm

For Sixth Course A36 Plate Provided thickness: 8mm

0.258 6.56 mm

0.245 6.23 mm

0.308 7.82 mm

For Seventh Course A36 Plate Provided thickness: 8mm

0.187 4.74 mm

0.160 4.05 mm

0.222 5.64 mm

D = Normal tank diameter , in feet 125.30 H = depth of tank , in feet 6.63 SG = design Specific gravity of liquid = 1 t_d = 2.6(D)(H -1)(SG)/Sd=

t_t = 2.6(D)(H-1)/St =

t_d = 2.6(D)(H -1)(SG)/Sd= t_t = 2.6(D)(H-1)/St =

(4)

BOTTOM PLATE DESIGN:

As per API 650 11th Ed. 2009 Add. 2 Sect. 5.4.1;

Minimum Nominal Thickness excluding corrosion allowance, Inch0.25 6.35 mm

Corrosion Allowance for Bottom Plate 0.13 3.18 mm

Required Thickness of Bottom Plate 0.25 6.35 mm

Used bottom plate thickness 0.38 10 mm

Minimum Nominal Width, Inch 70.87 1800.0 mm

Used bottom plate Width,in 78.74 2000.0 mm ANNULAR BOTTOM PLATE DESIGN:

As per API 650 11th Ed. 2009 Add. 2 Sect. 5.5.2;

Minimum Annular plate Width shall be = 28.62 727 mm

or a Minimum of 23.62 600 mm

Annular Plate width provided; in 29.92 760 mm

Where: tb = Annular plate thickness, mm H = maximum Design Liquid level, Meter G = liquid Specific gravity

HENCE, OK.

ROOF PLATE DESIGN: ( Non Frangible roof Tank)

As per API 650 11th Ed. 2009 Add. 2 Sect. 5.10.2.2,

Minimum Nominal Thickness excluding corrosion allowance = 0.19 5 mm

Corrosion Allowance for Roof Plate, = 0 0 mm Required Thickness of Roof Plate = 0.19 5 mm

Used roof plate thickness = 0.19 5 mm

SHELL STABILITY CHECK;

As per API 650 11th Ed. 2009 Add. 2 Sect. 5.9.7.1

The Maximum height for the unstiffined shell shall be calculated as follows:

23.82 7.26 Meters

Where;

H1 = Vertical Distance in ft, betwwen the intermediate wind girder and the top angle of the shell or the top wind girder of an open top tank t = as built thickness, unless otherwise specified of the thinnest shell course (in Inches)

D = Nominal Tank height, Ft

V = Designed wind speed (3 sec gust)mph 215 t_b ( GH )0.5

(5)

Equivalent stable height of shell at ' t ' min. HE = sum He He = W( ' t 'min / ' t 'actual)^2.5

As per API 650 11th Ed. 2009 Add. 2 Sect. V.8.1.4 (b) Course Width (M)t' min (mm) Wtr (Meter)

1 2 20.00 0.202 2 2 16.00 0.353 3 2 15.00 0.414 4 2.0 12.00 0.726 5 2.0 10.00 1.145 6 2.0 8.00 2.000 7 2.0 8.00 2.000

Minimum Shell Thickness = 8mm

Transformed shell height, W' tr 6.840 Meters Maximum height of unstiffined shell= 7.26 Meters
