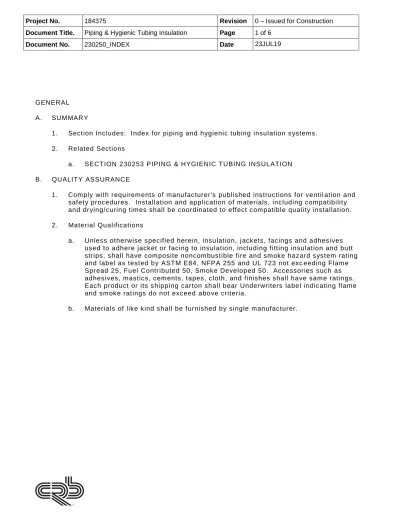

GENERAL A. SUMMARY
1. Section Includes: Index for piping and h ygienic tubing insulation s ystem s. 2. Related Sections
a. SECTION 230253 PIPING & HYGIENIC TUBING INSULATION B. QUALIT Y ASSURANCE
1. Com ply with requirem ents of m anufacturer's published instructions for ventil ation and safet y procedures. Installation and application of m aterials, including com patibilit y and dr ying/curing tim es shall be coordinated to effect com patible quality installation. 2. Material Qualifications
a. Unless otherwise specified herein, insulation, jackets, facings and adhes ives used to adhere jacket or facing to insulation, including fitting insulation and butt strips, shall have com posite noncom bustible f ire and sm oke hazard system rating and label as tested b y ASTM E84, NFPA 255 and UL 723 not exc eeding Flam e Spread 25, Fu el Contributed 50, Sm oke Developed 50. Accessories such as adhesives, m astics, cem ents, tapes, cloth, and finishes shall have sam e ratings. Each product or its shipping carton shall bear Underwriters label indicating f lam e and sm oke ratings do not exceed above criteria.
b. Materials of like kind shall be furnished b y single m anufacturer.
Cooling Tower Water Blowdown (CTWB) NI None
INDOOR PIPING INSULATION
System
Insulation Application
Pipe Size
Insulation Spec Insulation/Jacket
Requirements
Thickness
Mech. Areas CNC Areas Clean Areas
High Activity Areas Note (d)
Low Activity Areas Note (e)
High Activity Areas Note (d)
Low Activity Areas Note (e)
All
Boiler Blowdown (BBD)
(365° F) PP
3/4” & Smaller 1” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
NA 4.5”
5” Boiler Drains (BD)
(365° F) PP
3/4” & Smaller 1” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
NA 4.5”
5” Boiler Feed Water (BFW)
(280°F) HC
3/4” & Smaller 1” 1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ NA
3” 4” 4.5”
Chemical Feed (CF) AS All
PI-34 Mineral Wool/
PVC
PI-33 Mineral Wool/
ASJ
PI-34 Mineral Wool/
PVC
PI-33 Mineral Wool/
ASJ NA 1”
Chilled Water (CHWS,CHWR)
(42 to 58 °F) CC
1" & Smaller 1.5" & Larger
PI-34 Mineral Wool/
PVC
PI-33 Mineral Wool/
ASJ
PI-34 Mineral Wool/
PVC
PI-33 Mineral Wool/
ASJ NA
0.5’’ 1’’
Compressed Air (CA) NI None
Condenser Water (CWS, CWR) NI None
Cooling Tower Water Blowdown (CTWB) NI None
Cooling Coil W aste From Drain Pans
(COND) AS
All PI-15.01
Armaflex/ PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
NA 1’’
Clean-in-Place- Supply & Return
(70-200°F) HC
1” & Smaller 1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
1.5” 2”
INDOOR PIPING INSULATION
System
Insulation Application
Pipe Size
Insulation Spec Insulation/Jacket
Requirements
Thickness
Mech. Areas CNC Areas Clean Areas
High Activity Areas Note (d)
Low Activity Areas Note (e)
High Activity Areas Note (d)
Low Activity Areas Note (e)
All
Humidification Steam (HS) &
Humidification Steam Condensate (HSC) Gravity (Except Traps)
0 to 15 psig (250 °F)
HC 3” & Smaller
4” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/ ASJ
PI-12 Fiberglass/
PVC
2.5” 3”
Drains (DR) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b)
High Quality Steam (HQS) &
High Quality Steam Condensate (HQSC) Gravity (Except Traps)
0 to 25 psig (267 °F)
HC
3/4” & Smaller 1” 1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/ ASJ
PI-12 Fiberglass/
PVC
3” 4” 4.5” High Quality Process Water (HQPW)
(0 to 185°F) HC
1” & Smaller 1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
1.5” 2” Hot Water Supply and Return (HVAC)
(HWS, HWR) (160-180°F)
HC 1” & Smaller
1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ NA
1.5” 2”
Hydrogen Vent (H2VT) NI None
Instrument Air (IA) NI None
Natural Gas (NG) NI None
Non-potable Water Cold (NDCW) AS All
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
NA 1’’
Non-potable Hot Water (NDHW) AS 1” & smaller
1.5’’ & larger
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA
1’’ 1.5’’
Potable Cold Water (DCW) AS All
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA 1’’
Potable Cold Water (DCW) within Closed
Cabinetwork/Casework AS 2’’ & smaller
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA 0.5’’
Potable Hot and Hot Recirculation Water
(DHW, DHWRC) AS
1” & smaller 1.5’’ & larger
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA
1’’ 1.5’’
Potable Hot and Hot Recirculation Water (DHW, DHWRC)
Runouts (not exceeding 12 ft. in length)
AS 2’’ & smaller
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA 0.5’’
Potable Hot Water(DHW)
Runouts (not exceeding 12 ft. in length) within closed cabinetwork/ casework
AS 2’’ & smaller
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA 0.5’’
Potable Hot Water(DHW)
Runouts (not exceeding 12 ft. in length) and waste piping Connecting to Fixtures for the Handicapped
AS 2’’ & smaller
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA 0.5’’
Exposed Potable Cold Water (DCW) piping
Connecting to fixtures for the handicapped AS 2’’ & smaller
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA 0.5’’
Process Air (PA) NI None
Process (P)
200°F HC
1” & Smaller 1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
1.5” 2” Process (P)
200°F PP All
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC 1"
Process Waste (PW)
200°F PP All
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC 1"
Process Waste (PW)
200°F NI
None
Pumped Steam Condensate (PC)
0 to 15 psig (212° F) HC
3” & Smaller 4” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6
Fiberglass/ ASJ NA 2.5” 3”
Recovered Water (RW) AS All
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
NA 1’’
INDOOR PIPING INSULATION
System
Insulation Application
Pipe Size
Insulation Spec Insulation/Jacket
Requirements
Thickness
Mech. Areas CNC Areas Clean Areas
High Activity Areas Note (d)
Low Activity Areas Note (e)
High Activity Areas Note (d)
Low Activity Areas Note (e)
All
Relief Vents (RV) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b)
Roof Drain Bodies Including Connections to
Drain and All Horizontal Piping (DRR, STW) CC All
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA 1"
Sanitary Waste Drain (SAN) NI None
Soft Water (SW)
(60°F) CC
1" & Smaller 1.5" & Larger
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None
PI-15.01 Armaflex/
PVC
PI-13 Armaflex/
None NA
0.5’’ 1’’ Steam (LPS) & Steam Condensate (LPC)
Gravity (Except Traps) 0 to 15 psig (250 °F)
HC 3” & Smaller
4” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
2.5” 3” Steam (MPS) & Steam Condensate (MPC)
Gravity (Except Traps) 16 to 60 psig (307 ° F)
HC
3/4” & Smaller 1” 1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
3” 4” 4.5” Steam (HPS) & Steam Condensate (HPC)
Gravity (Except Traps) 61 to 125 psig (353 °F)
HC 3/4” & Smaller 1” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
4.5” 5”
Vents (VT) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b) Note(b)
Water-for-Injection
(0 to 180 °F) HC
1” & Smaller 1.5” & Larger
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
PI-6 Fiberglass/
ASJ
PI-12 Fiberglass/
PVC
1.5” 2” Notes:
(a) Protection covers may be provided on exposed traps connecting to fixtures for the handicapped.
(b) Same as related system. Piping with shut-off valves shall be insulated from system connection to and including shut-off valve; otherwise, insulate all piping.
(c) Insulation thicknesses scheduled are minimum; increase as required to comply with applicable local and state codes. (Listed minimum meets or exceeds ASHRAE Standard 90.1 Table 6.8.3A and 6.8.3B.-2010 edition) (d) High Activity Areas are defined as areas with high traffic or activities that could damage insulation. This includes piping within 8 feet of a walkable surface.
(e) Low Activity Areas are defined as areas with low traffic or limited activities where there is a low risk of damage to insulation. This includes piping work that is concealed from view above hung ceilings, within walls, within pipe or duct shafts.
Insulation Application Definition
AS Anti-Sweat
CC Cold Conservation
