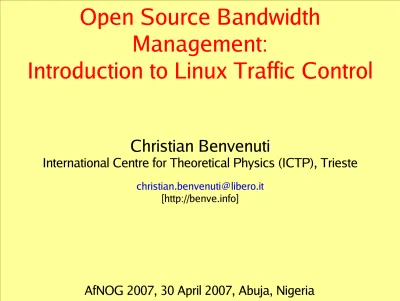

Open Source Bandwidth
Management:
Introduction to Linux Traffic Control
Christian Benvenuti
International Centre for Theoretical Physics (ICTP), Trieste
[http://benve.info]
Agenda
● Optimization of the use of the external link/s
● Factors that can contribute to a better use of the
bandwidth (distributed optimizations)
● Translation of policies into network configurations
(Traffic Control + Netfilter)
● Do you have bandwidth problems in your network?
● Do you have policies in place in your campus?
● Do you monitor the traffic?
● Are you using any kind of Shaping/Firewalling
The focus of this presentation is on
the external link/s
● Under the assumption that the campus network
is significantly faster than the external link/s (to the ISP or to a peer institution), the bottleneck that requires optimization is/are the external link/s.
– In this presentation I will therefore touch only briefly
Distributed Optimizations
● Some applications/servers can can be configured
(and optimized) separately. For example:
– Email (attachments (size, URLs), delayed/batched TX of digests, ...)
– Proxies
● Traffic can be filtered by the firewall/s according to
the policy
● Traffic can be rate-limited by a device that
implements some form of Traffic Control (i.e., shaper).
– This can be done by the same device that acts as
Where would you do shaping/policing?
Object 2
Border Router firewall
Your campus network here I n t e r n e t
Ingress vs Egress Queuing/Shaping
RX queue RX queue TX queue TX queue
$
Where do you think it is
better to drop/delay packets? Security Vs Bandwidth
Common applications
● HTTP/FTP ● DNS ● ... ● Terminal (SSH/Telnet) ● Email TX (SMTP) ● Email RX (POP,IMAP) ● ... ● Viruses ● Spyware ● (email spam) ● ... Easy to cache ● Audio/Video streaming ● P2P ● ... Not cachable Malware Not cachable (unless ...)How about polices, priorities and shaping?
Open Source Bandwidth Management
with Linux
● QoS
– iproute2 / Traffic Control
– http://linux-net.osdl.org/index.php/Iproute2
● Firewall
– iptables / Netfilter
– http://www.netfilter.org
A Linux box can be a firewall and a
shaper at the same time
Border Router Firewall Shaper/Policer Fiber link to building switch Fiber link to building switch Core Router Fiber link to building switch Fiber link to building switch Core Router Core Switch Local Internet exchange switch ... ... ... ... ... ... Object 10
Open Source VS Commercial
PREROUTING INPUT
PREROUTING
The big (scary) picture
INPUT FORWARD POSTROUTING OUTPUT Application 1 (i.e., SSHD) Application n (i.e., squid)
...
eth0 eth1 OUTPUT POSTROUTING U se r Ker ne l Filter table Mangle table NAT table F M N F F F M M M M M N N N N(The Raw table is not shown in the figure) Egress
Example of iptables command
– I would like to block ingress ICMP echo request messages
Table Operation Hook Match/es Target -t filter A INPUT
-p icmp – icmp-type echo-request -j DROP
#iptables -t filter A INPUT -p icmp – icmp-type echo-request -j DROP
iptables -t <TAB> <OP> <HOOK> <MATCH> ... <MATCH> -j <TARGET>
PREROUTING INPUT FORWARD POSTROUTING OUTPUT SSHD
...
Squid eth0 eth1 U se r K er nel Egress
Traffic Control Elements
● Queueing disciplines
– Classless: FIFO, RED, GRED, TBF, SFQ, NETEM, TEQL – Classful: CBQ, HTB, HFSC, PRIO, DS, ...
● Classifiers
– FW, ROUTE, RSVP, TCINDEX, U32, BASIC
● Classifier extensions
– Policers, Actions
Campus 50% 25% 25% 70% Prio 1 30%Prio 2 50% 50%
Example of Hierarchical Queuing
Discipline
Faculty 1 Faculty 2 Faculty 3
Laboratory 1 Laboratory 2 HTTP Anything else
Sharing/Borrowing Priorities
Default class ...
Example of simple HTB configuration
HTB qdisc 1:0 Class 1:1 Class 1:20 Class 1:10 # QUEUE
tc qdisc add dev eth1 handle 1:0 root htb default 1:20
# CLASSES
tc class add dev eth1 parent 1:0 classid 1:1 htb rate 10Mbit ceil 10Mbit tc class add dev eth1 parent 1:1 classid 1:10 htb rate 7Mbit ceil 10Mbit tc class add dev eth1 parent 1:1 classid 1:20 htb rate 3Mbit ceil 10Mbit
# FILTERS ## 1st solution
tc filter add dev eth1 protocol ip parent 1:0 u32 match ip dport 80 0xffff flowid 1:10
## 2nd solution
iptables -t mangle -A FORWARD -p tcp --dport 80 -j MARK --set-mark 1 tc filter add dev eth1 protocol ip parent 1:0 handle 1 fw classid 1:10
Useful links
● Book: “ How To Accelerate Your Internet”
– A Practical Guide to bandwidth Management and Optimization Using
Open Source Software
– http://bwmo.net (you can download it here)
● Mailing List: LARTC
