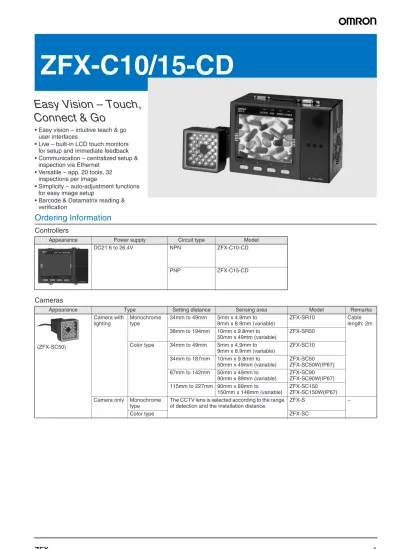

ZFX-C10/15-CD
Easy Vision – Touch,
Connect & Go
• Easy vision – intuitive teach & go
user interfaces
• Live – built-in LCD touch monitors
for setup and immediate feedback
• Communication – centralized setup &
inspection via Ethernet
• Versatile – app. 20 tools, 32
inspections per image
• Simplicity – auto-adjustment functions
for easy image setup
• Barcode & Datamatrix reading &
verification
Ordering Information
Controllers
Cameras
Appearance Power supply Circuit type Model DC21.6 to 26.4V NPN ZFX-C10-CD
PNP ZFX-C15-CD
Appearance Type Setting distance Sensing area Model Remarks
Camera with lighting Monochrome type 34mm to 49mm 5mm x 4.9mm to 9mm x 8.9mm (variable) ZFX-SR10 Cable length: 2m 38mm to 194mm 10mm x 9.8mm to 50mm x 49mm (variable) ZFX-SR50 Color type 34mm to 49mm 5mm x 4.9mm to 9mm x 8.9mm (variable) ZFX-SC10 34mm to 187mm 10mm x 9.8mm to 50mm x 49mm (variable) ZFX-SC50 ZFX-SC50W(IP67) 67mm to 142mm 50mm x 49mm to 90mm x 89mm (variable) ZFX-SC90 ZFX-SC90W(IP67) 115mm to 227mm 90mm x 89mm to 150mm x 148mm (variable) ZFX-SC150 ZFX-SC150W(IP67) Camera only Monochrome
type
The CCTV lens is selected according to the range of detection and the installation distance.
ZFX-S –
Color type ZFX-SC
Cables
Accessories
Specifications
Controller
Type Cable length Model Camera Cable*1*1.It is necessary for ZFX-S and ZFX-SC. ZFX-SR_/SC_ is a cable drawing out
type, it doesn't use it.
Normal type 3m, 8m ZFX-VS Robot cable type 3m ZFX-VSR Camera
Extension Cable
Normal type 3m ZFX-XC3A*2
*2.Up to two camera extension cables can be connected to the camera cable as
long as the total cable length between the controller and the camera does not exceed 19 m.
8m ZFX-XC8A*2
Robot cable type 3m ZFX-XC3AR*2
Parallel I/O Cable 2m, 5m ZFX-VP
RS-232C Cable 2m ZFX-XPT2A RS-422 Cable 2m ZFX-XPT2B Monitor Cable 2m, 5m FZ-VM Type Model Console ZFX-KP (2m / 5m) LCD Monitor FZ-M08
Panel Mount Adapters ZFX-XPM Optional
Lighting*1
*1.It is possible to ZFX-SC50 and ZFX-SC90 use it.
bar lighting ZFV-LTL01 bar double-lighting ZFV-LTL02 bar low-angle lighting ZFV-LTL04
light source for through beam
ZFV-LTF01
CCTV Lenses/Extension Tubes 3Z4S-LE series External Lighting 3Z4S-LT series Strobe Controller*2
*2.It is possible to ZFX-S and ZFX-SC use it. It uses it so that the controller may
control an external lighting.
Manufactured by MORITEX Corporation 3Z4S-LT
MLEK-C100E1TSX
Item ZFX-C10-CD ZFX-C15-CD
Number of connected cameras 1
Connectable camera ZFX-SR_/SC_/S/SC
Processing resolution When ZFX-SR_/SC_ is connected:464 (H) x464 (V) When ZFX-S/SC is connected:608 (H) x464 (V) Display LCD monitor 3.5" TFT color LCD (320 x 240 pixels)
Indicator "Measuring" indicator (color: green): RUN Trigger indicator (color: blue): ENABLE Judgment indicator (color: orange): OUTPUT Error indicator (color: red): ERROR
Exter-nal I/F
Parallel Interface Input 12 points (RESET, DSA, DI0 to 8, TRIG)
Output 22 points (OR, ERROR, RUN, ENABLE, GATE, STGOUT0, DO0 to 15)
Circuit type NPN PNP
Serial Interface USB2.0 1 port, FULL SPEED, MINI-B connector
RS-232C 1 port, max. 115200 bps (cannot be used simultaneously with RS-422 interface) RS-422 1 port, max. 115200 bps (cannot be used simultaneously with RS-232C interface) Network
communications
Ethernet 1 port, 100BASE-TX/10BASE-T
Monitor output Analog RGB output, 1 ch (resolution VGA: 640 x 480) Memory card I/F SD card slot 1 ch
Operation I/F Touch panel, key operation, console connection Main
functions
Number of registered banks 32 banks Number of setup items 32 items/1 bank Measurement
items
Shape inspection Pattern search, sensitive search Size inspection Area
Edge inspection Position, width, count Brightness/color inspection Brightness, HUE Application-based
inspection
Defects
Code reading Barcode (WPC(JAN/EAN/UPC), Code 39, Codebar (NW-7),
ITF (Interleaved 2 of 5), Code 93, Code 128, GS1-128, GS1 Databar, Pharmacode)
Datamatrix (ECC200, QR Code,MicroQR Code,PDF417,MicroPDF417, Maxi Code, AZtec Code, Codablock)
Postion correction 1 model search, 2 model search, position, area Support Image memory function Max. 100 images
Menu language Japanese/English (can be switched) Ratings Power supply voltage 21.6 to 26.4 VDC (including ripple)
Current consumption 1.5 A max.
Camera
Operation environment robustness
Ambient temperature range Operating: 0 to + 50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation) Ambient atmosphere No corrosive gases allowed
Degree of protection IP20 (IEC60529) Vibration resistance
(durability)
Vibration frequency: 10 to 150 Hz Single-amplitude: 0.35 mm Acceleration: 50 m/s2 10 times for 8 minutes
Shock resistance (destructive)
150 m/s2 3 times each in 6 directions
(up/down, left/right, forward/backward) Material Case: Polycarbonate (PC), Plate face: PMMA
Weight Approx. 620 g
Accessories Touch pen (ZFX-TP), Exhaust unit (ZFX-EU), Terminal block adapter (ZFX-XTB), Ferrite core (2 p'ces), Instruction Sheet
Item ZFX-SR10 ZFX-SR50 ZFX-SC10 ZFX-SC50 /SC50W ZFX-SC90 /SC90W ZFX-SC150 /SC150W ZFX-S (monochrome type) ZFX-SC (color type) Detection range (H x V) 5 mm x 4.9 mm to 9 mm x 8.9 mm (variable) 10 mm x 9.8 mm to 50 mm x 49 mm (variable) 5 mm x 4.9 mm to 9 mm x 8.9 mm (variable) 10 mm x 9.8 mm to 50 mm x 49 mm (variable) 50 mm x 49 mm to 90 mm x 89 mm (variable) 90 mm x 89 mm to 150 mm x 148 mm (variable)
The CCTV lens is selected according to the detection range and the setting dis-tance. Setting distance (L) 34 mm to 49 mm 38 mm to 194 mm 34 mm to 49 mm 31 mm to 187 mm 67 mm to 142 mm 115 mm to 227 mm Relationship between
setting distance and detection range
Image capture element All-pixel capture inter-line transfer type 1/3" CCD (monochrome)
All-pixel capture inter-line transfer type 1/3" CCD (color) All-pixel cap-ture inter-line transfer type 1/3" CCD (mono-chrome) All-pixel cap-ture inter-line transfer type 1/3" CCD (color)
Effective number of pixels 659(H) x 494 (V) Pixel size 7.4 µm (H) x 7.4 µm (V) Shutter speed 1/170s to 1/20000s Partial function
(partial capture)
OFF 1/2 partial, 1/4 partial Not available 1/2 partial, 1/4 partial Image rate function Fine, Normal, High speed Not available Fine,
Normal, High speed
Not available
Frame rate (at capture of entire screen)
96 fps 90 fps
Lens mount – (with Lens) C mount
Lighting Lighting method
Pulse lighting –
LED Red LED White LED
Type Direct lighting Guide light Available (center,
measurement region)
Not available
Optional lighting I/F
Not available Not available Available (ZFV-LT Series) Not available Available External lighting: 3Z4S-LT Series Flash Controller: made by Moritex Corporation 3Z4S-LT MLEK-C100E1TSX Indicator Class*1
– Class 1 Class 2 Class 2 Class 1 –
Ratings Power supply volt-age (sup-plied from Controller) 15 VDC 15 VDC, 48 VDC 15 VDC, 48 VDC Current consumption
Approx. 200 mA Approx. 350 mA (15 VDC: approx. 150 mA, 48 VDC: approx. 200 mA) (including current consumption when optional lighting is connected)
Operation environment robustness Ambient temperature range
Operating: 0 to + 40°C, Storage: -20 to +65°C (with no icing or condensation) Operating: 0 to + 50°C, Storage: -20 to +65°C (with no icing or condensa-tion)
Ambient hu-midity range
Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere
No corrosive gases allowed
Degree of protection
IP65 (IEC60529) ZFX-SC___: IP65 (IEC60529), ZFX-SC___W: IP67 (IEC60529)
IP20 (IEC60529)
Dielectric strength
1000 VAC 50 Hz/60 Hz 1 min 500VAC 50 Hz/60Hz
1 min Vibration
resistance (durability)
10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions
Shock resistance (destructive)
150 m/s2 3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method Cable built-in type (cable length: 2 m) Connector connection type (camera cable
ZFX-VS/VSR required) Material Case: ABS, mounting fixture: PBT Case: Aluminum die-cast,
Cover: Zinc-plated copper plate 0.5 mm thick, Camera mounting base: ABS
Weight Approx. 200 g (including mounting fixture and cable)
Approx. 270 g (including mounting fixture and cable) Approx. 300 g (including mounting fixture and cable) Approx. 600 g (including mounting fixture and cable) Approx. 80 g
Accessories mounting fixture (ZFV-XMF) 1 p'ce, Ferrite core 2 p'ce, Instruction Sheet mounting fixture (ZFV-XMF) 1 p'ce, Ferrite core 2 p'ces, Instruction Sheet mounting fixture (ZFV-XMF2) 1 p'ce, Ferrite core 2 p'ces, Warning label 1, Instruction Sheet mounting fixture (ZFV-XMF2) 1 p'ce, Ferrite core 2 p'ces, Warning label 1, Instruction Sheet Ferrite core 2 p'ces, Instruction Sheet Instruction Sheet
*1.Applicable standards IEC60825-1:1993 +A1:1997 +A2:2001, EN60825-1:1994 +A2:2001
CCTV Lenses
The CCTV Lenses and Extension Tubes described in this page are not yet released.
Optical Graph
If using the ZFX-S/SC Camera (Camera only), refer to the optical graph below and select the lens and Extension Tubes. The lens to be selected will depend on the size of the measurement object and the camera distance.
CCTV Lenses
CCTV Lens Model 3Z4S-LE ML-0614 3Z4S-LE ML-0813 3Z4S-LE ML-1214 3Z4S-LE ML-1614 3Z4S-LE ML-2514 3Z4S-LE ML-3519 3Z4S-LE ML-5018 3Z4S-LE ML-7527 3Z4S-LE ML-10035 Appearance Focal length 6 mm 8 mm 12 mm 16 mm 25 mm 35 mm 50 mm 75 mm 100 mm Brightness F1.4 F1.3 F1.4 F1.4 F1.4 F1.9 F1.8 F2.7 F3.5 Filter size M27 P05 M25.5 P0.5 M27 P0.5 M27 P0.5 M27 P0.5 M27 P0.5 M30 P0.5 M30 P0.5 M30 P0.5■ Meaning of Optical Graph
Camera Only ZFX-S/SC
The X axis of the graph shows the field of vision L (mm), and the Y axis shows the camera distance A (mm). Camera Extension Tube thickness: t (mm) Camera distance A (mm) Field of vision (mm) Lens
The value "t0" indicates applications where an Extension Tube is not needed and the value "t5" indicates applications where a 5-mm Extension Tube is used. 40 100 1000 10000 4 10 100 1000 ML-0614 ML-0813 ML-1214 ML-1614 ML-2514 ML-3519 ML-5018 t0 t0.5 t1 t0 t0.5 t1 t1.5 t0 t0.5 t1 t1.5 t2 t0 t0.5 t5 t1.5 t2 t15 t10 t0 t0.5 t1 t1.5 t1.5 t2 t5 t10 t20 t0 t0.5 t1 t2 t5 t10 t15 t20 t25 t1.5 t2 t10 t15 t20 t25 t30 t35 t40 t1 t5 t0 200 1000 10000 2 10 100 1000 ML-7527 ML-10035 t2 t5 t10 t15 t20 t30 t35 t50 t45 t5 t10 t15 t20 t25 t30 t40 t35 t45 t50 t60 t0 t2 t40 t25 t0 3Z4S-LE 3Z4S-LE Camer a distance A (mm) Camer a distance A (mm) Field of vision L (mm) Field of vision L (mm) t: Extension Tube length 30 dia.
30 30 dia. 34.5 30 dia. 34.5 30 dia. 24.5
24.5
(Unit: mm)
Controllers
ZFX-C10/15-CD
Optional Lighting
ZFV-LTL01
ZFV-LTL04
ZFV-LTL02
ZFV-LTF01
15 (9 0) 32 7.5 145 (130) 122 9 7.5 4.5 82 72 (130) 52 6.58 38.42 (75) 7 60.23 4 62 37.4 69 74 20 20±0.1 69±0.1 8±0.1 10.7 29 8 14 2000+1000Two sets of three, M3 Depth: 5
Two, M3 Depth: 5 20
P5.8 × 9 = 52.2
Mounting Hole Dimensions
Mounting Hole Dimensions
350+35 0 59.9 3.2 33 90° 140 165.4 100 20 20 140 165.4 100 20 20 20 2000+1000 85 85 62 Four, M4 (through-hole) P5.8 × 9 = 52.2 100±0.1 100±0.1
Mounting Hole Dimensions
100±0.1 100±0.1 59.9 85 85 140 3.2 33 100 20 20 140 100 20 20 165.4 350+35 0 2000+100 90° Four, M4 (through-hole) 20 62 P5.8 × 9 = 52.2
Mounting Hole Dimensions
0 74 74 2000 +100 0 103 1 70 70 109 Four, M3 Depth: 8 (light-emitting surface) (light- emitting surface) 22 74±0.1 74±0.1
Cameras
ZFX-SR10/SR50
ZFX-SC90/90W
ZFX-SC10
ZFX-SC150/150W
ZFX-SC50/50W
ZFX-S/SC
LCD Monitor
Console
FZ-M08
ZFX-KP
67.9 17.9 5.6 26.2 38.14 34 20 1/4-20UNC Depth 6 2-M4 Depth 6 Mounting hole dimensions 20 ± 0.1 2-M4Focus adjustment control
Heat-resistant PVC shielded cable 5.8 mm dia. standard length 2 m
Mounting brackets can be mounted on each side.
8 4 30 (6.36) 30 (6.36) 34 17.9 33.6 32 23.7 32 33.6 83.7 33 5.6 9.8 26.2 38.14 34 20 1/4-20UNC Depth 6 2-M4 Depth 6 38. 9
Mounting hole dimensions 20 ± 0.10
35.5 8.5 7 Output for external lighting
35.5 8.5
8.5
4
Focus adjustment control Heat-resistant PVC shielded cable 6.2 mm dia. standard length 2 m
8
Mounting brackets can be mounted on each side. 34 33 52.5 52.5 39 30.45 2-M4 0.8 17.9 5.6 67.9 26.2 38.14 1/4-20UNC Depth 6 34 20 33.6 2-M4 Depth 6 Mounting hole dimensions 20 ± 0.1 2-M4 30 (6.36) 30 (6.36) 4 8
Focus adjustment control Heat-resistant PVC shielded cable 5.8 mm dia. standard length 2 m
17.9 34 Mounting brackets can be mounted on each side. 32 32 33.6 23.7 110.2 59.5 38.14 26.2 Heat-resistant PVC shielded cable 6.2 mm dia. standard length 2 m 8 Mounting surface 35 57 98 12
Heat-/oil-resistant PVC shielded cable 5 mm dia. standard length 200 mm
2-M4, depth 6 U1/4-20UNC, depth 5 Mounting hole dimensions
2-M4 10 20 ± 0.1 10 140 140 Focus adjustment control 33 7 8.5 8.5 4 8.5 73.2 86 26.5 9.8 5.6 26.2 38.14 38. 9 34 20 1/4-20UNC Depth 6 2-M4 Depth 6 20 ± 0.1 Mounting hole dimensions
2-M4
Focus adjustment control Heat-resistant PVC shielded cable 6.2 mm dia. standard length 2 m
35.5 5 (6.36) (6.36) 3 8 35.5 8
Output for external lighting 34 26.5 52.5 52.5 30.45 39
Mounting brackets can be mounted on each side.
25.5 31 (15.5) 28 1"-32UN-2A (C mount) (14.5) 20 ± 0.1 1/4"-20UNC, depth 8 21.25 ± 2 2-M4, depth 8 (4.8) (8.8 mm dia.) (18.85) (2 9 .5) 31.25 ± 2 28 mm dia. 54.5 (6.3) 8 (46.5) 9 44.5 11 2 9 (130) (172) 230 (85.5) (6) (90) 221.5+0.5 -0 mm 161.5+0.5 -0 mm
Panel cutout dimensions
(12 9 .4) 171 (103.5) (31.5) 40
Mountable plate thickness: 1.6 to 4.8
75 4-M4 75 26 (173.4) (185) 161 220 20.5 48 135 18.6
