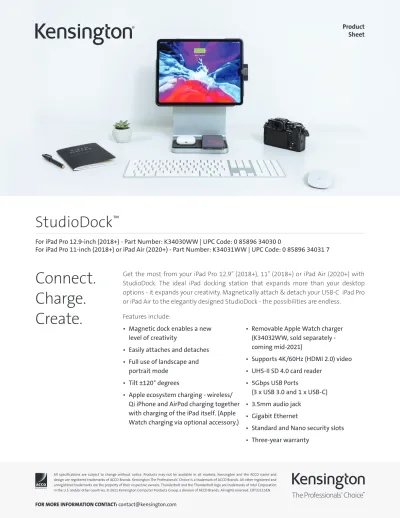

StudioDock
™
For iPad Pro 12.9-inch (2018+) - Part Number: K34030WW | UPC Code: 0 85896 34030 0
For iPad Pro 11-inch (2018+) or iPad Air (2020+) - Part Number: K34031WW | UPC Code: 0 85896 34031 7
Product
Sheet
Get the most from your iPad Pro 12.9” (2018+), 11” (2018+) or iPad Air (2020+) with
StudioDock. The ideal iPad docking station that expands more than your desktop
options - it expands your creativity. Magnetically attach & detach your USB-C iPad Pro
or iPad Air to the elegantly designed StudioDock - the possibilities are endless.
Features include:
• Magnetic dock enables a new
level of creativity
• Easily attaches and detaches
• Full use of landscape and
portrait mode
• Tilt ±120° degrees
• Apple ecosystem charging - wireless/
Qi iPhone and AirPod charging together
with charging of the iPad itself. (Apple
Watch charging via optional accessory.)
• Removable Apple Watch charger
(K34032WW, sold separately -
coming mid-2021)
• Supports 4K/60Hz (HDMI 2.0) video
• UHS-II SD 4.0 card reader
• 5Gbps USB Ports
(3 x USB 3.0 and 1 x USB-C)
• 3.5mm audio jack
• Gigabit Ethernet
• Standard and Nano security slots
• Three-year warranty
Connect.
Charge.
Create.
All specifications are subject to change without notice. Products may not be available in all markets. Kensington and the ACCO name and design are registered trademarks of ACCO Brands. Kensington The Professionals’ Choice is a trademark of ACCO Brands. All other registered and unregistered trademarks are the property of their respective owners. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries. © 2021 Kensington Computer Products Group, a division of ACCO Brands. All rights reserved. CBT32115EN
Unleash Creative Possibilities Magnetically attach and detach your USB-C iPad Pro 12.9” (2018+) or 11” (2018+) or iPad Air (2020+) to the elegantly designed StudioDock in portrait or landscape mode for a powerful desktop experience. No drivers required.
Apple Ecosystem Charging
In addition to rapid charging of your iPad (USB-C at 37.5W - 108% faster than the Apple charger), includes Qi wireless iPhone (up to 7.5W) and AirPod charging (up to 5W), as well as optional charging for Apple Watch up to 5W (K34032WW, sold separately - coming mid-2021).
Seeing is Believing
System Requirement
iPad Compatibility K34031WW: iPad Pro 12.9” (2018+)
K34030WW: iPad Pro 11” (2018+), iPad Air (2020+)
Operating System Support iPadOS 13.4 and later
Plug & Play No software installation required
Host Connectivity
Host Connector USB-C (37.5W: 15V/2.5A charging, USB3.2 Gen1 data and video)
Video Connections
Video Connector HDMI v2.0
Maximum Resolution Supported 4K @ 60Hz
USB Interface
All Ports Support up to 5Gbps transfer rate • 3 x USB-A 3.2 Gen1 Ports (5V/0.9A)
• 1 x USB-C 3.2 Gen1 Port (5V/3A & 9V/2.22A) • SD Card Reader: SD 4.0/UHS-II or better
Network Connections
Ethernet Port RJ45
Compatible Ethernet Speeds 10/100/1000 Mbps
Audio Connections
Audio Connectors 3.5mm combo audio port
Audio Channels Supported Stereo LR
Power and Environmental
Power Adapter Rating Input: 100~240V; 2.5A Output: 20V DC 6.75A (135W)
Operating Temperature Operating Temperature: 0 to 45°C (32 to 113°F) Storage Temperature: -20 to 65°C (-4 to 149°F) Relative Humidity: 10% to 95%
Technical
Specifications
StudioDock
™
For iPad Pro 12.9-inch (2018+) - Part Number: K34030WW | UPC Code: 0 85896 34030 0
For iPad Pro 11-inch (2018+) or iPad Air (2020+) - Part Number: K34031WW | UPC Code: 0 85896 34031 7
All specifications are subject to change without notice. Products may not be available in all markets. Kensington and the ACCO name and design are registered trademarks of ACCO Brands. Kensington The Professionals’ Choice is a trademark of ACCO Brands. All other registered and unregistered trademarks are the property of their respective owners. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries. © 2021 Kensington Computer Products Group, a division of ACCO Brands. All rights reserved. CBT32115EN
One Optional Removable Apple Watch
Charging Module Power: Up to 5W
Qi Wireless Charging 2 x Qi Wireless Charging Pads
Power: 5W each; iPhone fast charging compatible
Charging LED Indicator 1. No Charging, standby mode: LED off 2. During charging: BLUE
3. Error Occurred/Need realign device: RED, Flashing 4. Battery full, no need to charge: BLUE
Product Dimensions
Product Dimensions (K34030WW - 12.9in) Width: 301mm (11.85”) Depth: 195mm (7.68”) Height: 343mm (13.50”) Unit Weight: 2.74kg (6.04lbs)
Product Dimensions (K34031WW - 11in) Width: 268mm (10.55”) Depth: 195mm (7.68”) Height: 325mm (12.80”) Unit Weight: 2.6kg (5.73lbs)
Orientation Full use of landscape and portrait mode
Hinge Rotation ±90°
Tilt ±120°
Packaging Dimensions
Packaging Style Retail Box
Material Specifications
Enclosure PC+ABS with texture
Metal Sheet SECC
Qi Charging Area Heat Stamp Woven Fabric
Product Colour PMS Black; Cool Gray 7C
Country of Origin, Regulatory, and Warranty
Country of Origin China
Warranty 3-Year Limited – Worldwide
Certifications & Compliance FCC, IC, CE, RCM, VCCI, CB, RoHS, ACCO RSL, MFi and Qi Certified
Other Features and Special Notes
Kensington Security Slot 1
Kensington Nano Security Slot 1
Connector Magnetic Connection for iPad Pro
Technical
Specifications
StudioDock
™
For iPad Pro 12.9-inch (2018+) - Part Number: K34030WW | UPC Code: 0 85896 34030 0
For iPad Pro 11-inch (2018+) or iPad Air (2020+) - Part Number: K34031WW | UPC Code: 0 85896 34031 7
