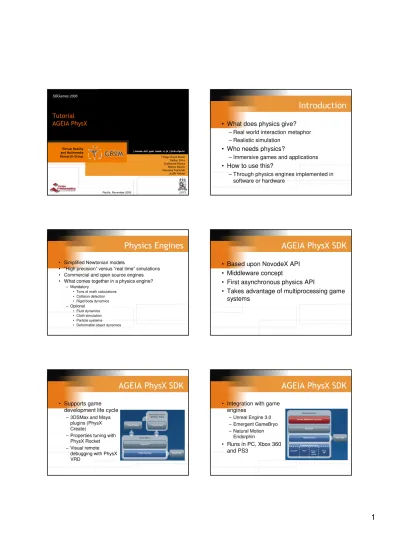

Introduction. AGEIA PhysX SDK. Physics Engines. AGEIA PhysX SDK. AGEIA PhysX SDK. Tutorial AGEIA PhysX. What does physics give? Who needs physics?

(1)

Virtual Reality and Multimedia Research Group

Tutorial

AGEIA PhysX

SBGames 2006

Thiago Souto Maior Daliton Silva Guilherme Moura Márcio Bueno Veronica Teichrieb Judith Kelner

{ mouse, ds2, gsm, masb, vt, jk } @cin.ufpe.br

Recife, November 2006

Introduction

• What does physics give?

– Real world interaction metaphor

– Realistic simulation

• Who needs physics?

– Immersive games and applications

• How to use this?

– Through physics engines implemented in

software or hardware

Physics Engines

• Simplified Newtonian models

• “High precision” versus “real time” simulations

• Commercial and open source engines

• What comes together in a physics engine?

– Mandatory

• Tons of math calculations • Collision detection • Rigid body dynamics

– Optional

• Fluid dynamics • Cloth simulation • Particle systems • Deformable object dynamics

AGEIA PhysX SDK

• Based upon NovodeX API

• Middleware concept

• First asynchronous physics API

• Takes advantage of multiprocessing game

systems

AGEIA PhysX SDK

• Supports game

development life cycle

– 3DSMax and Maya

plugins (PhysX

Create)

– Properties tuning with

PhysX Rocket

– Visual remote

debugging with PhysX

VRD

AGEIA PhysX SDK

• Integration with game

engines

– Unreal Engine 3.0

– Emergent GameBryo

– Natural Motion

Endorphin

• Runs in PC, Xbox 360

and PS3

(2)

AGEIA PhysX SDK

• Supports

– Complex rigid body dynamics

– Collision detection

– Joints and springs

– Volumetric fluid simulation

– Particle systems

– Cloth simulation

– Soft body simulation

AGEIA PhysX Processor

• AGEIA PhysX PPU

• Powerful PPU +

CPU + GPU

– Physics + Math +

Fast Rendering

Other Physics Engines

• Open source

– Open Dynamics Engine (ODE)

– Bullet Physics Library

• Free

– TOKAMAK

– Newton

• Commercial

– Havok FX

Download

• Account registration required

• http://devsupport.ageia.com

• 1-3 business days

Download

• Download section

• SDK version selection

Download

• AGEIA Driver

• System Software

(3)

License

• Free license

– Non-commercial use

– PS3 platform (through Sony pre-purchase)

– Through some middleware partnerships

• UE3, Gamebryo 2.2, etc

– PC platform (if makes use* of PhysX HW)

• $50k per platform

– All other uses

Installation

• System requirements

– Windows XP or Vista RC-1

• Most recent Service Pack

– 512MB of system memory

– At least 150MB of free HD space

– PCI expansion slot for PPU

– Additional 4-pin molex power connector

Installation

• PPU Driver and System Software

– Run samples

• PhysX SDK Core

– Header and lib files

– Documentation

Documentation

• Documents

– Windows help file containing PhysX API

• Samples

– Source codes and executables covering most of

PhysX features

• Training Programs

– Documents,

overview and

source code

Architecture & Components

World (PhysX SDK)

Architecture: World

NxPhysicsSDK * myWorld =

(4)

Architecture: Scene

• Scene

– Collection of every interactive element

• Bodies

• Constraints

• Effectors

Architecture: Actor

• Actor

– Main simulation object

• Dynamic

• Static

NxPlaneShapeDesc planeDesc; NxActorDesc actorDesc;

actorDesc.shapes.pushBack(&planeDesc);

NxActor *staticActor = gScene->createActor(actorDesc);

Architecture: Shapes

• Shapes

Architecture: Shapes

• Box Shape

NxBoxShapeDesc boxDesc; boxDesc.dimensions.set(0.5f, 0.5f, 0.5f);

NxBoxShape *boxShape = actor->createShape(boxDesc)->isBox();

Architecture: Shapes

• Capsule Shape

– Defined by a radius

and a height

NxCapsuleShapeDesc capsuleDesc; capsuleDesc.height = 2.0f; capsuleDesc.radius = 0.5f; NxCapsuleShape *capsuleShape=actor->createShape(capsuleDesc)->isCapsule();

Architecture: Shapes

• Convex Shape

(5)

Architecture: Shapes

NxVec3 verts[8] = { NxVec3(-1,-1,-1),NxVec3(-1,-1,1), NxVec3(-1,1,-1),NxVec3(-1,1,1), NxVec3(1,-1,-1),NxVec3(1,-1,1), NxVec3(1,1,-1),NxVec3(1,1,1) }; NxU32 vertCount = 8; NxConvexMeshDesc convexDesc; convexDesc.numVertices = vertCount; convexDesc.pointStrideBytes = sizeof(NxVec3); convexDesc.points = verts; convexDesc.flags = NX_CF_COMPUTE_CONVEX; MemoryWriteBuffer buf;

bool status = NxCookConvexMesh(convexDesc, buf);

NxConvexMesh *mesh = gPhysicsSDK->createConvexMesh(MemoryReadBuffer(buf.data)); NxConvexShapeDesc convexShapeDesc;

convexShapeDesc.meshData = mesh;

NxConvexShape *convexShape=actor->createShape(convexShapeDesc)->isConvex();

Architecture: Shapes

• Height Field Shape

– Height Field Map to generate a collision

terrain

Architecture: Shapes

NxHeightFieldDesc heightFieldDesc; heightFieldDesc.nbColumns = nbColumns; heightFieldDesc.nbRows = nbRows; heightFieldDesc.verticalExtent = -1000; heightFieldDesc.convexEdgeThreshold = 0;

heightFieldDesc.samples = new NxU32[nbColumns*nbRows]; heightFieldDesc.sampleStride = sizeof(NxU32); NxU8* currentByte = (NxU8*)heightFieldDesc.samples; for (NxU32 row = 0; row < nbRows; row++)

{

for (NxU32 column = 0; column < nbColumns; column++) {

NxHeightFieldSample* currentSample = (NxHeightFieldSample*)currentByte; currentSample->height = computeHeight(row,column); currentSample->materialIndex0 = gMaterial0; currentSample->materialIndex1 = gMaterial1; currentSample->tessFlag = 0; currentByte += heightFieldDesc.sampleStride; } }

NxHeightField* heightField = gScene->getPhysicsSDK().createHeightField(heightFieldDesc);

Architecture: Shapes

NxHeightFieldShapeDesc heightFieldShapeDesc; heightFieldShapeDesc.heightField = heightField; heightFieldShapeDesc.heightScale = gVerticalScale; heightFieldShapeDesc.rowScale = gHorizontalScale; heightFieldShapeDesc.columnScale = gHorizontalScale; heightFieldShapeDesc. = 0; heightFieldShapeDesc.holeMaterial = 2; NxHeightFieldShape *heightFieldShape= actor->createShape(heightFieldShapeDesc)->isHeightField();

Architecture: Shapes

• Plane Shape

– Default: y = 0

– Defined by a Normal

and the distance

from the origin

NxPlaneShapeDesc planeDesc; planeDesc.normal = NxVec3(0.0f,1.0f,0.0f); planeDesc.d = 10.0f; NxPlaneShape *planeShape=actor->createShape(planeDesc)->isPlane();

Architecture: Shapes

• Sphere Shape

– Defined by

a radius

NxSphereShapeDesc sphereDesc; sphereDesc.radius = 1.0f; NxSphereShape *sphereShape=actor->createShape(sphereDesc)->isSphere();

(6)

Architecture: Shapes

• Triangle Mesh Shape

NxTriangleMeshShapeDesc meshShapeDesc; meshShapeDesc.meshData = triangleMesh; NxTriangleMeshShape *triangleMeshShape= actor->createShape(meshShapeDesc)->isTriangleMesh();

Architecture: Shapes

• Wheel Shape

– Radius

– Suspension travel

– Motor torque

– Brake torque

– Steer angle

– Raycast from shape’s

origin along the axis

• Hard contact • Soft suspension • No contact

Architecture: Joints

• Joints

– Connections between rigid bodies

Architecture: Materials

• Materials

– Shape surface properties

• Friction

• Restitution

Architecture: Materials

NxMaterialDesc material; material.restitution = 0.0f; material.staticFriction = 0.1f; material.dynamicFriction = 0.1f; material.dynamicFrictionV = 0.8f; material.staticFrictionV = 1.0f; material.dirOfAnisotropy.set(0,0,1); material.flags = NX_MF_ANISOTROPIC; NxMaterial *anisoMaterial = gScene->createMaterial(material); NxMaterial* defaultMaterial = gScene->getMaterialFromIndex(0); defaultMaterial->setRestitution(0.5); defaultMaterial->setStaticFriction(0.5); defaultMaterial->setDynamicFriction(0.5); Anisotropic material Default material

Mathematical Support

• Based on

– NxMath

– NxMat33

– NxMat34

– NxVec3

– NxQuat

• Storage format independent

– According to row or column major

(7)

NxMath

• Container with static math operations

• Conversion between degrees and radians

• Functions

– min, max, floor, ceil, sqrt

– Logarithm functions in common bases

– Trigonometric functions

– Some constants like NxPi, NxHalfPi, NxTwoPi

and NxInvPi

NxMat33

• Abstraction to 3x3 matrix

• Represent rotations or inertia tensors

• Implements operators

– Sum and subtraction (+/-)

– Matrix and scalar product (*)

• Other operations like inverting and

transposing are also available

NxMat33

• Example

– Given a vector in world space, how to

transform it into local space?

NxVec3 localVec, worldVec; NxMat33 orient, invOrient; worldVec = NxVec3(0,0,1);

orient = actor->getGlobalOrientation(); orient.getInverse(invOrient);

localVec = invOrient * worldVec;

NxMat34

• Wrapper class encapsulates

– NxMat33 (rotation)

– NxVec3 (translation)

• Public attributes: M and t

• Conversions to 4x4 rendering matrix

formats

• Operator product (*)

NxMat34

• Example

– Given a position in the world space, how to

transform it into the local space?

NxActor* actor; ...

NxVec3 localPos, worldPos; NxMat34 mat, invMat; worldPos = NxVec3(0,0,1); mat = actor->getGlobalPose(); mat.getInverse(invMat); localPos = invMat * worldPos;

NxVec3

• Can represent a point or a vector

• Attributes: x, y, z

• Direct or array-like access

• Implements vectors’ arithmetic, including

cross product, dot product and others

operations related to vectors

(8)

NxQuat

• Quaternion representation

• Hamiltonian Arithmetic

• Attributes: x, y, z, w

• Used to represent a rotation

– Axis and angle

• Concatenation through product (*), like matrixes

• Rotations can be applied to points and vectors

– rot method

• Interpolation between two orientations

– Slerp

– Quaternion is used as keyframe

NxQuat

• Example

– How to transform a quaternion into its

correspondent 3x3 matrix?

NxQuat q; q.fromAngleAxis(90, NxVec3(0,1,0)); ... NxMat33 orient; orient.fromQuat(q);

Scene

• Declaring variables

static NxPhysicsSDK* gPhysicsSDK = NULL; static NxScene* gScene = NULL;

static NxVec3 gDefaultGravity(0.0f, -98.1f, 0.0f); static ErrorStream gErrorStream;

Scene

• Initializing the World

gPhysicsSDK =

NxCreatePhysicsSDK(NX_PHYSICS_SDK_VERSION, NULL, &gErrorStream);

Scene

• Setting DEBUG information

// setParameter(VISUALIZATION_TYPE, TRUE|FALSE);

gPhysicsSDK->setParameter(NX_VISUALIZE_COLLISION_SHAPES, 1);

Scene

• Creating the Scene

NxSceneDesc sceneDesc;

sceneDesc.gravity = gDefaultGravity;

sceneDesc.userTriggerReport = &gMySensorReport; gScene = gPhysicsSDK->createScene(sceneDesc);

(9)

Scene

• Defining a Material

NxMaterial * defaultMaterial = gScene->getMaterialFromIndex(0); defaultMaterial->setRestitution(0.0f); defaultMaterial->setStaticFriction(0.0f); defaultMaterial->setDynamicFriction(0.0f);

Scene

• Creating a floor

NxPlaneShapeDesc PlaneDesc; NxActorDesc ActorDesc; ActorDesc.shapes.pushBack(&PlaneDesc); gScene->createActor(ActorDesc);

Scene

• Empty Scene

Actors

• Physical objects

• Static, dynamic or kinematic

Static versus Dynamic

• Static

– Take part of the landscape

– Non-moving characters, buildings...

– Provide only collision detection

• Dynamic

– Have mass, momentum and inertia

– Called “bodies”

– Movable objects

Creating Actors

• Create actor description

– Set density, global pose, optional body

description

// Create a dynamic 'box' actor. // A dynamic actor has a non NULL body.

NxActorDesc actorDesc; NxBodyDesc bodyDesc;

actorDesc.setToDefault();//reset to default values.

actorDesc.body = &bodyDesc; actorDesc.density = 10;

// set initial position.

(10)

Creating Actors

• Create the collision model

– Create shape descriptions

– Add to the shape repository

NxBoxShapeDesc boxDesc;

// The actor has one shape, a 1m cube.

boxDesc.dimensions.set(0.5f,0.5f,0.5f); actorDesc.shapes.pushBack(&boxDesc);

Creating Actors

• Edit body description

– Set body flags

– Inertia tensor

– Mass

– Center of mass

– Force and torque

NxBodyDesc body; body.setToDefault(); body.flags |= NX_BF_KINEMATIC; NxActorDesc actDesc; actDesc.body = &body;

Creating Actors

• Finally, create the Actor

NxActor *dynamicActor=gScene->createActor(actorDesc);

Creating Actors

//moves and/or rotates a kinematic actor

void moveGlobalPose (const NxMat34 &mat);

//moves a kinematic actor

void moveGlobalPosition (const NxVec3 &vec);

//rotates a kinematic actor using a rotation matrix

void moveGlobalOrientation (constNxMat33 &mat);

//rotates a kinematic actor using a quaternion

void moveGlobalOrientationQuat (const NxQuat &quat);

• Kinematic handling methods

Materials

• Realistic collision reaction

• Bonded to shapes

• Shapes always have an assigned material

(default)

• Materials are global (use index as id)

• Material properties

– Restitution [0,1]

– Static friction [0, +inf)

– Dynamic friction [0,1]

Creating Materials

NxMaterialDesc materialDesc; materialDesc.restitution= 0.7f; materialDesc.staticFriction= 0.5f; materialDesc.dynamicFriction= 0.5f; NxMaterial *newMaterial = gPhysicsSDK->createMaterial(materialDesc); NxActorDesc actorDesc; NxBoxShapeDesc boxDesc; boxDesc.dimensions.set(4,4,5); boxDesc.materialIndex = newMaterial->getMaterialIndex(); actorDesc.shapes.pushBack(&boxDesc);

(11)

Elements Interaction

• Interaction through force and torque

application

– Force controls the acceleration and, indirectly,

velocity and position

Force

Elements Interaction

• Interaction through force and torque

application

– Torque controls the rotational acceleration

Torque

Elements Interaction

void addForce(const NxVec3 &, NxForceMode); void addLocalForce(constNxVec3 &, NxForceMode); void addTorque(constNxVec3 &, NxForceMode); void addLocalTorque(const NxVec3 &, NxForceMode);

Elements Interaction

voidaddForceAtPos(const NxVec3 & force, const NxVec3 &

pos, NxForceMode);

voidaddForceAtLocalPos(constNxVec3 & force, const NxrVec3 & pos, NxForceMode); voidaddLocalForceAtPos(constNxVec3 & force, const

NxVec3 & pos, NxForceMode); voidaddLocalForceAtLocalPos(constNxVec3 & force,

const NxVec3 & pos, NxForceMode);

Elements Interaction

• Some force modes

– NX_FORCE

– NX_IMPULSE

– NX_ACCELERATION

Joints

• Represent

connections between

bodies

– Different types improve

simulation realism

– Particular parameters

(12)

Joints

• Different types

revolute

distance point in plane

point on line pulley

motorized

Joints: Spherical

• Spherical

– Have three

degrees of freedom

– Shoulder joints,

ball-and-socket

joints

Joints: Spherical

NxSphericalJoint*

CreateSphericalJoint(NxActor* a0, NxActor* a1) { NxSphericalJointDesc sphericalDesc; sphericalDesc.actor[0] = a0; sphericalDesc.actor[1] = a1; sphericalDesc.setGlobalAnchor(globalAnchor); sphericalDesc.setGlobalAxis(globalAxis); sphericalDesc.flags |= NX_SJF_SWING_LIMIT_ENABLED; sphericalDesc.swingLimit.value = 0.3*NxPi; sphericalDesc.flags |= NX_SJF_TWIST_LIMIT_ENABLED; sphericalDesc.twistLimit.low.value = -0.05*NxPi; sphericalDesc.twistLimit.high.value = 0.05*NxPi; return (NxSphericalJoint*)gScene->createJoint(sphericalDesc); }

Joints: Revolute

• Revolute

– Called the “hinge” joint

– Represent the hinge on a door

Joints: Revolute

NxRevoluteJoint* CreateRevoluteJoint(NxActor* a0, NxActor* a1, NxVec3 globalAnchor, NxVec3 globalAxis) { NxRevoluteJointDesc revDesc; revDesc.actor[0] = a0; revDesc.actor[1] = a1; revDesc.setGlobalAnchor(globalAnchor); revDesc.setGlobalAxis(globalAxis); revDesc.jointFlags |= NX_JF_COLLISION_ENABLED; return (NxRevoluteJoint*)gScene->createJoint(revDesc); }

Joints: Prismatic

• Prismatic

– The global anchor will be set and the top of

the lower actor and two limit planes will be set

at the boundaries of the upper actor

(13)

Joints: Cylindrical

• Cylindrical

– Free to rotate around

the primary axis like a

revolute joint

– Setup is identical to the

prismatic joint, as well

as the creation function

Joints: Fixed

• Fixed

– Unite two actors, without any degree of

freedom

– Implementation is identical to the other joints

Joints: Distance

• Distance

– Connects two

actors by a rod

– Each end of the rod

is attached to an

anchor point on

each actor

– Has two anchor

points

NxVec3 anchor1 = NxVec3(0,1,0);

Joints: PIP

• Point in plane

– Allows its actors to rotate about all axes

with respect to each other and translate

along two axes

Joints: PIP

NxPointInPlaneJoint* CreatePointInPlaneJoint(NxActor* a0, NxActor* a1, NxVec3 globalAnchor, NxVec3 globalAxis) { NxPointInPlaneJointDesc pipDesc; pipDesc.actor[0] = a0; pipDesc.actor[1] = a1; pipDesc.setGlobalAnchor(globalAnchor); pipDesc.setGlobalAxis(globalAxis); pipDesc.jointFlags |= NX_JF_COLLISION_ENABLED; NxJoint* joint = gScene->createJoint(pipDesc); returnjoint->isPointInPlaneJoint();

}

Joints: PIP

void InitNx()

{

NxJoint* jointPtr = &pipJoint->getJoint(); jointPtr->setLimitPoint(globalAnchor); jointPtr->addLimitPlane(NxVec3(1,0,0), globalAnchor – 5*NxVec3(1,0,0)); jointPtr->addLimitPlane(NxVec3(-1,0,0), globalAnchor + 5*NxVec3(1,0,0)); jointPtr->addLimitPlane(NxVec3(0,0,1), globalAnchor – 5*NxVec3(0,0,1)); jointPtr->addLimitPlane(NxVec3(0,0,-1), globalAnchor + 5*NxVec3(0,0,1)); }

(14)

Joints: POL

• Point on line

– Analogous to PIP but with a line in place

of the plane

Joints: POL

voidInitNx()

{

NxJoint* jointPtr = &polJoint->getJoint(); jointPtr->setLimitPoint(globalAnchor);

// Add left-right limiting planes

jointPtr->addLimitPlane(-globalAxis, globalAnchor + 5*globalAxis); jointPtr>addLimitPlane(globalAxis, globalAnchor -5*globalAxis); … }

Joints: Pulley

• Pulley

– Can make a pulley system

more complicated than just a

wheel

Joints: Pulley

NxPulleyJoint* CreatePulleyJoint(NxActor* a0, NxActor* a1, const

NxVec3& pulley0, constNxVec3& pulley1, constNxVec3& globalAxis, NxReal distance, NxReal ratio)

{ NxPulleyJointDesc pulleyDesc; pulleyDesc.actor[0] = a0; pulleyDesc.actor[1] = a1; pulleyDesc.localAnchor[0] = NxVec3(0,2,0); pulleyDesc.localAnchor[1] = NxVec3(0,2,0); pulleyDesc.setGlobalAxis(globalAxis); pulleyDesc.pulley[0] = pulley0; pulleyDesc.pulley[1] = pulley1; pulleyDesc.distance = distance; pulleyDesc.ratio = ratio; pulleyDesc.flags = NX_PJF_IS_RIGID; pulleyDesc.stiffness = 1; pulleyDesc.jointFlags |= NX_JF_COLLISION_ENABLED; return(NxPulleyJoint*)gScene->createJoint(pulleyDesc); }

Joints: Parameters

• Parameters

– Joint Limits

– Breakable Joints

– Joint Motor

– Joint Spring

Joints: Parameters

• Parameters: Joint Limits

– Restricts the movement of the bodies united

by the joint

NxRevoluteJointDesc revDesc;

// Enable and set up joint limits

revDesc.flags |= NX_RJF_LIMIT_ENABLED; revDesc.limit.high.value = 0.25*NxPi; revDesc.limit.high.restitution = 1; revDesc.limit.low.value = 0; revDesc.limit.low.restitution = 1;

(15)

Joints: Parameters

• Parameters: Breakable Joints

– Define a maximum force and torque supported by

joint

– Revolute or Spherical

– Support only fixed values (do not support intervals)

{

NxRevoluteJointDesc revDesc; ...

NxJoint* joint = gScene->createJoint(revDesc); NxReal maxForce = 2000; NxReal maxTorque = 100; joint->setBreakable(maxForce,maxTorque); return(NxRevoluteJoint*)joint; }

Joints: Parameters

• Parameters: Joint Motor

– Supplies a relative torque between two bodies

– Revolute or Spherical

{ NxRevoluteJointDesc revDesc; ... revDesc.flags |= NX_RJF_MOTOR_ENABLED; NxMotorDesc motorDesc; motorDesc.velTarget = 1000; motorDesc.maxForce = 500; motorDesc.freeSpin = true; revDesc.motor = motorDesc; return (NxRevoluteJoint*)gScene->createJoint(revDesc); }

Joints: Parameters

• Parameters: Joint Spring

– Generates a similar effect to a real spring

{ NxRevoluteJointDesc revDesc; … revDesc.flags |= NX_RJF_SPRING_ENABLED; NxSpringDesc springDesc; springDesc.spring = 5000; springDesc.damper = 50; springDesc.targetValue = 0.5*NxPi; revDesc.spring = springDesc; return(NxRevoluteJoint*)gScene->createJoint(revDesc); }

Collision Detection

• Used to create Triggers

• Used to select or pick objects (Raycasting)

• May supply a contact report that contains

details about the collisions occurred

– User may change the environment

• May work without programmer’s

interaction

Raycasting

• Collision detection with rays

• Used for

– Mouse picking

– Line of sight

– Calculating distances

– Simulating shooting

• Executed by NxScene

Raycasting

• raycastAnyBounds, raycastAnyShape

– Returns a boolean

• raycastClosestBounds, raycastClosestShape

– Returns closest shape and distance

• raycastAllBounds, raycastAllShapes

– Returns the number of shapes stabbed and enumerates using an user raycast report

• Parameters

– NxRay attributes

• orig and dir (normalized)

– Shape type

• NX_STATIC_SHAPES, NX_DYNAMIC_SHAPES, NX_ALL_SHAPES

(16)

Raycasting

NxRay worldRay; worldRay.dir = NxVec3(0.0f, 0.0f, 1.0f); worldRay.orig = NxVec3(0.0f, 0.0f, 0.0f); if(gScene->raycastAnyShapes(worldRay, NX_ALL_SHAPES)) {

//the ray hit something ...

}

NxRay worldRay;

worldRay.dir = NxVec3(0.0f, 0.0f, 1.0f); worldRay.orig = NxVec3(0.0f, 0.0f, 0.0f); NxRaycastHit hit;

gScene->raycastClosestShapes(worldRay, NX_ALL_SHAPES, hit); NxActor &s = hit.shape->getActor();

//do something to the actor

Raycasting

classMyRaycastReport : publicNxUserRaycastReport {

virtual boolonHit(constNxRaycastHit& hit) {

NxActor &hitActor = hit.shape->getActor();

//The ray hit an actor, do something...

return true; } }gMyReport; ... NxRay worldRay; worldRay.dir = NxVec3(0.0f, 0.0f, 1.0f); worldRay.orig = NxVec3(0.0f, 0.0f, 0.0f); gScene->raycastAllShapes(worldRay, gMyReport, NX_ALL_SHAPES);

Raycasting

• NxRaycastHit

– Shape

– World impact point

– World impact normal

– Barycentric coordinates of the hit face

– Material index and distance to the ray origin

Triggers

• Detect shape’s presence in specific zones

• Simulate presence sensors, surveillance areas,

automatic doors...

• Event handling using a report

• Implemented with special shapes

– Permit shapes to pass through it

– Generate events

• NX_TRIGGER_ON_ENTER • NX_TRIGGER_ON_LEAVE • NX_TRIGGER_ON_STAY

Creating a Trigger

// This trigger is a cube

NxBoxShapeDesc boxDesc;

boxDesc.dimensions = NxVec3(10.0f, 10.0f, 10.0f); boxDesc.shapeFlags |= NX_TRIGGER_ENABLE;

NxActorDesc actorDesc;

actorDesc.shapes.pushBack(&boxDesc);

NxActor * triggerActor = gScene->createActor(actorDesc);

Creating a Trigger Report

class SensorReport : publicNxUserTriggerReport

{

virtual voidonTrigger(NxShape& triggerShape, NxShape& otherShape, NxTriggerFlag status) {

if(status & NX_TRIGGER_ON_ENTER) {

NxActor& triggerActor = triggerShape.getActor(); NxActor& actor = otherShape.getActor(); }

if(status & NX_TRIGGER_ON_LEAVE) {

NxActor& triggerActor = triggerShape.getActor(); NxActor& actor = otherShape.getActor(); }

}

(17)

Setting the Trigger Report

• After creating a trigger report, the

programmer has to tell the scene to use

this report

gScene->setUserTriggerReport(&gMySensorReport);

Contact Report

• User defined reports called when a

collision happens

• Handles generic collisions

– Adds sound

– Makes mesh deformation

• User must subclass NxUserContactReport

Contact Report

class MyContactReport : publicNxUserContactReport {

voidonContactNotify(NxContactPair& pair, NxU32 events) { //... you can read the contact information out of // the contact pair data here.

} } myReport;

• NxUserContact implementation

Contact Report

• NxContactPair attributes

//the two actors that make up the pair

NxActor *actors[2];

//a stream that can be readed by an NxContactStreamIterator.

NxConstContactStream stream;

//the total contact normal force that was applied for //this pair, to maintain nonpenetration constraints

NxVec3 sumNormalForce;

//the total tangential force that was applied for this pair

NxVec3 sumFrictionForce;

Contact Report

• To set the contact report

• Collision groups

– Shape: 32

• Disabling collision groups

– Actor: 32767

scene->setUserContactReport(&myReport);

NxScene::setGroupCollisionFlag(CollisionGroup g1, CollisionGroup g2, boolenable);

Contact Report

//to set all flags in a single pair of actors

scene->setActorPairFlags(actor0, actor1, NX_NOTIFY_ON_START_TOUCH | NX_NOTIFY_ON_END_TOUCH | NX_NOTIFY_ON_TOUCH);

//to set flags using groups you must set the actor's group before

actor0.setGroup(1); actor1.setGroup(1); actor2.setGroup(23); actor3.setGroup(7);

//now set the flags

scene->setActorGroupPairFlags(1,23, NX_NOTIFY_ON_START_TOUCH | NX_NOTIFY_ON_END_TOUCH);
